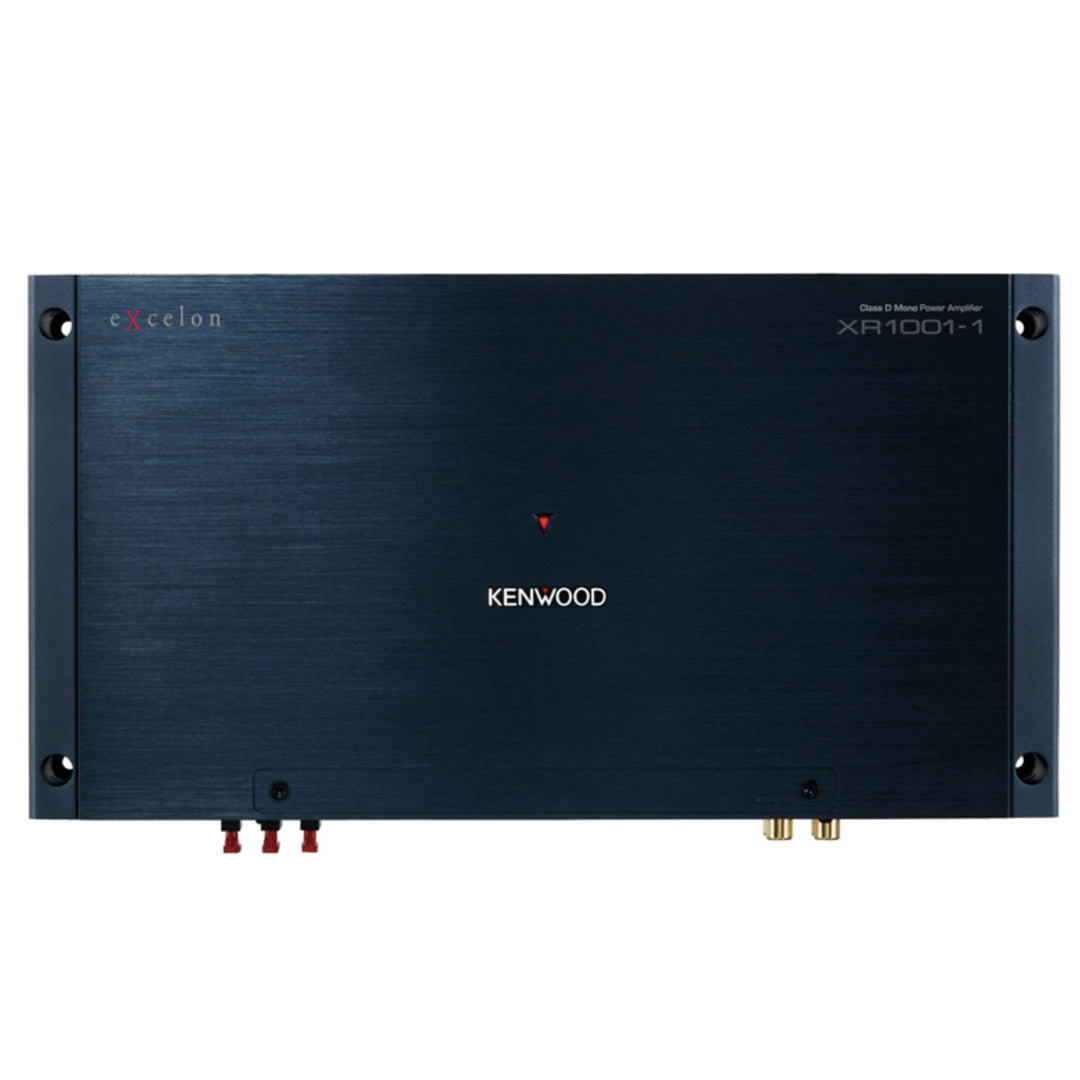

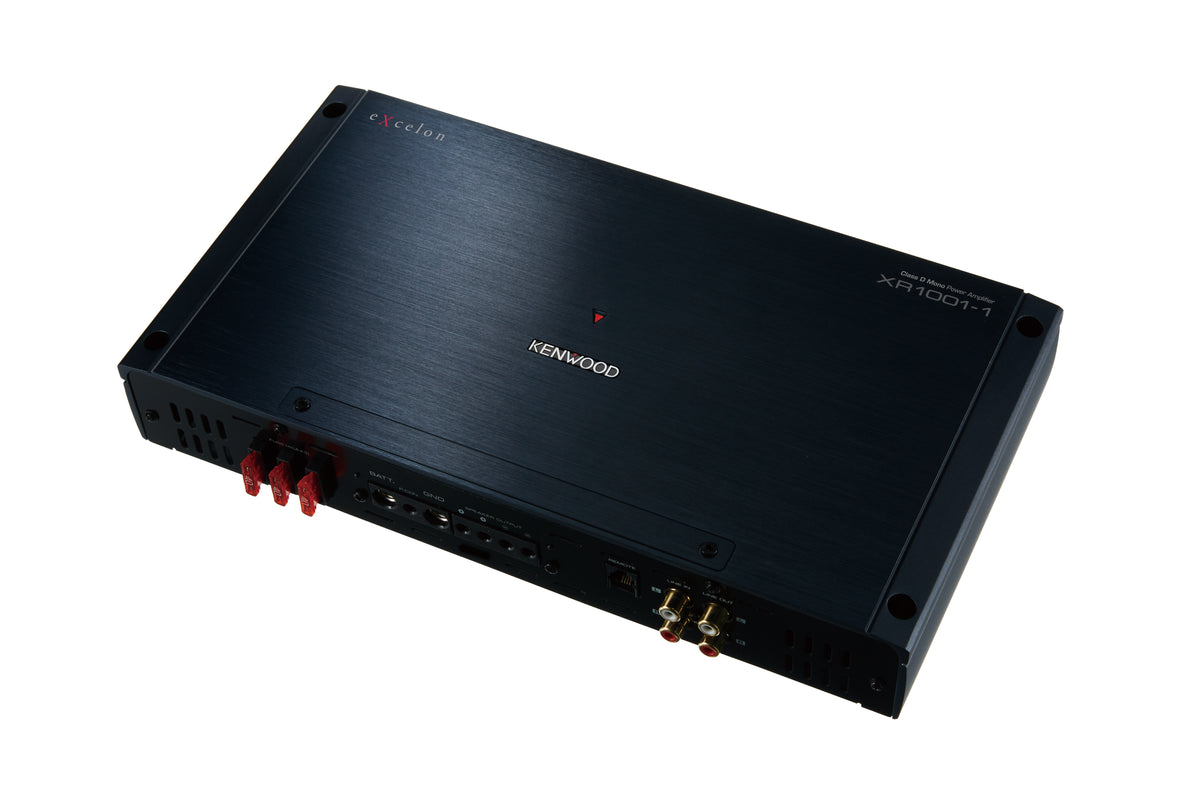

Kenwood XR1001-1
eXcelon Reference Class D Mono Car Amplifier, 1000W RMS
Serious Power for Your Subwoofer
The Kenwood XR1001-1 is a Class D mono amplifier built to deliver strong, clean power to your subwoofer. It produces 500W RMS at 4 ohms and 1000W RMS at 2 ohms, giving you the power needed for a high output bass system.
Built for Strong Bass
The XR1001-1 includes a variable low pass filter, infrasonic filter, and bass boost control so you can fine tune the amplifier to your system. Bass boost can be adjusted from 0dB to +18dB at 40Hz.
Efficient Class D Design

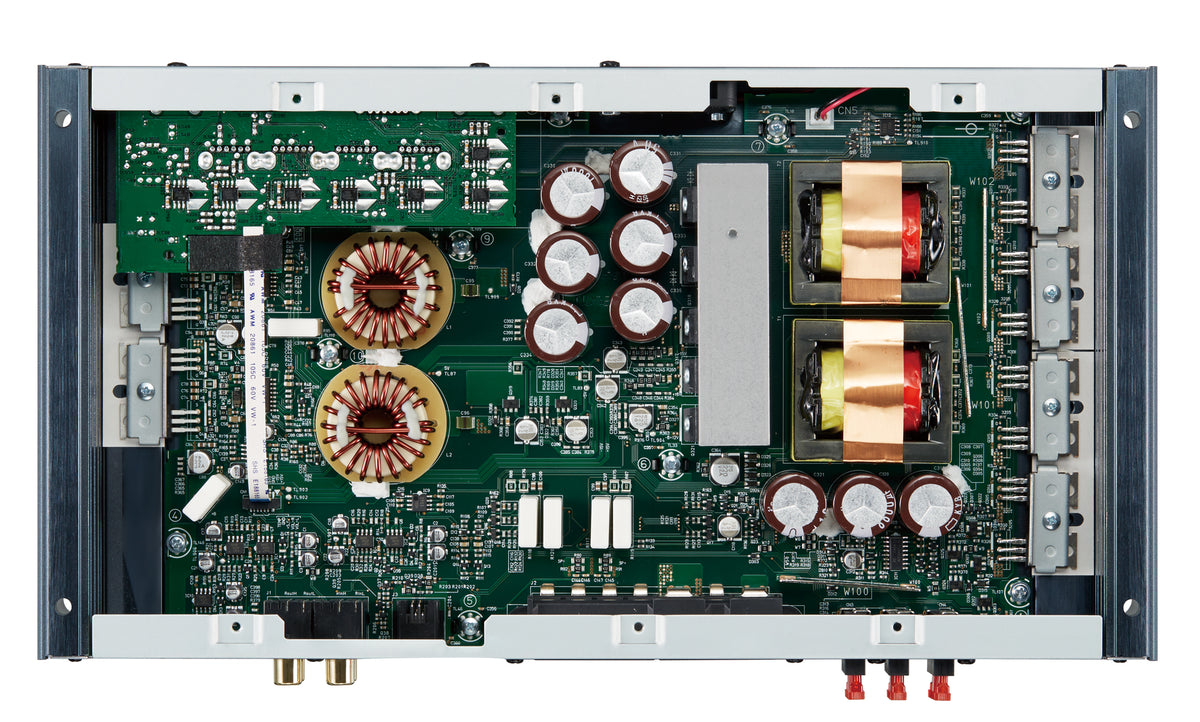

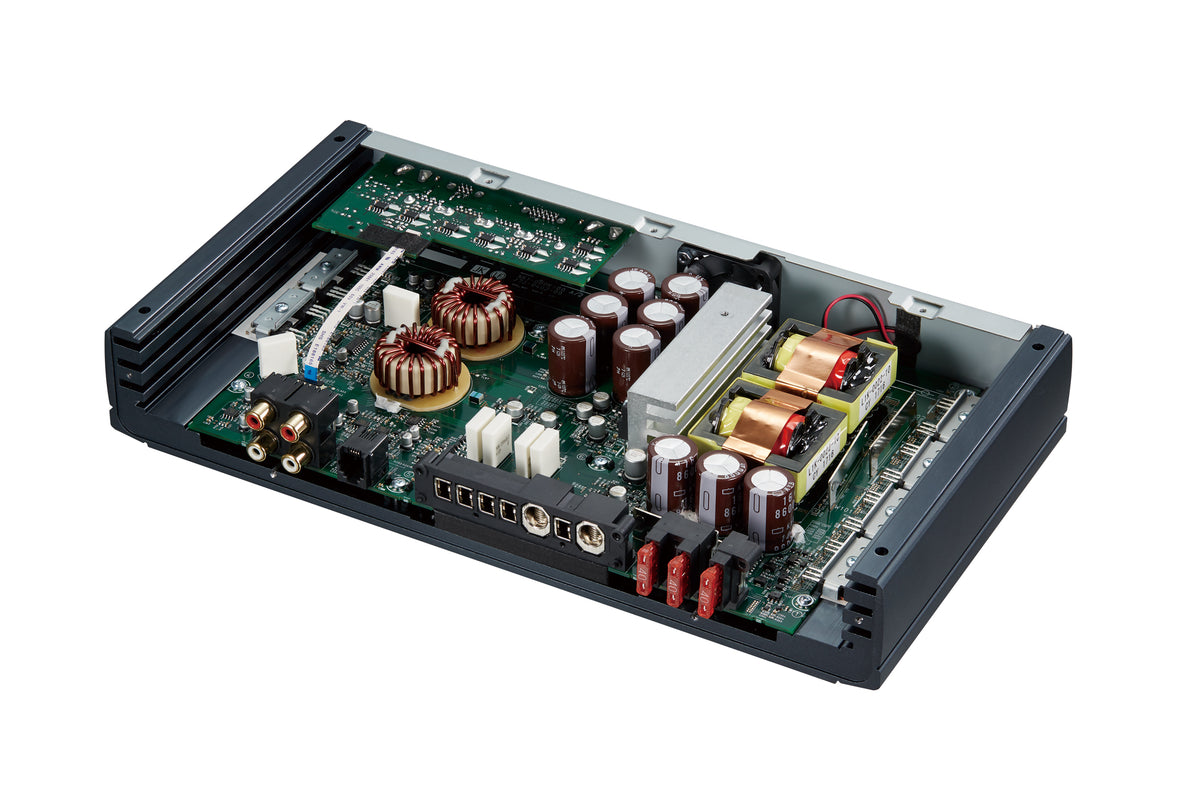

The Class D design provides high power output in a compact chassis. A cooling fan and extruded aluminum heat sink help manage heat during operation.
Easy System Integration

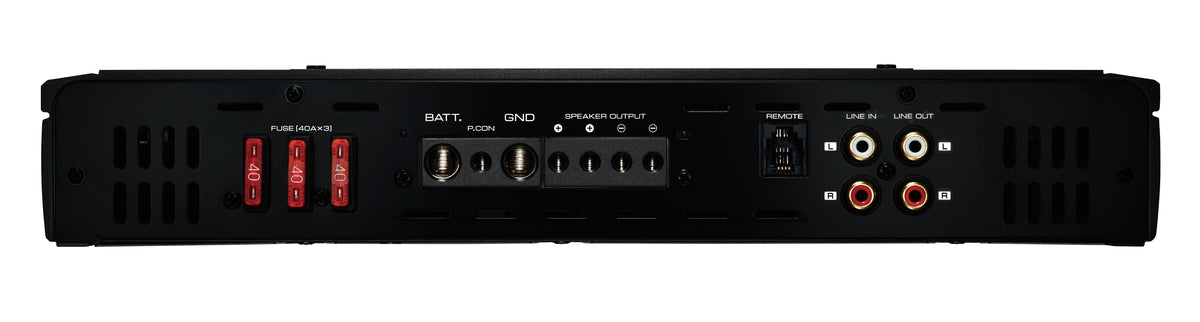

Speaker level input and signal sensing turn on make it easy to connect the XR1001-1 to a variety of factory and aftermarket systems. Gold plated RCA inputs and line outputs are included for reliable connections and system expansion.
A wired remote level control is also included, giving you convenient control over your subwoofer level from the driver's seat.
Features
• 1000W RMS x 1 at 2 ohms
• 500W RMS x 1 at 4 ohms
• 2000W maximum power
• Class D mono amplifier
• 2 ohm load capability
• Variable low pass filter, 50Hz to 200Hz
• Variable infrasonic filter, 15Hz to 40Hz
• Bass boost at 40Hz, 0dB to +18dB
• Speaker level input
• Signal sensing turn on
• Wired remote level control included
• Cooling fan
• Gold plated RCA inputs and line outputs
• 4 gauge capable battery and ground terminals
• Compact 12 5/8" x 2" x 6 5/8" design
Compact Size. Big Output.
The XR1001-1 gives you 1000 watts RMS at 2 ohms in a compact chassis that measures just 12 5/8" wide, 2" high, and 6 5/8" deep. It is a strong choice for systems where you want serious subwoofer power without giving up unnecessary installation space.
|
| Category |
Features & Specifications |
| Brand |
KENWOOD eXcelon Reference |
| Model |
XR1001-1 |
| Product Type |
Mono Digital Power Amplifier |
| Amplifier Class |
Class D |
| Channels |
1 |
| Maximum Power |
2,000W |
| RMS Power @ 4Ω |
500W × 1 |
| RMS Power @ 2Ω |
1,000W × 1 |
| CTA-2006 Rating |
500W RMS × 1 @ 4Ω, ≤1% THD+N |
| Frequency Response |
20 Hz–200 Hz (+0 dB, −3 dB) |
| Signal-to-Noise Ratio |
100 dB |
| Speaker Impedance |
2–8Ω allowable |
| Low-Pass Filter |
Variable 50–200 Hz, −12/−24 dB/octave |
| Infrasonic Filter |
Variable 15–40 Hz, −24 dB/octave |
| Bass Boost |
40 Hz, 0 to +18 dB |
| RCA Input Sensitivity |
0.2–5.0V |
| Speaker-Level Input |
Yes, 4–12V sensitivity |
| Signal-Sensing Turn-On |
Yes |
| Wired Remote Control |
Included |
| Line Output |
RCA line-out for amplifier expansion |
| Cooling |
Built-in cooling fan |
| Power Supply |
MOSFET switching power supply |
| Circuit Design |
Dual Σdrive |
| Heat Sink |
Extruded aluminum |
| Battery/Ground Terminal |
XR Series terminal, accepts up to 4-gauge wire |
| Power Control Terminal |
XR Series terminal, accepts up to 8-gauge wire |
| Speaker Terminal |
XR Series terminal, accepts up to 8-gauge wire |
| Operating Voltage |
14.4V nominal; 11–16V allowable |
| Current Consumption |
60A |
| Dimensions |
12-5/8" W × 2" H × 6-5/8" D |
| Dimensions (Metric) |
320 × 51 × 169 mm |
| Weight |
7.1 lb / 3.1 kg |
| Primary Application |
Subwoofer / mono bass amplification |
| Key Features |
1,000W RMS at 2Ω, Class D design, variable low-pass filter, infrasonic filter, +18 dB bass boost, speaker-level input, signal-sensing turn-on, included wired remote, cooling fan, RCA line output |
