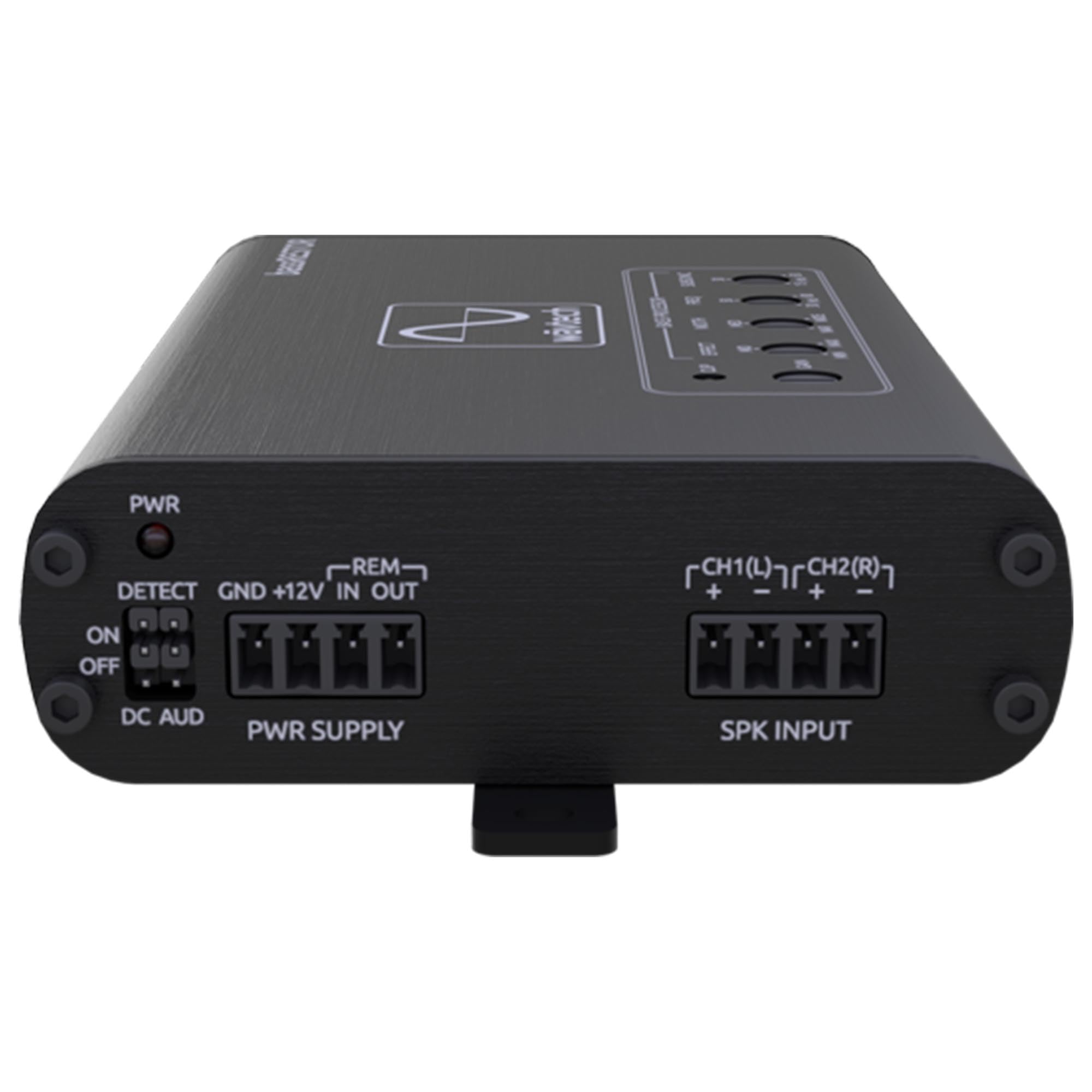

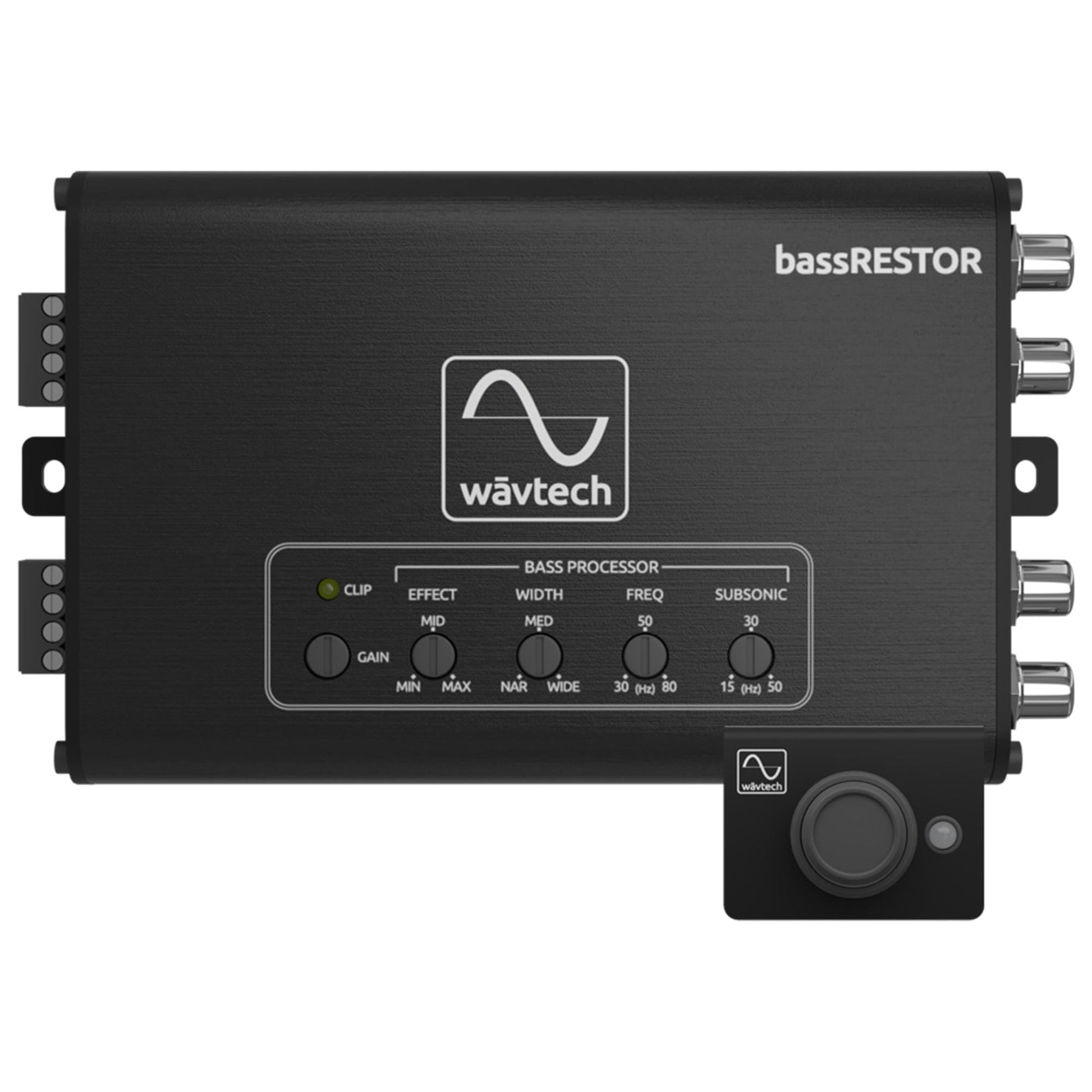

BASS RESTORATION SIGNAL PROCESSOR
Wavtech BASSRESTOR is an audio enhancement interface designed to recover and optimize low-frequency signals in systems where factory outputs are diminished or attenuated.
LOW-FREQUENCY ENHANCEMENT TECHNOLOGY
Restores bass content lost in factory audio signal paths to deliver fuller, richer low-end performance.
HIGH-LEVEL TO LOW-LEVEL SIGNAL CONVERSION
Converts speaker-level factory signals into clean preamp outputs for amplification.
ADJUSTABLE BASS OUTPUT CONTROL
Allows fine-tuning of restored low frequencies to match system preferences and speaker/subwoofer capabilities.
NOISE-REDUCTION PATHWAYS
Engineered to minimize hiss, distortion, and interference during signal conversion.
COMPACT, INSTALL-FRIENDLY DESIGN
Easy to mount behind the dash or near amplifier locations without complex wiring changes.
FACTORY AUDIO INTEGRATION SOLUTION
Ideal for adding subwoofers or amplifiers while retaining factory head unit functionality and restoring lost bass.
|
Wāvtech BASSRESTOR — Product Specifications
Brand: Wāvtech
Model: BASSRESTOR
Product Type: Bass Restoration Processor
UPC: 700987201369
Bass Restoration: Up to +18 dB
Restoration Frequency: 30–80 Hz
Restoration Width: Narrow to Wide
Subsonic Filter: 15–50 Hz
Maximum Output Voltage: >10 Vrms
Output Impedance: <50 Ω
Frequency Response: 15 Hz–>100 kHz
THD+N (Speaker Input): <0.05%
THD+N (RCA Input): <0.1%
Signal-to-Noise Ratio (Speaker Input): >115 dBA
Signal-to-Noise Ratio (RCA Input): >114 dBA
Speaker-Level Input: 2–20 Vrms / 4–40 Vrms, selectable
RCA Input: 0.5–5 Vrms / 1–10 Vrms, selectable
Maximum Speaker-Level Input: 40 Vrms
Speaker Input Impedance: 180 Ω
RCA Input Impedance: 20 kΩ
Input Type: Differential balanced inputs
Controls: Bass Effect, Width, Frequency, Gain

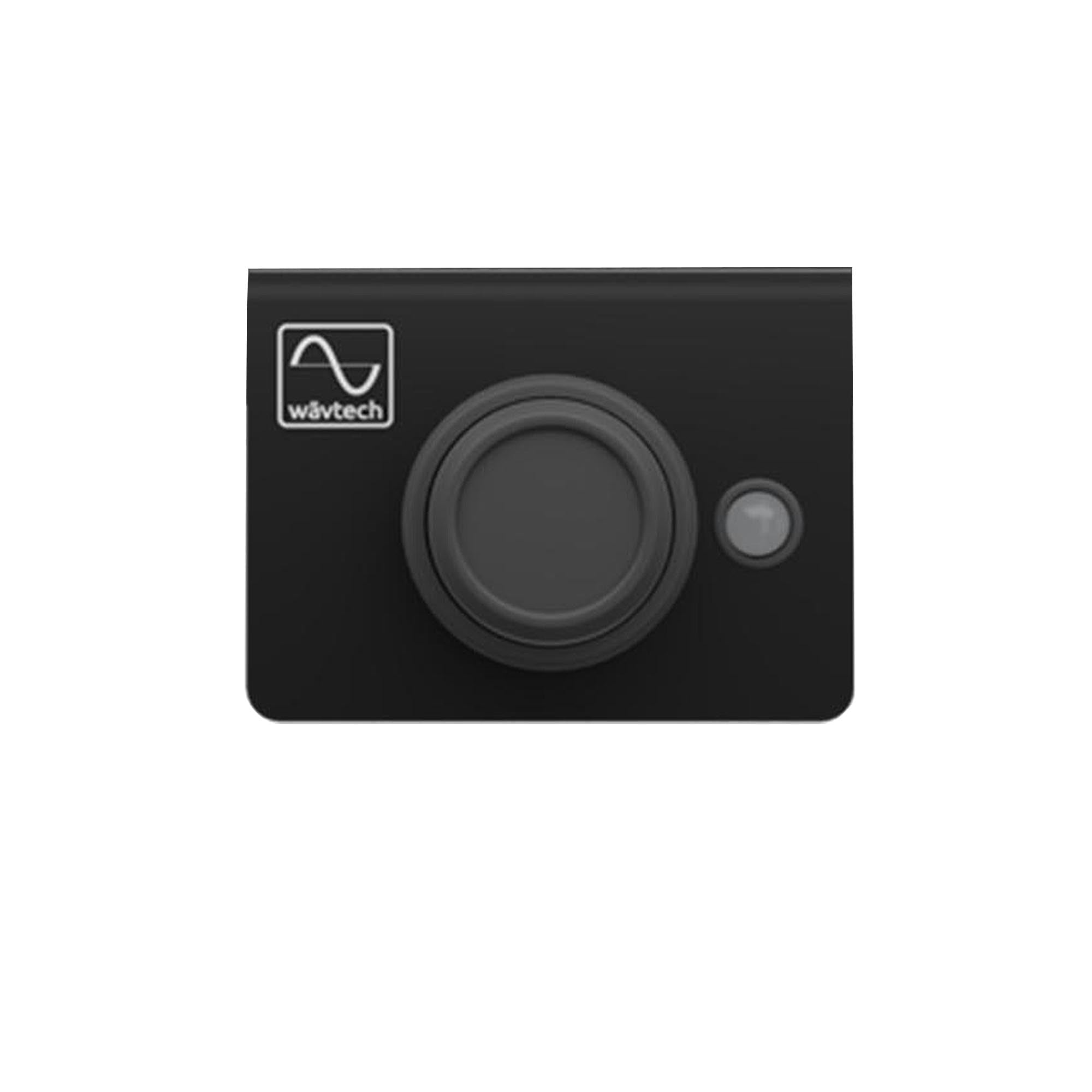

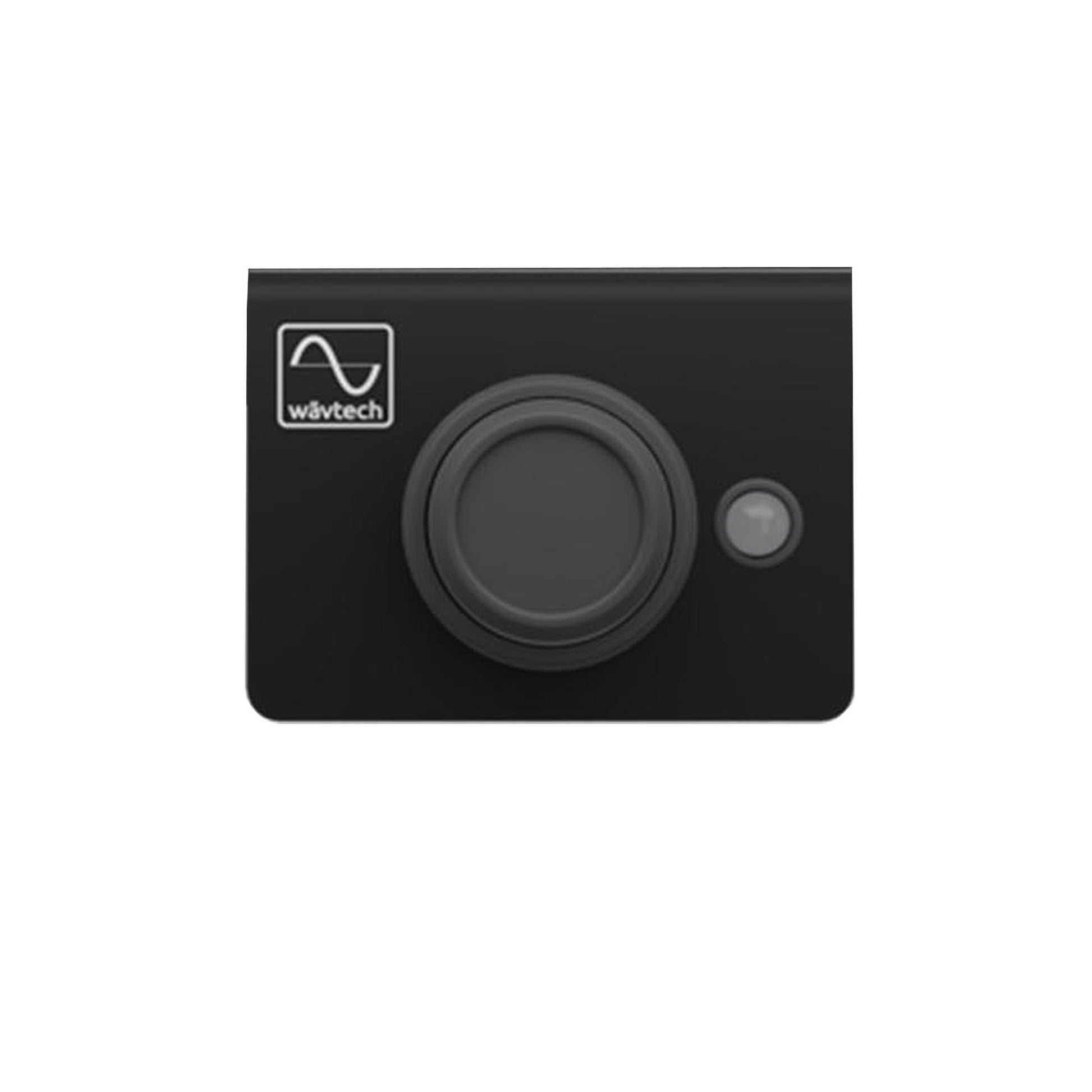

Remote Control: Multi-function Remote Level Control (RLC)

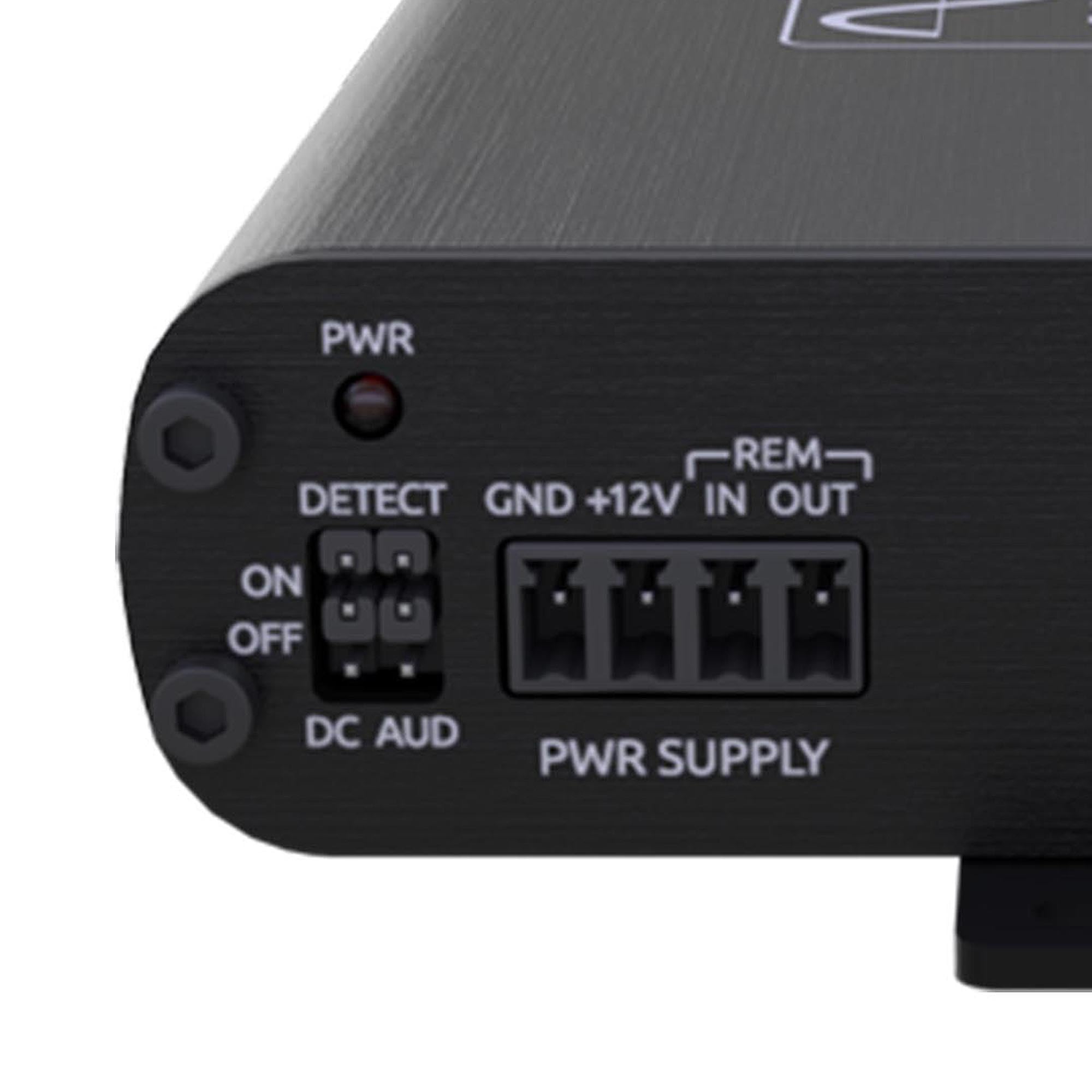

Turn-On Modes: +12 V remote, DC offset, or audio signal detection
Remote Output: >500 mA generated +12 V

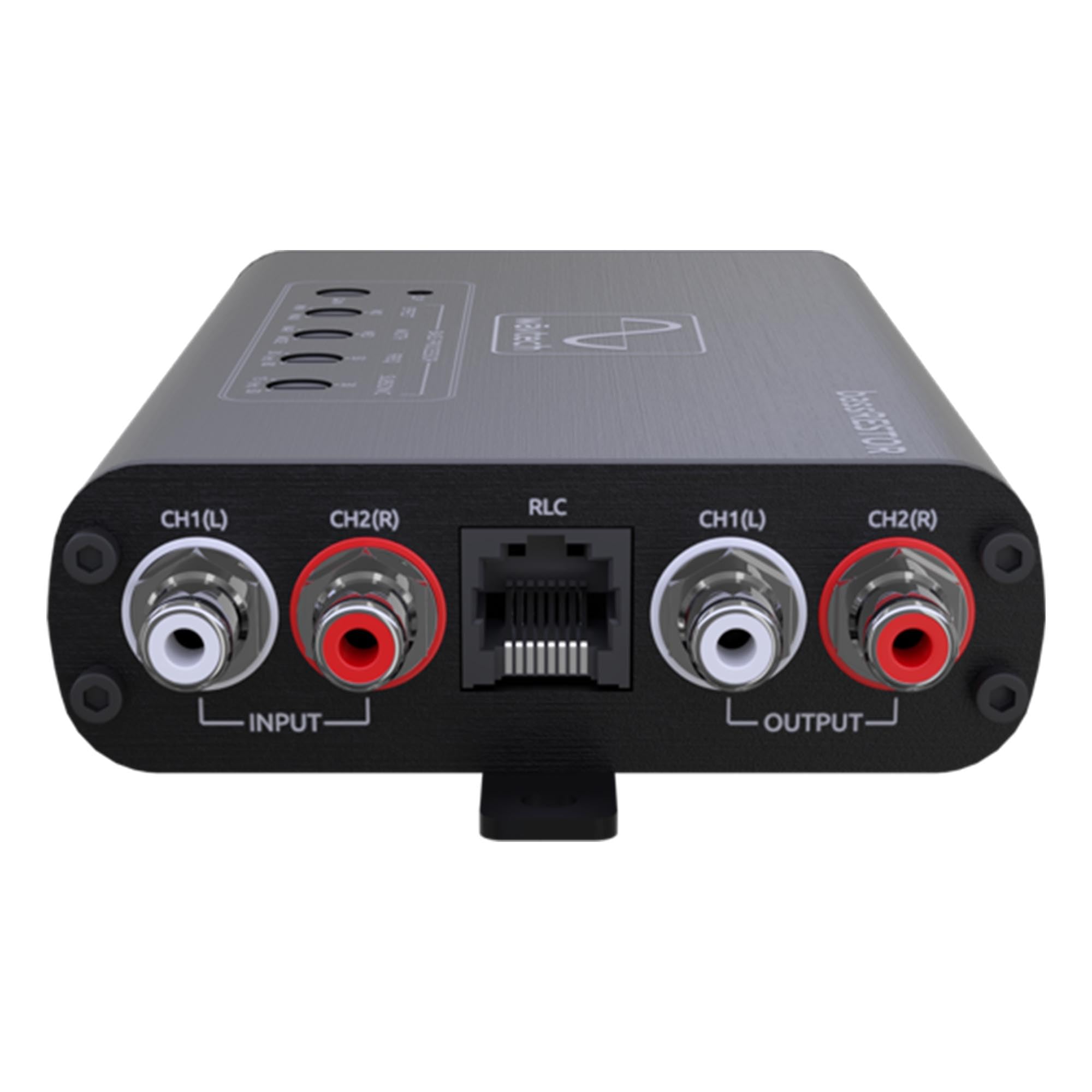

Outputs: Low-impedance RCA line outputs
OEM Integration: Load-detect compatible
Chassis: Aluminum
Dimensions: 5.2 × 3.5 × 1.1 in (133 × 90 × 29 mm)
Mounting: Detachable mounting tabs
Applications: Factory audio integration, aftermarket car audio, bass restoration, signal processing, and line-level output enhancement
