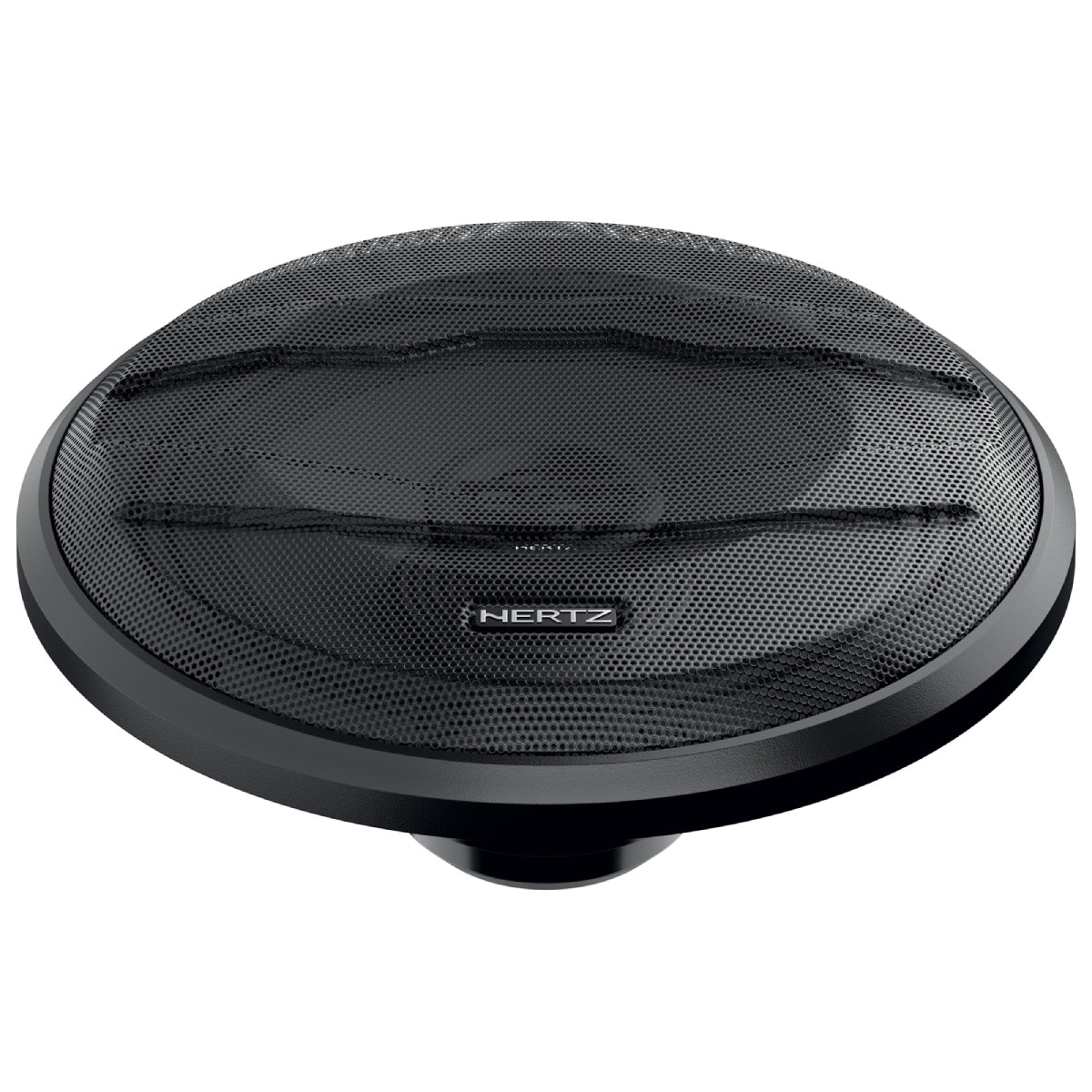

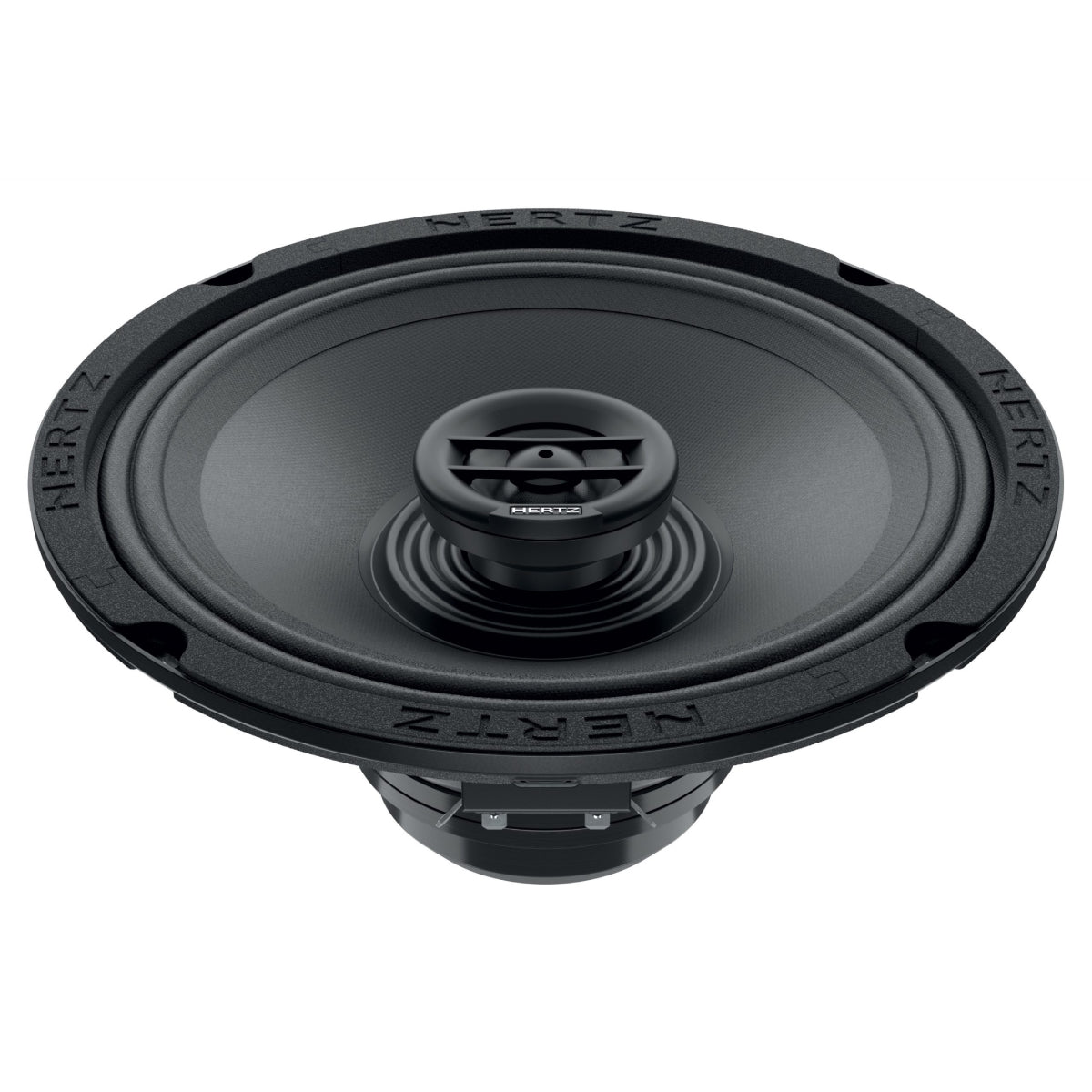

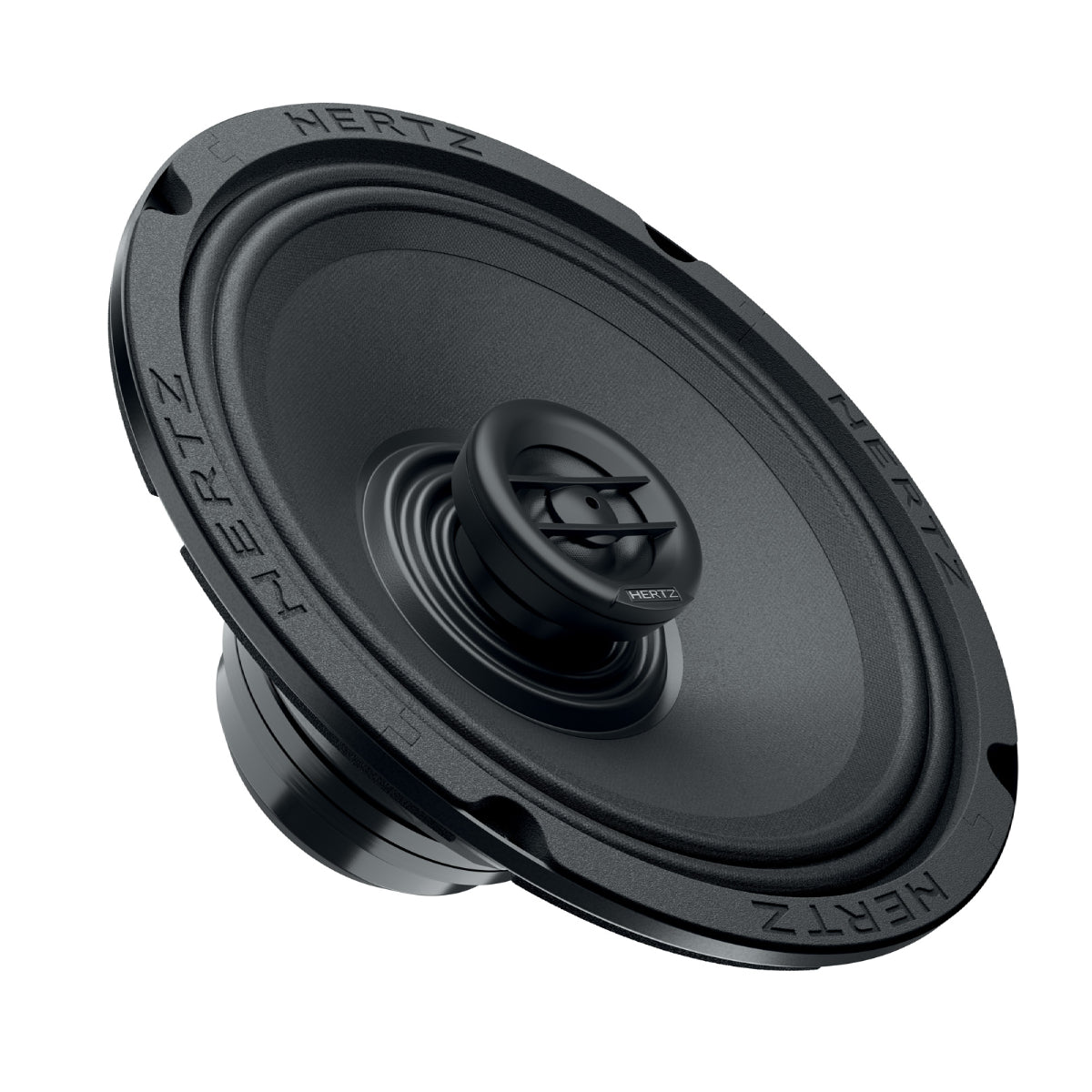

Totally new NEO SPL coaxial SX 200 NEO cone is made with nature-proof high stiffness pressed-paper featuring innovative water/humidity resistant and anti-UV treatments. The double layer copper voice coil, wound on polyamide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance. SX 200 NEO features a large Hi-SPL 1.4” PEI dome tweeter with resettable solid-state protection circuit and a protective rubber gasket for high SPL and a safe outdoor use.
Features
1. Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.
2. Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.
3. Unparalleled power handling delivered by the double layer copper voice coil, wound on polyamide former.
4. Hi-SPL 1.4” Neodymium magnet PEI dome tweeter with resettable solid-state tweeter protection circuit.
5. Double faston terminals allow daisy-chaining of multiple units and provide compatibility with most common motorcycle connections.
|
|
Speaker Size
|
8" |
|
Design
|
2-Way
|
|
Tweeter Design
|
1 7/16" Dome
|
|
Impedance (Ohms)
|
4
|
|
Tweeter Composition
|
Tetolon |
Woofer Composition
|
Water Repellent Pressed Paper |
| Woofer Surround |
|
| Sensitivity (dB) |
100dB
|
| Frequency Response (Hz) |
100 - 20k Hz
|
| RMS Power Rating (Watts) |
130 |
| Peak Power Rating (Watts) |
260
|
| Top-mount Depth (Inches) |
3.79" |
| Bottom-mount Depth (inches) |
|
| Cutout Diameter (inches) |
7.19"
|
| Grilles Included |
No |
| Warranty |
2-Year
|
