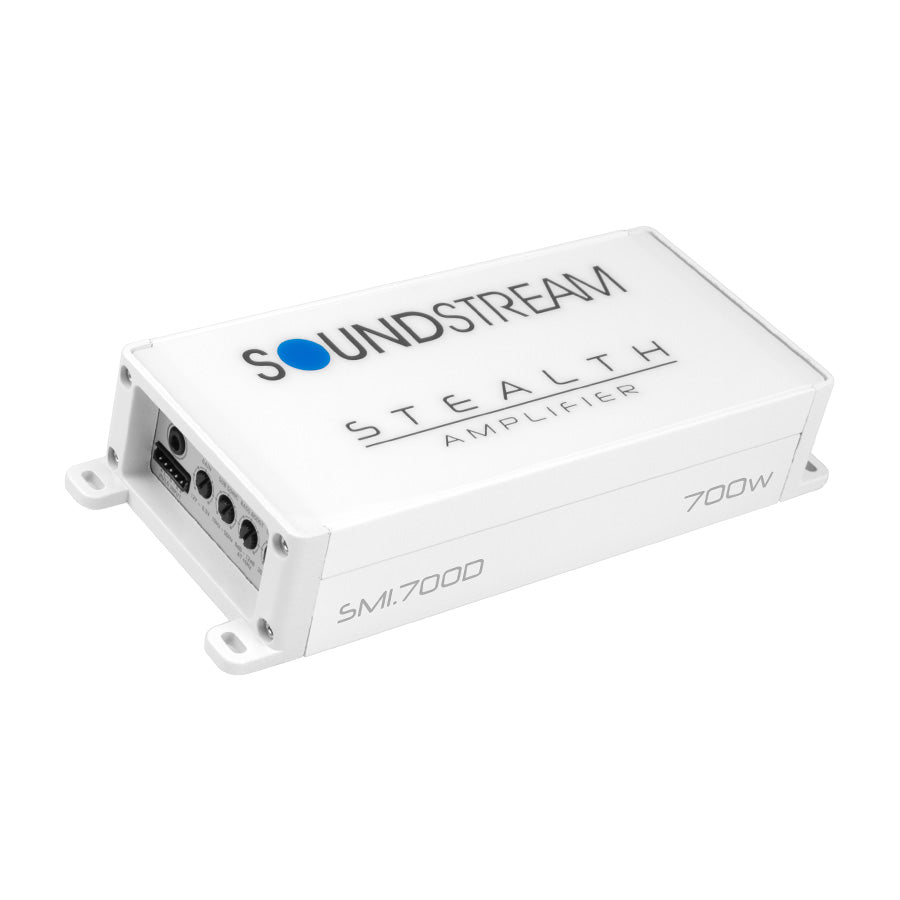

Soundstream SM1.700D, Stealth Marine Class D Monoblock Micro Size Amplifier - 700W Peak
Soundstream SM1.700D, Stealth Marine Class D Monoblock Micro Size Amplifier - 700W Peak
Out of stock
Choose your location
enter a US zip code
Couldn't load pickup availability
Overview
Overview
Don’t let these little monsters fool you. The latest and greatest of class D full range technology allows us to pack 10 pounds of KICK YOUR ASS in less than 2 pound chassis. Once regarded as “dirty power”, class Ds stable performance, thanks to high power capability, maximum efficiencies, and low tolerance components, rivals traditional full-range applications. Minimal power requirements, ultra-micro footprint, unbelievable sound quality, and easy install make Stealth amplifiers great for any car, motorcycle, boat, or off-road vehicle…
- Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
- 2-ohm Minimum Impedance Monoblock Operation
- MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
- Military Grade SMT PCB Maintains Dynamic Performance
- Direct Short, Thermal, & Overload Circuits Protect Amplifier

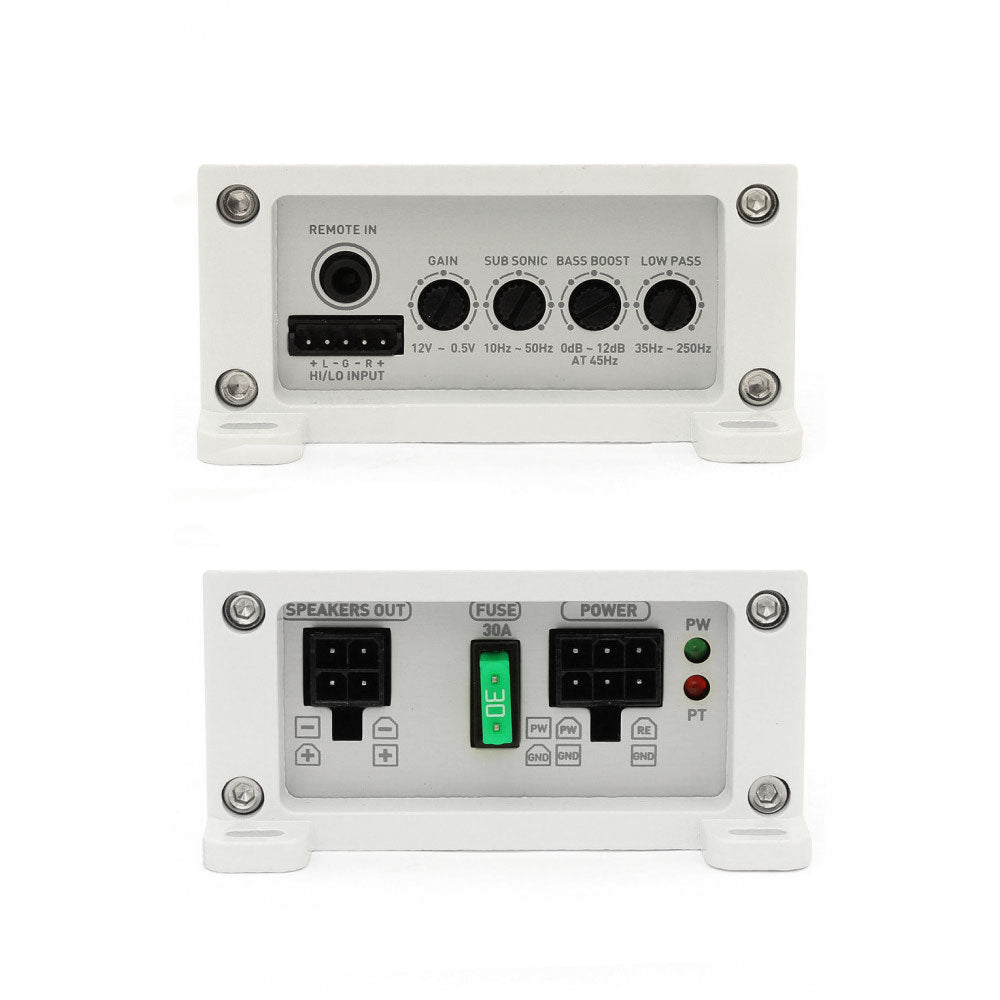

- 200mV-12V High Level or Low-Level RCA Input
- Quick Disconnect RCA/High-Level Wire Harness
- Quick Disconnect Power and Speaker Output Harness
- Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
- 12dB Bass Boost Increases Low Octave Harmonics
- Dash Mount Gain Control Module Included
Features & Specifications
Features & Specifications
| Weather Resistance | Conformal-Coated |
|
Number of Channels |
1 |
|
Class |
D |
|
Peak Power Rating (Watts) |
700 |
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
250 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
350 x 1 |
| Bridged RMS Power Rating (Watts x Channels) | N/A |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
N/A |
| THD at Rated RMS Power |
<0.05% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
N/A |
| High Pass Crossover Frequency (Hz) |
N/A |
| Low Pass Crossover Frequency (Hz) |
35-250Hz |
| Signal-to-Noise Ratio |
70dB |
| Bass Boost |
0-12dB @45Hz |
| Bass Remote Included |
|
| Fuse Rating | 30A |
| CEA-2006 Compliant | |
| Maximum Power Wire Gauge Size | 8 Gauge |
| Warranty | 1 Year |
