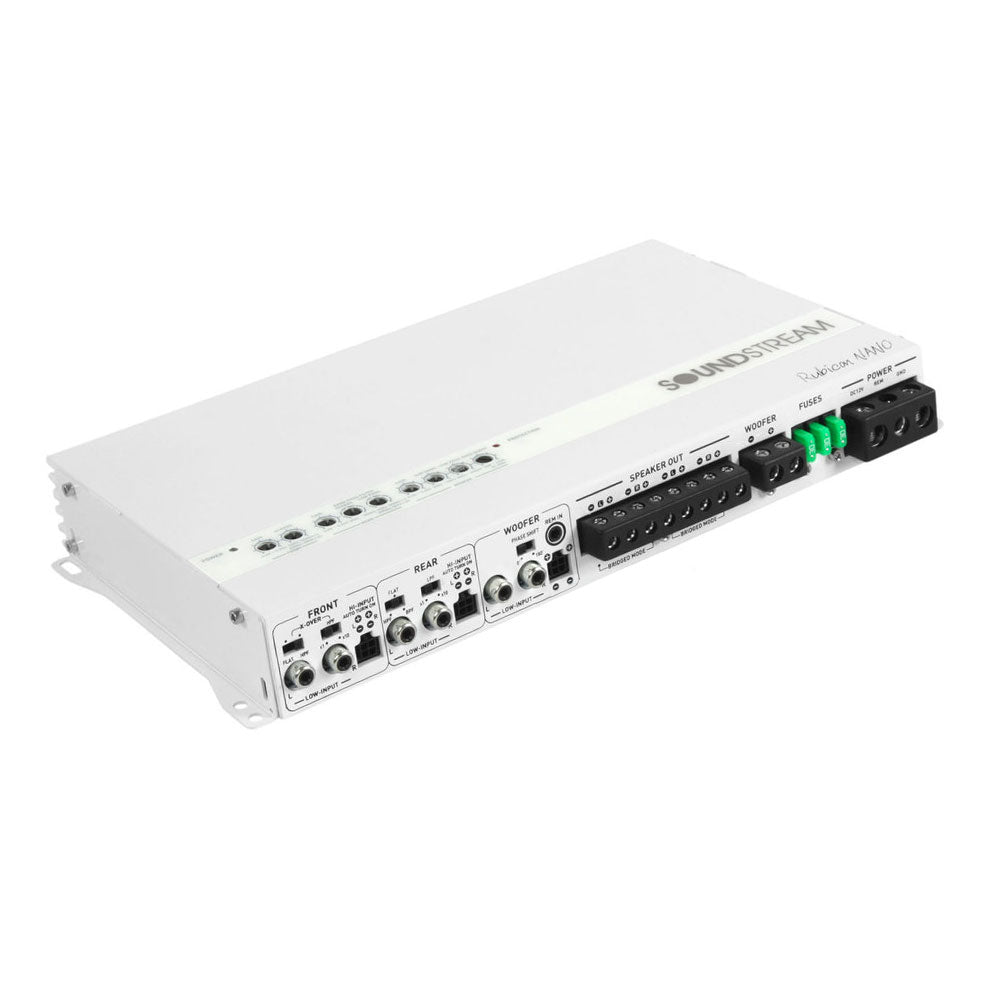

Soundstream MR5.2000D, Rubicon Nano Marine 5 Channel Full Range Amplifier

Overview

High Efficiency Class D Full Range Amplifiers
Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
2-ohm Stereo & 4-ohm Bridged Class D Full Range
MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
Military Grade SMT PCB Maintains Dynamic Performance
Direct Short, Thermal, & Overload Circuits Protect Ampllifier
200mV-6V Low Level RCA or High Level Signal Input

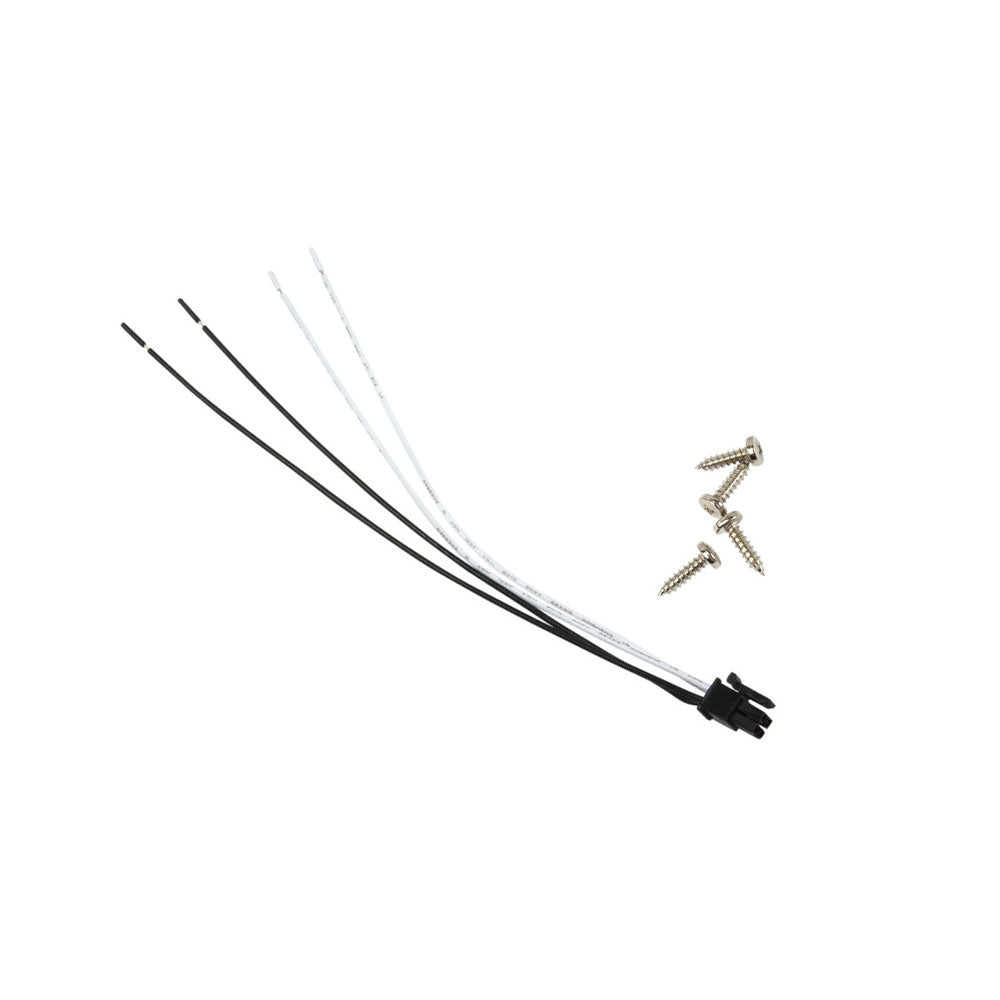

Quick Disconnect High Level Wire Harness Included

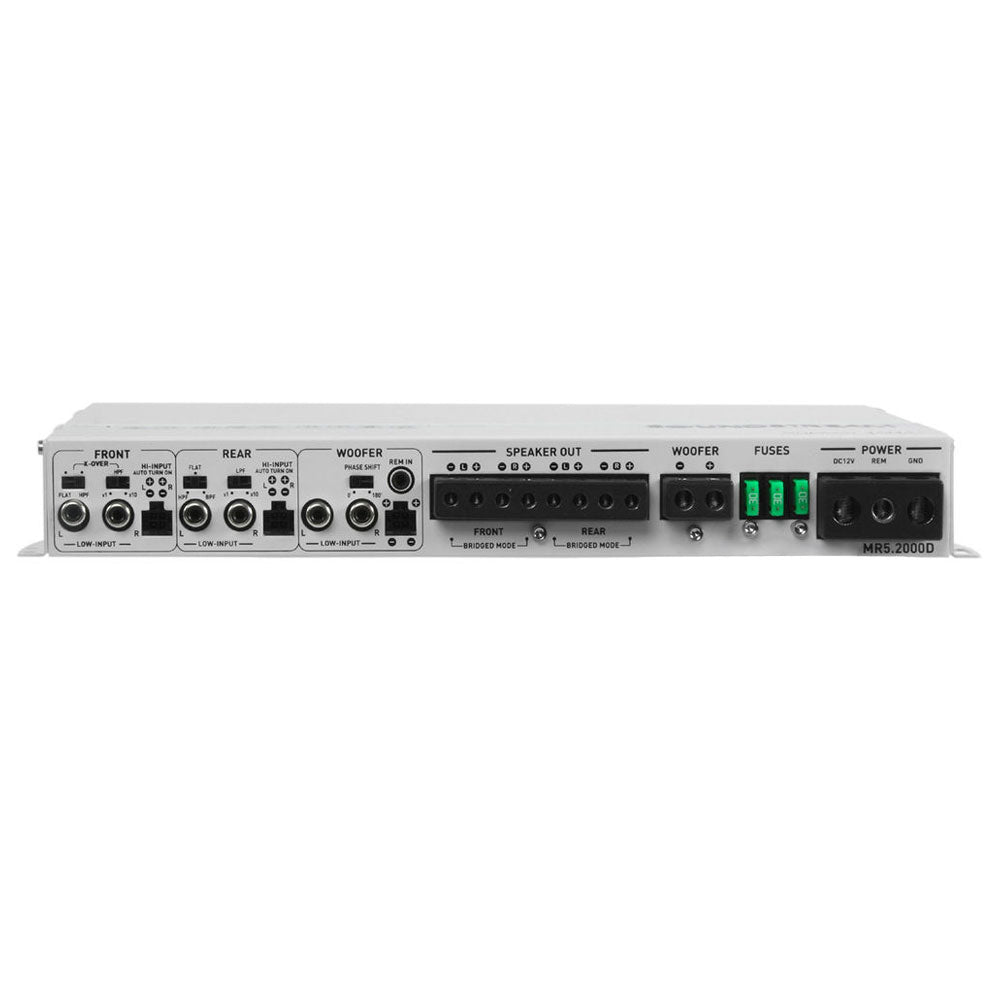

Easy DIY Install Single Sided Terminals & Controls
4g Power Inout Terminals & 12g Speaker Output Terminals
Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
12dB Bass Boost Increases Low Octave Harmonics

Features & Specifications

Weather Resistance	Conformal-Coated
Number of Channels	5
Class	D
Peak Power Rating (Watts)
RMS Power Rating (Watts x Channels) - 4 Ohms	75 x 4 300 x 1
RMS Power Rating (Watts x Channels) - 2 Ohms	100 x 4 500 x 1
Bridged RMS Power Rating (Watts x Channels)	200 x 2
Minimum Impedance Unbridged (Ohms)	2
Minimum Impedance Bridged (Ohms)	4
THD at Rated RMS Power	<0.05%
Bulit-in Crossover - Low Pass	Yes
Built-in Crossover - High Pass	Yes
High Pass Crossover Frequency (Hz)	50-500Hz
Low Pass Crossover Frequency (Hz)	50-500Hz
Signal-to-Noise Ratio	104dB
Bass Boost	0-18Db @45Hz
Bass Remote Included
Fuse Rating	90A
CEA-2006 Compliant
Maximum Power Wire Gauge Size	4 Gauge
Warranty	1 Year
