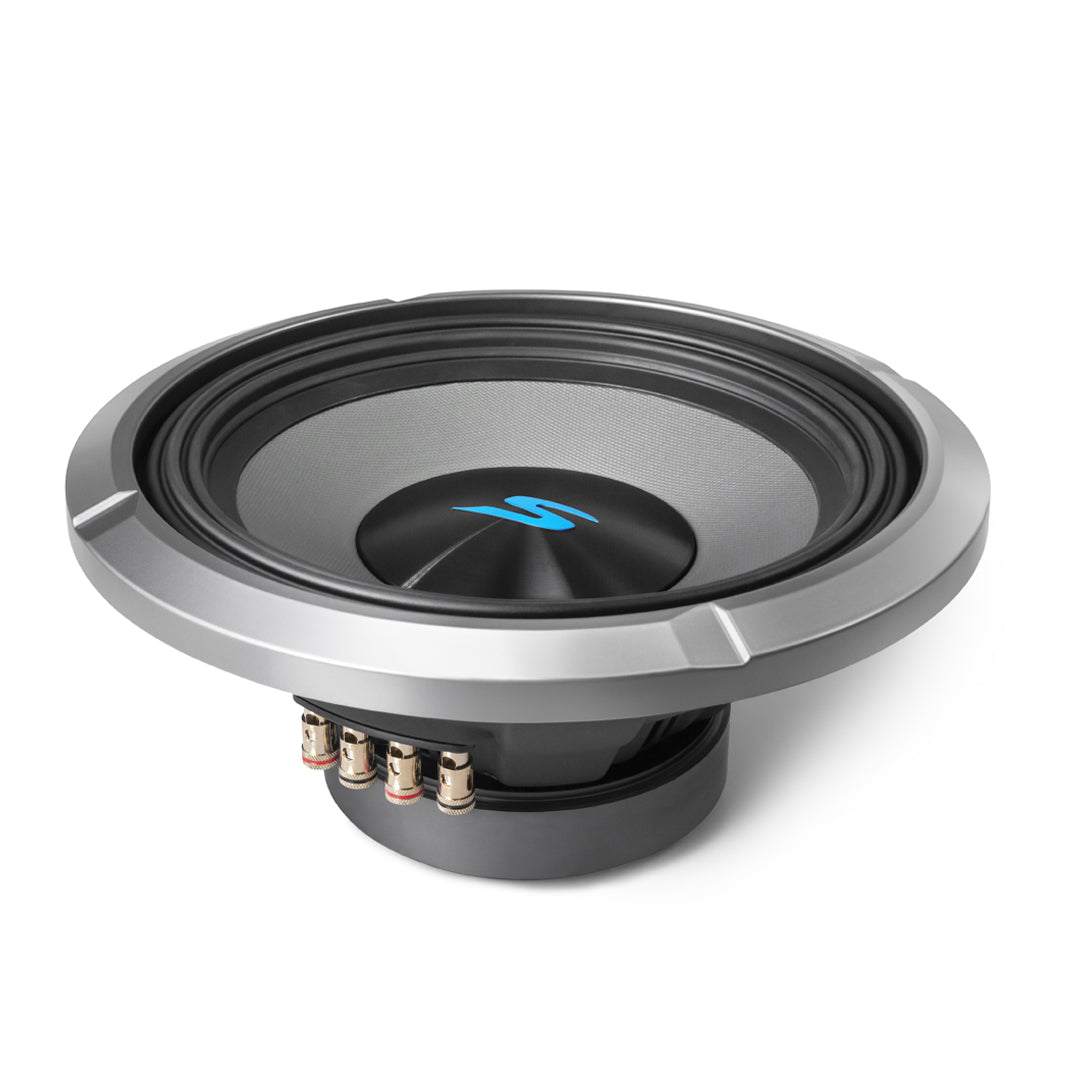

Alpine S2-W12D2, S Series 12" 2 Ohm Dual Voice Coil Subwoofer - 1800W
Not Available for Shipping Outside of the United States
Questions? We're here to help
PERFORMANCE & VALUE
With an impressive power handling of 600W RMS and a peak power handling of 1800W, the Next-Gen 12” S-Series Subwoofers deliver outstanding performance value. Boasting a wide frequency response range of 23Hz to 215Hz and a sensitivity of 86dB (1W/1m), these subs ensure powerful and accurate bass reproduction across a diverse range of music genres.
ENHANCED PUNCH
Featuring the lightweight yet sturdy combination of carbon fiber and polypropylene, the Next-Gen S-Series Subwoofer cone delivers deep, low-distortion bass that enhances the depth and richness of your music.
HAMR Surround
The Next-Generation S-Series Subwoofers contain Alpine’s High Amplitude Multi-Roll (H.A.M.R.) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 15mm of one-way cone excursion that creates incredible accuracy from the subwoofer.
Flexible Application
A Dual Voice Coil (DVC) with easy configuration jumpers make installing the S-Series subwoofers a breeze. A new twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone.
Perfect Power Match
Maximize the potential of your S-Series subwoofers with Alpine's perfectly power-matched S-Series amps. Power a single S2-W12D2 subwoofer effortlessly with the 600W S2-A60M mono amplifier, or for an even bigger impact, pair two or more S2-W12D2 subs with the powerful 1200W S2-A120M amp to ensure optimal sound quality and performance.
|
Size |
12-inch |
Voice Coil |
DVC |
Impedance |
2 Ohms |
RMS Power Rating (Watts) |
600 |
Peak Power Rating (Watts) |
1800 |
Cone Material |
Carbon Fiber/Polypropylene |
Surround Material |
HAMR Rubber Surround |
Free Air |
No |
Sensitivity |
85.7dB at 1 Watt |
Frequency Response |
23-215hz |
Top Mount Depth (Inches) |
5 1/16" |
Bottom Mount Depth (Inches) |
|
Cutout Diameter (Inches) |
10 5/8" |
Vas (liters) |
55.1 |
Fs (Hz) |
26.6Hz |
Xmax (millimeters) |
15 |
Warranty |
1 Year |
Size |
12-inch |
Voice Coil |
DVC |
Impedance |
2 Ohms |
RMS Power Rating (Watts) |
600 |
Peak Power Rating (Watts) |
1800 |
Cone Material |
Carbon Fiber/Polypropylene |
Surround Material |
HAMR Rubber Surround |
Free Air |
No |
Sensitivity |
85.7dB at 1 Watt |
Frequency Response |
23-215hz |
Top Mount Depth (Inches) |
5 1/16" |
Bottom Mount Depth (Inches) |
|
Cutout Diameter (Inches) |
10 5/8" |
Vas (liters) |
55.1 |
Fs (Hz) |
26.6Hz |
Xmax (millimeters) |
15 |
Warranty |
1 Year |
