Alpine S2-A36F, S Series 4-Channel Class D Hi-Res Full Range Amplifier - 360W
Not Available for Shipping Outside of the United States
Get Your Alpine Gear Here and Get it Installed at Your Local Authorized Alpine Dealer
Questions? We're here to help
HI-RES AUDIO
The Next-Gen Alpine S-Series S2-A36F 4-Channel Amplifier is Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth coupled with the elevated S-Series design brings out a new benchmark for entry-level performance and price.
FLEXIBLE APPLICATION
The Next-Gen S-Series Amplifiers now feature a new selectable remote turn-on circuit, a three-position switch that ensures the amplifier turns on and off at the proper times. This design is crucial with newer, in-vehicle technology and allows for proper integration with any factory or aftermarket system.
Easy Control Access

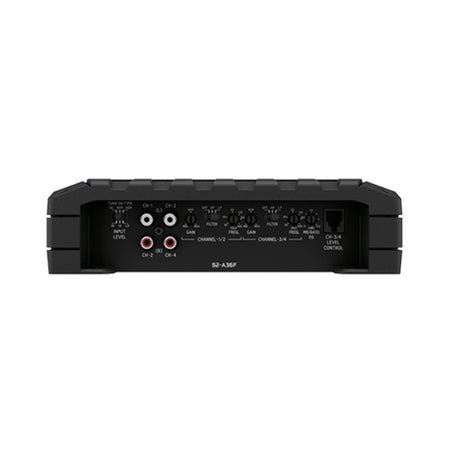

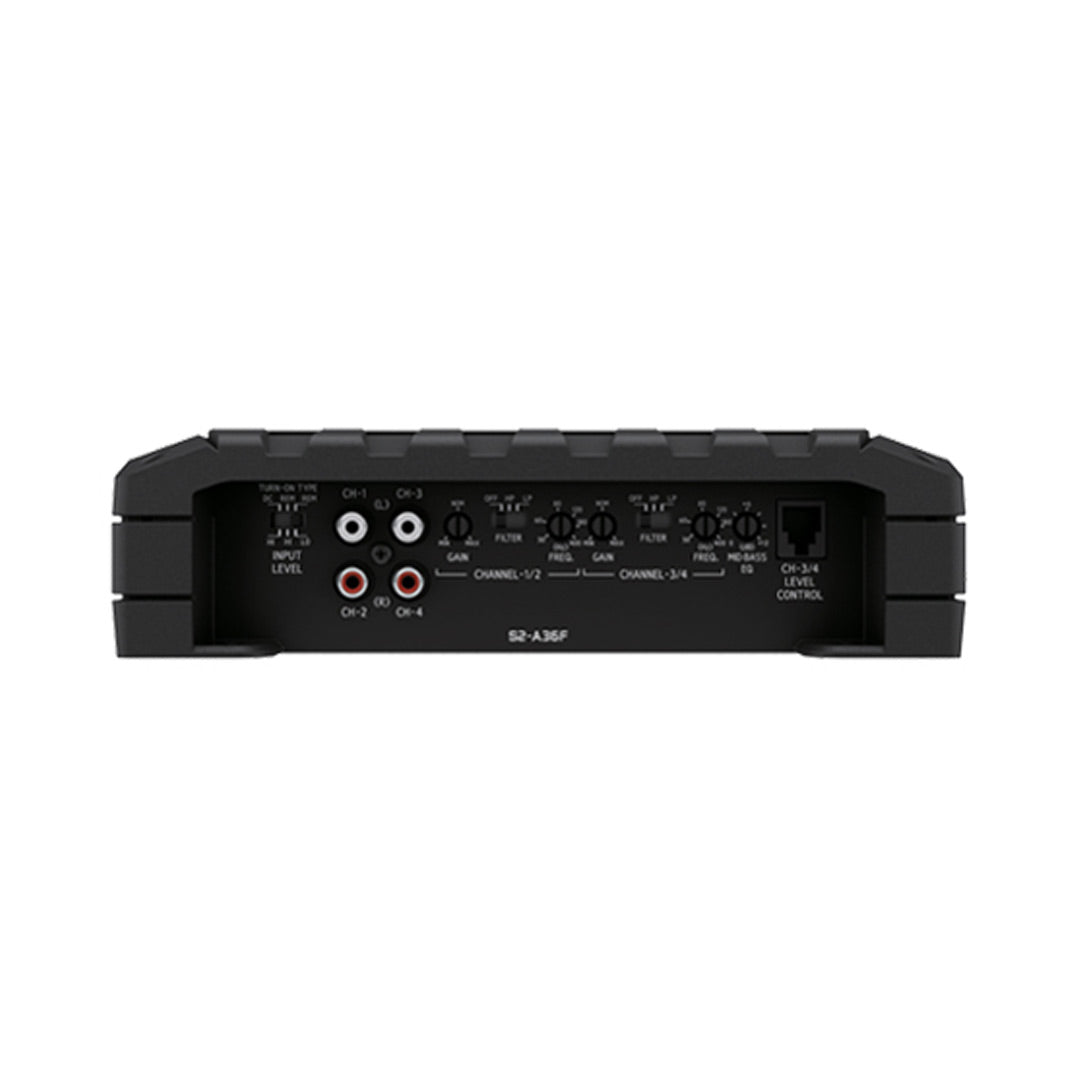

The amplifier was intentionally designed with sound controls located on the side panels, instead of the top panel, making it easier to access gain and crossover controls when installed under vehicle seats or in shallow-depth locations. Removable end caps were added to cover the side controls and connections, providing a clean, sleek finish to the amplifier.
Mid-Bass EQ
With its new and unique variable Mid-Bass EQ Circuit, the S2-A36F allows you to dial in the mid-bass impact as desired, making it an ideal choice for those seeking a more dynamic and powerful audio experience.
|
Number of Channels |
4 |
|
Class |
D |
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
60 x 4 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
90 x 4 |
| RMS Power Rating - Bridged |
180 x 2 |
| Minimum Impedance Unbridged (Ohms) |
2 Ohms |
| Minimum Impedance Bridged (Ohms) |
4 Ohms |
| THD at Rated RMS Power |
1% |
| Built-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-400Hz |
| Low Pass Crossover Frequency (Hz) |
50-400Hz |
| Signal-to-Noise Ratio |
83dB |
| Bass Boost |
0-12dB @ 100Hz |
| Bass Remote Included |
No |
| Fuse Rating | 40A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 |
| Warranty | 1 Year |
|
Number of Channels |
4 |
|
Class |
D |
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
60 x 4 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
90 x 4 |
| RMS Power Rating - Bridged |
180 x 2 |
| Minimum Impedance Unbridged (Ohms) |
2 Ohms |
| Minimum Impedance Bridged (Ohms) |
4 Ohms |
| THD at Rated RMS Power |
1% |
| Built-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-400Hz |
| Low Pass Crossover Frequency (Hz) |
50-400Hz |
| Signal-to-Noise Ratio |
83dB |
| Bass Boost |
0-12dB @ 100Hz |
| Bass Remote Included |
No |
| Fuse Rating | 40A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 |
| Warranty | 1 Year |
