Rockford Fosgate TM500X1BR, Power Mono Marine Amplifier
Rockford Fosgate TM500X1BR, Power Mono Marine Amplifier
Out of stock
Choose your location
enter a US zip code
Couldn't load pickup availability
Overview
Overview
The TM500X1br is a 500 Watt mono amplifier with boosted rail Class-br technology and a conformal coated pc board designed for motorsport and marine applications.
Class BR
Stores energy and dynamically boosts rail voltage to create power on demand.
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

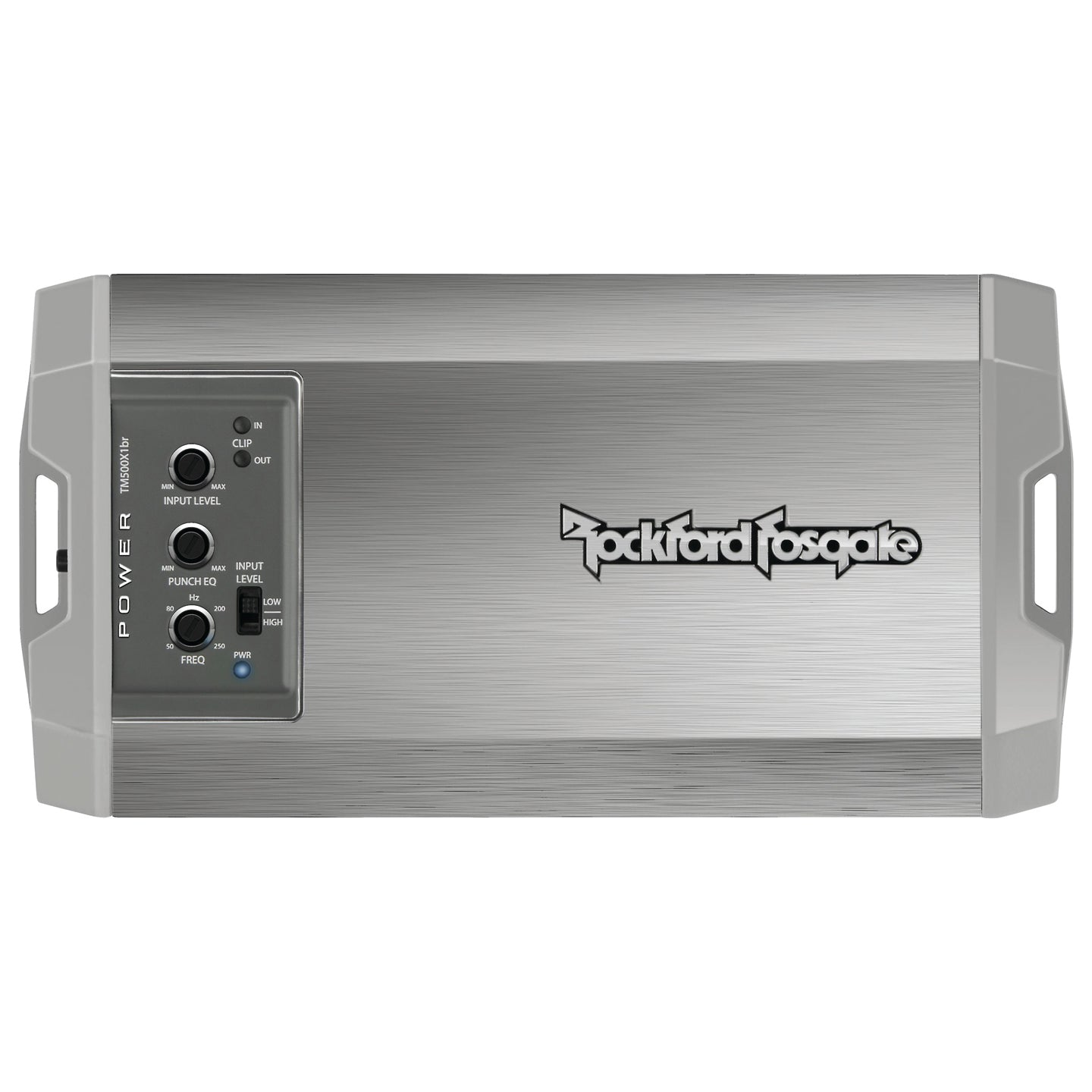

C.L.E.A.N. Set-Up
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Constant Power
Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.
Element Ready™ - Amps
These amplifiers are protected against Dust, UV, Corrosion, and feature Stainless hardware.

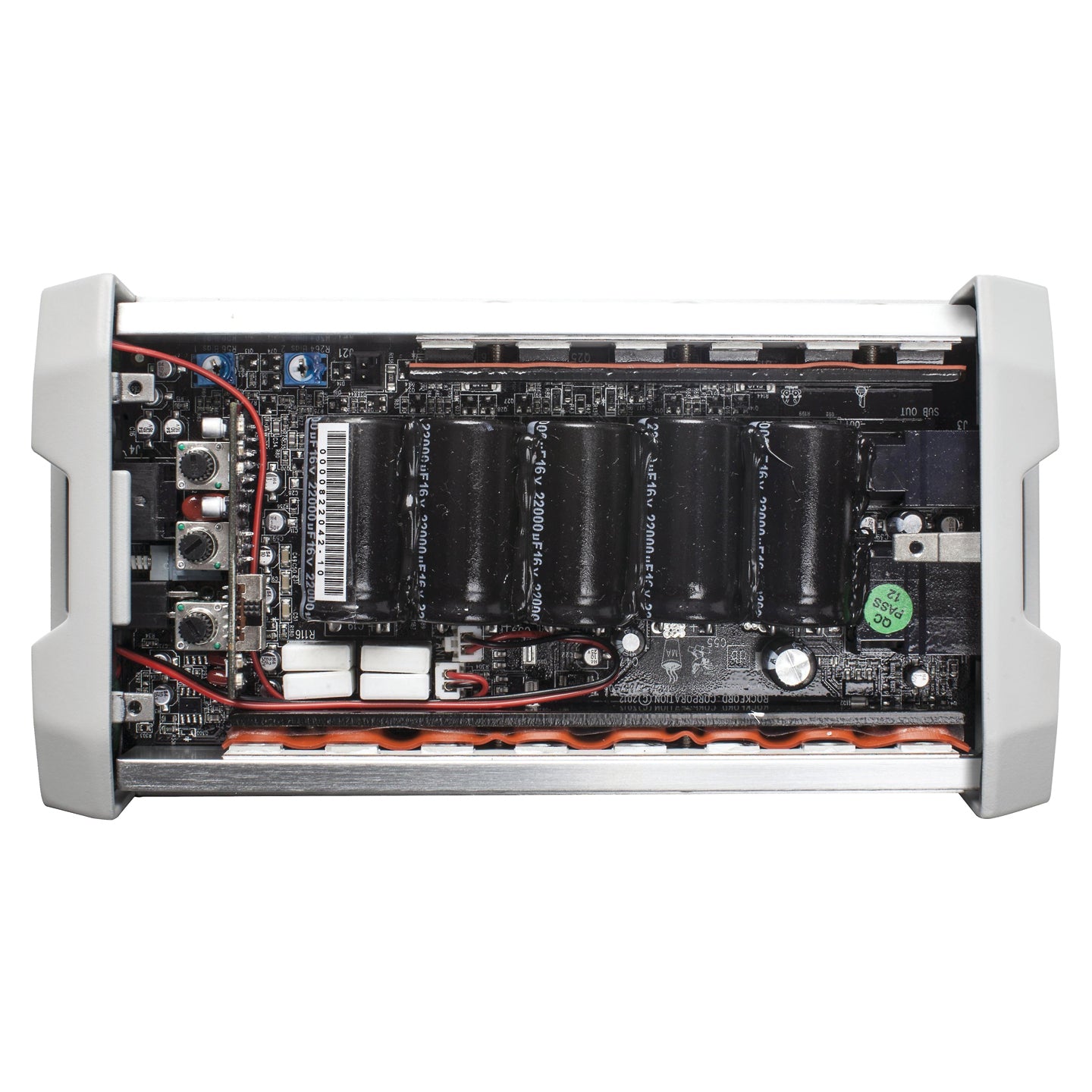

The Power TM500X1br 500 Watt mono ultra-compact amplifier is built on Rockford Fosgate’s patented Boosted Rail technology that sips current while retaining a storage reserve for extended bursts of power. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on. Top mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.
3-Stage Airflow
3-stage airflow method effectively exhausts heat and ensures your amplifier runs cooler for optimum performance.
DSM
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
Engineered In The USA
These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
Features & Specifications
Features & Specifications
| Weather Resistance | Conformal-Coated |
|
Number of Channels |
1 |
|
Class |
BR |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
175 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
300 x 1 |
| RMS Power Rating (Watts x Channels) - 1 Ohm | 500 x 1 |
| Minimum Impedance Unbridged (Ohms) |
1 |
| Minimum Impedance Bridged (Ohms) |
N/A |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
N/A |
| High Pass Crossover Frequency (Hz) |
N/A |
| Low Pass Crossover Frequency (Hz) |
50-250Hz |
| Signal-to-Noise Ratio |
|
| Bass Boost |
0-18dB @45Hz |
| Bass Remote Included |
|
| Fuse Rating | 60A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 Gauge |
| Warranty | 1 Year |
