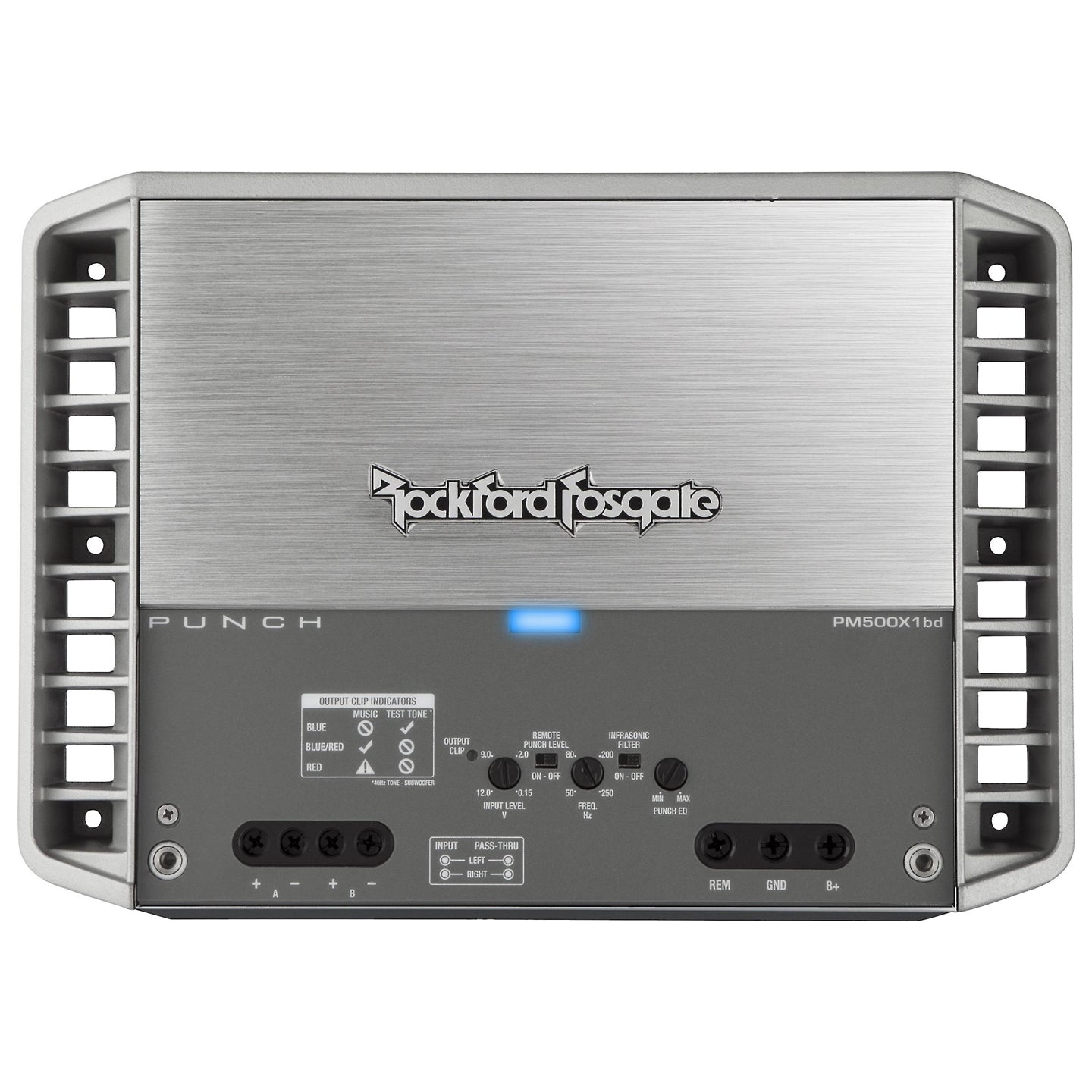

Rockford Fosgate PM500X1BD, Punch Series Mono Marine Amplifier
Rockford Fosgate PM500X1BD, Punch Series Mono Marine Amplifier
Available in stock
Choose your location
enter a US zip code
Couldn't load pickup availability
Overview
Overview
The PM500X1bd is a 500 Watt mono amplifier with high dynamic power using Class-bd technology and a conformal coated pc board designed for motorsport and marine applications.
Class BD
Class BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers.
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
Element Readyâ - Amps
These amplifiers are protected against Dust, UV, Corrosion, and feature Stainless hardware.
DSM
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Balanced Differential Inputs
Differential inputs eliminate noise picked up by signal cables.
With its super efficient Class-bd circuit topology, the PM500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
MEHSA
MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
NOMAD
NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
Engineered In The USA
These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
C.L.E.A.N. Set-Up
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
Features & Specifications
Features & Specifications
| Weather Resistance | Conformal-Coated |
|
Number of Channels |
1 |
|
Class |
BD |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
150 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
300 x 1 |
| RMS Power Rating (Watts x Channels) - 1 Ohm | 500 x 1 |
| RMS Power Rating - Bridged | N/A |
| Minimum Impedance Unbridged (Ohms) |
1 |
| Minimum Impedance Bridged (Ohms) |
N/A |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
N/A |
| High Pass Crossover Frequency (Hz) |
N/A |
| Low Pass Crossover Frequency (Hz) |
50-250Hz |
| Signal-to-Noise Ratio |
|
| Bass Boost |
0-18dB @45Hz |
| Bass Remote Included |
|
| Fuse Rating | 60A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 Gauge |
| Warranty | 1 Year |
