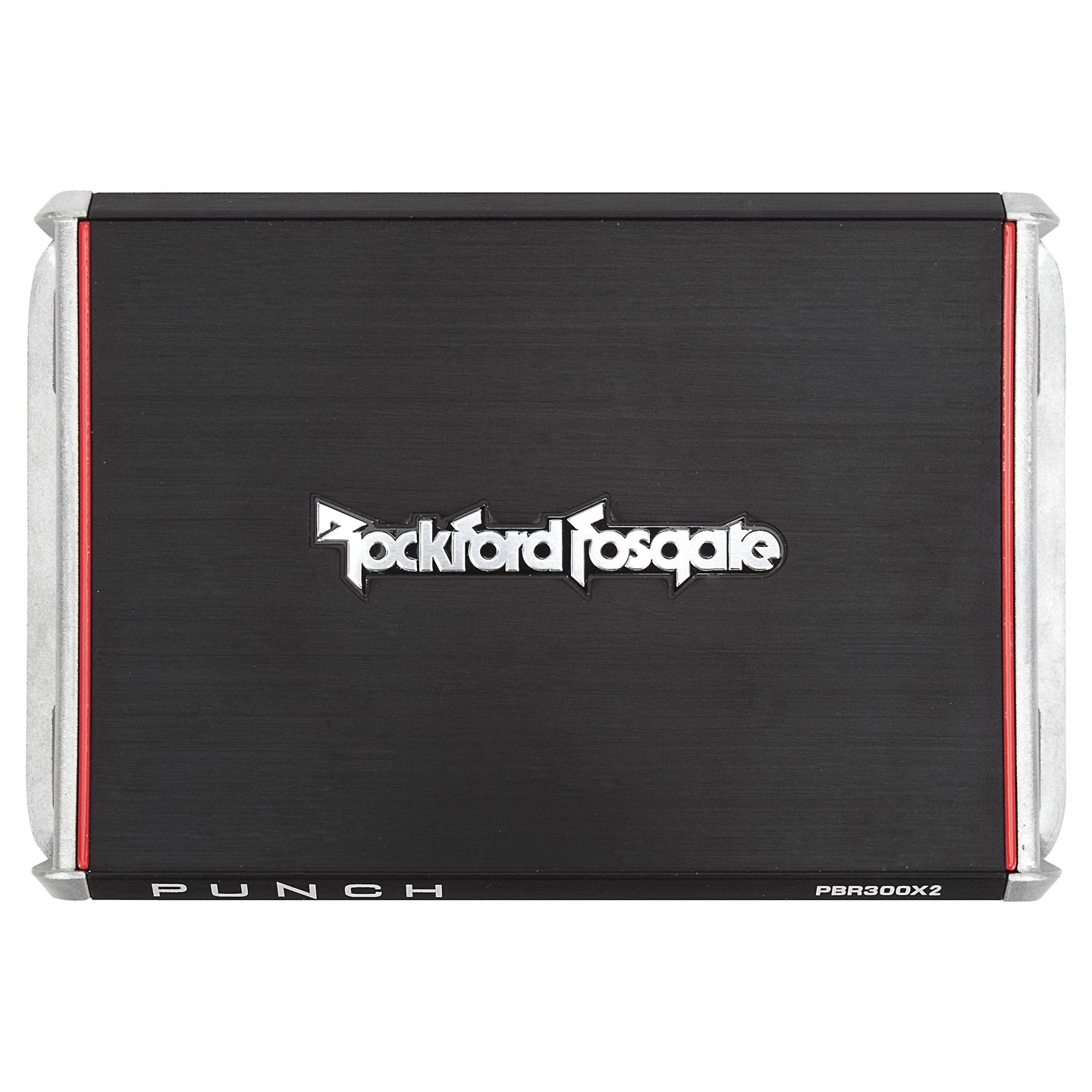

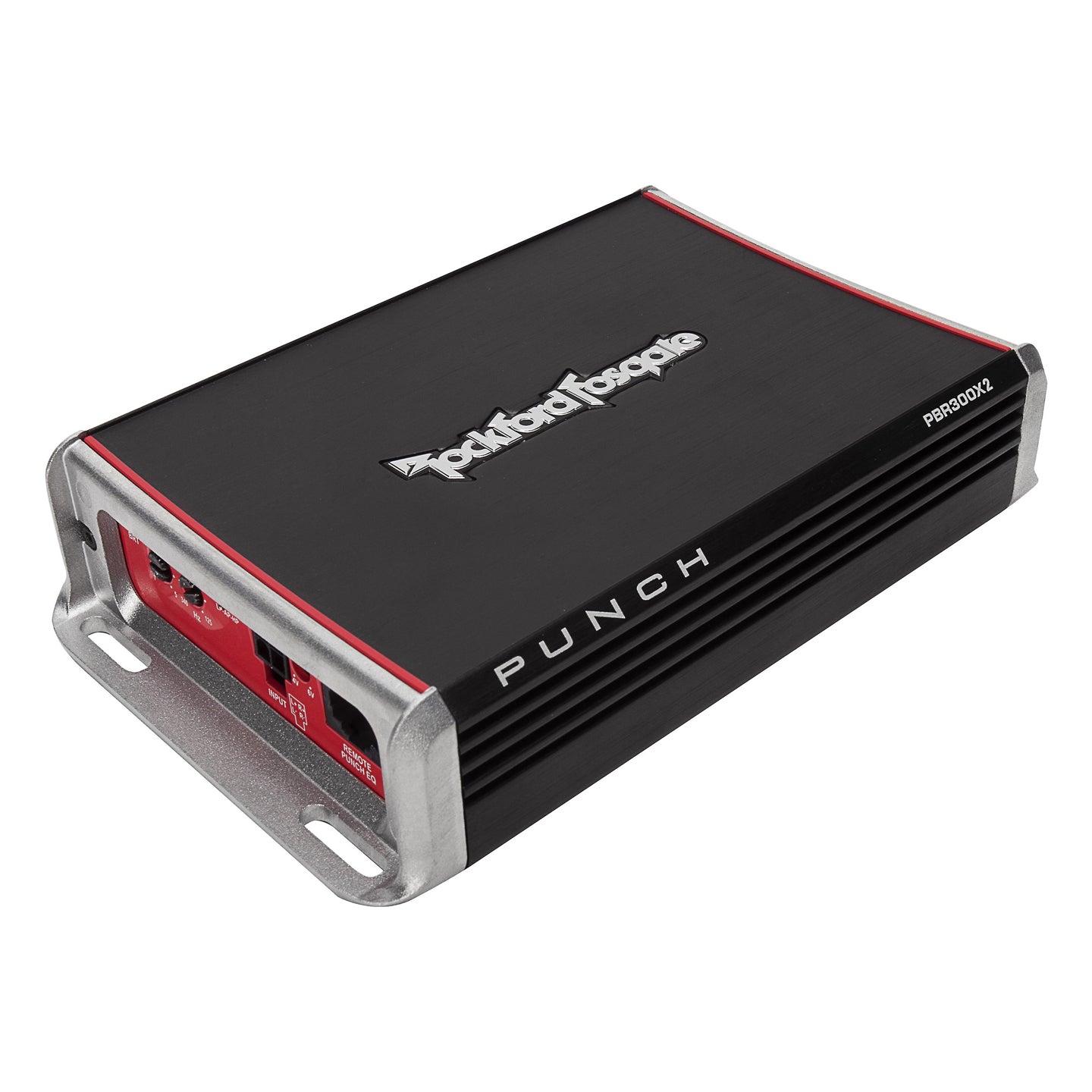

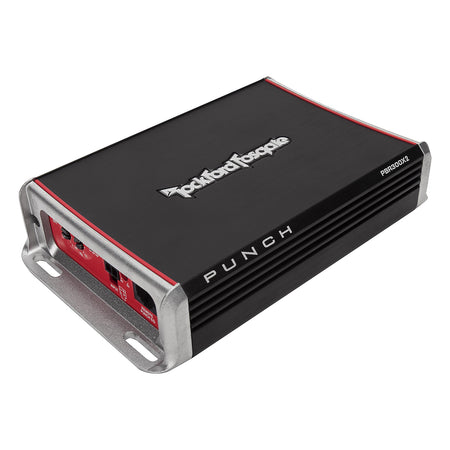

Rockford Fosgate PBR300X2, Punch Series 2 Channel Car Amplifier
Rockford Fosgate PBR300X2, Punch Series 2 Channel Car Amplifier
Available in stock
Choose your location
enter a US zip code
Couldn't load pickup availability
Overview
Overview
The Punch PBR300X2 is a 300 Watt mono amplifier designed for compact subwoofer systems. This efficient amp packs a Punch in motorcycles, ATVs and hybrid-electric vehicles without sucking a lot of juice from your electrical system.
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
DSM
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
Punch EQ2
Onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12kHz.
The PBR300X2 is a mono amplifier designed for a subwoofer system that requires little space. The BRT (Boosted Rail Technology) is an ultra efficient design that doesn't even use a switching power supply to generate its 300 Watts of power! The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system. Great for motorcycles and recreational vehicles.
MEHSA
MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
Class BR
Stores energy and dynamically boosts rail voltage to create power on demand.
Engineered In The USA
These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
Features & Specifications
Features & Specifications
|
Number of Channels |
1 |
|
Class |
BR |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
100 x 2 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
150 x 2 |
| RMS Power Rating (Watts x Channels) - 1 Ohms |
N/A |
| RMS Power Rating - Bridged | 300 x 1 |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
4 |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-500hz |
| Low Pass Crossover Frequency (Hz) |
50-500hz |
| Signal-to-Noise Ratio |
80dB |
| Bass Boost |
0-18dB (Optional) |
| Bass Remote Included |
No |
| Fuse Rating | 30A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 10 gauge |
| Warranty | 1 Year |
