Compatible Vehicle Fitment
Polaris GENERAL 2016-Current with RIDE COMMAND
Compatible Product Models
Polaris RIDE COMMAND
Marine Grade Protection / IPX Rating
MB Quart has engineered a select group of UTV-tuned audio systems that are perfectly designed for the Polaris GENERAL. It is essential that every component installed in a GENERAL be torture tested to be as reliable as it can be in such a harsh environment. This system is made up of multiple components that have different IPX ratings. The speakers and subwoofer are IPX67 rated. The amplifiers are IPX5 rated.
Source Unit Features
Integration with RIDE COMMAND, a high-tech source unit with an off-road display that acts as the hub and integrates your phone, GPS, audio, and communication systems. The actual RIDE COMMAND source unit is NOT INCLUDED.
Speaker Features
These speakers are meticulously engineered to fit in the Polaris GENERAL. They include a 1" Titanium Dome Tweeter that will deliver natural sounding high frequency response, while producing high volume. Injection molded composition Polypropylene cone produces impactful bass with minimal cone flex. The Composite (UV Resistant ASA+Fiberglass) frames are incredibly strong and lightweight. The entire assembly makes it as indestructible as the GENERAL.
Amplifier Features
High Efficiency Full Range 5 Channel Class D Amplifier.

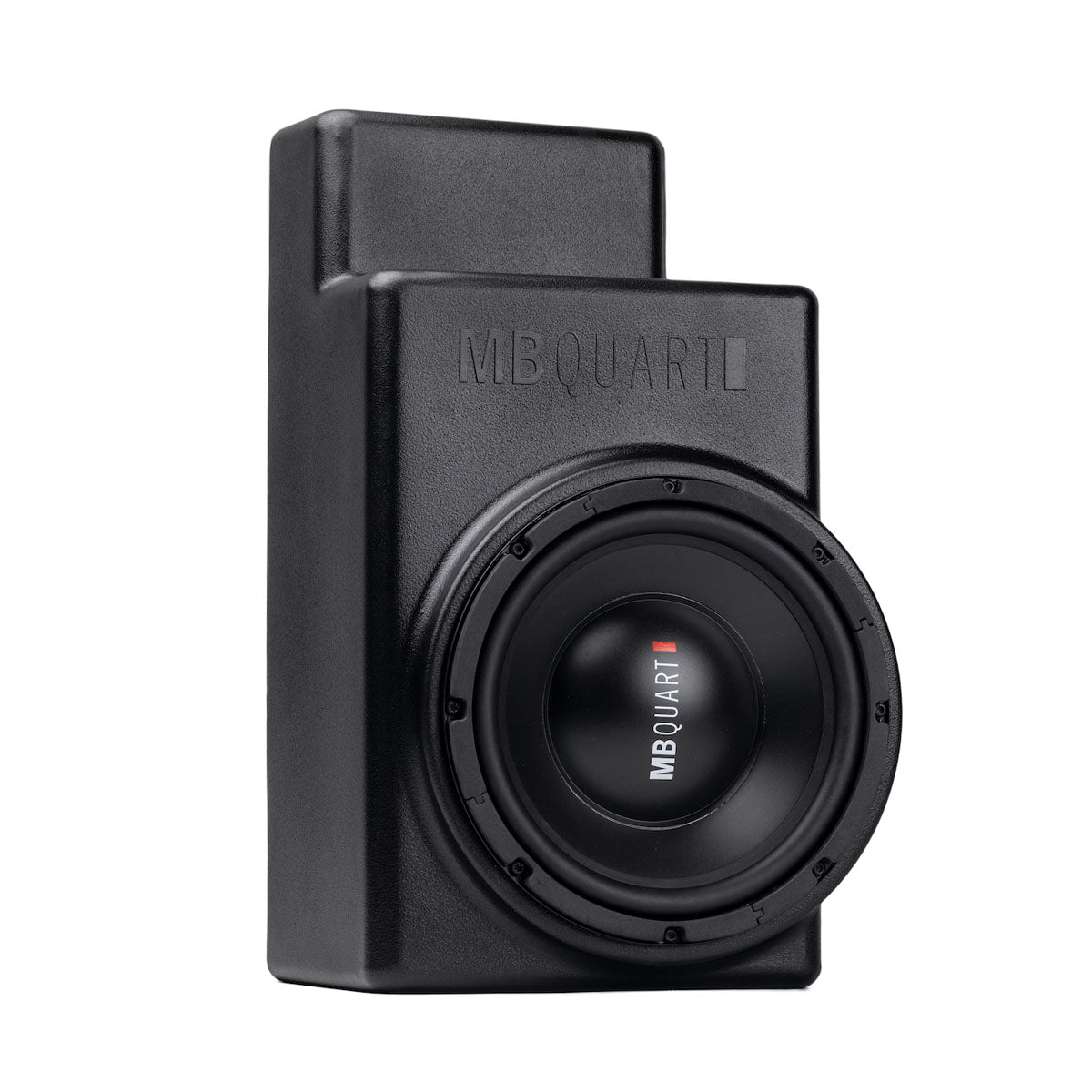

Subwoofer Features
10 inch Subwoofer System includes 10 inch, Dual 4 ohm Subwoofer, GENERAL Dash Mount Subwoofer Enclosure, powered by the included 500 Watt High Effeciency Full Range 5 Chennel Class D amplifier.
Mount / Harness
Plug and Play Harness. Waterproof Connectors with pre-measured wires. No guesswork, no installation mistakes.
Time and Tools
Standard hand tools are required. See the manual for time on each of the different components.
|

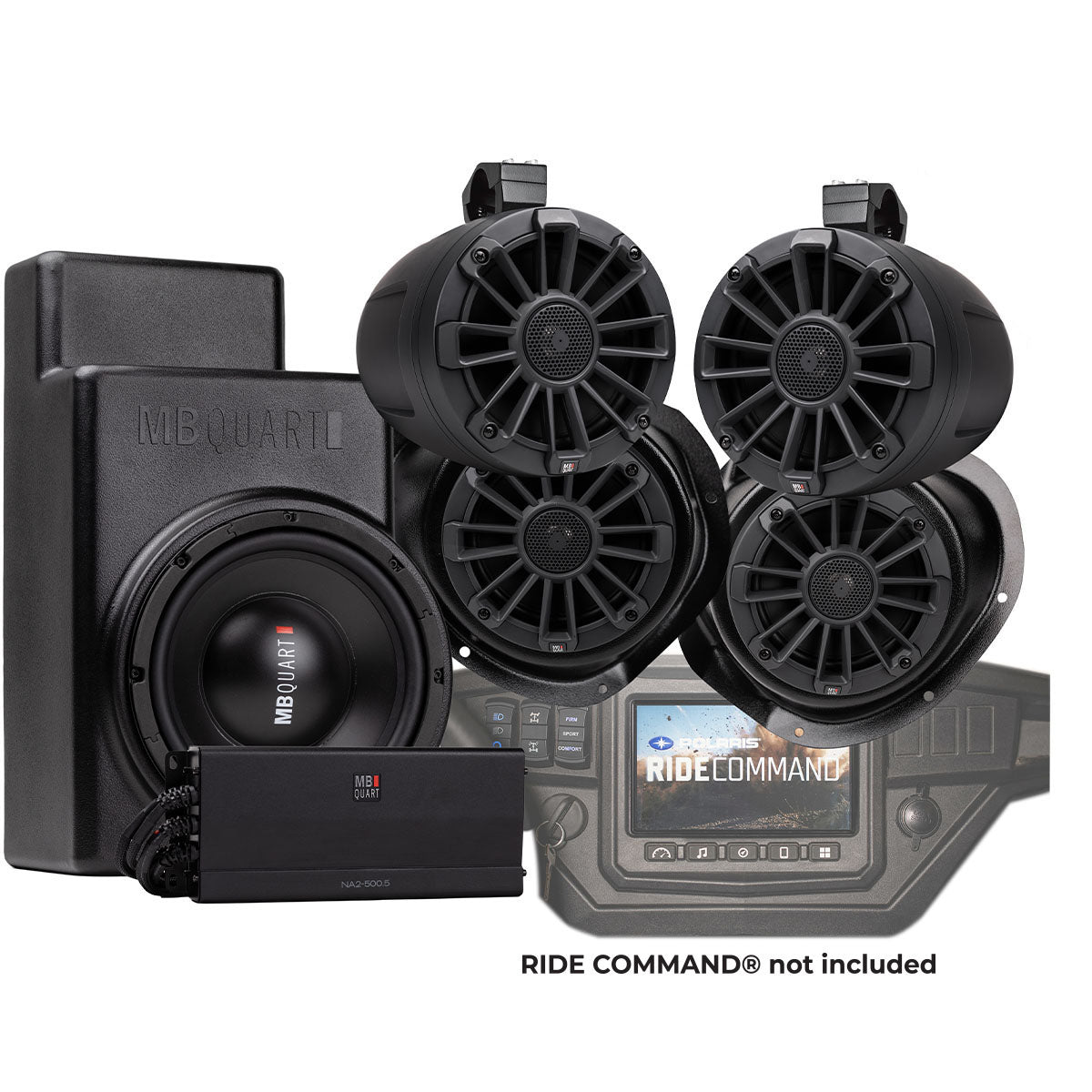

MB Quart MBQG-STG5-RC-1
Polaris GENERAL Tuned Audio Package — STAGE 5
| Specification |
Details |
| Brand |
MB Quart |
| Model |
MBQG-STG5-RC-1 |
| Product Type |
Polaris GENERAL Tuned Audio Package |
| System Stage |
STAGE 5 |
| Total System Power |
500 Watts |
| Speaker Configuration |
Five-speaker system |
| Vehicle Compatibility |
Polaris GENERAL, 2016–Current |
| Audio Source |
Polaris RIDE COMMAND |

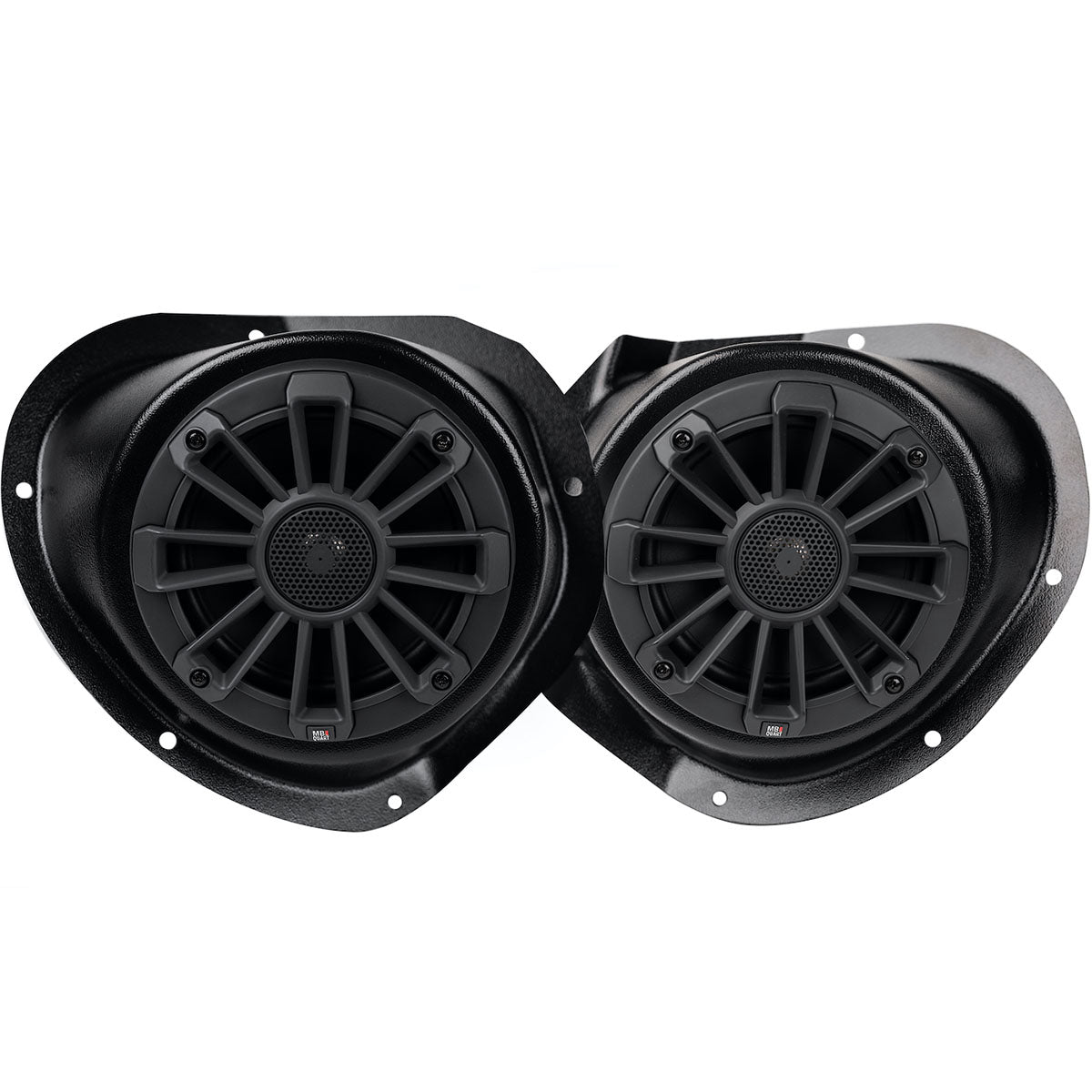

| Front Speakers |
(2) 6.5" coaxial 2-way speakers |

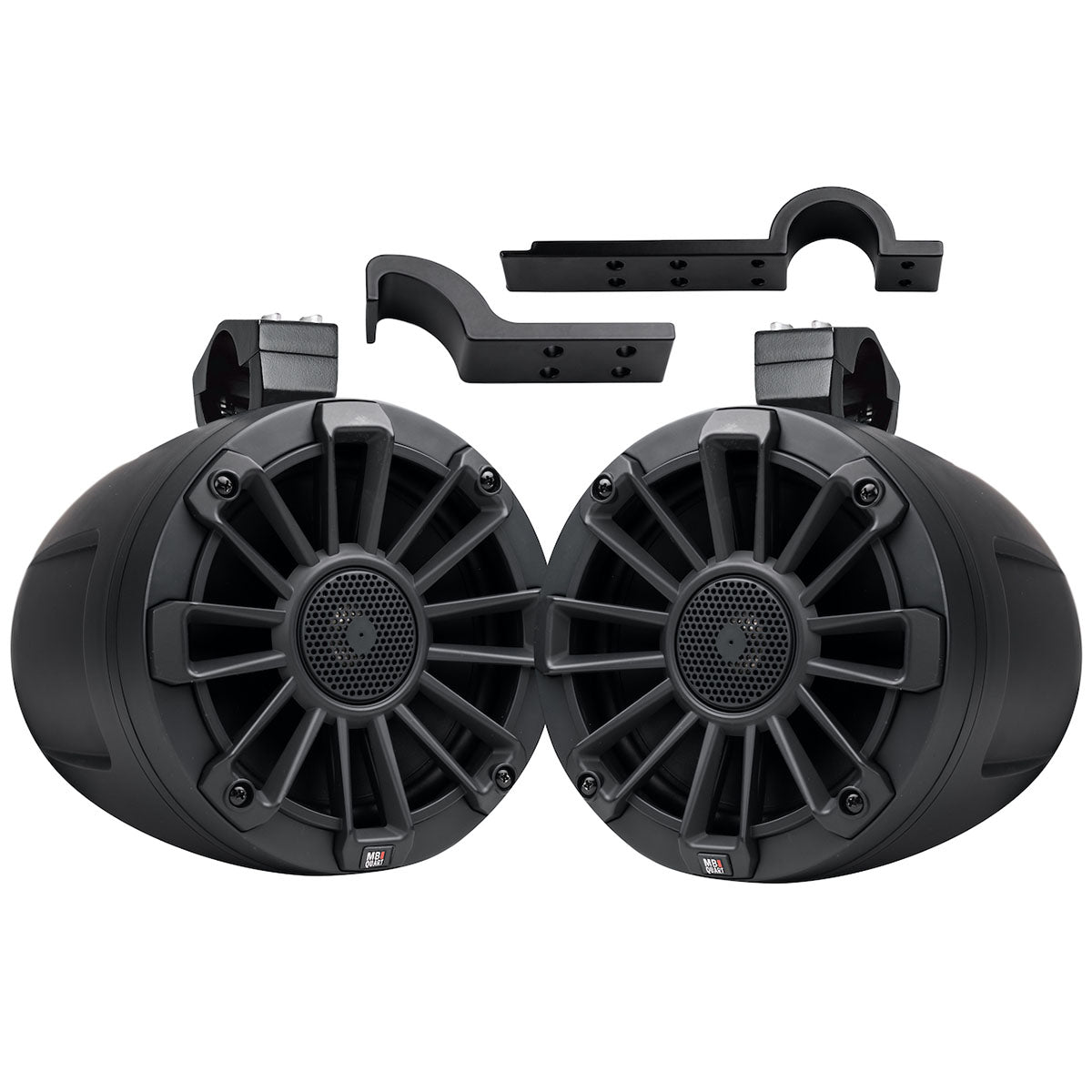

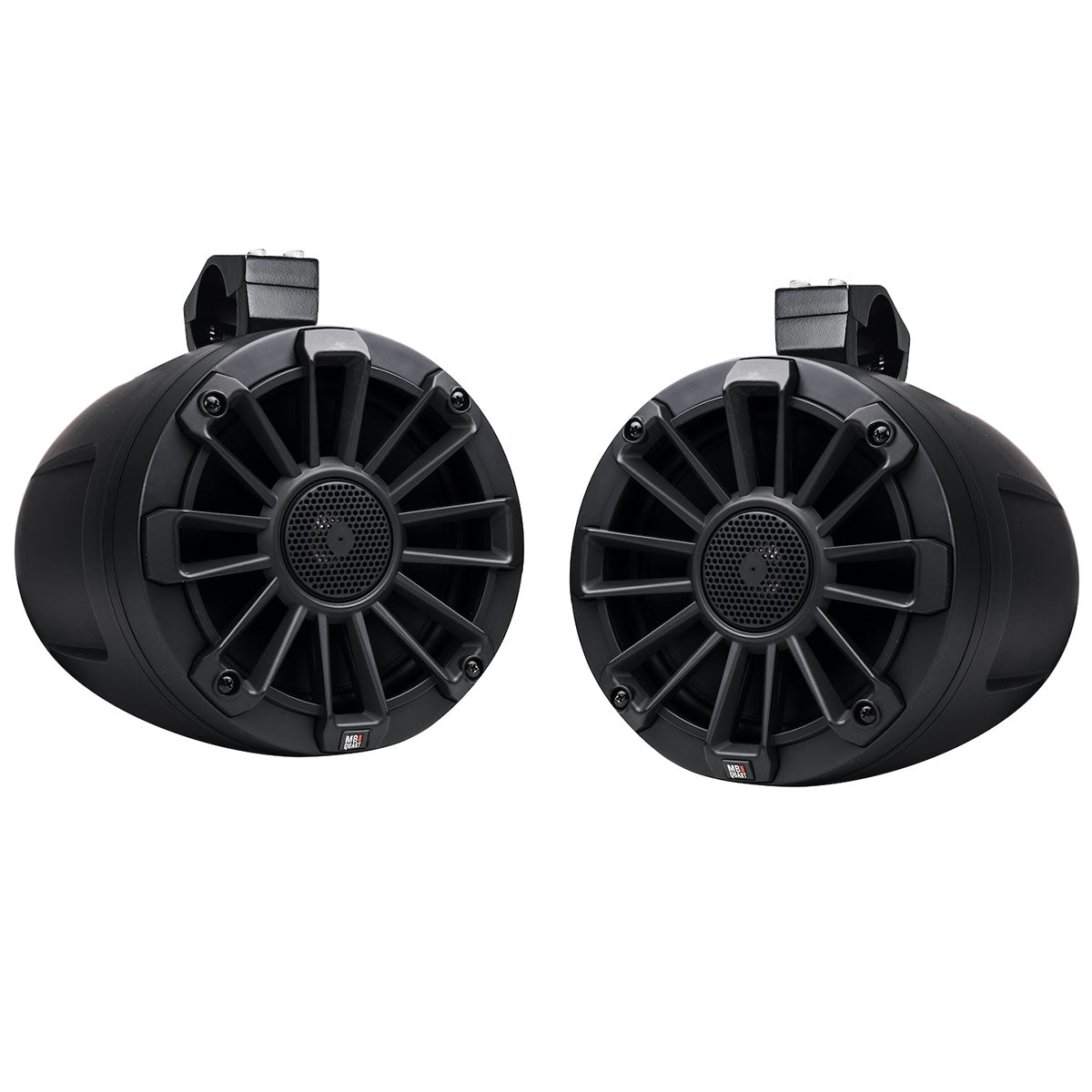

| Rear Speakers |
(2) 6.5" pod-mounted 2-way speakers |
| Subwoofer |
(1) 10" subwoofer |
| Subwoofer Voice Coils |
Dual 4-ohm |

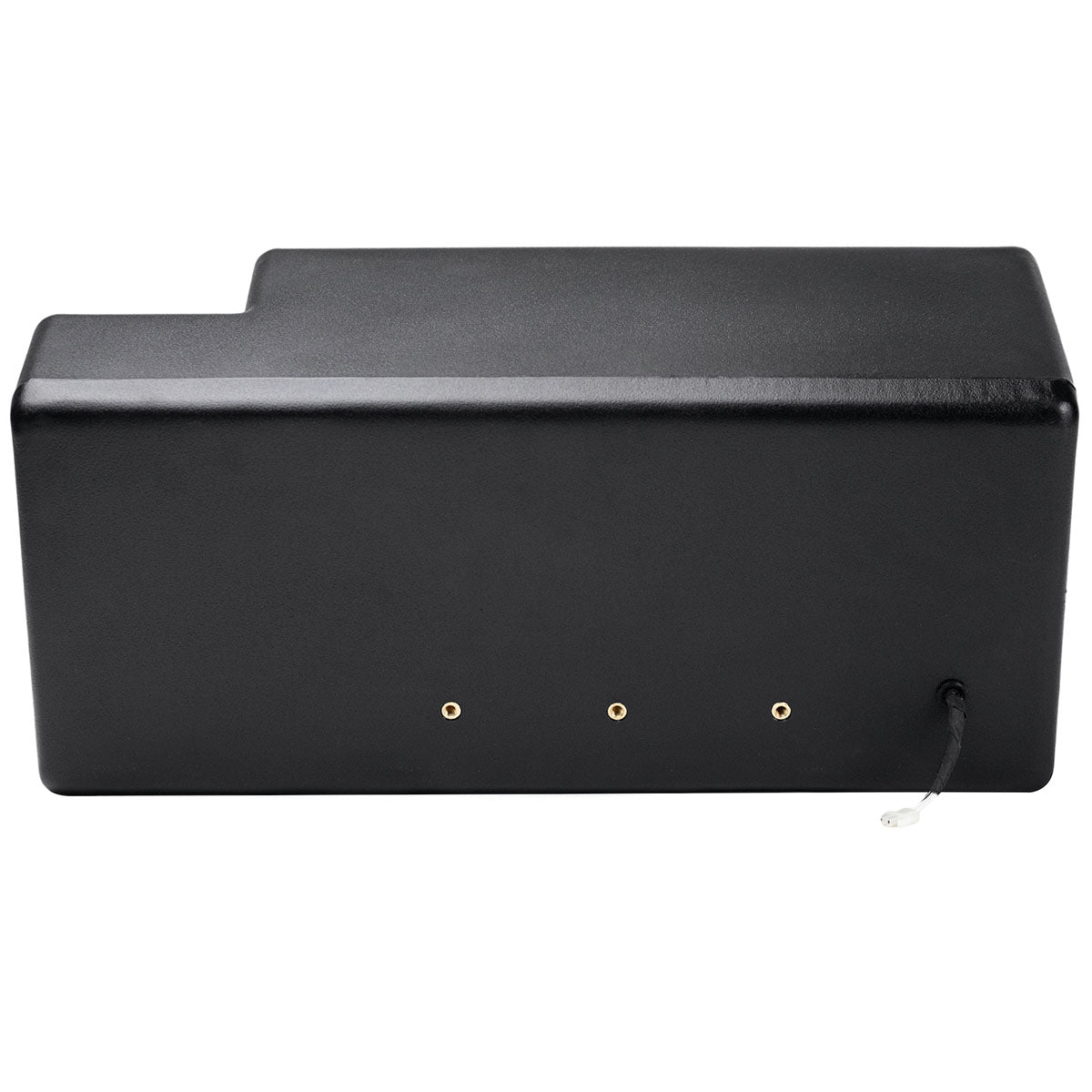

| Subwoofer Enclosure |
Vehicle-specific sealed dash enclosure |

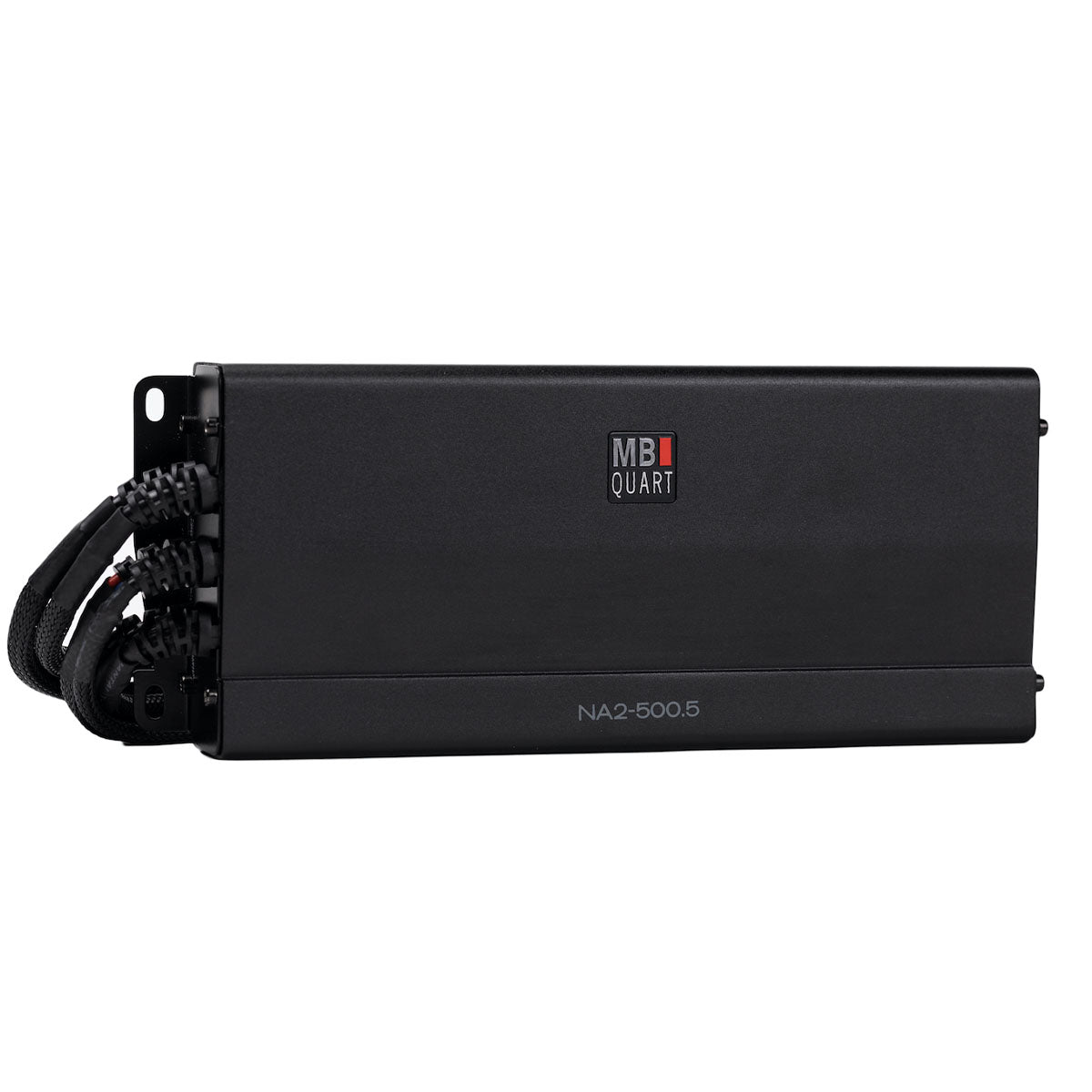

| Full-Range Amplifier |
MB Quart NA2-500.5, 5-channel Class D |
| Subwoofer Amplifier |
MB Quart NA2-400.1 |
| Speaker Tweeter |
1" titanium dome |
| Speaker Cone Material |
Injection-molded polypropylene |
| Speaker Frame Material |
UV-resistant ASA / fiberglass composite |
| Water Resistance |
IPX67 speakers, subwoofer, and source components |
| Amplifier Protection |
IPX5 |
| Installation |
Vehicle-specific, plug-and-play design |
| Wiring |
Pre-measured harnesses with waterproof connectors |

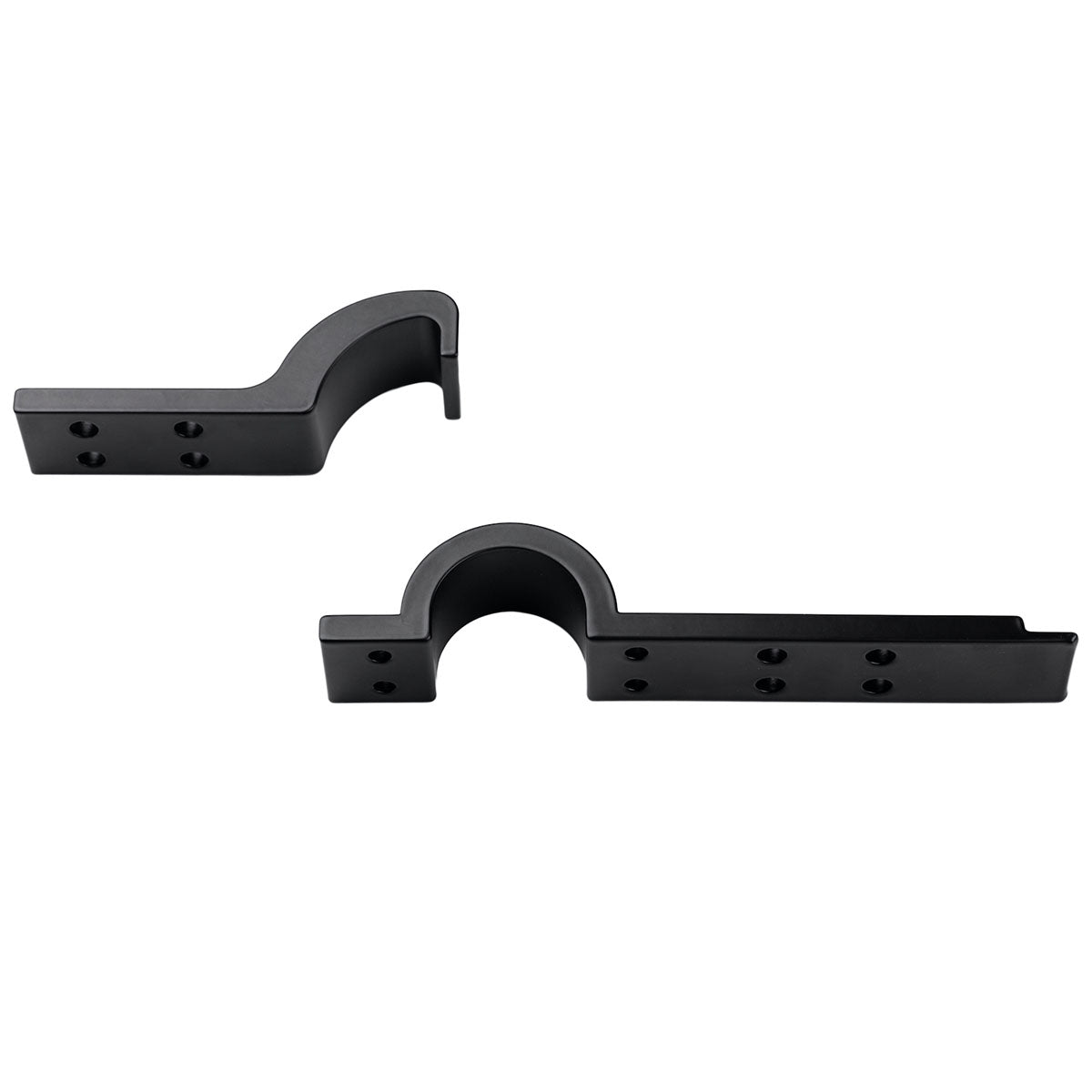

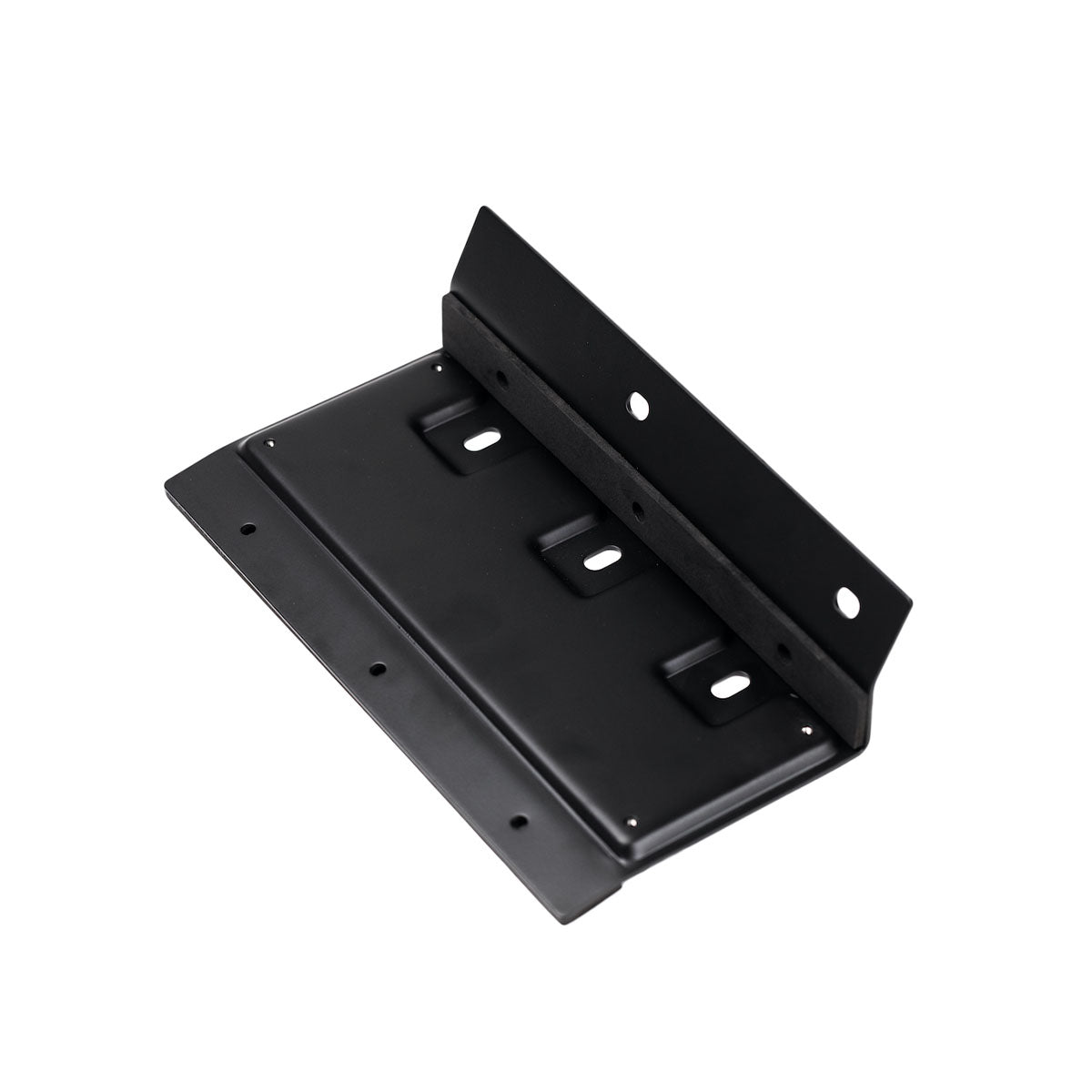

| Mounting Hardware |
Vehicle-specific mounting panels and hardware |
| System Color |
Black |
| Approx. Installation Time |
3 hours |
| Warranty |
1 year |
| Primary Application |
Polaris GENERAL powersports audio upgrade |
