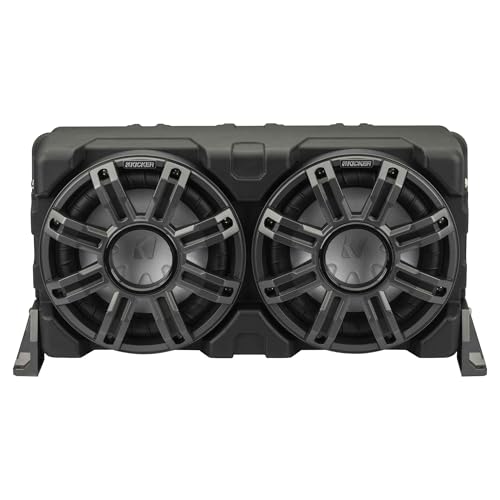

Kicker MWLE104 10" Marine Loaded Enclosure w/ Passive Radiator 4-Ohm (51MWLE104)
The Kicker MWLE104 is a premium marine-grade 10-inch loaded subwoofer enclosure designed to deliver deep, powerful bass in harsh outdoor environments. It combines a high-performance 10-inch marine subwoofer with a custom-tuned 10-inch reFLEX™ passive radiator, creating enhanced low-frequency output in a compact, sealed, weather-resistant design.
Key Features
-
10-inch M-Class marine subwoofer (factory-loaded)
-
10-inch reFLEX™ passive radiator for extended low-frequency response
-
4-ohm final impedance for flexible amplifier matching
-
Marine-rated, fully weather-resistant construction
-
Carbon-fiber–infused polypropylene cone for stiffness and clarity
-
Co-molded TPE surround for durability in extreme environments
-
Sealed, rugged enclosure designed for marine and outdoor use
-

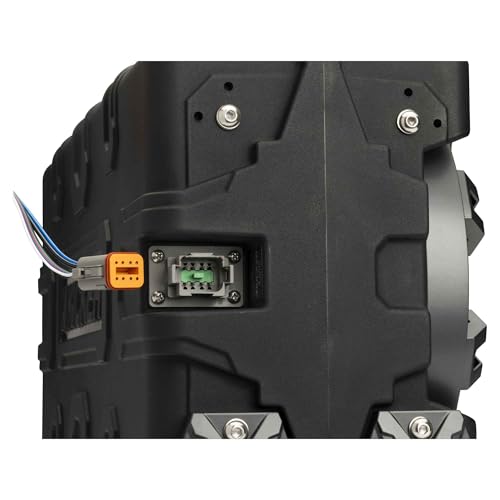

Water-resistant terminals and corrosion-resistant hardware
-
UV- and moisture-resistant housing for long-term durability
-
Multi-position mounting (up-firing, front-firing, or down-firing)
Designed for Deep Bass in Harsh Environments
The MWLE104 uses a passive radiator instead of a traditional port to extend low-frequency response while maintaining a sealed, compact enclosure. This allows it to produce deeper bass than a similarly sized sealed box while avoiding port noise—especially important in marine and outdoor environments where wind, moisture, and vibration are constant factors.
The enclosure is engineered to deliver tight, controlled bass that remains consistent even in open-air settings like boats and outdoor vehicles.
Built for Marine Reliability
Every component is designed for exposure to water, sun, and vibration. The enclosure meets marine durability standards with corrosion-resistant materials, sealed connections, and UV-stable construction. This ensures long-term reliability in demanding environments such as boats, ATVs, and outdoor audio systems.
Flexible Installation Options
The MWLE104 is designed to adapt to different mounting orientations depending on your space and sound preference:
-
Up-firing for maximum output
-
Front-firing for direct bass projection
-
Down-firing for deeper, more diffused bass response
What's Included
-
Pre-loaded 10-inch marine subwoofer enclosure
-
Integrated 10-inch reFLEX™ passive radiator
-
Factory-installed 4-ohm wiring configuration
-
Mounting hardware
-
Weather-resistant grille(s)
Specifications
| Specification |
Details |
| Model |
MWLE104 (51MWLE104) |
| Woofer Size |
10" |
| Passive Radiator |
10" reFLEX™ |
| Impedance |
4 Ohms |
| RMS Power Handling |
200–400 Watts |
| Peak Power Handling |
800 Watts |
| Frequency Response |
20 Hz – 500 Hz |
| Enclosure Type |
Marine sealed with passive radiator |
| Construction |
Weather-resistant molded enclosure |
| Cone Material |
Carbon-fiber–infused polypropylene |
| Surround Material |
Co-molded TPE |
| Mounting Style |
Multi-orientation capable |
| Application |
Marine / Outdoor / Powersports |
