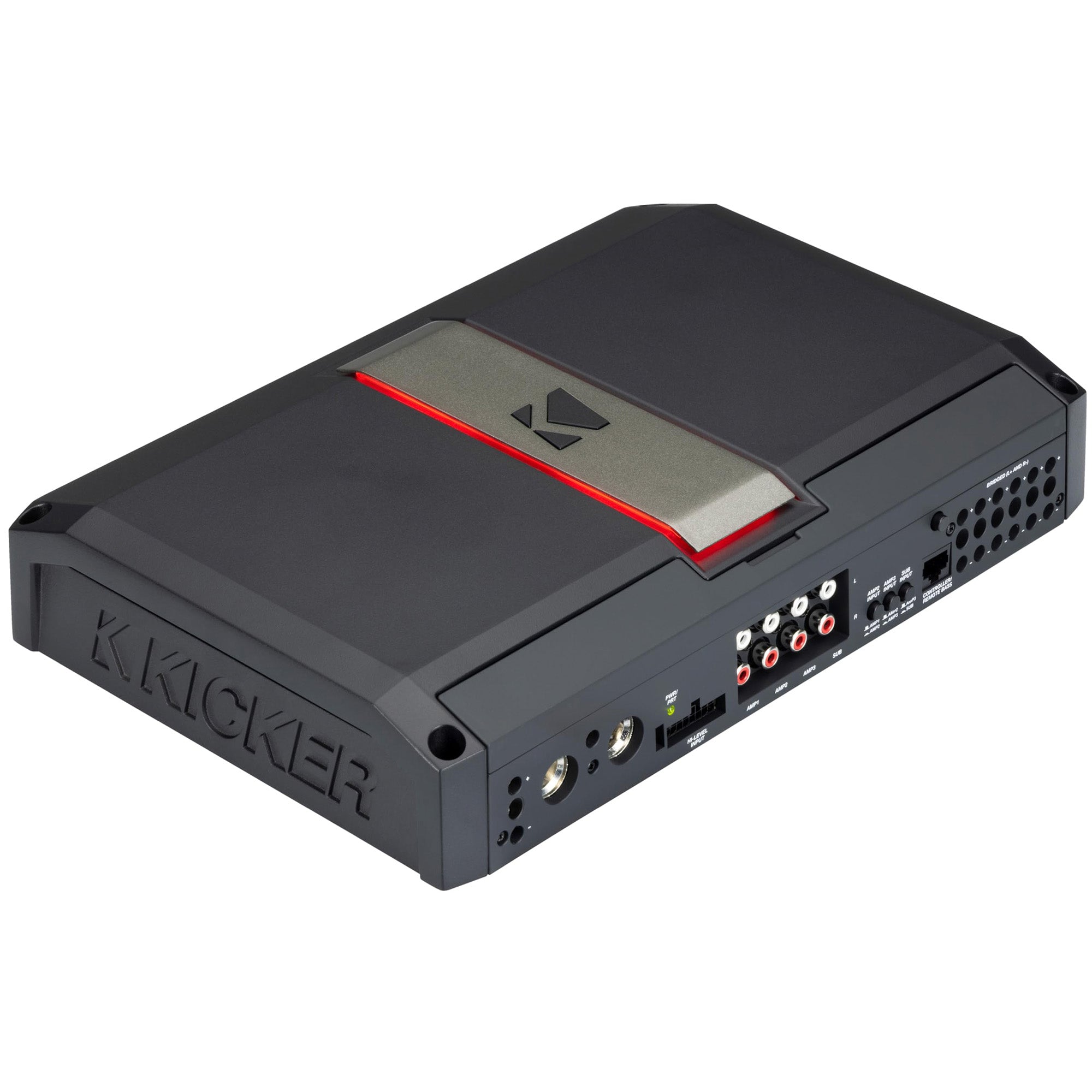

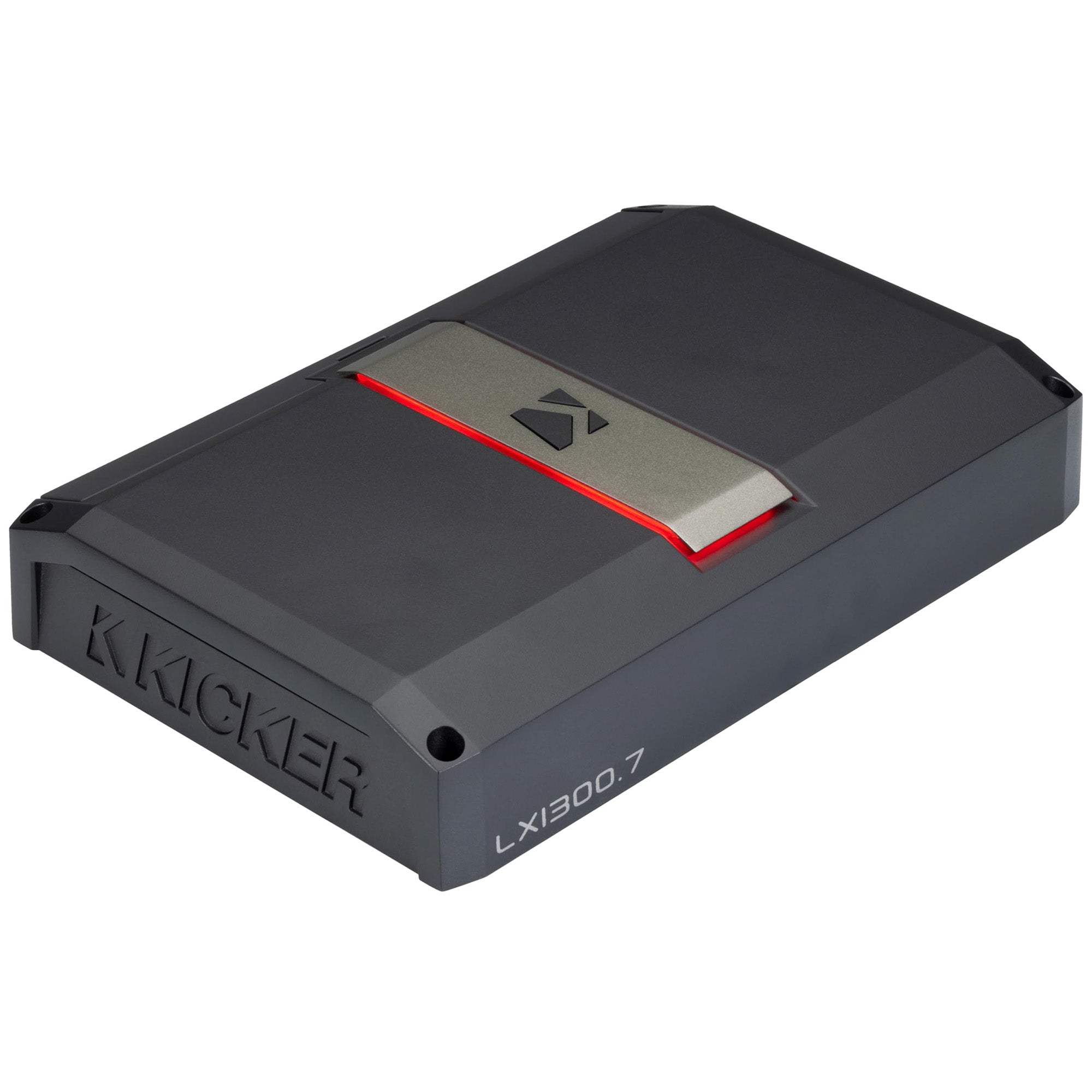

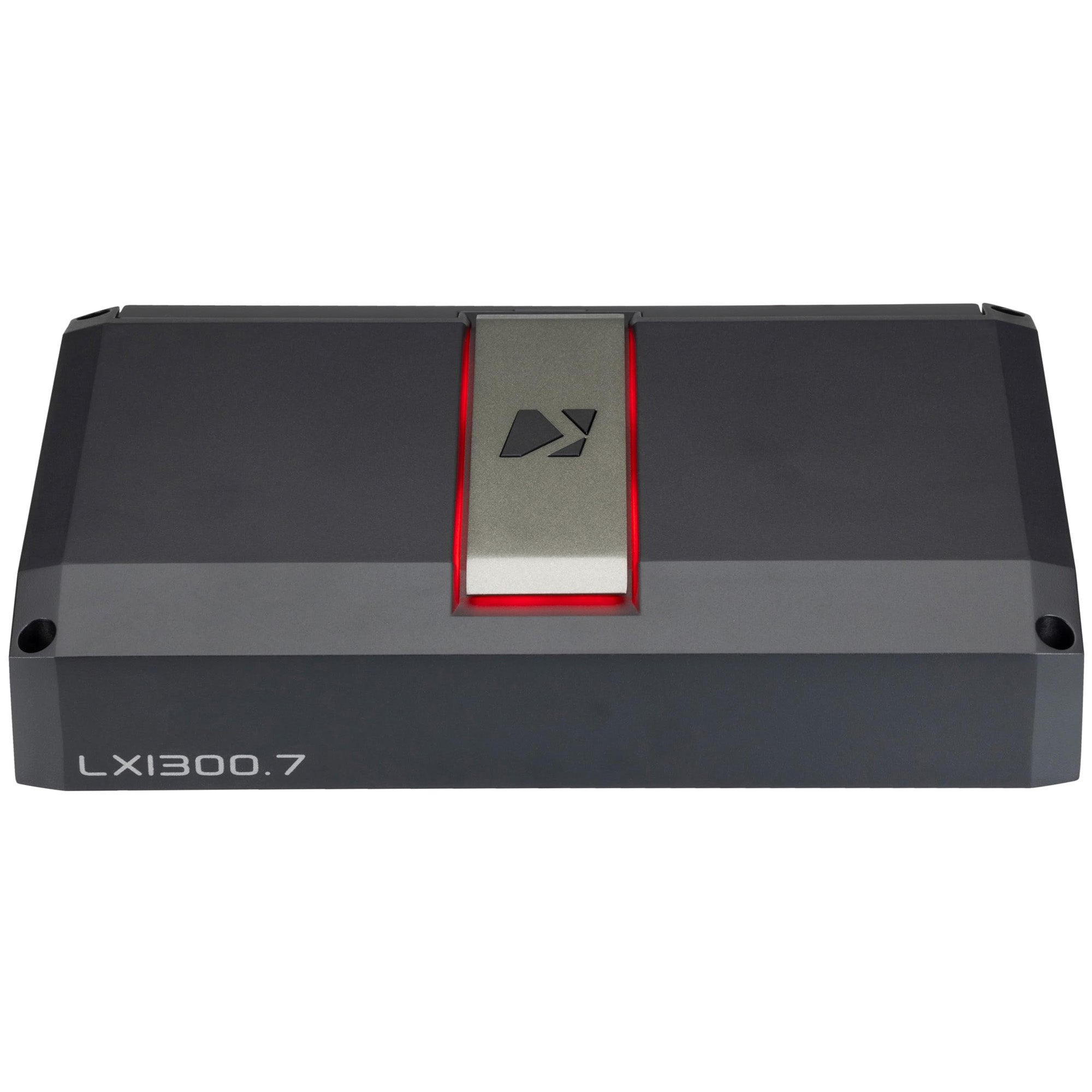

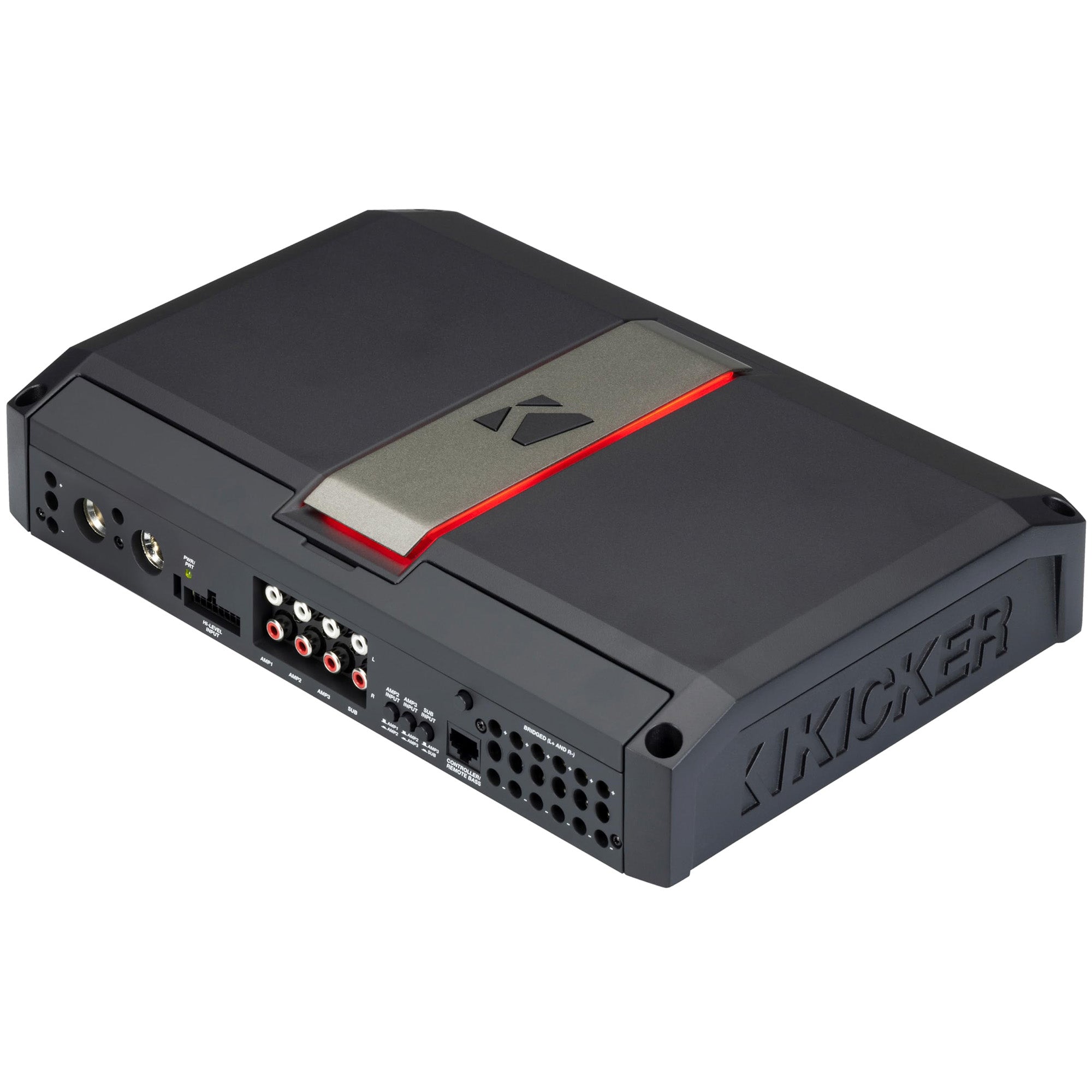

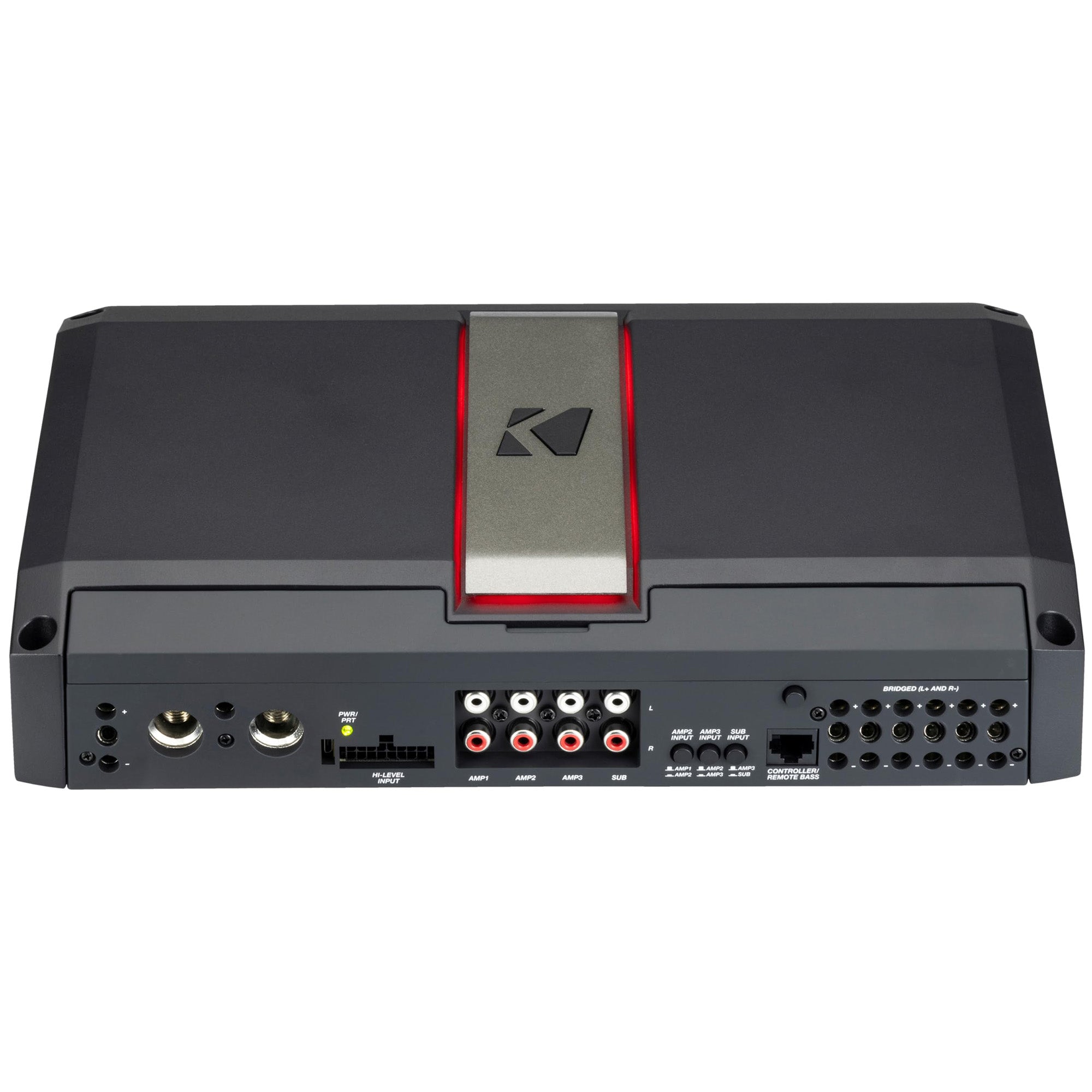

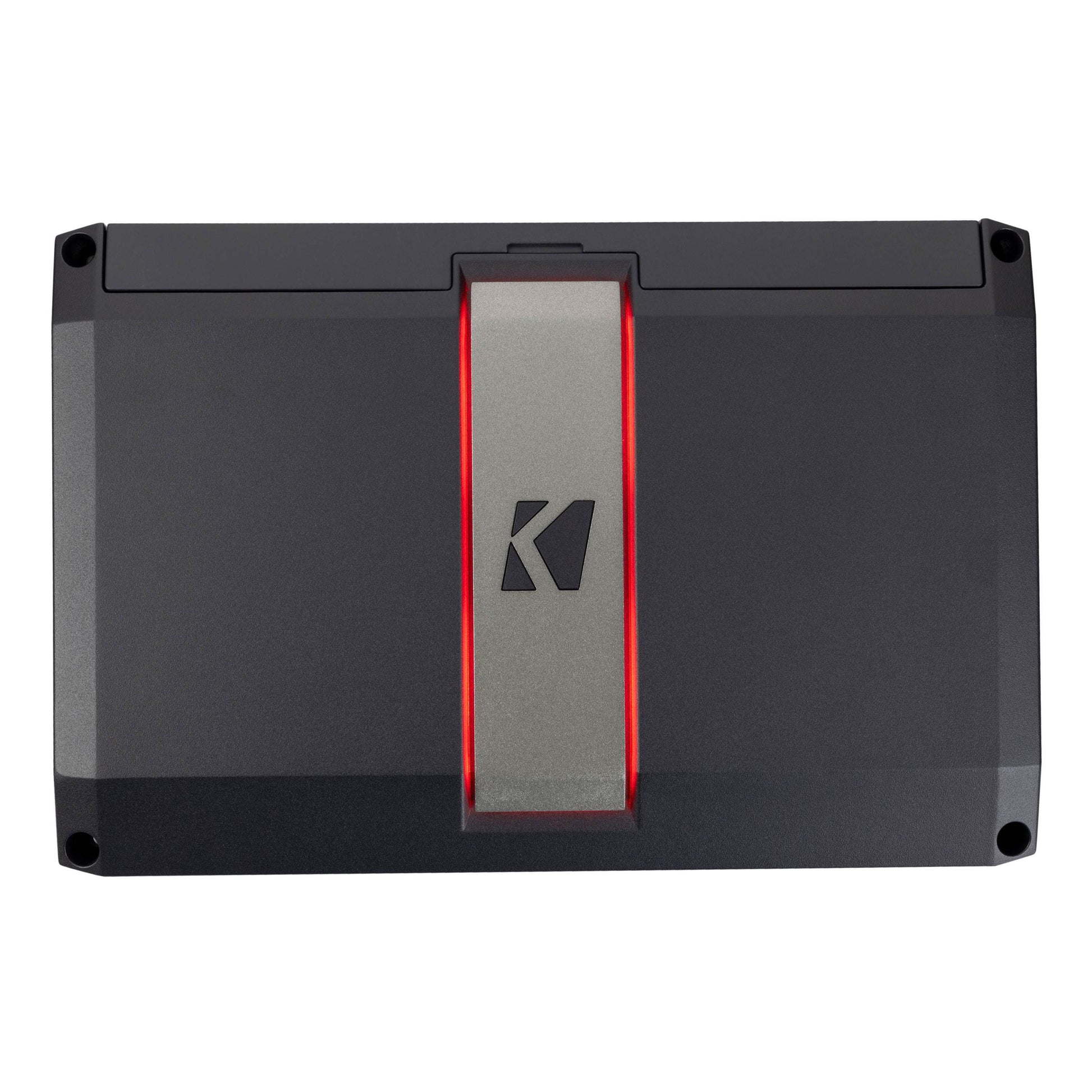

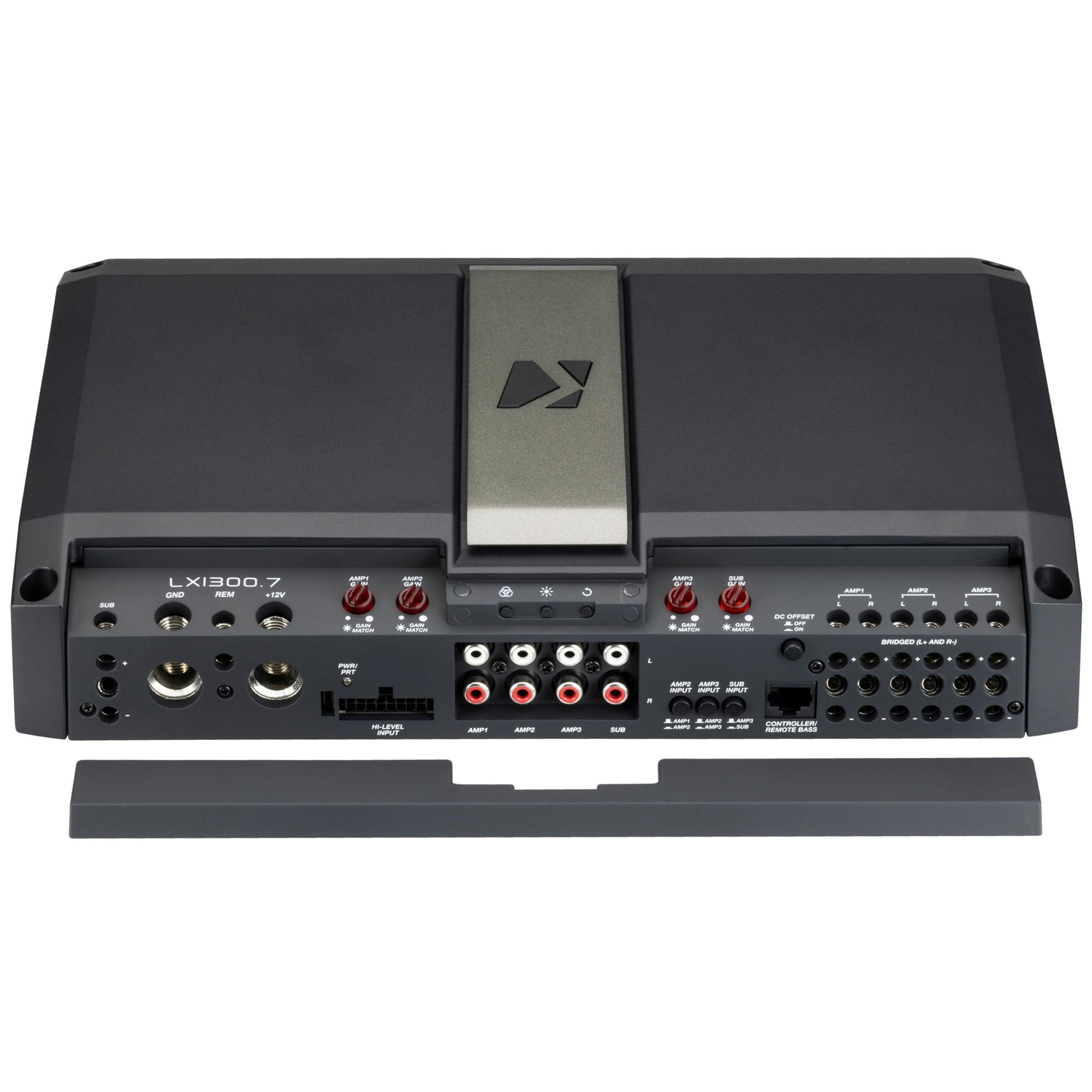

KICKER LX13007 LX Class D 7-Channel Full-Range Amplifier
Powerful, Flexible Audio for Complete Vehicle Sound Systems
The KICKER LX13007 is a 7-channel full-range Class D amplifier designed to deliver powerful, efficient performance across your entire vehicle audio system. With dedicated channels for multiple speakers and subwoofer applications, it provides the flexibility needed to build a clean, well-balanced system without taking up unnecessary space.
Key Features
-
7-channel full-range Class D design for efficient, high-output performance
-
Flexible system configuration for powering multiple speakers and subwoofer channels
-
Compact amplifier design helps maximize installation space
-
High-efficiency Class D technology delivers strong performance with reduced power consumption
-
Built for KICKER sound systems with the power and versatility needed for serious audio upgrades
One Amplifier. Complete System Control.
Whether you're upgrading your factory audio system or building a custom setup from the ground up, the LX13007 gives you the channel count and flexibility to power a complete vehicle sound system from a single amplifier.
Its Class D architecture combines efficient power delivery with a space-conscious design, making it a practical choice for installations where performance and packaging both matter.
Designed for the Upgrade
From front and rear speakers to dedicated low-frequency output, the LX13007 provides a versatile foundation for a high-performance mobile audio system. Its 7-channel configuration helps simplify installation while giving you the flexibility to create the sound system you want.
KICKER LX13007 powerful, efficient, and built to bring your entire system together.
|
Technical Specifications
| Specification |
Details |
| Model |
LX1300.7 |
| Part Number |
51LX13007 |
| Amplifier Type |
7-Channel Full-Range Class D |
| RMS Power @ 14.4V |
|
| Full-Range Channels — 4Ω Stereo |
125W × 4 |
| Full-Range Channels — 2Ω Stereo |
150W × 4 |
| Full-Range Channels — 4Ω Bridged |
250W × 2 |
| Amp 3 — 4Ω Stereo |
65W × 2 |
| Amp 3 — 2Ω Stereo |
65W × 2 |
| Amp 3 — 4Ω Bridged |
130W × 1 |
| Subwoofer Channel — 4Ω Mono |
300W × 1 |
| Subwoofer Channel — 2Ω Mono |
550W × 1 |
| Subwoofer Channel — 1Ω Mono |
700W × 1 |
| Dynamic Power |
1500W |
| Full-Range Frequency Response |
20Hz–20kHz |
| Subwoofer Frequency Response |
10Hz–160Hz (+0/-1dB) |
| Signal-to-Noise Ratio |
>95dB (A-weighted, rated power) |
| Signal-to-Noise Ratio @ 1W |
>75dB |
| High-Level Input Sensitivity |
1V–40V |
| Low-Level Input Sensitivity |
125mV–5V |
| Full-Range Crossover |
Off / HP / LP / BP |
| Full-Range High-Pass Range |
20Hz–5kHz |
| Full-Range Low-Pass Range |
40Hz–5kHz |
| Subwoofer Low-Pass Filter |
40Hz–160Hz, 24dB/octave Linkwitz-Riley |
| Crossover Topology |
12/18/24dB/oct Butterworth; 12/24dB/oct Linkwitz-Riley |
| Subsonic Filter |
24dB/octave Linkwitz-Riley, variable 10–80Hz |
| KickEQ+™ |
0–6dB boost; 20–80Hz center frequency; Q 1–5 |
| Dimensions (H × W × L) |
2-3/8" × 8-7/16" × 12-5/8" |
| Dimensions (Metric) |
6.0 × 21.4 × 32.0 cm |
| Lowest Full-Range Impedance |
2Ω Stereo / 4Ω Bridged |
| Lowest Subwoofer Impedance |
1Ω |

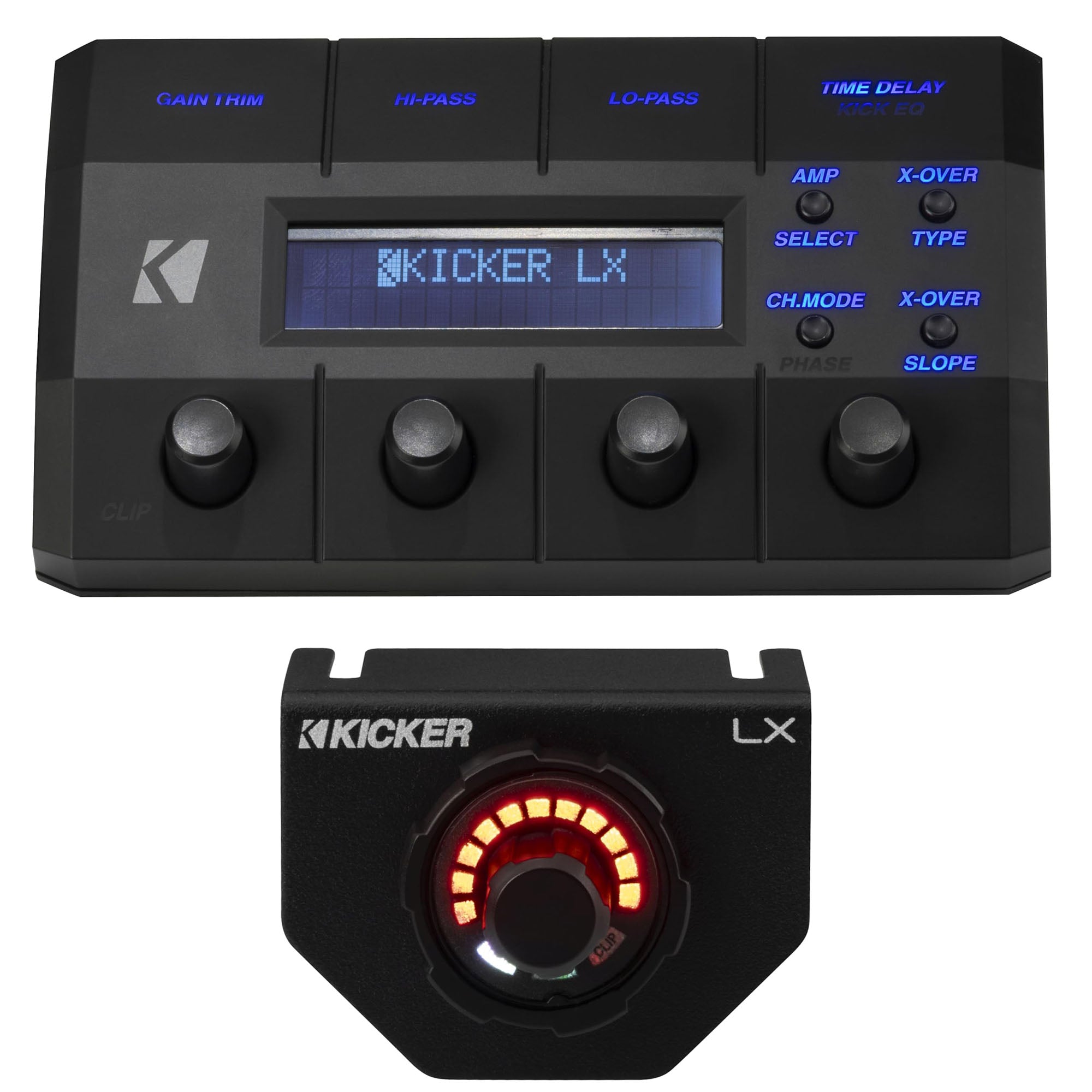

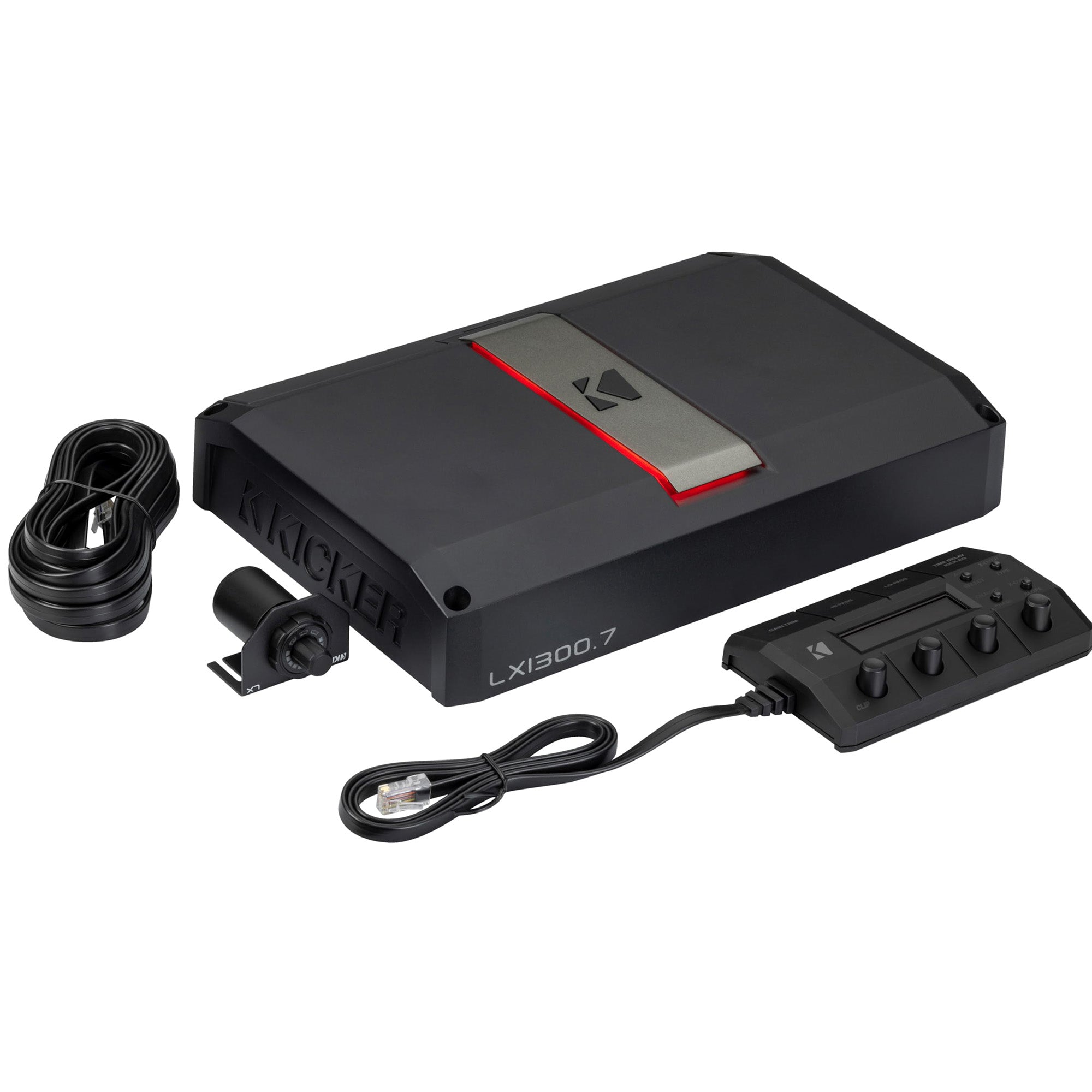

| Control Center |
LX Control Center (LXCC) included |
| Remote Control |
LX Remote Control (LXRC) included |
| Input Technology |
FIT+™ Differential Inputs |
| Bass Restoration |
SHOCwave2.0™ |
| Warranty |
2 Years when purchased from an authorized KICKER dealer or kicker.com |
