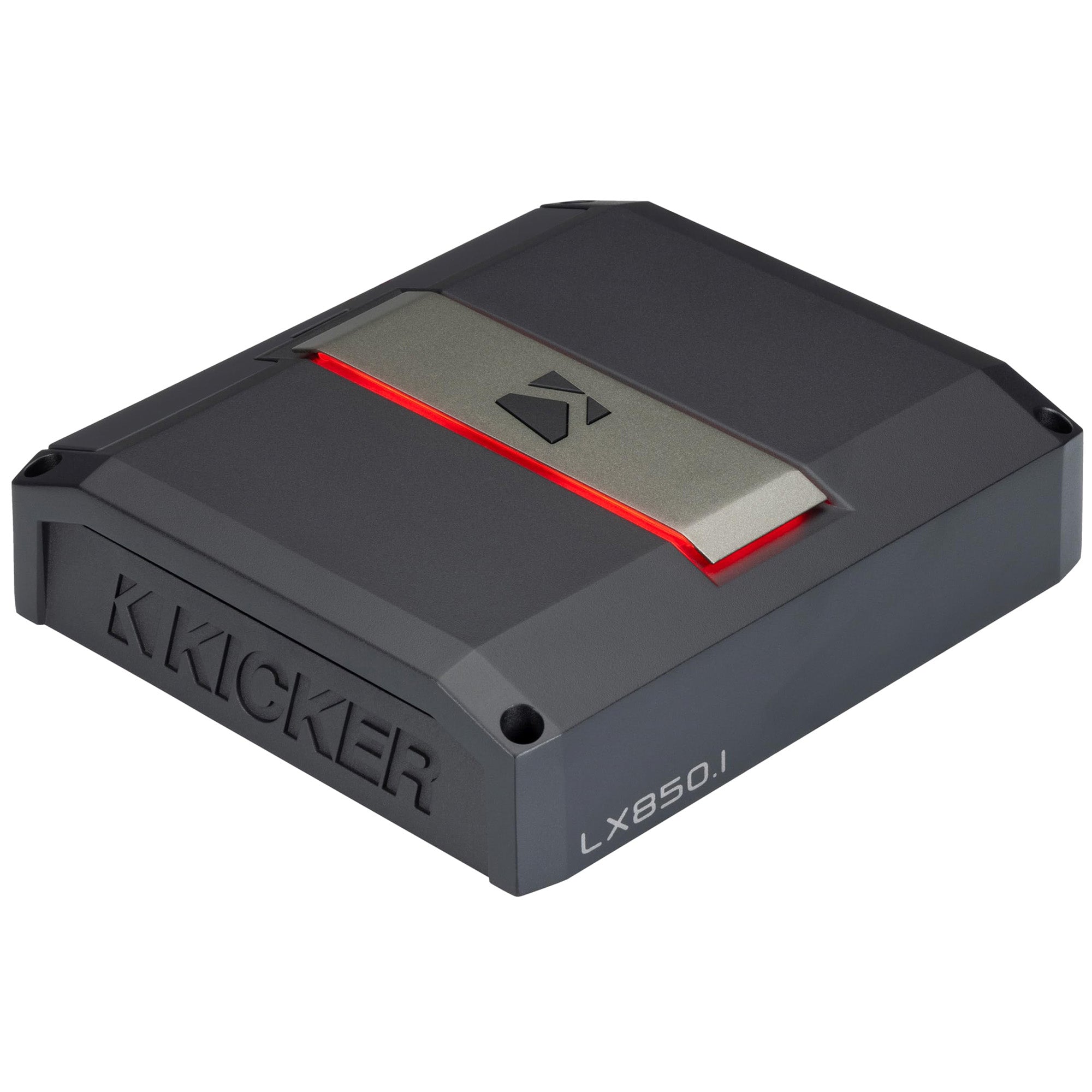

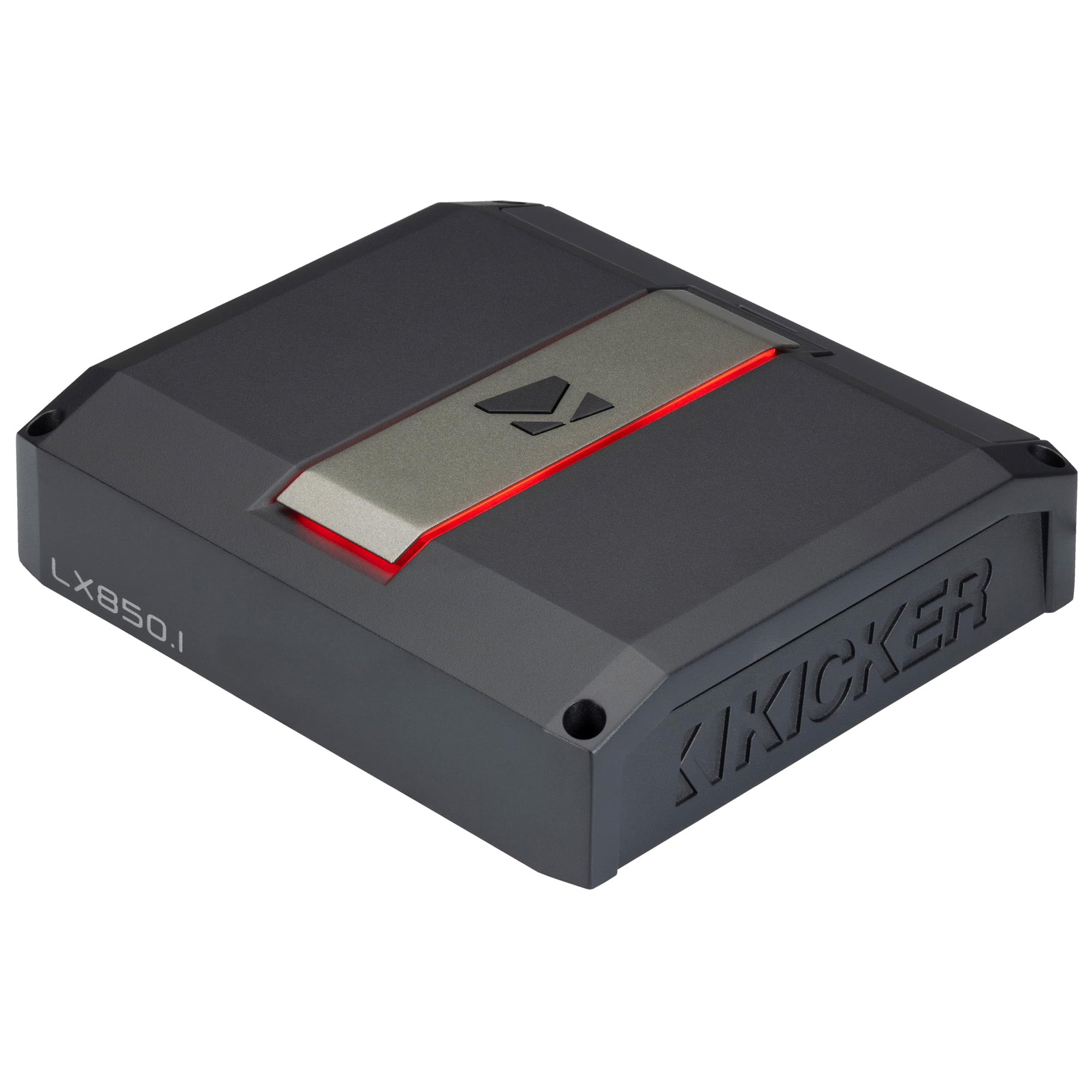

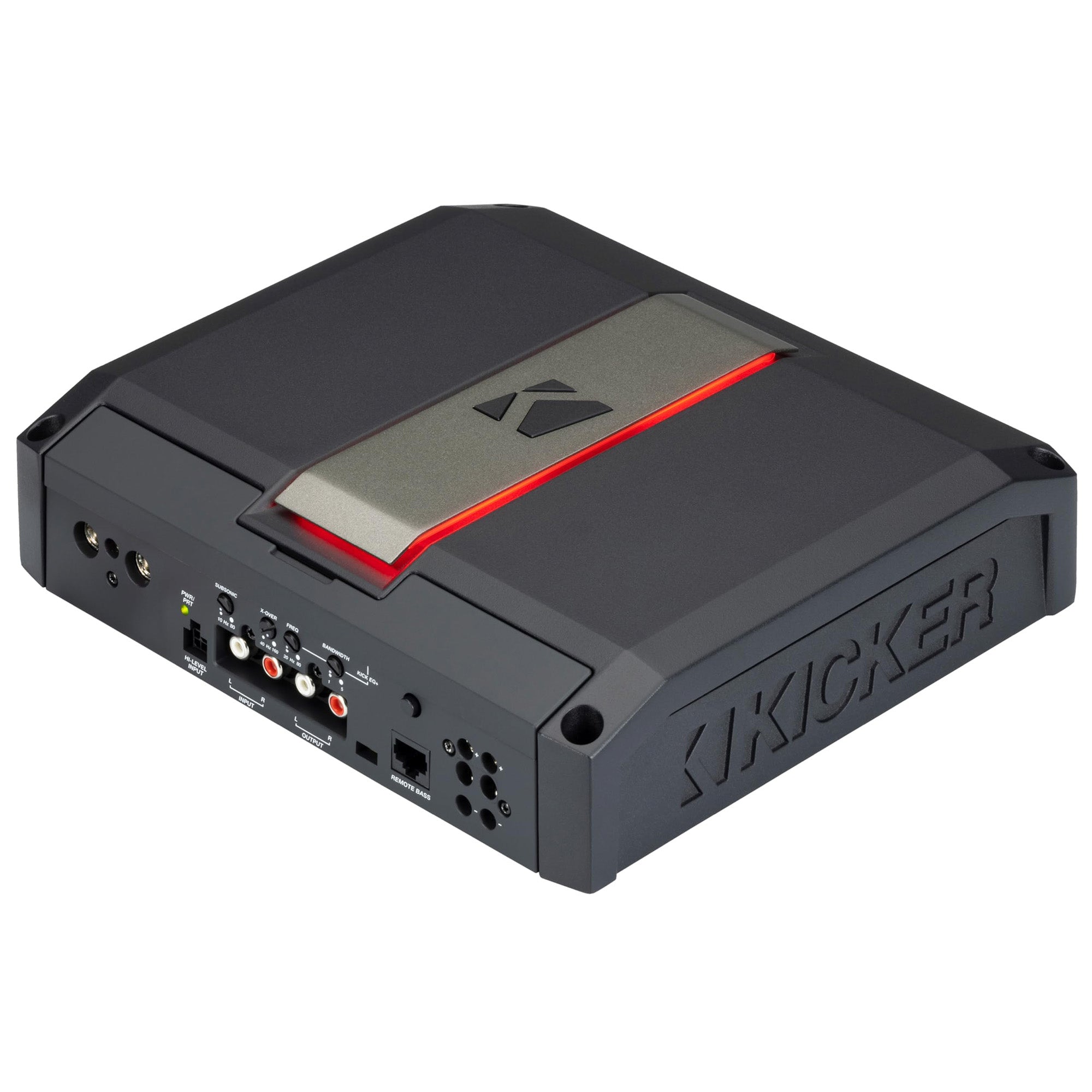

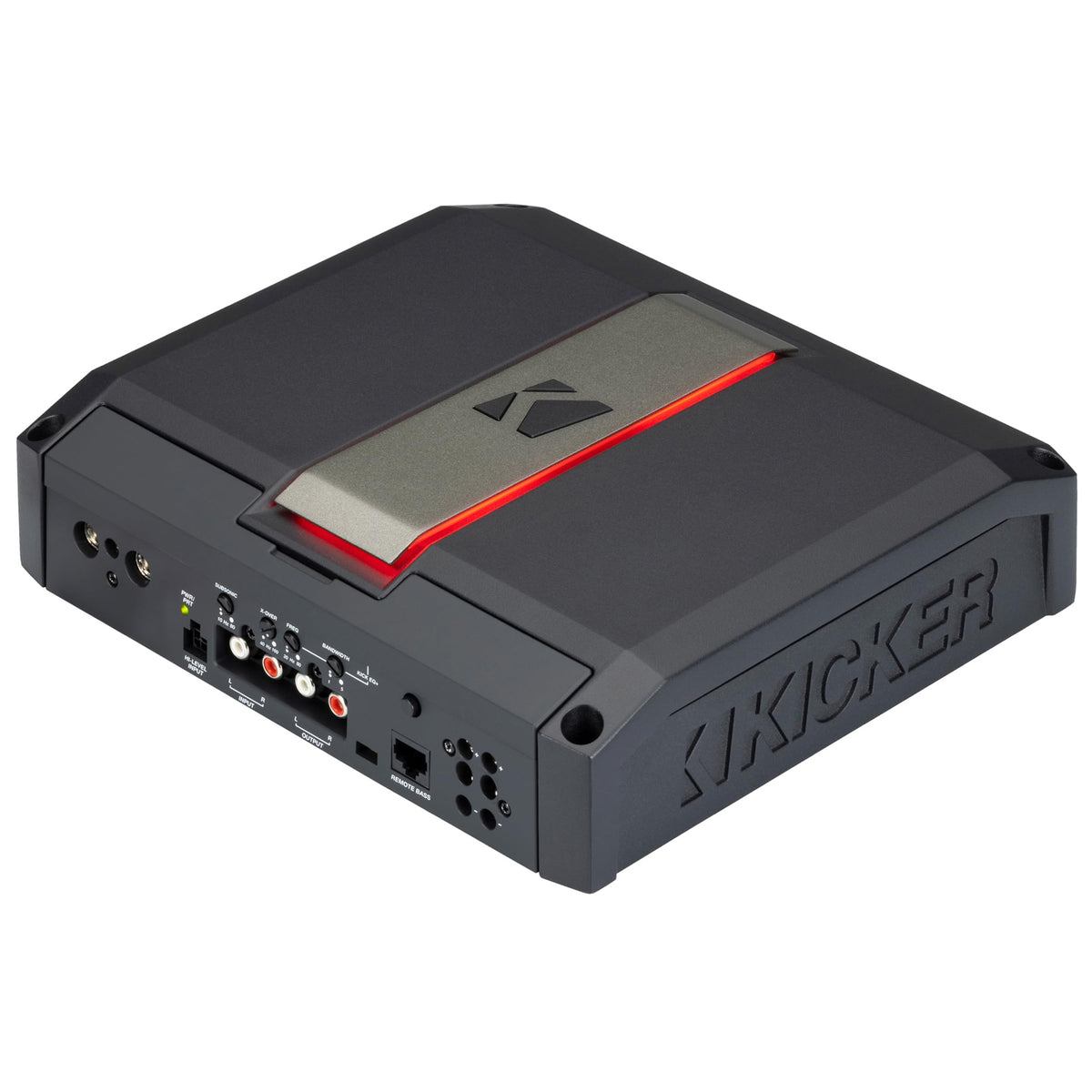

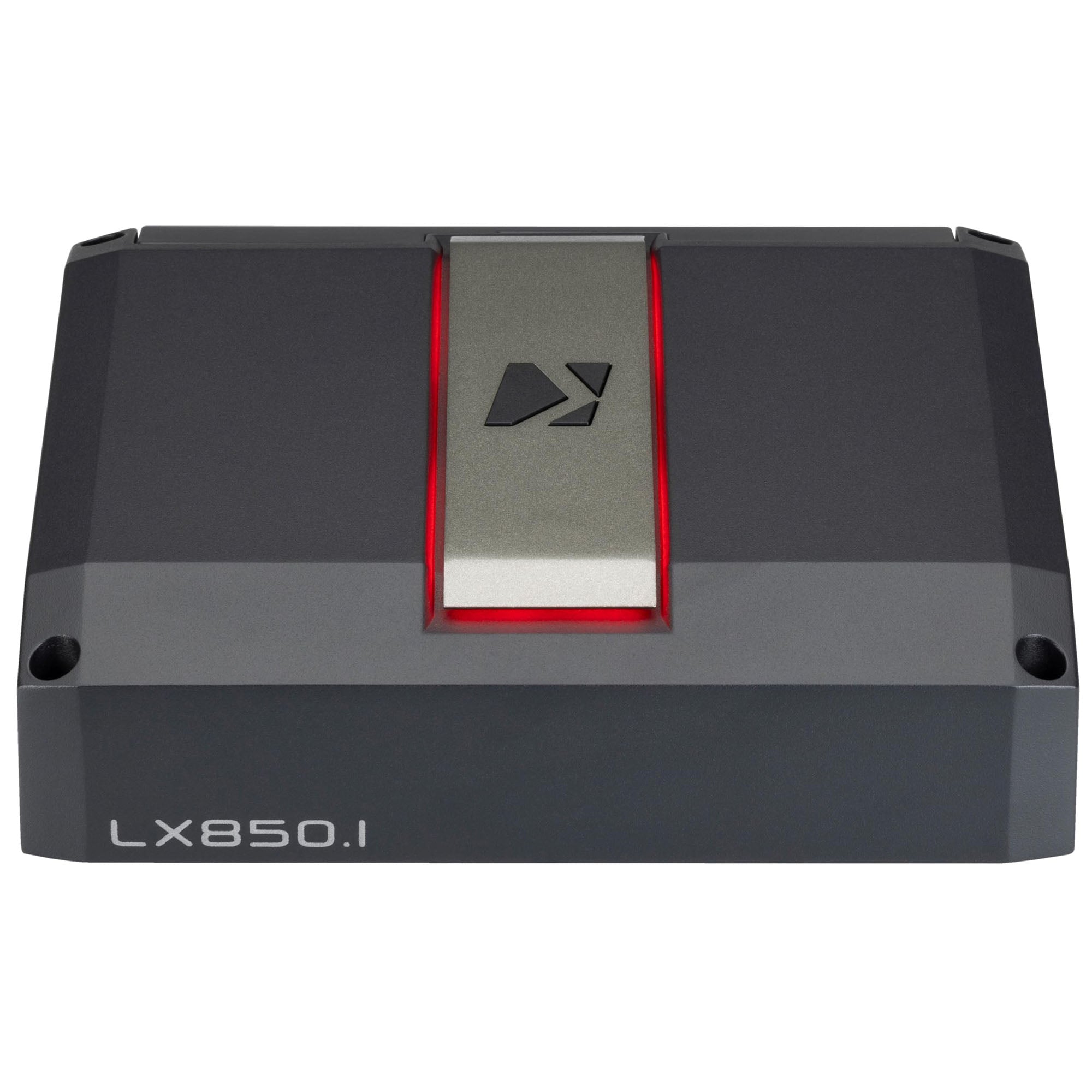

HIGH-POWER MONO AMPLIFIER
The KICKER LX8501 is a compact mono amplifier engineered to deliver clean, controlled power for subwoofer systems. Designed for efficient performance, it provides strong low-end output in a space-saving form factor.
ADVANCED CLASS-D EFFICIENCY
Built with high-efficiency Class-D architecture, the LX8501 maximizes power delivery while minimizing heat and electrical demand. This design supports reliable operation during extended listening sessions.
TIGHT, PUNCHY BASS RESPONSE
Optimized for subwoofer performance, this amplifier delivers accurate, impactful low-frequency output. Its stable power delivery ensures consistent bass response without distortion.
RUGGED, RELIABLE CONSTRUCTION
Constructed with a durable chassis and quality internal components, the LX8501 is built to withstand vibration, heat, and daily driving conditions. It’s engineered for dependable long-term performance.
FLEXIBLE SYSTEM INTEGRATION
Designed to work with a wide range of subwoofer configurations, the LX8501 integrates easily into custom and upgraded factory audio systems, making it adaptable to various install needs.

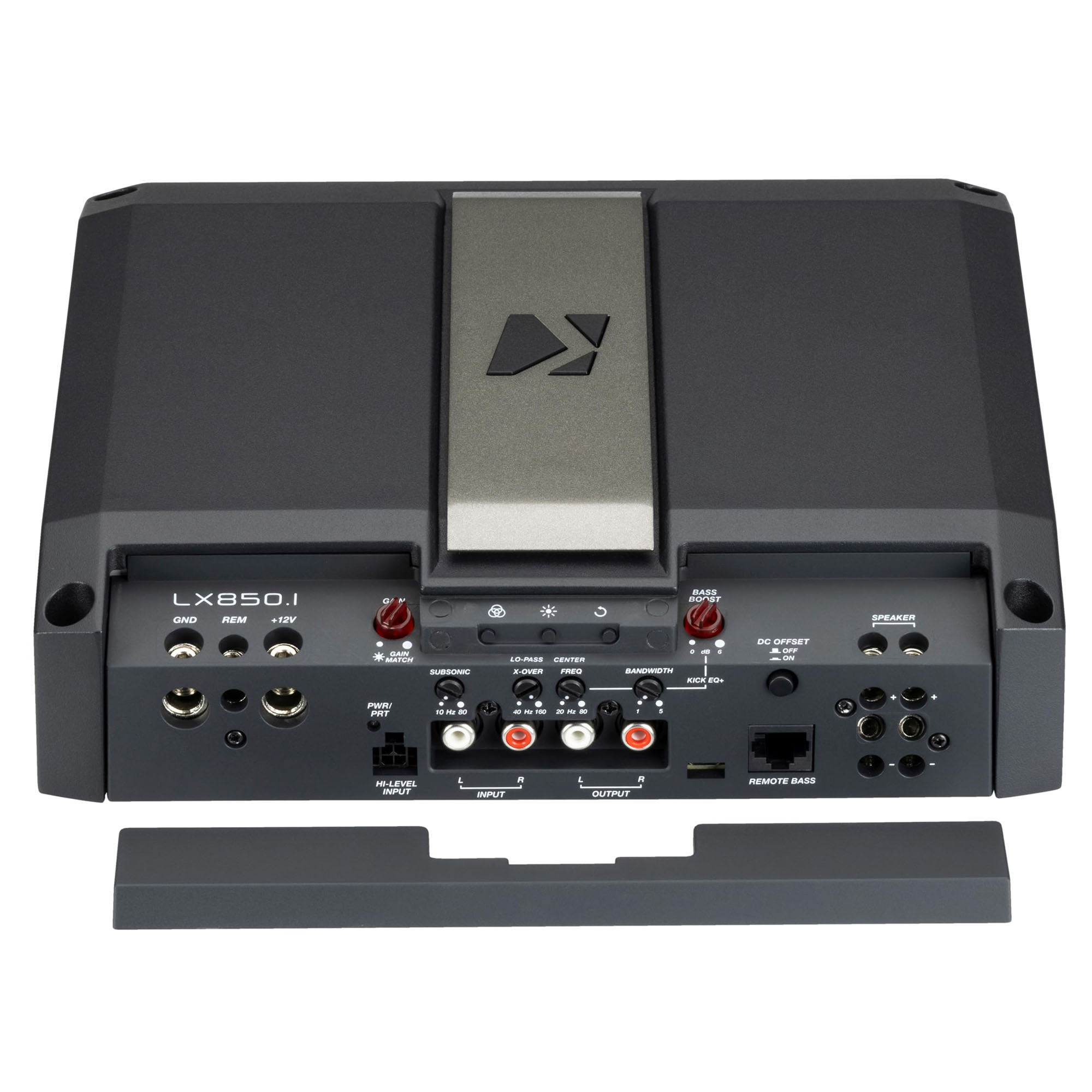

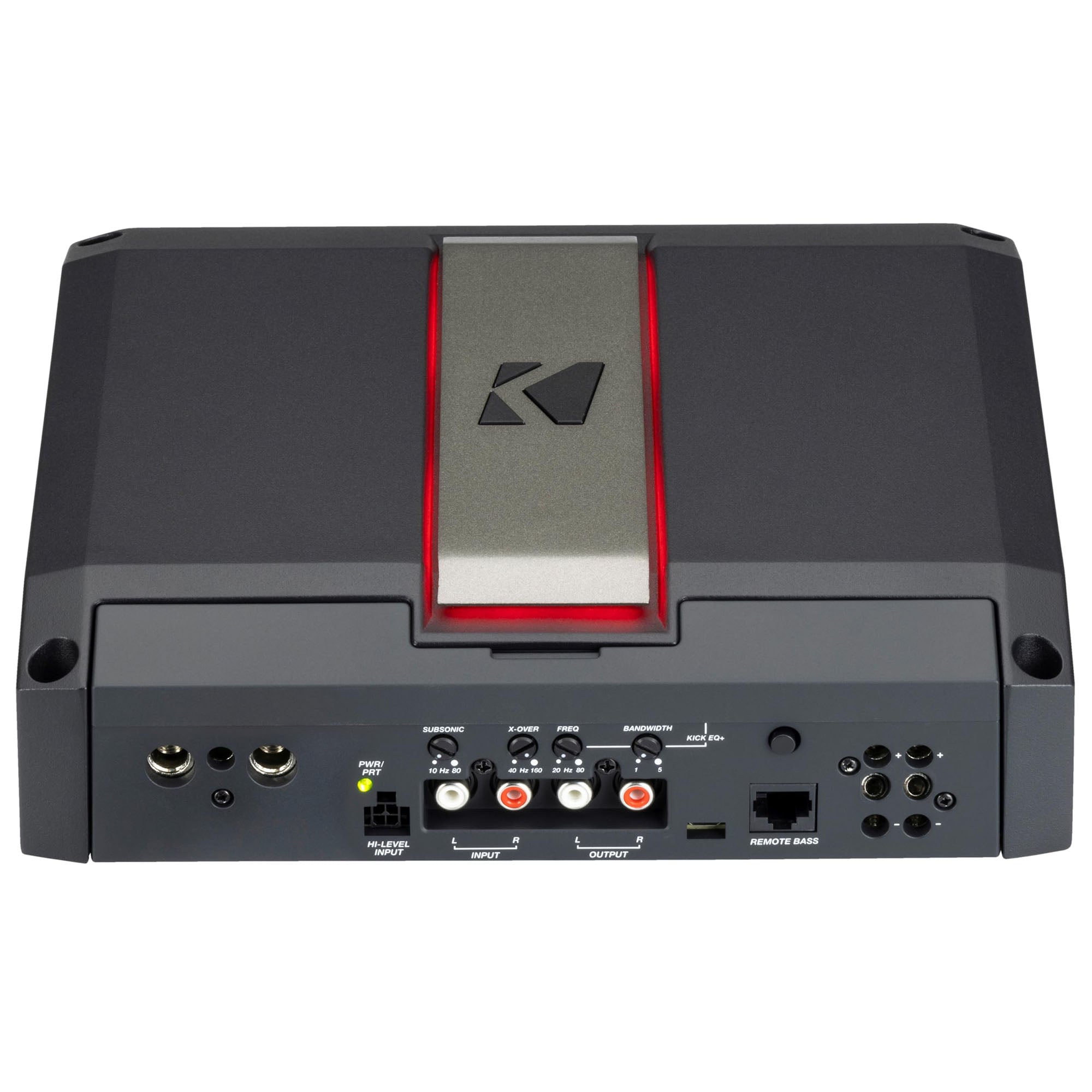

PRECISION AMPLIFIER CONTROL
Provides adjustment capability to fine-tune bass output and system balance, allowing optimized performance tailored to your enclosure and listening preferences.
EFFICIENT BASS UPGRADE SOLUTION
Ideal for drivers seeking clean, controlled low-frequency power in a compact package, the KICKER LX8501 delivers reliable mono amplification that enhances overall system impact.
|
|
Number of Channels
|
Mono
|
|
Class
|
D
|
|
Peak Power Rating (Watts)
|
1700 Watts
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms
|
300 x 1
|
|
RMS Power Rating (Watts x Channels) - 2 Ohms
|
500 x 1 |
| RMS Power Rating - (Watts x Channels) - 1 Ohm |
850 x 1
|
Minimum Impedance Unbridged (Ohms)
|
1
|
THD at Rated RMS Power
|
<1% |
Bulit-in Crossover - Low Pass
|
Yes
|
Built-in Crossover - High Pass
|
Yes
|
High Pass Crossover Frequency (Hz)
|
10-80Hz
|
Low Pass Crossover Frequency (Hz)
|
40-160hz
|
Signal-to-Noise Ratio (Ref: Rated Power)
|
>75dB
|
Bass Boost
|
0–6dB, Variable Center 20–80Hz, Variable Bandwidth 1–5
|

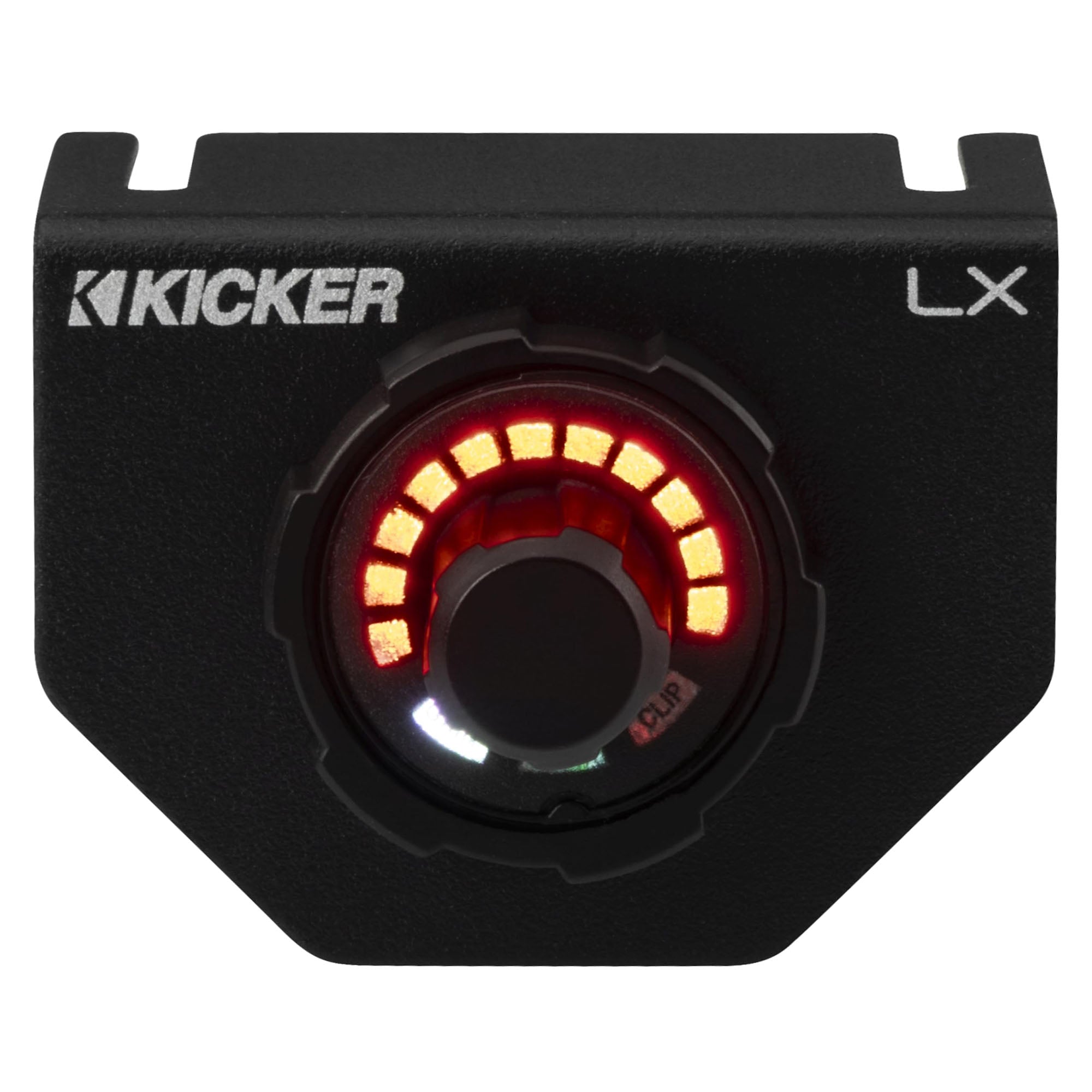

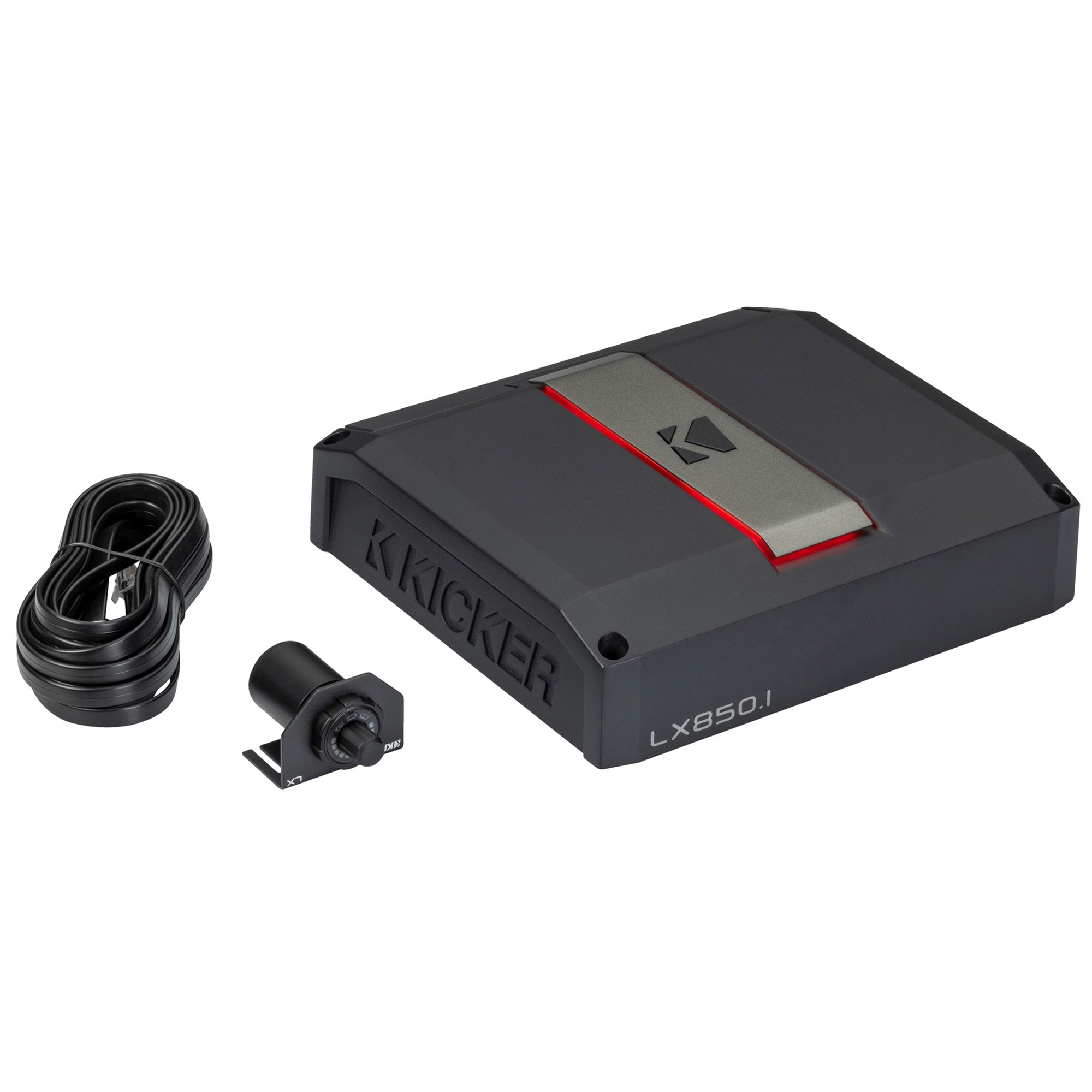

Bass Remote Included
|
Yes
|
| Fuse Rating |
|
| CEA-2006 Compliant |
Yes |
| Maximum Power Wire Gauge Size |
4 Gauge |
| Warranty |
2 Year |
