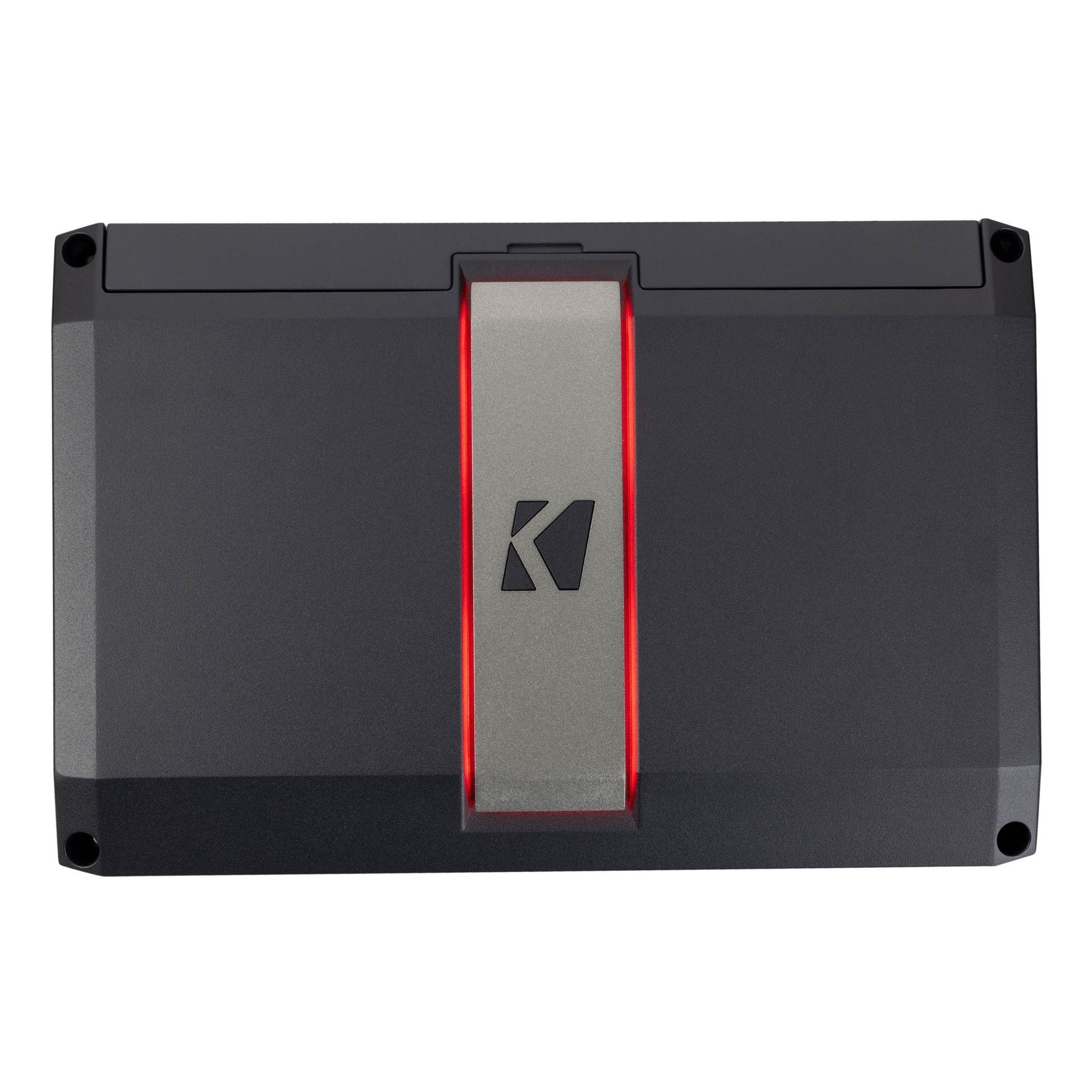

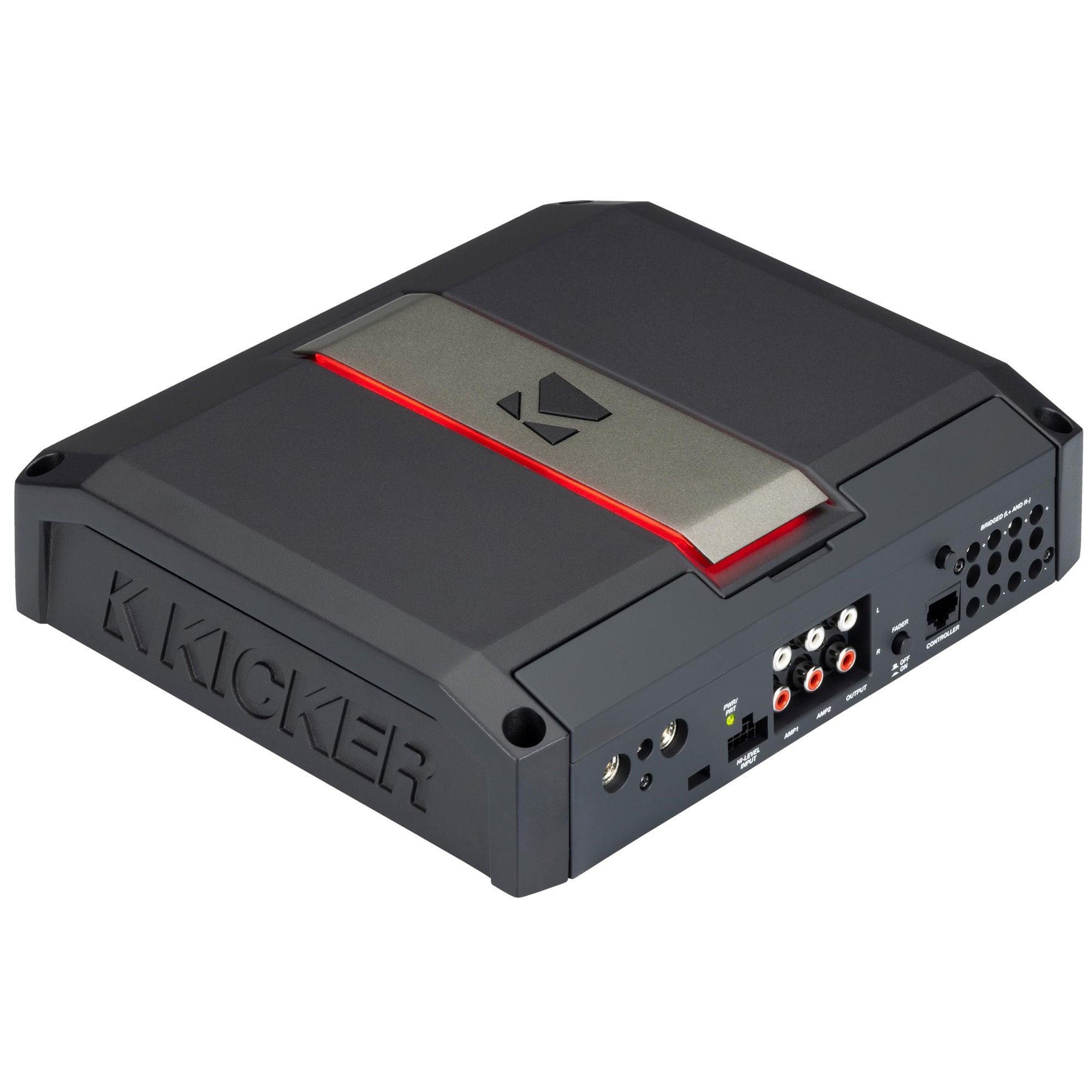

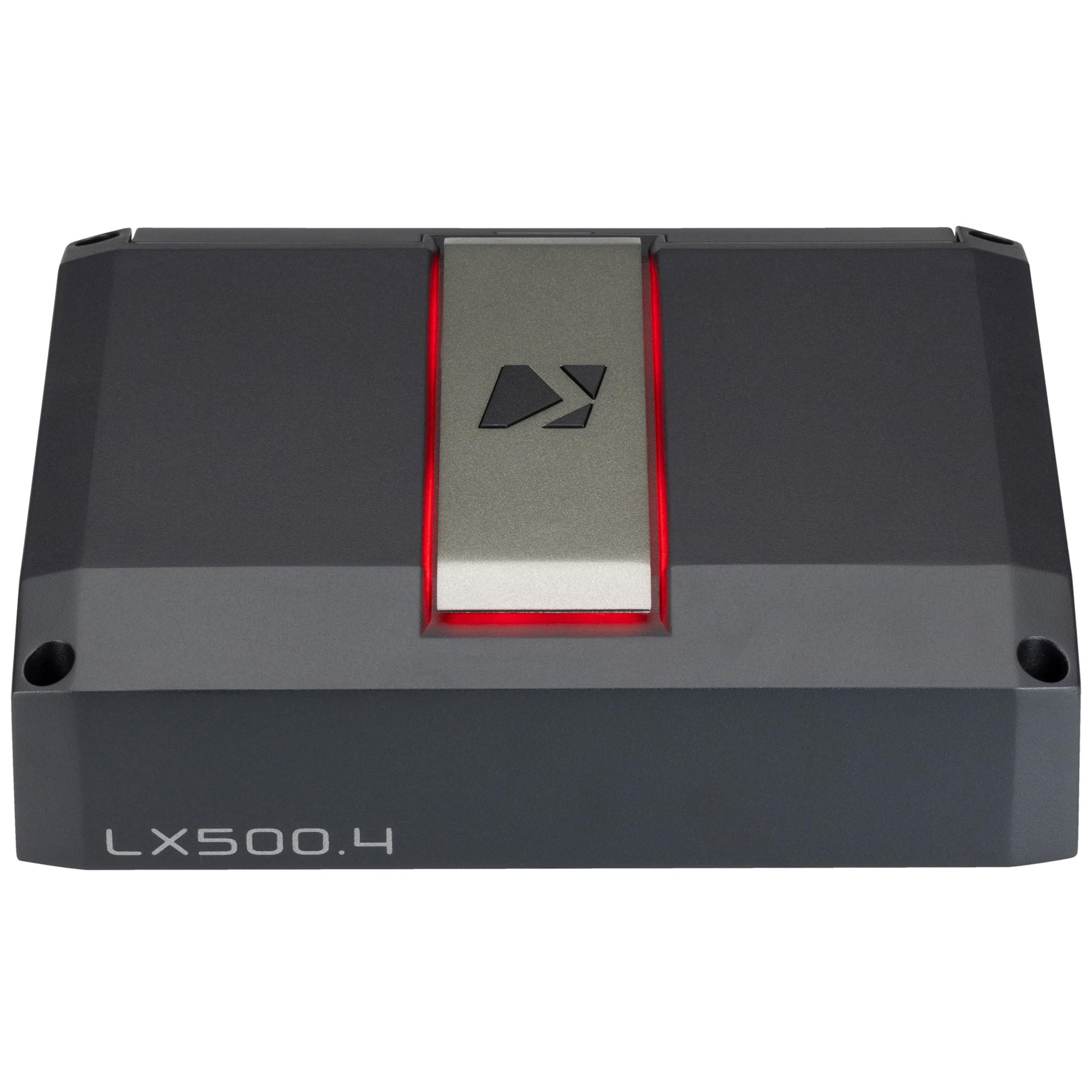

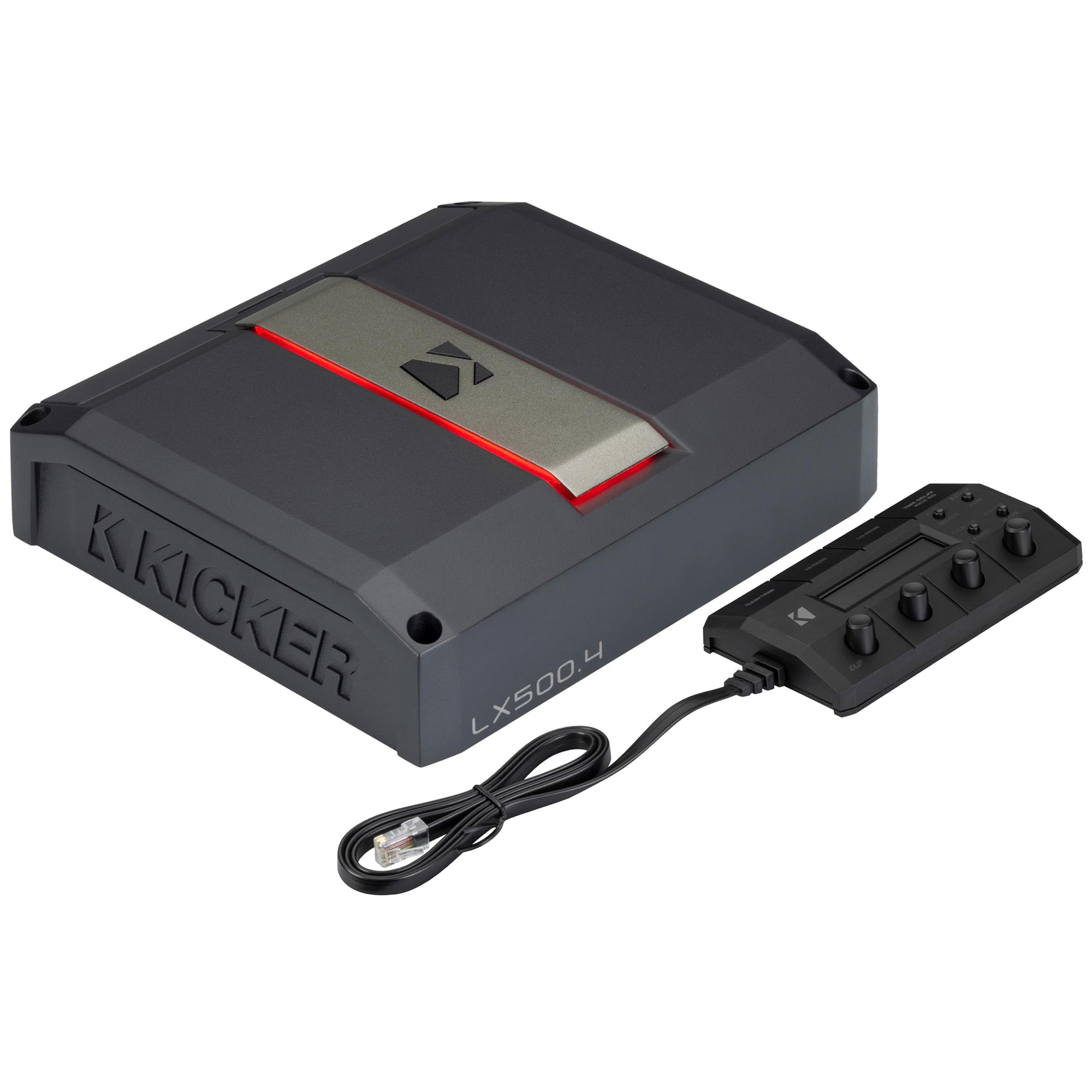

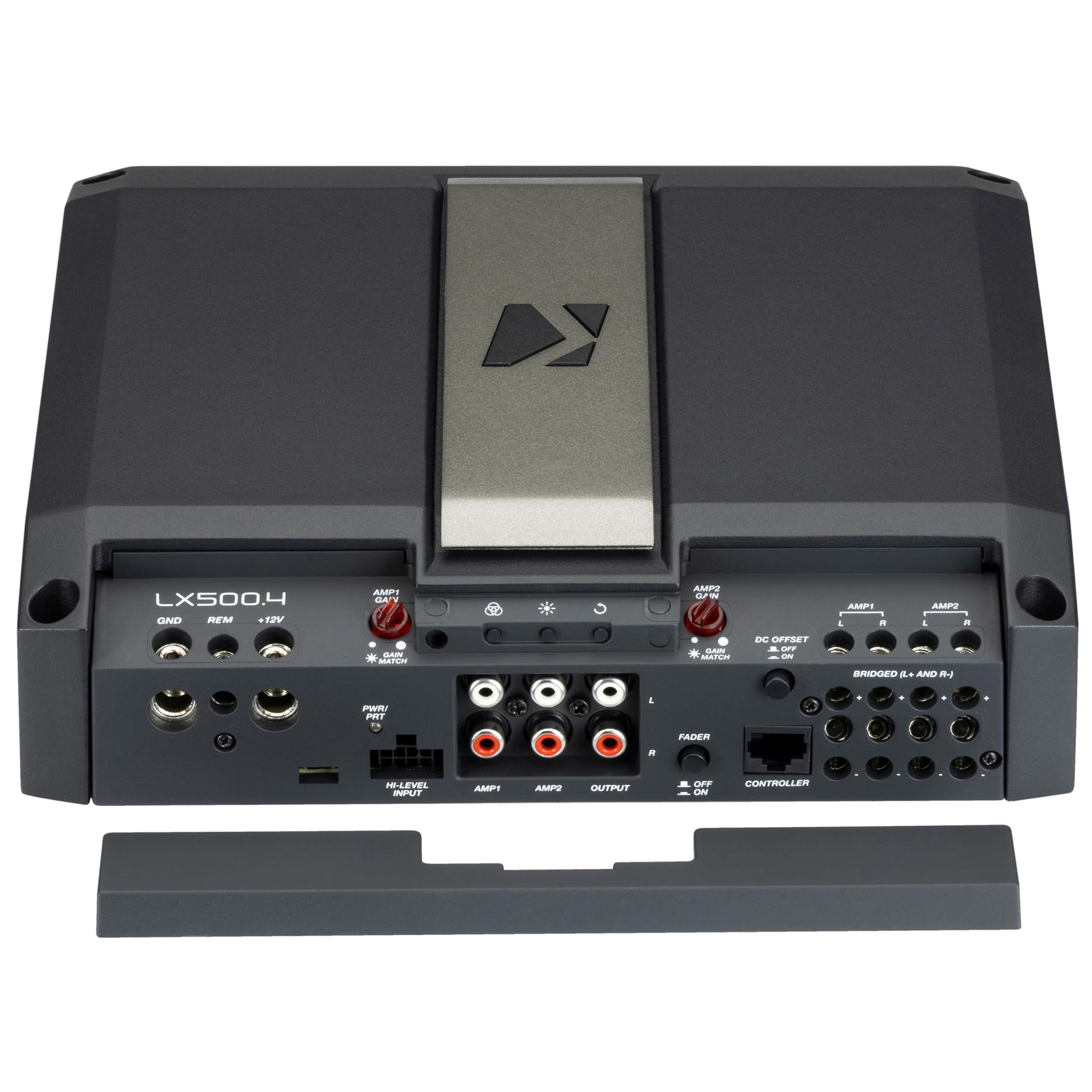

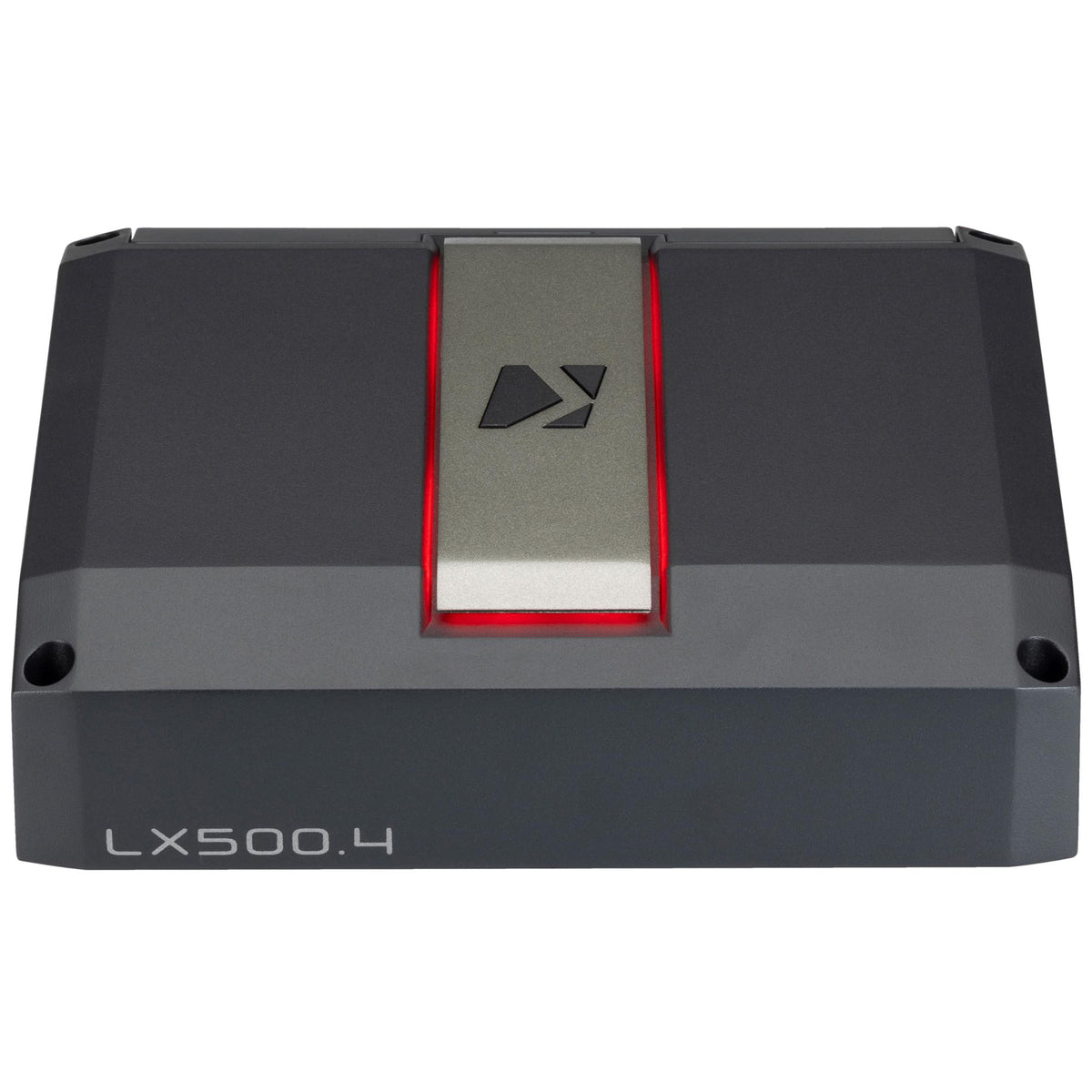

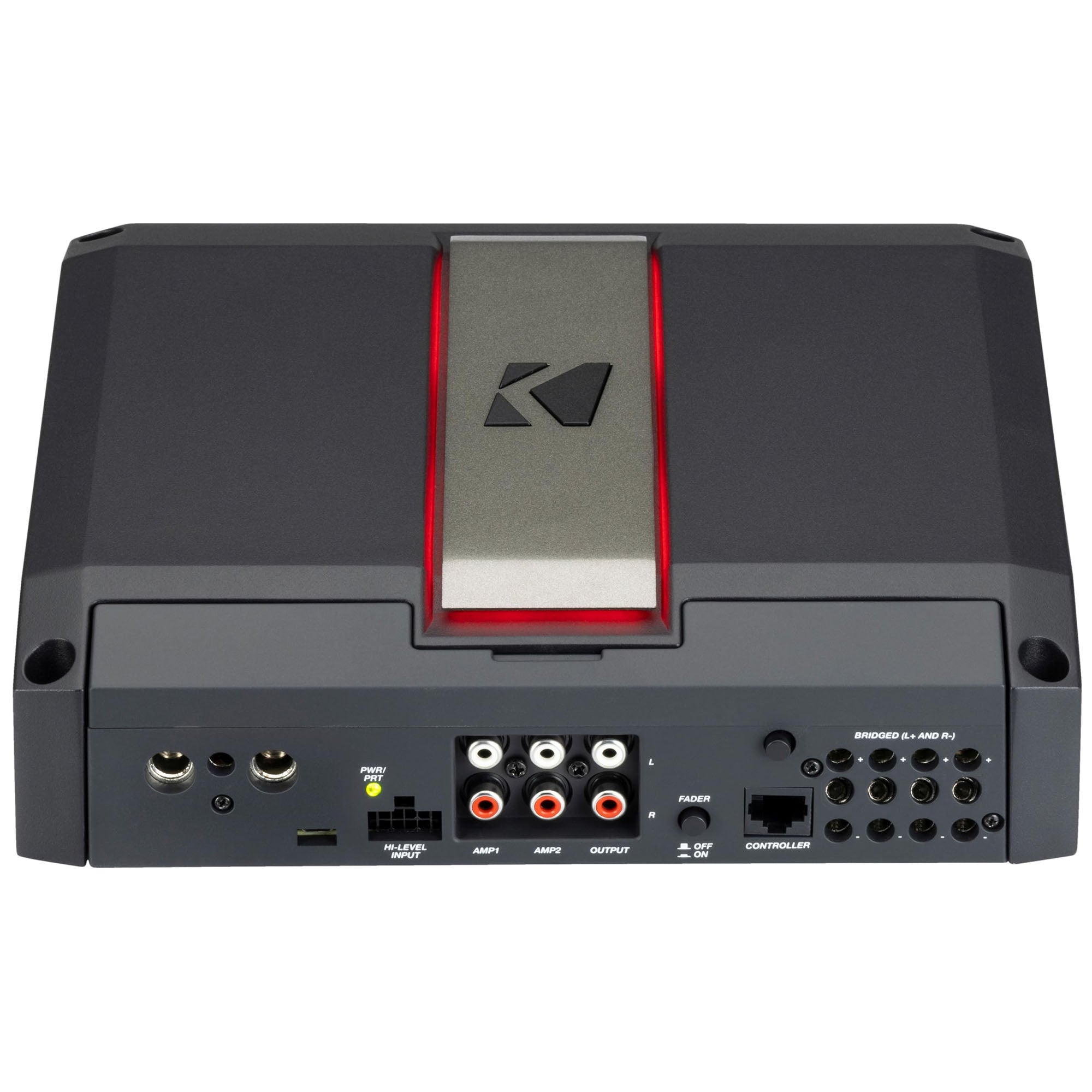

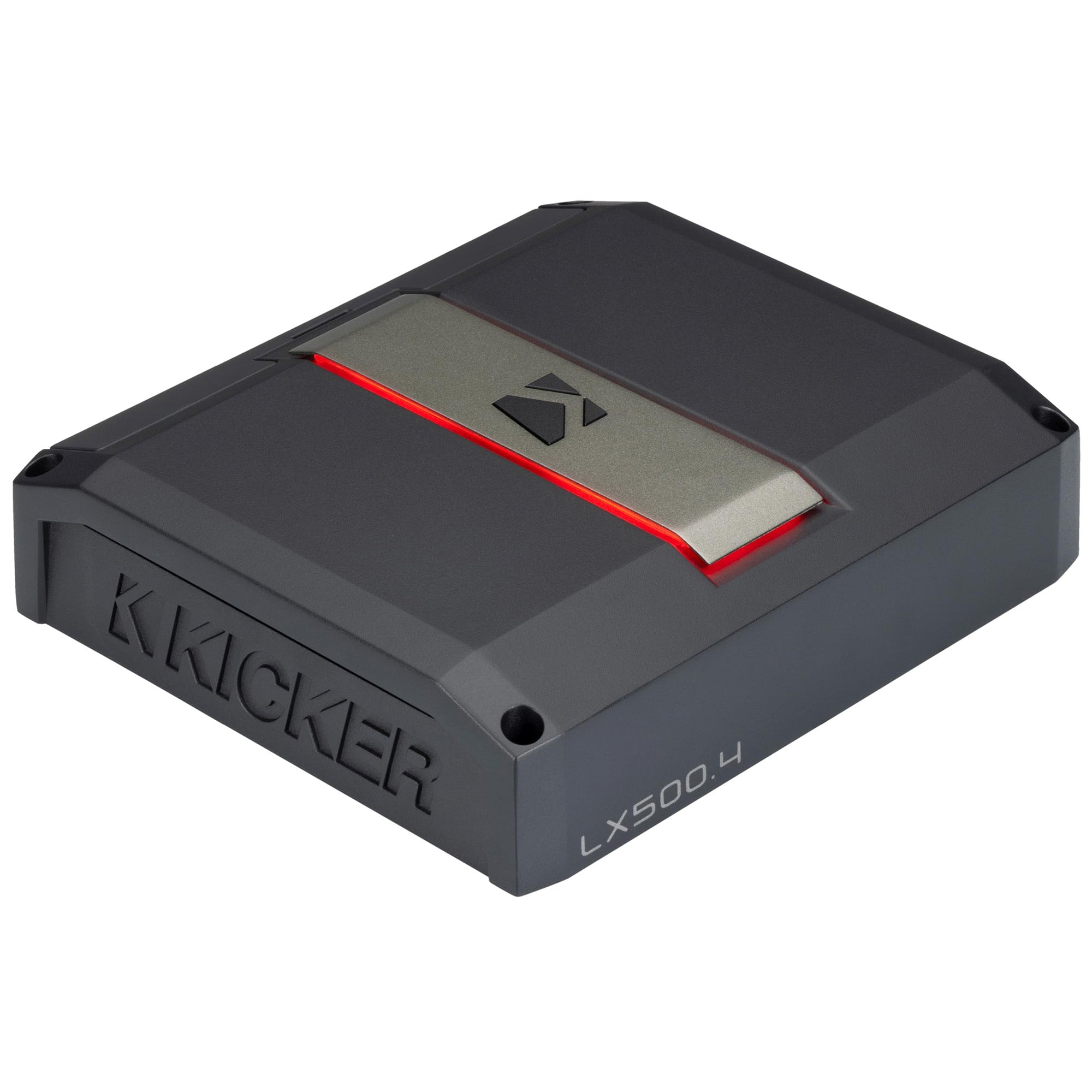

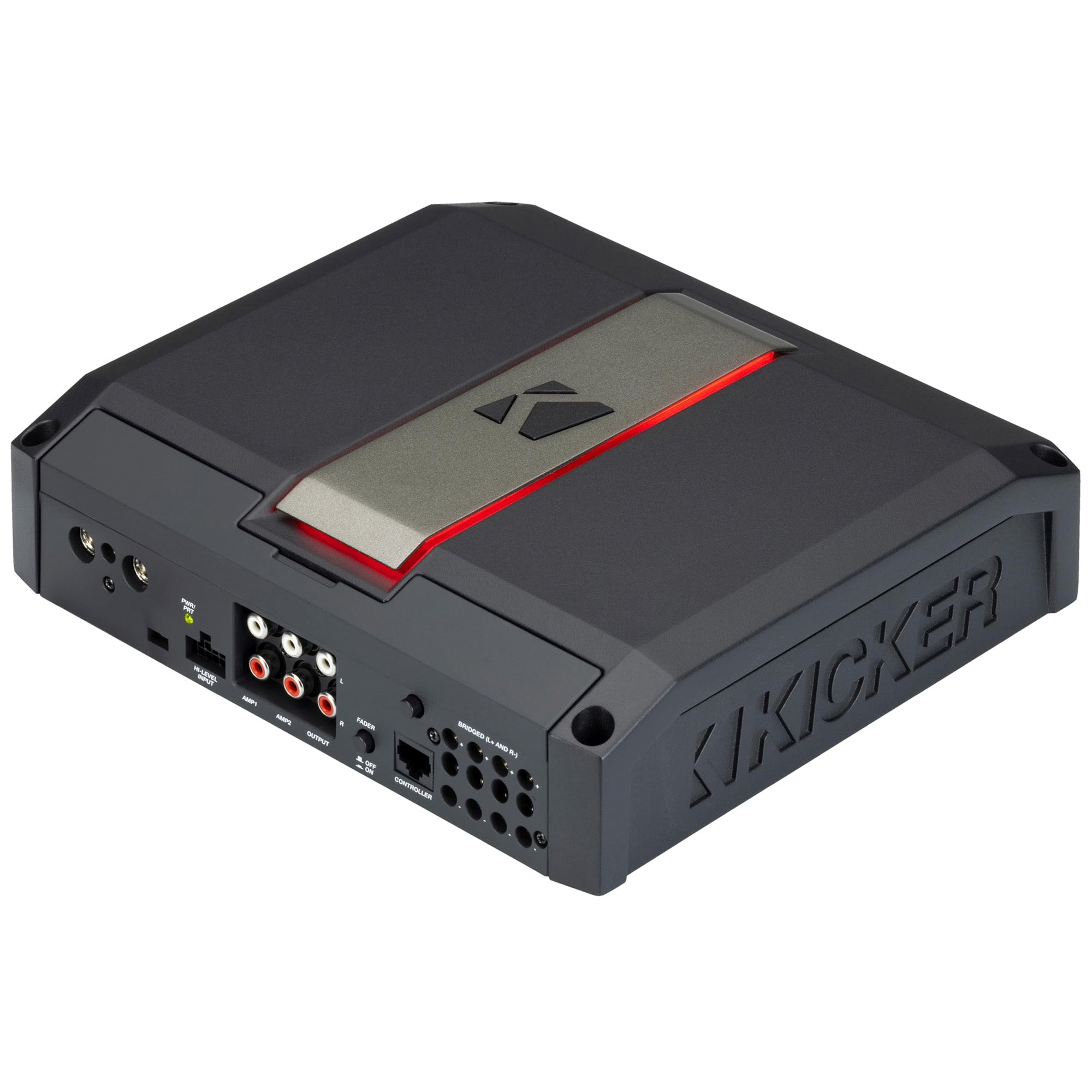

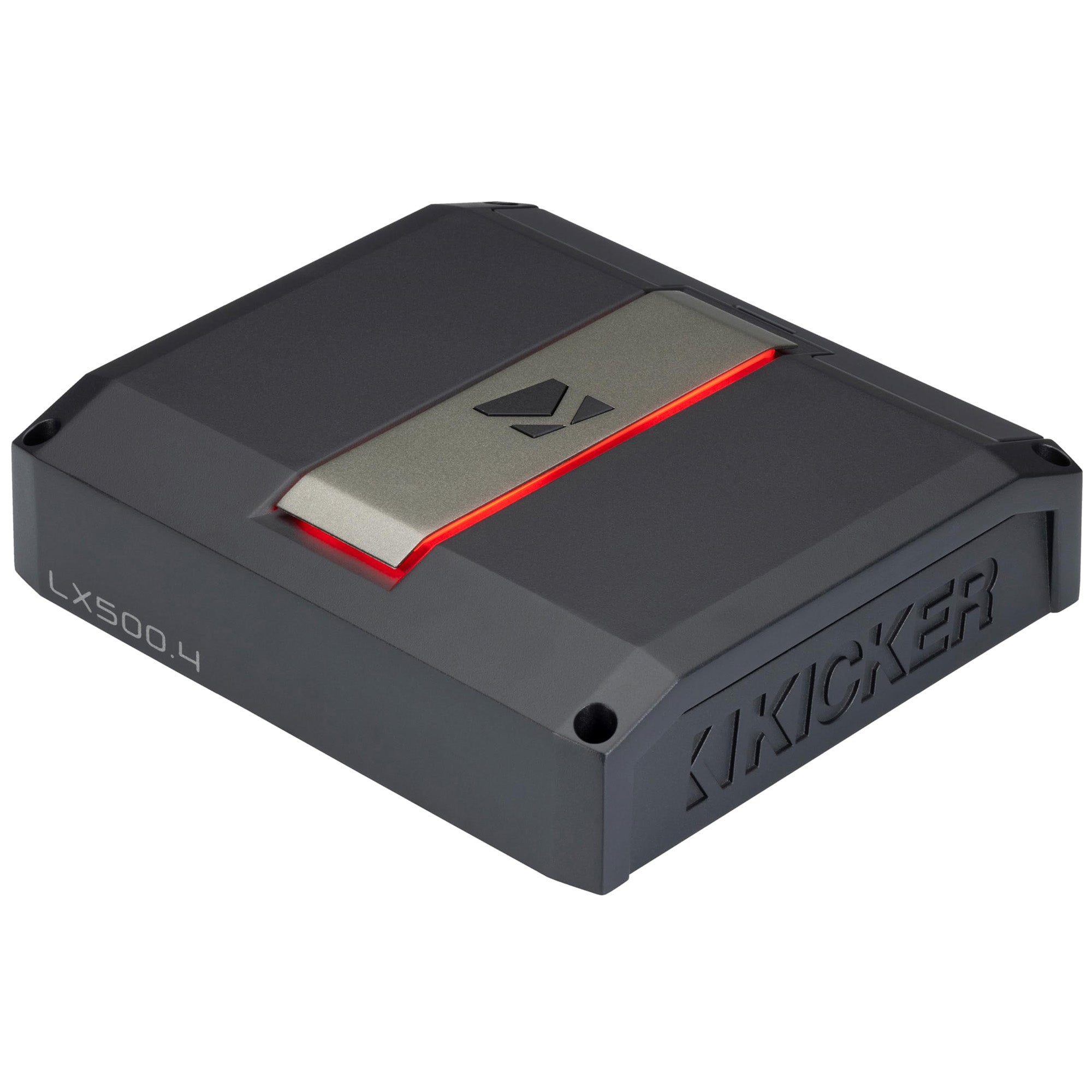

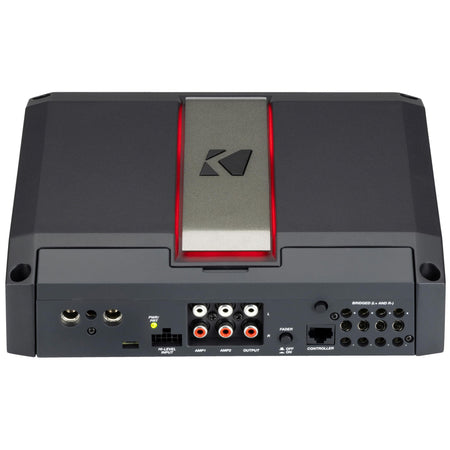

HIGH-POWER 4-CHANNEL AMPLIFIER
The KICKER LX5004 is a versatile 4-channel amplifier engineered to deliver clean, balanced power for full-range speaker systems. Designed for performance and control, it provides improved clarity and dynamic response across all channels.
ADVANCED CLASS-D EFFICIENCY
Built with high-efficiency Class-D architecture, the LX5004 maximizes output while minimizing heat and power draw. This efficient design supports reliable operation in compact installations.
CLEAN, DETAILED AUDIO PERFORMANCE
Optimized for full-range playback, this amplifier delivers crisp highs, smooth mids, and controlled output at higher volumes. Its stable power delivery enhances overall sound quality without introducing distortion.
FLEXIBLE SYSTEM CONFIGURATION
Designed to support multiple system layouts, the LX5004 can power four speakers or be bridged for added output in select configurations. This flexibility makes it suitable for both simple upgrades and more advanced audio builds.
RUGGED, PERFORMANCE-GRADE CONSTRUCTION
Constructed with a durable chassis and quality internal components, the LX5004 is built to withstand vibration, heat, and demanding driving conditions. It’s engineered for dependable long-term performance.
SEAMLESS SYSTEM INTEGRATION
Designed for easy integration with aftermarket and upgraded factory systems, the LX5004 provides consistent performance and reliable power delivery across a wide range of installations.
VERSATILE FULL-RANGE AMPLIFICATION SOLUTION
Ideal for drivers looking to add clean power and improved clarity to their speaker system, the KICKER LX5004 delivers dependable multi-channel amplification for enhanced listening performance.
|
|
Number of Channels
|
4
|
|
Class
|
D
|
|
Peak Power Rating (Watts)
|
1000
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms
|
125 x 4 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms
|
225 x 4
|
| RMS Power Rating - Bridged - 4 Ohms |
450 x 2
|
Minimum Impedance Unbridged (Ohms)
|
2
|
Minimum Impedance Bridged (Ohms)
|
4
|
THD at Rated RMS Power
|
1%
|
Bulit-in Crossover - Low Pass
|
Yes
|
Built-in Crossover - High Pass
|
Yes
|
High Pass Crossover Frequency (Hz)
|
50-400Hz
|
Low Pass Crossover Frequency (Hz)
|
50-400hz
|
Signal-to-Noise Ratio (ref: 1W Output)
|
>75dB
|
Bass Boost
|
No
|
Bass Remote Included
|
No
|
| Fuse Rating |
|
| CEA-2006 Compliant |
Yes |
| Maximum Power Wire Gauge Size |
4 Gauge |
| Warranty |
2 Year |
