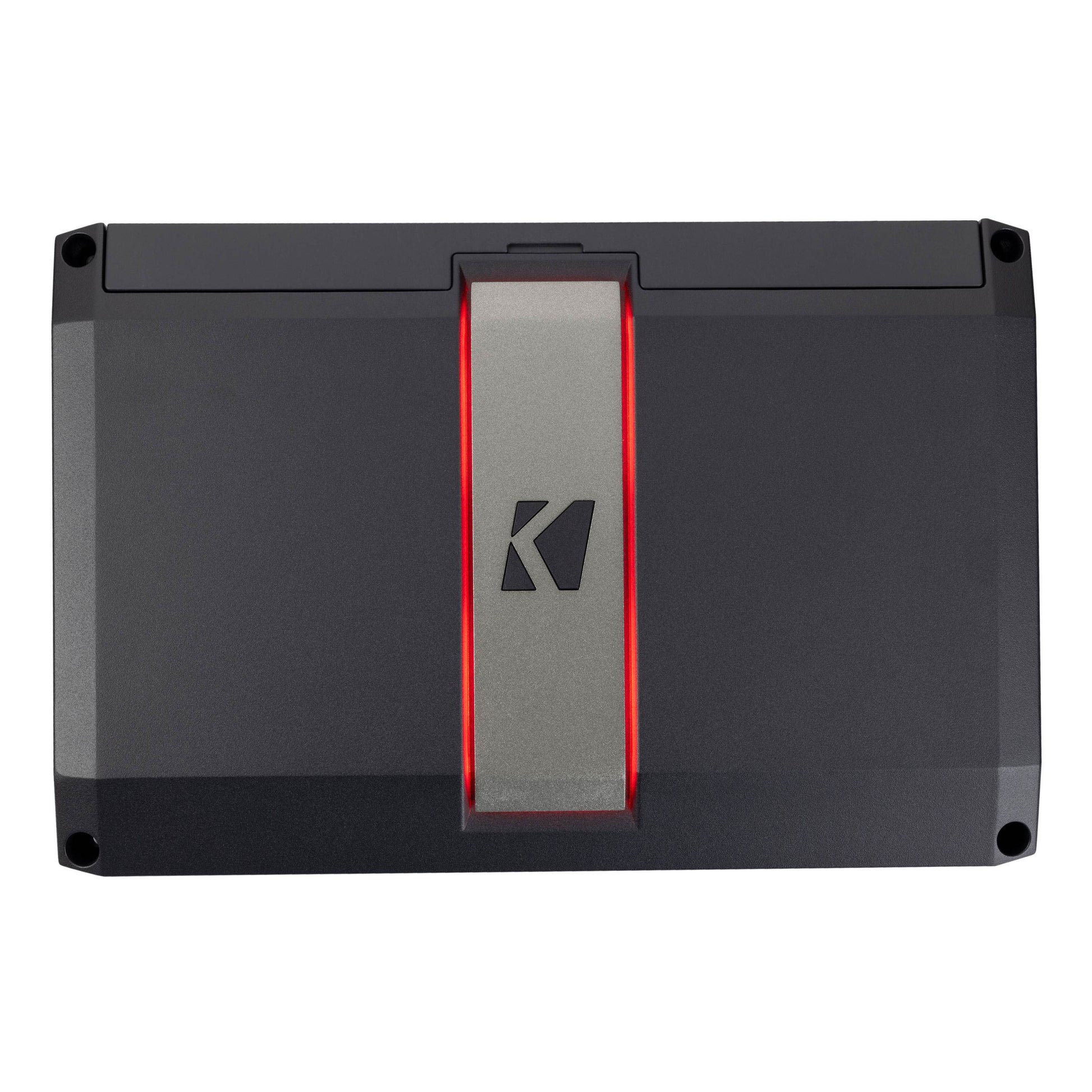

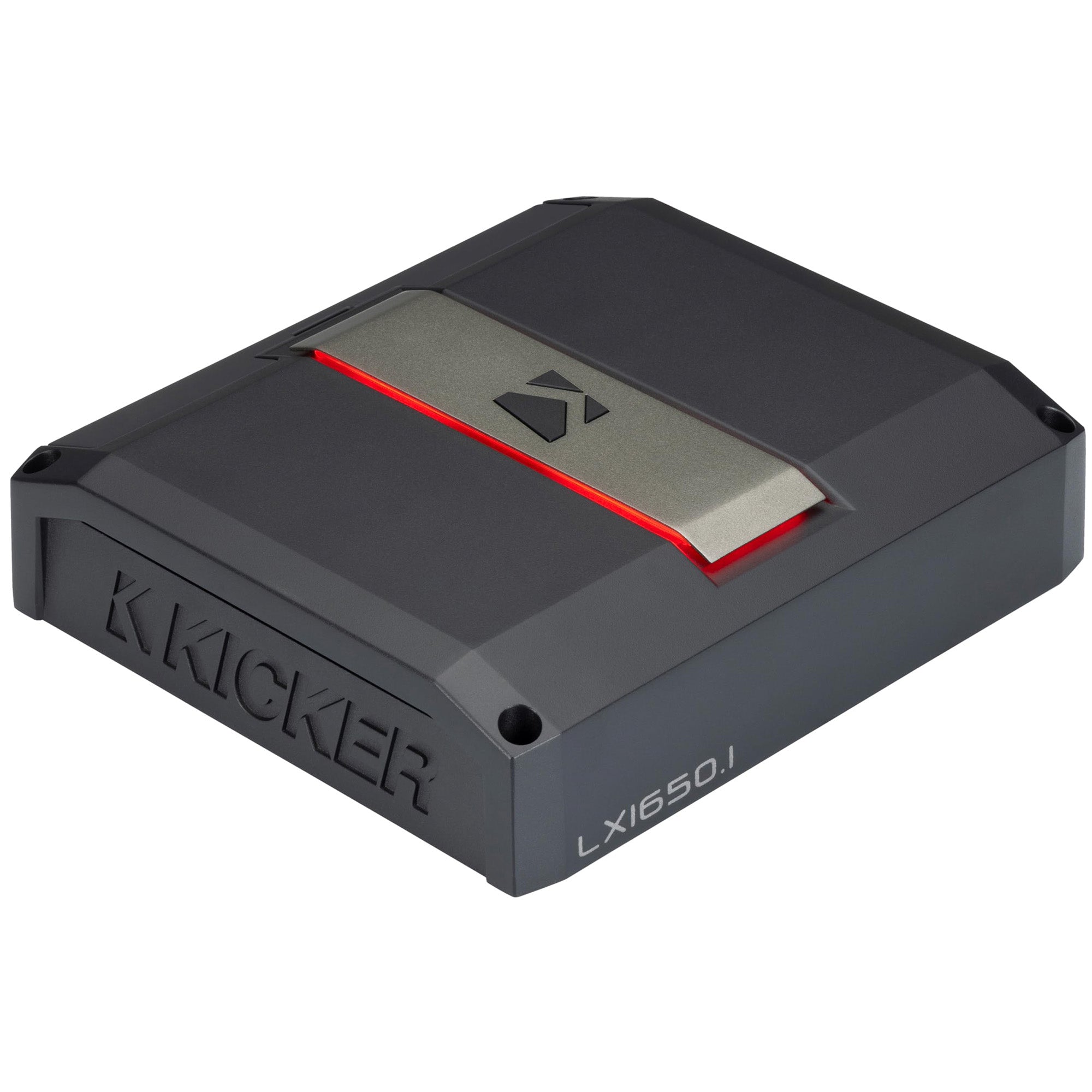

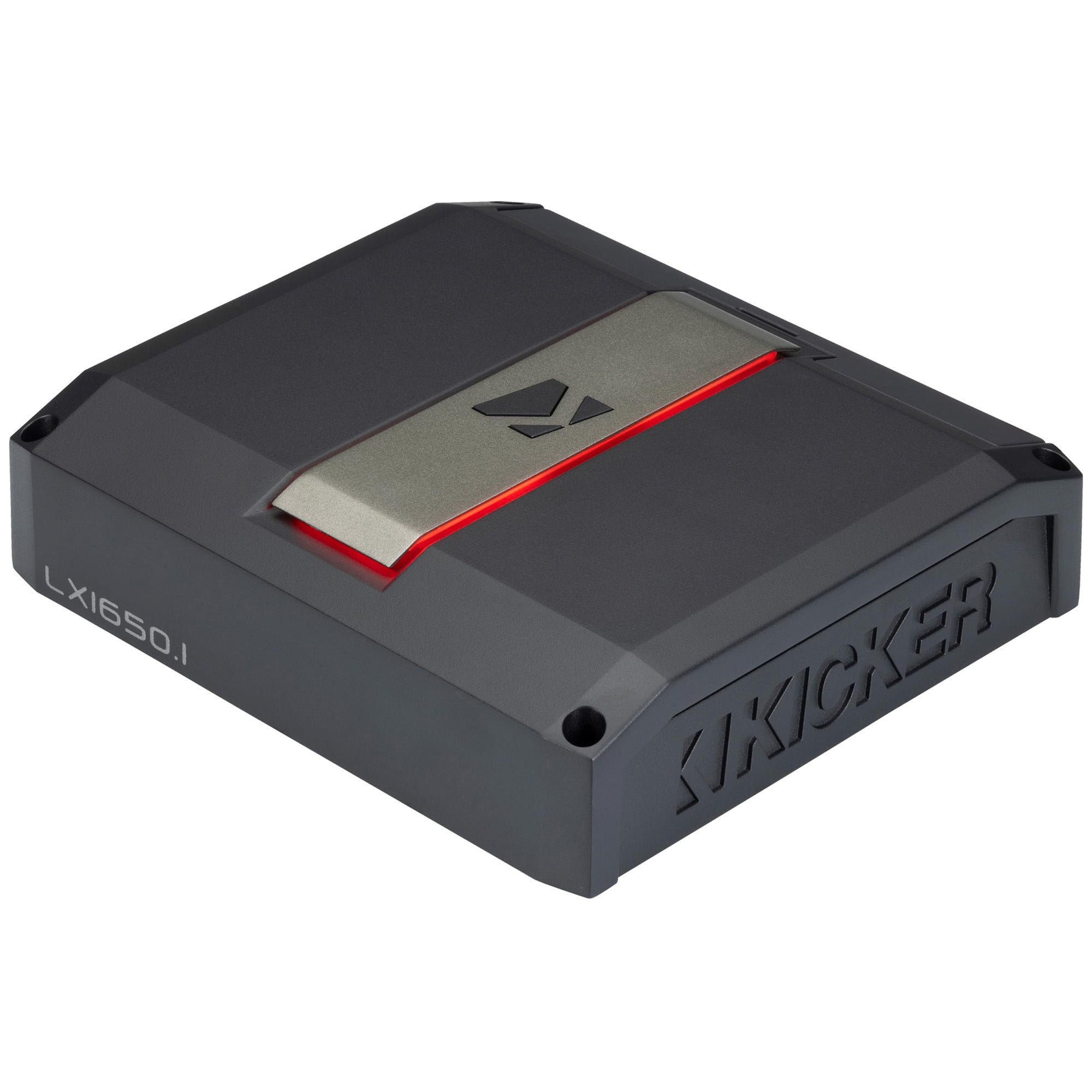

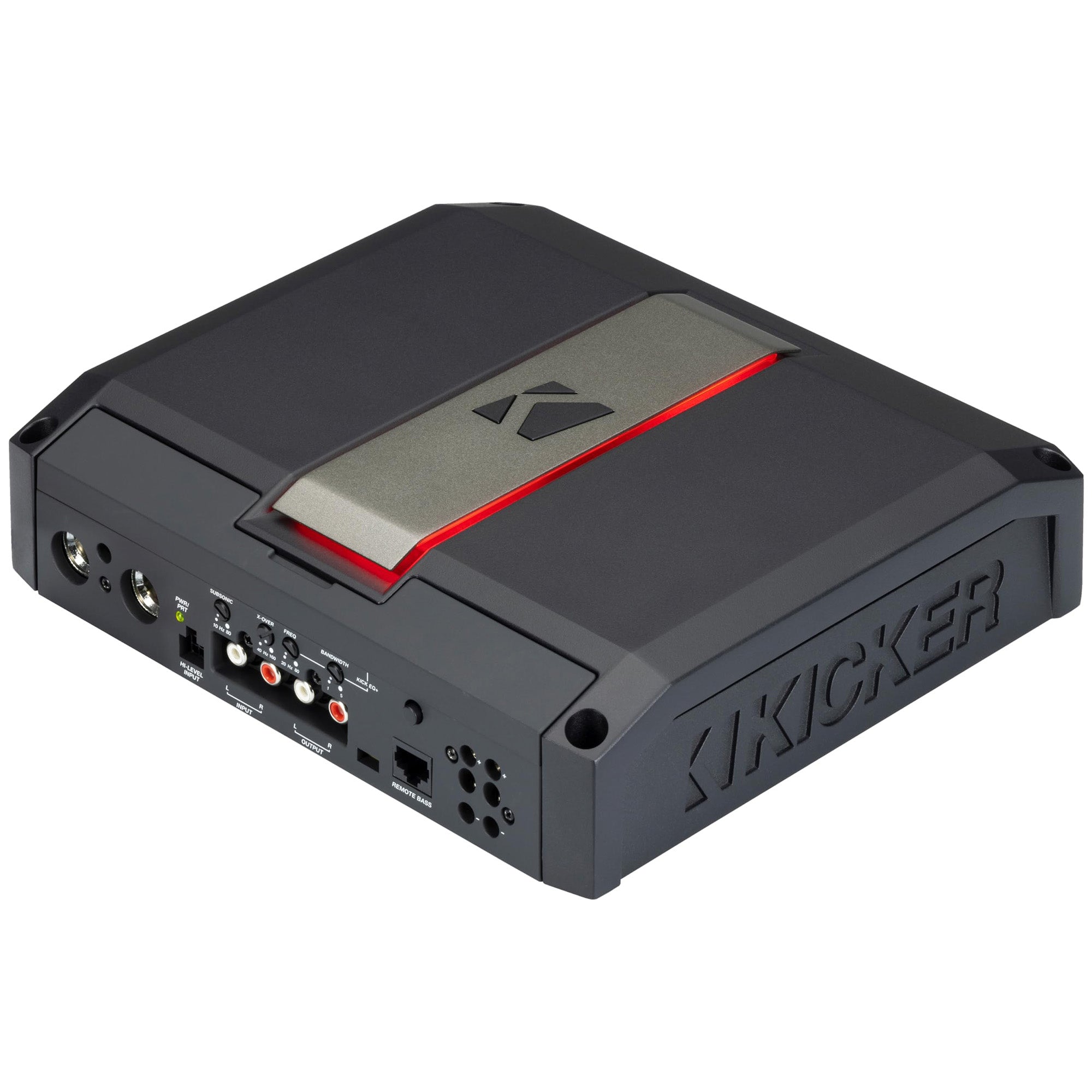

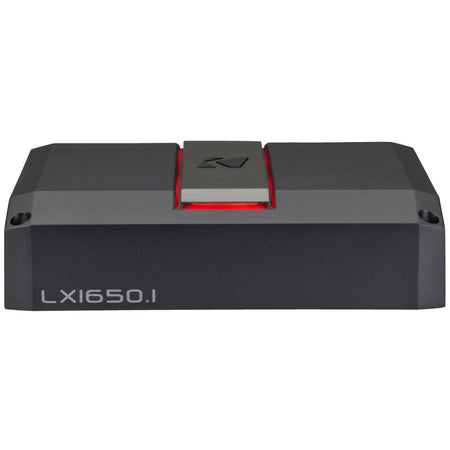

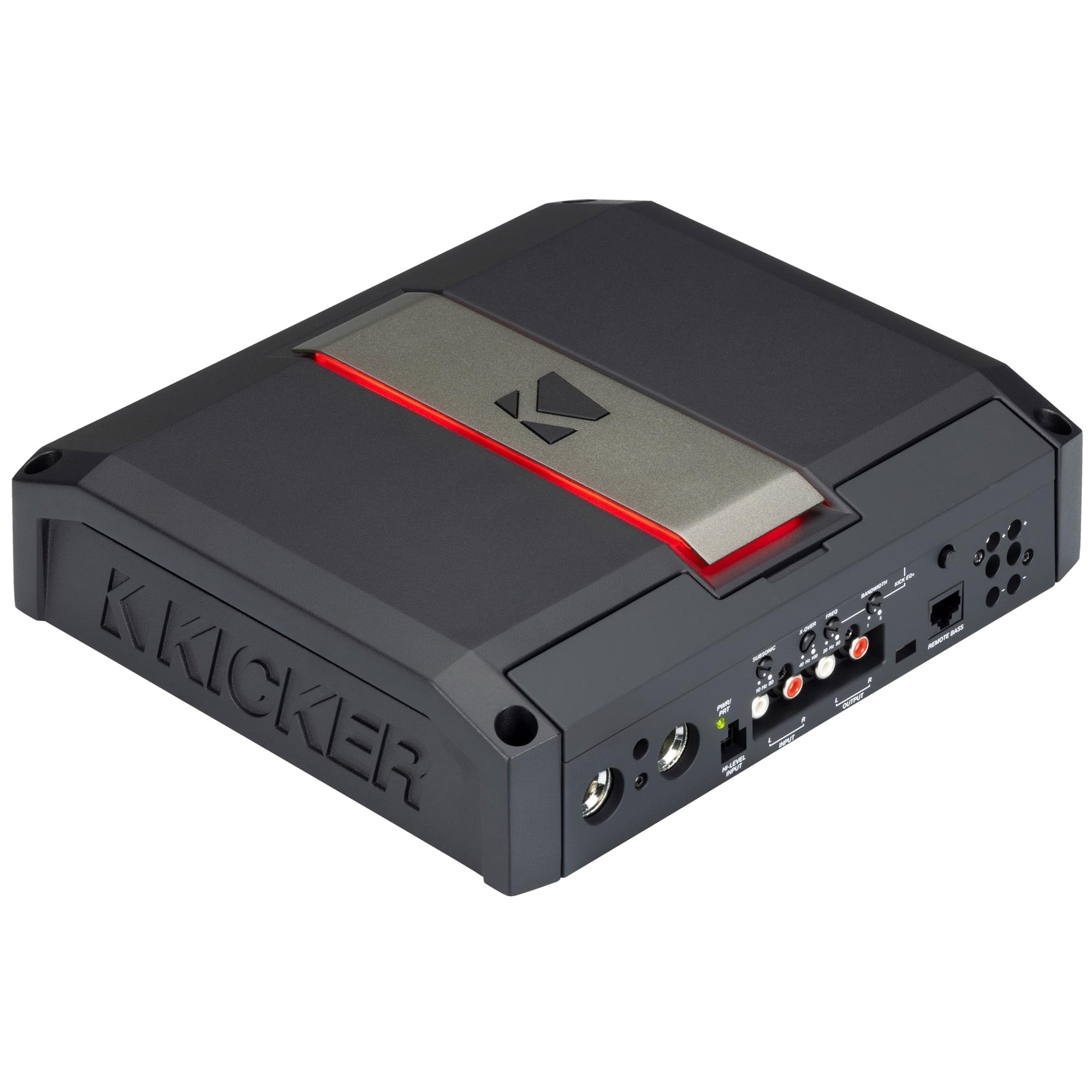

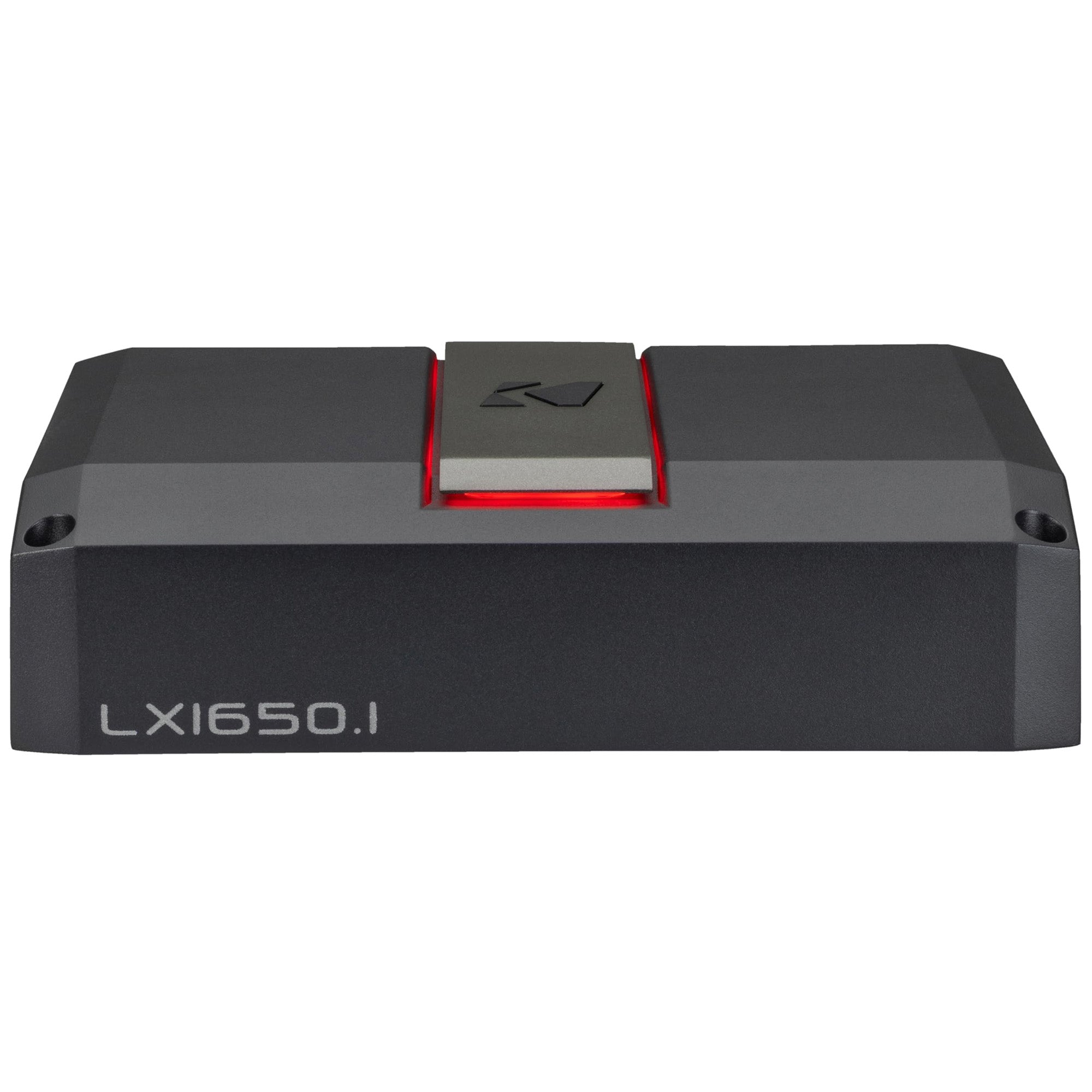

HIGH-POWER MONO AMPLIFIER
The KICKER LX16501 is a performance-driven mono amplifier engineered to deliver powerful, controlled output for demanding subwoofer systems. Designed for high-impact bass applications, it provides the authority needed to elevate serious audio builds.
ADVANCED CLASS-D EFFICIENCY
Built with high-efficiency Class-D architecture, the LX16501 delivers strong output while managing heat and electrical demand. This design supports reliable, sustained performance at higher listening levels.
PRECISE LOW-FREQUENCY CONTROL
Optimized for subwoofer performance, this amplifier delivers tight, punchy bass with excellent control. Its stable power delivery ensures consistent low-end response without unwanted distortion.
RUGGED, HIGH-OUTPUT CONSTRUCTION
Constructed with a reinforced chassis and quality internal components, the LX16501 is built to withstand vibration, heat, and demanding real-world conditions. It’s engineered for dependable performance in high-power systems.
VERSATILE SYSTEM INTEGRATION
Designed to support a wide range of subwoofer configurations, the LX16501 integrates easily into custom audio systems. Its flexibility makes it suitable for both daily-driven vehicles and high-performance builds.

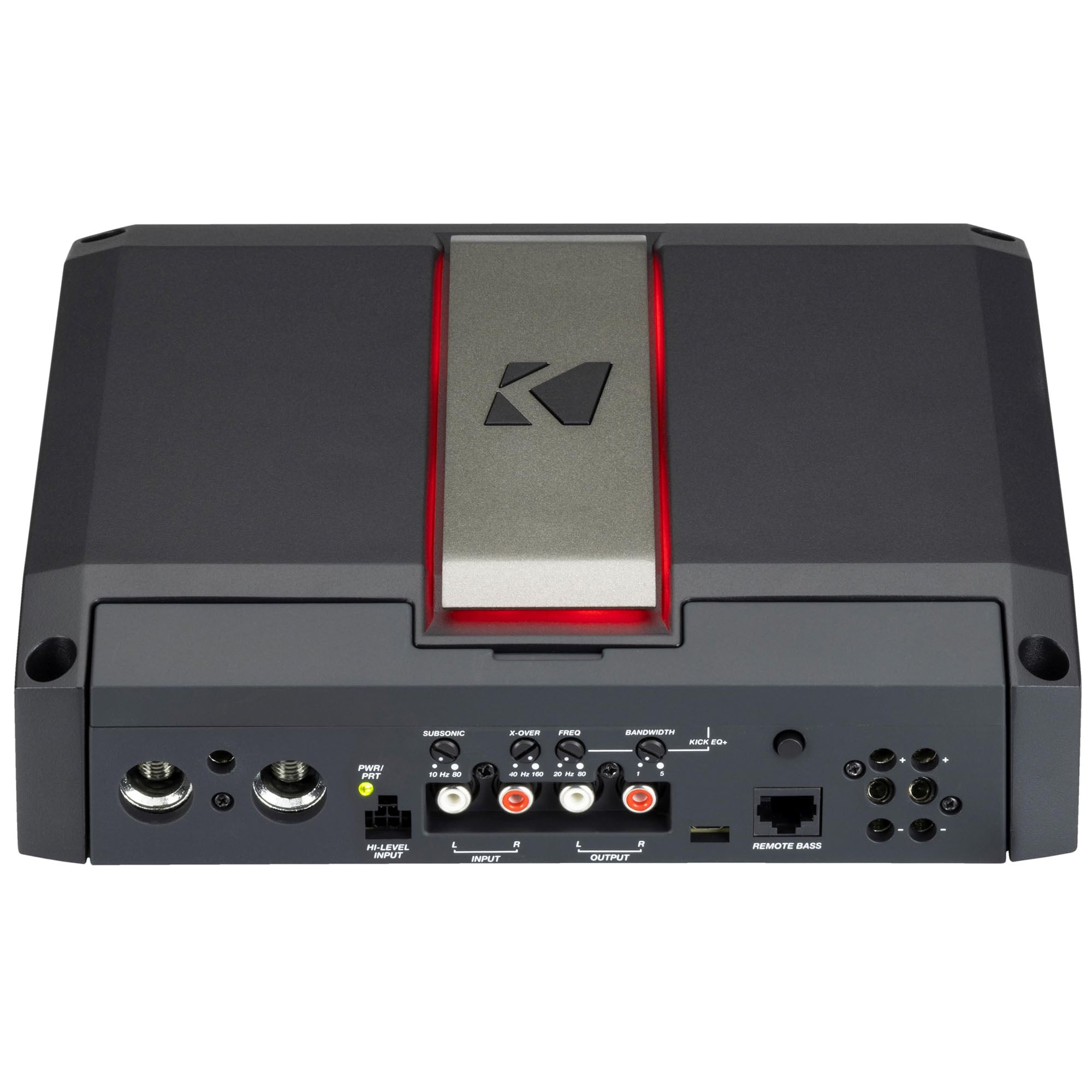

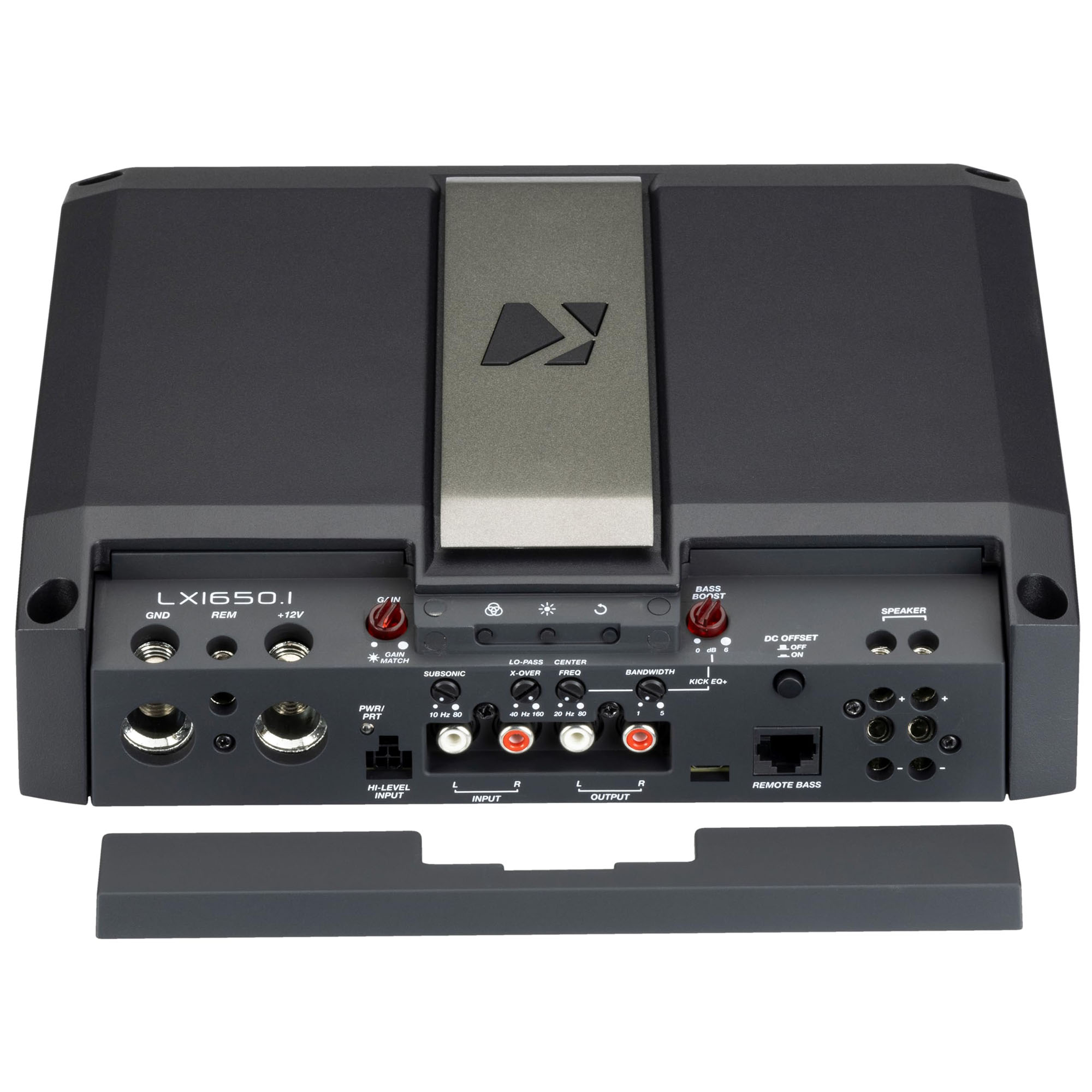

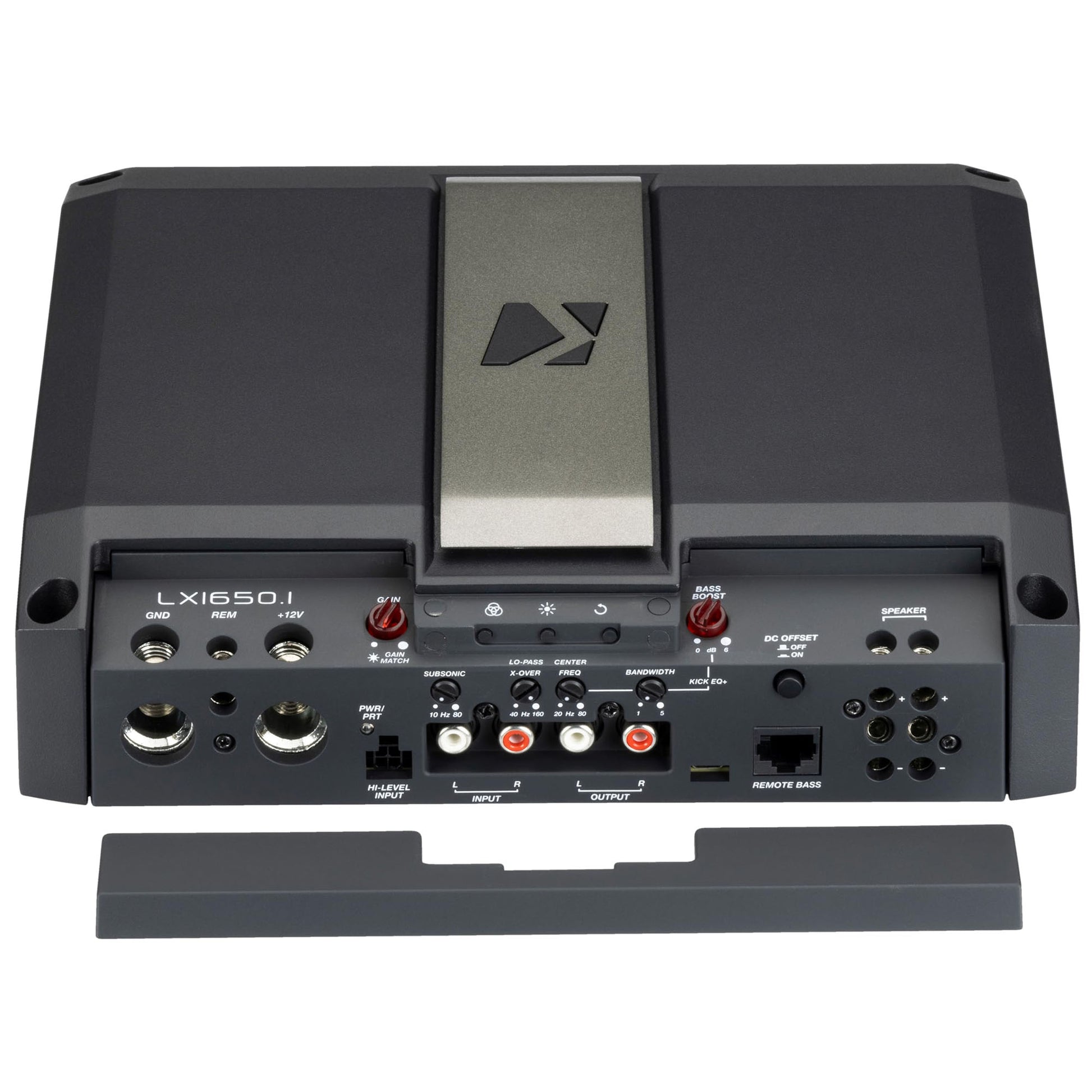

PRECISION AMPLIFIER ADJUSTABILITY
Provides fine-tuning capability to match amplifier output to enclosure design and listening preferences, allowing optimized bass performance across different setups.
HIGH-IMPACT BASS SOLUTION
Ideal for enthusiasts seeking strong, controlled low-frequency output, the KICKER LX16501 delivers reliable mono amplification that brings depth and power to your system.
|
|
Number of Channels
|
Mono
|
|
Class
|
D
|
|
Peak Power Rating (Watts)
|
4300 Watts
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms
|
550 x 1
|
|
RMS Power Rating (Watts x Channels) - 2 Ohms
|
1000 x 1 |
| RMS Power Rating - (Watts x Channels) - 1 Ohm |
1650 x 1
|
Minimum Impedance Unbridged (Ohms)
|
1
|
THD at Rated RMS Power
|
<1% |
Bulit-in Crossover - Low Pass
|
Yes
|
Built-in Crossover - High Pass
|
Yes
|
High Pass Crossover Frequency (Hz)
|
10-80Hz
|
Low Pass Crossover Frequency (Hz)
|
40-160hz
|
Signal-to-Noise Ratio (Ref: Rated Power)
|
>75dB
|
Bass Boost
|
0–6dB, Variable Center 20–80Hz, Variable Bandwidth 1–5
|

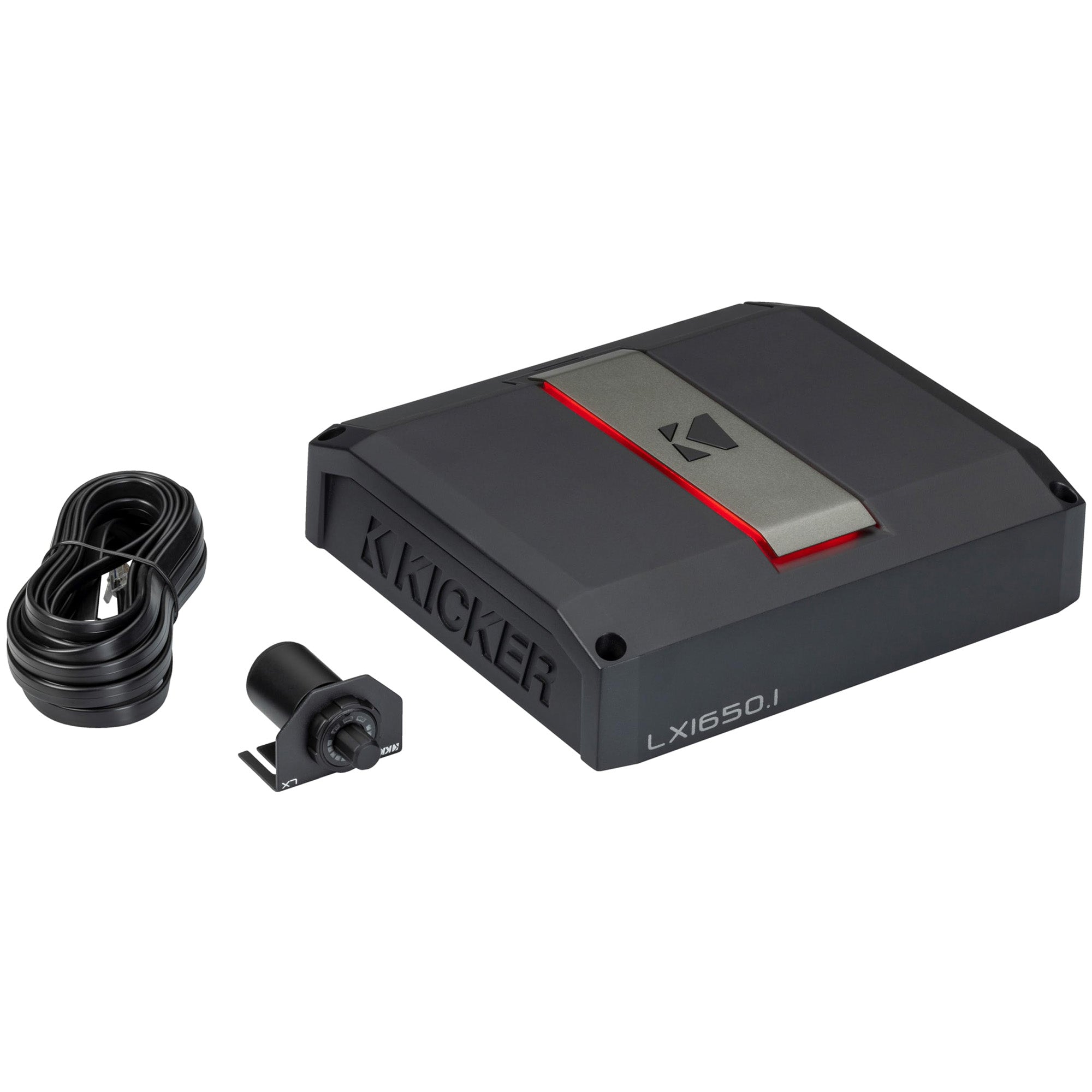

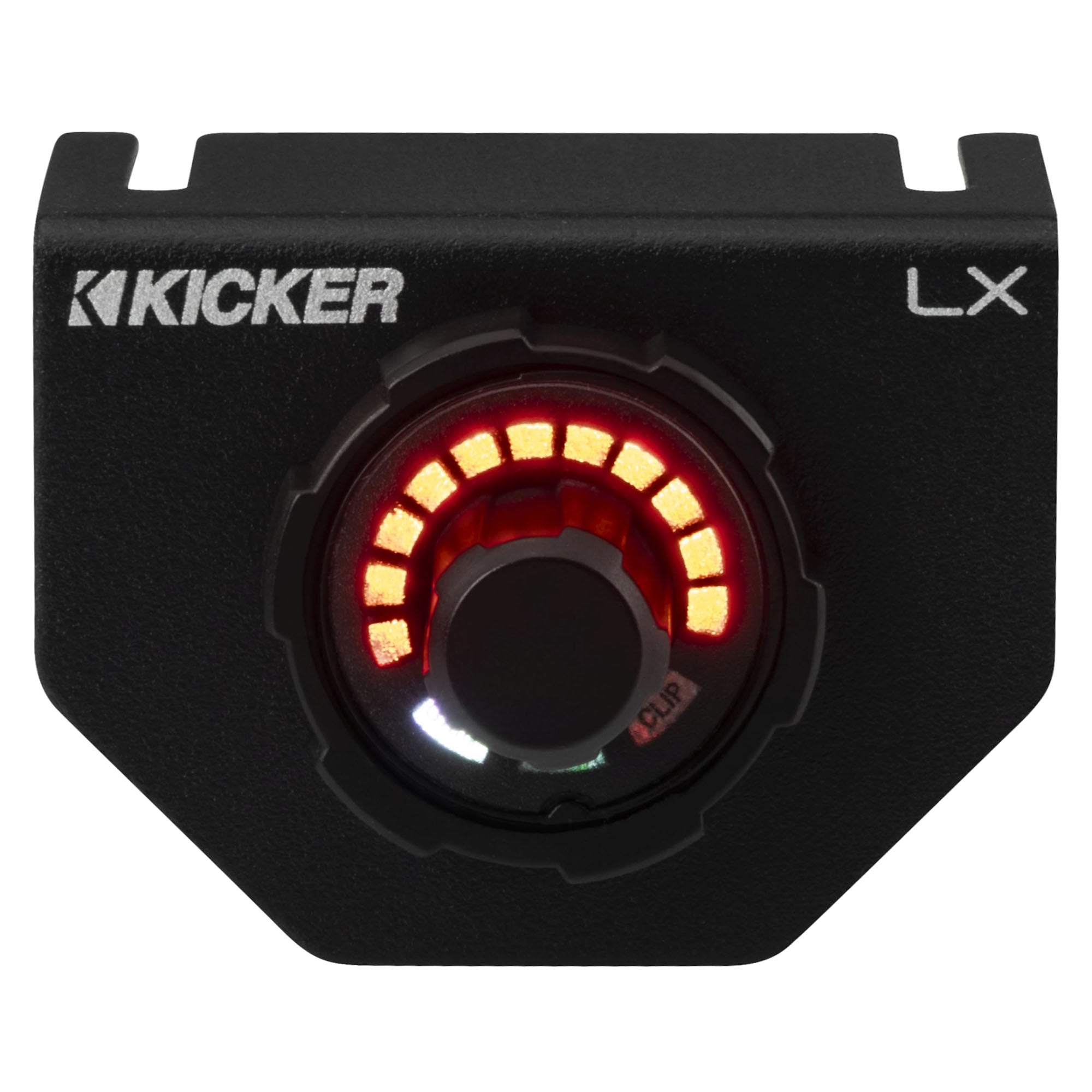

Bass Remote Included
|
Yes
|
| Fuse Rating |
|
| CEA-2006 Compliant |
Yes |
| Maximum Power Wire Gauge Size |
|
| Warranty |
2 Year |
