HIGH-POWER 7-CHANNEL AMPLIFIER
The KICKER LX13007 is a versatile 7-channel amplifier engineered to deliver clean, controlled power for complete, multi-speaker audio systems. Designed for advanced system builds, it provides the flexibility to drive front and rear speakers along with multiple subwoofer channels.
ADVANCED CLASS-D EFFICIENCY
Built with high-efficiency Class-D architecture, the LX13007 maximizes power output while minimizing heat and electrical demand. This efficient design supports reliable operation in compact and complex installations.
FULL-SYSTEM AUDIO CONTROL
Optimized for detailed full-range playback and controlled low-frequency output, this amplifier delivers clear mids, crisp highs, and balanced bass response across all channels.
FLEXIBLE SYSTEM CONFIGURATION
Designed to support advanced system layouts, the LX13007 simplifies complex audio builds by powering multiple speakers and subwoofers from a single amplifier chassis.
RUGGED, PERFORMANCE-GRADE CONSTRUCTION
Constructed with a durable chassis and high-quality internal components, the LX13007 is built to withstand vibration, heat, and demanding real-world driving conditions.
SEAMLESS SYSTEM INTEGRATION
Designed for easy integration with aftermarket and upgraded factory systems, the LX13007 delivers consistent performance and reliable power delivery across a wide range of installations.
ADVANCED MULTI-CHANNEL AMPLIFICATION SOLUTION
Ideal for enthusiasts seeking a powerful, space-efficient amplifier for complex audio systems, the KICKER LX13007 delivers dependable performance with exceptional system control.
|
|
Number of Channels
|
7
|
|
Class
|
D
|
|
Peak Power Rating (Watts)
|
2600
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms
|
Amp 1 & 2: 125 x 4
Amp 3: 65 x 2
Sub Channel: 300 x 1
|
|
RMS Power Rating (Watts x Channels) - 2 Ohms
|
Amp 1 & 2: 150 x 4
Amp 3: 65 x 2
Sub Channel: 550 x 1
|
| RMS Power Rating - Bridged - 4 Ohms |
Amp 1 & 2: 250 x 2
Amp 3: 130 x 1
|
|
RMS Power Rating (Watts x Channels) - 1 Ohm
|
Sub Channel: 700 x 1
|
Minimum Impedance Unbridged (Ohms)
|
2
|
Minimum Impedance Bridged (Ohms)
|
4
|
THD at Rated RMS Power
|
1%
|
Bulit-in Crossover - Low Pass
|
Yes
|
Built-in Crossover - High Pass
|
Yes
|
High Pass Crossover Frequency (Hz)
|
Amp 1, 2 & 3: 20-5000Hz
Sub Channel: 10-80Hz
|
Low Pass Crossover Frequency (Hz)
|
Amp 1, 2 & 3: 40-5000hz
Sub Channel: 40-160Hz
|
Signal-to-Noise Ratio (ref: 1W Output)
|
>75dB
|
Bass Boost
|
Sub Channel: 0–6dB, variable center 20–80Hz,
variable bandwidth 1–5
|

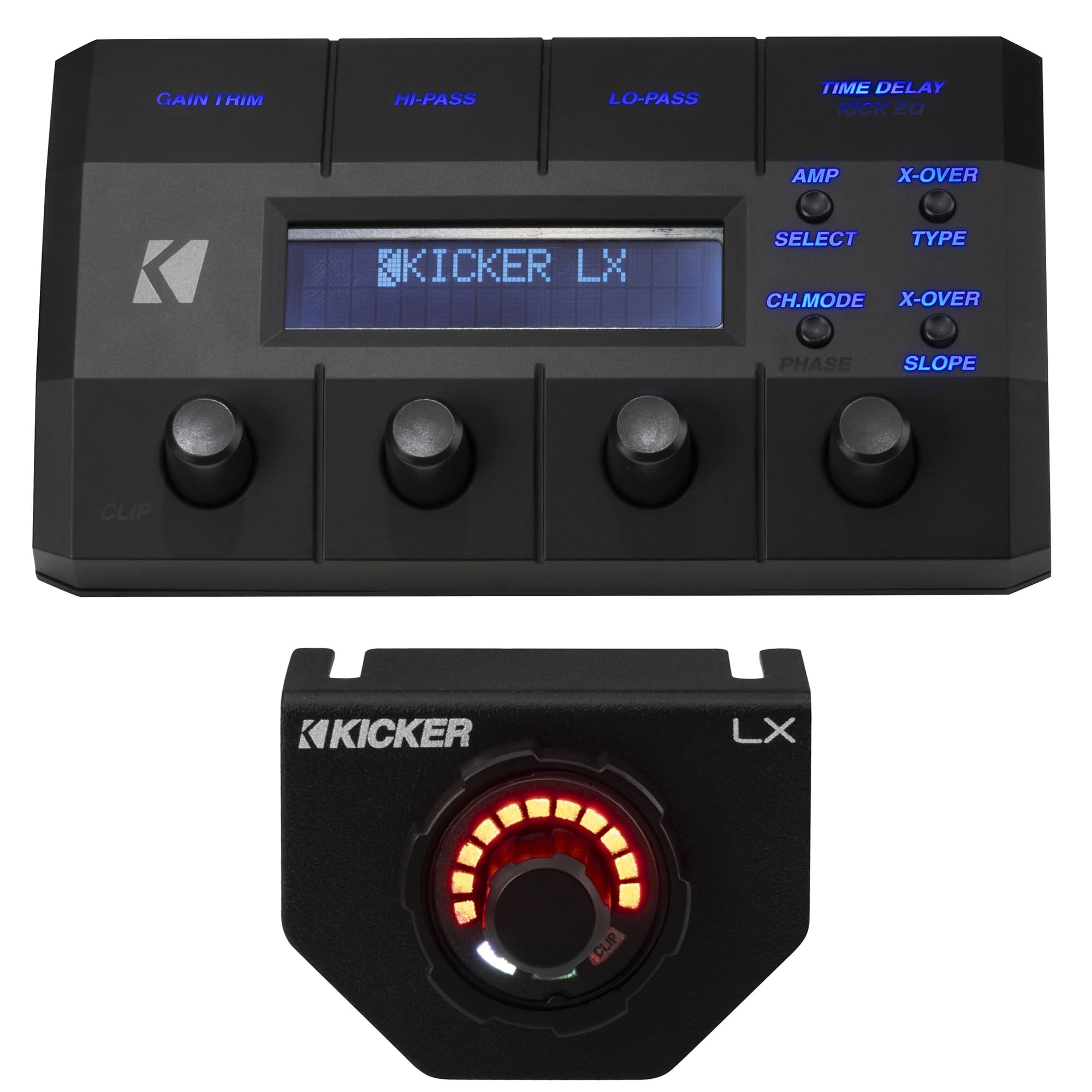

Bass Remote Included
|
Yes
|
| Fuse Rating |
|
| CEA-2006 Compliant |
Yes |
| Maximum Power Wire Gauge Size |
|
| Warranty |
2 Year |
