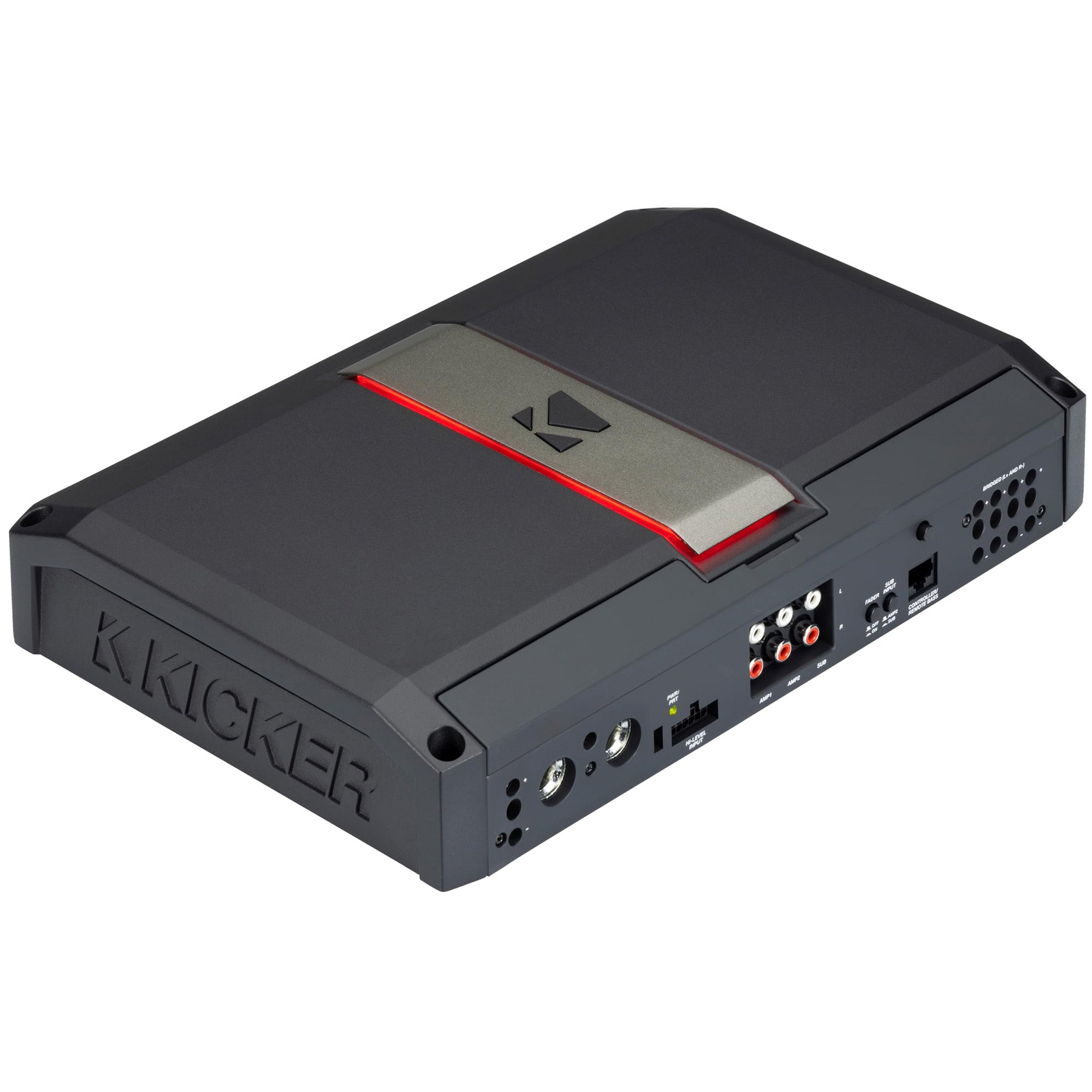

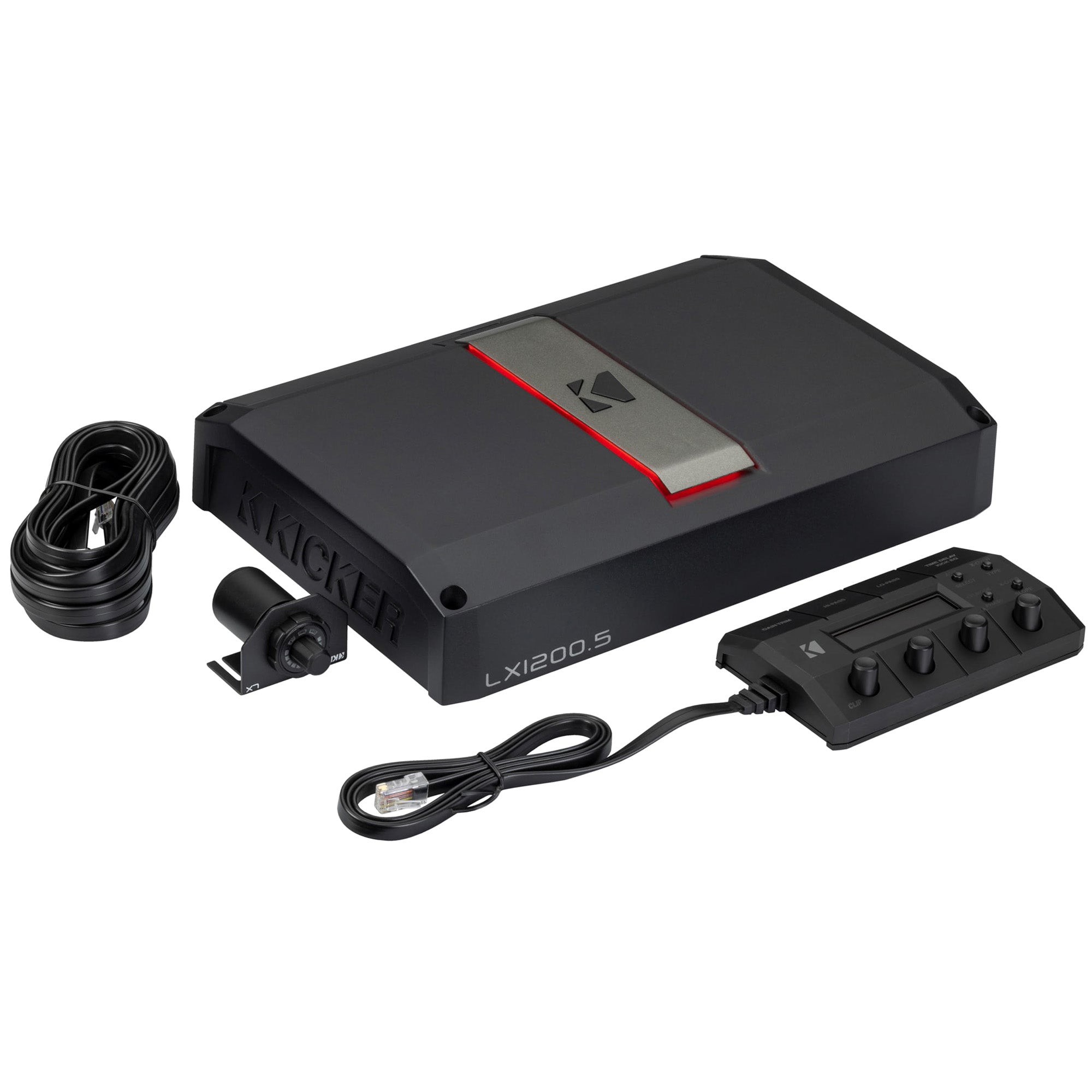

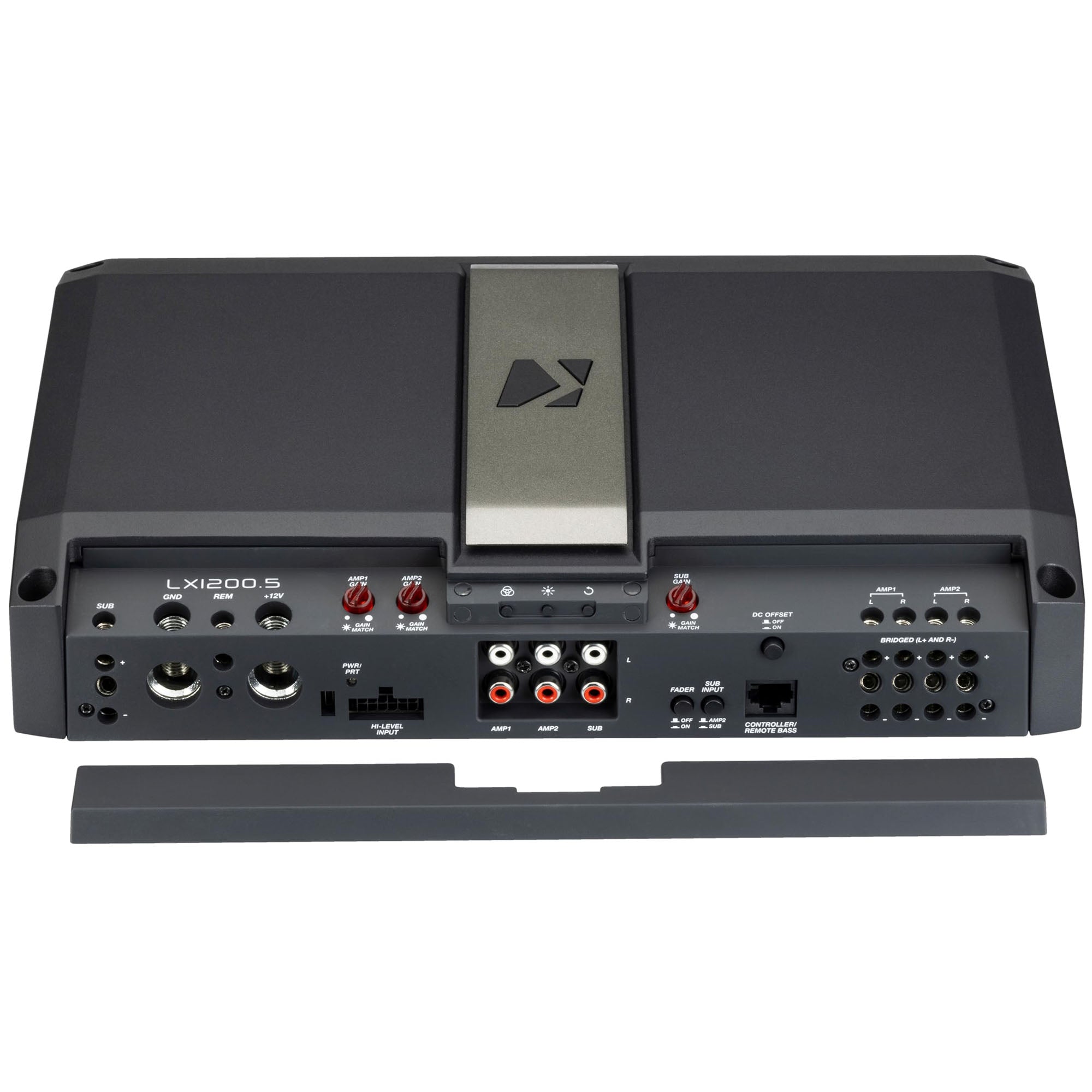

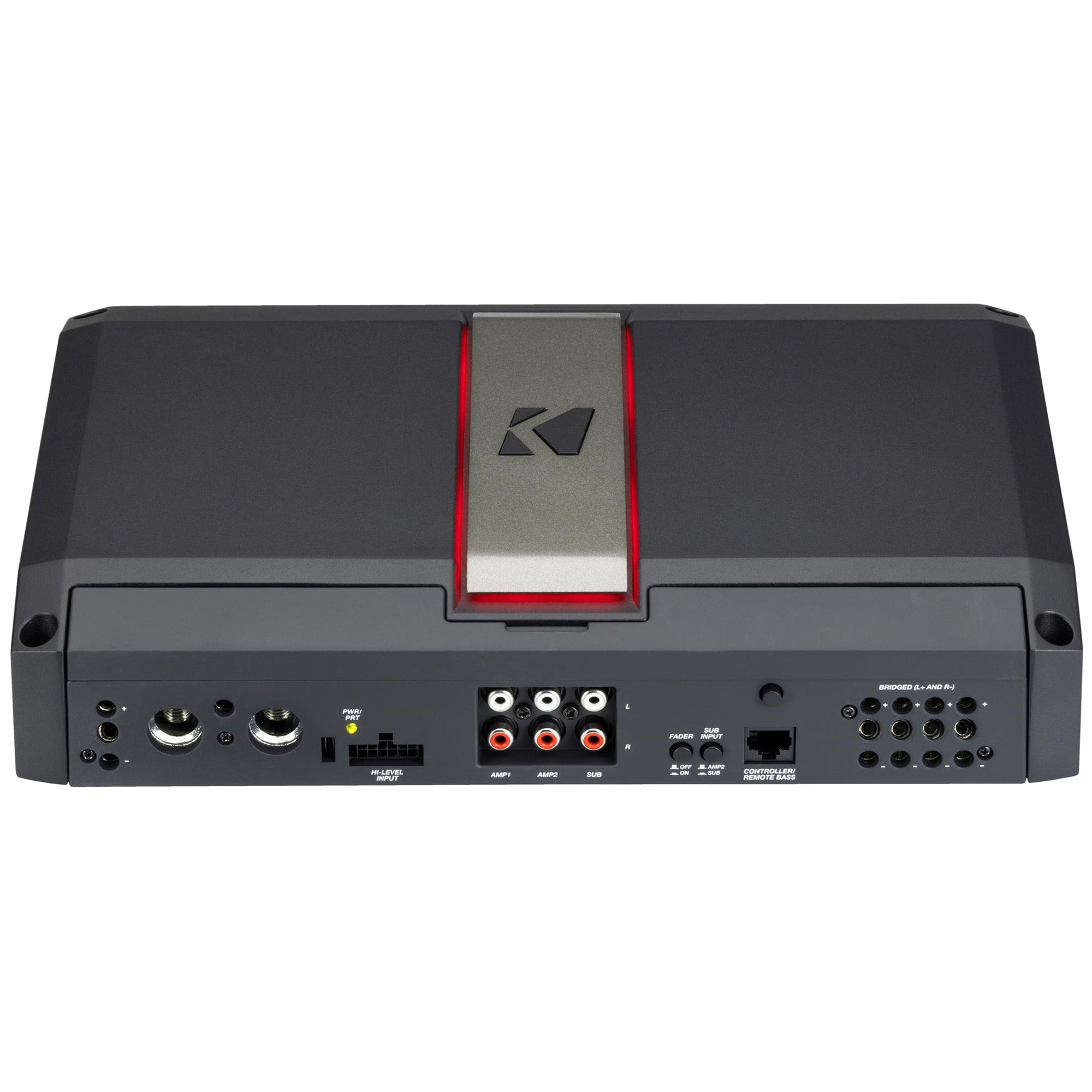

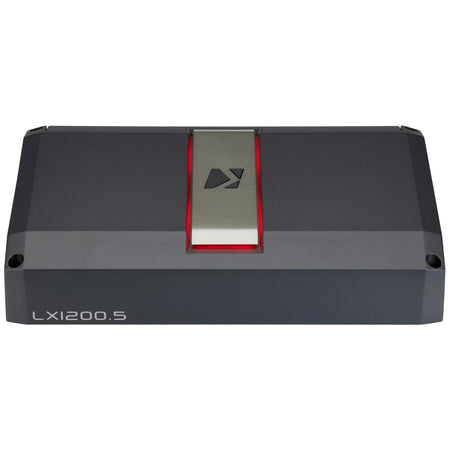

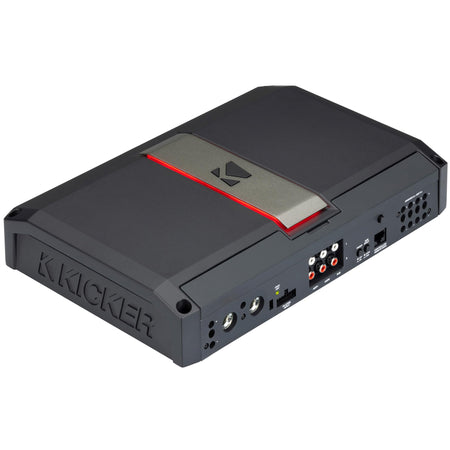

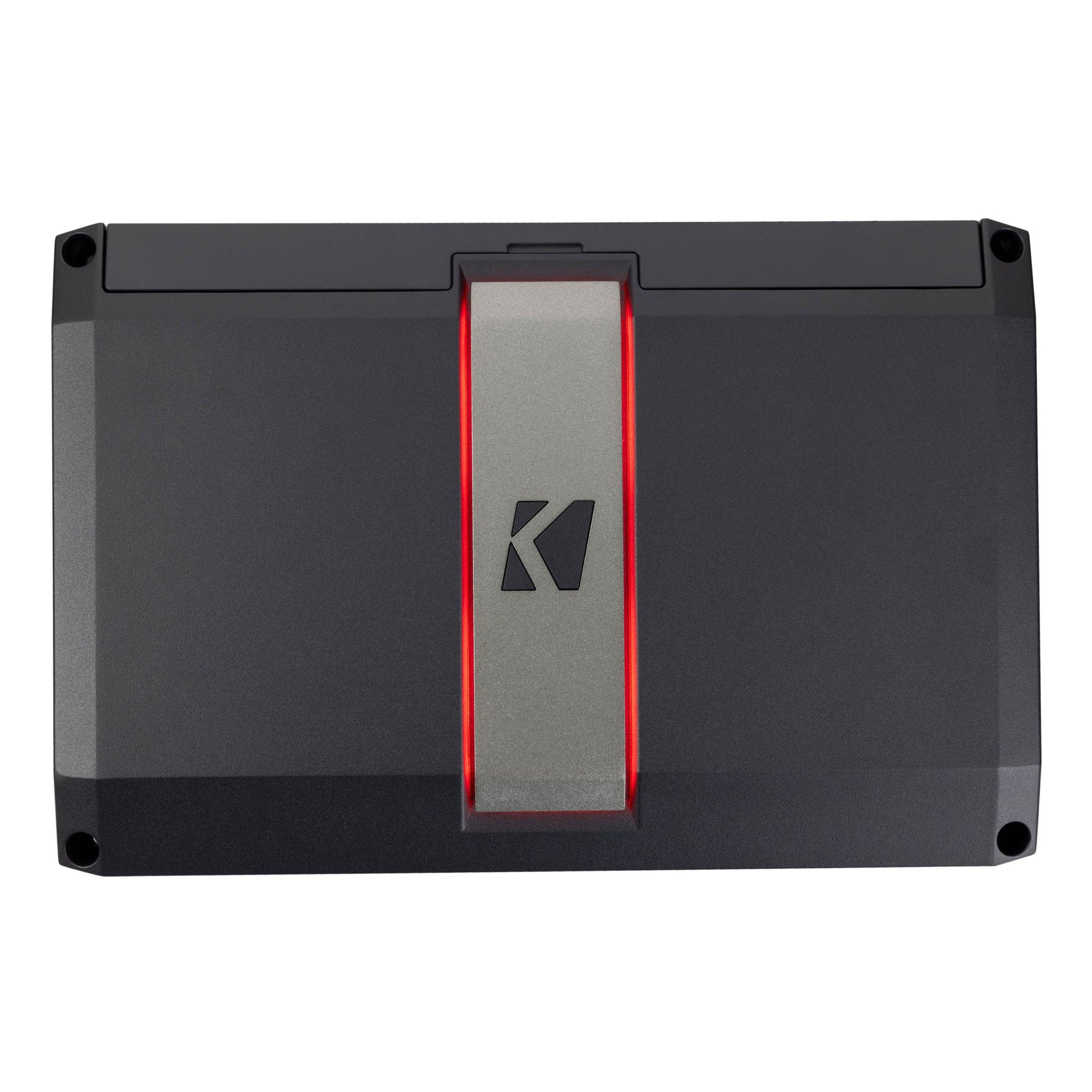

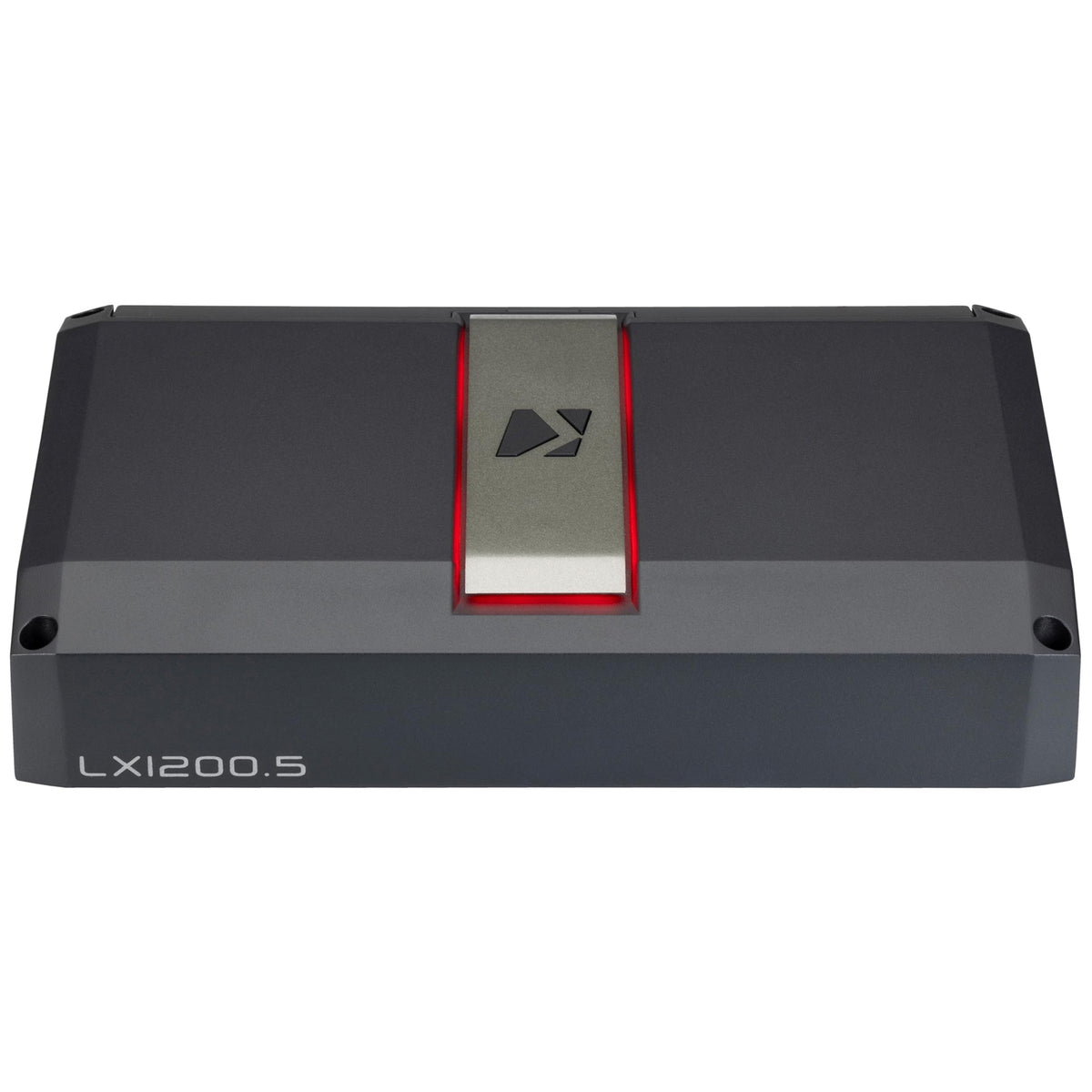

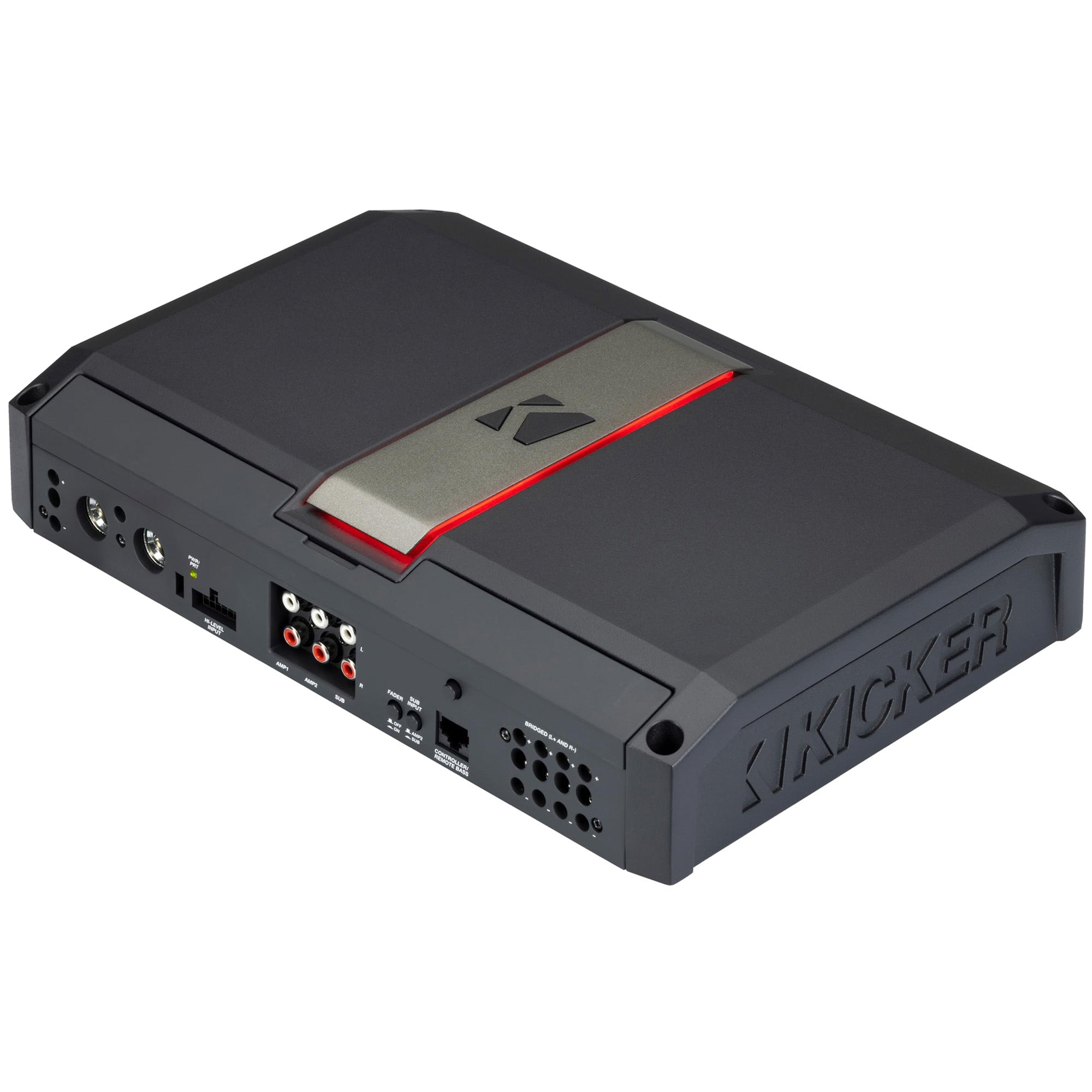

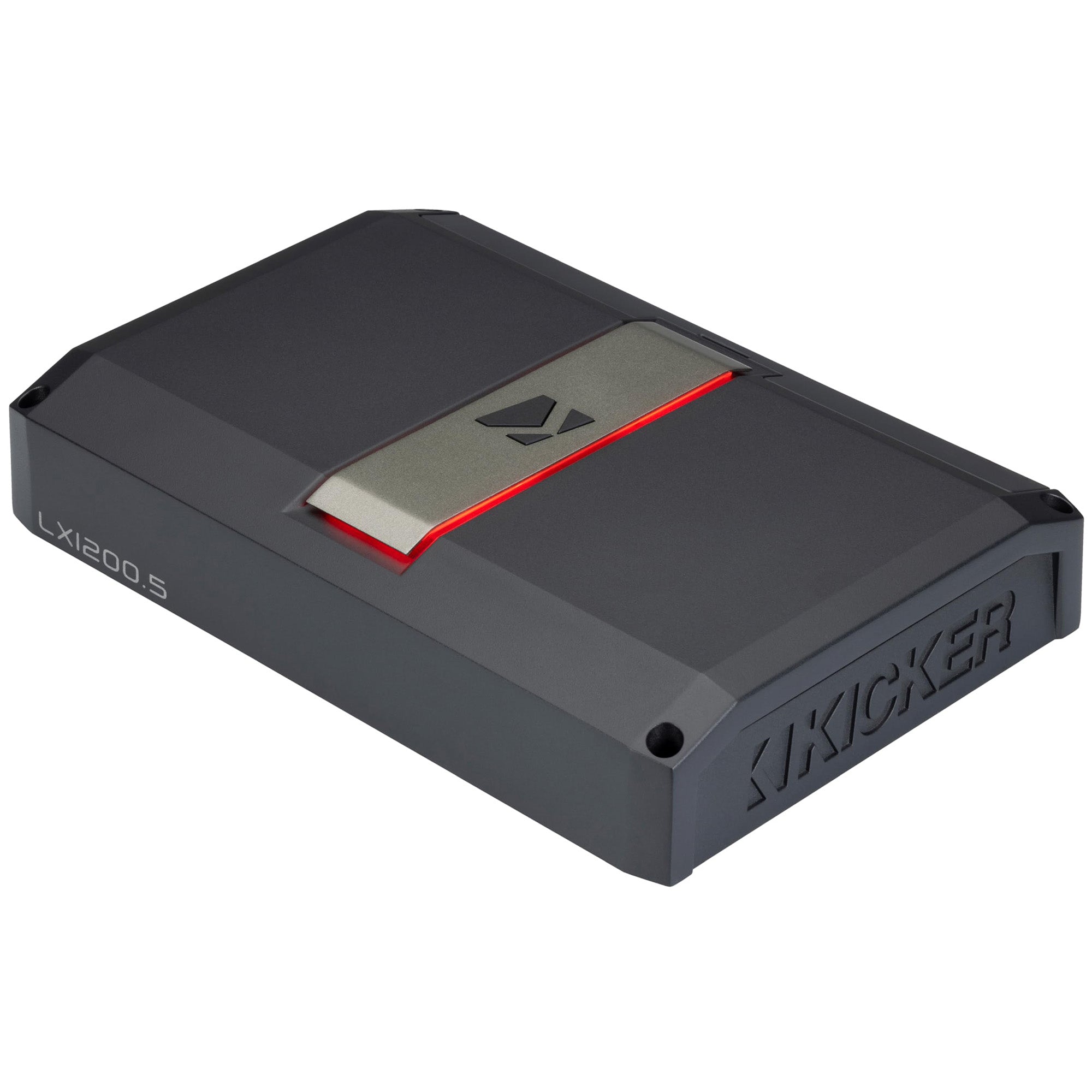

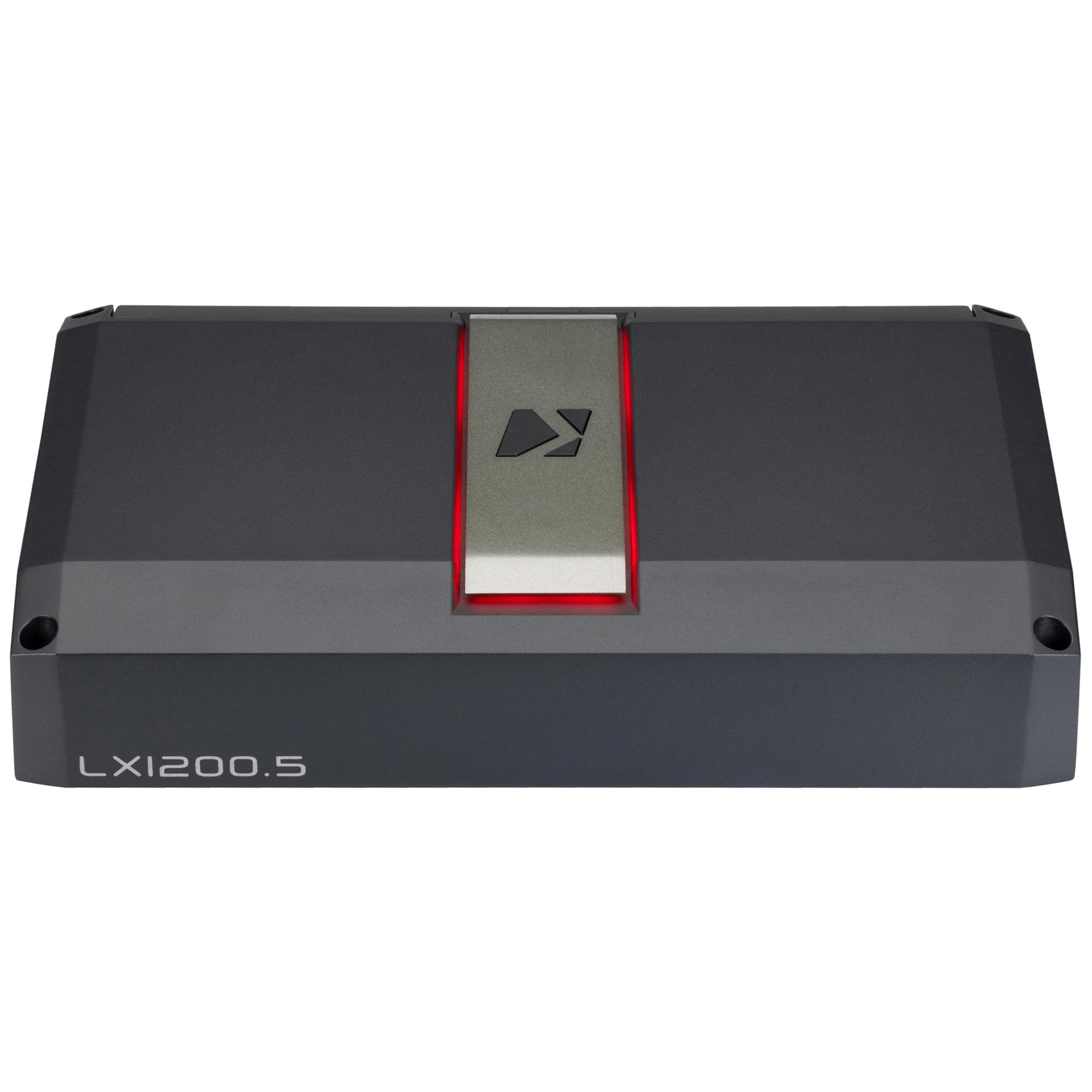

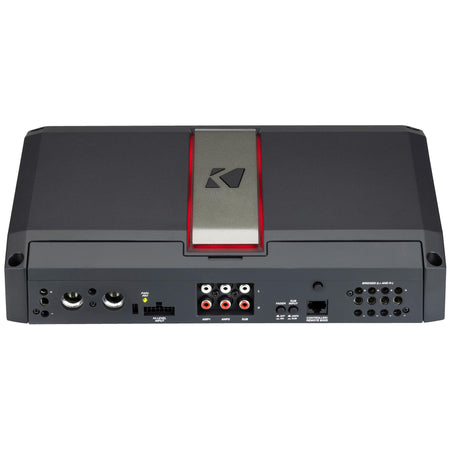

HIGH-POWER 5-CHANNEL AMPLIFIER
The KICKER LX12005 is a powerful 5-channel amplifier engineered to deliver clean, balanced output for complete audio systems. Designed to drive both full-range speakers and a subwoofer, it provides an all-in-one amplification solution for enhanced system performance.
ADVANCED CLASS-D EFFICIENCY
Built with high-efficiency Class-D architecture, the LX12005 maximizes power delivery while minimizing heat and electrical demand. This efficient design supports reliable operation in compact and concealed installations.
FULL-SYSTEM AUDIO PERFORMANCE
Optimized for complete system control, this amplifier delivers clear, detailed sound across all speaker channels along with strong, controlled low-frequency output for subwoofer applications.
VERSATILE SYSTEM CONFIGURATION
Designed to support a wide range of system layouts, the LX12005 simplifies system design by powering front and rear speakers plus a dedicated subwoofer from a single amplifier.
RUGGED, PERFORMANCE-GRADE CONSTRUCTION
Constructed with a durable chassis and quality internal components, the LX12005 is built to withstand vibration, heat, and demanding real-world conditions. It’s engineered for long-term reliability.
SEAMLESS SYSTEM INTEGRATION
Designed for easy integration with aftermarket head units and upgraded factory systems, the LX12005 delivers consistent, dependable performance across a variety of vehicle installations.
ALL-IN-ONE AMPLIFICATION SOLUTION
Ideal for drivers seeking a clean, space-efficient way to power an entire audio system, the KICKER LX12005 delivers reliable multi-channel amplification with strong bass performance.
|
|
Number of Channels
|
7
|
|
Class
|
D
|
|
Peak Power Rating (Watts)
|
2400
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms
|
Amp 1 & 2: 125 x 4
Sub Channel: 300 x 1
|
|
RMS Power Rating (Watts x Channels) - 2 Ohms
|
Amp 1 & 2: 175 x 4
Sub Channel: 550 x 1
|
| RMS Power Rating - Bridged - 4 Ohms |
Amp 1 & 2: 350 x 2
|
|
RMS Power Rating (Watts x Channels) - 1 Ohm
|
Sub Channel: 700 x 1
|
Minimum Impedance Unbridged (Ohms)
|
Amp 1 & 2: 2
Sub Channel: 1
|
Minimum Impedance Bridged (Ohms)
|
Amp 1 & 2: 4
|
THD at Rated RMS Power
|
1%
|
Bulit-in Crossover - Low Pass
|
Yes
|
Built-in Crossover - High Pass
|
Yes
|
High Pass Crossover Frequency (Hz)
|
Amp 1, 2: 20-5000Hz
Sub Channel: 10-80Hz
|
Low Pass Crossover Frequency (Hz)
|
Amp 1, 2: 40-5000hz
Sub Channel: 40-160Hz
|
Signal-to-Noise Ratio (ref: 1W Output)
|
>75dB
|
Bass Boost
|
Sub Channel: 0–6dB, variable center 20–80Hz,
variable bandwidth 1–5
|

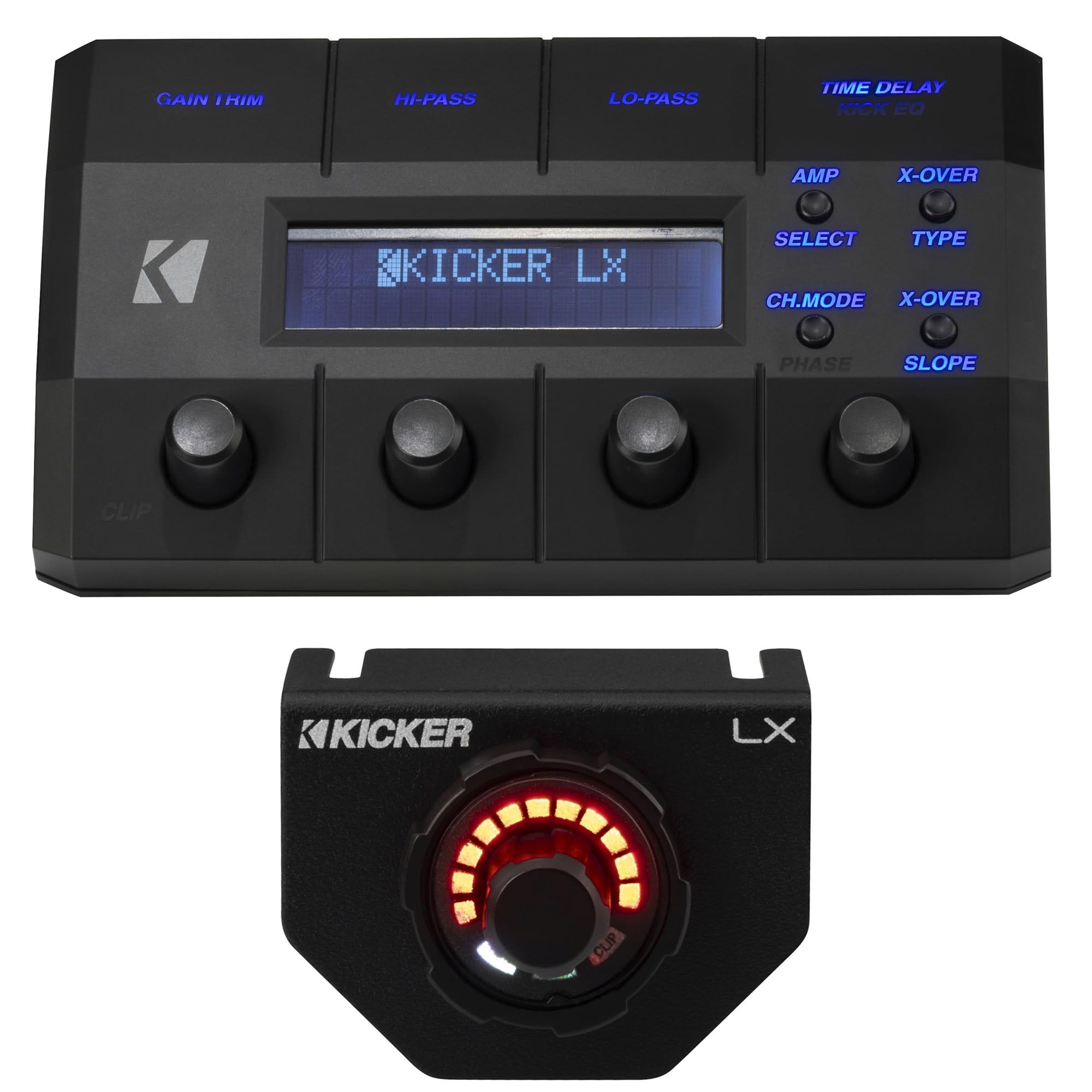

Bass Remote Included
|
Yes
|
| Fuse Rating |
|
| CEA-2006 Compliant |
Yes |
| Maximum Power Wire Gauge Size |
|
| Warranty |
2 Year |
