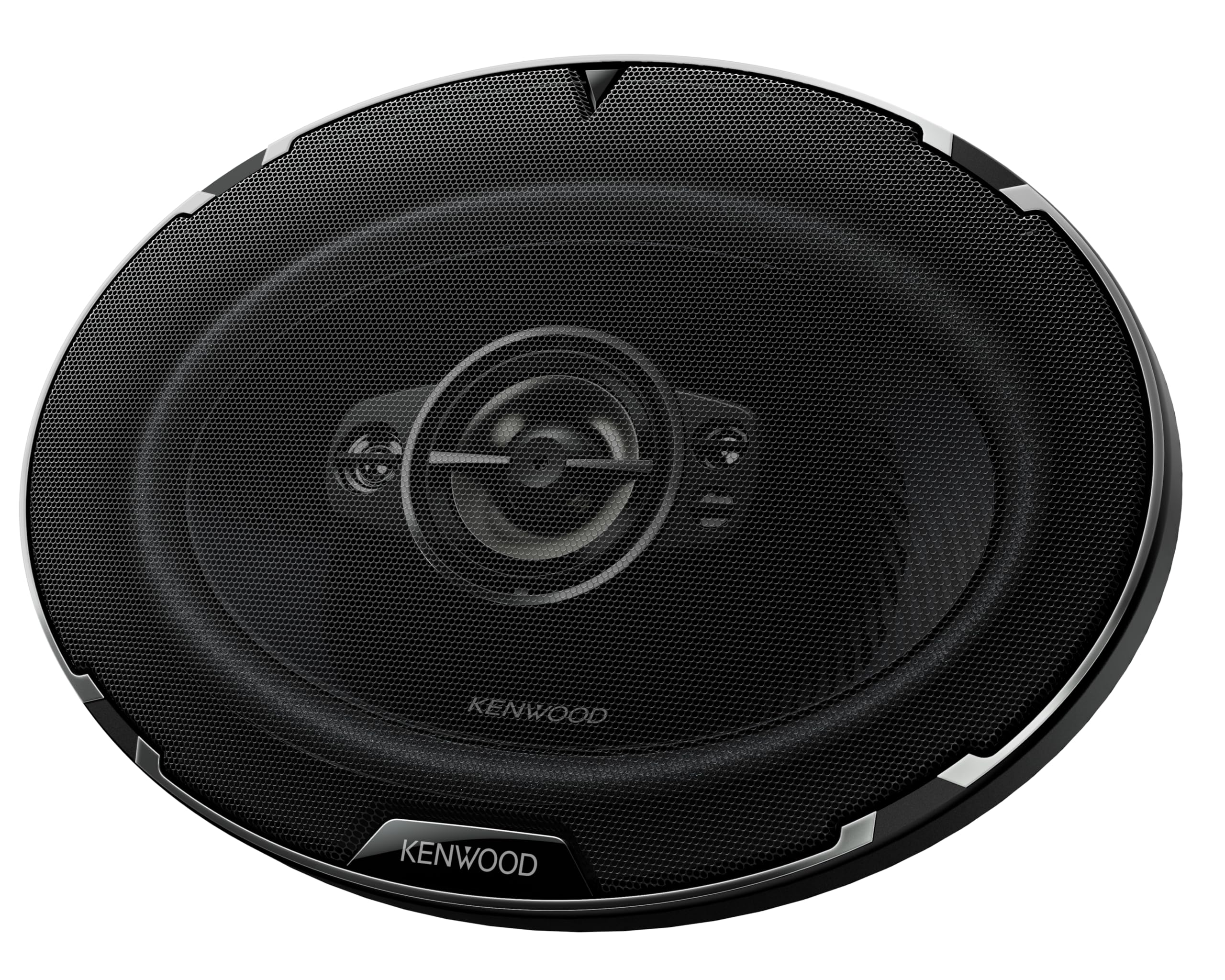

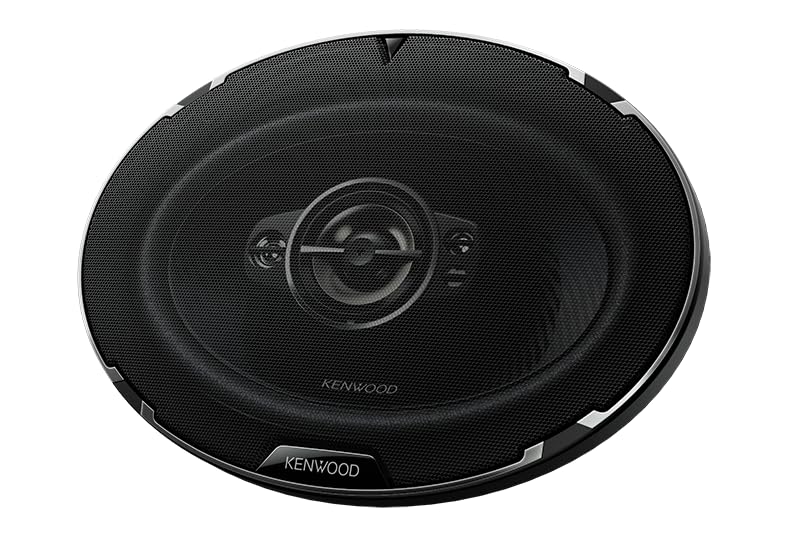

Kenwood KFC-6998RS RS Series 6x9" 5-Way Full Range Speakers
Turn your factory sound system into a full-range audio upgrade. The Kenwood KFC-6998RS RS Series 6x9" 5-way speakers are engineered to deliver powerful output, extended high-frequency detail, and strong midbass response in a direct-fit OEM replacement size for many vehicles.
Built as one of the most advanced models in Kenwood’s RS lineup, these speakers use a multi-driver design to create a wide, immersive sound experience with impressive clarity across the entire frequency range.
Multi-layer sound performance

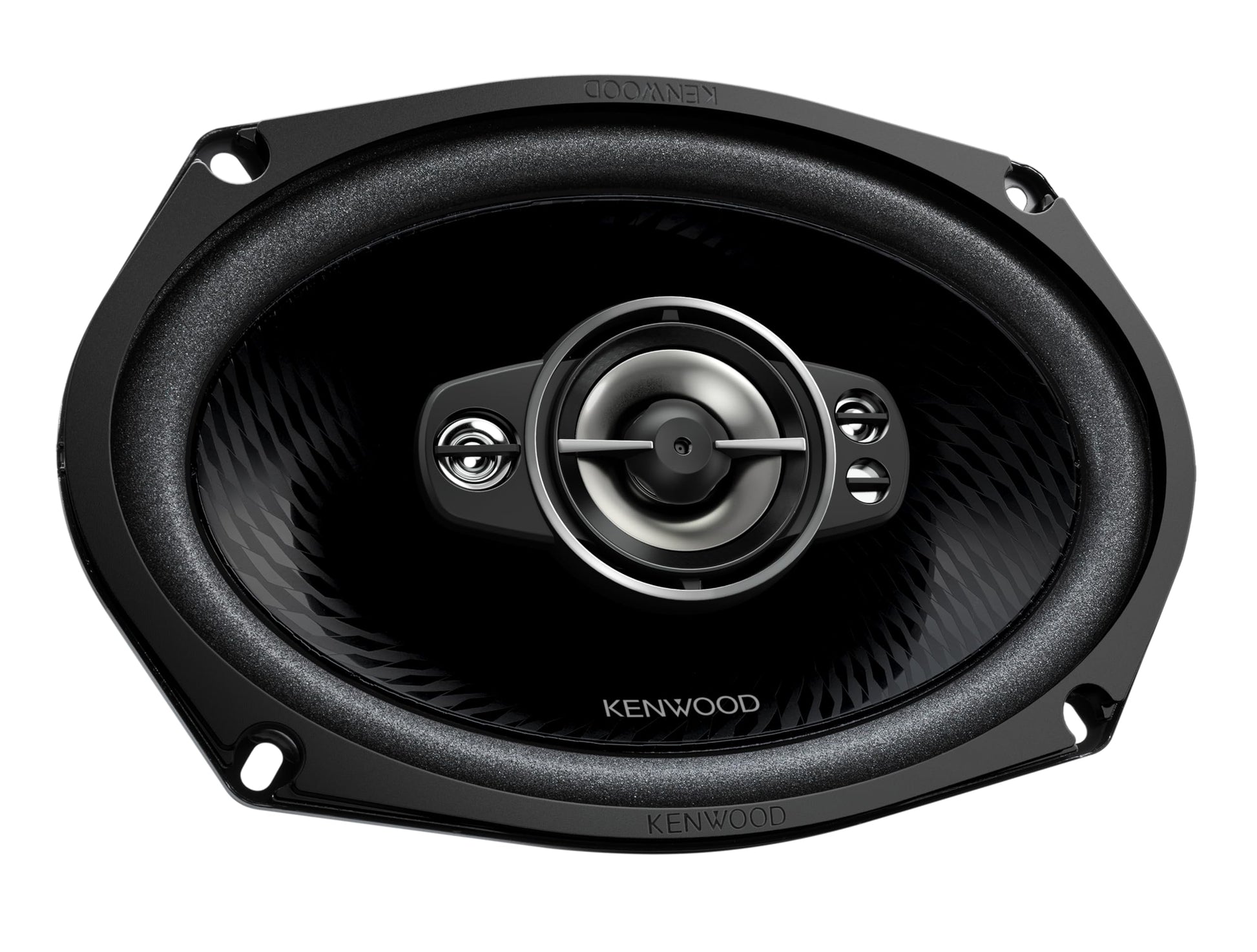

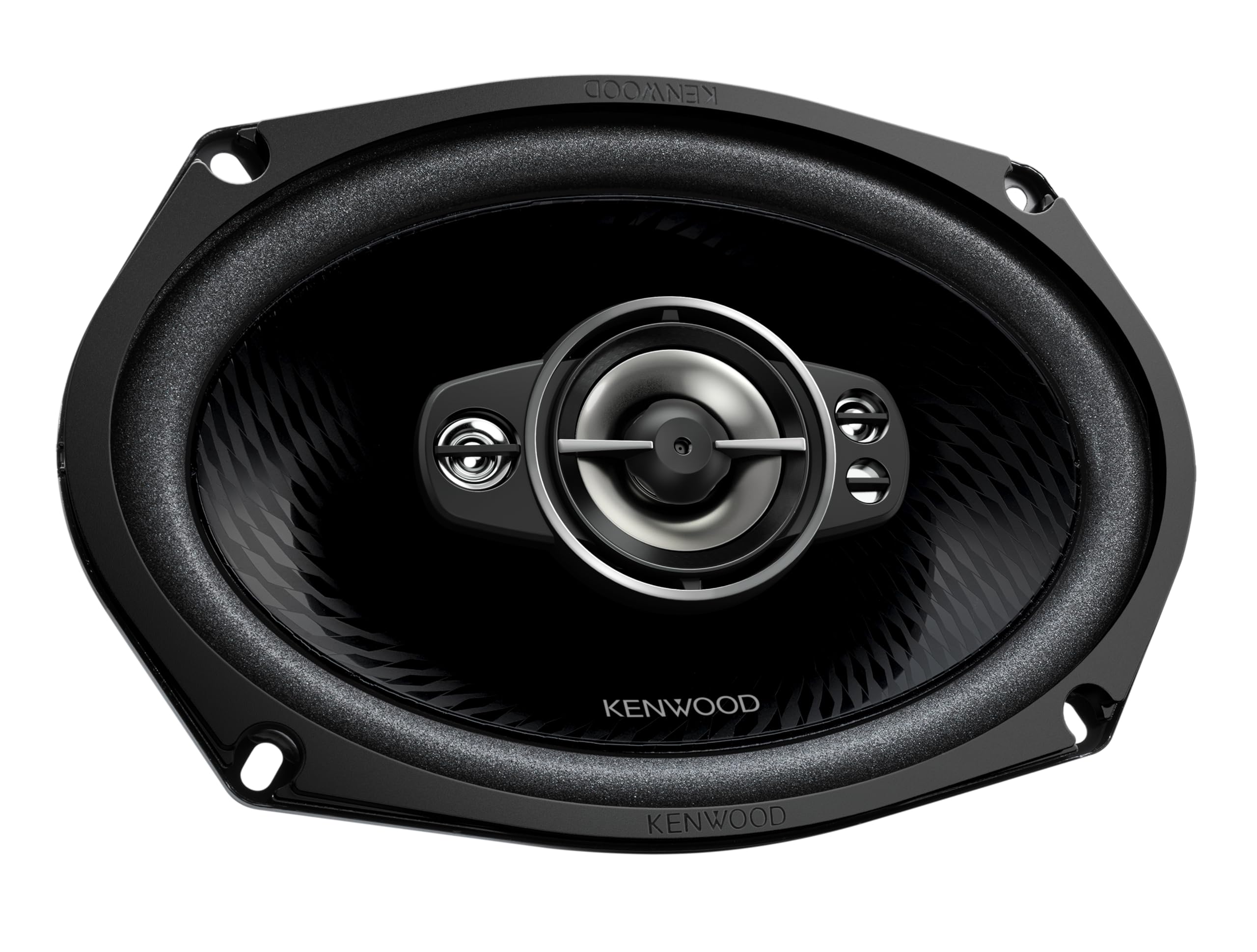

At the core of the KFC-6998RS is a 6x9 polypropylene woofer cone with a diamond-array pattern, designed to increase rigidity and reduce distortion. This helps deliver tighter bass response and cleaner mids, even at higher listening levels.
A 1-3/4" balanced dome tweeter handles upper frequencies with smooth detail, while multiple ceramic super tweeters extend high-frequency response for added sparkle and airiness in vocals and instruments. The result is a highly detailed, full-spectrum sound signature.
Wide soundstage with advanced tuning

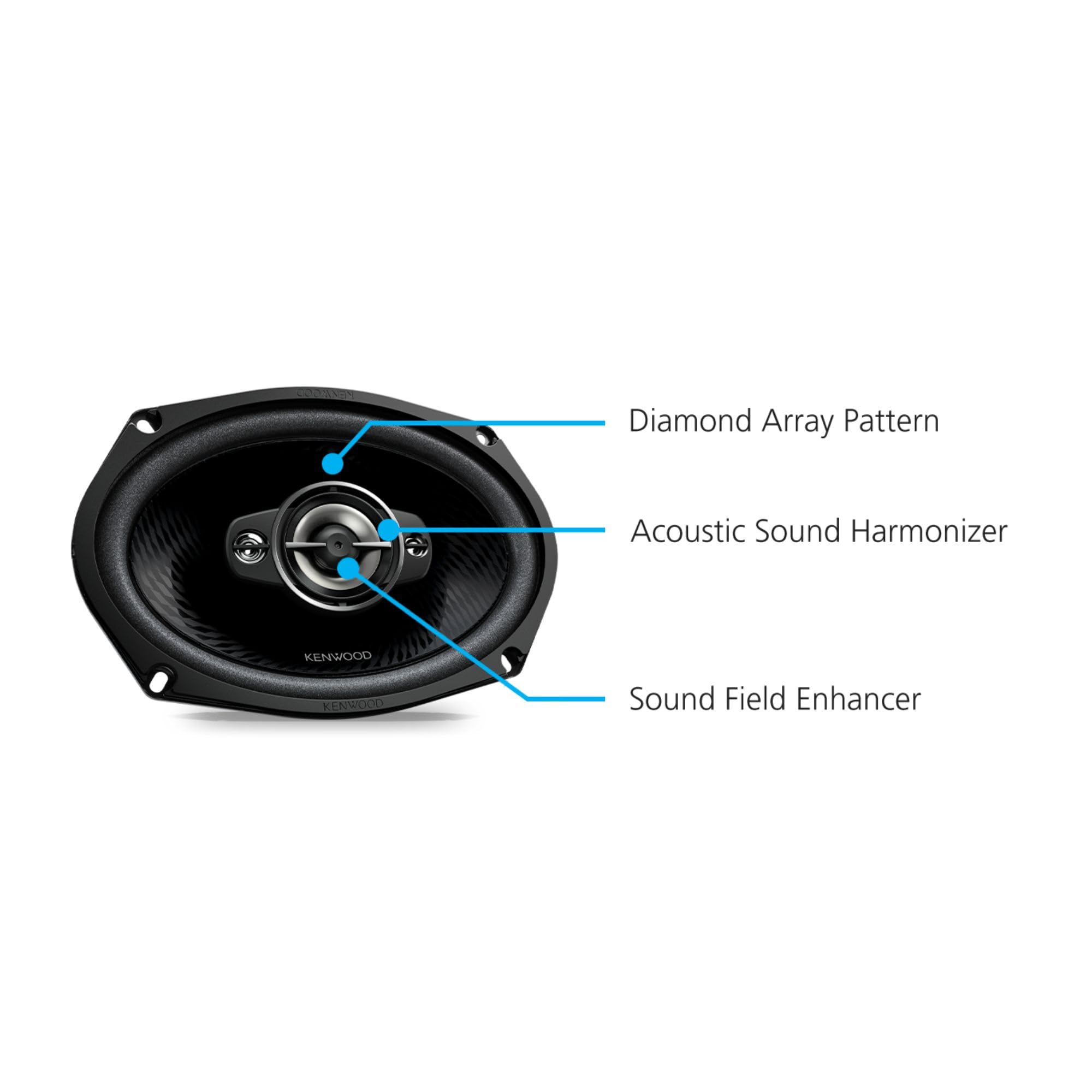

Kenwood’s RS Series technologies work together to enhance the listening experience:
-
Sound Field Enhancer improves sound dispersion for a wider, more open stereo image
-
Acoustic Sound Harmonizer smooths frequency transitions for more natural tonal balance
- Optimized tweeter placement helps maintain OEM-fit installation while expanding perceived soundstage
These features help the KFC-6998RS sound larger than its physical size, especially in rear deck or large door applications.
Built for power and durability

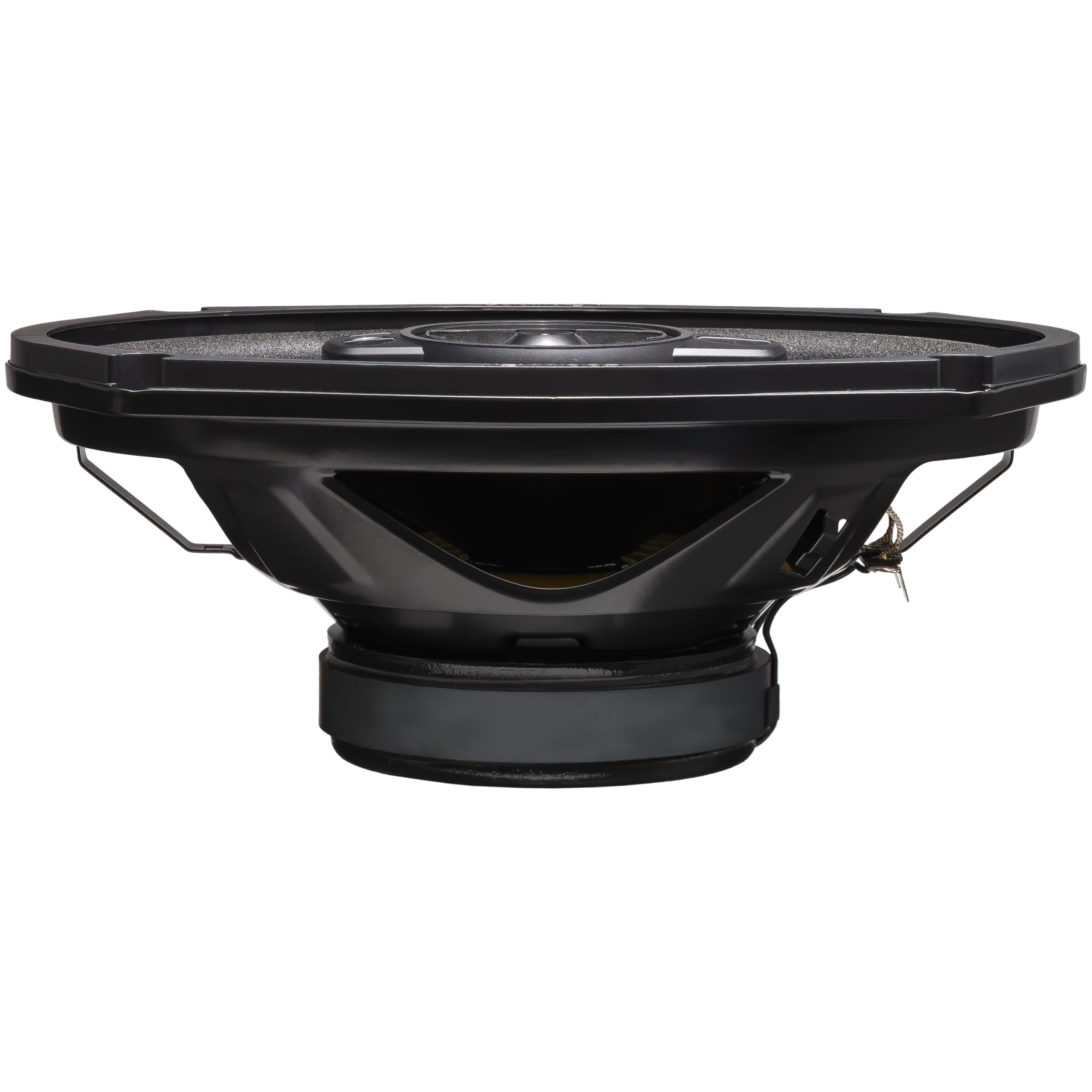

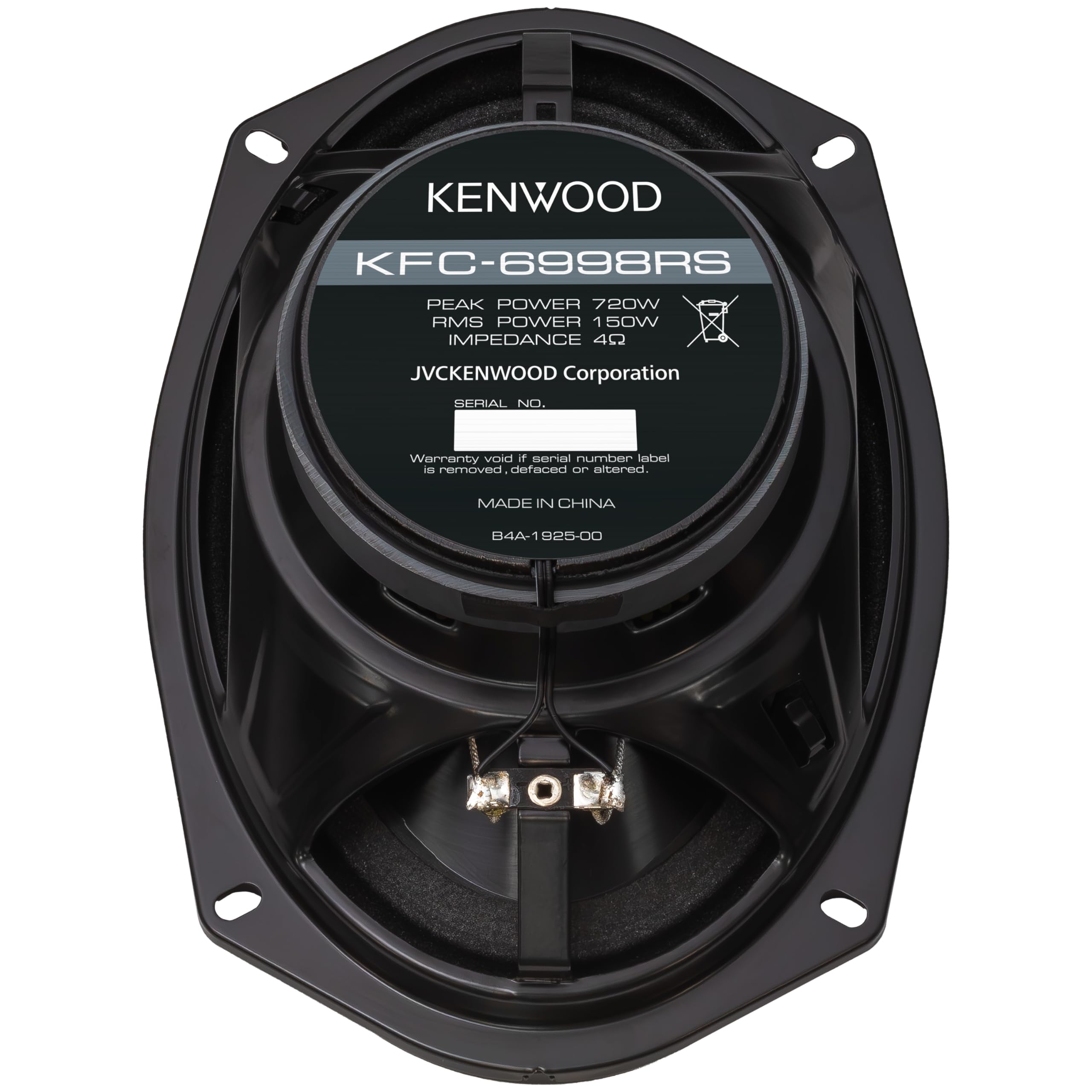

With a 150W RMS (720W peak per pair) power rating, these speakers are designed to handle both factory head units and aftermarket amplification. A stamped steel basket, rubber surround, and heat-managed motor structure ensure long-term durability under daily use and high-output conditions.
Key features
- 6x9" 5-way full range coaxial speaker system (pair)
- 150W RMS / 720W peak power handling
- Frequency response: 58Hz – 22kHz
- 88 dB sensitivity for efficient output
- 4 ohm impedance
- Polypropylene woofer with diamond-array cone
- 1-3/4" balanced dome tweeter
- Multiple ceramic super tweeters for extended highs
- Sound Field Enhancer for wider imaging
- Acoustic Sound Harmonizer for smoother response

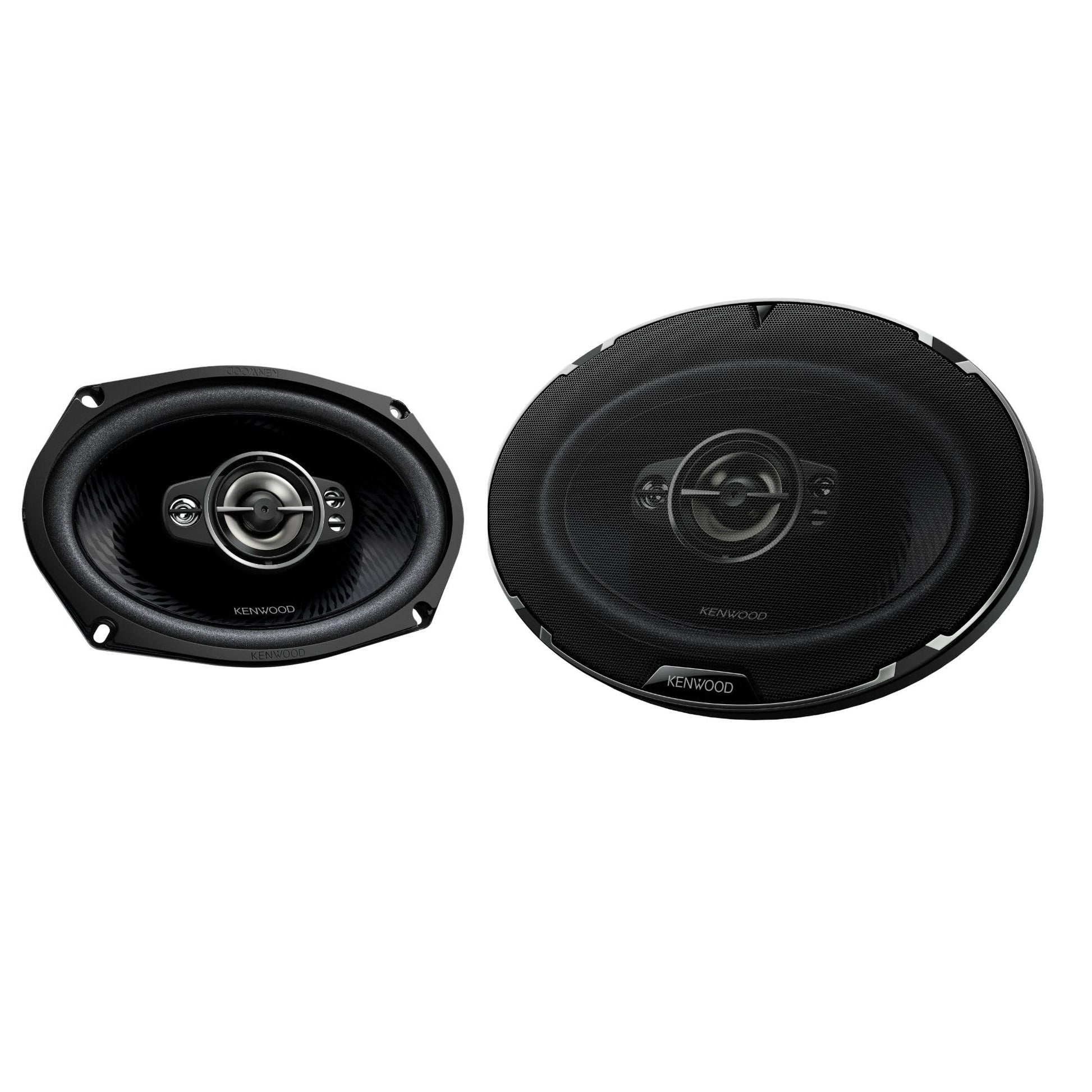

- Factory-fit design with included grilles
Why choose the KFC-6998RS?
If you want maximum detail and loud, full-range output from a 6x9 speaker, the KFC-6998RS delivers a bold upgrade over factory audio. It’s built for listeners who want strong bass, detailed highs, and an expansive soundstage without moving to a full component system.
|
| Model |
KFC-6998RS |
| Series |
RS Series |
| Type |
6 × 9" oval 5-way speaker |
| Woofer size |
6 × 9" (153 × 229 mm) |
| Woofer cone |
Polypropylene (PP) with Diamond Array Pattern |
| Woofer surround |
Urethane |
| Woofer basket |
Steel |
| Woofer magnet |
Ferrite, Ø100 × 15 mm |
| Tweeter |
1-3/4" (44 mm) balanced dome |
| Super tweeter 1 |
4/5" (20 mm) ceramic |
| Super tweeter 2 |
1/2" (12 mm) ceramic |
| Super tweeter 3 |
1/2" (12 mm) ceramic |
| Peak power |
720 W |
| RMS power |
150 W |
| Impedance |
4 Ω |
| Sensitivity |
88 dB/W/m |
| Frequency response |
58 Hz – 22 kHz |
| Cutout diameter |
5-7/8 × 8-5/8" |

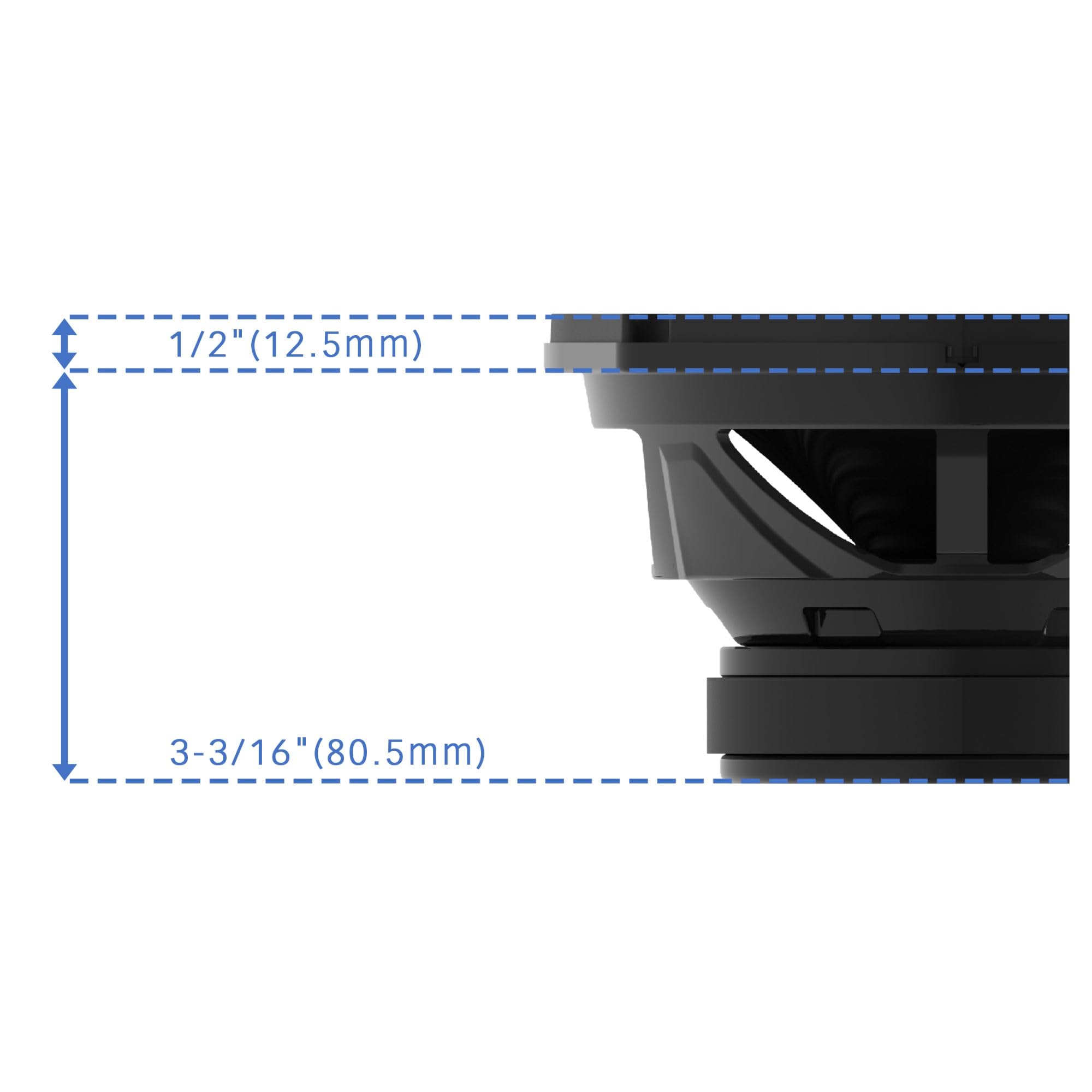

| Tweeter height |
1/2" |
| Mounting depth |
3-3/16" |
| Dimensions with grille |
10-1/2" W × 7-3/4" H × 4-5/16" D |
| Dimensions without grille |
9-5/16" W × 6-7/16" H × 3-11/16" D |
| Included grilles |
2 |
| Key features |
Diamond Array Pattern, Acoustic Sound Harmonizer, Sound Field Enhancer |
