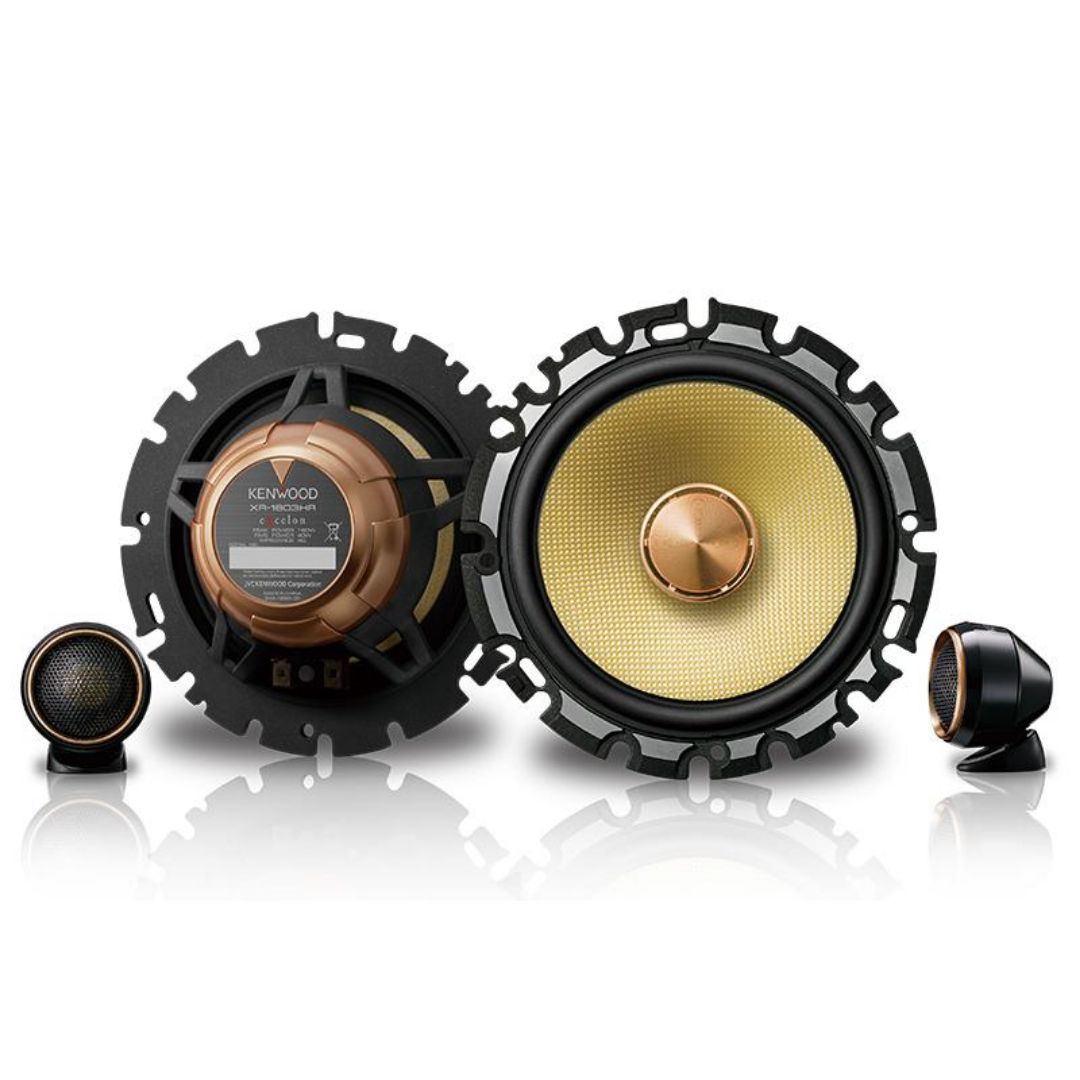

Kenwood XR-1603HR, eXcelon Reference 6-1/2" HiRes Component Speaker System, 160W
Kenwood XR-1603HR, eXcelon Reference 6-1/2" HiRes Component Speaker System, 160W
Out of stock
Choose your location
enter a US zip code
Couldn't load pickup availability
Overview
Overview
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
HIGH-RIGIDITY GLASS FIBER DIAPHRAGM
Features high-strength, tough, yet lightweight materials to finely reproduce all sounds from booming bass notes to delicate tones.
OPTIMIZED EQUALIZER SHAPE
The space around the radius and outer wall of the equalizer, eliminates phase response disturbances, producing well rounded audio across the frequency spectrum.
ALUMINUM SHORT RING
Clearer sound is achieved using an aluminum short ring to eliminate magnetic modulation distortion caused by the coil’s electromagnetic induction.
1” SOFT DOME TWEETER
Featuring a completely reworked design from magnetic circuitry to diaphragm materials and punching net. You will feel as if the artist were next to you, as the finest details of performances are reproduced, emanating out in all directions.
SMOOTH MOTION EDGE
The combination of two differing curves around the edge of the diaphragm boosts amplitude linearity, and ensures that the diaphragm moves in time with sound reverberation.
High rigidity ensures minimal vibration ALUMINUM DIECAST WOOFER FRAME
A high-rigidity aluminum frame with high internal loss helps to suppress unwanted vibration, enabling the reproduction of natural, distortion-free sound.
Supremely stable sound AFC+TORNADO DAMPER (PATENT NO. 5413004)
By revolutionizing the shape of the conventional AFC damper to disperse stress, the result is sound with high linearity.
Improved acoustic conversion efficiency SQUARE VOICE COIL
Square-shaped wires wound in a double layer give this voice coil ultra-high magnetic flux density, for high driving force and powerful sound.
Features & Specifications
Features & Specifications
|
Speaker Size |
6.5" |
|
Design |
2-Way Component |
|
Tweeter Design |
1" Dome |
|
Impedance (Ohms) |
4 |
|
Tweeter Composition |
Soft Dome |
| Woofer Composition |
Woven Glass Fiber |
| Woofer Surround |
Rubber |
| Sensitivity (dB) |
83dB |
| Frequency Response (Hz) |
25-48k Hz |
| RMS Power Rating (Watts) |
40 |
| Peak Power Rating (Watts) |
160 |
| Top-mount Depth (Inches) |
1 7/8 |
| Bottom-mount Depth (inches) |
2 1/8 |
| Cutout Diameter (inches) |
4 15/16 |
| Grilles Included |
|
| Warranty |
2-Year |
