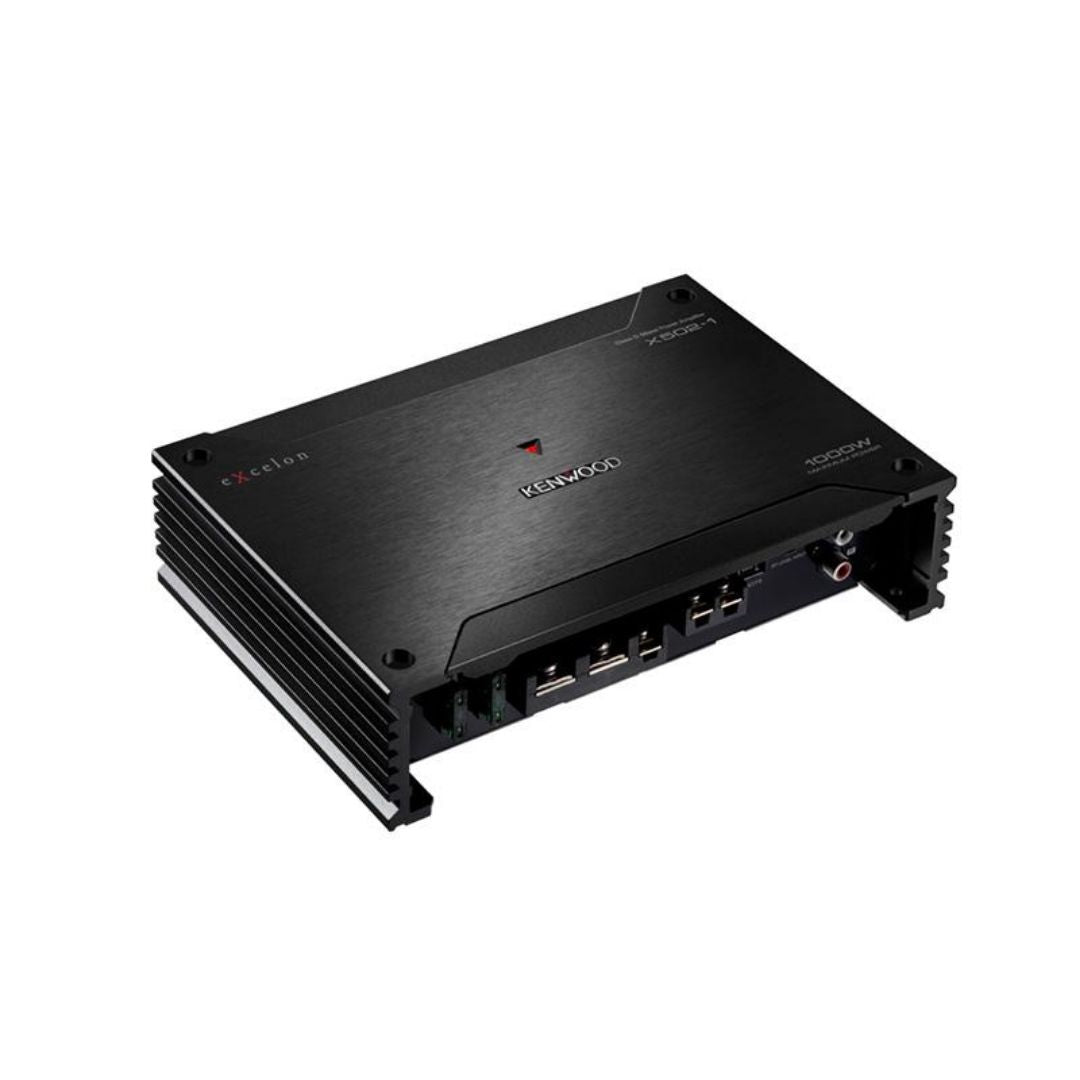

Kenwood X502-1, eXcelon Class D Monoblock Subwoofer Car Amplifier, 1000W
Kenwood X502-1, eXcelon Class D Monoblock Subwoofer Car Amplifier, 1000W
Out of stock
Choose your location
enter a US zip code
Couldn't load pickup availability
Overview
Overview
Output Coil with Magnetic Shield
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.
Sliding Terminal Cover
Detachable sliding terminal cover offers a sleek design and easier installation.

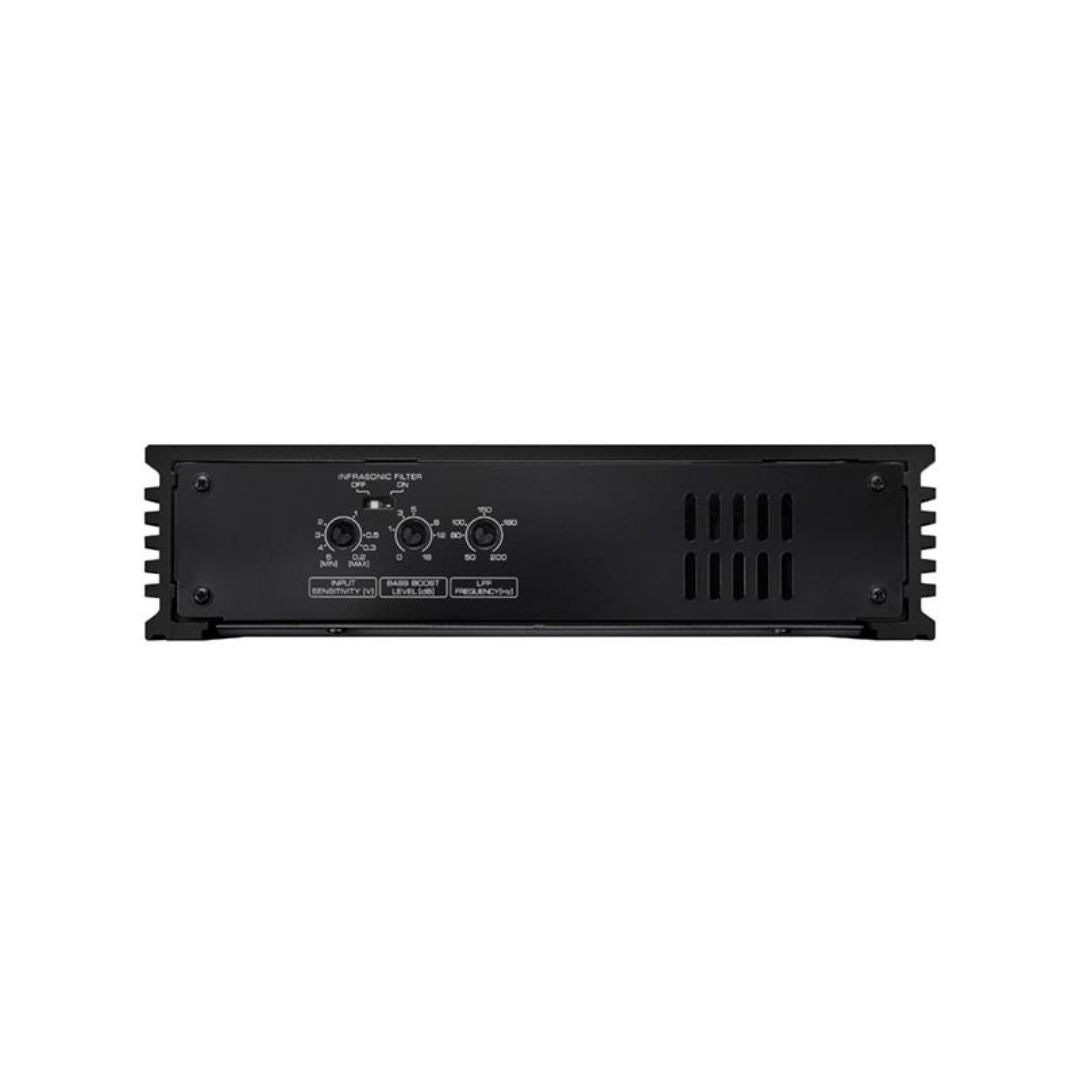

Variable Gain Circuit
Improved Signal to Noise Ratio

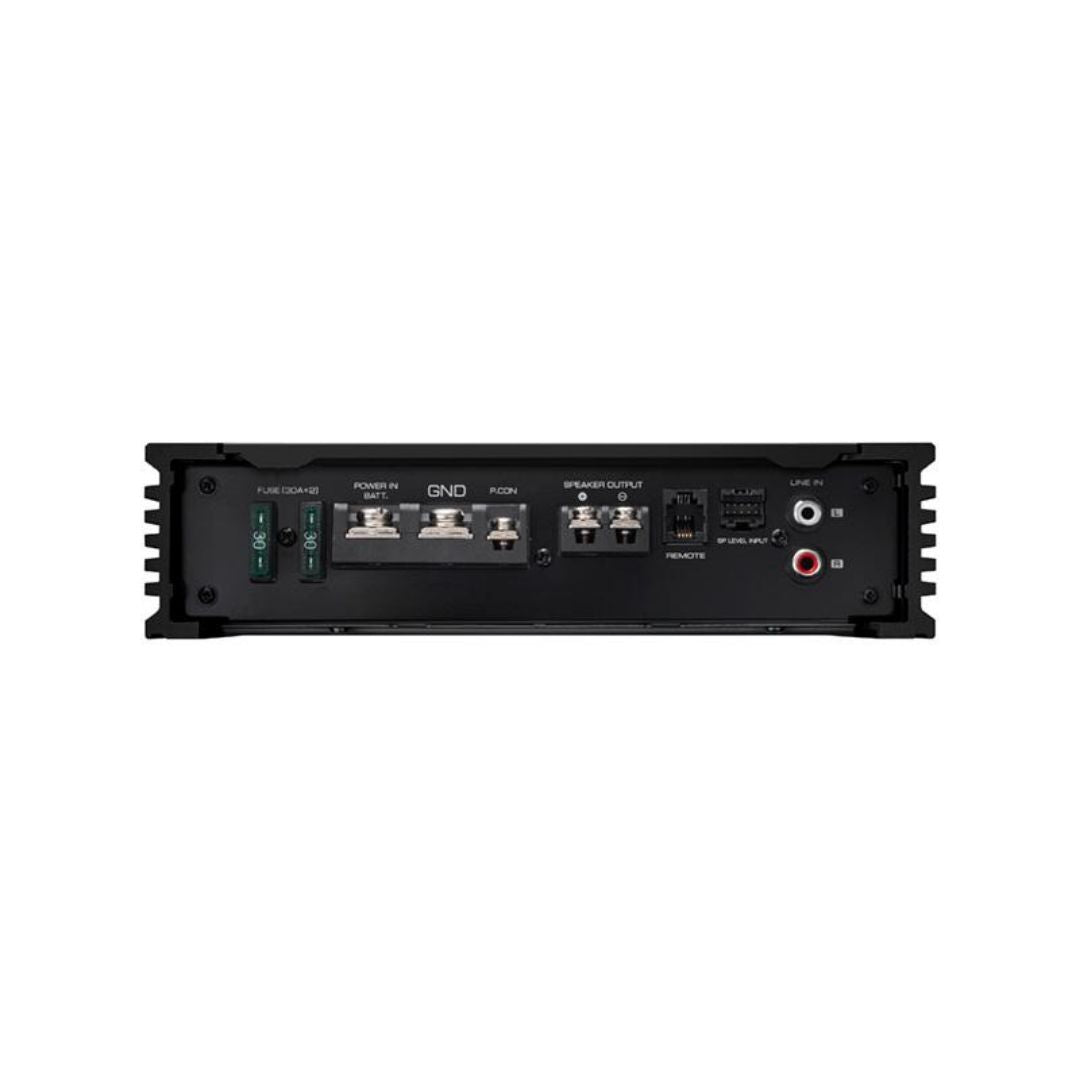

One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look.
Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
Optional Wired Level Control Ready
The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume.
Features & Specifications
Features & Specifications
|
Number of Channels |
1 |
|
Class |
D |
|
Peak Power Rating (Watts) |
1000 |
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
300 x 1 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
500 x 1 |
| RMS Power Rating (Watts x Channels) - 1 Ohm |
N/A |
| RMS Power Rating - Bridged | N/A |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
N/A |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
N/A |
| High Pass Crossover Frequency (Hz) |
N/A |
| Low Pass Crossover Frequency (Hz) |
50-200hz |
| Signal-to-Noise Ratio |
85dB |
| Bass Boost |
0-18dB |
| Bass Remote Included |
No |
| Fuse Rating | 40A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 8 gauge |
| Warranty | 2 Year |
