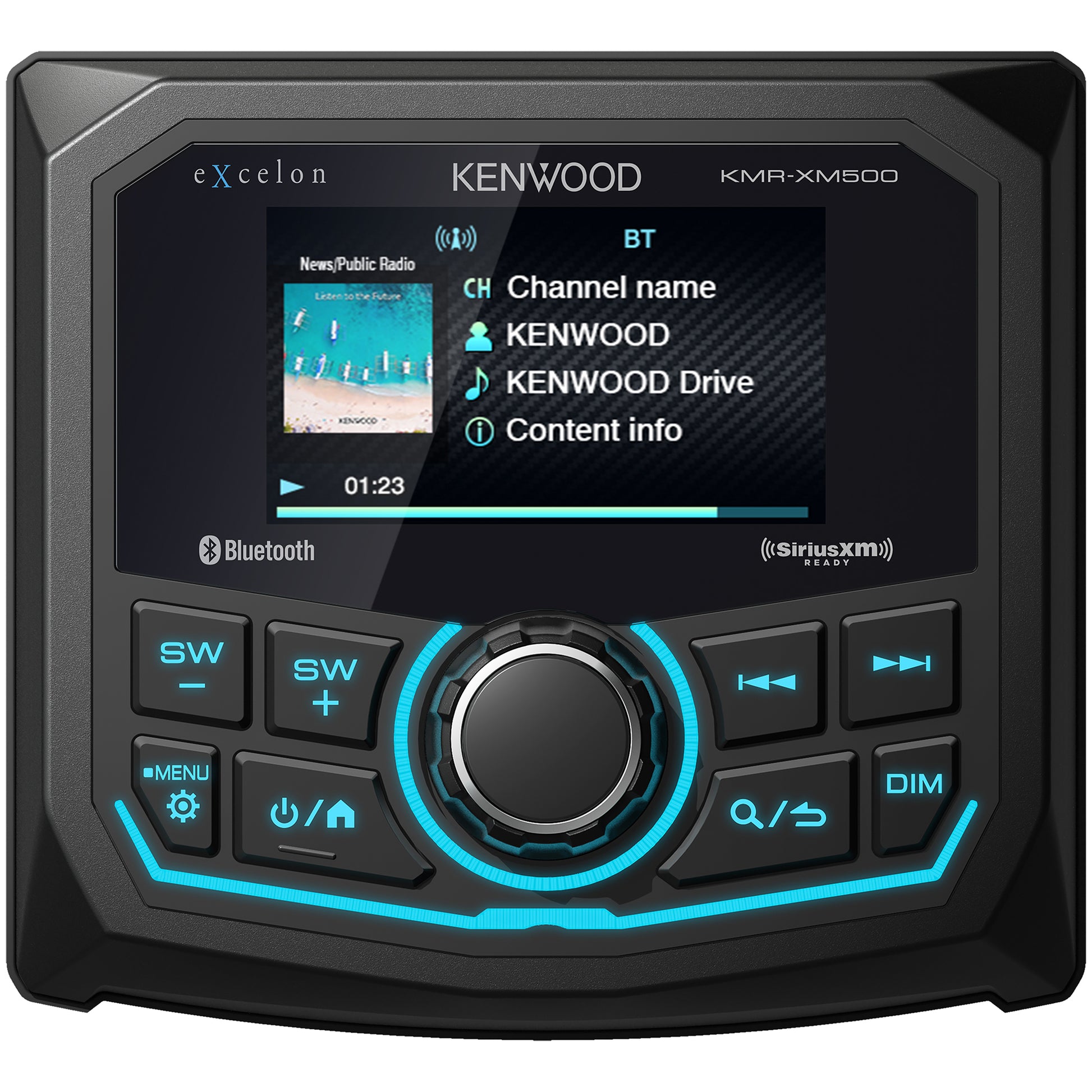

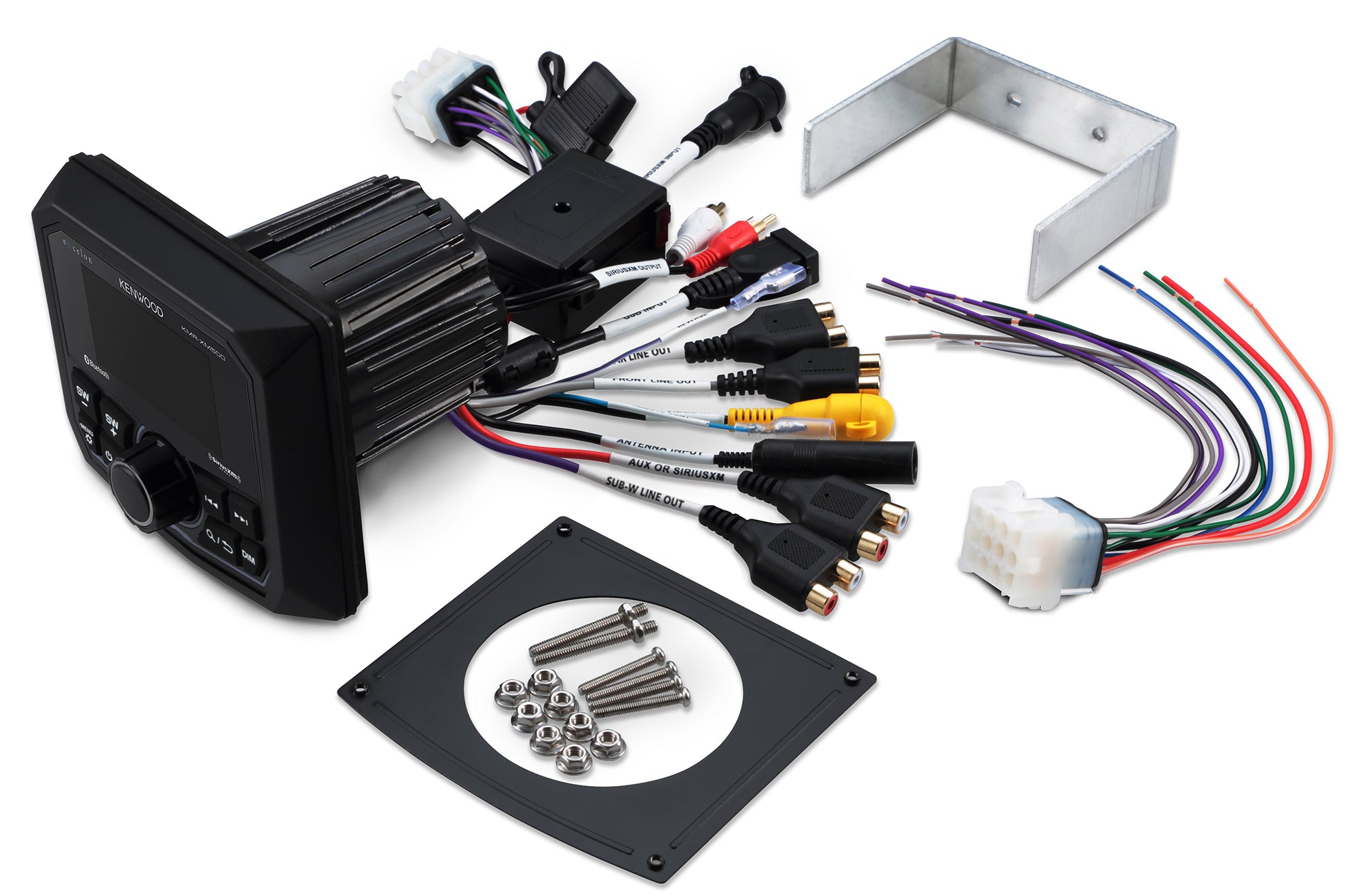

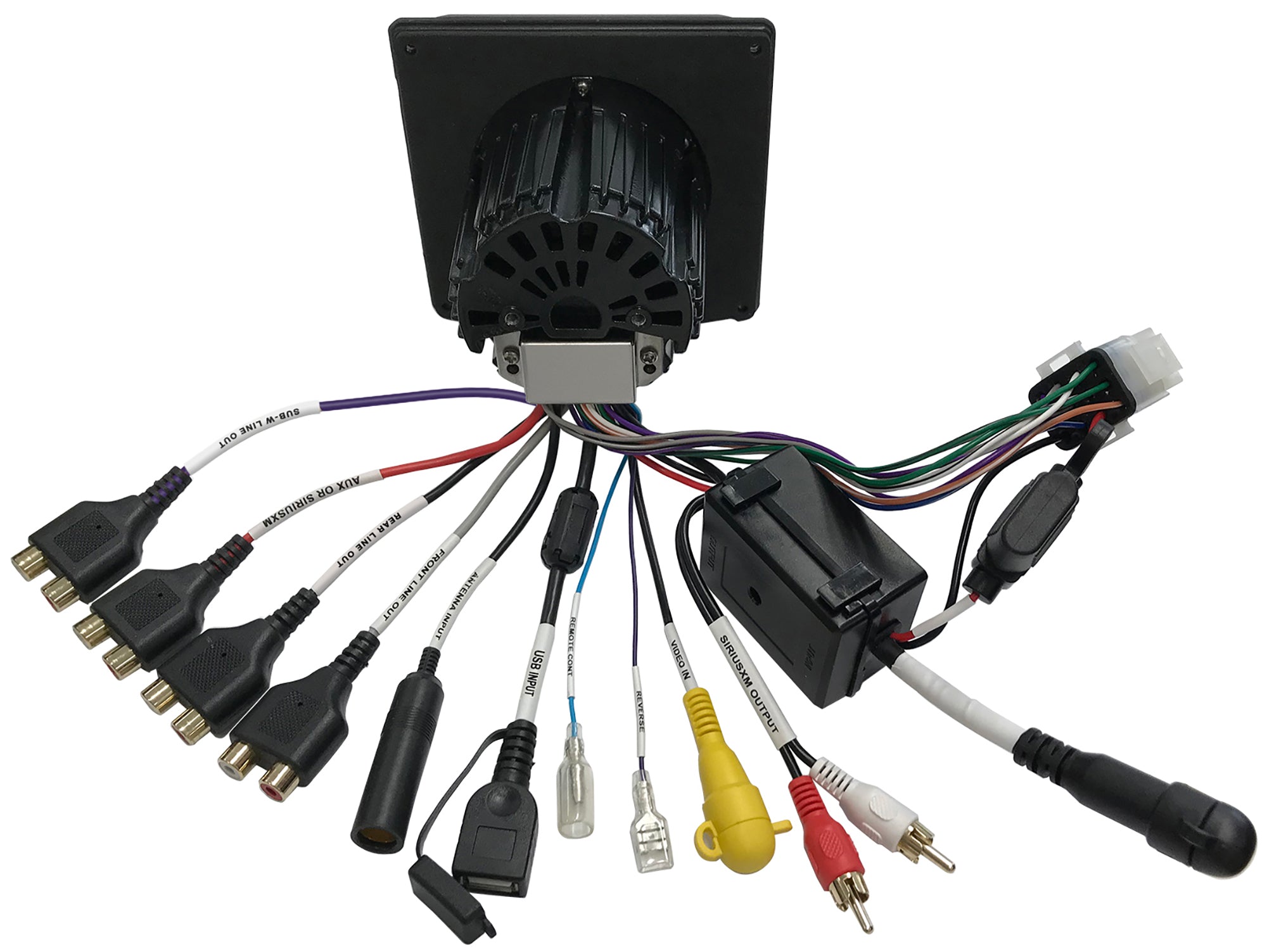

Kenwood KMR-XM500 eXcelon Marine Digital Media Receiver with Built in Bluetooth (No CD Playback)
Marine Grade Construction
Built for harsh environments with salt spray resistance to help protect against corrosion and long term exposure to water and humidity.
Wireless Bluetooth Connectivity
Stream music and take calls directly from your smartphone with stable, easy to use Bluetooth integration.
Wide Format Audio Support
Plays multiple digital audio formats including FLAC, MP3, WMA, and AAC for flexible listening options.

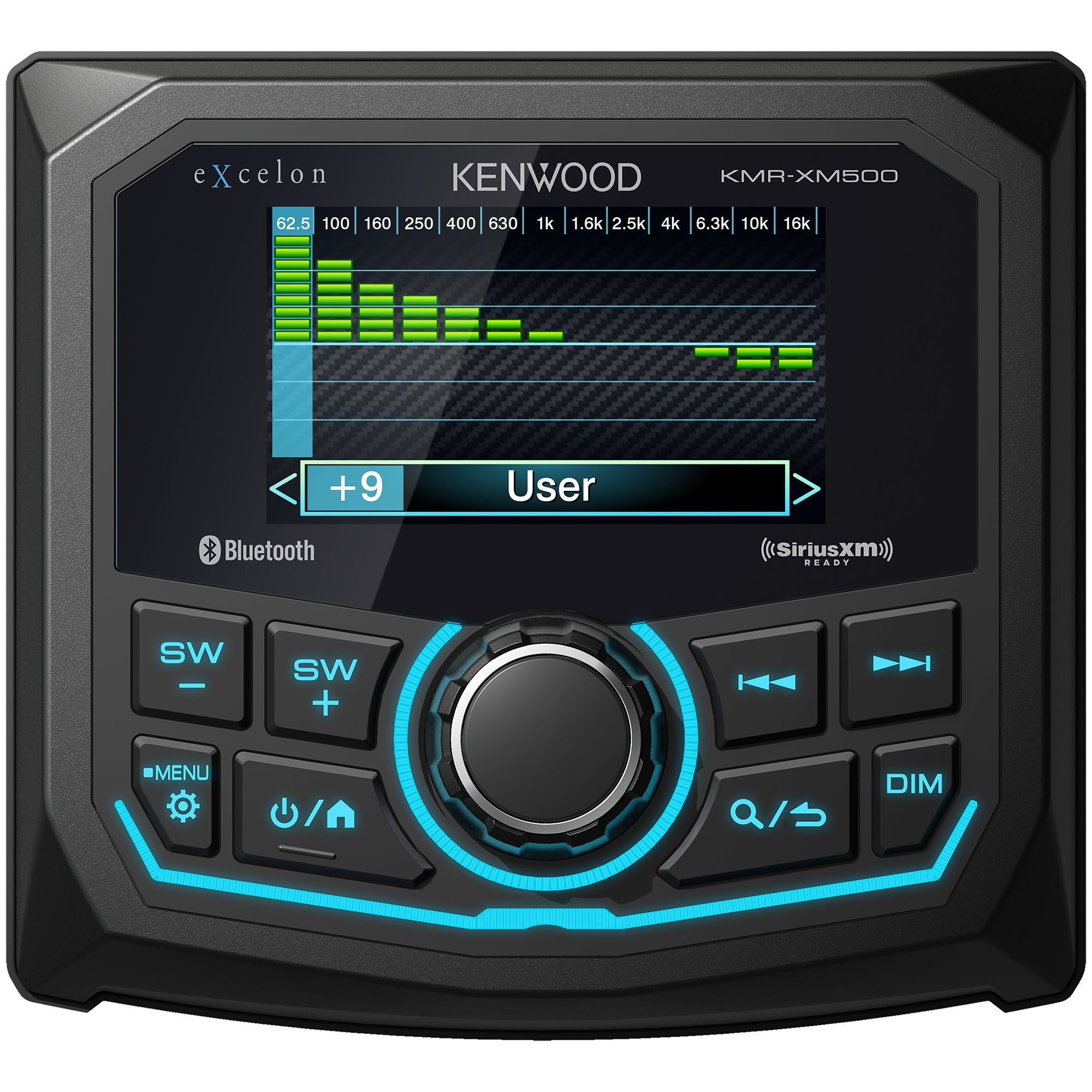

Precision 13 Band Equalizer
Advanced sound tuning allows detailed control over your audio profile for a more personalized listening experience.
Independent Subwoofer Control
Adjust bass levels separately to fine tune low frequency output without changing overall system balance.

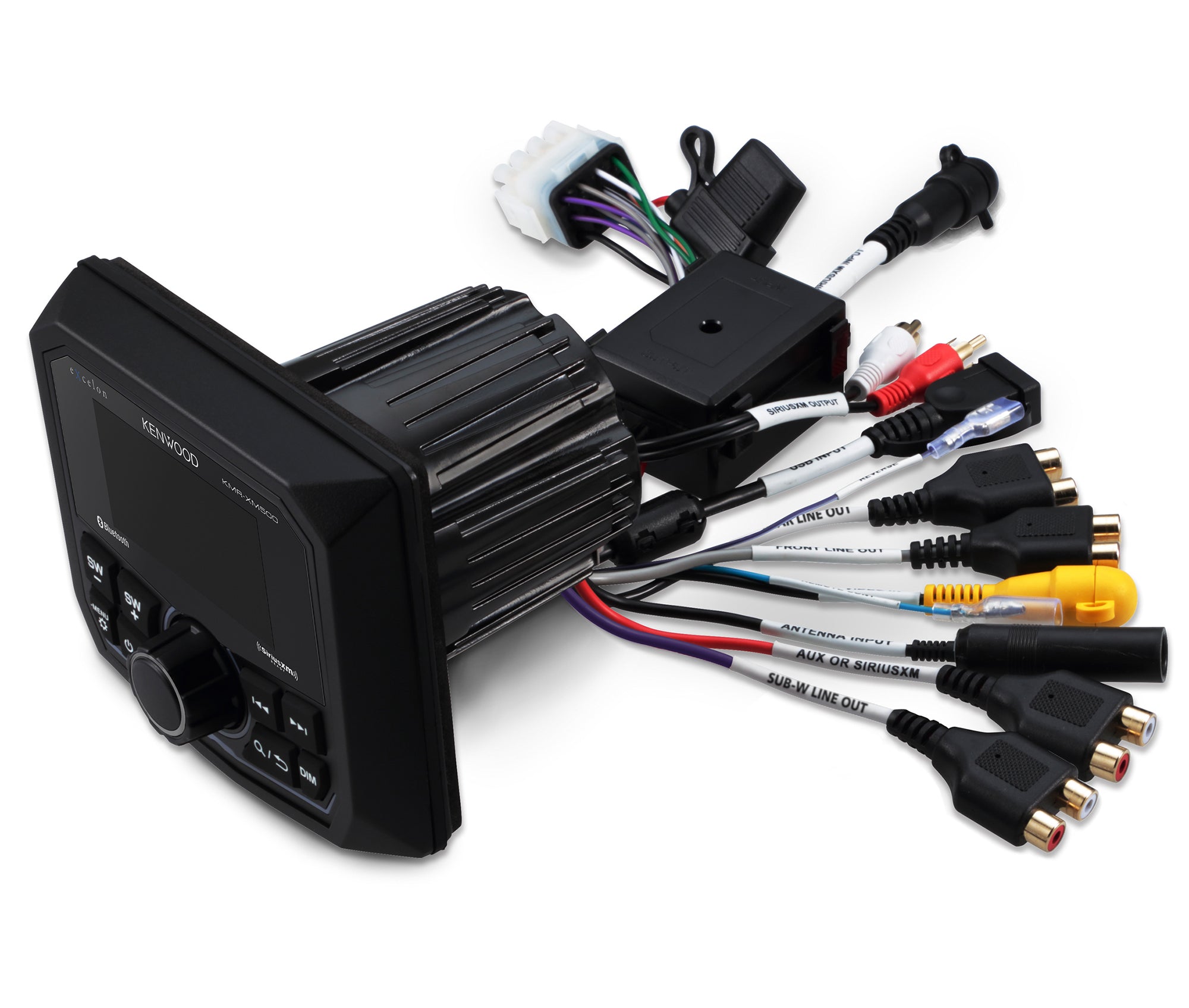

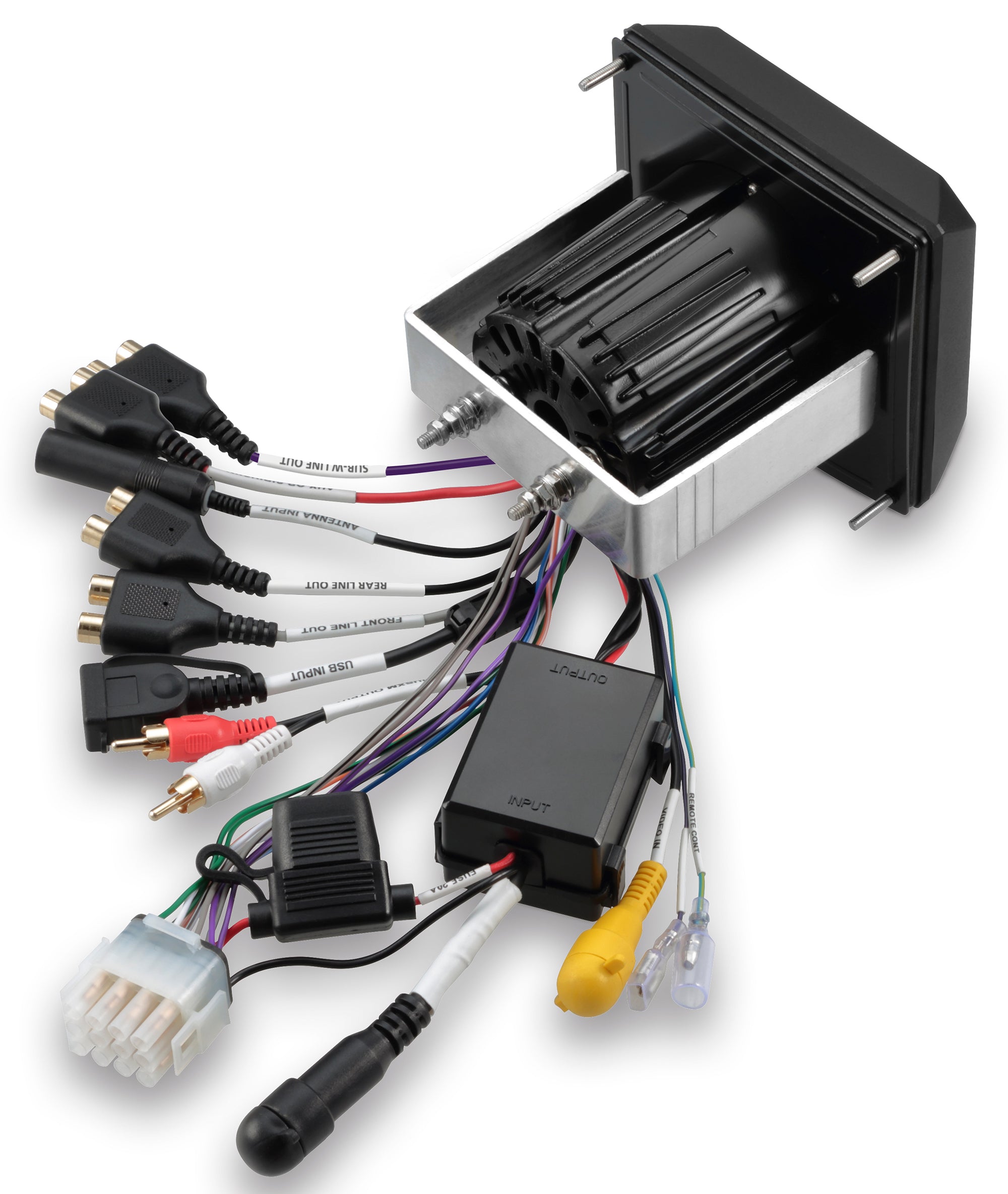

Expandable Audio System
RCA outputs provide flexibility to add amplifiers, subwoofers, or additional speakers as your system grows.
Bright 2.7 Inch Display
High visibility screen designed for clear viewing in sunlight and outdoor marine conditions.

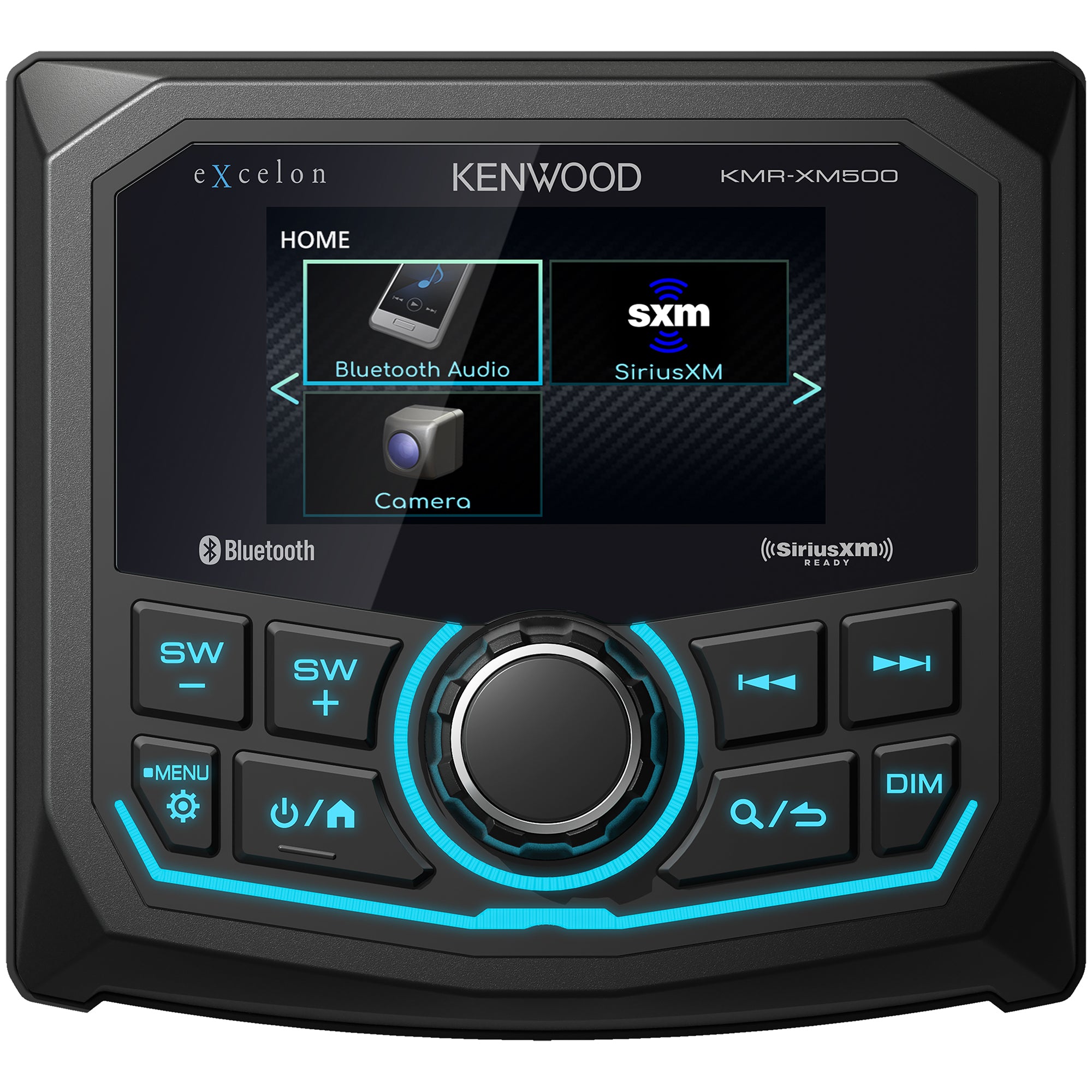

Rear Camera Ready
Supports optional rear view camera input for improved safety and visibility on boats and off road vehicles.
|
| Specification |
Kenwood KMR-XM500 |
| Model |
KMR-XM500 |
| Product Type |
eXcelon Motorsports Digital Media Receiver |
| CD Playback |
No |

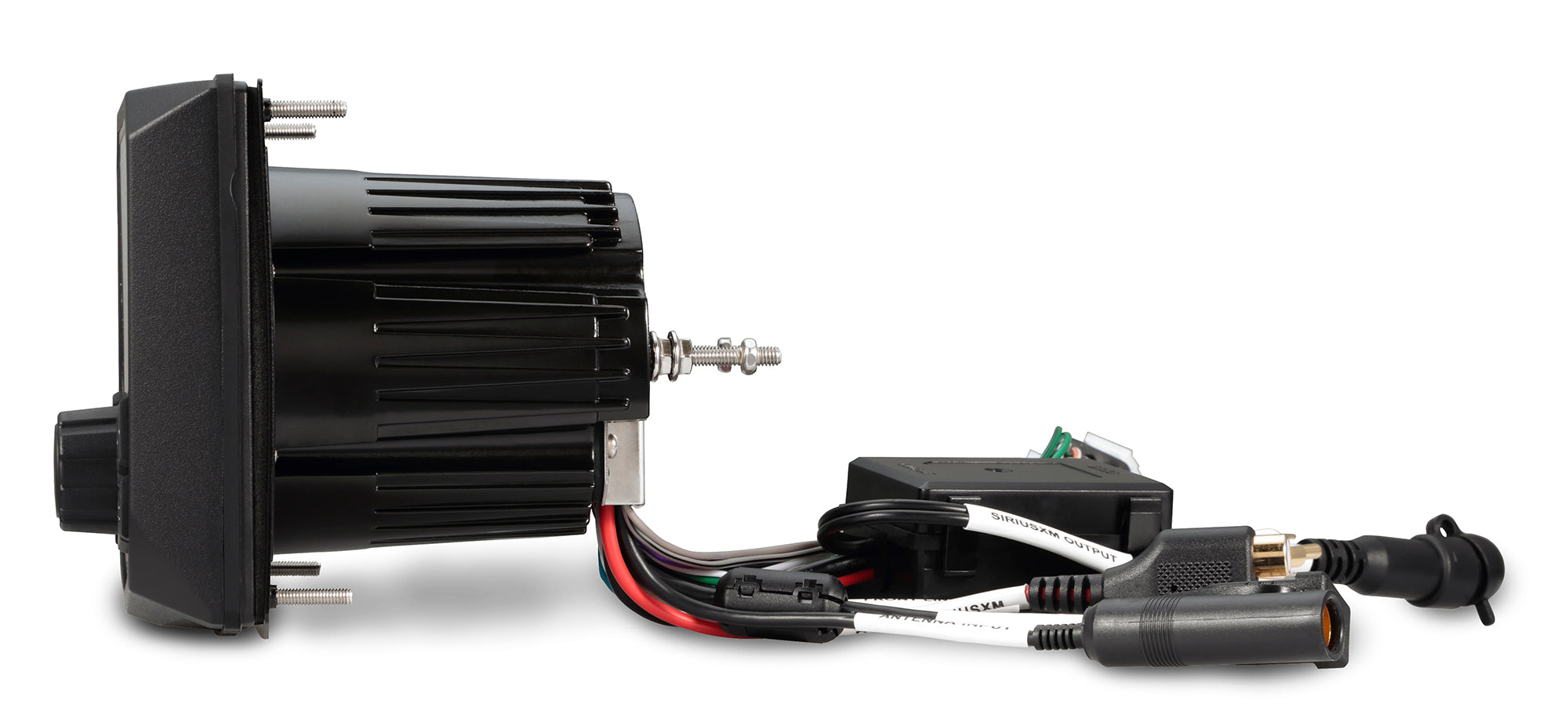

| Mounting Style |
3" Gauge-Style Mounting |
| Installation Opening |
3-1/16" / 77 mm body diameter |
| Display |
2.7" Color TFT LCD |
| Backlight |
LED |
| Water / Dust Resistance |
IP66 Faceplate |
| Chassis Water Resistance |
IPX4 |
| Salt Spray Protection |
Yes |
| UV Protection |
Yes |
| Vibration Resistance |
Yes |
| Conformal Coating |
Yes |
| Bluetooth |
Yes |
| Bluetooth Version |
5.0 |
| Bluetooth Frequency |
2.4 to 2.4835 GHz |
| Bluetooth Range |
Approx. 10 m / 32.8 ft |
| Bluetooth Profiles |
A2DP, AVRCP 1.5 |
| Bluetooth Audio Streaming |
Yes |
| Rear USB Input |
Yes |
| USB Standard |
USB 2.0 Full Speed |
| USB File System |
FAT16, FAT32, exFAT |
| Maximum USB Capacity |
32 GB |
| USB Charging |
5 V / 1.5 A |
| USB Audio Formats |
MP3, WMA, AAC, FLAC |
| FLAC Support |
Up to 24-bit / 48 kHz |
| MP3 Support |
Up to 48 kHz / 384 kbps |
| WMA Support |
Up to 48 kHz / 320 kbps |
| AAC Support |
Up to 48 kHz / 320 kbps |
| AM Tuner |
Yes |
| FM Tuner |
Yes |
| Global Tuner |
Yes |

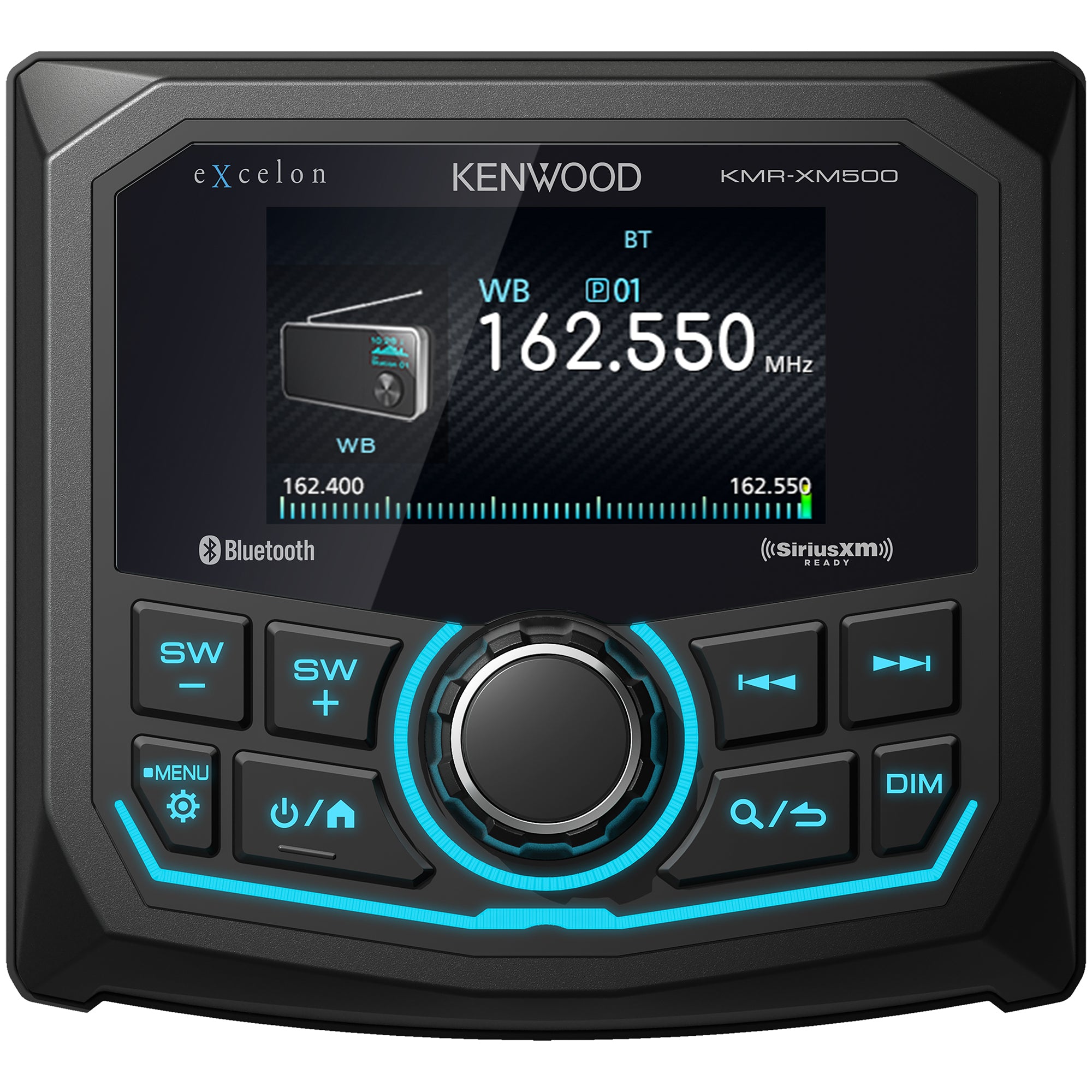

| Weather Band |
Yes, USA/Canada |
| Weather Band Range |
162.400 to 162.550 MHz |
| SiriusXM Ready |
Yes, optional tuner required |
| Rear View Camera Input |
Yes |
| Wired Remote Ready |
Yes |
| Optional Remote |
KCA-RC35MR |
| Variable Color Illumination |
Yes |
| Spanish Text Display |
Yes |
| Maximum Power |
50 W x 4 @ 2 ohms |
| Maximum Power |
34 W x 4 @ 4 ohms |
| Full-Bandwidth Power |
28 W x 4 @ 2 ohms RMS |
| Full-Bandwidth Power |
19 W x 4 @ 4 ohms RMS |
| Speaker Impedance |
2 to 8 ohms |
| Preouts |
3 |
| Preout Level |
5.0 V |
| Preout Impedance |
≤500 ohms |
| Equalizer |
13-band |
| EQ Range |
-9 dB to +9 dB |
| Frequency Response |
20 Hz to 20 kHz |
| Independent Subwoofer Volume |
Yes |
| Operating Voltage |
12 V DC |
| Panel Dimensions |
115 x 106 mm |
| Body Diameter |
77 mm |
| Depth |
74 mm |
| Weight |
0.9 kg / 2.0 lb |
