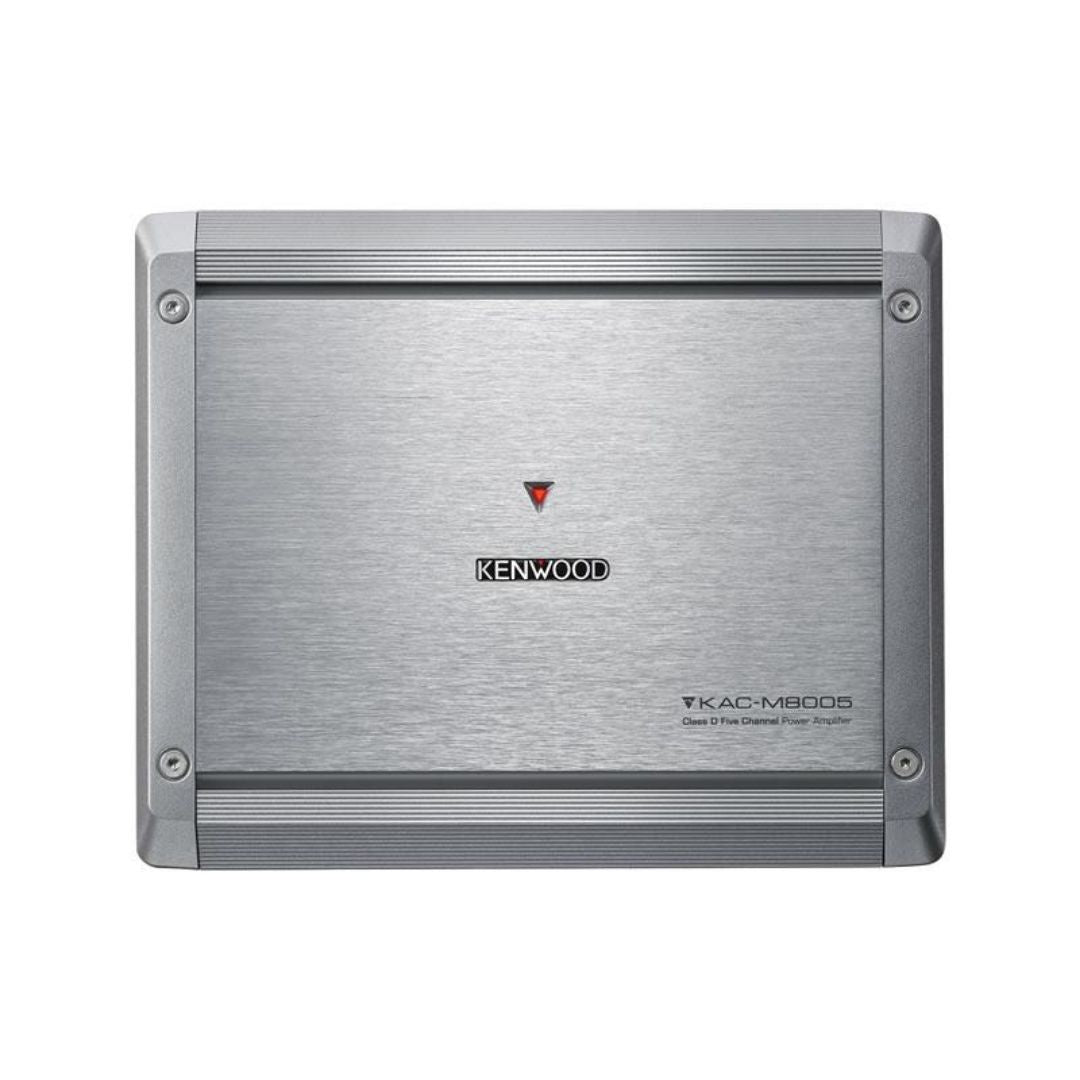

Kenwood KAC-M8005 Marine / Motorsports 5 Channel Amplifier
1600 Watts of Power for Your Audio System
Get more power and better sound from your marine or motorsports audio system with the Kenwood KAC-M8005. This 5 channel amplifier gives you the flexibility to run your speakers and subwoofer from one amp, making it a great choice for boats, ATVs, UTVs, motorcycles, and other powersports vehicles.
With up to 1600 watts of total power, the KAC-M8005 delivers the extra output your system needs for clear vocals, strong mids, and solid bass.
5 Channels in One Amplifier
The KAC-M8005 lets you power a complete system without needing multiple amplifiers. Use the channels for your front and rear speakers while also powering a subwoofer for deeper bass.
Having everything in one amplifier also helps keep your installation clean and saves space, which is especially useful in smaller marine and powersports applications.
Made for Marine and Motorsports Systems
Space can be limited in a boat, UTV, ATV, or motorcycle. The KAC-M8005 offers a compact installation option while giving your system plenty of power.
It is a practical upgrade for anyone looking to get more volume and stronger performance from their factory or aftermarket audio setup.
Features
- 5 channel amplifier
- Up to 1600 watts of total power
- Power front and rear speakers plus a subwoofer
- Compact design for easier installation
- Great for boats, ATVs, UTVs, motorcycles, and other powersports vehicles
- Kenwood sound and performance
Add More Power to Your Ride
If your current system needs more output, the Kenwood KAC-M8005 is an easy way to step things up. Get the power you need for your speakers and subwoofer while keeping your installation simple with one 5 channel amplifier.
|
| Category |
Features & Specifications |
| Brand |
KENWOOD |
| Model |
KAC-M8005 |
| Product Type |
5-Channel Marine / Motorsports Power Amplifier |
| Amplifier Class |
Class D |
| Maximum Power |
1,600W |
| Channels |
5 |
| RMS Power — 4Ω |
50W × 4 + 300W × 1 |
| RMS Power — 2Ω |
75W × 4 + 500W × 1 |
| Bridged Output |
150W × 2 at 4Ω |
| CEA-2006 Rating |
50W RMS × 4 + 300W RMS × 1 at 4Ω |
| Signal-to-Noise Ratio |
100 dB |
| Speaker Impedance |
4Ω; 2–8Ω allowable |
| Bridged Impedance |
4–8Ω |
| Frequency Response — A/B |
20 Hz–50 kHz |
| Frequency Response — Subwoofer |
20 Hz–200 Hz |
| High-Pass Filter |
50–200 Hz, 12 dB/octave |
| Low-Pass Filter |
50–200 Hz, 24 dB/octave |
| Bass Boost |
40 Hz, 0 to +18 dB |
| RCA Input Sensitivity |
0.2–5.0V |
| Speaker-Level Input Sensitivity |
4–12V |
| Speaker-Level Input |
Yes |
| Signal-Sensing Turn-On |
Yes |
| Gain Controls |
Independent A/B/Subwoofer gain adjustment |
| Marine/Powersports Design |
Conformal-coated circuit board |
| Heat Sink |
Extruded aluminum |
| Power Supply |
MOSFET switching power supply |
| Terminals |
M6 battery/ground; M4 speaker terminals |
| Operating Voltage |
14.4V nominal; 11–16V allowable |
| Current Consumption |
58A |
| Dimensions |
9" W × 2-3/16" H × 7-3/8" D |
| Primary Applications |
Boats, ATVs, UTVs, motorcycles and other powersports vehicles |
| Key Features |
5-channel operation, 1,600W maximum power, 2Ω capable, conformal coating, speaker-level inputs, signal-sensing turn-on, variable HP/LP filters, variable bass boost, compact aluminum chassis |
