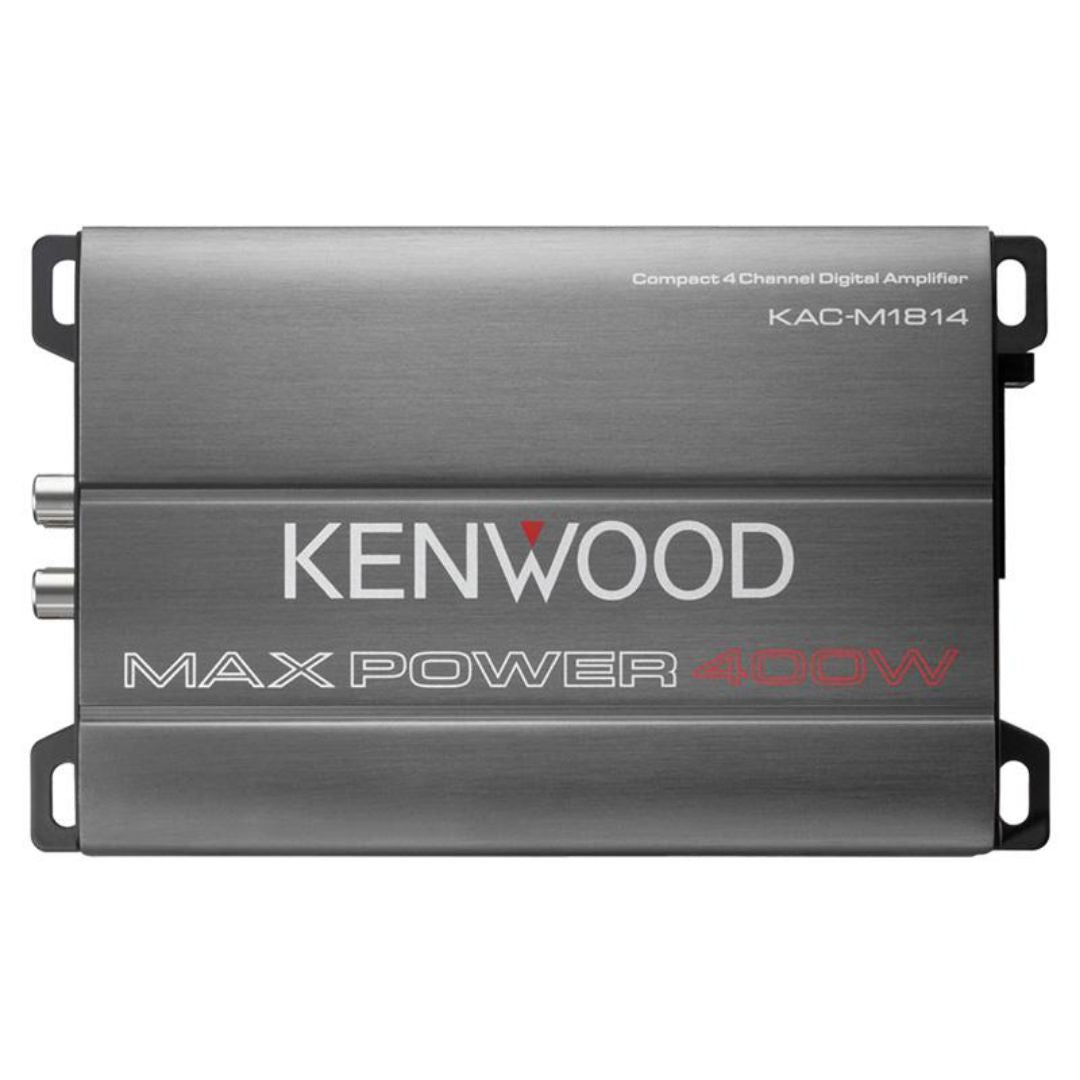

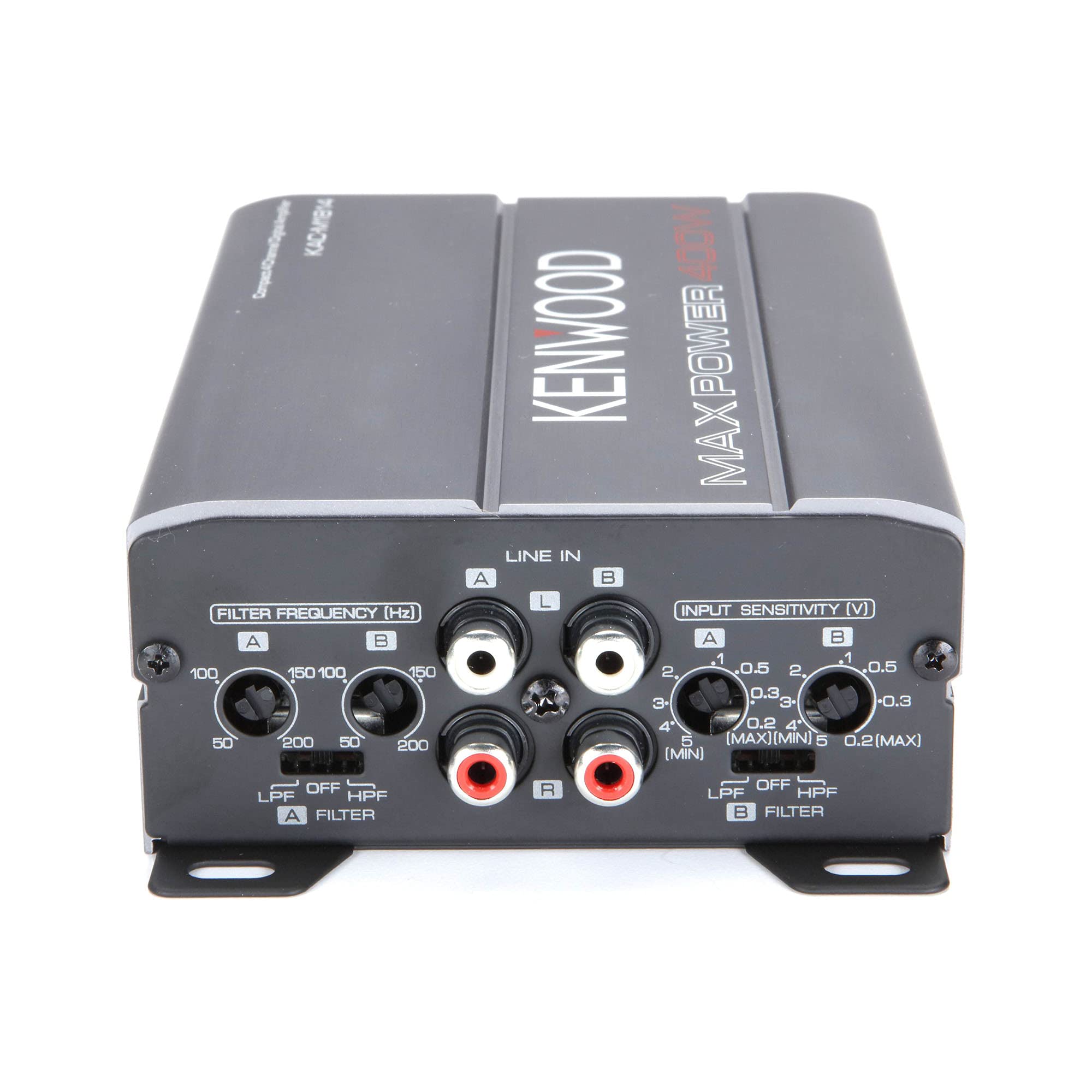

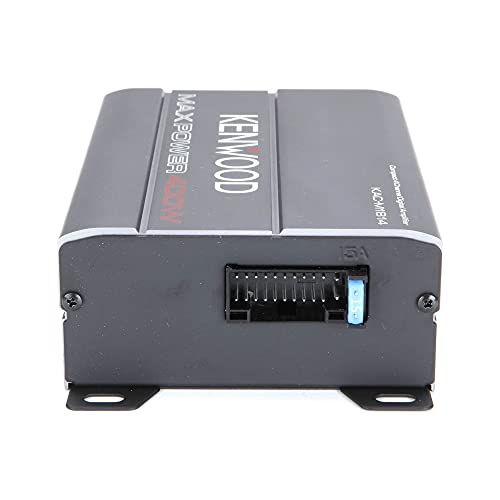

Kenwood KAC-M1814, Marine / Motorsports Compact 4 Channel Full Range Amplifier - 400 W
Kenwood KAC-M1814, Marine / Motorsports Compact 4 Channel Full Range Amplifier - 400 W
Available in stock
Choose your location
enter a US zip code
Couldn't load pickup availability
Overview
Overview
KAC-M1814 Compact Class-D amplifier supports louder volume for Car, Marine and Motorsports users with low-noise.
Plastic covered connector helps to keep out water and dust.
Conformal Coating provides vibration resistance and helps prevent the PCB from rusting.
Pre-amp and Power-amp sections are separated to reduce radiation noise.
Compact design with controllable interface to adjust the sound from a receiver.
Features & Specifications
Features & Specifications
| Weather Resistance | Conformal Coating |
|
Number of Channels |
4 |
|
Class |
D |
|
Peak Power Rating (Watts) |
400 |
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
45 x 4 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
45 x 4 |
| RMS Power Rating - Bridged | 90 x 2 |
| Minimum Impedance Unbridged (Ohms) |
2 |
| Minimum Impedance Bridged (Ohms) |
4 |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-200Hz |
| Low Pass Crossover Frequency (Hz) |
50-200Hz |
| Signal-to-Noise Ratio |
82dB |
| Bass Boost |
No |
| Bass Remote Included |
No |
| Fuse Rating | 15A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 16 Gauge |
| Warranty | 1 Year |
