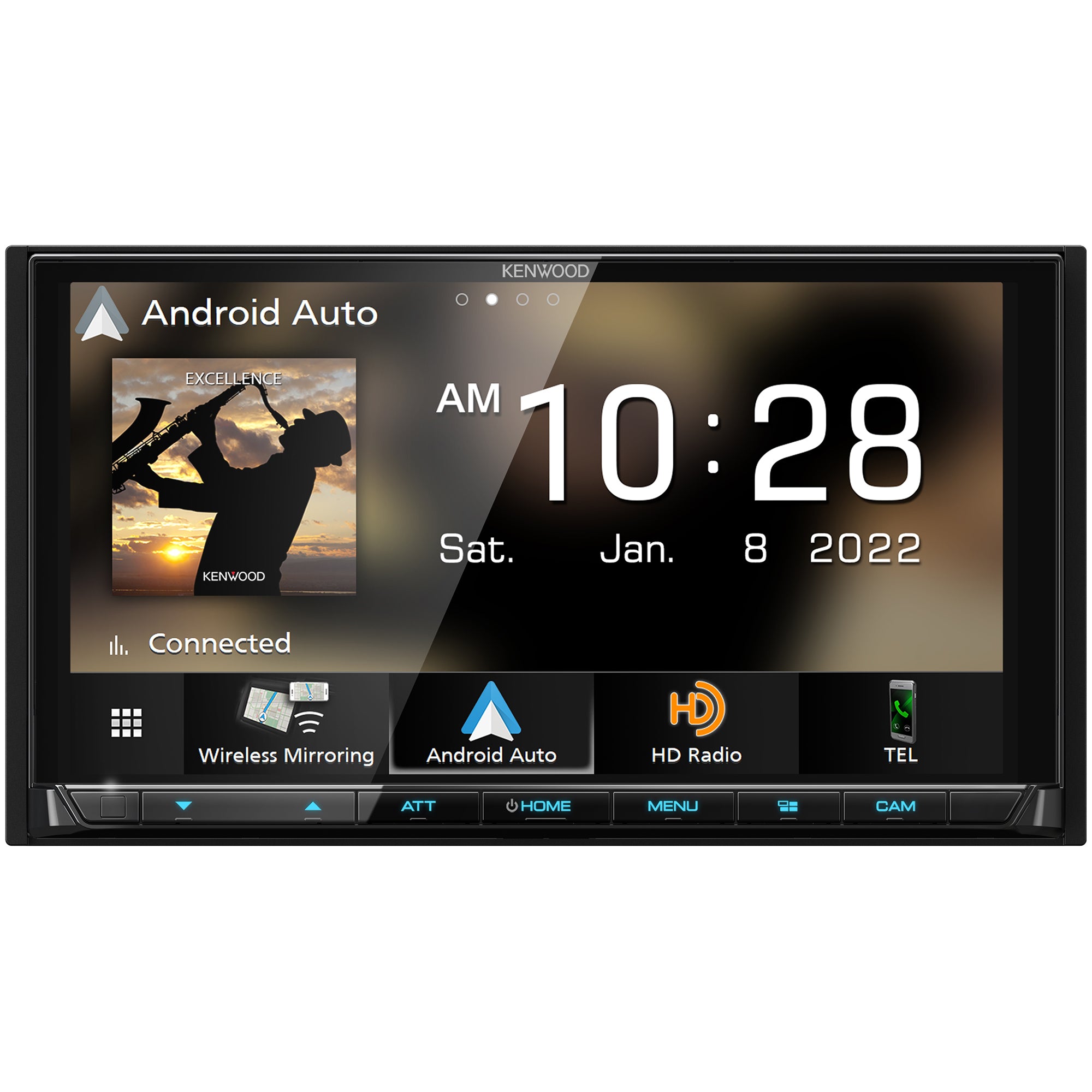

Kenwood DMX958XR eXcelon 6.8" Multimedia Receiver
Upgrade your vehicle with the Kenwood DMX958XR eXcelon 6.8" Double DIN Multimedia Receiver. With Apple CarPlay and Android Auto, you can easily access navigation, music, calls, messages, and other compatible apps right from the touchscreen.
The 6.8" display gives you a clean and easy to use interface, while Kenwood's eXcelon series delivers the audio performance you expect from a premium receiver.
Features
- 6.8" touchscreen display

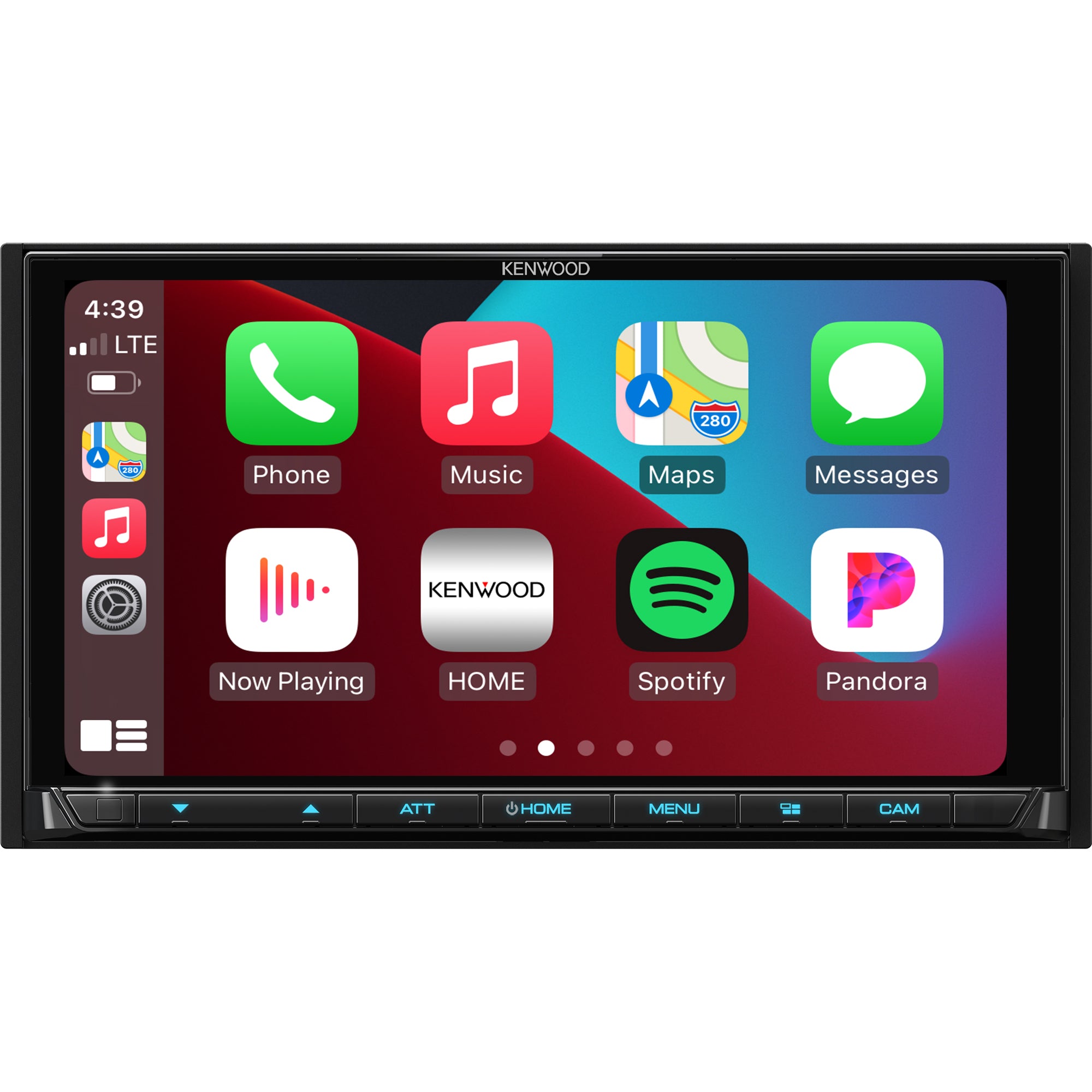

- Apple CarPlay compatible

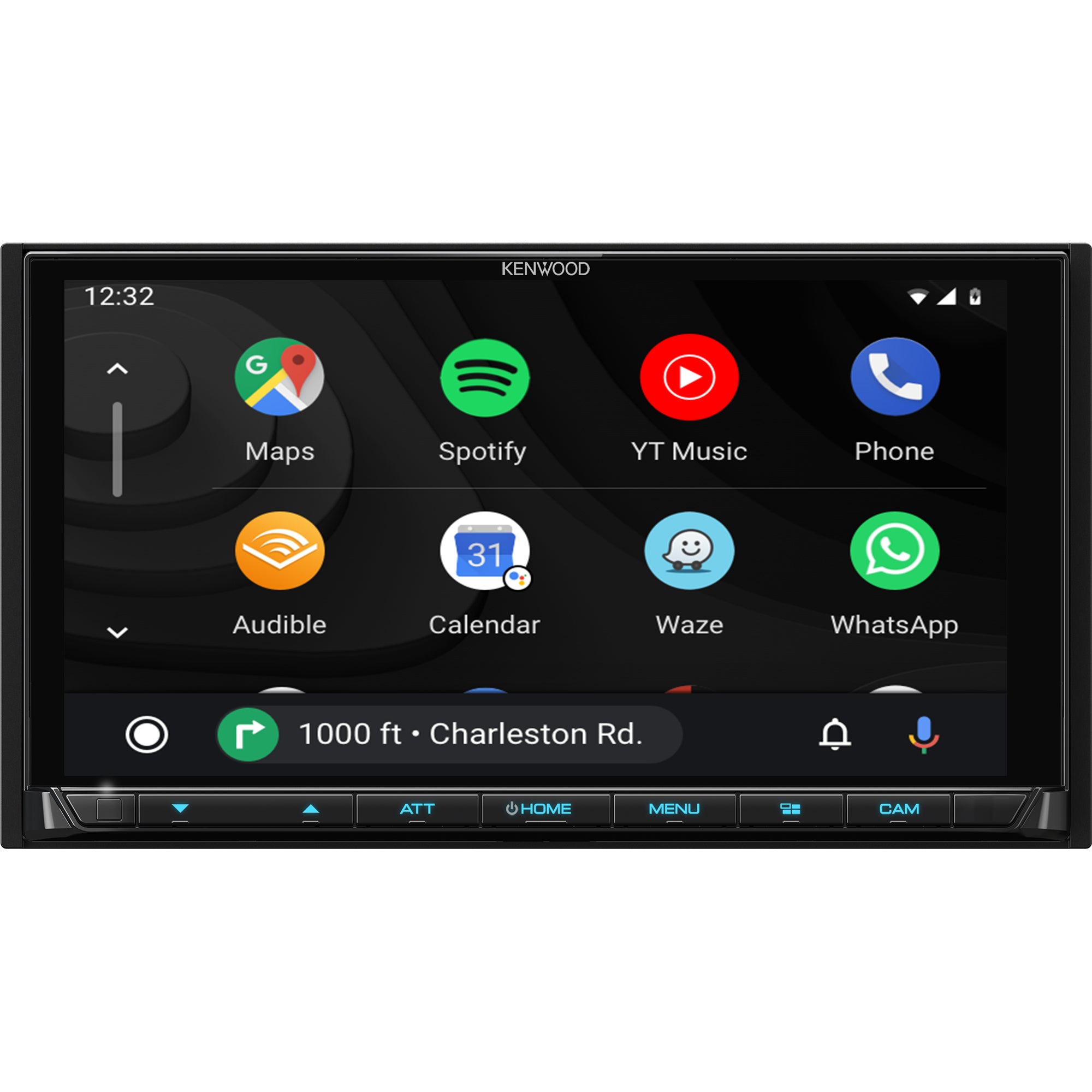

- Android Auto compatible
- eXcelon premium audio performance
- Double DIN design
- Smartphone connectivity
- Easy access to navigation, music, calls, and messages
- Does not play CDs
The Kenwood DMX958XR is a great choice for drivers looking to replace an older stereo with a modern touchscreen receiver that puts smartphone connectivity and quality audio at the center of the experience.
|
| Specification |
Kenwood DMX958XR |
| Model |
DMX958XR |
| Series |
eXcelon Reference |
| Receiver Type |
Digital Multimedia Receiver |
| CD/DVD Playback |
No |
| Screen Size |
6.75" diagonal |
| Screen Type |
AAS LCD, TFT active matrix, capacitive touch panel |
| Resolution |
1280 × 720 (2,764,800 pixels) |
| Aspect |
Wide |
| Backlight |
LED |
| Apple CarPlay |
Yes — wired & wireless |

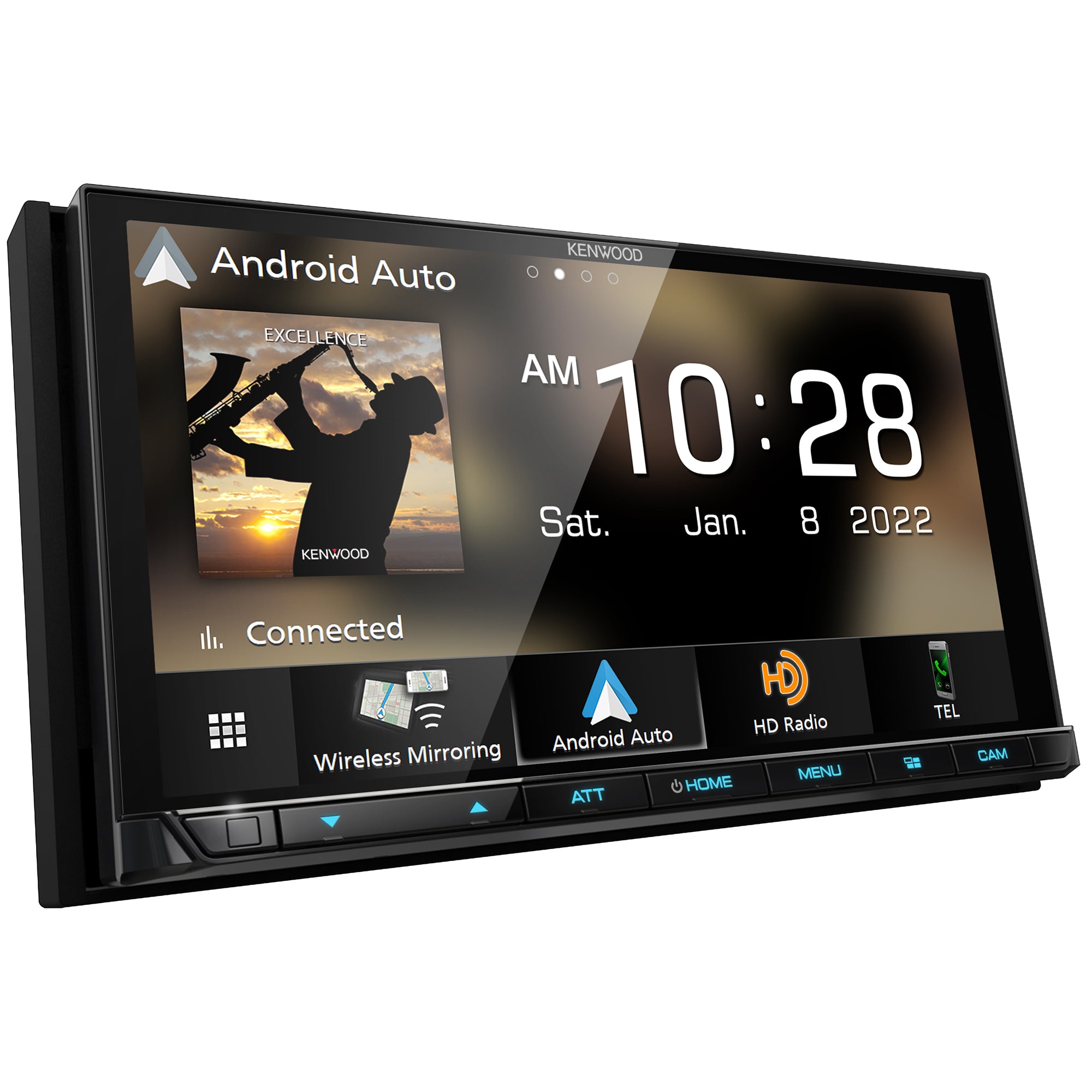

| Android Auto |
Yes — wired & wireless |
| Wireless Android Mirroring |
Yes |
| Bluetooth |
Version 5.0 |
| Bluetooth Audio Codecs |
SBC, AAC, LDAC |
| Bluetooth Profiles |
HFP, SPP, A2DP, AVRCP, PBAP |
| Wi-Fi |
802.11 a/b/g/n/ac, dual-band 2.4/5 GHz |
| HD Radio |
Built-in |
| AM/FM |
Yes |
| SiriusXM |
Compatible; optional tuner required |
| USB |
USB Type-C |
| USB Standard |
USB 2.0 High Speed |
| USB File Systems |
FAT16/32, exFAT, NTFS |
| USB Charging |
Up to 3.0 A |
| USB Audio Formats |
MP3, WMA, AAC, WAV, FLAC, Vorbis |
| HDMI Input |
Type-D |
| HDMI Input Resolution |
Up to 1280 × 720 |

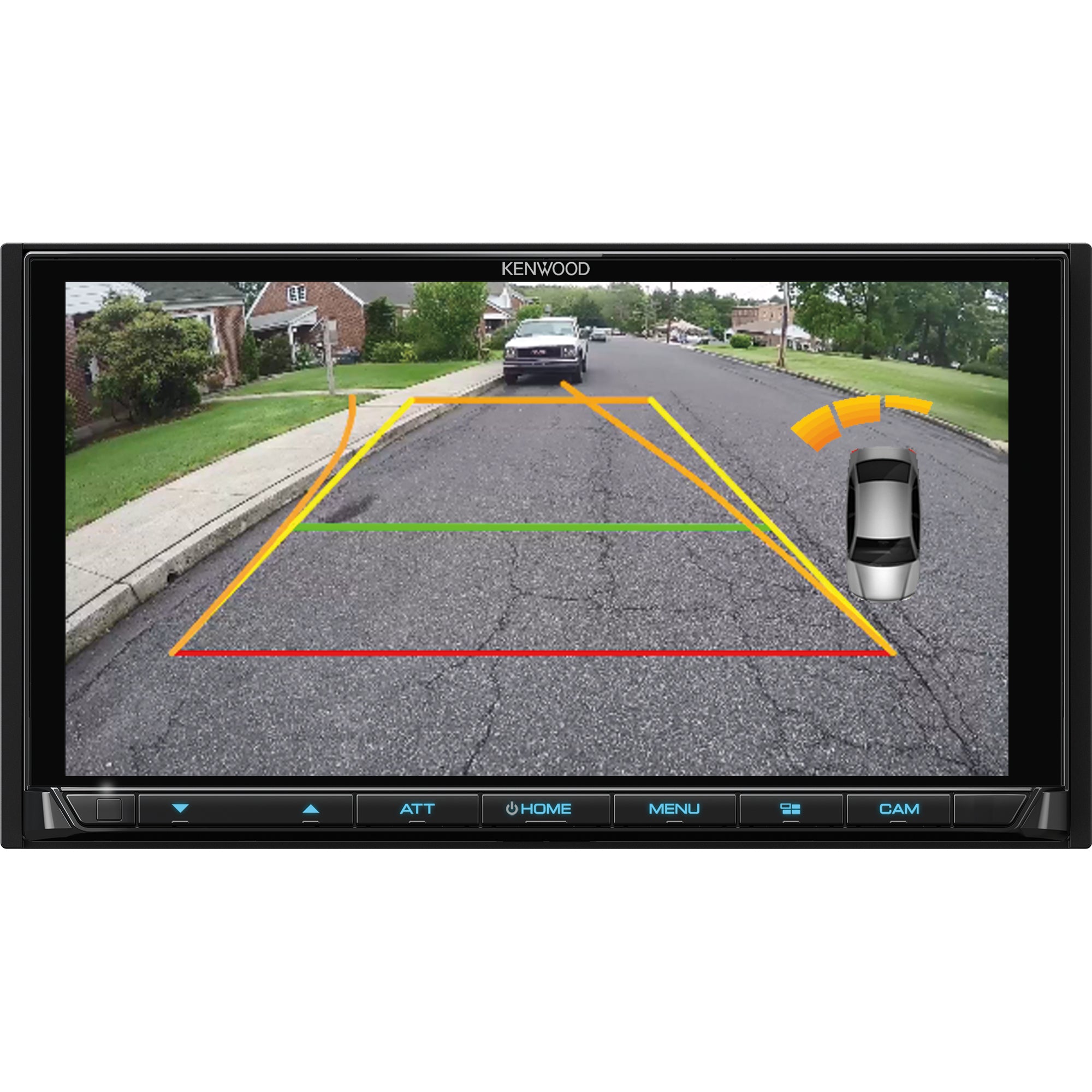

| Camera Inputs |
4 |
| HD Rear Camera Ready |
Yes |

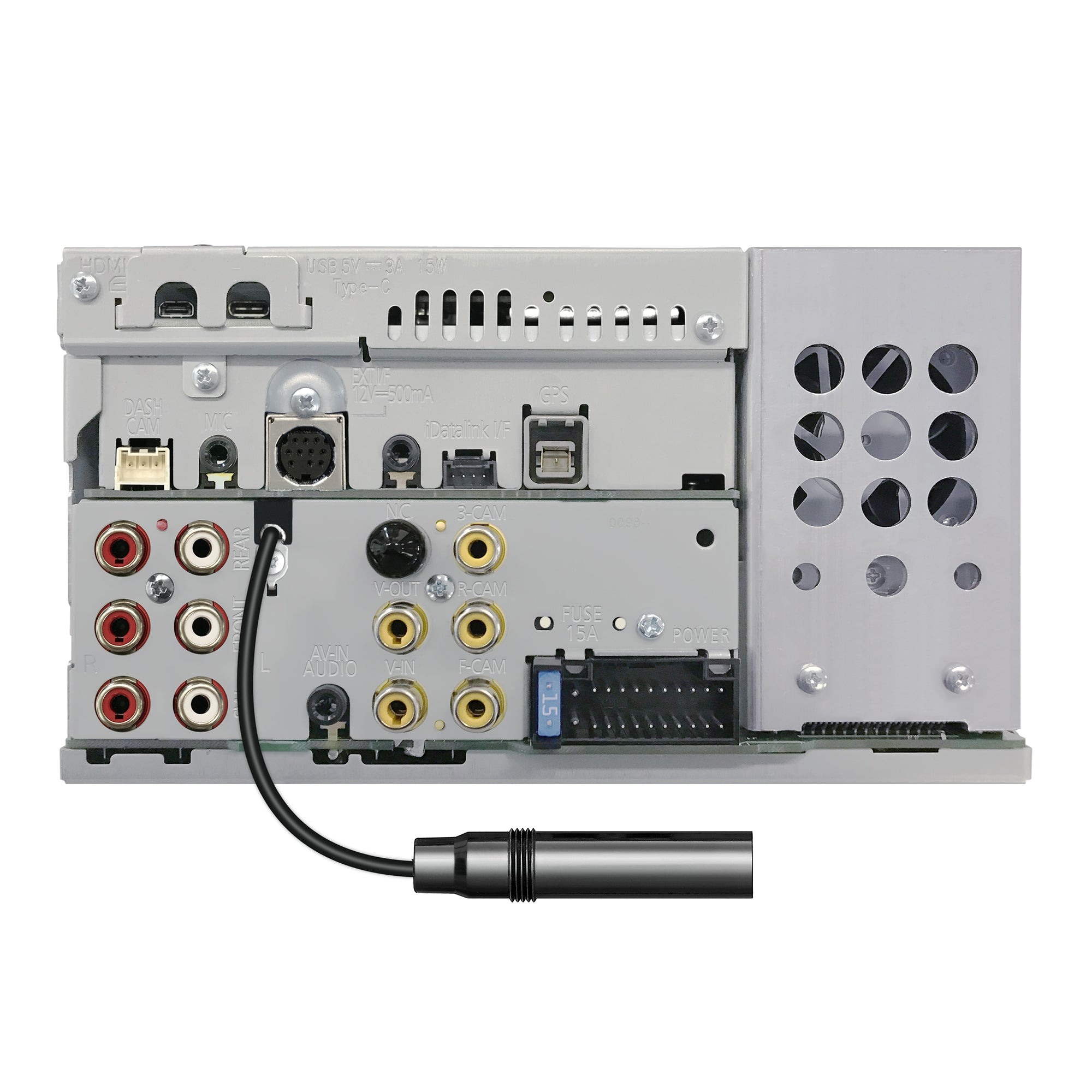

| Video Input |
RCA |
| Video Output |
RCA |
| Audio Preouts |
3 |
| Preout Voltage |
5.0 V |
| Preout Impedance |
≤300 Ω |
| Maximum Power |
50 W × 4 |
| Typical Power |
22 W × 4 @ <1% THD |
| Speaker Impedance |
4–8 Ω |
| Equalizer |
13-band graphic EQ |
| Digital Time Alignment |
Yes |
| Crossover |
2-way / 3-way |
| High-Resolution Audio |
Yes |
| Audio Frequency Response |
Up to 20–88,000 Hz (192 kHz source) |
| THD |
0.010% @ 1 kHz |
| Signal-to-Noise Ratio |
98.5 dB |
| Dynamic Range |
89 dB |
| Chassis Type |
Short chassis |
| Main Unit Dimensions (W×H×D) |
7" × 3-15/16" × 3-3/8" |
| Main Unit Dimensions (metric) |
178 × 100 × 85 mm |
| With Sleeve |
7-3/16" × 4-7/16" × 3-3/8" |
| Weight |
3.2 lb / 1.5 kg |
| Operating Voltage |
12 V DC |
