Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora, built-in Bluetooth for hands-free calls and streaming music, as well as the ability to use your smartphone like a wireless remote control.
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Safe Driving
Keeping you safe on the road ahead is our top priority.
Features
Capacitive Touch Panel
Clear glass display with swipe functionality provides superior picture and touch panel control.
Music Mix
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
USB Mirroring
USB Mirroring via USB for iPhone & Android, 2-way Touch Control for Android.
Dash Cam Link
Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen.

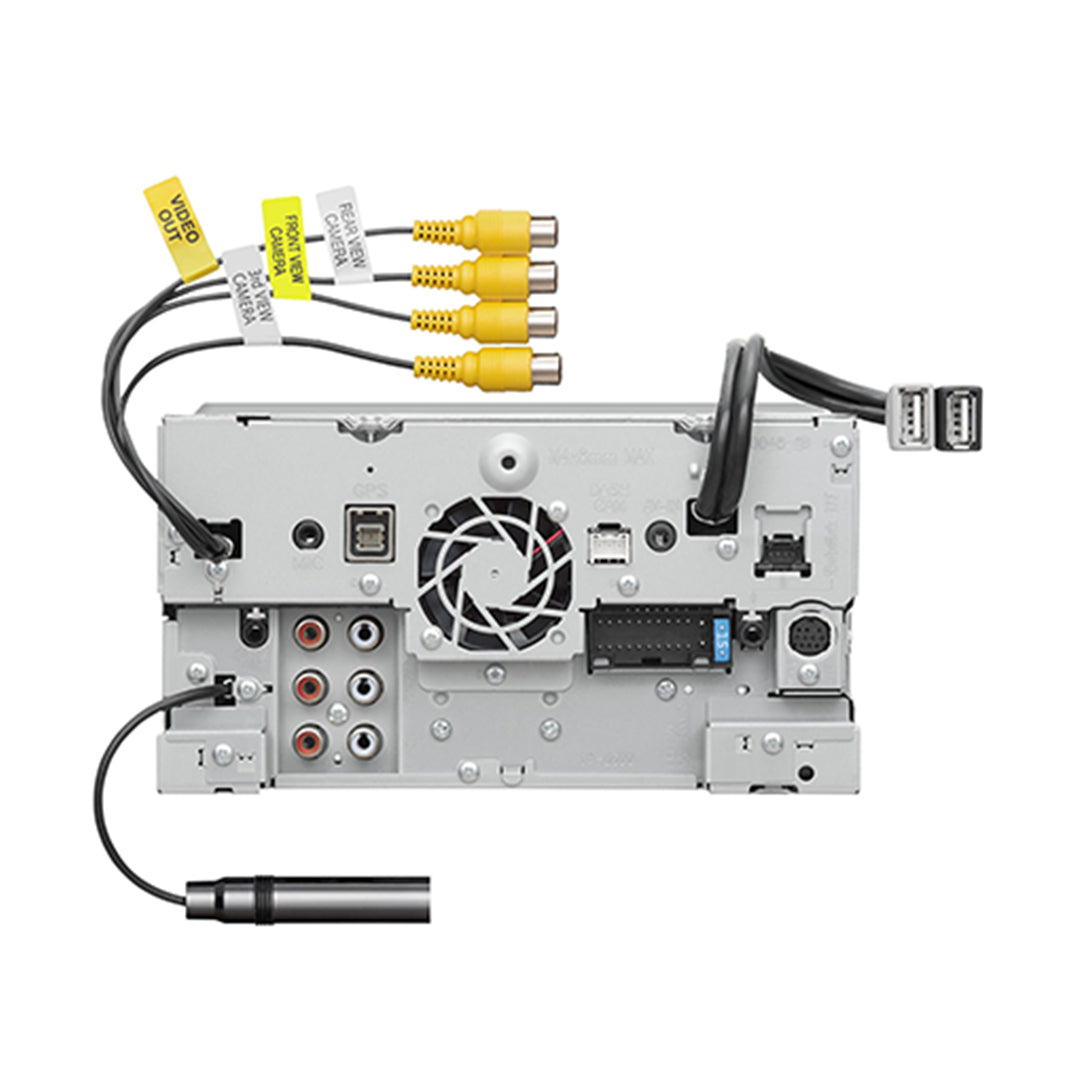

4 Camera Inputs
Optional camera connection method for up to 4 cameras in various configurations.
Customizable Multi Widget
Customize your Home Screen by selecting four shortcut/ information widgets. Widget options can include album art, clock, compass, photo frame, visualizer, and more.
Wireless Mirroring for Android
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
High Quality Sound Parts
High quality sound parts (custom-made or carefully selected capacitor, gold plated preout, etc) are adopted to provide superior sound quality.
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Parking Guide Lines
Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
HD Rear Camera Input
HD Rear Camera (CMOS-740HD) can be connected for High Definition viewing.
|
| Model |
DDX9907XR |
| Series |
eXcelon Reference |
| Type |
6.8" DVD Multimedia Receiver |
| Display |
6.75" diagonal wide AAS LCD |
| Display resolution |
1280 × 720 |
| Touchscreen |
Capacitive touch panel |
| Apple CarPlay |
Wired & Wireless |
| Android Auto |
Wired & Wireless |
| Wireless audio |
High-Resolution Audio Wireless / LDAC |
| Bluetooth |
Built-in, Version 5.0 |
| Wi-Fi |
802.11 a/b/g/n/ac, 2.4 & 5 GHz |
| DVD/CD playback |
DVD-Video, Video-CD, CD-DA |
| USB |
USB 2.0 High Speed; dual USB ports |
| USB file systems |
FAT16/32, exFAT, NTFS |
| Audio formats |
MP3, WMA, AAC, WAV, FLAC, Vorbis |
| Video formats |
MPEG1/2, MPEG4, WMV, H.264, MKV |
| FLAC/WAV high-resolution playback |
Up to 192 kHz / 24-bit
|
| Built-in EQ |
13-band graphic EQ |
| Digital Time Alignment |
Yes |
| Crossover |
2-way / 3-way |
| Preouts |
3 × 5 V |
| Maximum amplifier output |
50 W × 4 |
| Typical full-bandwidth output |
22 W × 4 @ <1% THD |
| Speaker impedance |
4–8 Ω |
| 4-camera inputs |
Yes |
| HD rear-camera ready |
Yes |
| HD Radio |
Built-in |
| SiriusXM |
Ready |
| Dash Cam Link |
Yes |
| iDatalink Maestro |
Compatible |
| Installation dimensions |
7" W × 3-15/16" H × 6-5/16" D |
| Dimensions with sleeve |
7-3/16" W × 4-7/16" H × 6-7/16" D |
| Weight |
5.3 lb |
| Regular price
$1,199.00
Sale price
$1,199.00
