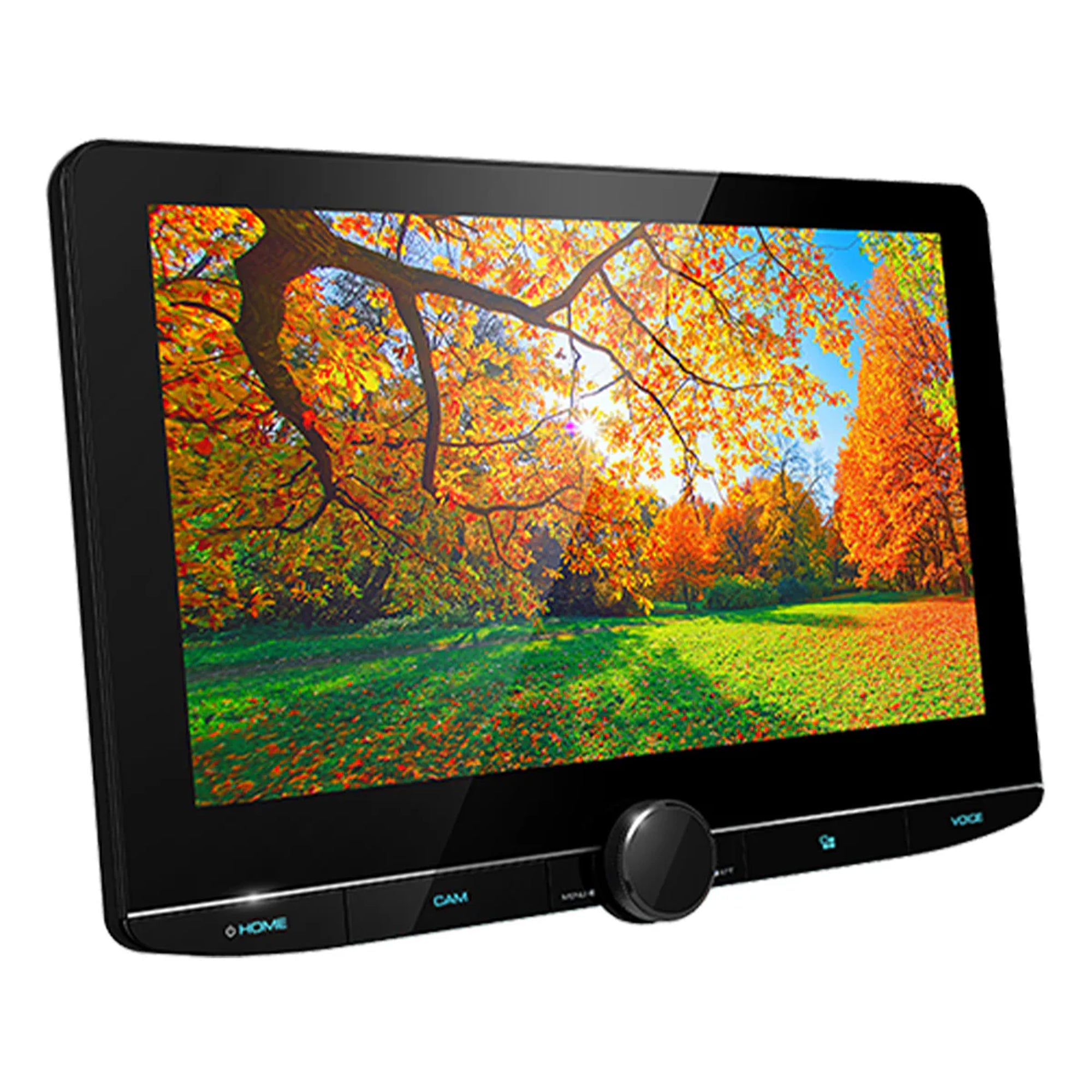

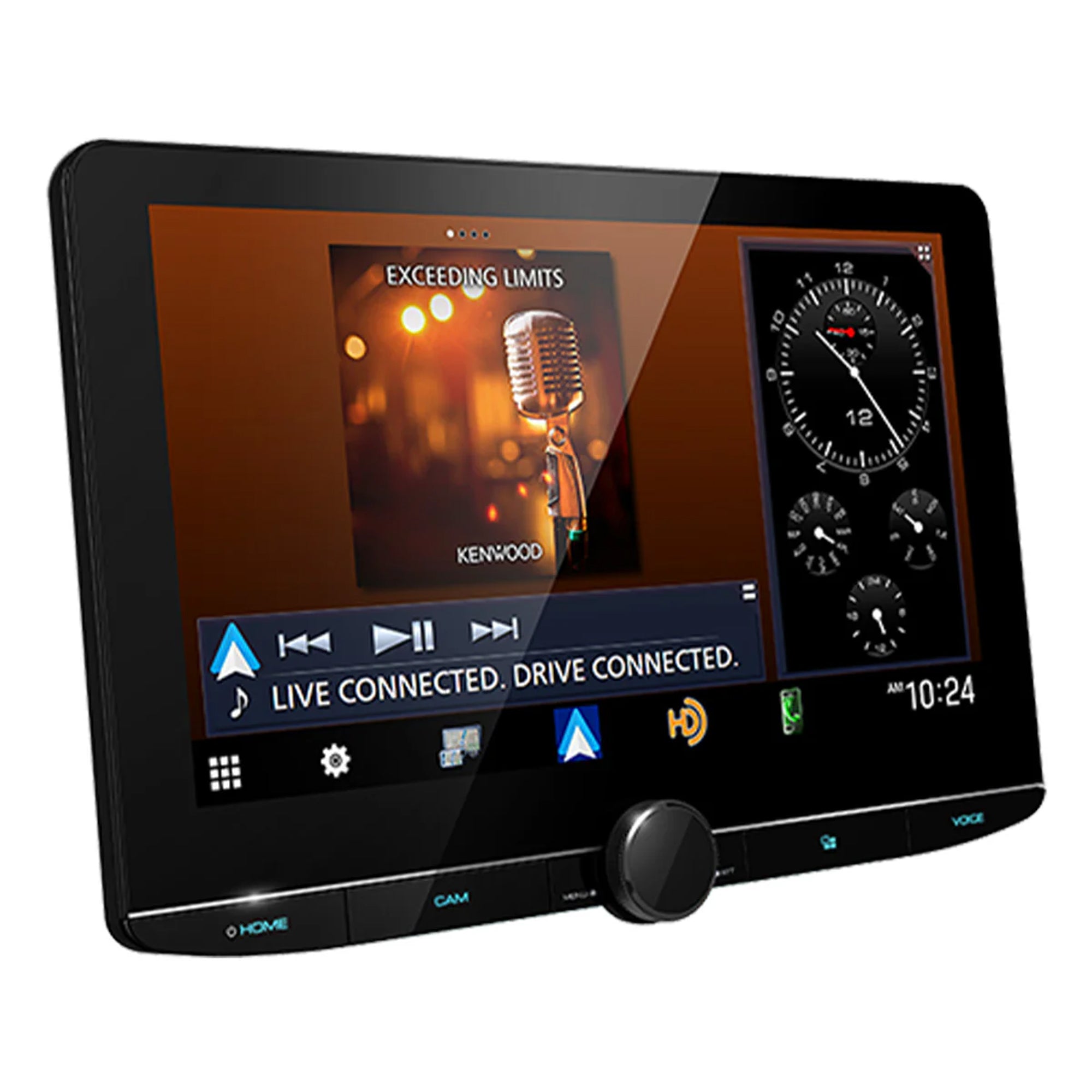

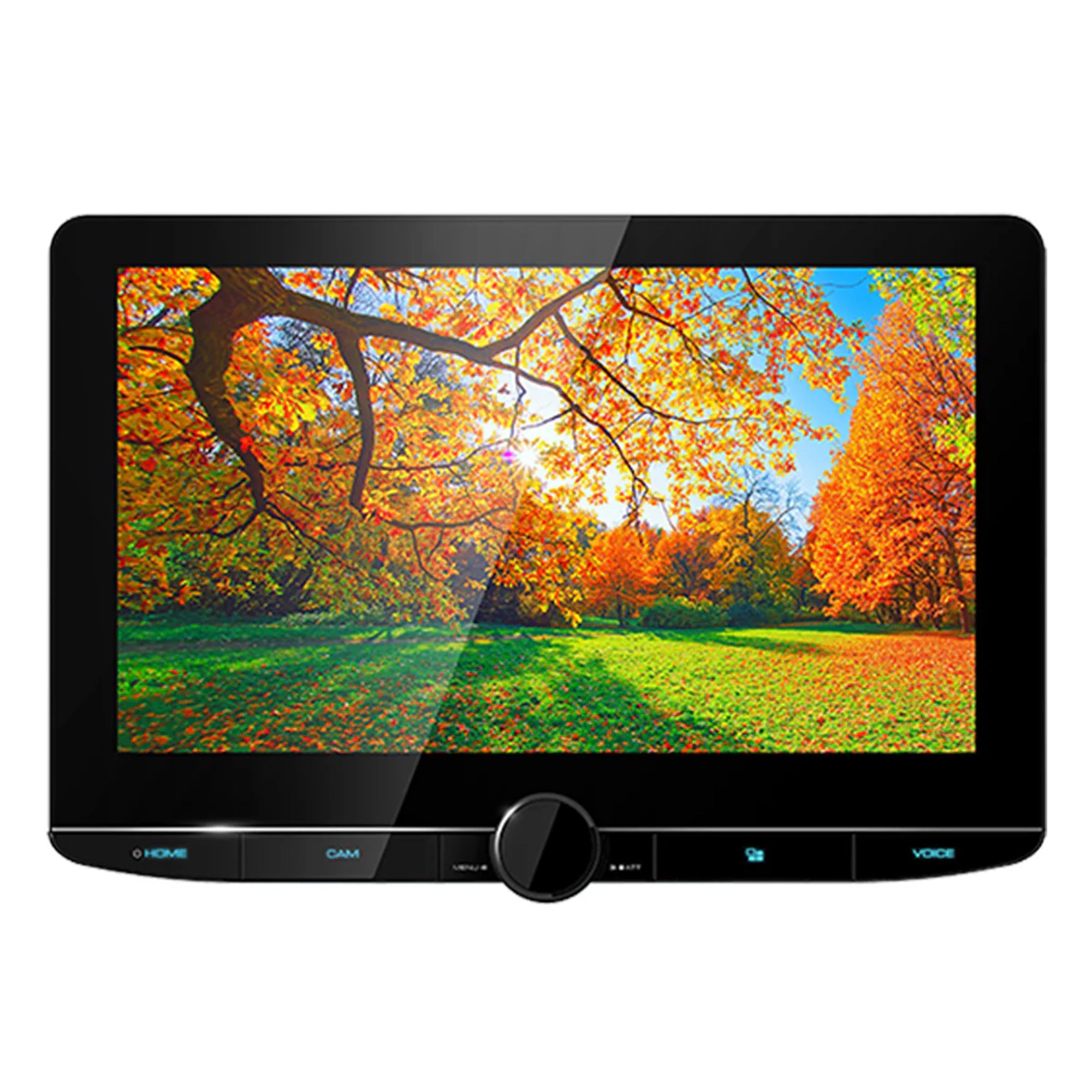

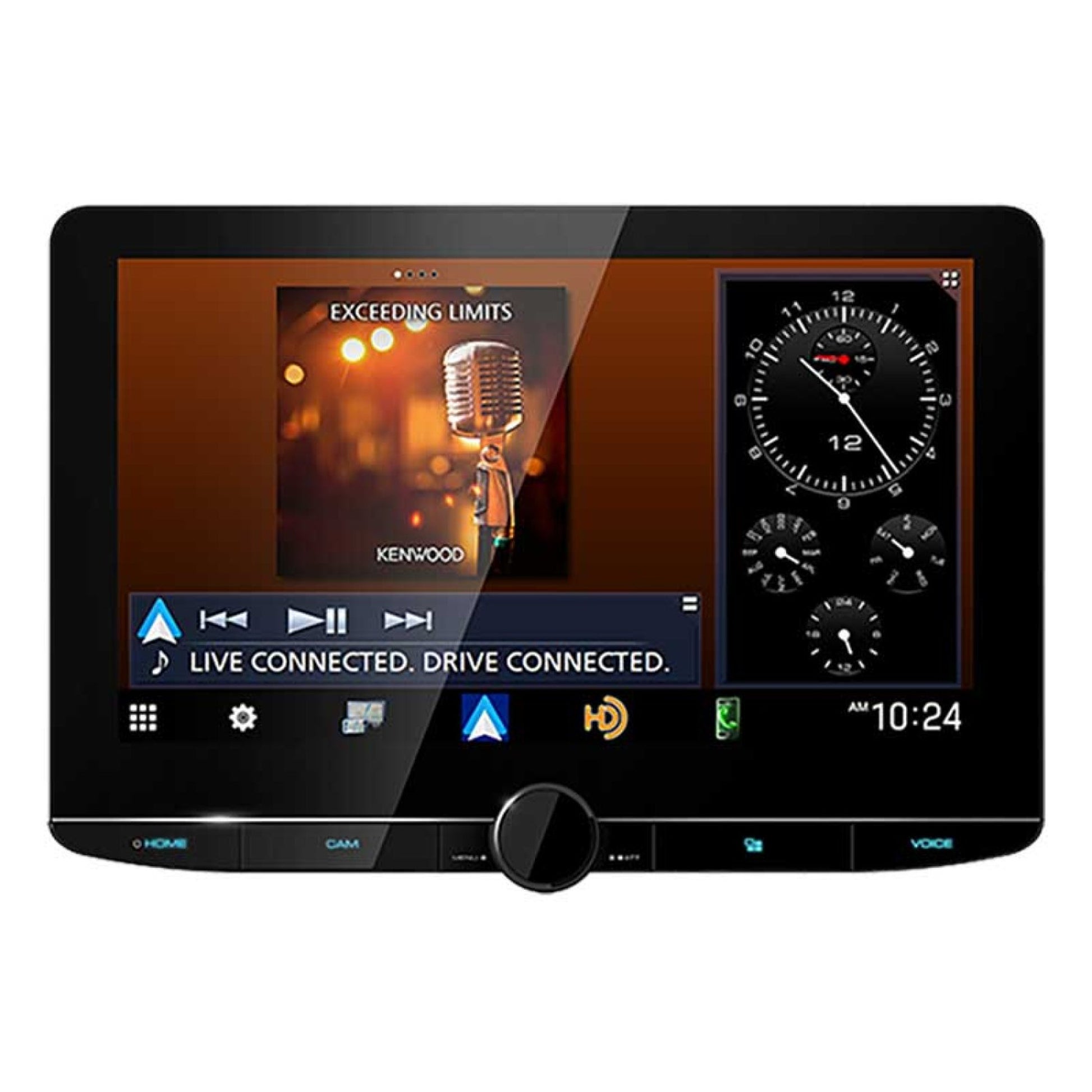

Kenwood eXcelon Reference DAX1050XR 10.1" Direct Replacement Monitor with Wireless Apple CarPlay & Android Auto
Upgrade your factory infotainment system with the Kenwood eXcelon Reference DAX1050XR, a premium 10.1" direct replacement monitor designed to deliver modern connectivity, advanced audio control, and a seamless OEM-style fit. Built for select vehicle applications, this system replaces the factory screen with a larger, high-definition display while maintaining an integrated, factory-installed appearance.
With wireless Apple CarPlay and wireless Android Auto, you can access navigation, music, calls, and messaging instantly—keeping your dashboard clean, connected, and easy to use.
Key Features
- 10.1" high-definition capacitive touchscreen display
- eXcelon Reference premium audio and infotainment platform
- Direct replacement design for select factory dash openings
- Wireless & wired Apple CarPlay
- Wireless & wired Android Auto
- Built-in Bluetooth for hands-free calling and audio streaming
- High-resolution audio support for improved sound playback quality
- 13-band EQ with digital time alignment for precise tuning
- Dual camera inputs for front and rear camera integration
- OEM-style integration with factory dash appearance
Performance Highlights
The DAX1050XR delivers a large-format, factory-integrated upgrade without the need for a floating screen. Its 10.1" display provides improved visibility and usability, while maintaining a clean, built-in look that blends with modern vehicle interiors.
Advanced eXcelon Reference audio tools allow for detailed system tuning, giving you full control over sound staging, bass response, and overall clarity.
Recommended Setup
- Designed for compatible vehicles with factory 10.1" screen integration
- Ideal for OEM-style upgrades without dashboard modification
- Works with factory or aftermarket speaker systems
- Best paired with amplifiers and subwoofers for full system builds
Why Choose the Kenwood DAX1050XR?
The DAX1050XR combines factory-level integration with premium modern technology. It’s built for drivers who want a large, high-quality display, wireless smartphone connectivity, and advanced audio tuning—all while preserving a clean, OEM-style dashboard look.
|
| Feature / Specification |
Kenwood DAX1050XR |
| Product Type |
eXcelon Reference Direct Replacement Digital Multimedia Receiver |
| Display Size |
10.1" diagonal |
| Display Resolution |
1280 × 720 HD |
| Touchscreen |
Electrostatic capacitive touch panel |
| Display Technology |
TFT active-matrix LCD / AAS panel |
| Viewing Angle |
Up to 170° |
| Display Backlight |
High-luminance white LED |
| Optical Bonding |
Bonded optical display with OCA for reduced reflections/glare |
| Panel Design |
Floating panel mechanism |
| Direct Replacement Design |
Designed for OEM-style integration with compatible vehicles and iDatalink Maestro APX parts |

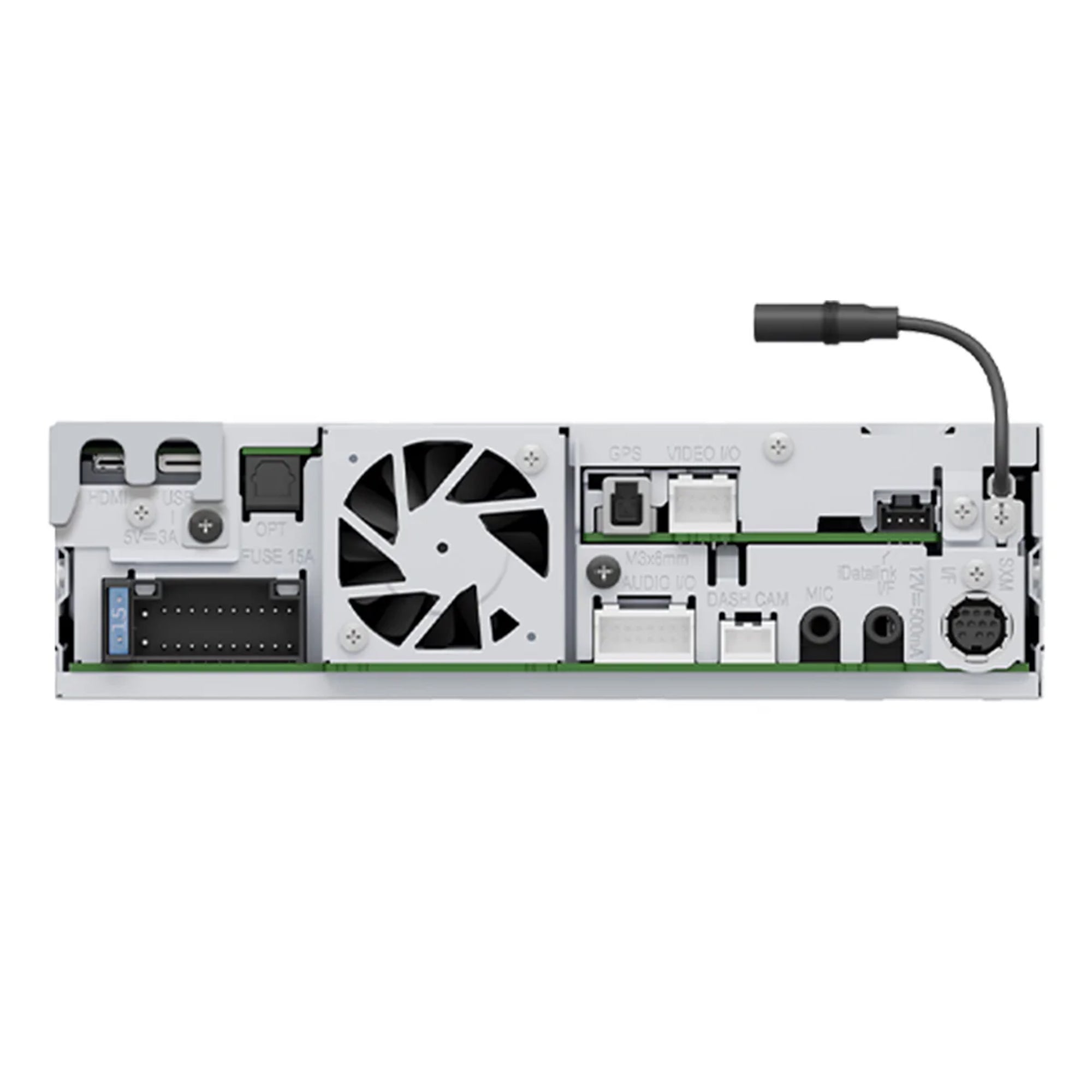

| Display & Chassis |
Separated/modular design |
| Chassis Orientation |
Can be installed horizontally or vertically |
| Apple CarPlay |
Wired & Wireless |
| Android Auto |
Wired & Wireless |
| Wireless Smartphone Mirroring |
Yes, supported smartphones |
| HDMI Input |
Yes, Type-D |
| Bluetooth |
Built-in Bluetooth 5.2 |
| Bluetooth Audio Codecs |
SBC, AAC, LDAC |
| Wi-Fi |
Built-in dual-band 802.11a/b/g/n/ac |
| Wi-Fi Bands |
2.4 GHz / 5 GHz |
| HD Radio |
Built-in |
| AM/FM Radio |
Yes |
| SiriusXM |
SiriusXM / SiriusXM 360L ready with optional tuner |
| Camera Inputs |
4 |
| HD Camera Support |
Front & rear HD camera ready |
| Dash Cam Integration |
Ready for compatible KENWOOD dash camera |
| iDatalink Maestro |
Ready; compatible Maestro interfaces can retain select factory vehicle features |
| Audio Preouts |
3 × 5V |
| Preout Configuration |
Front / Rear / Subwoofer |
| Digital Audio Output |
Optical |
| Maximum Power Output |
50W × 4 |
| Typical Power Output |
29W × 4 @ 4Ω, 1 kHz, 10% THD |
| 13-Band EQ |
Yes |
| Crossover |
3-way crossover mode |
| High-Resolution Audio |
Yes |
| Wireless Hi-Res Audio |
Yes, including LDAC support |
| USB Connection |
USB Type-C |
| USB Standard |
USB 2.0 High Speed |
| USB Charging |
Up to 5V / 3.0A |
| Supported USB File Systems |
FAT16/32, exFAT, NTFS |
| Supported Audio Formats |
MP3, WMA, AAC, WAV, FLAC, Vorbis |
| Supported Video Formats |
MPEG1/2, MPEG4, WMV, H.264, MKV |
| Driving Widgets |
Clock, compass, equalizer and other customizable widgets |
| Source Control Widget |
Yes |
| Pitch & Roll Widget |
Yes |
| KENWOOD Portal App |
Supported |
| Optional Remote |
KCA-RCDV340 |
| Monitor Dimensions |
262 × 181 × 52 mm (10-5/16 × 7-1/8 × 2-1/16") |
| Monitor Weight |
1.1 kg / 2.4 lb |
| Chassis Dimensions |
178 × 50 × 105 mm (7 × 2 × 4-1/8") |
| Chassis Weight |
0.8 kg / 1.8 lb |
| Total Set Weight |
2.1 kg / 4.5 lb |
| Operating Voltage |
12V DC vehicle battery |
| Monitor Active Pixel Count |
2,764,800 |
| HDMI Input Resolutions |
Up to 1280 × 720 |
| Wireless Communication Range |
Approx. 10 m / 32.8 ft line-of-sight |
| Extension Cable |
Optional 5-ft / 1.5-m cable available |
| Primary Selling Point |
Large 10.1" HD display combined with wireless CarPlay/Android Auto and vehicle-specific direct-replacement integration |
