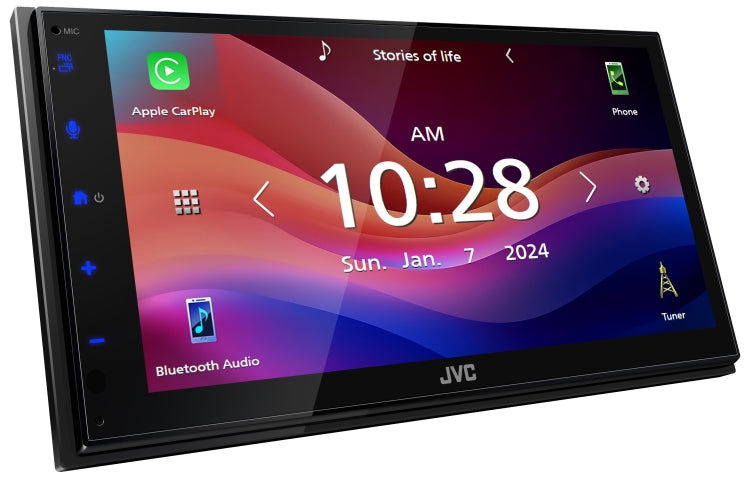

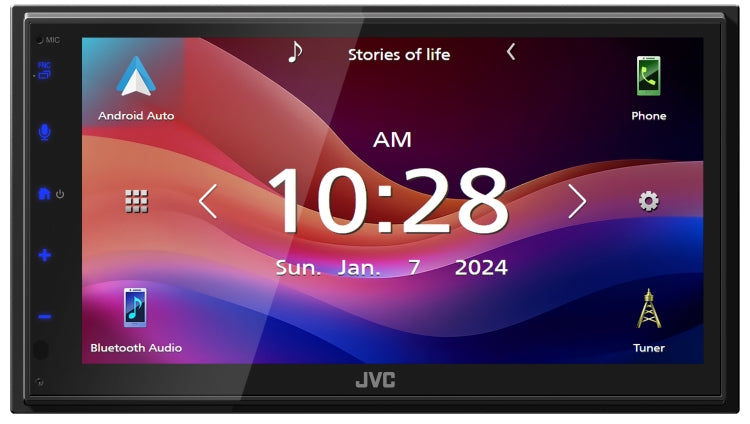

- JVC KW-M590BT 6.8" Capacitive Touch Multimedia Receiver with Apple CarPlay & Android Auto
The JVC KW-M590BT is a 2-DIN digital multimedia receiver designed to deliver modern smartphone integration, clean touchscreen control, and flexible audio tuning in a compact short-chassis design. Built for drivers upgrading from factory systems, it focuses on essential connectivity and reliable everyday performance.
Apple CarPlay and Android Auto via USB

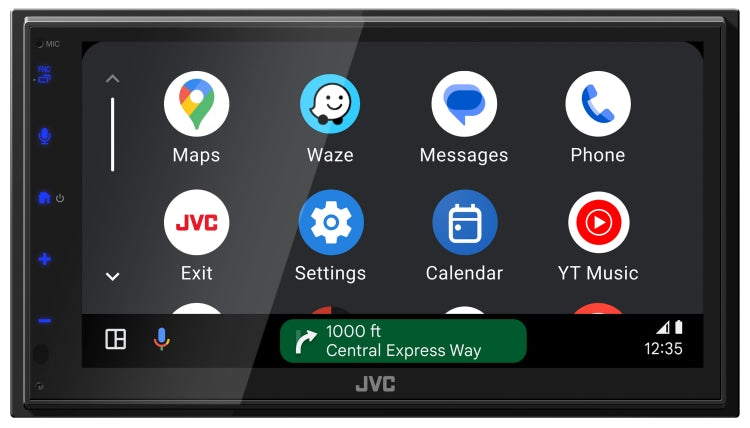

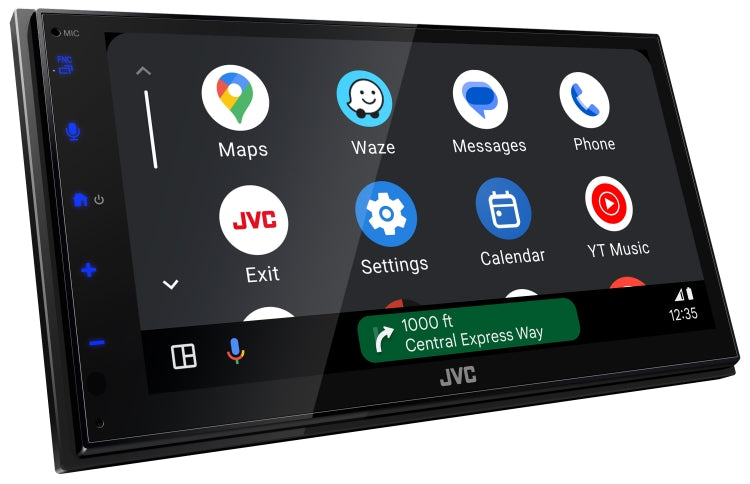

The KW-M590BT supports both Apple CarPlay and Android Auto through a USB connection, giving you direct access to navigation, calls, messaging, music, and voice control. This makes it easier and safer to use your smartphone apps while driving through the receiver’s touchscreen interface.
6.8" WSVGA Capacitive Touch Display
A 6.8-inch WSVGA capacitive touchscreen provides clear visuals and responsive touch control. The display is designed for simple operation with intuitive menus, making it easy to access apps, media, and system settings while on the road.
Bluetooth and Everyday Connectivity
Built-in Bluetooth enables hands-free calling and audio streaming with support for voice recognition and phonebook access. USB input allows playback of a wide range of audio and video file formats, along with smartphone charging at up to 2.1A.
Audio Tuning and Sound Control
The KW-M590BT includes a 13-band graphic equalizer, time alignment, and crossover controls for system tuning. JVC’s sound tools such as bass boost and EQ presets help adjust the audio to your preference, while maintaining clarity at higher volumes.
System Expansion and Inputs

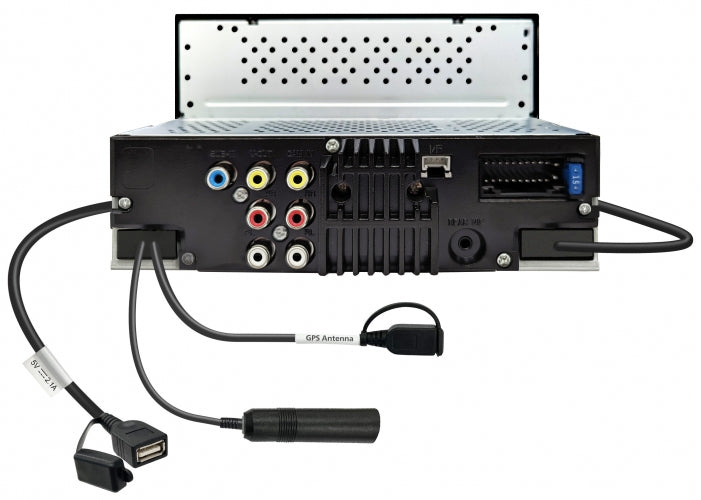

The receiver includes 2.5V 3-way pre-outs (front, rear, subwoofer) for external amplifiers, plus rear camera input and steering wheel control compatibility (adapter required). A short chassis design makes installation easier in a wide range of vehicles.
Key Features
- 6.8" WSVGA capacitive touchscreen
- Apple CarPlay (USB connection)
- Android Auto (USB connection)
- Bluetooth hands-free calling and audio streaming
- USB media playback with wide format support
- 13-band graphic EQ with time alignment
- Bass boost and EQ presets
- 2.5V 3-way pre-outs (front, rear, subwoofer)
- Rear camera input support

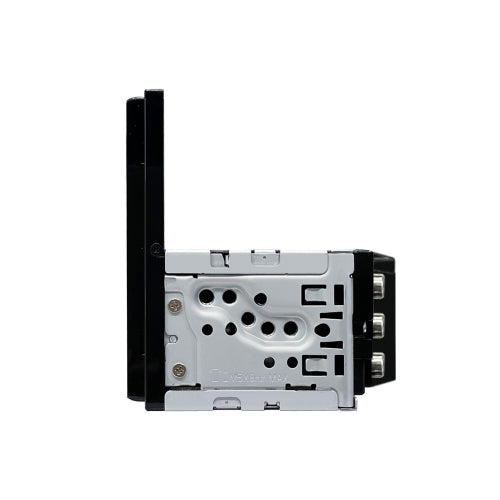

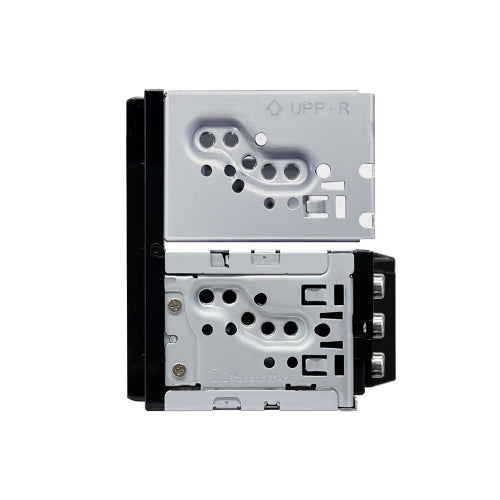

- Short chassis design for easier installation
- Steering wheel control compatible (adapter required)
Built for a Straightforward Modern Upgrade
The JVC KW-M590BT delivers a reliable entry point into modern infotainment, combining smartphone integration, touchscreen control, and essential audio tuning features in a simple and widely compatible design.
|
| Specification |
JVC KW-M590BT |
| Product Type |
Digital Multimedia Receiver |
| Model |
KW-M590BT |
| Chassis Type |
Double DIN |
| Display Size |
6.8" |
| Display Type |
Capacitive Touchscreen |
| Apple CarPlay |
Wired |
| Android Auto |
Wired |
| Bluetooth |
Built-in |
| Bluetooth Version |
4.2 |
| SiriusXM Ready |
Yes |
| iDatalink Maestro Ready |
Yes |
| USB Port |
1 × Rear USB |
| USB Charging |
Up to 1.5A |
| Audio Formats |
AAC, FLAC, MP3, WAV, WMA |
| Video Formats |
H.264, MKV, MPEG 1/2, MPEG 4, WMV |
| Maximum Power Output |
50W × 4 |
| Full-Bandwidth Power |
22W × 4 |
| Equalizer |
13 Band Graphic EQ |
| Pre-Outs |
3 Pairs: Front, Rear, Subwoofer |
| Pre-Out Level |
4.0V |
| Camera Input |
Rear Camera |
| Steering Wheel Remote Ready |
Yes |
| App Compatibility |
JVC Remote App |
