JVC KW-M180BT 6.8" Digital Media Receiver with Bluetooth & Android Screen Mirroring
The JVC KW-M180BT is an entry-level 2-DIN digital media receiver designed to bring Bluetooth connectivity, smartphone mirroring, and flexible audio control into a compact, easy-to-install touchscreen unit. Built for drivers upgrading from basic factory radios, it focuses on essential features like streaming, hands-free calling, and simple media playback.
Smartphone Connectivity with Android Mirroring

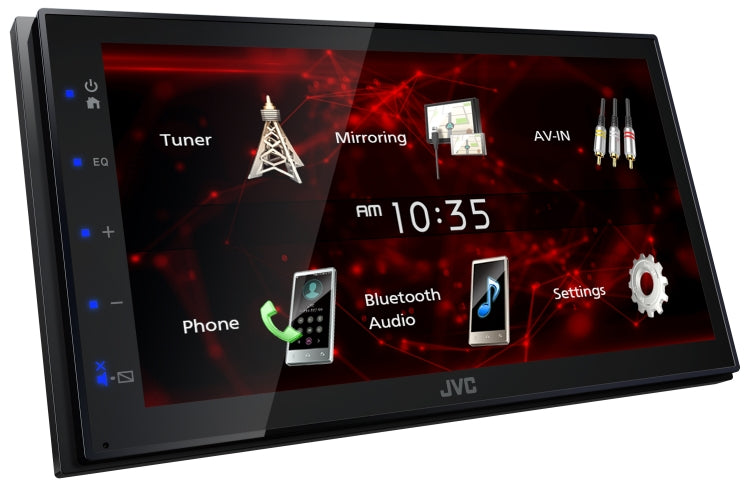

The KW-M180BT supports USB screen mirroring for Android devices, allowing your phone display to appear on the receiver’s 6.8-inch screen. This enables access to compatible apps, navigation, and media through both the phone and touchscreen interface.

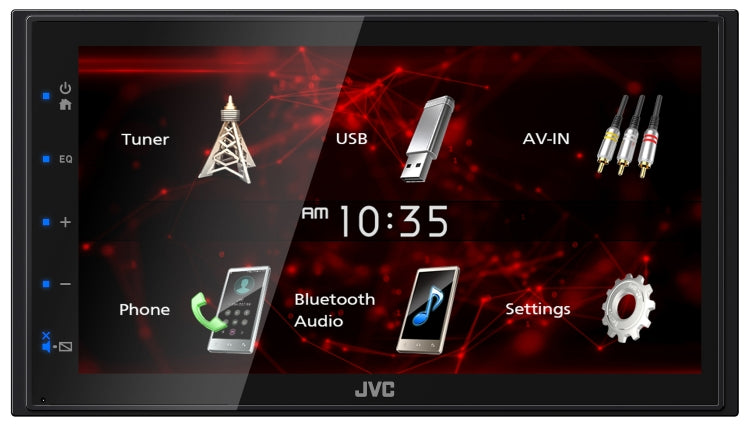

6.8" Capacitive Touchscreen Display
A 6.8-inch WVGA capacitive touchscreen provides clear visuals and responsive touch control. The interface is designed for straightforward operation, making it easy to access audio, settings, and camera inputs while driving.
Bluetooth Hands-Free and Audio Streaming
Built-in Bluetooth supports hands-free calling, phonebook access, and audio streaming with AVRCP control. A wired microphone is included for clearer voice pickup during calls.
Flexible Media Playback
The KW-M180BT supports USB media playback with a wide range of formats including MP3, WMA, WAV, AAC, FLAC, and video files such as MPEG, H.264, and MKV. This makes it suitable for both audio and basic video entertainment.
Audio Tuning and Sound Control
A 13-band graphic equalizer, time alignment, crossover controls, and bass boost functions allow detailed sound customization. These tools help adjust output for speaker setups ranging from simple factory replacements to basic aftermarket systems.

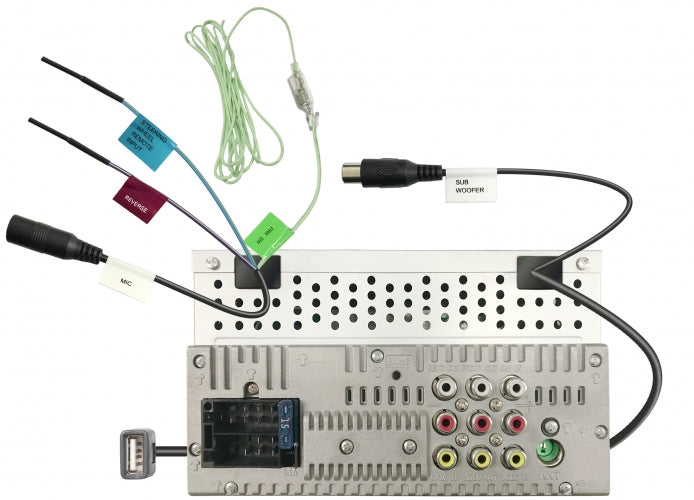

System Integration and Inputs
The receiver includes a rear camera input for added safety and supports steering wheel control integration with an adapter. A short chassis design allows easier installation in tight dash spaces.
Key Features
- 6.8" WVGA capacitive touchscreen
- Bluetooth hands-free calling and audio streaming
- USB Android screen mirroring
- USB media playback (audio and video support)
- 13-band graphic EQ with time alignment
- Bass boost and crossover controls
- Rear camera input support
- Steering wheel control compatible (adapter required)
- Short chassis design for easier installation
- Wired microphone included
Built for a Simple Entry-Level Upgrade
The JVC KW-M180BT delivers basic smartphone integration, Bluetooth functionality, and customizable audio tuning in an affordable multimedia receiver designed for straightforward factory system upgrades.
|
| Specification |
JVC KW-M180BT |
| Product Type |
Digital Multimedia Receiver |
| Model |
KW-M180BT |
| Chassis Type |
Double DIN |
| Display Size |
6.8" |
| Display Type |
Capacitive Touchscreen |
| Android Screen Mirroring |
Yes, via USB |
| Apple CarPlay |
No |
| Android Auto |
No |
| Bluetooth |
Built-in |
| Bluetooth Version |
3.0 |
| SiriusXM Ready |
Yes |
| USB Port |
Front USB |
| USB Charging |
Up to 1.5A |
| Auxiliary Input |
Front Aux Input |
| Audio Formats |
AAC, FLAC, MP3, WAV, WMA |
| Video Formats |
MPEG 1/2, MPEG 4, WMV |
| Maximum Power Output |
50W × 4 |
| Full-Bandwidth Power |
22W × 4 |
| Equalizer |
13 Band Graphic EQ |
| Pre-Outs |
3 Pairs: Front, Rear, Subwoofer |
| Pre-Out Level |
2.5V |
| Camera Input |
Rear Camera |
| Steering Wheel Remote Ready |
Yes |
| App Compatibility |
JVC Remote App |
