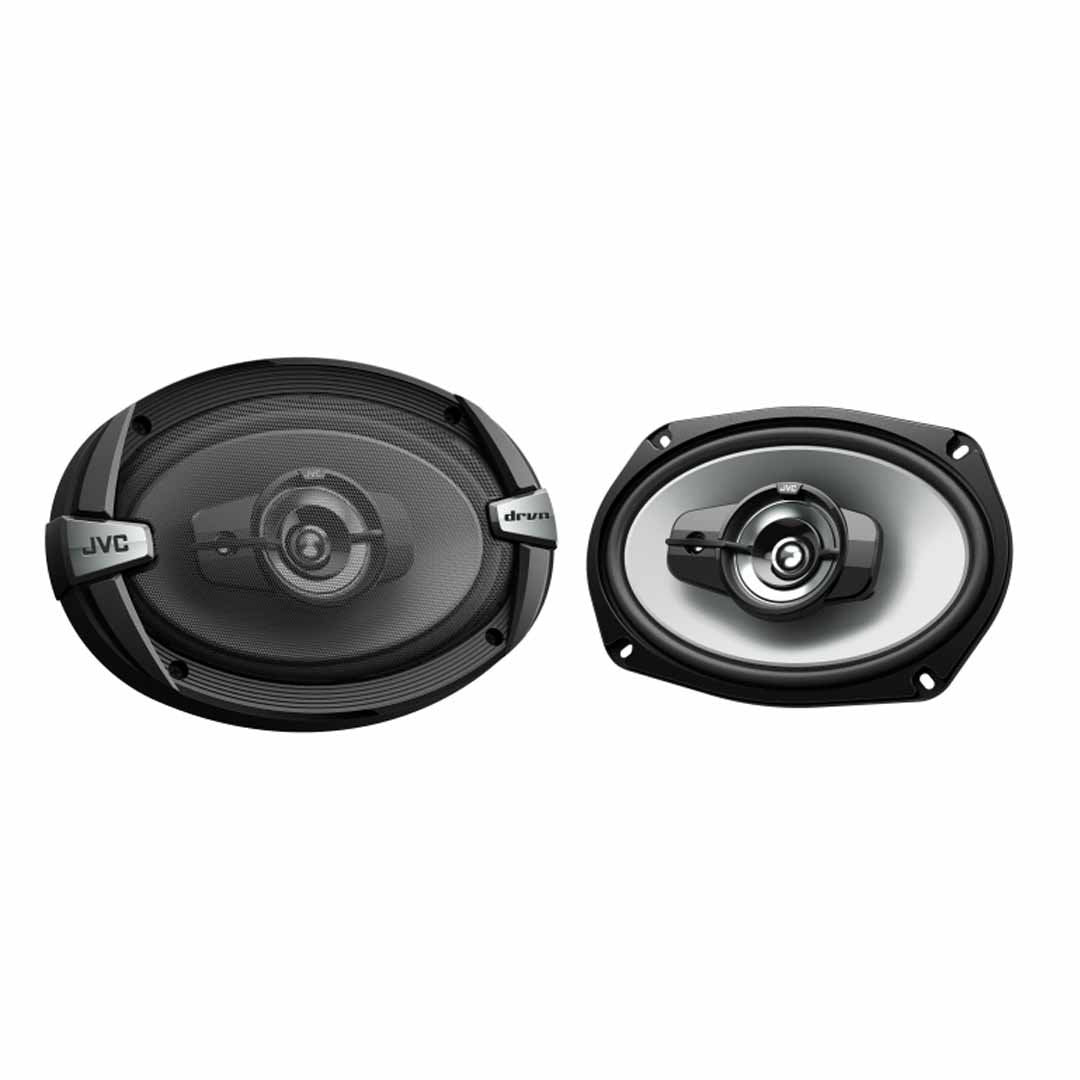

JVC CS-DR693, DRVN Series 3-Way 6x9" Full Range Speakers

Overview

Features & Specifications

JVC CS-DR693 — Specifications

Specification	Details
Series	DRVN Series / DR Series
Speaker Type	3-Way Coaxial / Full Range
Speaker Size	6 × 9" (15 × 23 cm)
Woofer Cone	Polypropylene (PP)
Woofer Surround	Cloth
Woofer Magnet	Ferrite
Midrange Size	2-5/8" (6.6 cm)
Midrange Type	Cone
Midrange Magnet	Ferrite
Super Tweeter Size	19/32" (1.5 cm)
Super Tweeter Type	Dome
Peak Power Handling	500 W
RMS Power Handling	70 W
Impedance	4 Ω
Sensitivity / SPL	86 dB
Frequency Response	54 Hz – 18 kHz
Mounting Depth	79 mm (3-1/8")
Magnet Mass	340 g (12.0 oz)
Weight with Grille	1.1 kg (2.5 lb) per speaker
Weight without Grille	1.0 kg (2.3 lb) per speaker
Grille Design	Full-Cover Grille
Cone Technology	PP + Mica Cone
Sound Enhancer	Horn Ring Sound Enhancer
Configuration	Woofer + Midrange + Super Tweeter
Woofer Material	Lightweight PP + Mica
Design Feature	Full-Cover Grille protects woofer and tweeter in open installations

Reviews

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sold out

JVC CS-DR693, DRVN Series 3-Way 6x9" Full Range Speakers

Name: JVC CS-DR693, DRVN Series 3-Way 6x9" Full Range Speakers
Brand: JVC
SKU: JVC-CS-DR693
Price: 109.00 USD
Availability: OutOfStock

SKU: JVC-CS-DR693

UPC: 046838079221

Out of stock

$109.00

$109.00 ~~$129.00~~
