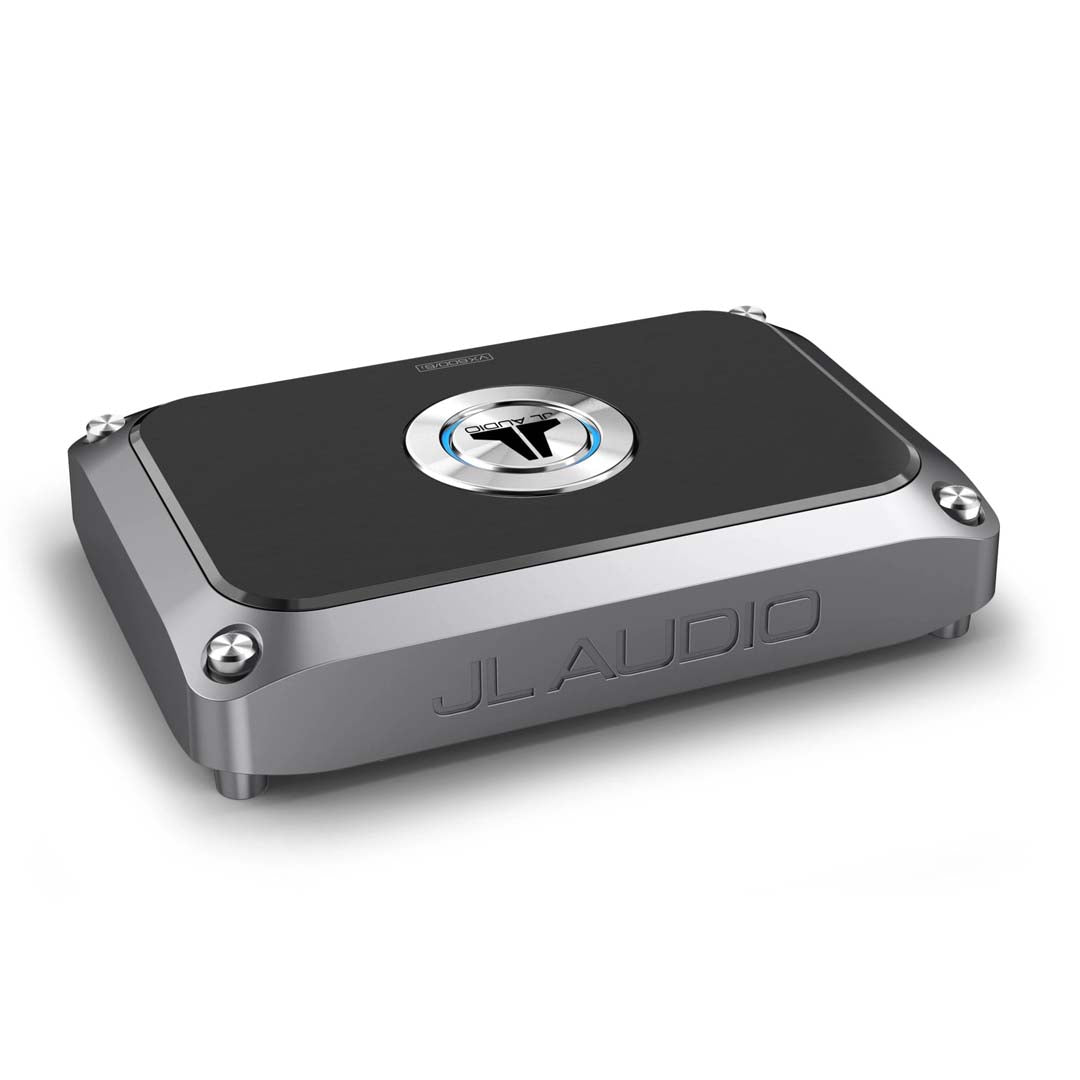

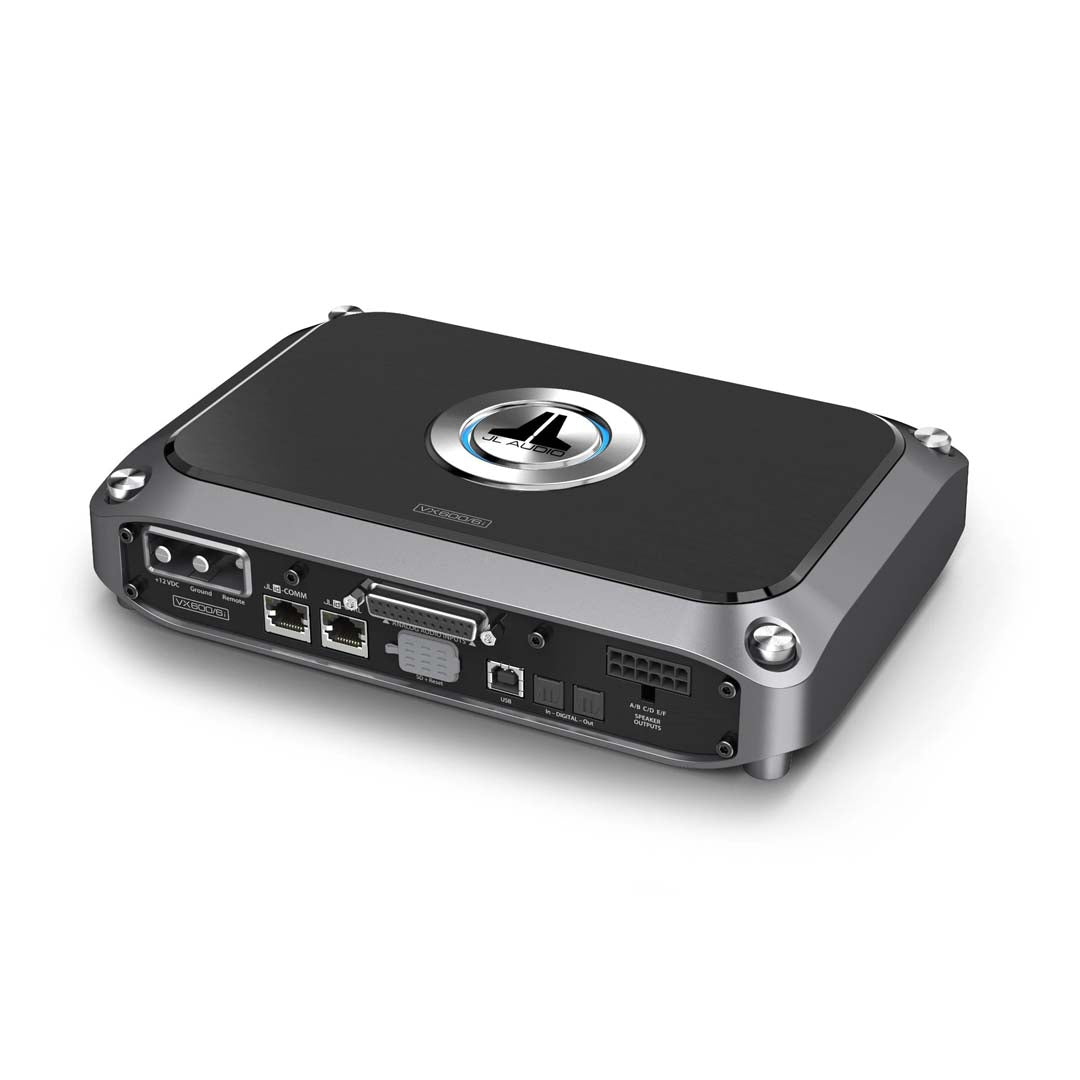

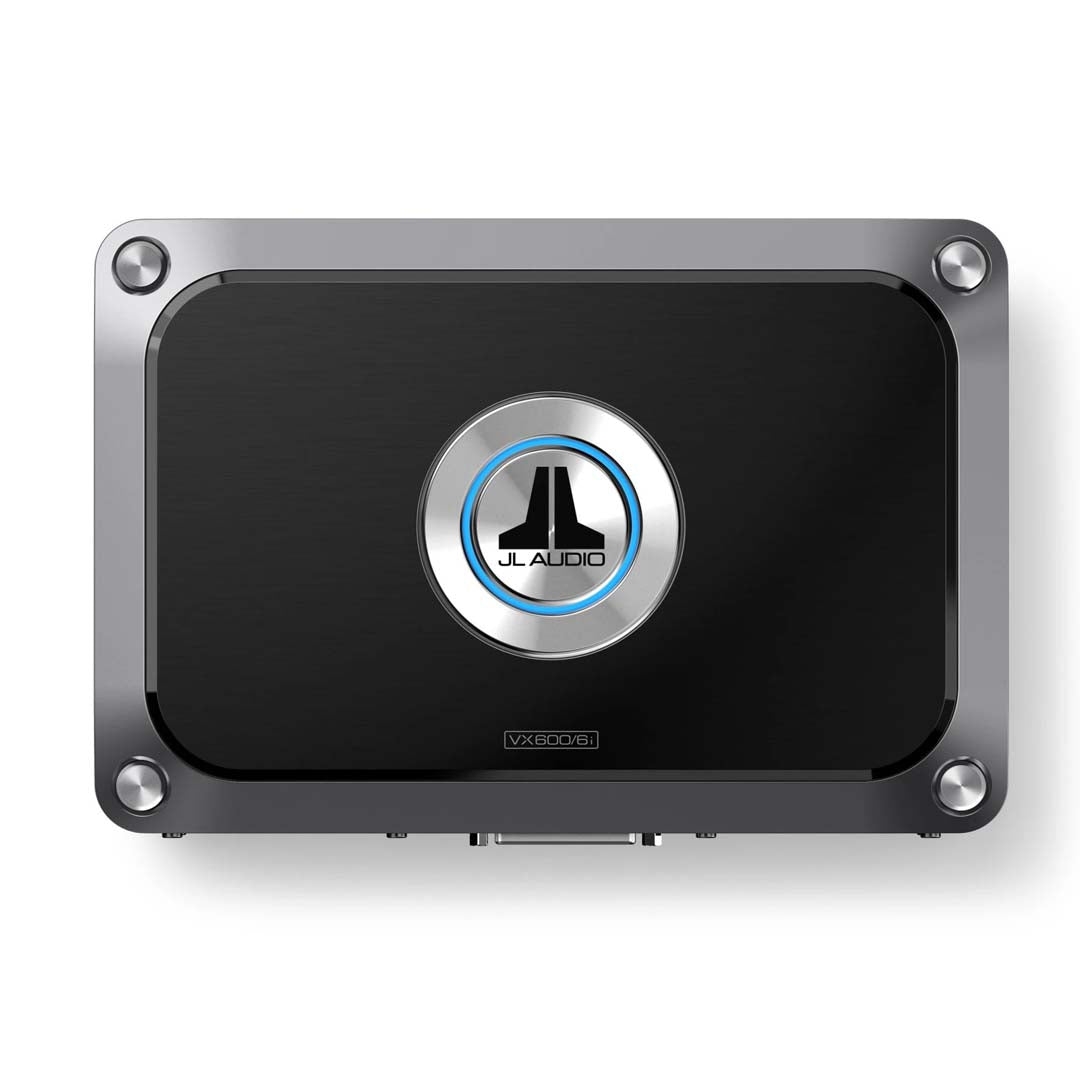

JL Audio JL-VX600/6i, VXi Series Class D 6 Channel Amplifier w/ Integrated DSP, 600W
Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
With our second-generation NexD2™ technology, the VX600/6i full-range amplifier outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, producing up a rock-solid 200 W x 3.

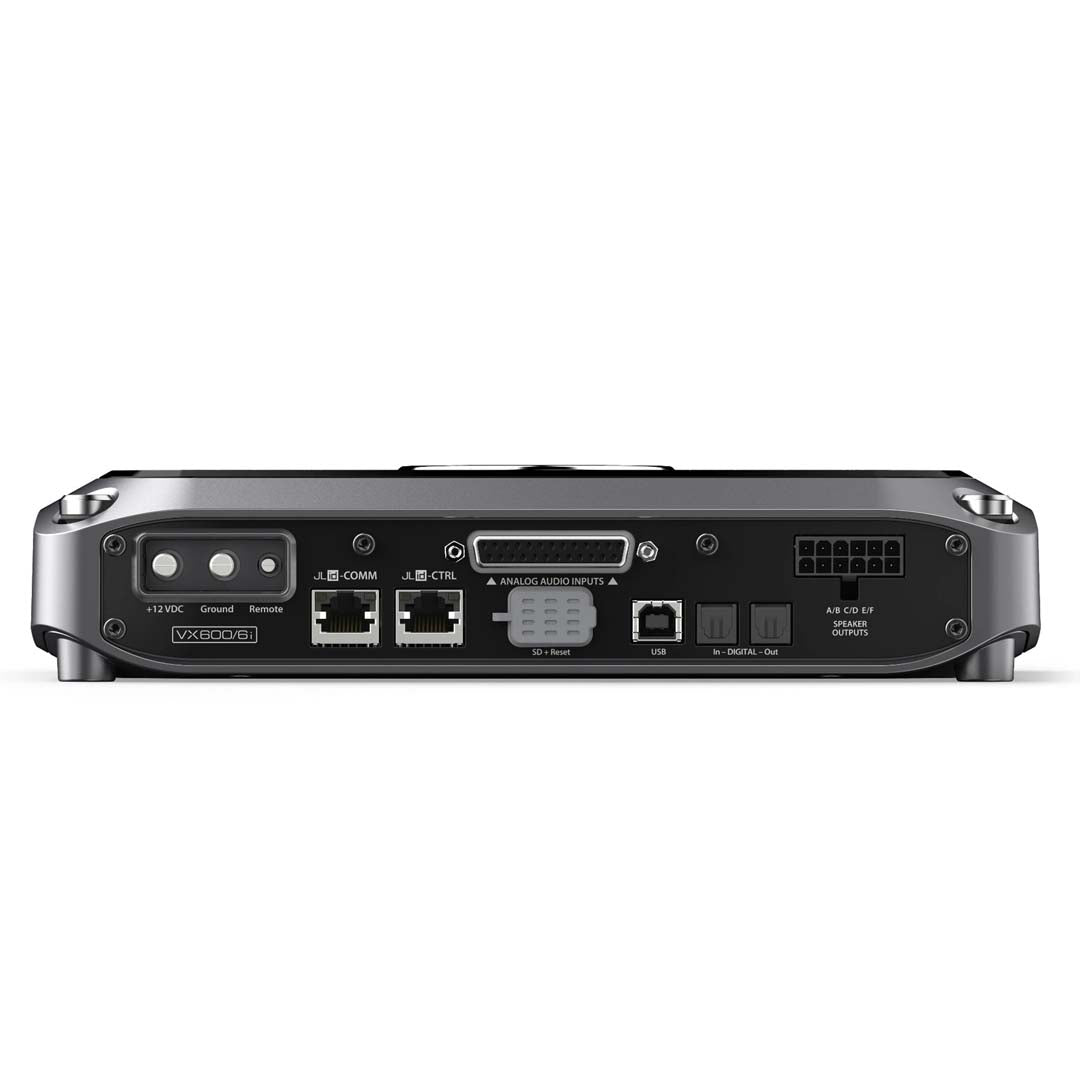

The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.
Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, 6 ft A/B USB Cable
NexD2™ Switching Technology
JL Audio's NexD2™ amplifier technologies are a next-level approach to improving what is already an outstanding Class D design platform. Employing new components and more advanced circuit layouts, fidelity and efficiency have been significantly enhanced.
Advanced Rollback Protection
JL Audio's exclusive Advanced Rollback Protection circuit monitors the amplifier's thermal condition and adjusts amplifier operation to eliminate annoying amplifier shut-down events.
Differential-Balanced Inputs
JL Audio’s Differential-Balanced Inputs are engineered to combat induced cable noise, which is a common problem in car and marine audio installations. This technology allows for the use of conventional RCA cables, while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.
JLid™
JLid™ is JL Audio's protocol for digital controllers and for communication of settings between devices (not for audio signals).
Number of Channels |
6 |
Class |
D |
Peak Power Rating (Watts) |
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
75 x 6 |
RMS Power Rating (Watts x Channels) - 2 Ohms |
100 x 6 |
RMS Power Rating (Watts x Channels) - 1.5 Ohm |
N/A |
RMS Power Rating - Bridged | 200 x 3 |
Minimum Impedance Unbridged (Ohms) |
2 |
Minimum Impedance Bridged (Ohms) |
4 |
THD at Rated RMS Power |
1% |
Bulit-in Crossover - Low Pass |
Yes |
Built-in Crossover - High Pass |
Yes |
High Pass Crossover Frequency (Hz) |
DSP |
Low Pass Crossover Frequency (Hz) |
DSP |
Signal-to-Noise Ratio |
80dB |
Bass Boost |
No |
Bass Remote Included |
No |
Fuse Rating | 50A |
CEA-2006 Compliant | Yes |
Maximum Power Wire Gauge Size | 4 Gauge |
Warranty | 1 Year |
Number of Channels |
6 |
Class |
D |
Peak Power Rating (Watts) |
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
75 x 6 |
RMS Power Rating (Watts x Channels) - 2 Ohms |
100 x 6 |
RMS Power Rating (Watts x Channels) - 1.5 Ohm |
N/A |
RMS Power Rating - Bridged | 200 x 3 |
Minimum Impedance Unbridged (Ohms) |
2 |
Minimum Impedance Bridged (Ohms) |
4 |
THD at Rated RMS Power |
1% |
Bulit-in Crossover - Low Pass |
Yes |
Built-in Crossover - High Pass |
Yes |
High Pass Crossover Frequency (Hz) |
DSP |
Low Pass Crossover Frequency (Hz) |
DSP |
Signal-to-Noise Ratio |
80dB |
Bass Boost |
No |
Bass Remote Included |
No |
Fuse Rating | 50A |
CEA-2006 Compliant | Yes |
Maximum Power Wire Gauge Size | 4 Gauge |
Warranty | 1 Year |
