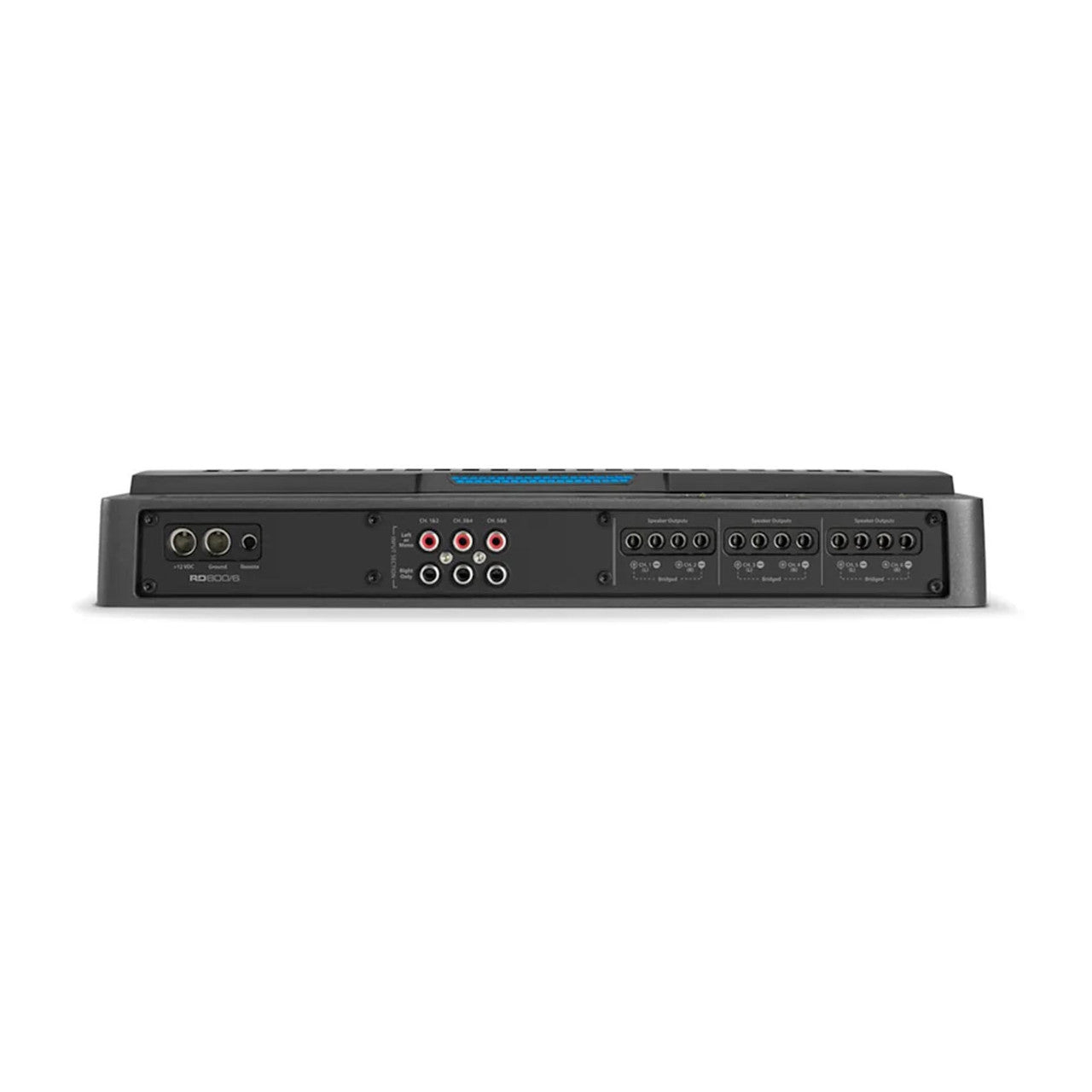

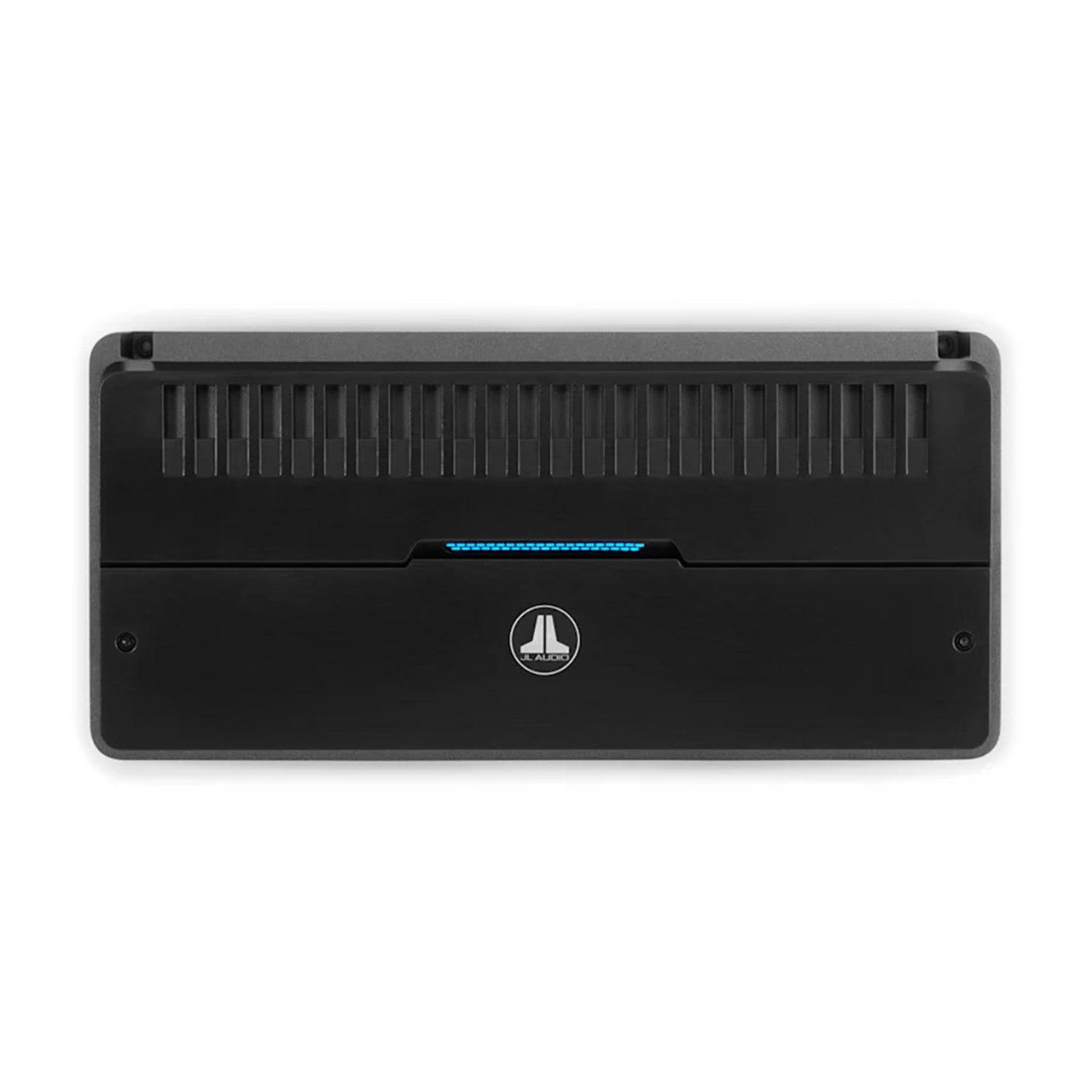

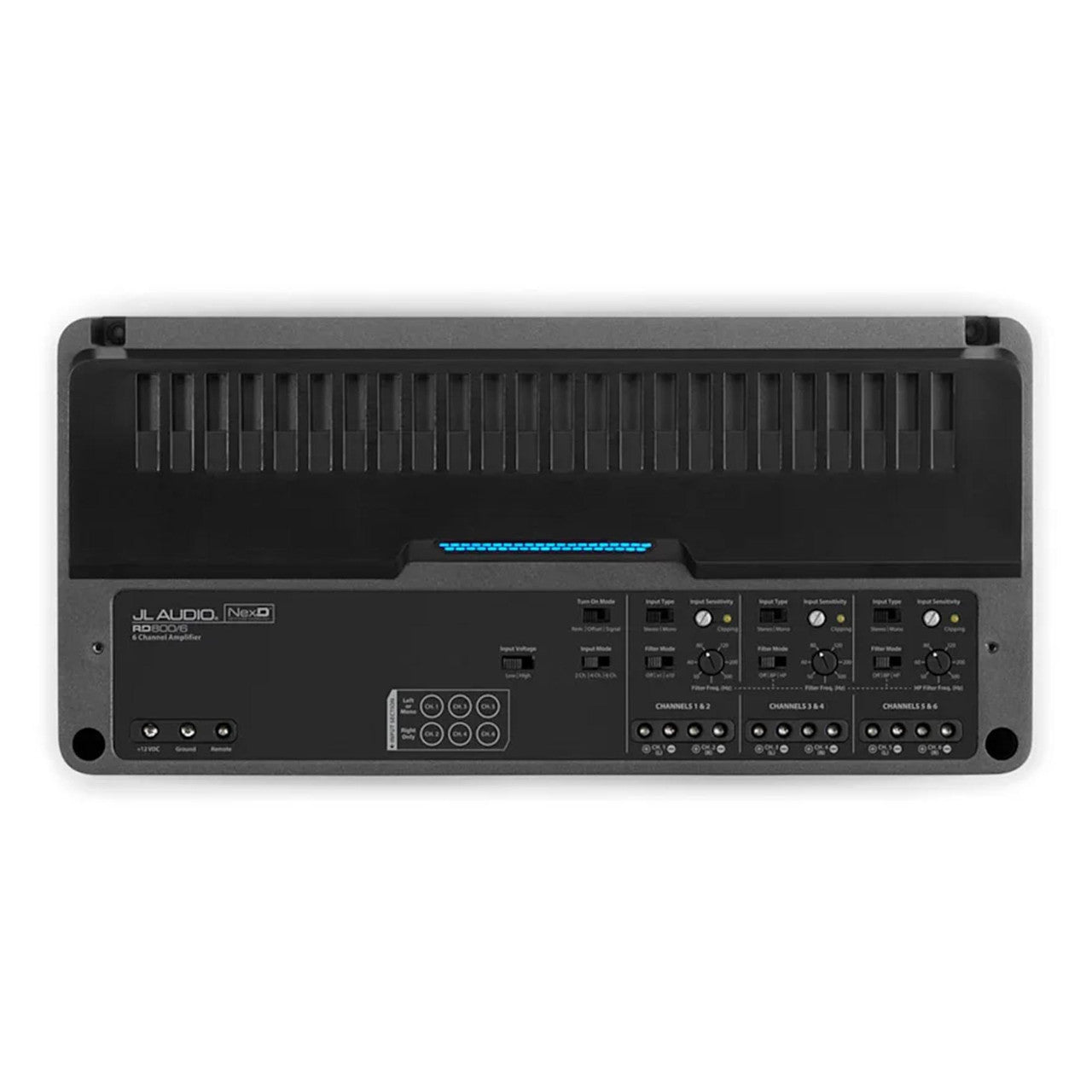

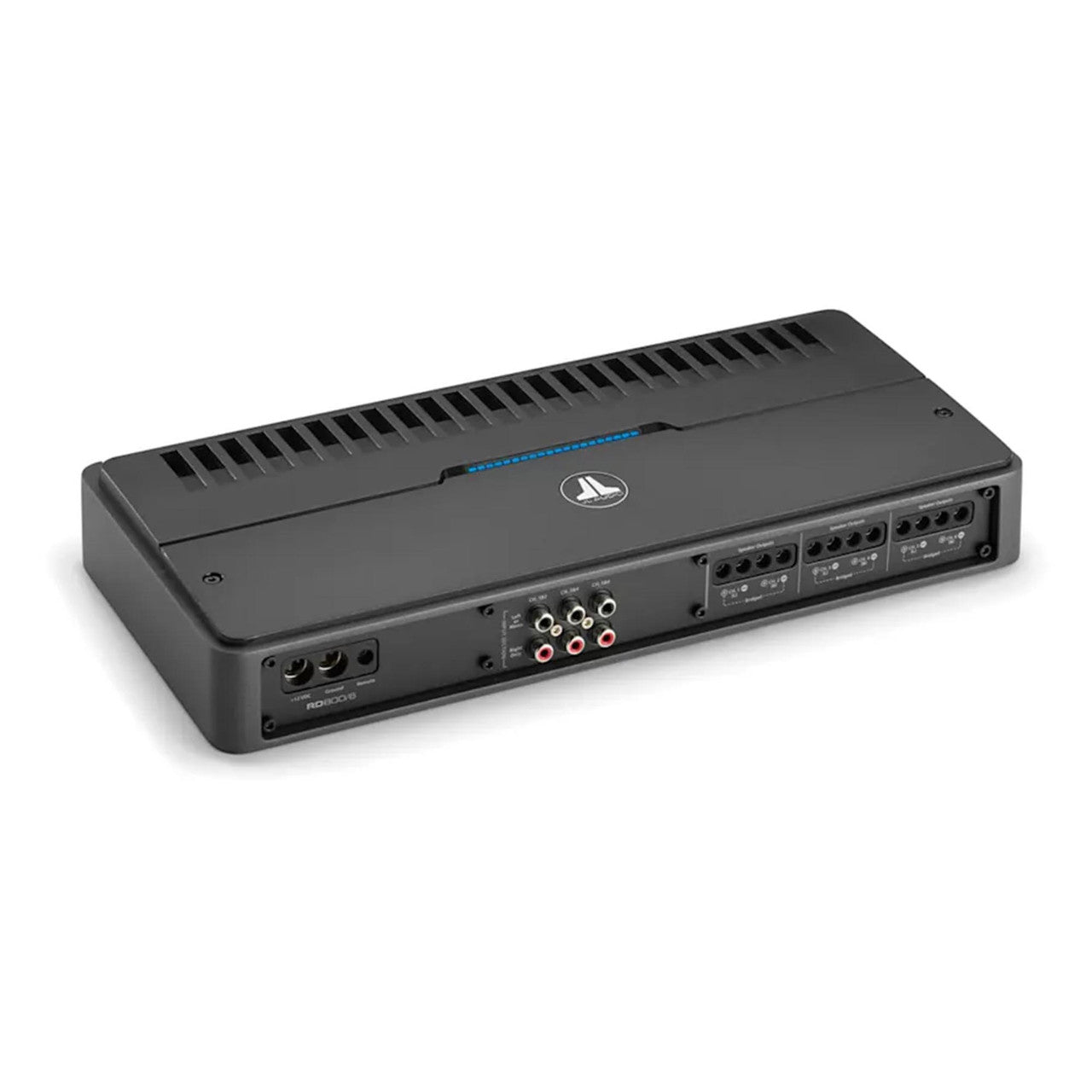

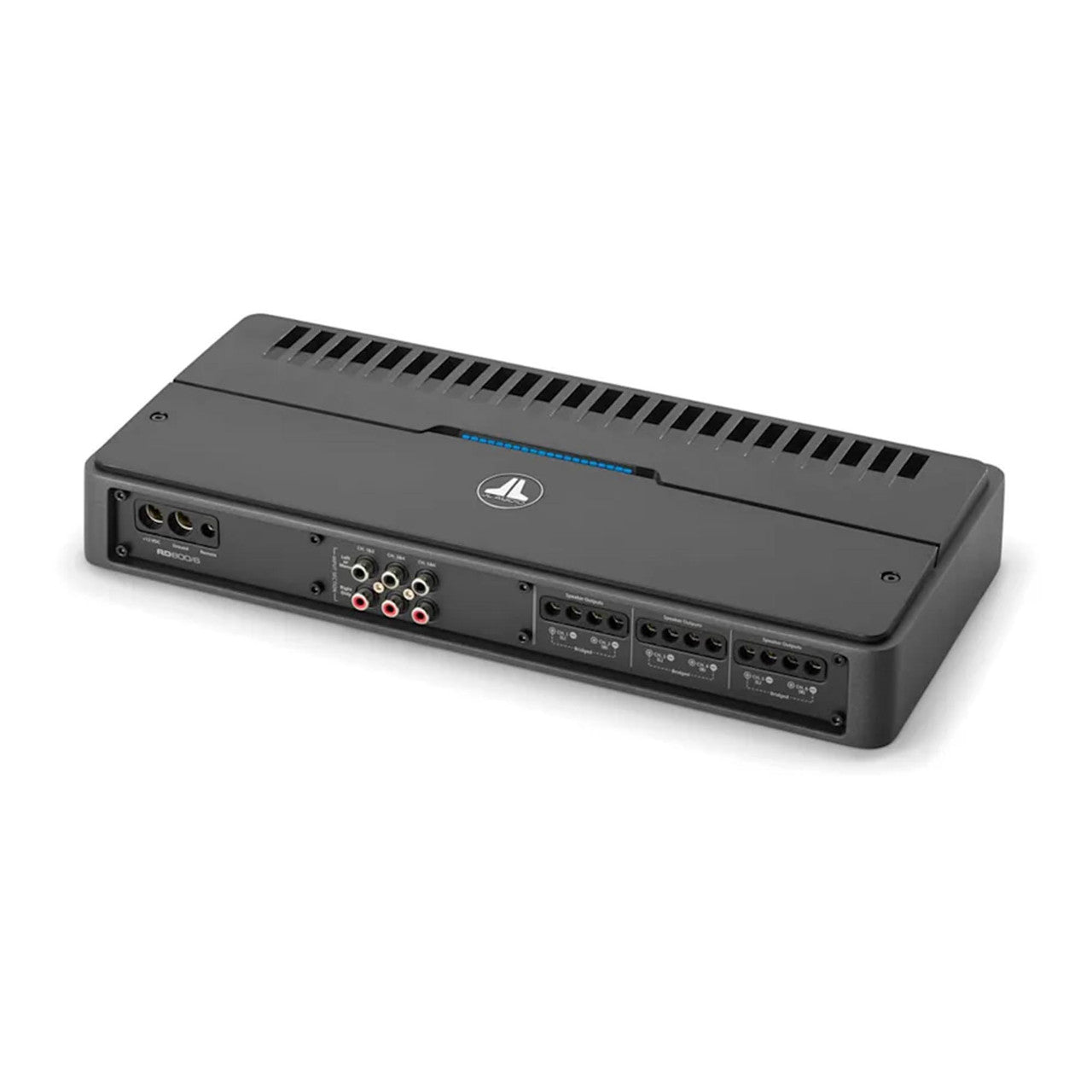

JL Audio RD800/6, RD Series Class D 6 Channel Full Range Amplifierr - 800W

Overview

JL Audio RD800/6 RD Series Class D 6-Channel Full-Range Amplifier – 800 Watts RMS

Power your entire audio system with the JL Audio RD800/6, a premium 6-channel Class D full-range amplifier engineered to deliver exceptional sound quality, installation flexibility, and reliable performance. With 800 watts RMS of total output, this amplifier is ideal for powering multiple speakers or creating an active audio system while maintaining the compact efficiency of JL Audio's RD Series design.

The RD800/6 utilizes NexD2™ high-speed Class D switching technology, delivering outstanding efficiency, low distortion, and reduced heat generation without sacrificing sound quality. JL Audio's Differential-Balanced Inputs help eliminate unwanted noise and ensure compatibility with both factory and aftermarket source units.

Featuring versatile crossover controls, bridgeable channels, and built-in Clip Indicator LEDs for simplified system tuning, the RD800/6 makes it easy to achieve clean, distortion-free performance. Its compact chassis allows for installation in tight spaces, making it an excellent choice for custom vehicle audio systems.

Key Features:

800 watts RMS total power output
6-channel full-range Class D amplifier
JL Audio NexD2™ high-speed switching technology
100W x 6 @ 4 ohms
130W x 6 @ 2 ohms
200W x 3 bridged @ 4 ohms
2-ohm stable stereo operation
Bridgeable channels for flexible system configurations
Differential-Balanced Inputs for superior noise rejection
Variable high-pass, low-pass, and band-pass crossovers
Built-in Clip Indicator LEDs for precise gain adjustment
Speaker-level input capability with automatic turn-on
Compact, efficient chassis for flexible installation
Designed for premium automotive audio systems

Specifications:

Brand: JL Audio
Model: RD800/6
Series: RD Series
Amplifier Class: Class D
Channels: 6
Total RMS Power: 800W
Frequency Response: 12 Hz – 22 kHz
Signal-to-Noise Ratio: >104 dB
Total Harmonic Distortion (THD): <1%
Fuse Rating: 80A
Recommended Power/Ground Wire: 4 AWG
Application: Automotive audio systems
