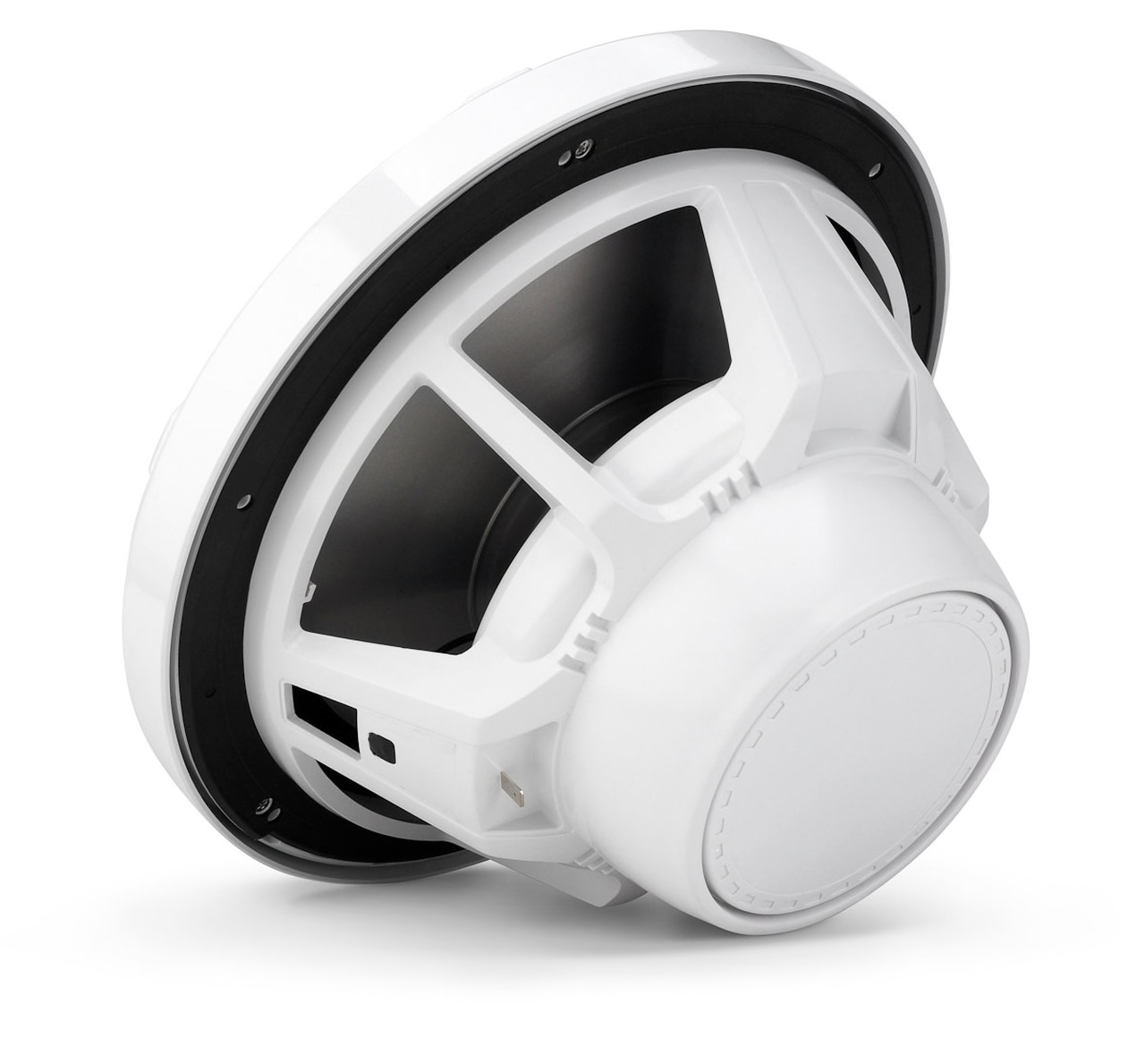

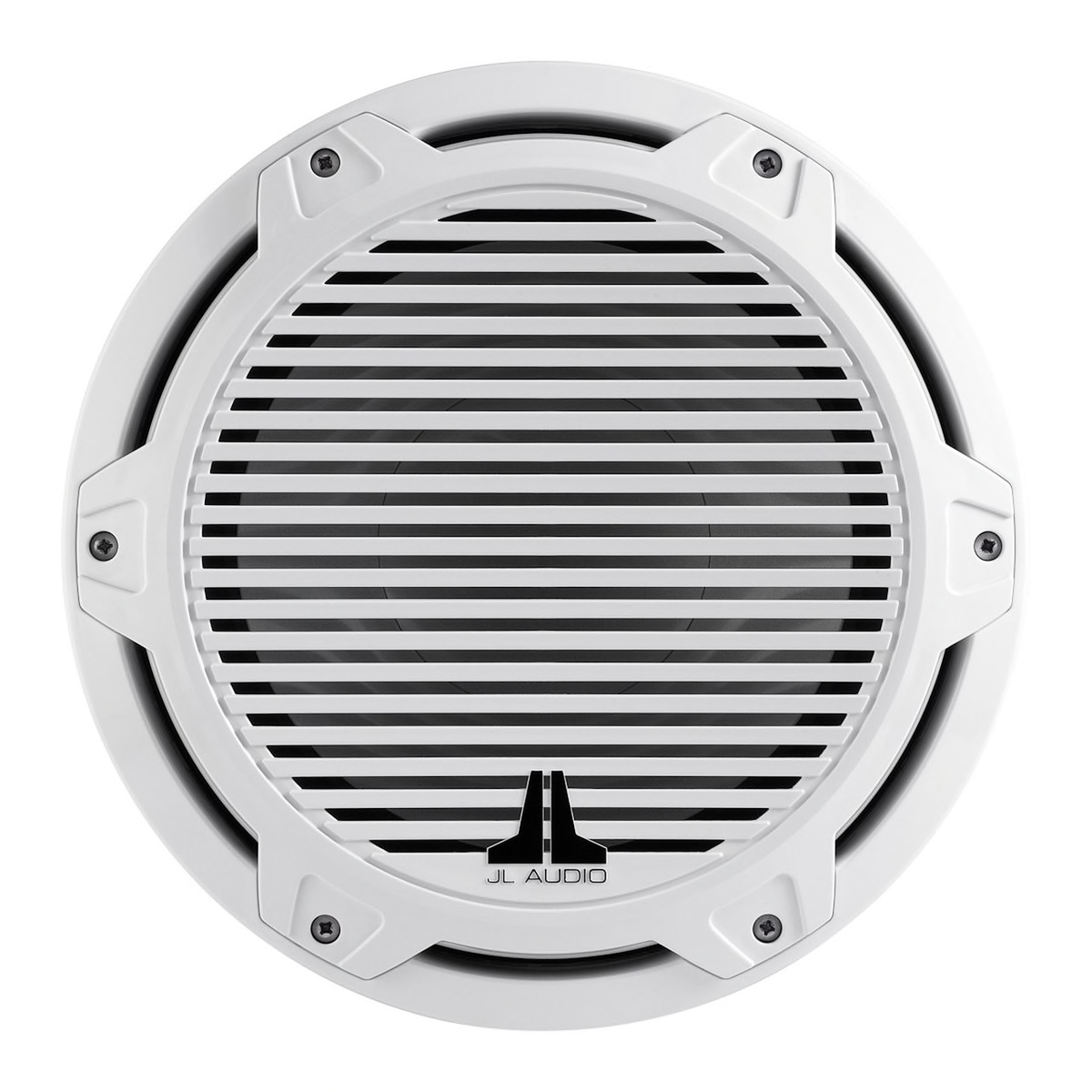

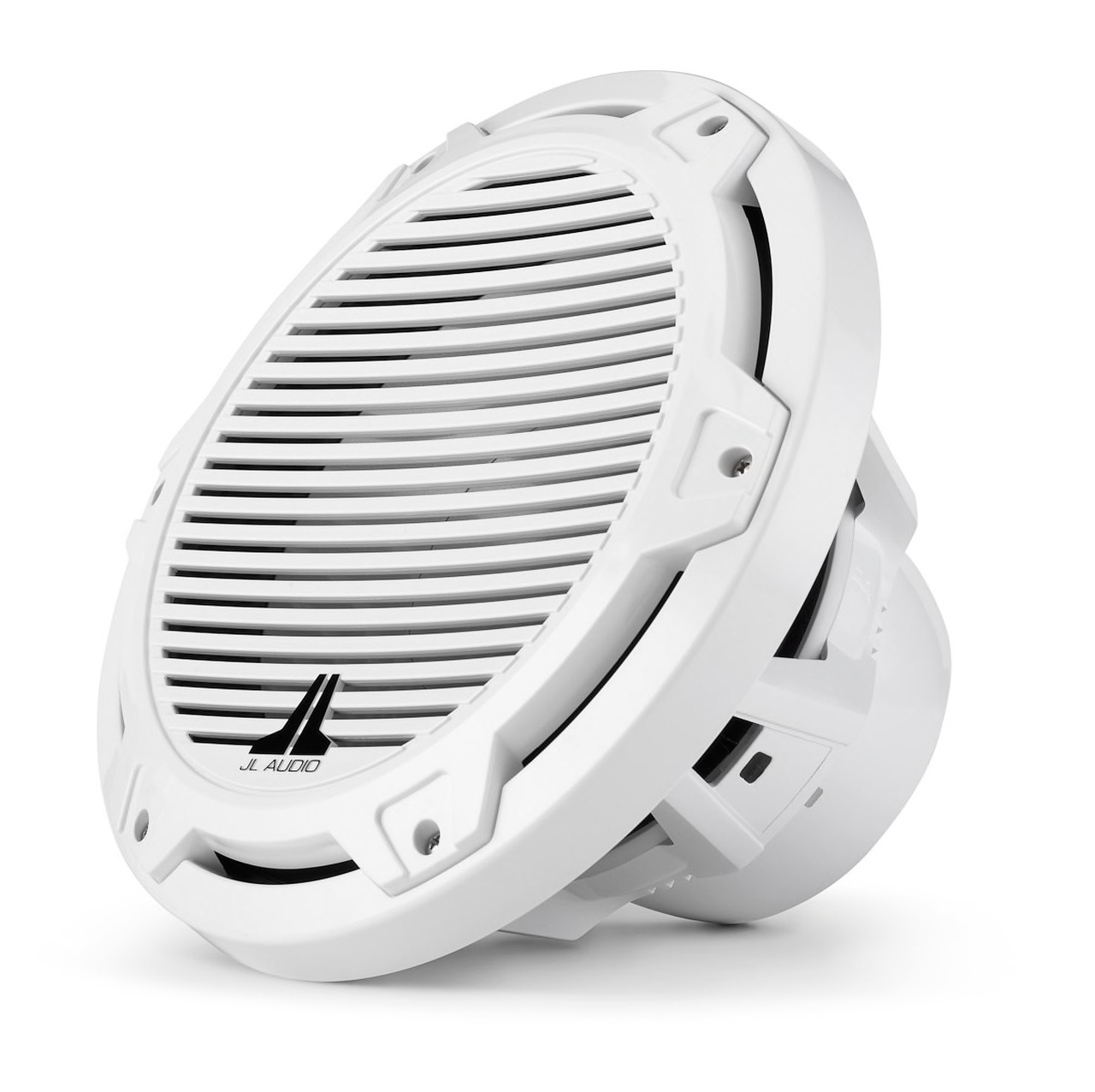

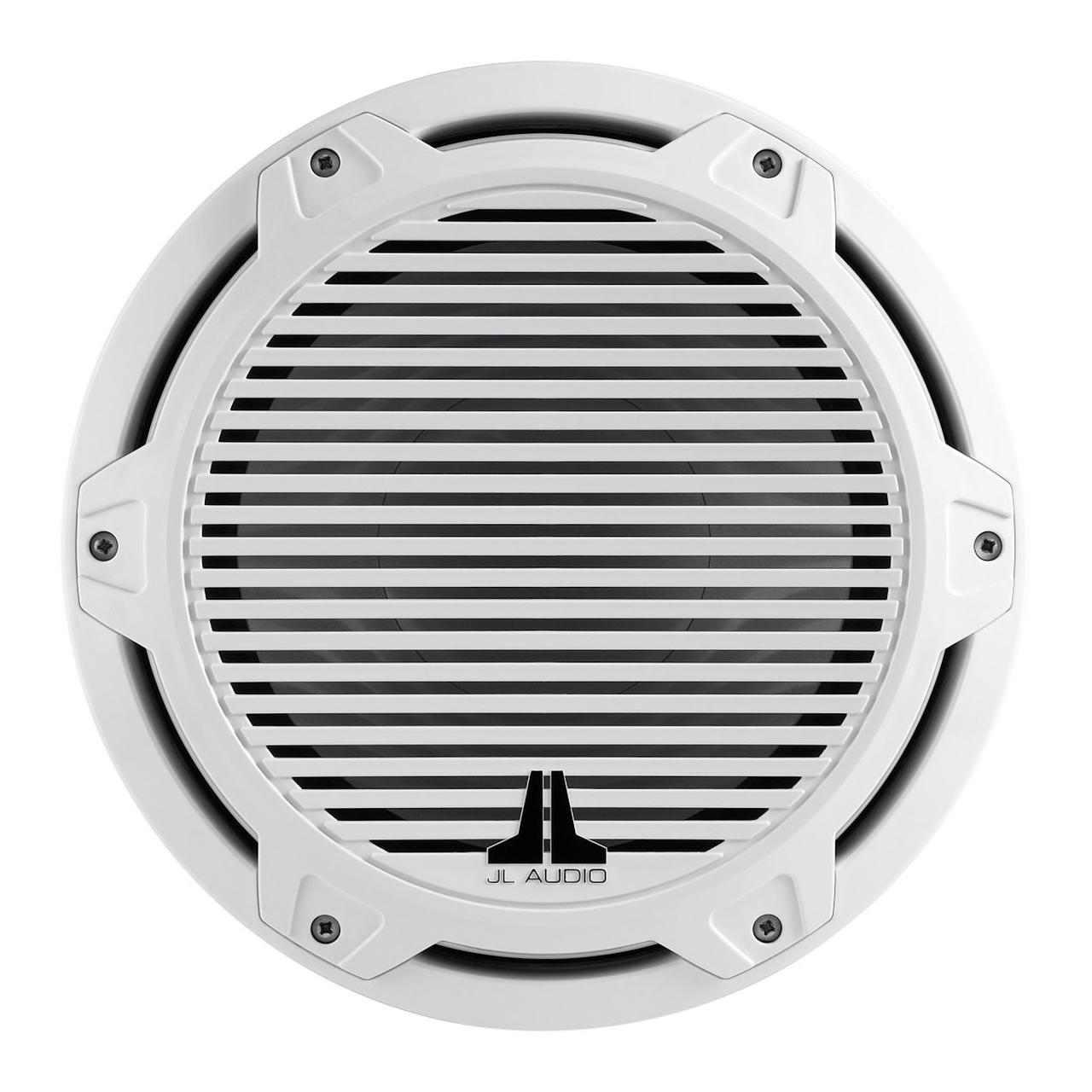

JL Audio MX10IB3-CG-WH, MX Series Marine 10" Subwoofer, 4-Ohm, Infinite Baffle, White Classic Grille, 175W

JL Audio
JL Audio MX10IB3-CG-WH, MX Series Marine 10" Subwoofer, 4-Ohm, Infinite Baffle, White Classic Grille, 175W
Sold Out
JL Audio

JL Audio MX10IB3-CG-WH, MX Series Marine 10" Subwoofer, 4-Ohm, Infinite Baffle, White Classic Grille, 175W

Discontinued Item

To add this product to your wish list you must Login or Register

Not Available for Shiping Outside the United States

Questions? We're here to help.

866-859-0896 ChatEmail Us

PROP 65 WARNING

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

General Features:

  • JL Audio 10" MX Series Infinite Baffle Marine Subwoofer
  • Power Handling:
    • RMS: 175 watts
  • Impedance: 4 ohm
  • Recommended power range: 50 - 175 watts RMS
  • Injection-Molded mica-filled polypropylene cone bodies
  • Synthetic rubber surround specifically formulated with UV inhibitors
  • Marine grade progressive roll synthetic fiber spider
  • Gold-Plated marine-grade brass connection terminals
  • Proprietary Dynamic Motor Analysis (DMA) technology
  • Long linear excursion for enhanced output and reduced distortion
  • Vented motor design with marine-grade, stainless steel rear diffuser plate
  • Specifically engineered Centrex polymer baskets are corrosion & UV-resistant
  • Stainless steel mounting hardware included
  • Efficiency: 87.23 dB
  • Xmax: 11 mm¬†
  • Mounting Depth: 5.12"
  • Cutout Diameter: 8.875 "
  • Minimum Sealed Enclosure Volume: 2.0 cu ft / 56.6 L (or larger)¬†
  • Optimum Sealed Enclosure Volume: 2.5 cu ft / 70.8 L¬†
  • Infinite Baffle Use: Yes¬†
  • Color:¬†White
  • Matching Amplifiers:
    • JL Audio MHX300/1¬†- Ultra-compact Class D Marine Monoblock Amplifier¬†
    • JL Audio M500/3¬†- Class D Marine 3-Channel Amplifier
    • JL Audio M700/5¬†- Class D Marine 5-Channel Amplifier
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Weather resistance Yes
LED Illumination: No

Size

10-inch

Voice Coil

Single

Impedance

4 ohms

RMS Power Rating (Watts)

175

Peak Power Rating (Watts)

350
Cone Material

Mica-Injection Polypropylene Cone

Surround Material

Rubber

Free Air

Yes

Sensitivity

87.23dB

Frequency Response


Top Mount Depth (Inches)

5.12"

Bottom Mount Depth (Inches)


Cutout Diameter (Inches)

8.875"

Vas (liters)


Fs (Hz)


Xmax (millimeters)

11mm

Warranty
1 Year
