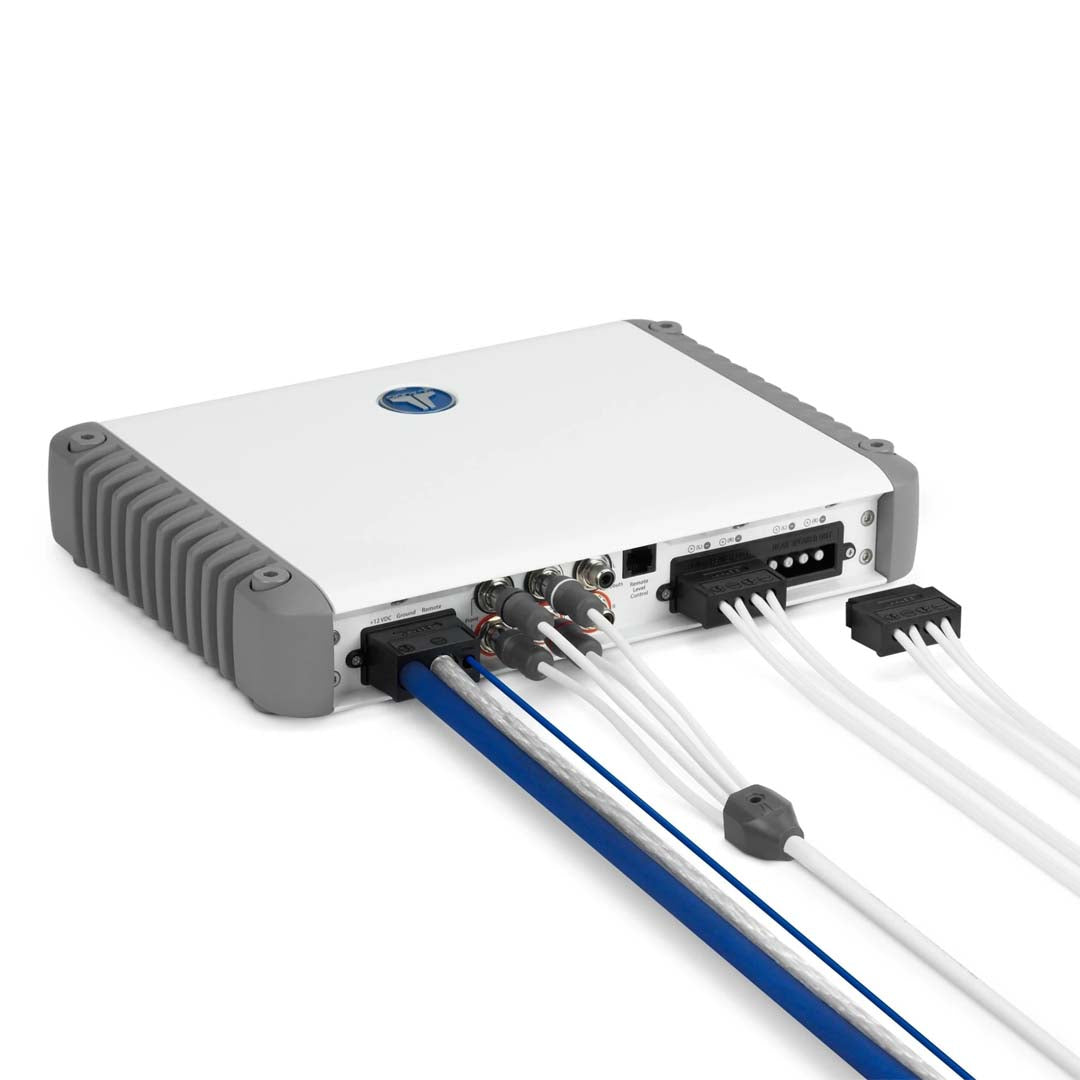

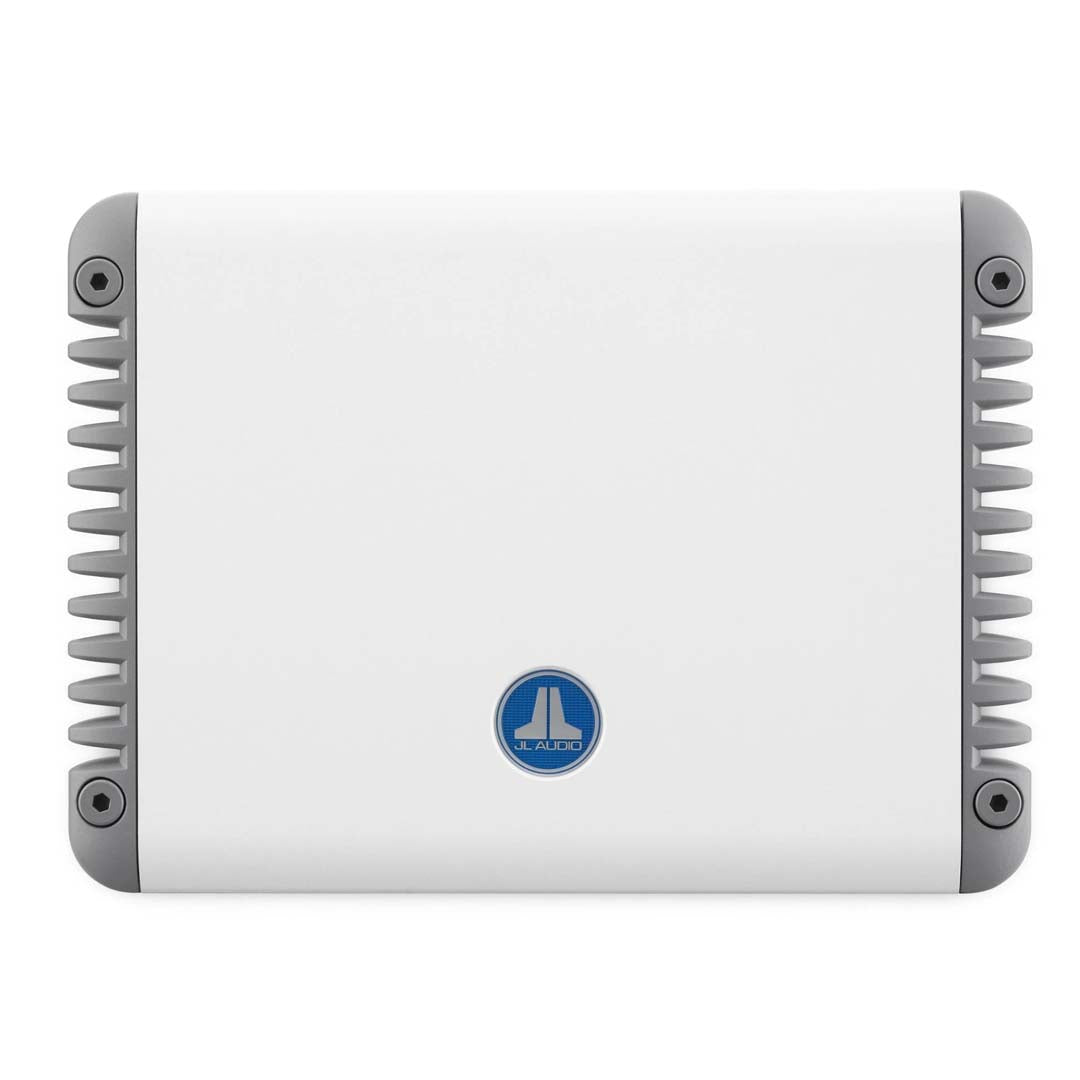

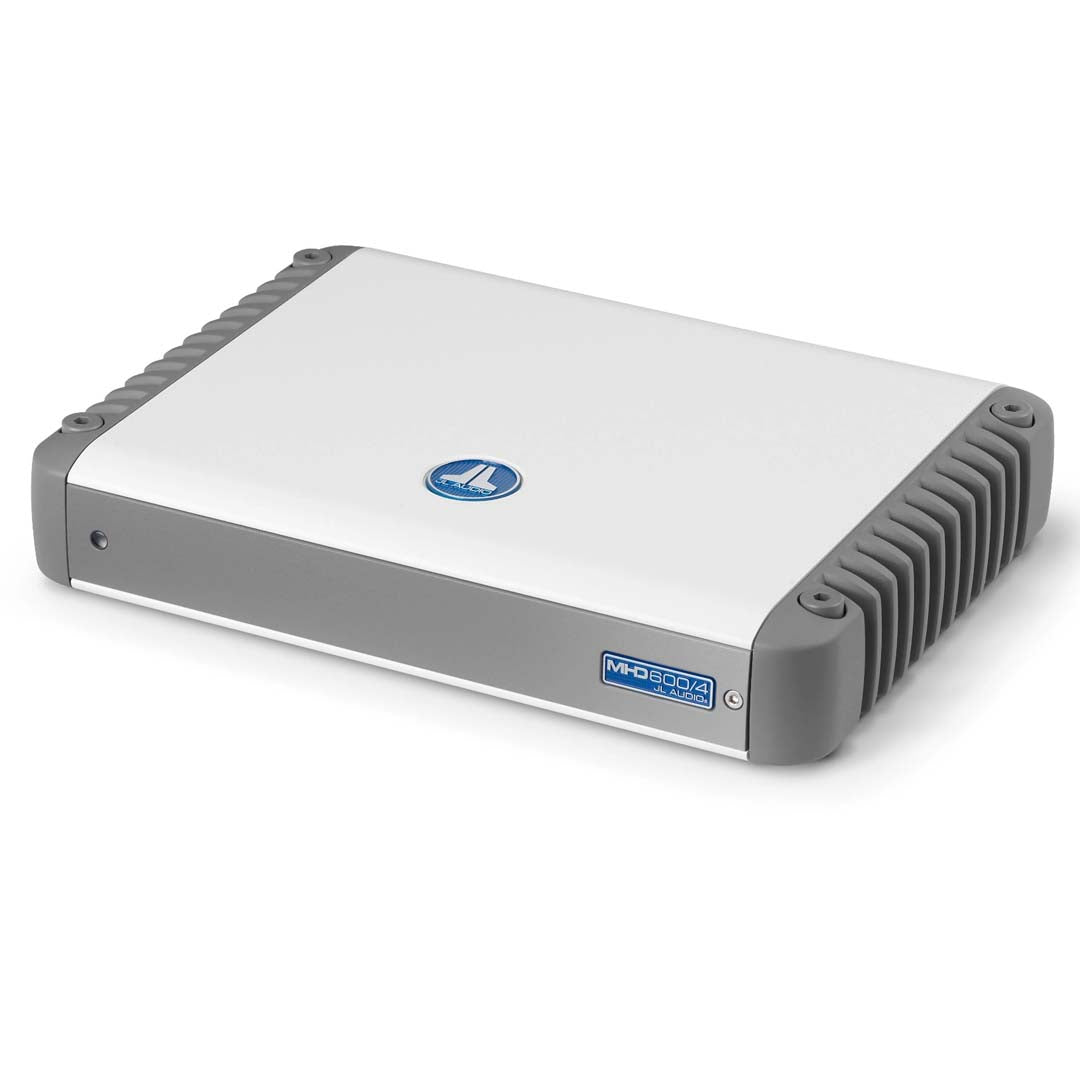

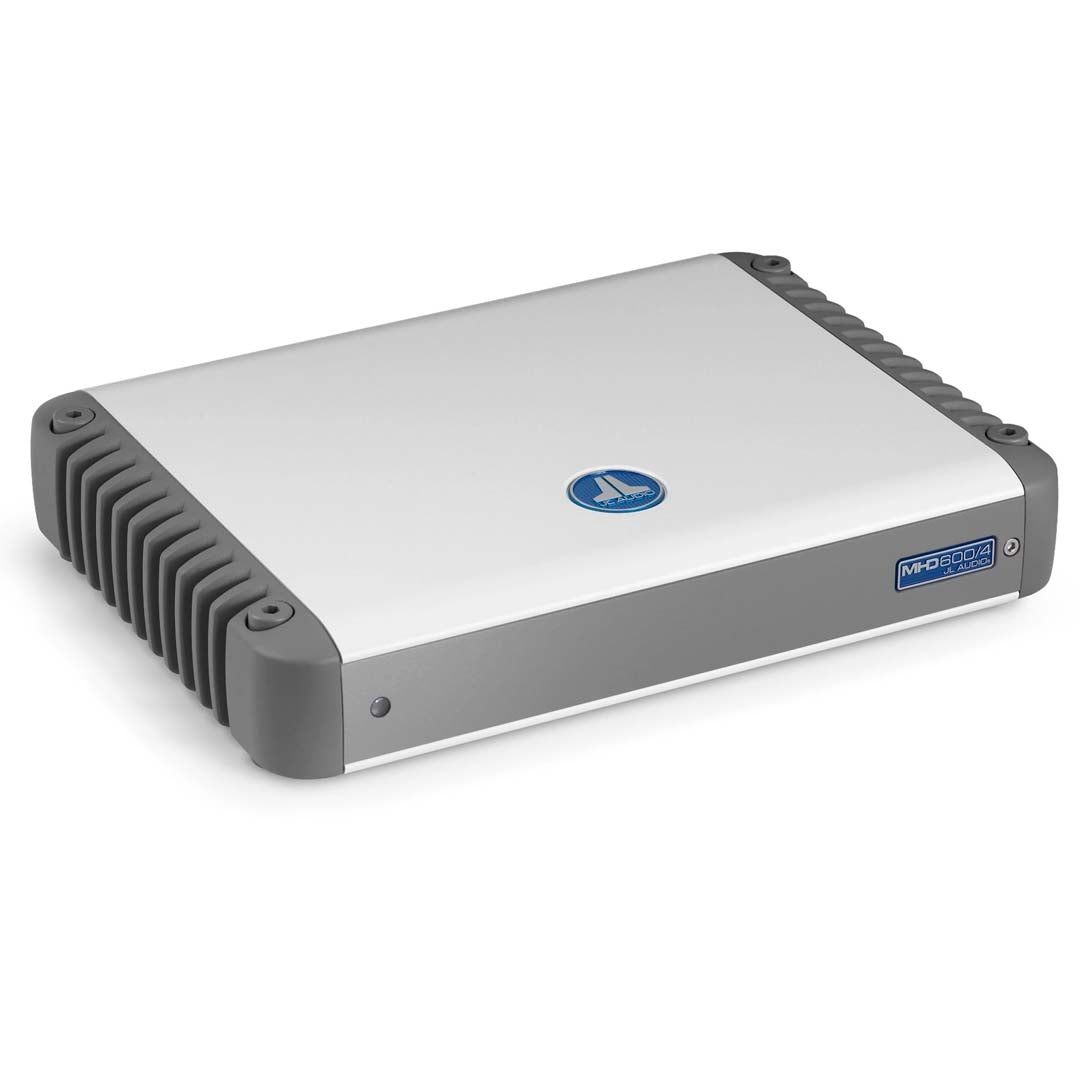

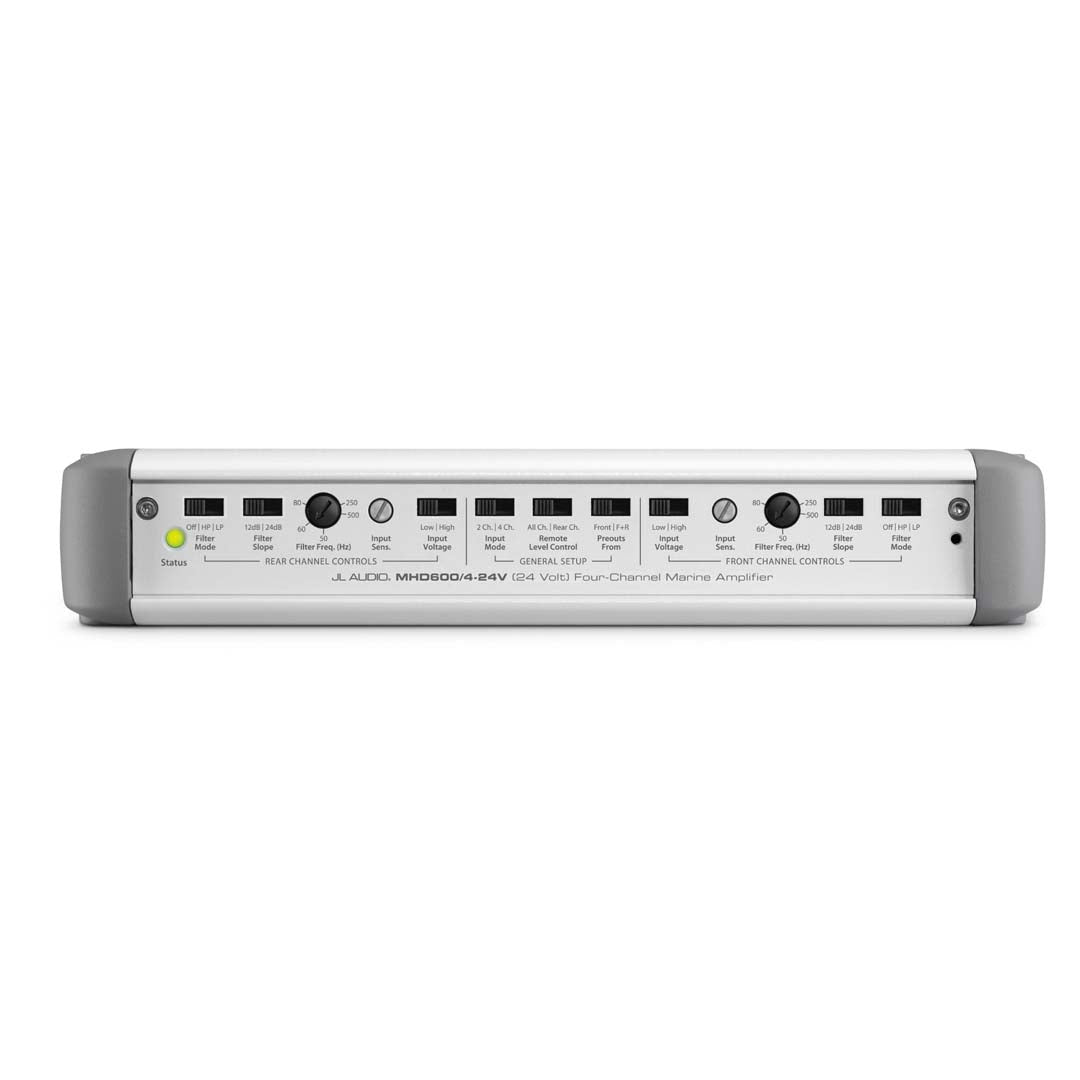

JL Audio MHD600/4-24V, M Series (24-Volt Systems Only) 4-Channel Class D Marine Full-Range Amplifier
JL Audio MHD600/4-24V, M Series (24-Volt Systems Only) 4-Channel Class D Marine Full-Range Amplifier
Out of stock
Choose your location
enter a US zip code
Couldn't load pickup availability
Overview
Overview
This compact, multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality.
The MHD600/4-24V is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. It can also be deployed, on its own, as a very capable 3-channel system amplifier with 150W x 2 to the satellites and 300W x 1 to a subwoofer system.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 V may result in damage to the product and will void the warranty.
Single Cycle Control™
High-Fidelity, full-range Class D is a reality.
R.I.P.S. – Regulated, Intelligent Power Supply
The remarkable R.I.P.S. System ensures consistent power delivery over a wide range of battery voltages and load impedances.
Advanced Rollback Protection
JL Audio's exclusive Advanced Rollback Protection circuit monitors the amplifier's thermal condition and adjusts amplifier operation to eliminate annoying amplifier shut-down events.
RealSink™
Vertical, cast alloy fins effectively dissipate heat, without resorting to noisy fan-cooling.
HD Mounting Options
Two mounting options plus a space-saving stacking feature ease installation.
Features & Specifications
Features & Specifications
| Weather Resistance | Yes |
|
Number of Channels |
4 |
|
Class |
D |
|
Peak Power Rating (Watts) |
|
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
150 x 4 |
|
RMS Power Rating (Watts x Channels) - 2 Ohms |
150 x 4 |
| RMS Power Rating - Bridged | 300 x 2 |
| Minimum Impedance Unbridged (Ohms) |
1.5 |
| Minimum Impedance Bridged (Ohms) |
3 |
| THD at Rated RMS Power |
1% |
| Bulit-in Crossover - Low Pass |
Yes |
| Built-in Crossover - High Pass |
Yes |
| High Pass Crossover Frequency (Hz) |
50-5000Hz |
| Low Pass Crossover Frequency (Hz) |
50-500Hz |
| Signal-to-Noise Ratio |
104dB |
| Bass Boost |
No |
| Bass Remote Included |
No |
| Fuse Rating | 80A |
| CEA-2006 Compliant | Yes |
| Maximum Power Wire Gauge Size | 4 Gauge |
| Warranty | 1 Year |
