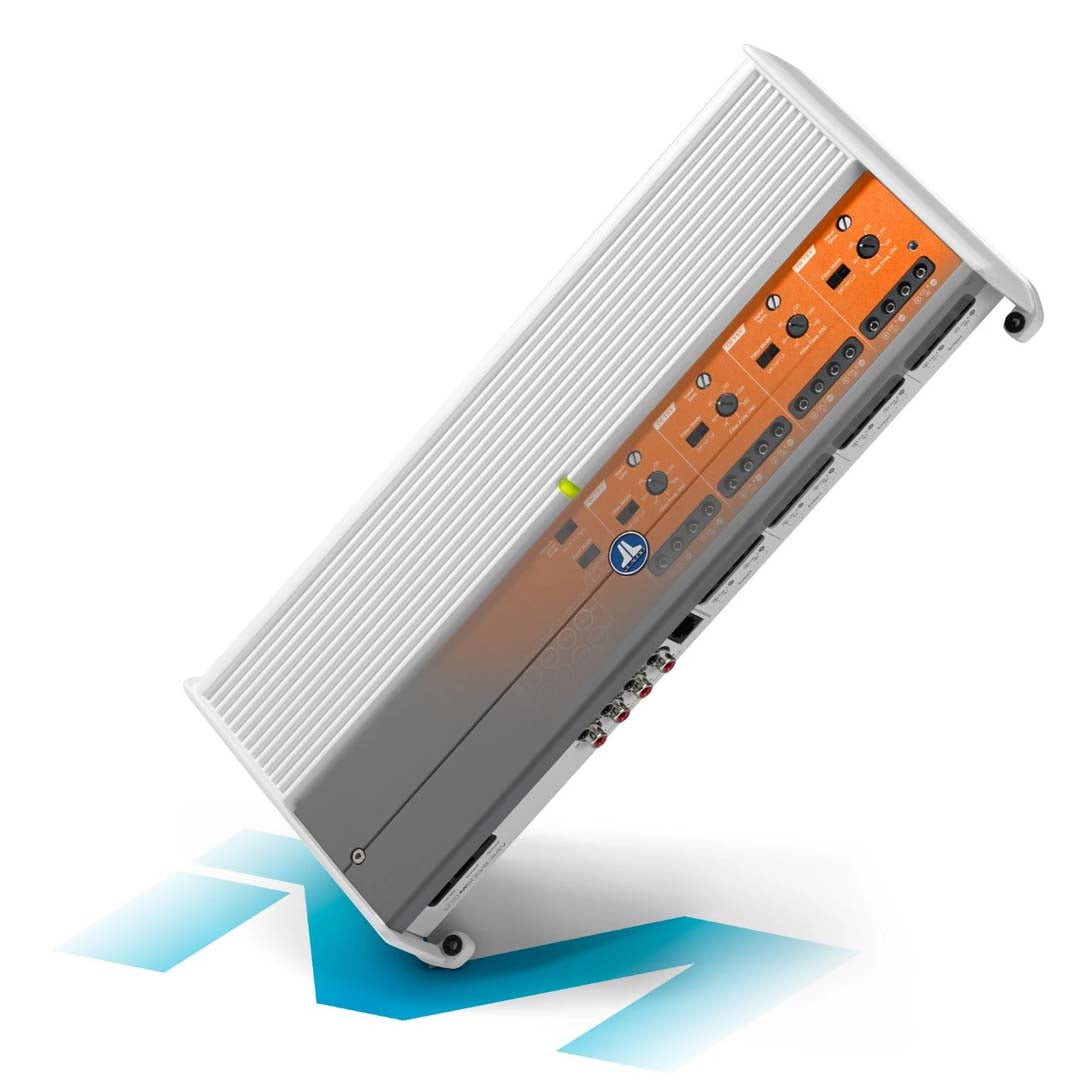

For 24V systems only: 8-Channel Class D Marine Full-Range Amplifier, 100 W x 8 @ 2 Ω / 75 W x 8 @ 4 Ω - 28.8V

This incredibly flexible amplifier packs a serious full-range punch and delivers a staggering 100 watts to each of its eight channels into 2 ohms (28.8V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD‚Ñ¢ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.

Use it in one of many useful configurations:

• Eight-channel Satellite Amp: drive four pairs of speakers with 75 W x 8

• Six-Channel System Amp: drive front and rear satellites with 75 W x 4 @ 4Œ©, plus two 4Œ© subwoofers with 200 W each

• Staggered Six-Channel Satellite Amp: drive two speakers with 200 W x 2 @ 4Œ©, plus four 4Œ© speakers with 75 W each

• Big Four-Channel Satellite Amp: bridge to produce 200W x 4 @ 4Œ©

• Four-Channel System Amp: drive left and right speakers with 200W x 2 @ 4Œ©, plus two 4Œ© subwoofers with 200W each

The M800/8-24V includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an HD-RLC remote level control (sold separately), you have the ability to control the level of two, four, or all eight of the amplifier's channel levels from the driver's seat.

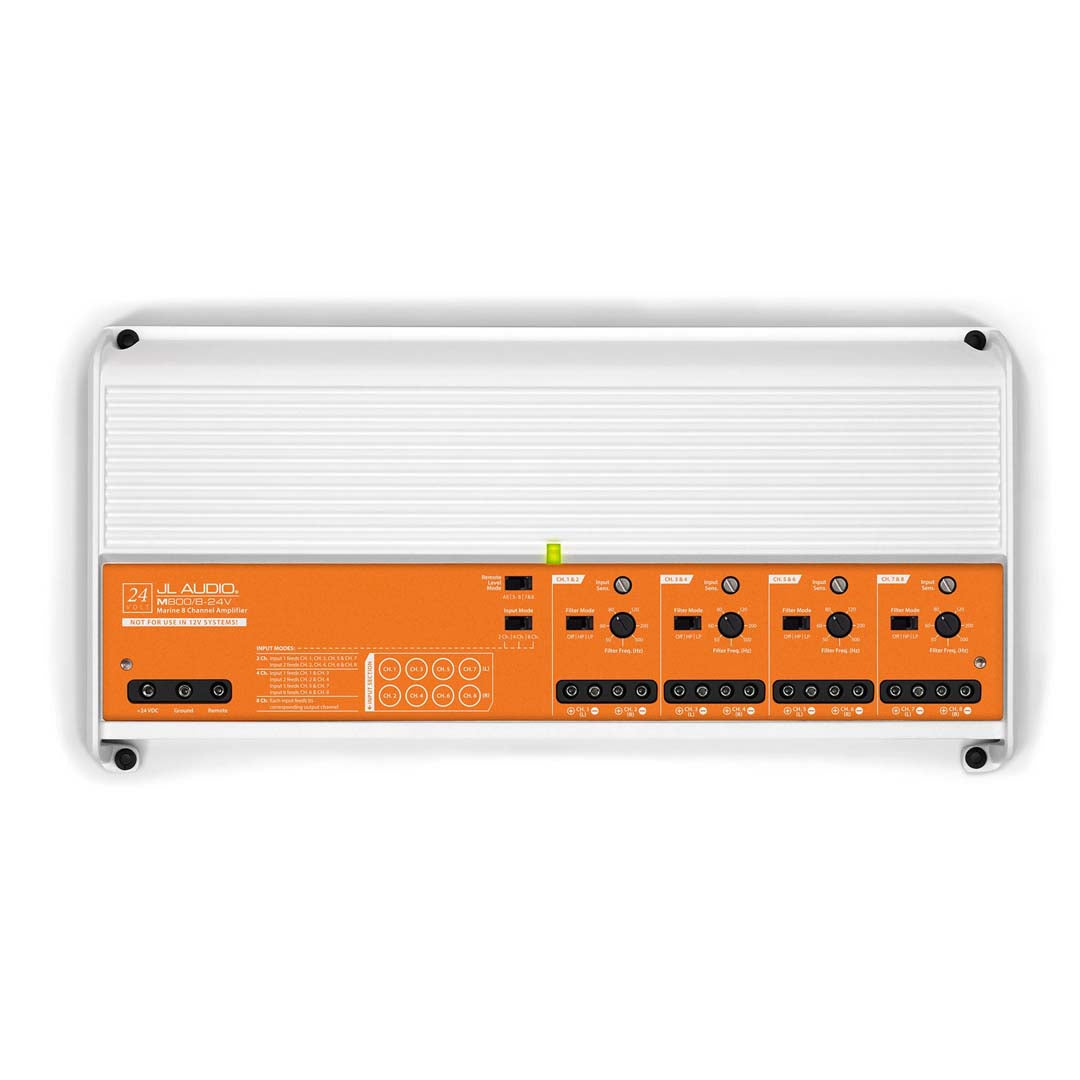

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 V may result in damage to the product and will void the warranty.

General Features:

• JL Audio M Series 8-Channel Class D Full-Range Marine Amplifier
• For 24 Volt Systems only, not meant for use in 12V systems
• RMS Power Rating (28.8V):
• 4 ohms: 75 watts x 8 chan.
• 2 ohms: 100 watts x 8 chan.
• Bridged, 4 ohms: 200 watts x 4 chan.
• RMS Power Rating (25V):
• 4 ohms: 60 watts x 8 chan.
• 2 ohms: 90 watts x 8 chan.
• Bridged, 4 ohms: 180 watts x 4 chan.
• NexD technology features unsurpassed efficiency
• Pulse Width Modulated MOSFET power supply
• Remote bass level input (JL Audio HD-RLC¬†required and sold separately)
• LED power (green) and protect (red) indicators
• Soft Start Turn-on
• 8/6/4/2 channel operation
• Total amplifier efficiencies exceed 80%
• Advanced Thermal Rollback System completely eliminates annoying thermal shut-down events

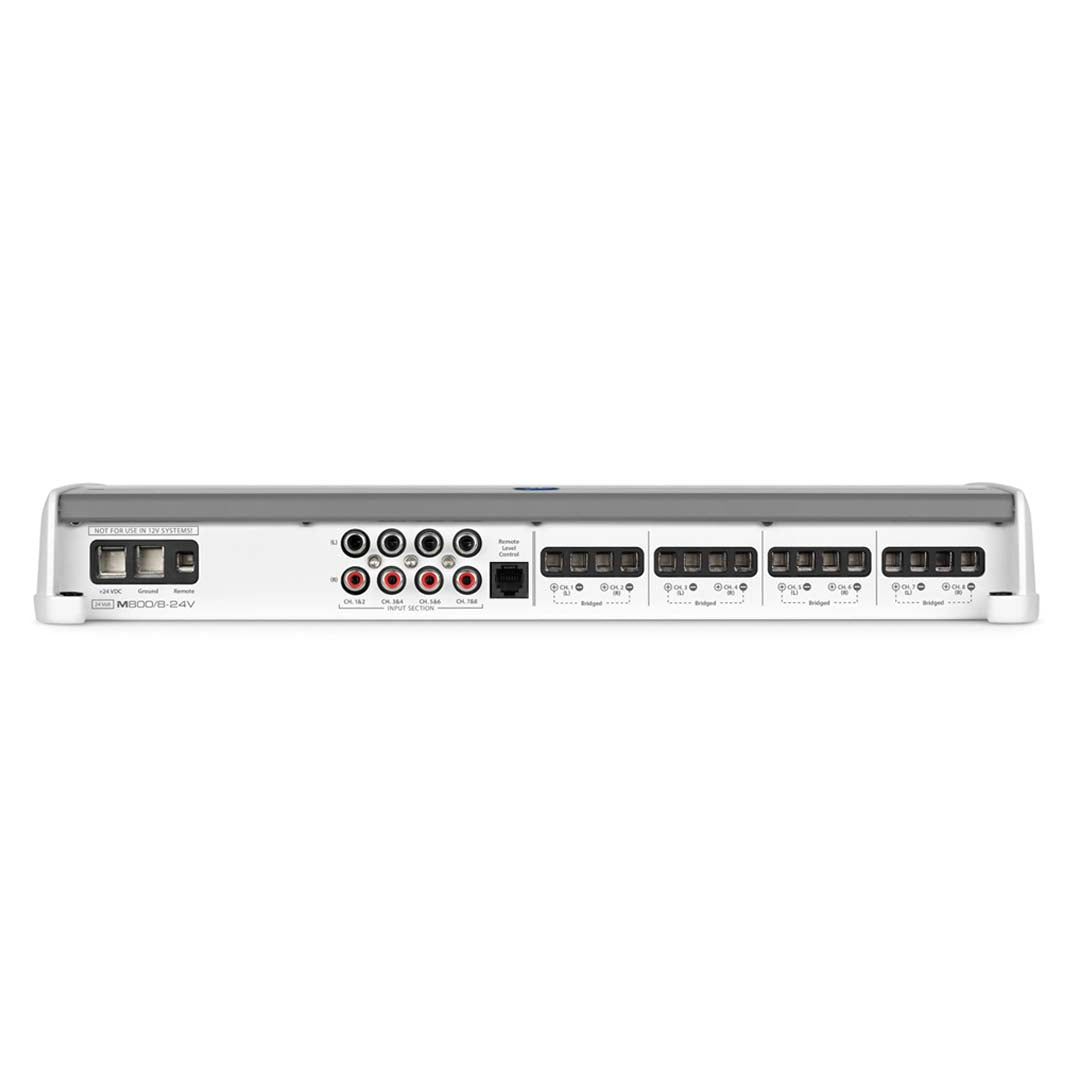

• Preamp RCA outputs to daisy chain multiple amps
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
• Studio-grade signal processing with fully variable crossover filters
• Differential input circuitry effectively combats alternator whine and other noises created by boat systems
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• Silver-plated RCA level inputs
• Silver-plated screw terminals
• Input sensitivity:¬†
• Level: 200mV-2V
• Variable high-pass filter: (50-500 Hz, 12 dB/octave Butterworth)
• Variable low-pass filter: (50-500 Hz, 12 dB/octave Butterworth)
• Damping factor: >150 @ 4 ohms per chan./50 Hz
• Frequency response: 12-22,000 Hz
• Dimensions: 7.09"L¬†x 14.73"W¬†x 2.05"H
• 4-Gauge Copper power and ground wiring is required for installation.
