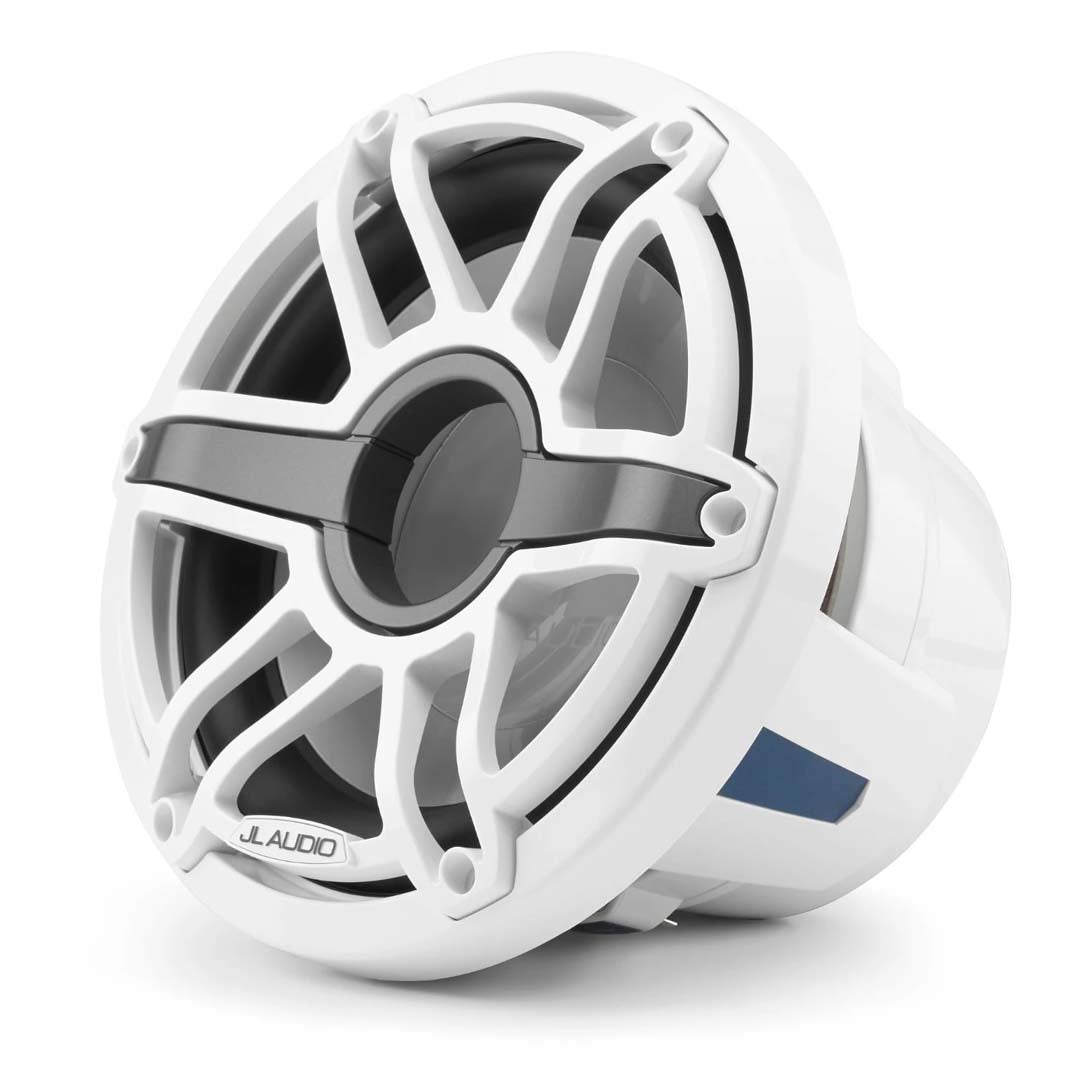

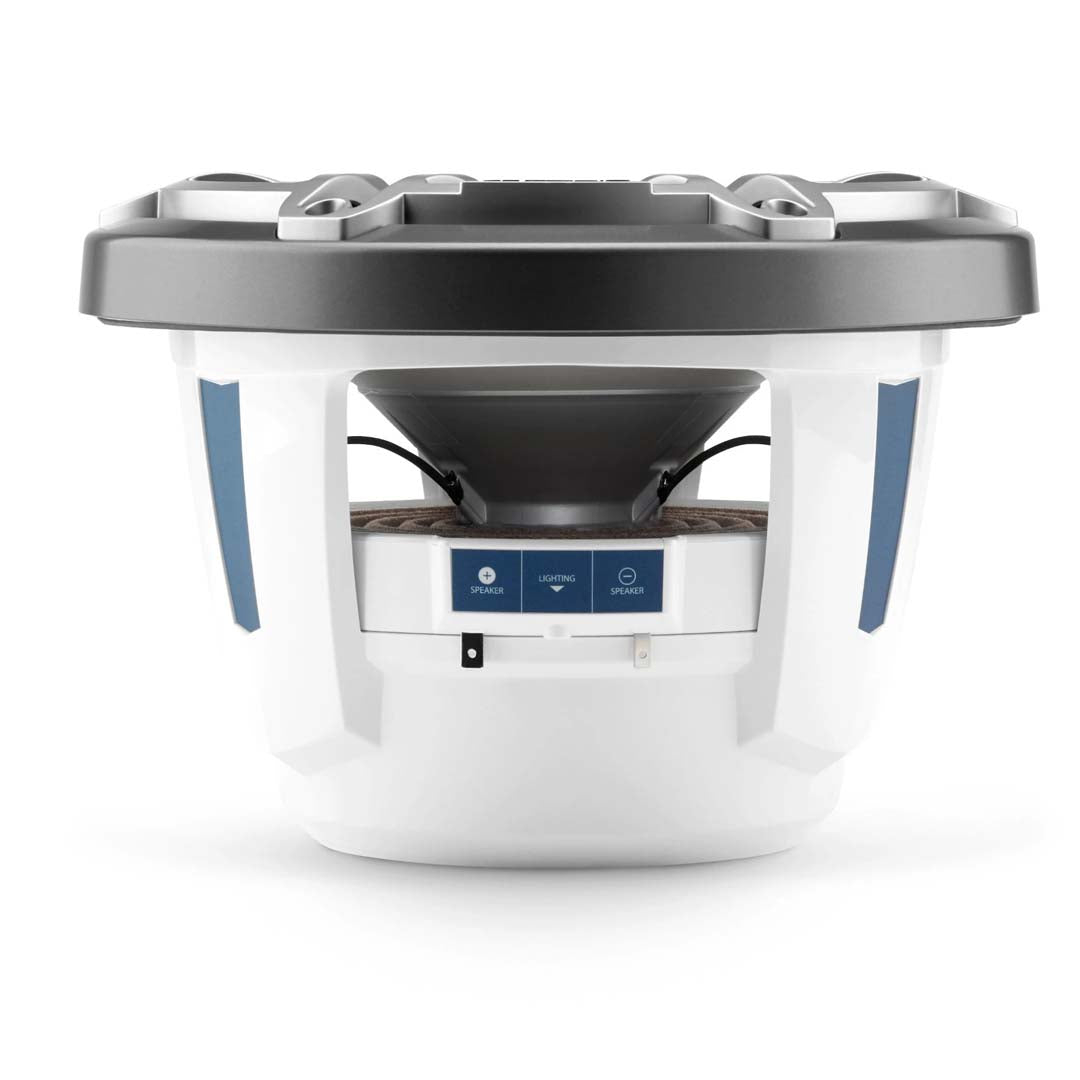

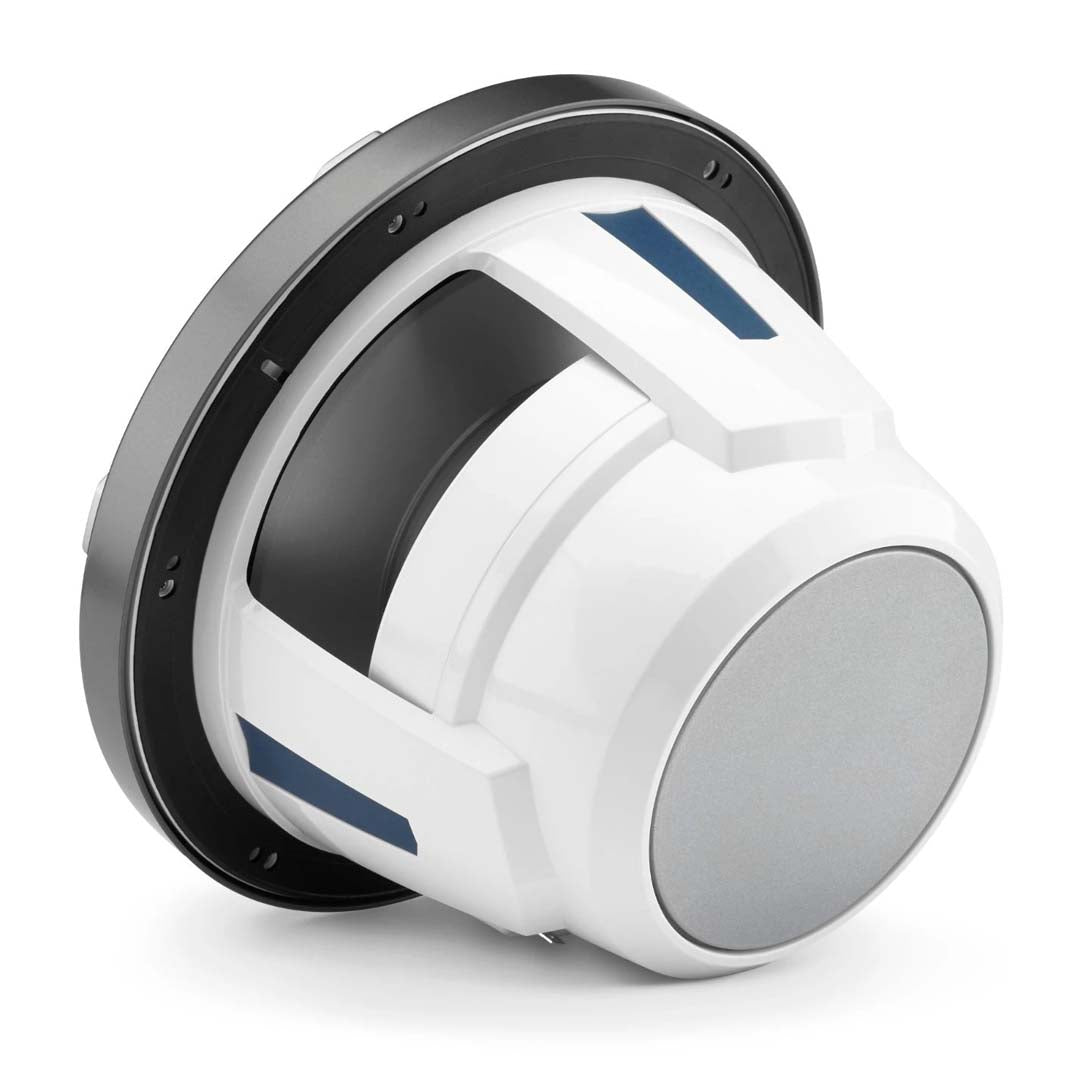

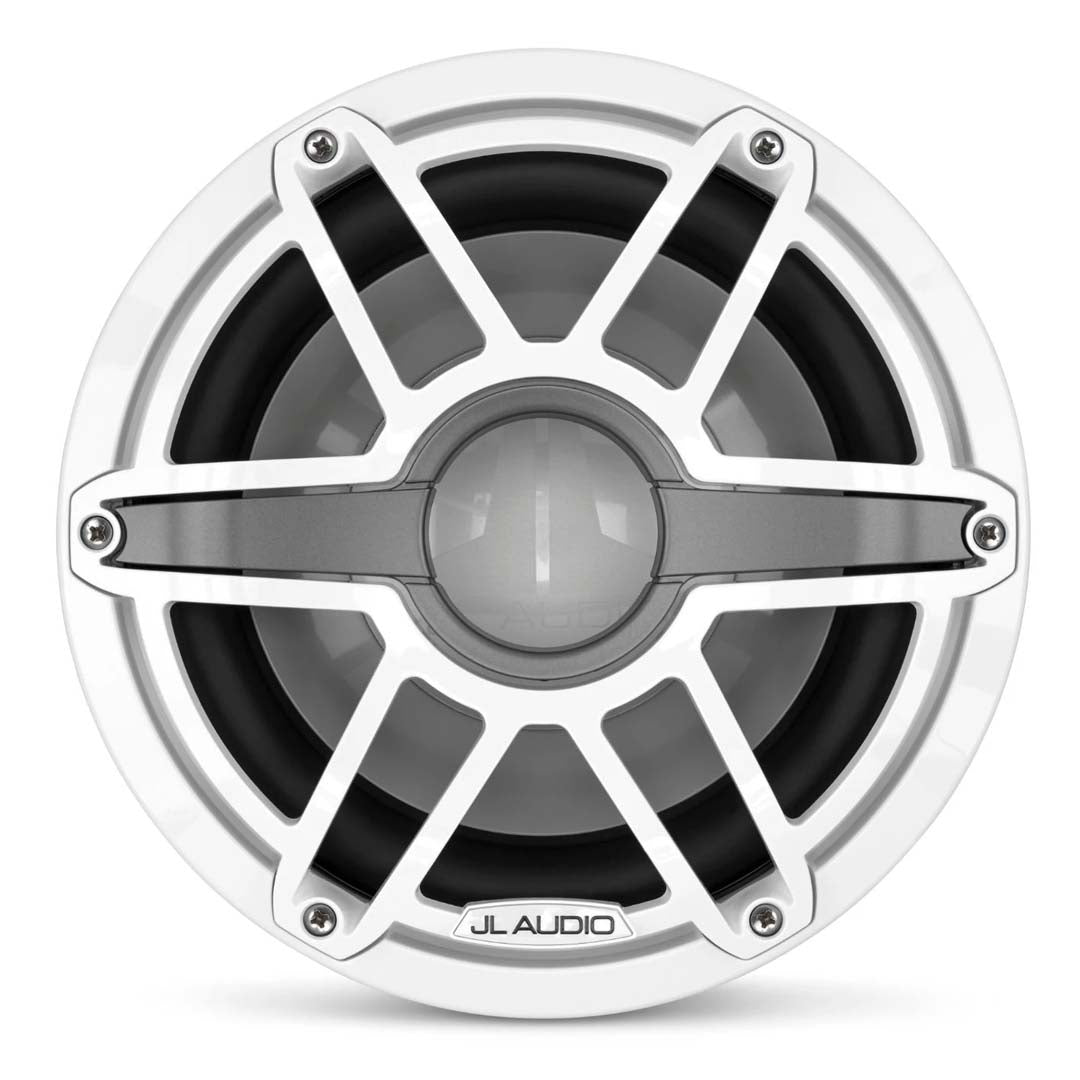

JL Audio M6-10IB-S-GwGw-4, M6 Series 10" Single 4 Ohm Infinite Baffle Marine Subwoofer Driver
JL Audio M6-10IB-S-GwGw-4, M6 Series 10" Single 4 Ohm Infinite Baffle Marine Subwoofer Driver
Not Available for Shiping Outside the United States
Questions? We're here to help.
866-859-0896 ChatEmail UsWith appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.
Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.
The M6-10IB is best used with amplifier power in the 75W - 250W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a Subwoofer that operates in a small sealed enclosure, select our M6-10W, instead.
Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
Marine Materials / Testing
The design of marine products requires extensive materials testing to achieve reliability and longevity.

Built in U.S.A. with Global Components
JL Audio's Miramar, Florida loudspeaker production facility is one of the most advanced in the world.

Weather resistance | Yes |
LED Illumination: | No |
Size |
10-inch |
Voice Coil |
Single |
Impedance |
4 ohms |
RMS Power Rating (Watts) |
250 |
Peak Power Rating (Watts) |
500 |
Cone Material |
Mica-Injection Polypropylene Cone |
Surround Material |
Rubber |
Free Air |
Yes |
Sensitivity |
86.1dB |
Frequency Response |
|
Top Mount Depth (Inches) |
5.90" |
Bottom Mount Depth (Inches) |
|
Cutout Diameter (Inches) |
8.875" |
Vas (liters) |
15.29 L |
Fs (Hz) |
43.76Hz |
Xmax (millimeters) |
13.2mm |
Warranty |
1 Year |
