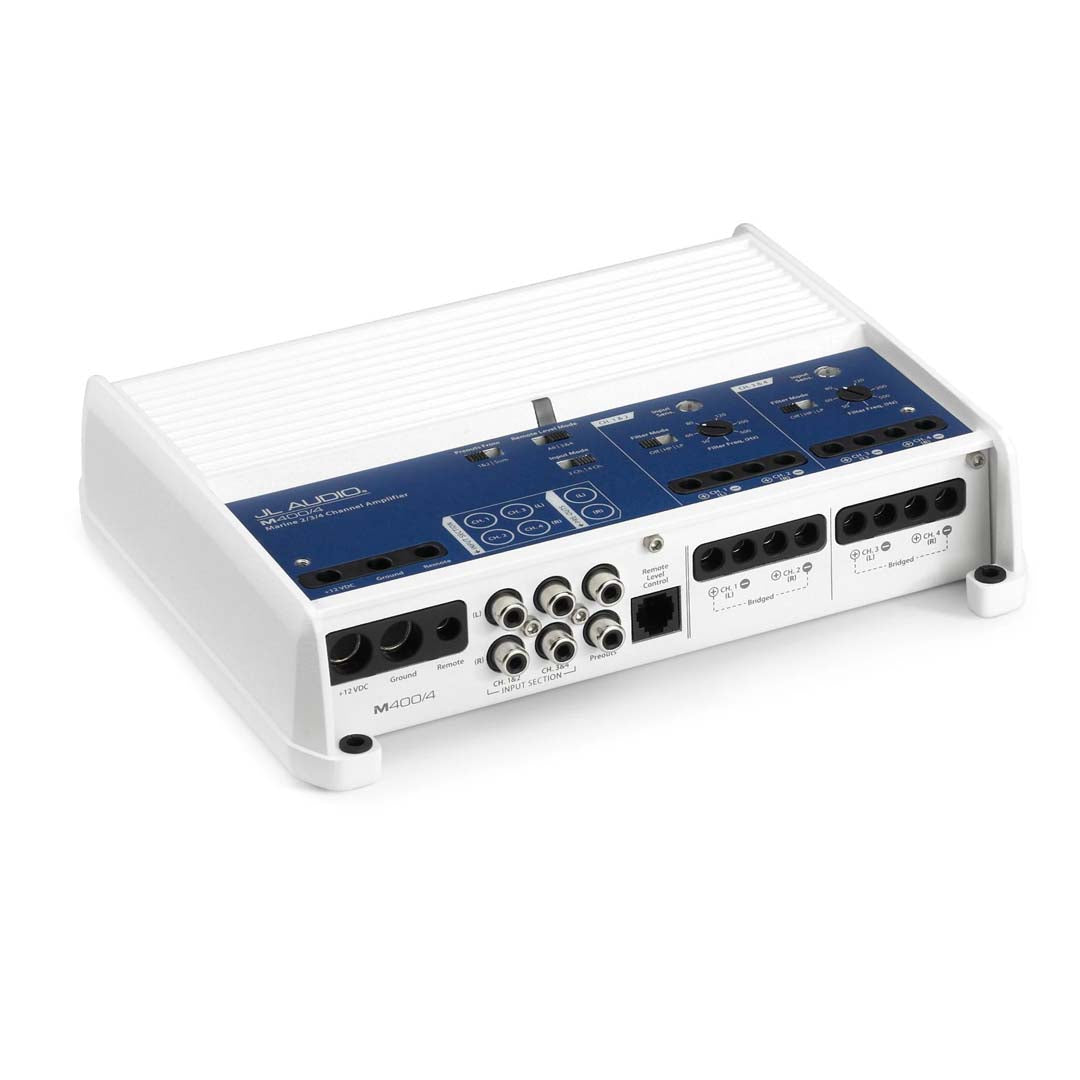

JL Audio M400/4, M Series Class D Marine Full Range 4-Ch Amplifier
Not Available for Shiping Outside the United States
Questions? We're here to help.
866-859-0896 ChatEmail UsThis tiny amplifier packs a serious full-range punch, delivering a staggering 100 watts to each of its four channels into 2 Ω (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.
Use the M400/4 in combination with our M600/1 monoblock to build a 1000 W amplification system to power four satellites and a subwoofer... and fit the whole thing under a seat. Or, use the M400/4 by itself to power two satellites, plus a subwoofer. With M-Series amplifier, the possibilities are endless.

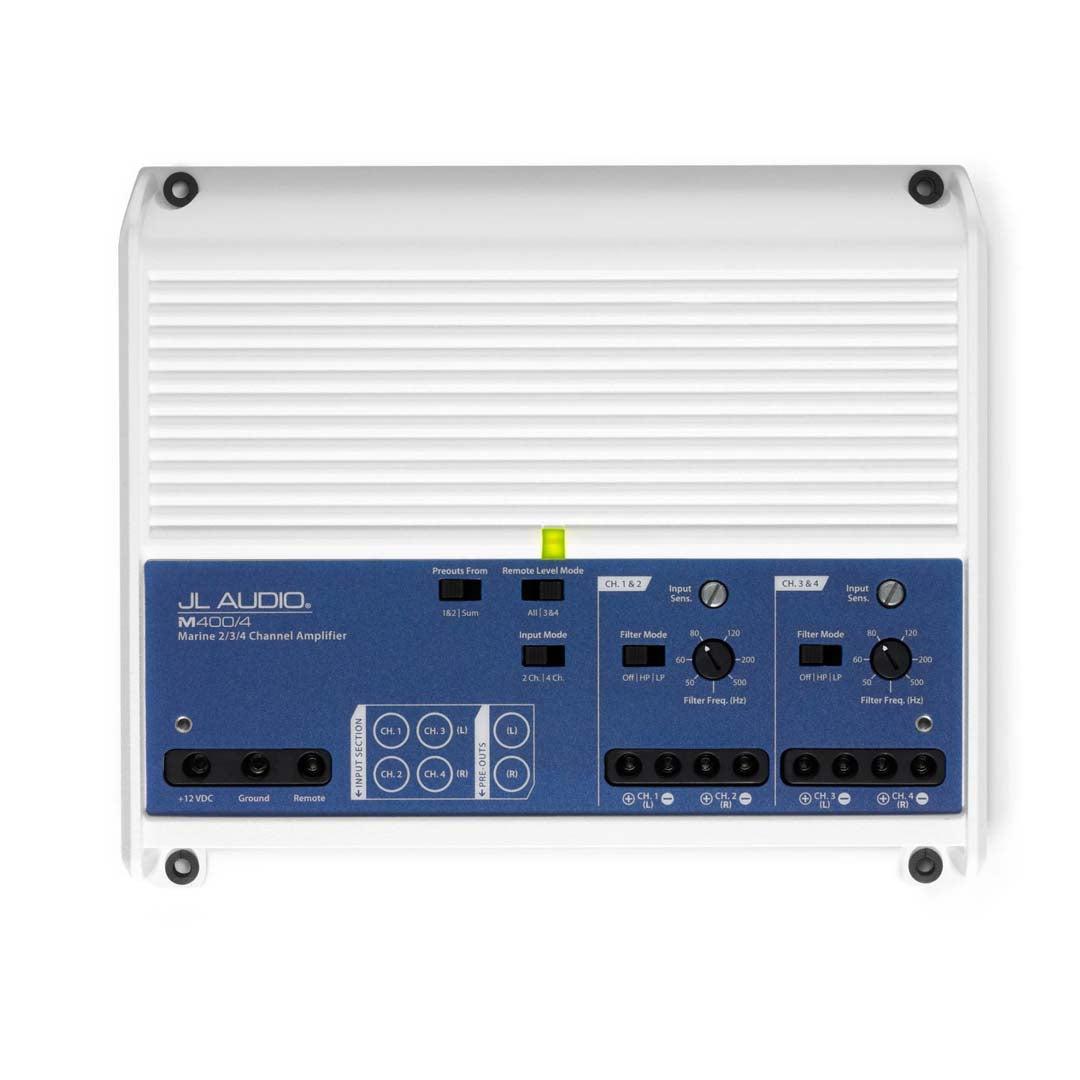

The M400/4 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an HD-RLC remote level control (sold separately), the amplifier's Ch. 1 & 2 level or overall level can be directly controlled from a remote location.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
Advanced Rollback Protection
JL Audio's exclusive Advanced Rollback Protection circuit monitors the amplifier's thermal condition and adjusts amplifier operation to eliminate annoying amplifier shut-down events.

NexD™ Switching Technology
NexD™ amplifier technologies produce exceptional audio quality, unsurpassed total efficiency and high power from very compact amplifier designs.

Weather Resistance | Yes |
Number of Channels |
4 |
Class |
D |
Peak Power Rating (Watts) |
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
75 x 4 |
RMS Power Rating (Watts x Channels) - 2 Ohms |
100 x 4 |
RMS Power Rating - Bridged | 200 x 2 |
Minimum Impedance Unbridged (Ohms) |
2 |
Minimum Impedance Bridged (Ohms) |
4 |
THD at Rated RMS Power |
1% |
Bulit-in Crossover - Low Pass |
Yes |
Built-in Crossover - High Pass |
Yes |
High Pass Crossover Frequency (Hz) |
50-500Hz |
Low Pass Crossover Frequency (Hz) |
50-500Hz |
Signal-to-Noise Ratio |
104dB |
Bass Boost |
No |
Bass Remote Included |
No |
Fuse Rating | 40A |
CEA-2006 Compliant | Yes |
Maximum Power Wire Gauge Size | 4 Gauge |
Warranty | 1 Year |
