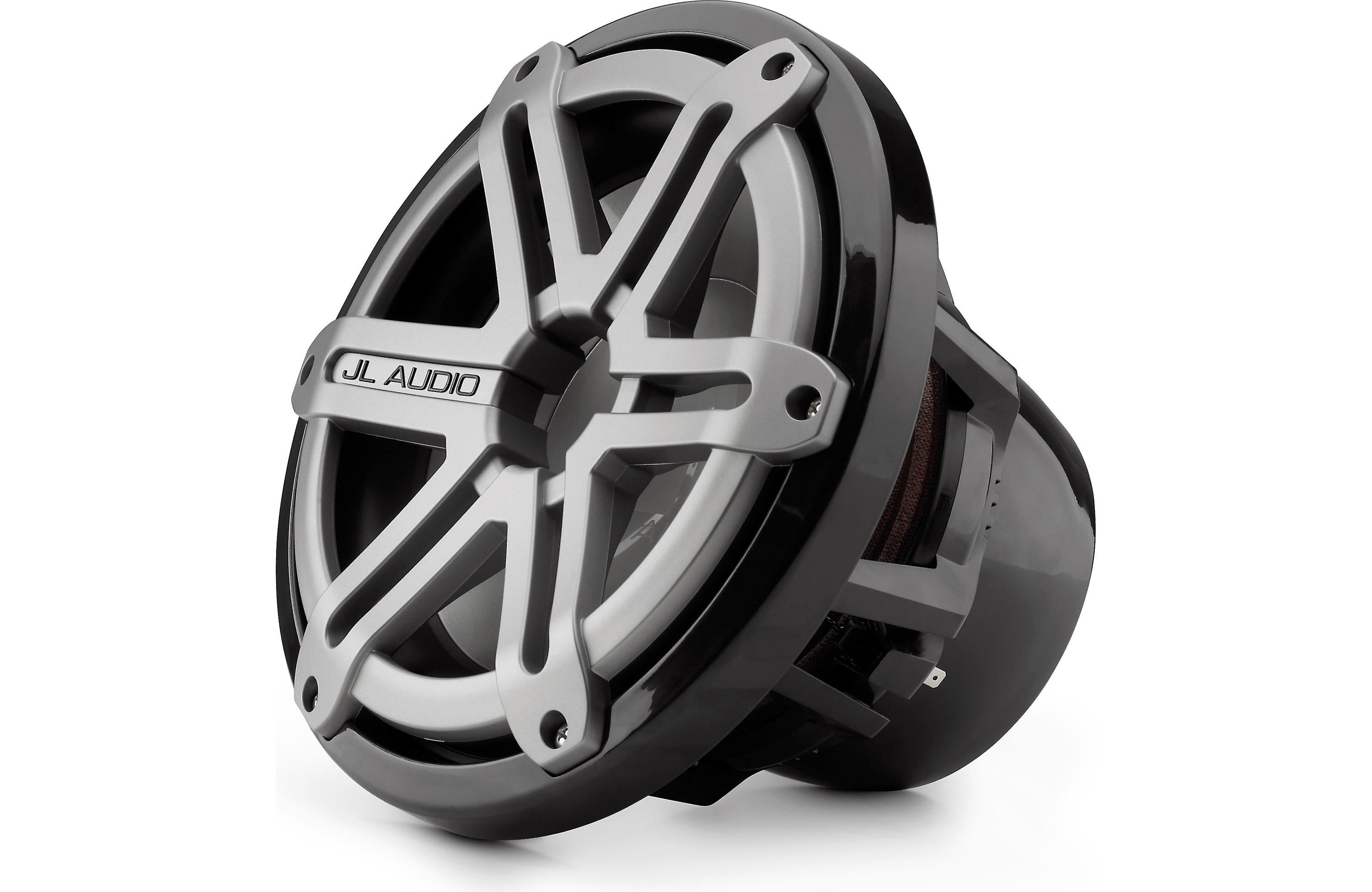

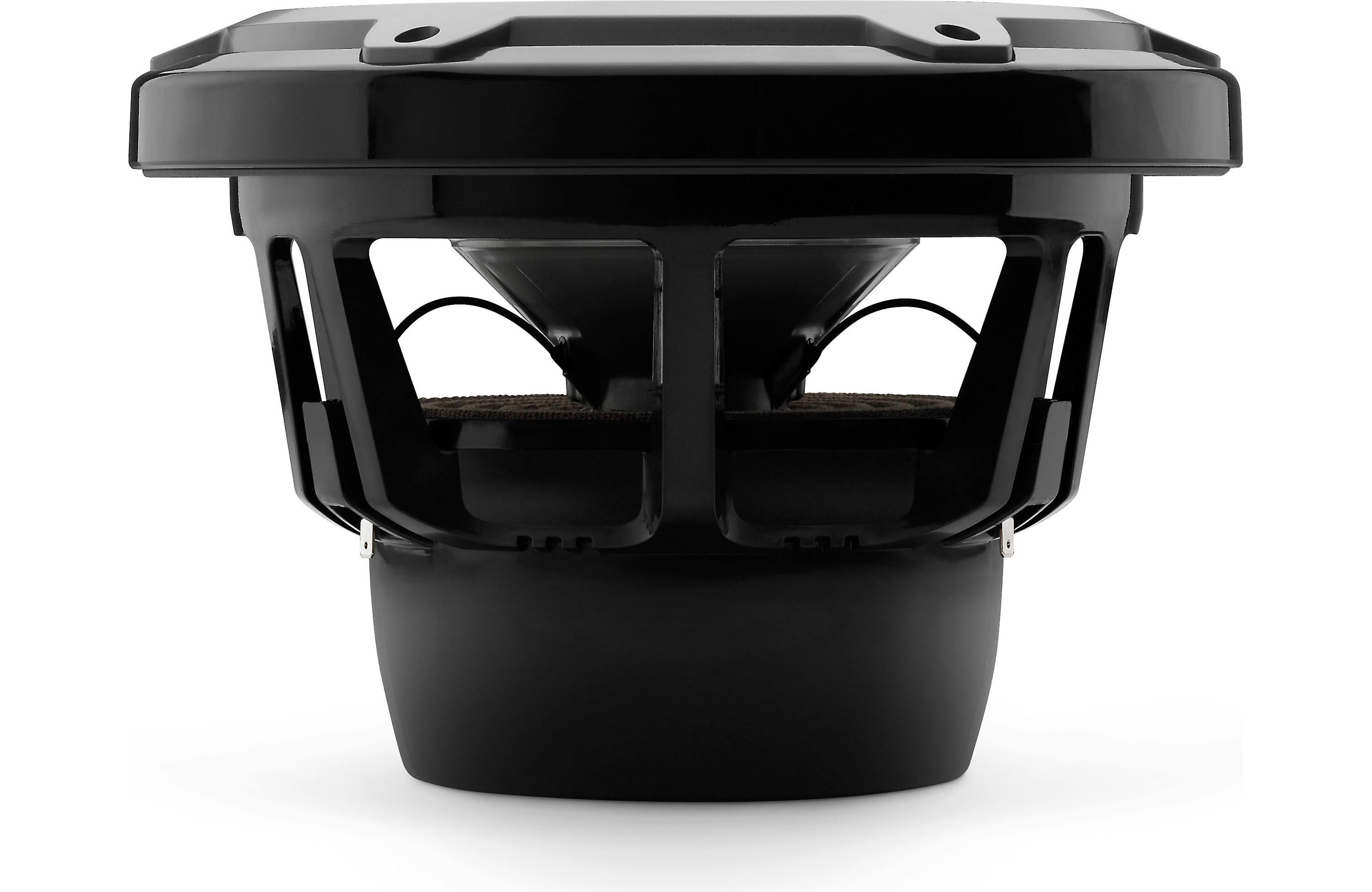

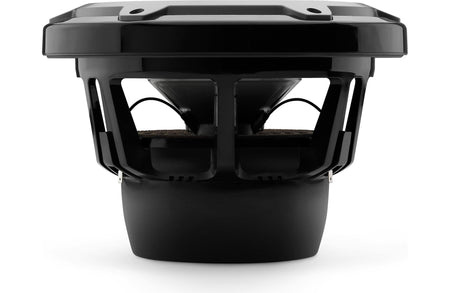

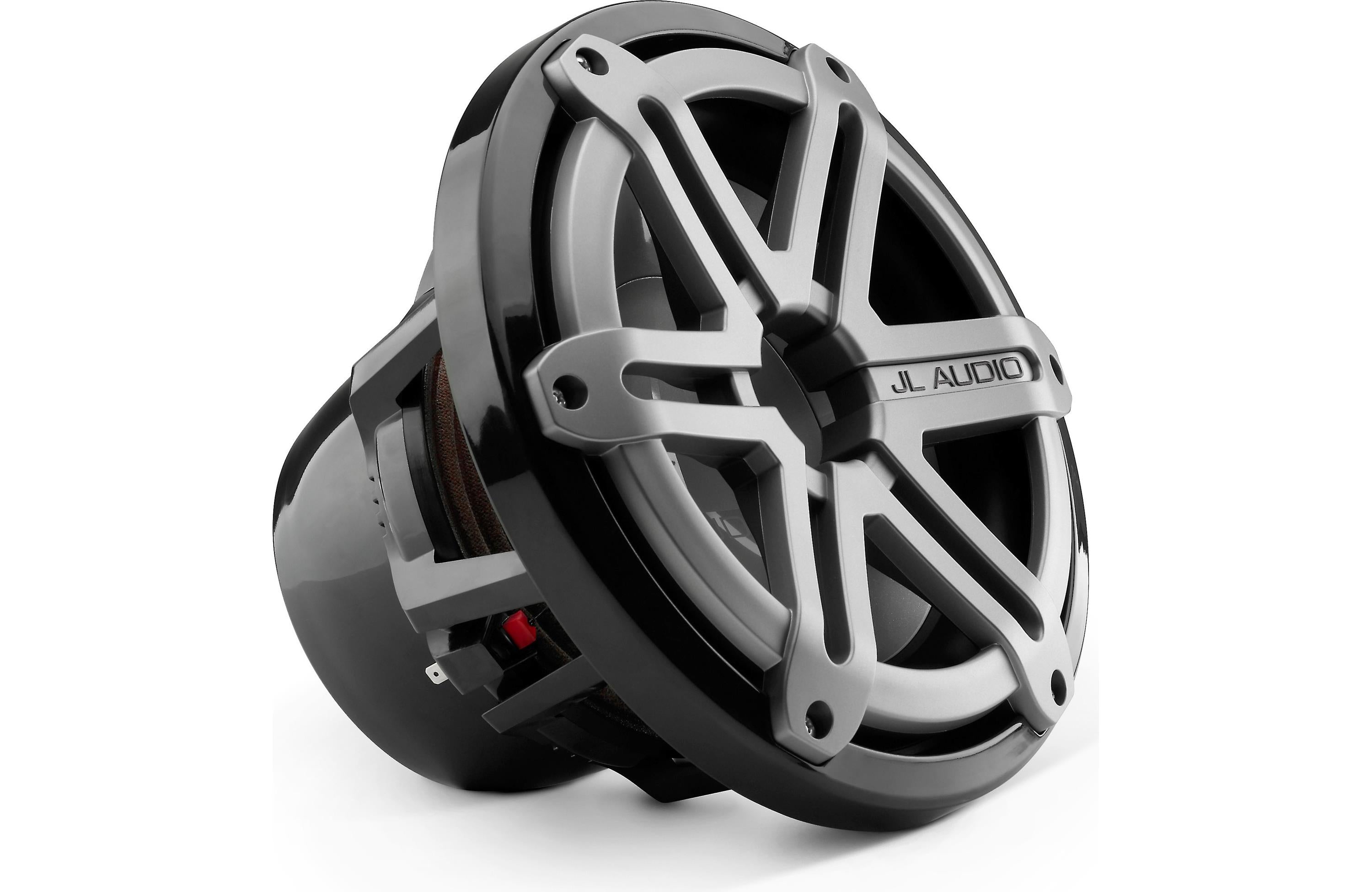

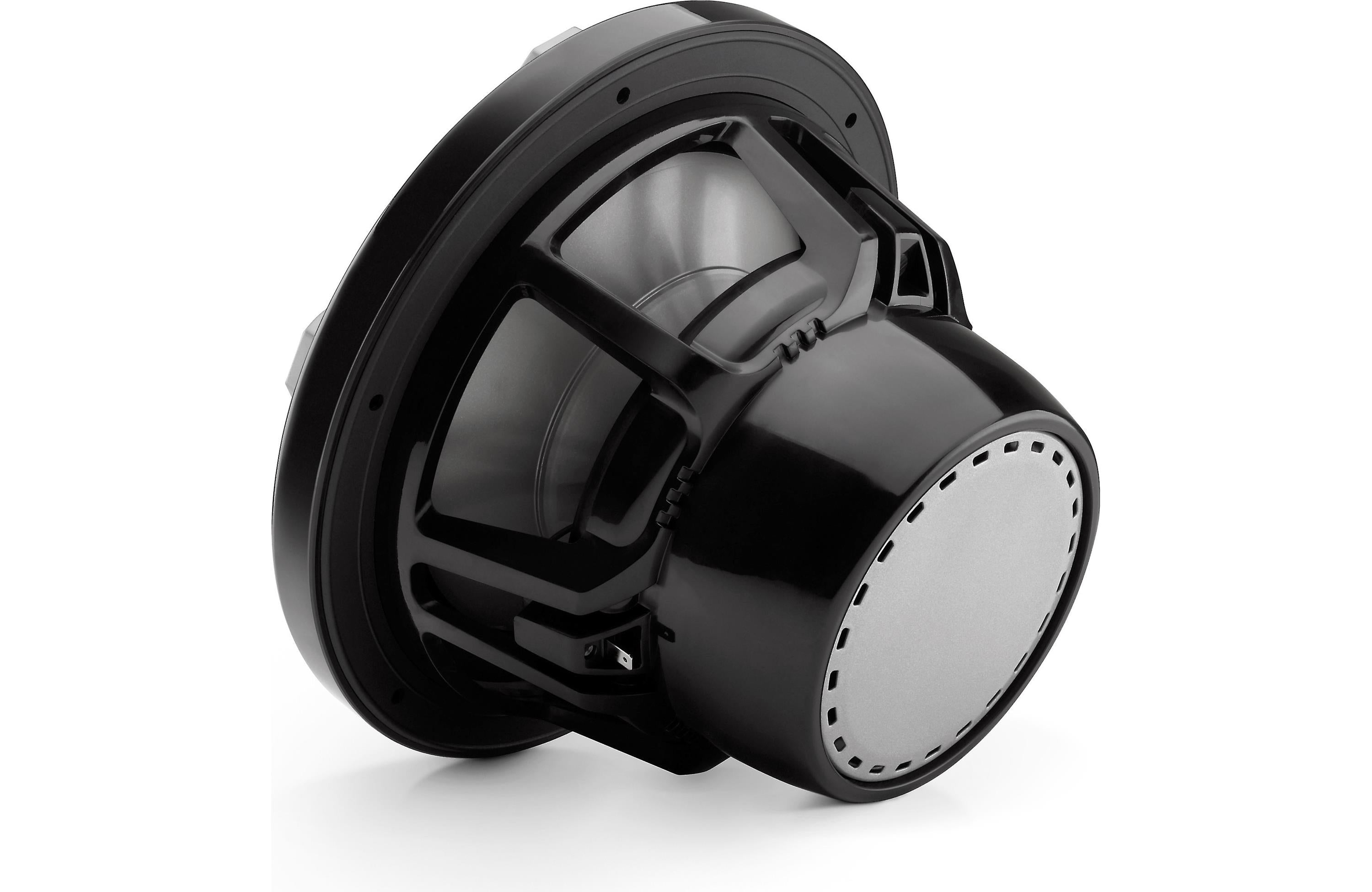

JL Audio M10W5-SG-TB, M Series Marine 10" 4-Ohm Subwoofer, Titanium/Black Classic

Model: JL-M10W5-SG-TB
UPC: 699440917377

JL Audio M10W5-SG-TB, M Series Marine 10" 4-Ohm Subwoofer, Titanium/Black Classic

JL Audio M10W5-SG-TB,  M Series Marine 10" 4-Ohm Subwoofer, Titanium/Black Classic
Sold Out
Discontinued Item
60-DAY FREE & EASY RETURNS
Your purchase is backed by our AVLeaderz advantage satisfaction guarantee. Get Free & Easy Returns for 60 days from the day you receive your order.

To add this product to your wish list you must Login or Register

Not Available for Shiping Outside the United States

Questions? We're here to help.

866-859-0896 ChatEmail Us

PROP 65 WARNING

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

General Features:

  • JL Audio 10" M-Series Marine Subwoofer for an Enclosure
  • Power Handling:
    • RMS: 250 watts
  • Impedance: 4 ohm
  • Recommended power range: 75 - 250 watts RMS
  • Injection-Molded mica-filled polypropylene cone bodies
  • Synthetic rubber surround specifically formulated with UV inhibitors
  • Marine grade progressive roll synthetic fiber spider
  • Plated marine-grade brass connection terminals
  • Proprietary Dynamic Motor Analysis (DMA) technology
  • Long linear excursion for enhanced output and reduced distortion
  • Specifically engineered Centrex polymer baskets are corrosion & UV-resistant
  • Stainless steel mounting hardware included
  • Efficiency: 86.7 dB
  • Xmax: 13.2 mm¬†
  • Mounting Depth: 5.93"
  • Cutout Diameter: 8.875"
  • Recommended Sealed Enclosure: 0.875ft¬≥
  • Recommended Ported Enclosure: 1.25ft¬≥
  • Infinite Baffle Use: No
  • Color:¬†Titanium Grille w/ Black Frame
  • Matching Amplifiers:
    • JL Audio M200/2¬†- Class D Marine 2-Channel Amplifier
    • JL Audio M600/6¬†- Class D Marine 6-Channel Amplifier
  • Authorized Internet Dealer
  • 1-Year Manufacturer's Warranty
Weather resistance Yes
LED Illumination: No

Size

10-inch

Voice Coil

Single

Impedance

4 ohms

RMS Power Rating (Watts)

250

Peak Power Rating (Watts)

500
Cone Material

Mica-Injection Polypropylene Cone

Surround Material

Rubber

Free Air

No

Sensitivity

86.7dB

Frequency Response

25-800Hz

Top Mount Depth (Inches)

5 7/8"

Bottom Mount Depth (Inches)


Cutout Diameter (Inches)

8.875"

Vas (liters)


Fs (Hz)

35.270

Xmax (millimeters)

13.2mm

Warranty
1 Year
