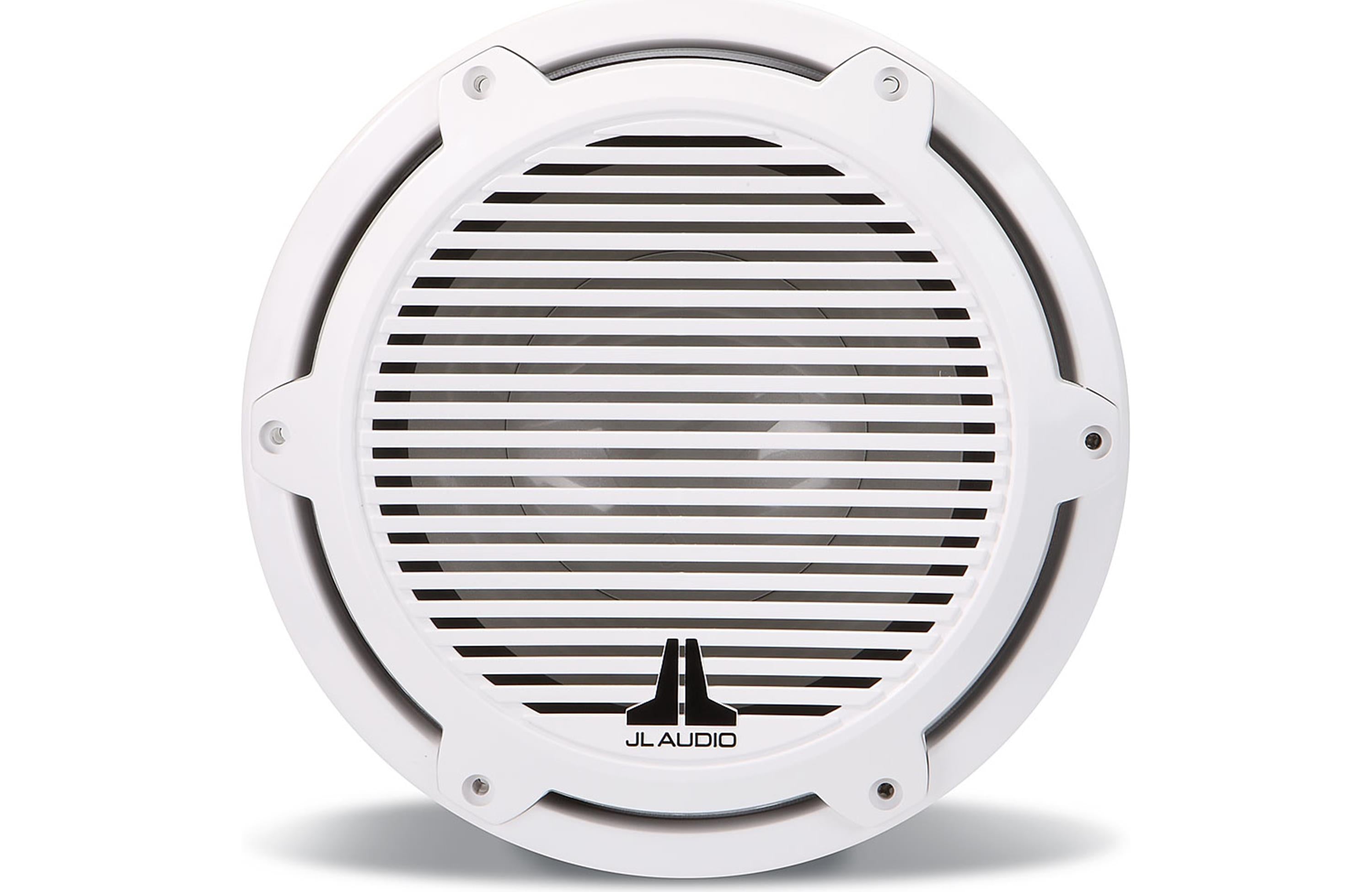

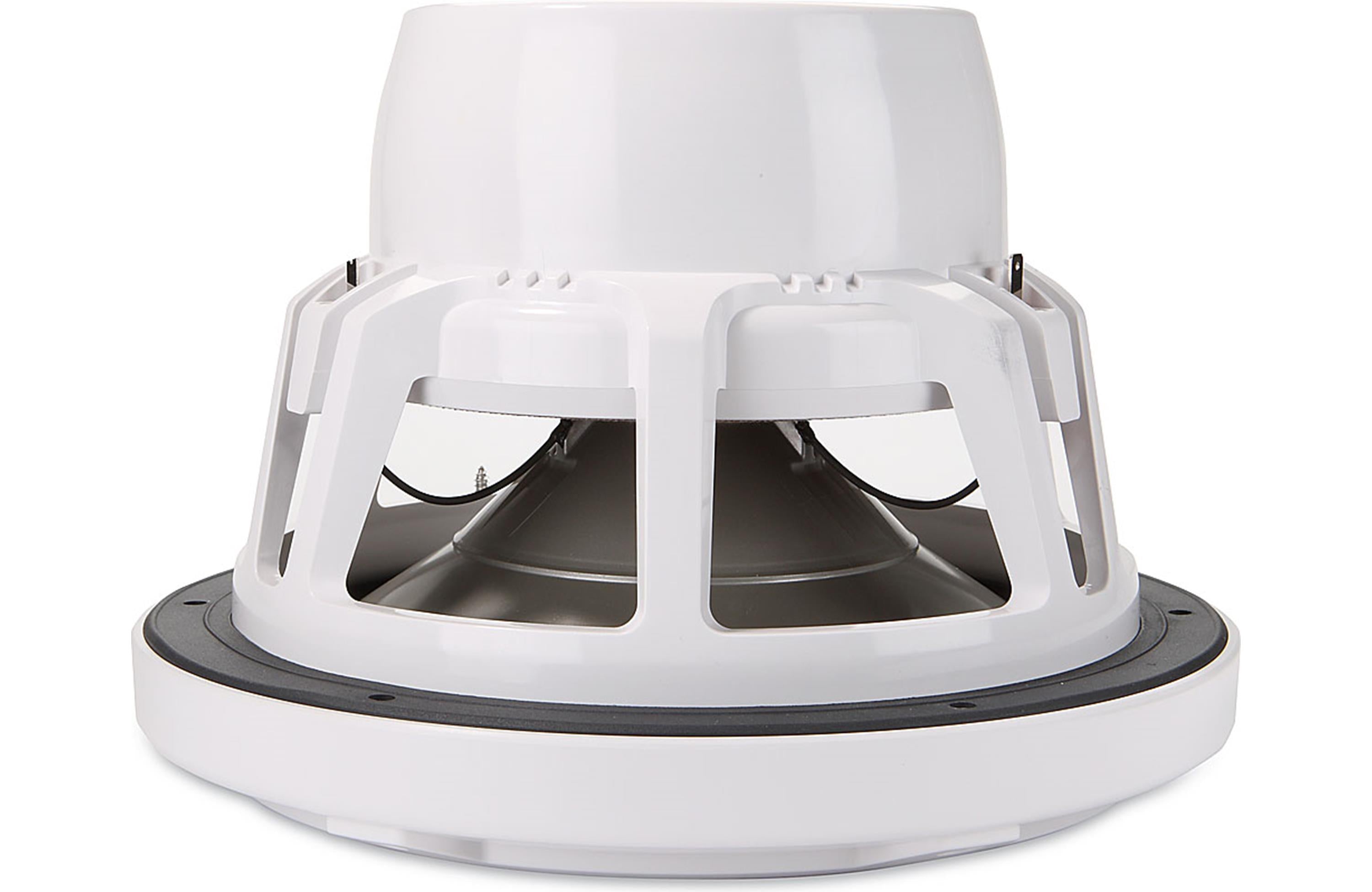

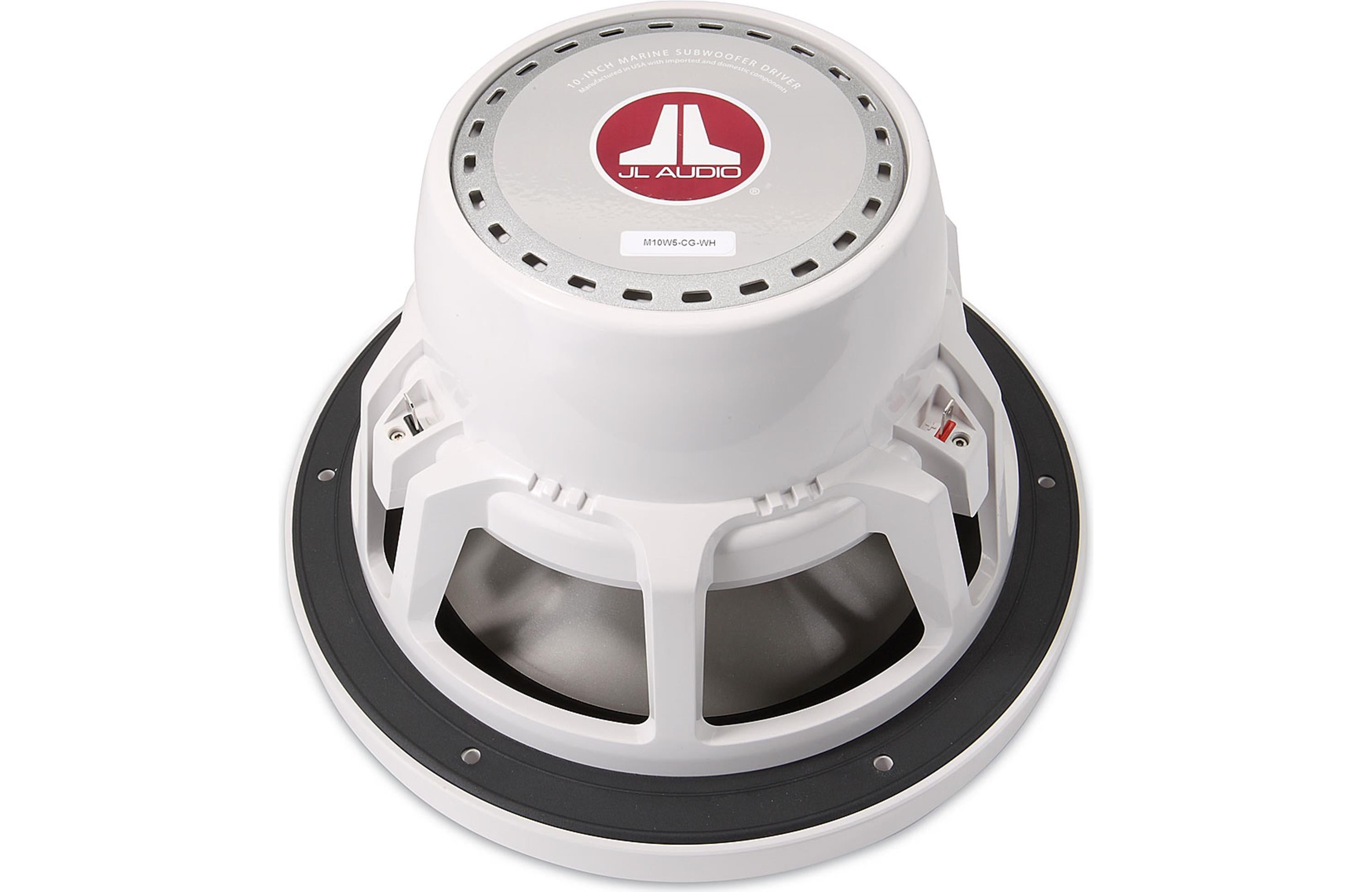

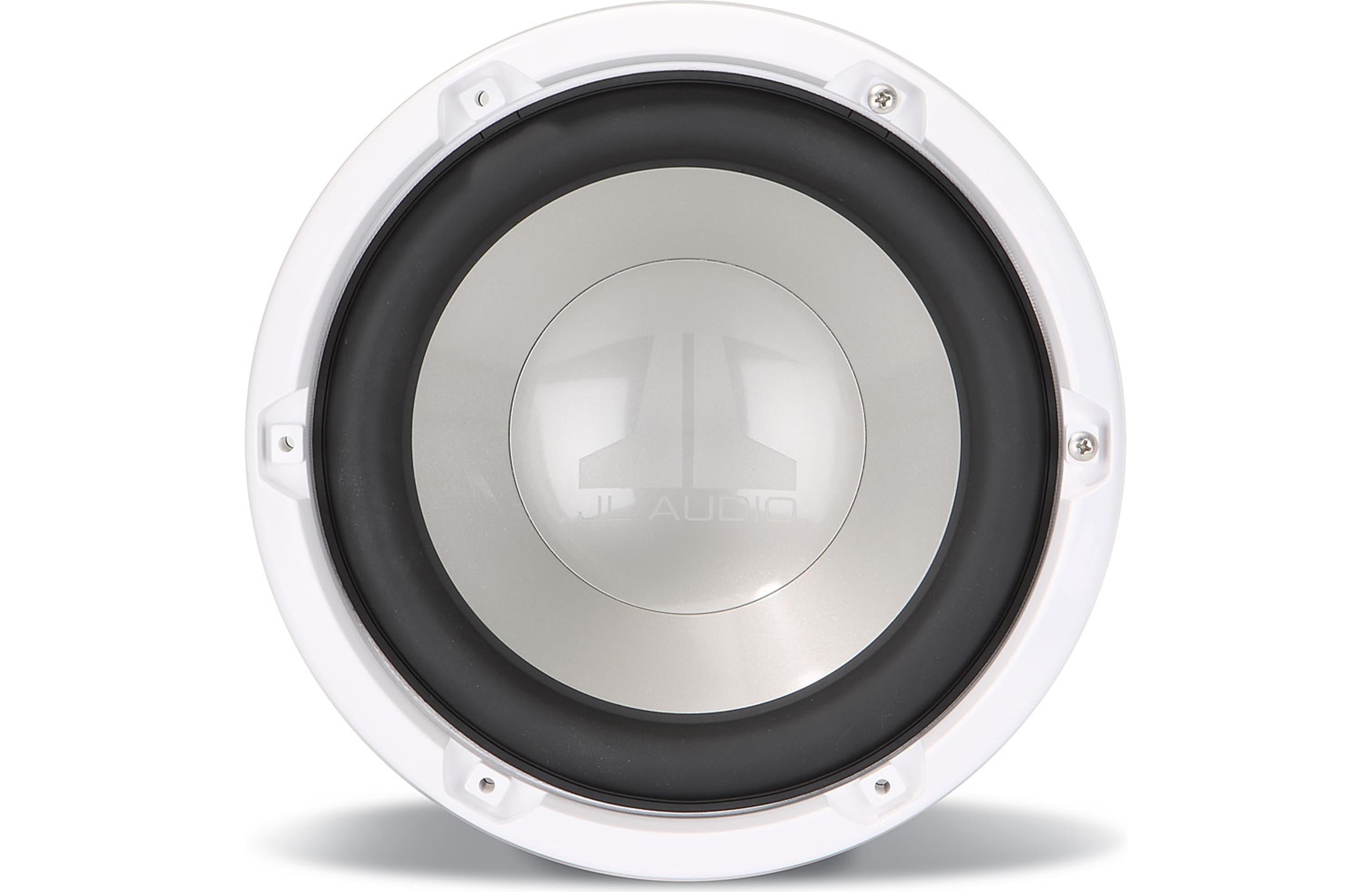

JL Audio M10W5-CG-WH, M Series Marine 10" 4-Ohm Subwoofer, White Classic Grille, 250W
Model: JL-M10W5-CG-WH
UPC: 699440917810
Discontinued Item
60-DAY FREE & EASY RETURNS
Your purchase is backed by our AVLeaderz advantage satisfaction guarantee. Get Free & Easy Returns for 60 days from the day you receive your order.
Not Available for Shiping Outside the United States
Questions? We're here to help.
866-859-0896 ChatEmail UsGeneral Features:
- JL Audio 10" M-Series Marine Subwoofer for an Enclosure
- Power Handling:
- RMS: 250 watts
- Impedance: 4 ohm
- Recommended power range: 75 - 250 watts RMS
- Injection-Molded mica-filled polypropylene cone bodies
- Synthetic rubber surround specifically formulated with UV inhibitors
- Marine grade progressive roll synthetic fiber spider
- Plated marine-grade brass connection terminals
- Proprietary Dynamic Motor Analysis (DMA) technology
- Long linear excursion for enhanced output and reduced distortion
- Specifically engineered Centrex polymer baskets are corrosion & UV-resistant
- Stainless steel mounting hardware included
- Efficiency: 86.7 dB
- Xmax: 13.2 mm
- Mounting Depth: 5.93"
- Cutout Diameter: 8.875"
- Recommended Sealed Enclosure: 0.875ft³
- Recommended Ported Enclosure: 1.25ft³
- Infinite Baffle Use: No
- Color: White
- Matching Amplifiers:
- JL Audio M200/2 - Class D Marine 2-Channel Amplifier
- JL Audio M600/6 - Class D Marine 6-Channel Amplifier
- Authorized Internet Dealer
- 1-Year Manufacturer's Warranty
Weather resistance | Yes |
LED Illumination: | No |
Size |
10-inch |
Voice Coil |
Single |
Impedance |
4 ohms |
RMS Power Rating (Watts) |
250 |
Peak Power Rating (Watts) |
500 |
Cone Material |
Mica-Injection Polypropylene Cone |
Surround Material |
Rubber |
Free Air |
No |
Sensitivity |
86.7dB |
Frequency Response |
25-800Hz |
Top Mount Depth (Inches) |
5 7/8" |
Bottom Mount Depth (Inches) |
|
Cutout Diameter (Inches) |
8.875" |
Vas (liters) |
|
Fs (Hz) |
35.270 |
Xmax (millimeters) |
13.2mm |
Warranty |
1 Year |
