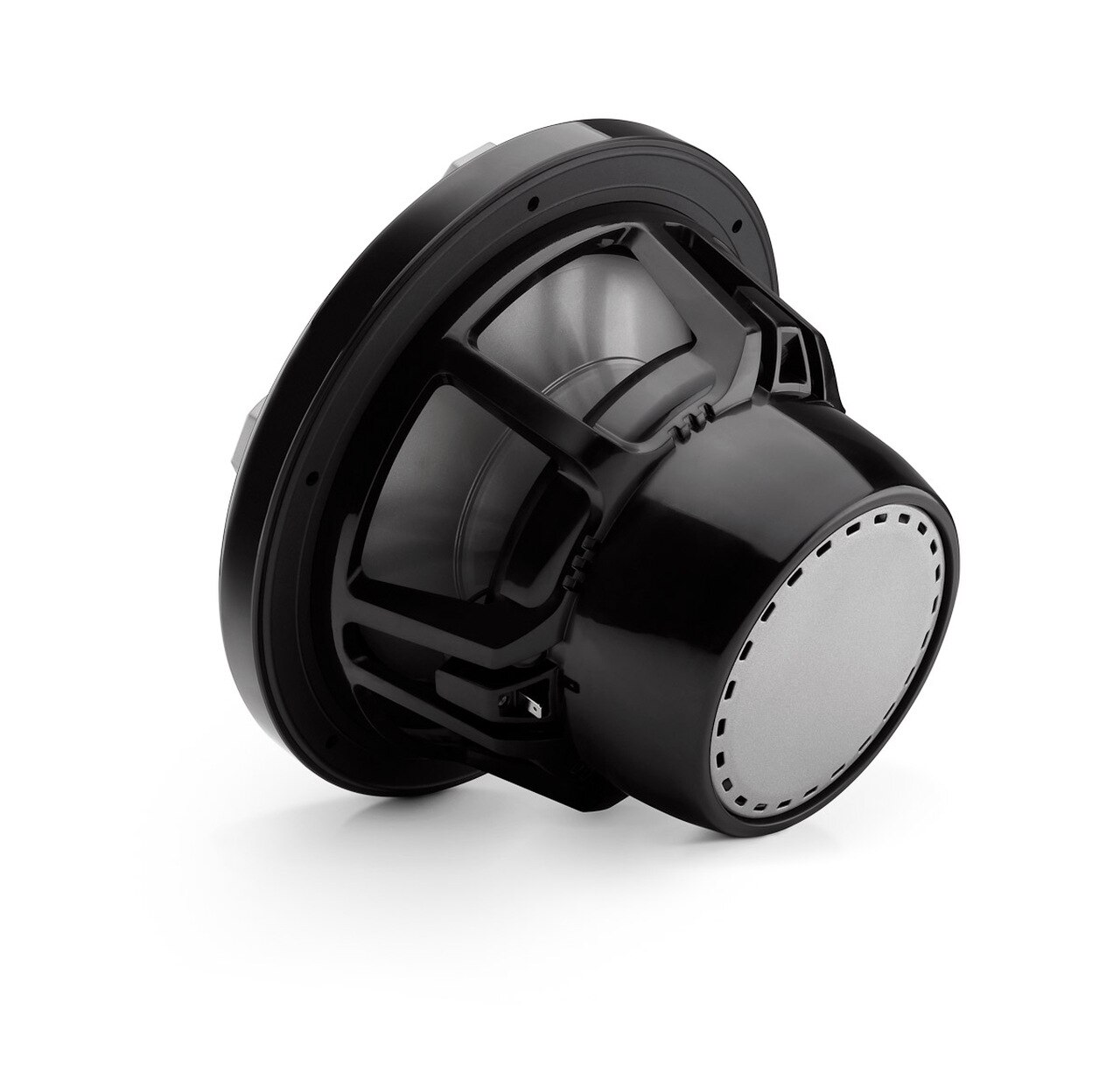

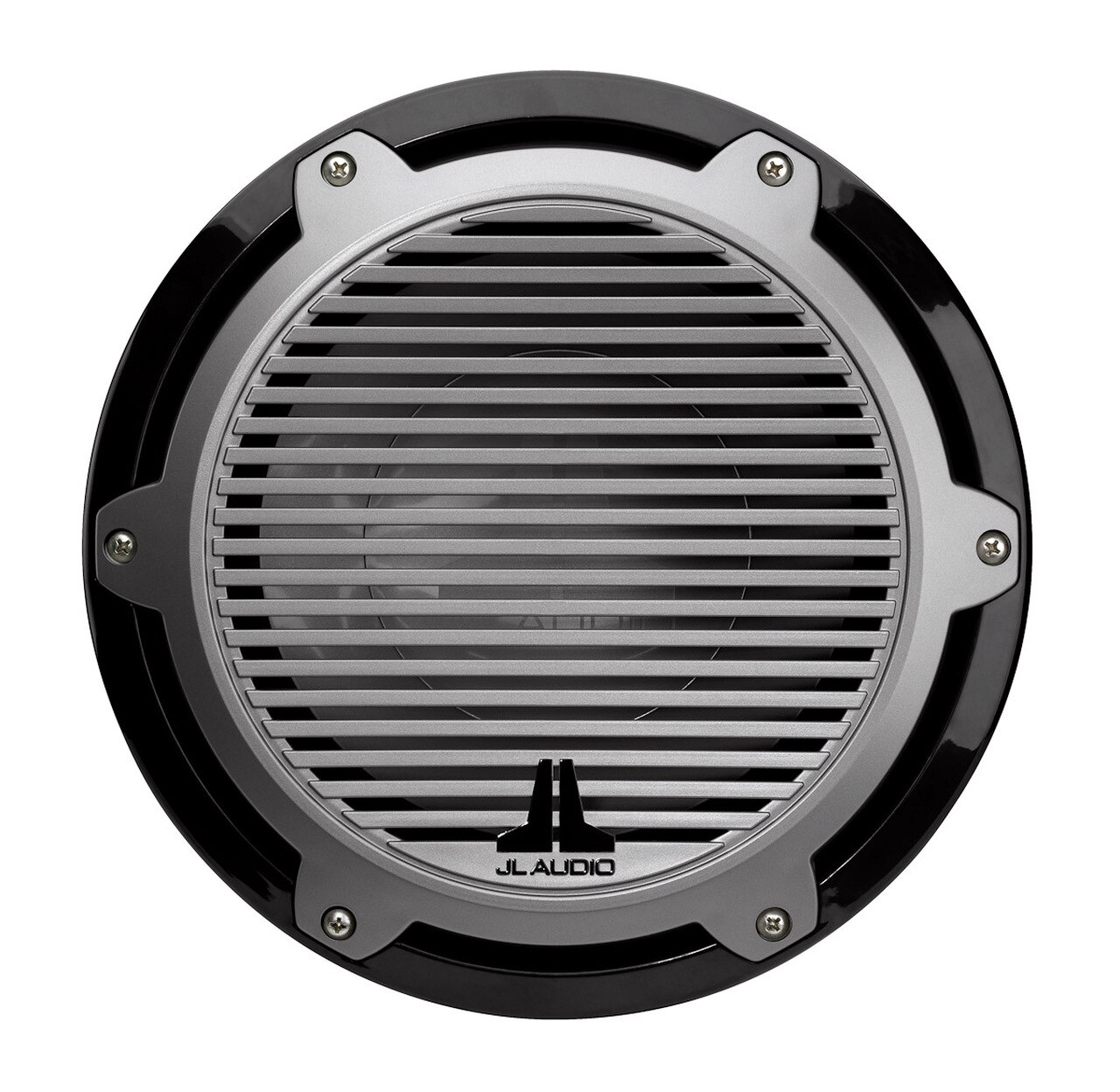

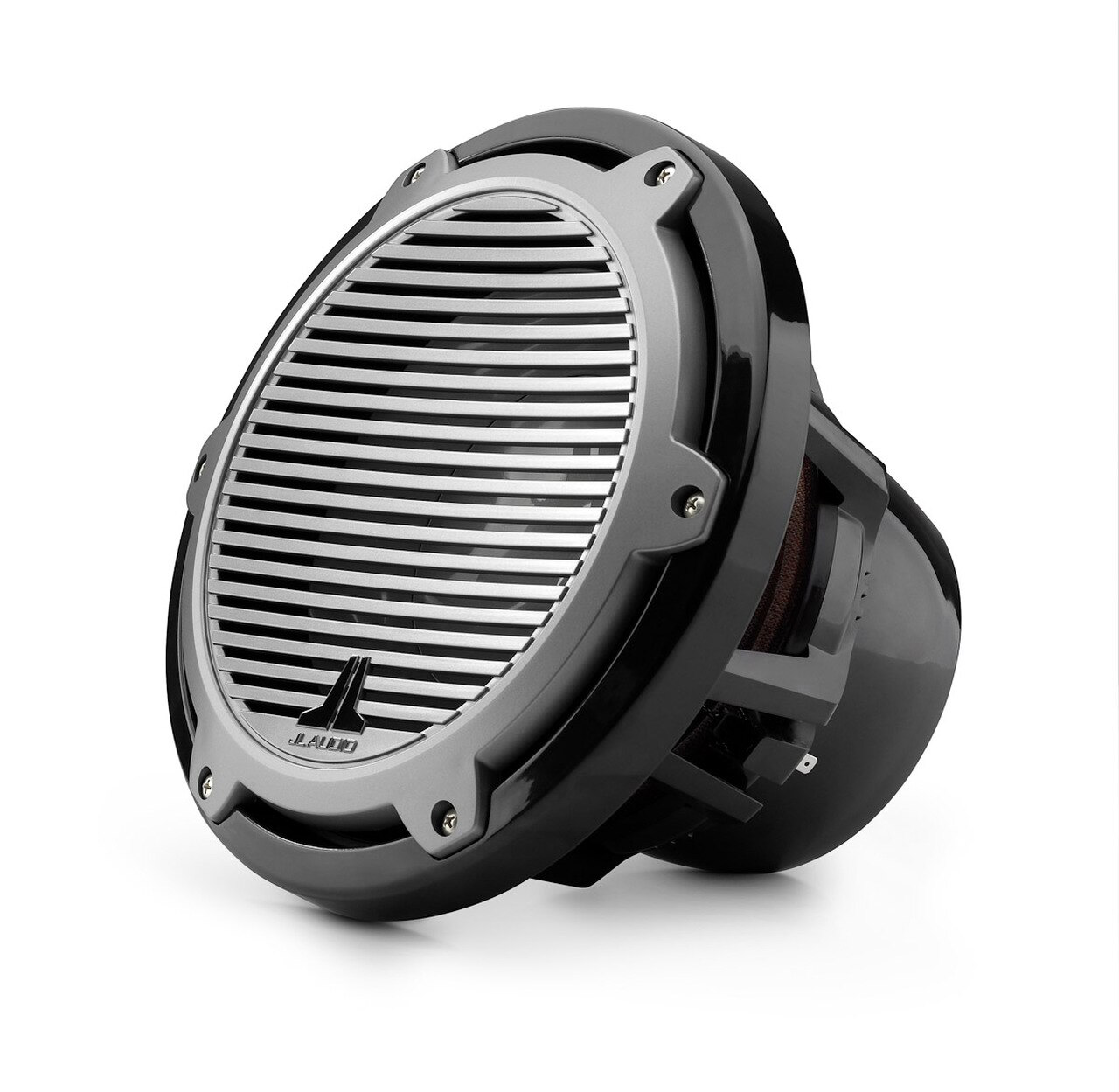

JL Audio M10W5-CG-TB, M Series Marine 10" 4-Ohm Subwoofer, Titanium/Black Classic Grille, 250W
JL Audio M10W5-CG-TB, M Series Marine 10" 4-Ohm Subwoofer, Titanium/Black Classic Grille, 250W
Out of stock
FREE SHIPPING
Arrives by
Order within
Choose your location
enter a US zip code
Regular price
$329.99
Sale price
$329.99
Regular price
$0.00
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
Overview
General Features:
- JL Audio 10" M-Series Marine Subwoofer for an Enclosure
- Power Handling:
- RMS: 250 watts
- Impedance: 4 ohm
- Recommended power range: 75 - 250 watts RMS
- Injection-Molded mica-filled polypropylene cone bodies
- Synthetic rubber surround specifically formulated with UV inhibitors
- Marine grade progressive roll synthetic fiber spider
- Plated marine-grade brass connection terminals
- Proprietary Dynamic Motor Analysis (DMA) technology
- Long linear excursion for enhanced output and reduced distortion
- Specifically engineered Centrex polymer baskets are corrosion & UV-resistant
- Stainless steel mounting hardware included
- Efficiency: 86.7 dB
- Xmax: 13.2 mm
- Mounting Depth: 5.93"
- Cutout Diameter: 8.875"
- Recommended Sealed Enclosure: 0.875ft³
- Recommended Ported Enclosure: 1.25ft³
- Infinite Baffle Use: No
- Color: Titanium Grille w/ Black Frame
- Matching Amplifiers:
- JL Audio M200/2 - Class D Marine 2-Channel Amplifier
- JL Audio M600/6 - Class D Marine 6-Channel Amplifier
- Authorized Internet Dealer
- 1-Year Manufacturer's Warranty
Features & Specifications
Features & Specifications
| Weather resistance | Yes |
| LED Illumination: | No |
|
Size |
10-inch |
|
Voice Coil |
Single |
|
Impedance |
4 ohms |
|
RMS Power Rating (Watts) |
250 |
|
Peak Power Rating (Watts) |
500 |
| Cone Material |
Injection-Molded Mica-Filled Polypropylene |
| Surround Material |
Synthetic Rubber |
| Free Air |
No |
| Sensitivity |
86.7dB |
| Frequency Response |
|
|
Top Mount Depth (Inches) |
5.93" |
| Bottom Mount Depth (Inches) |
|
| Cutout Diameter (Inches) |
8.875" |
| Vas (liters) |
|
| Fs (Hz) |
|
| Xmax (millimeters) |
13.2mm |
| Warranty |
1 Year |
