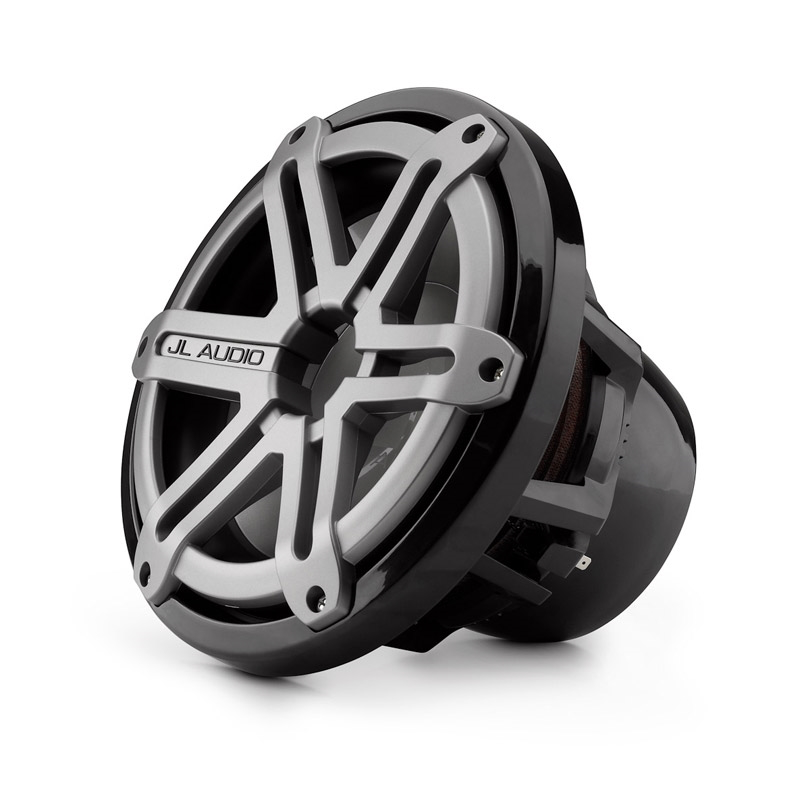

JL Audio M10IB5-SG-TB, M Series Marine 10" 4-Ohm Subwoofer, Infinite Baffle, Titanium/Black Sport Grille, 250W

JL Audio
JL Audio M10IB5-SG-TB, M Series Marine 10" 4-Ohm Subwoofer, Infinite Baffle, Titanium/Black Sport Grille, 250W
Sold Out
JL Audio

JL Audio M10IB5-SG-TB, M Series Marine 10" 4-Ohm Subwoofer, Infinite Baffle, Titanium/Black Sport Grille, 250W

Discontinued Item

To add this product to your wish list you must Login or Register

Not Available for Shiping Outside the United States

Questions? We're here to help.

866-859-0896 ChatEmail Us

PROP 65 WARNING

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

General Features:

  • 10" M-Series Infinite Baffle Marine Subwoofer
  • Power Handling:
    • RMS: 250 watts
  • Impedance: 4 ohm
  • Recommended power range: 75 - 250 watts RMS
  • Injection-Molded mica-filled polypropylene cone bodies
  • Synthetic rubber surround specifically formulated with UV inhibitors
  • Marine grade progressive roll synthetic fiber spider
  • Plated marine-grade brass connection terminals
  • Proprietary Dynamic Motor Analysis (DMA) technology
  • Long linear excursion for enhanced output and reduced distortion
  • Specifically engineered Centrex polymer baskets are corrosion & UV-resistant
  • Stainless steel mounting hardware included
  • Efficiency: 86.7 dB
  • Xmax: 13 mm¬†
  • Mounting Depth: 5.93"
  • Cutout Diameter: 8.875"
  • Minimum Enclosure Volume: 2 cu. ft. / 56.6 l (or larger)¬†
  • Infinite Baffle Use: Yes¬†
  • Color:¬†Titanium Grille w/ Black Frame
  • Matching Amplifiers:
    • JL Audio M200/2¬†- Class D Marine 2-Channel Amplifier
    • JL Audio M600/6¬†- Class D Marine 6-Channel Amplifier
  • Authorized Internet Dealer
  • 1-Year Manufacturer's Warranty
Weather resistance Yes
LED Illumination: No

Size

10-inch

Voice Coil

Single

Impedance

4 ohms

RMS Power Rating (Watts)

250

Peak Power Rating (Watts)

500
Cone Material

Injection-Molded Mica-Filled Polypropylene

Surround Material

Synthetic Rubber

Free Air

Yes

Sensitivity

86.7dB

Frequency Response


Top Mount Depth (Inches)

5 7/8"

Bottom Mount Depth (Inches)


Cutout Diameter (Inches)

8.875"

Vas (liters)


Fs (Hz)


Xmax (millimeters)

13mm

Warranty
1 Year
