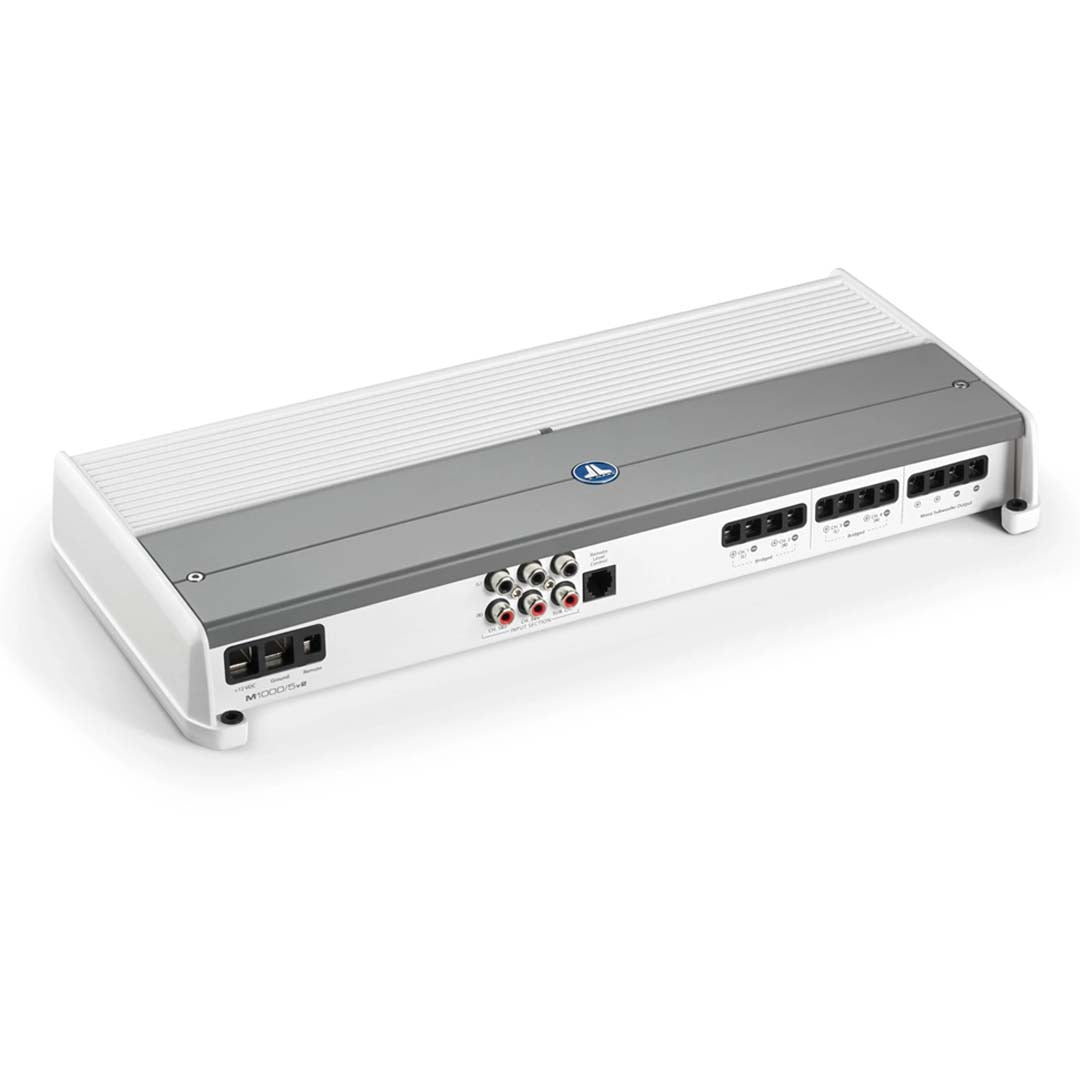

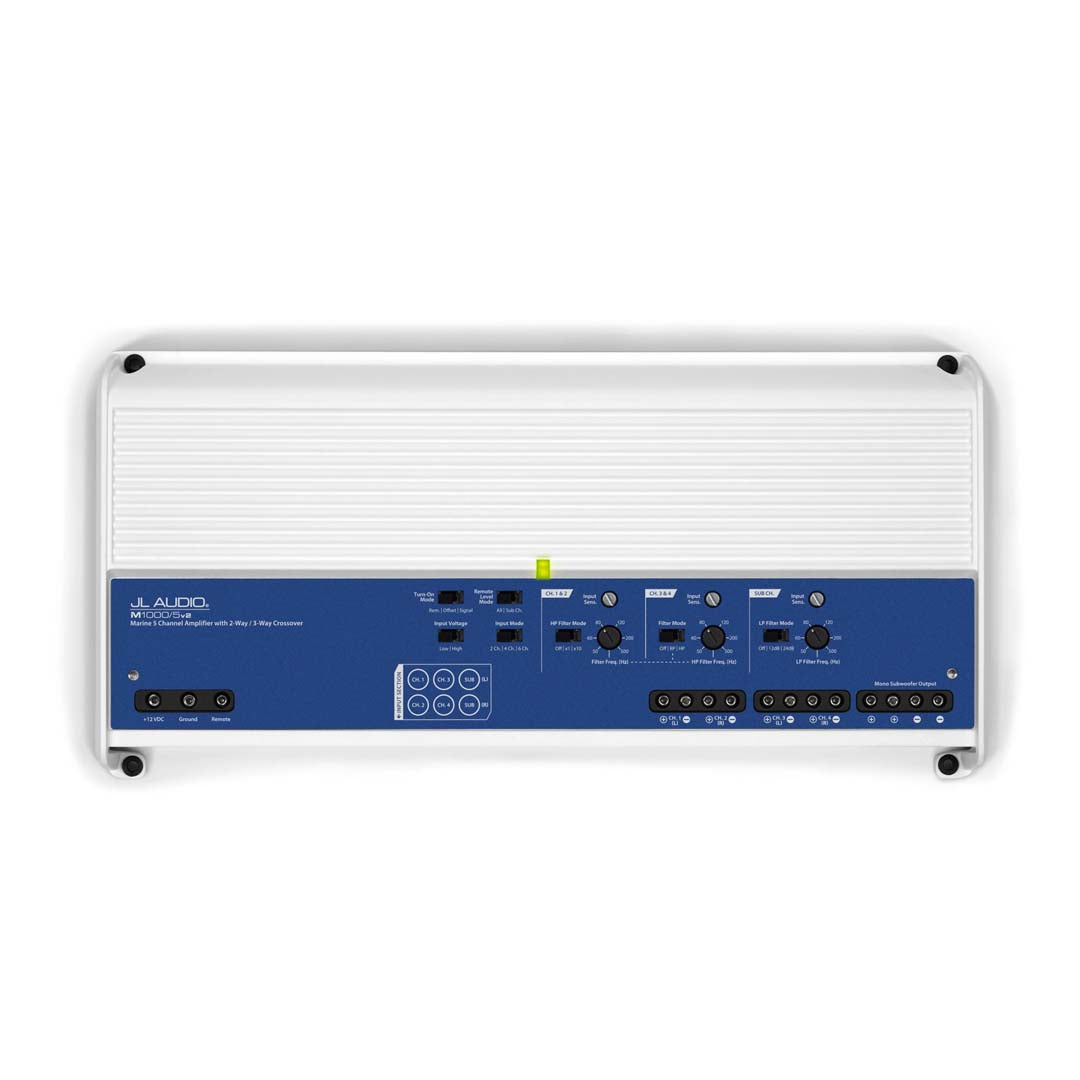

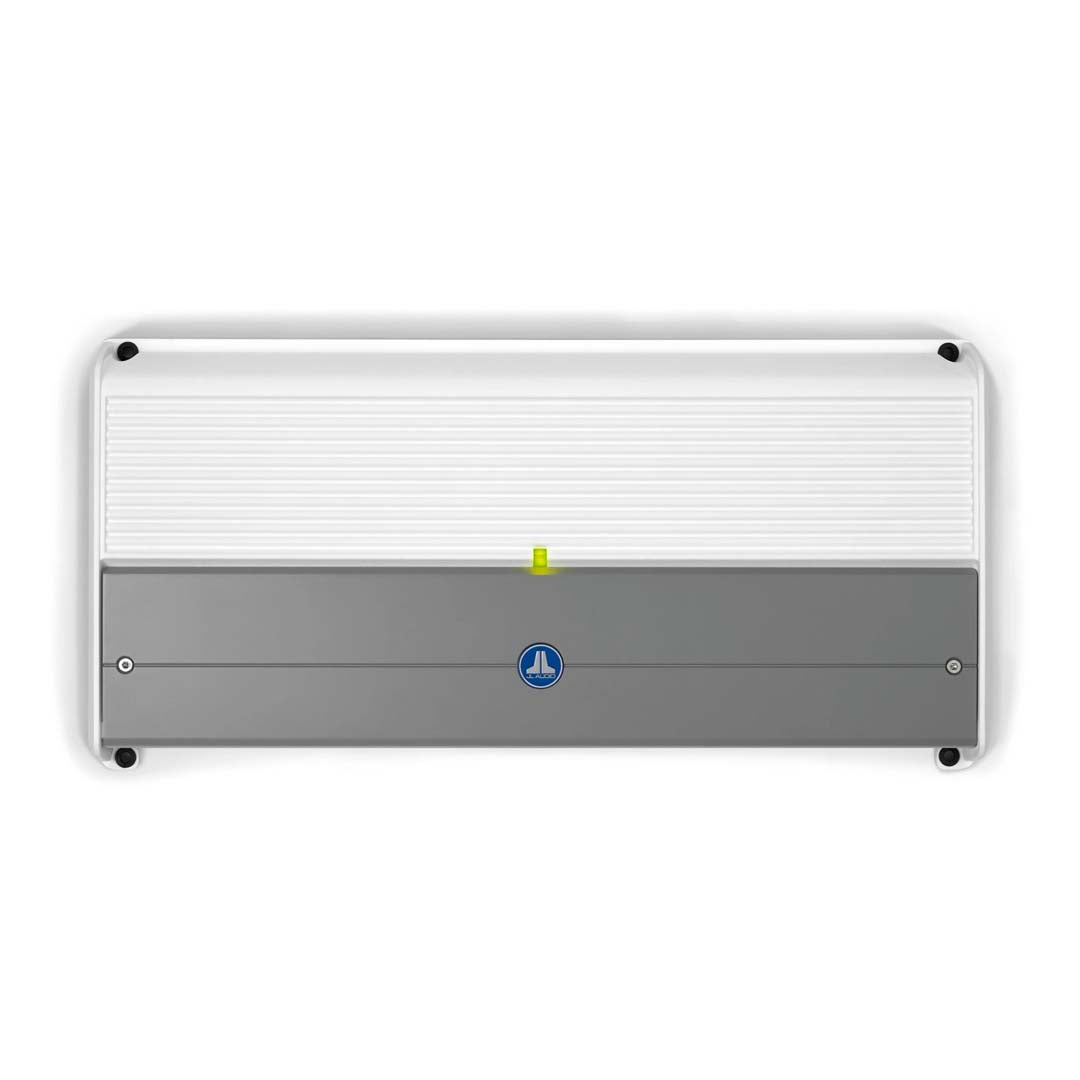

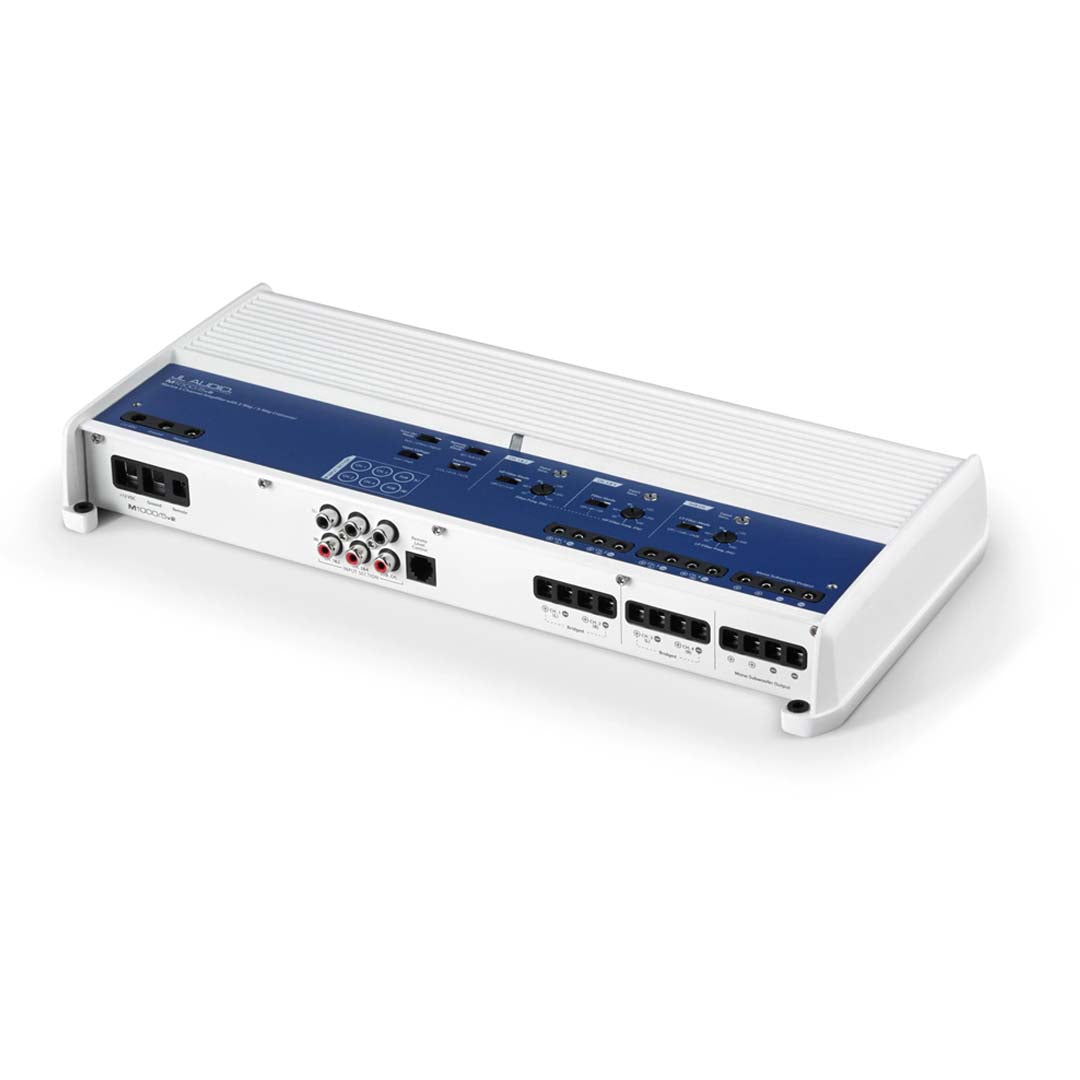

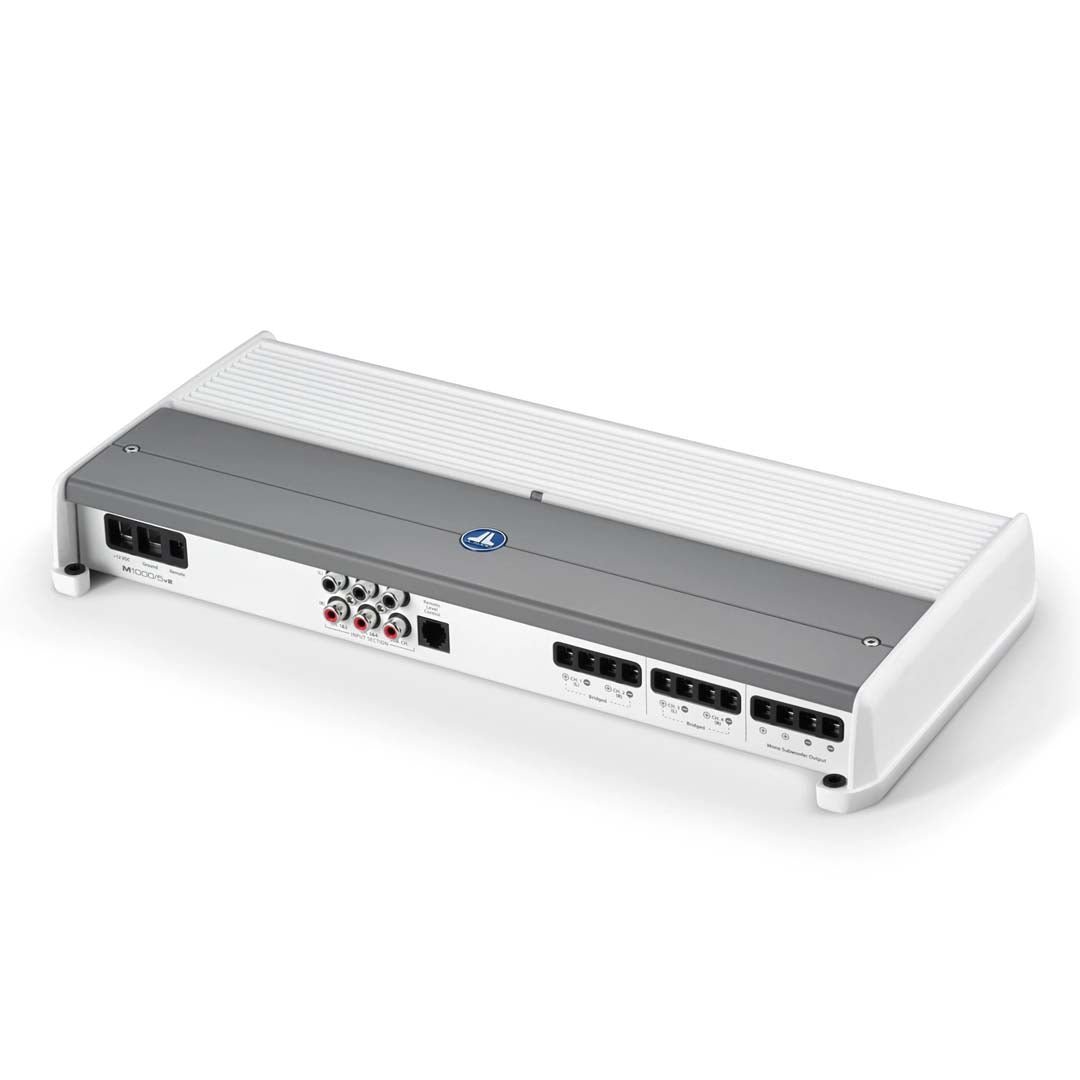

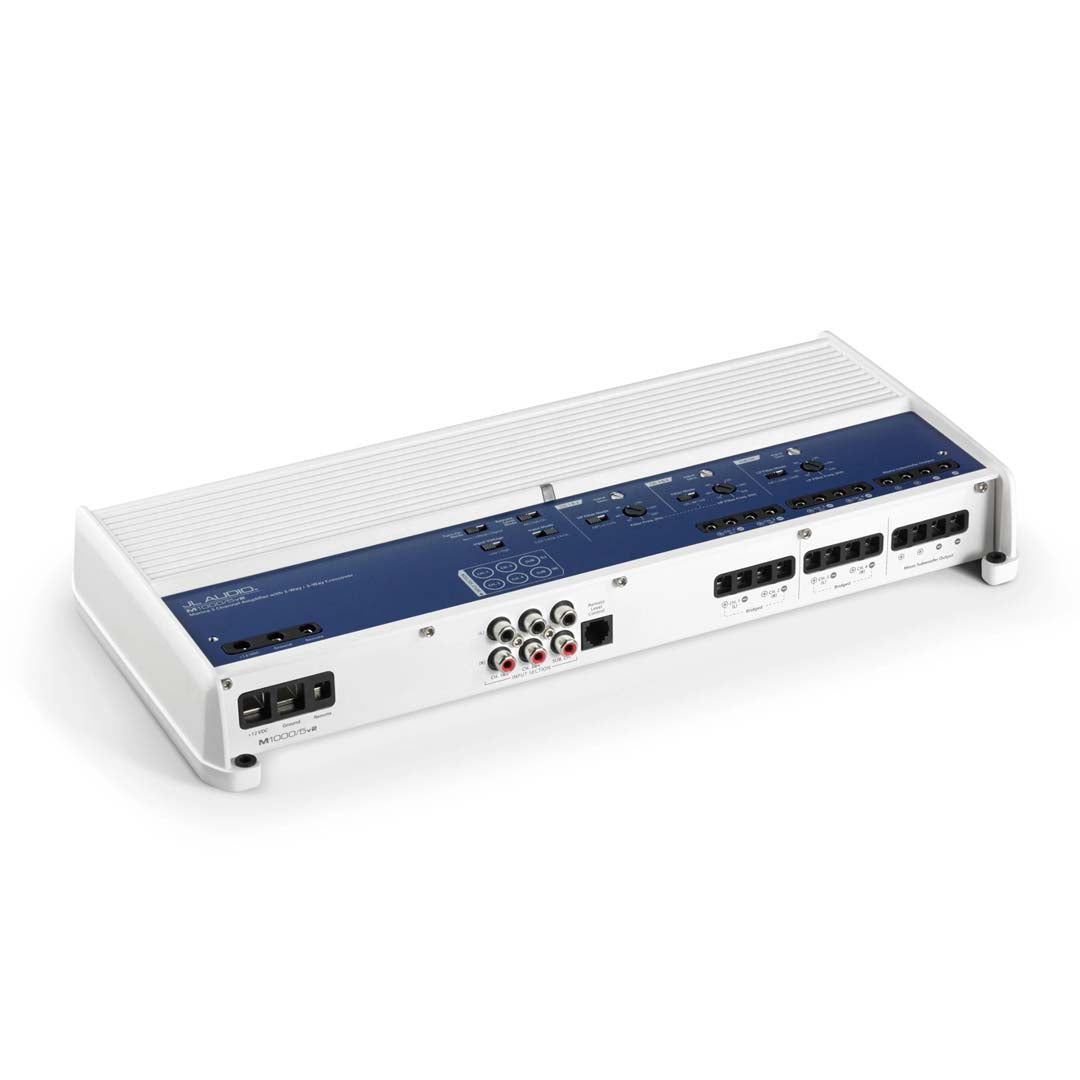

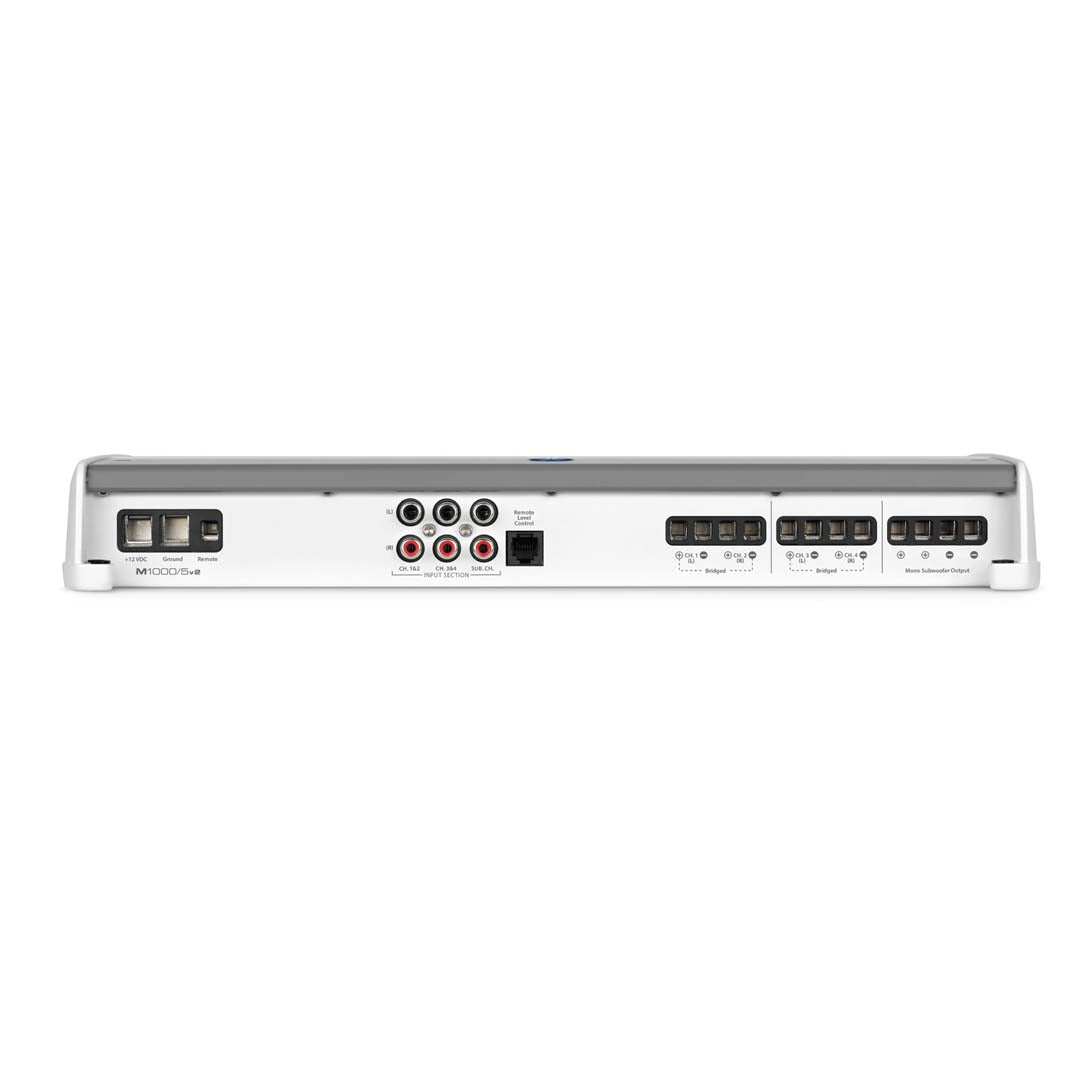

JL Audio M1000/5v2, M Series Class D 5Ch Marine Amplifier, 1000W

Model: JL-M1000/5v2
UPC: 699440983587

JL Audio M1000/5v2, M Series Class D 5Ch Marine Amplifier, 1000W

Price Match Guarantee
Price Match Guarantee
AVLeaderz Cares! We are dedicated to offering the best value to our customers, always. We will match the price, at the time of purchase, on a Price Match Guarantee product if you find the same item at a lower price at a qualifying online retailer or at a local retail competitor's store. Here's how:

  • If you find a qualifying lower price online, call 1-866-859-0896 and provide a customer service agent the web site with the lower price.
  • On qualifying products, AVLeaderz will verify the current price to complete the price match.
Exclusions may apply including, but not limited to, items sold by Marketplace vendors, competitors' service prices, special daily or hourly sales, and items for sale the Sunday before Thanksgiving Day through the Monday after Thanksgiving. More Details
$1,099.99
JL Audio

60-DAY FREE & EASY RETURNS
Your purchase is backed by our AVLeaderz advantage satisfaction guarantee. Get Free & Easy Returns for 60 days from the day you receive your order.
-
+
Add to wishlist

To add this product to your wish list you must Login or Register

Not Available for Shiping Outside the United States

Questions? We're here to help.

866-859-0896 ChatEmail Us

PROP 65 WARNING

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

Here is the perfect, all-in-one solution to drive a potent 4-speaker + dual subwoofer marine audio system. The M1000/5v2 delivers up to 1000 W of clean power and can comfortably drive two pairs of quality component speaker systems with 75 W x 4 @ 4 Ω, while also delivering a stout 600 W of power to a dual subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching amplifier design.

The M1000/5v2 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz.

With the addition of an HD-RLC remote level control (sold separately), the amplifier's subwoofer output level or master volume for all channels can be directly controlled from the helm. The M1000/5v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels.

This amplifier features white and gray powder-coat finish, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

Advanced Rollback Protection

JL Audio's exclusive Advanced Rollback Protection circuit monitors the amplifier's thermal condition and adjusts amplifier operation to eliminate annoying amplifier shut-down events.

NexD™ Switching Technology

NexD™ amplifier technologies produce exceptional audio quality, unsurpassed total efficiency and high power from very compact amplifier designs.

Weather Resistance Yes

Number of Channels

5

Class

D

Peak Power Rating (Watts)


RMS Power Rating (Watts x Channels) - 4 Ohms

75 x 4

400 x 1

RMS Power Rating (Watts x Channels) - 2 Ohms

100 x 4

600 x 1

RMS Power Rating - Bridged 200 x 2
Minimum Impedance Unbridged (Ohms)

2

Minimum Impedance Bridged (Ohms)

4

THD at Rated RMS Power

<1%

Bulit-in Crossover - Low Pass

Yes

Built-in Crossover - High Pass

Yes

High Pass Crossover Frequency (Hz)

49-4830Hz

Low Pass Crossover Frequency (Hz)
49-483Hz
Signal-to-Noise Ratio

104dB

Bass Boost
No
Bass Remote Included

No

Fuse Rating 80A
CEA-2006 Compliant Yes
Maximum Power Wire Gauge Size 4 Gauge
Warranty 1 Year
