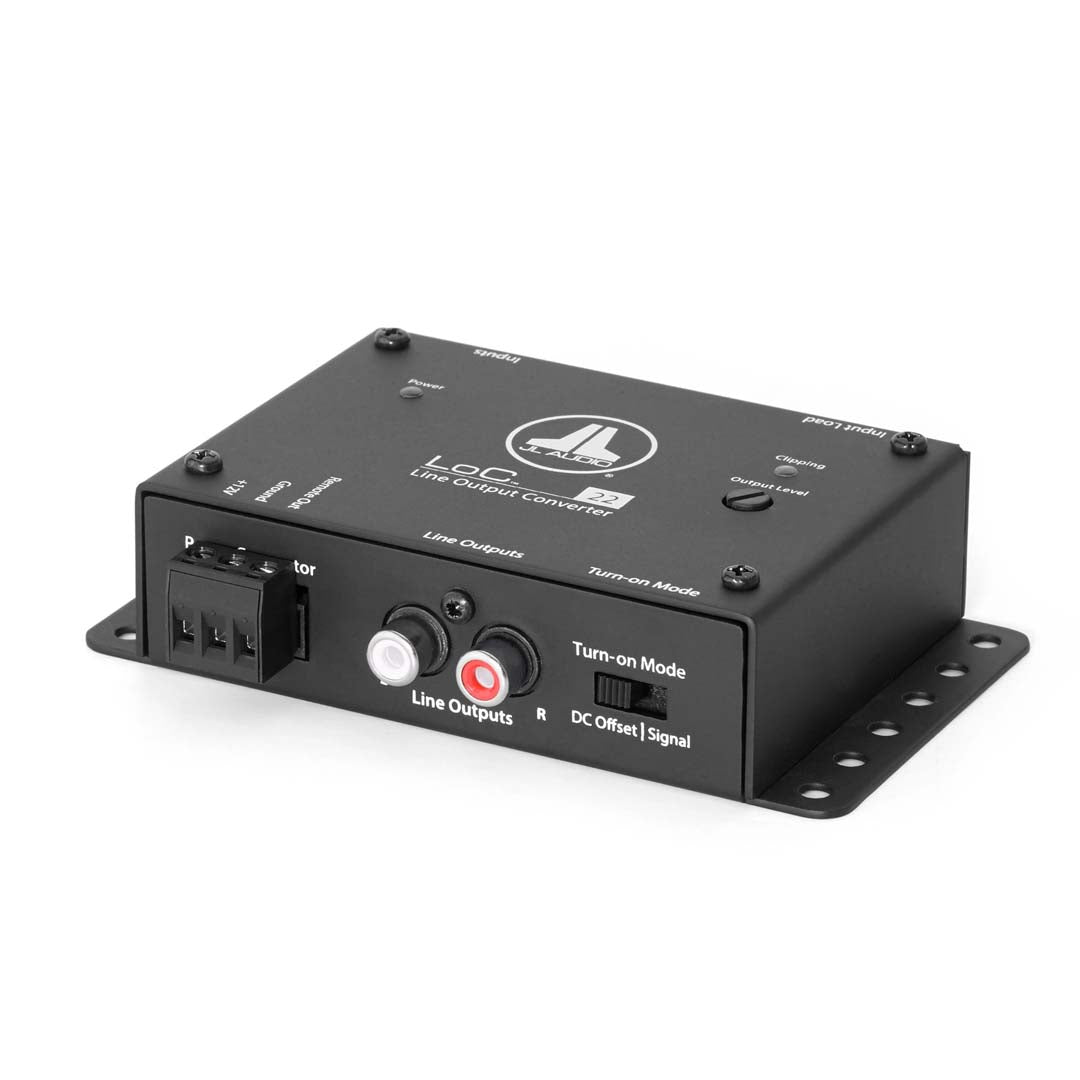

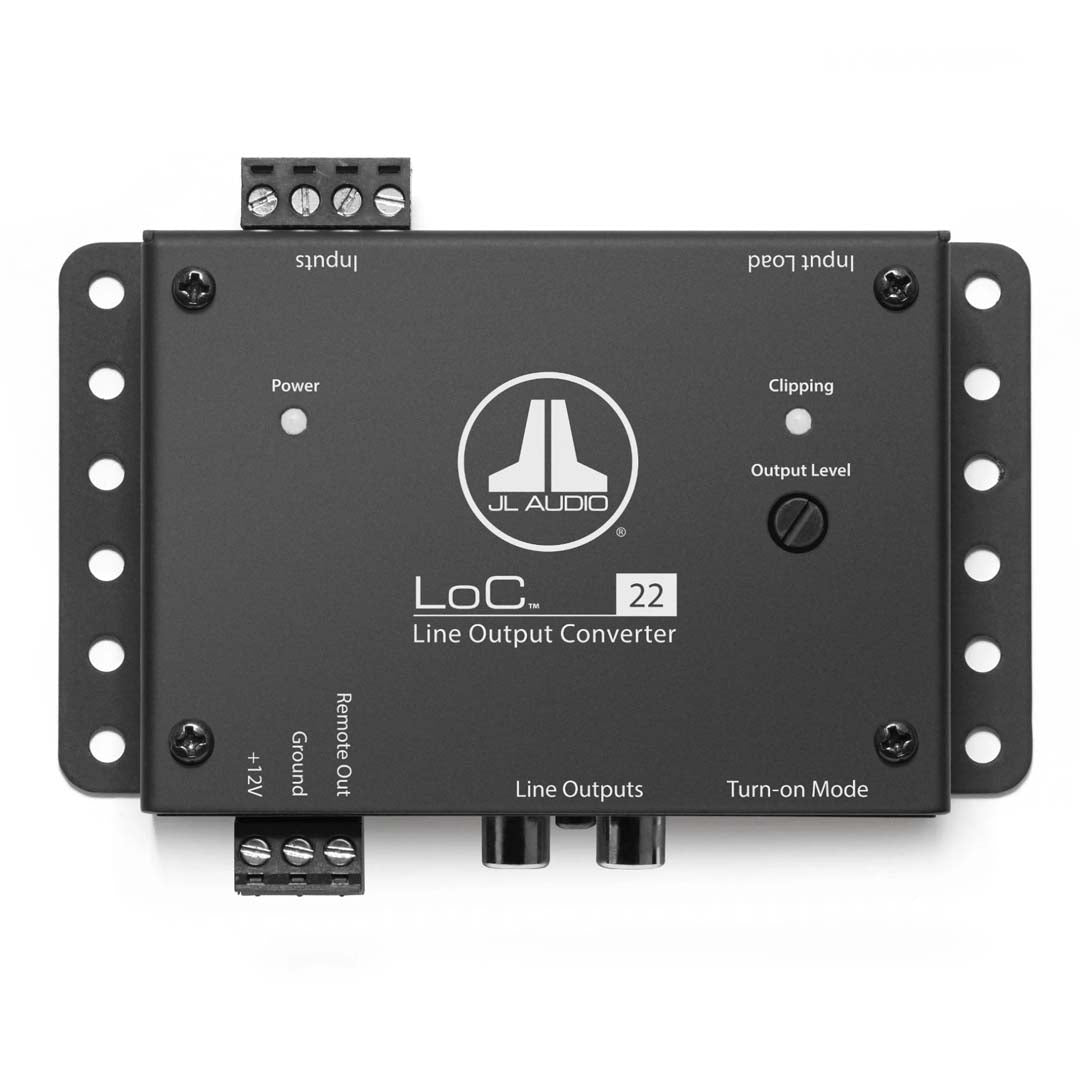

JL Audio LOC-22, 2 Channel Speaker Level to Line Out Converter with Turn On
Designed by JL Audio Sr. Engineer Bruce Macmillan, the LoC-22 is an active two-channel processor engineered for applications requiring the attenuation of factory audio signals for use with aftermarket amplifiers and signal processors.
The LoC-22 utilizes a fully regulated, switching MOSFET power supply and an all-analog circuit design to deliver flat frequency response, at any signal level (3 Hz – 32 kHz, +0, -1dB), without altering bass response at high levels, like many passive line output converters do.

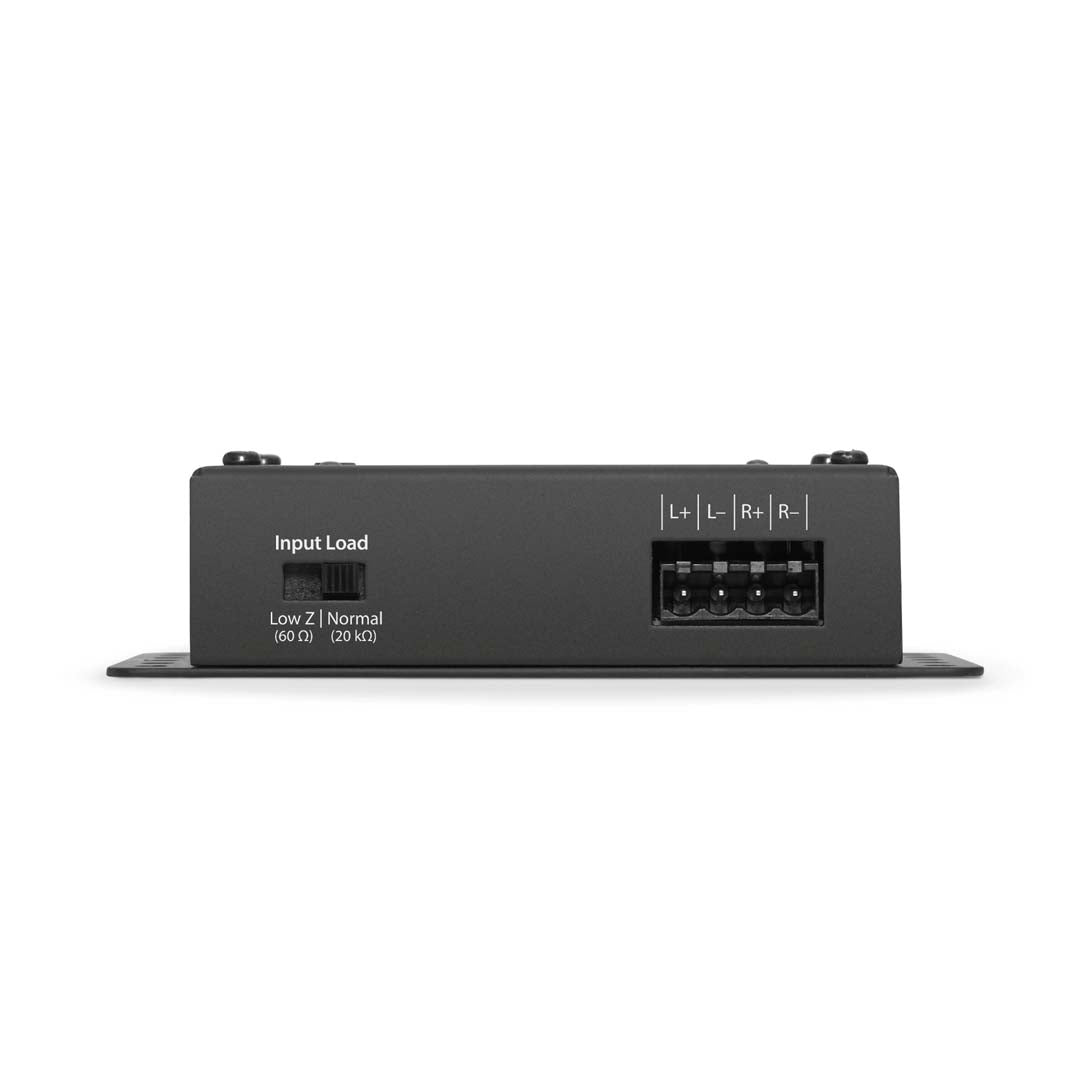

Engineered to combat induced cable noise, the LoC-22 features a differential-balanced input architecture making it compatible with virtually any analog audio signal. Capable of accepting up to 40V RMS per channel (equivalent to 400W @ 4 ohms), the LoC-22 easily handles the most powerful factory amplifier outputs. An onboard dual-range input load switch allows compatibility with most factory amplifiers that employ impedance sensing to mute channels.

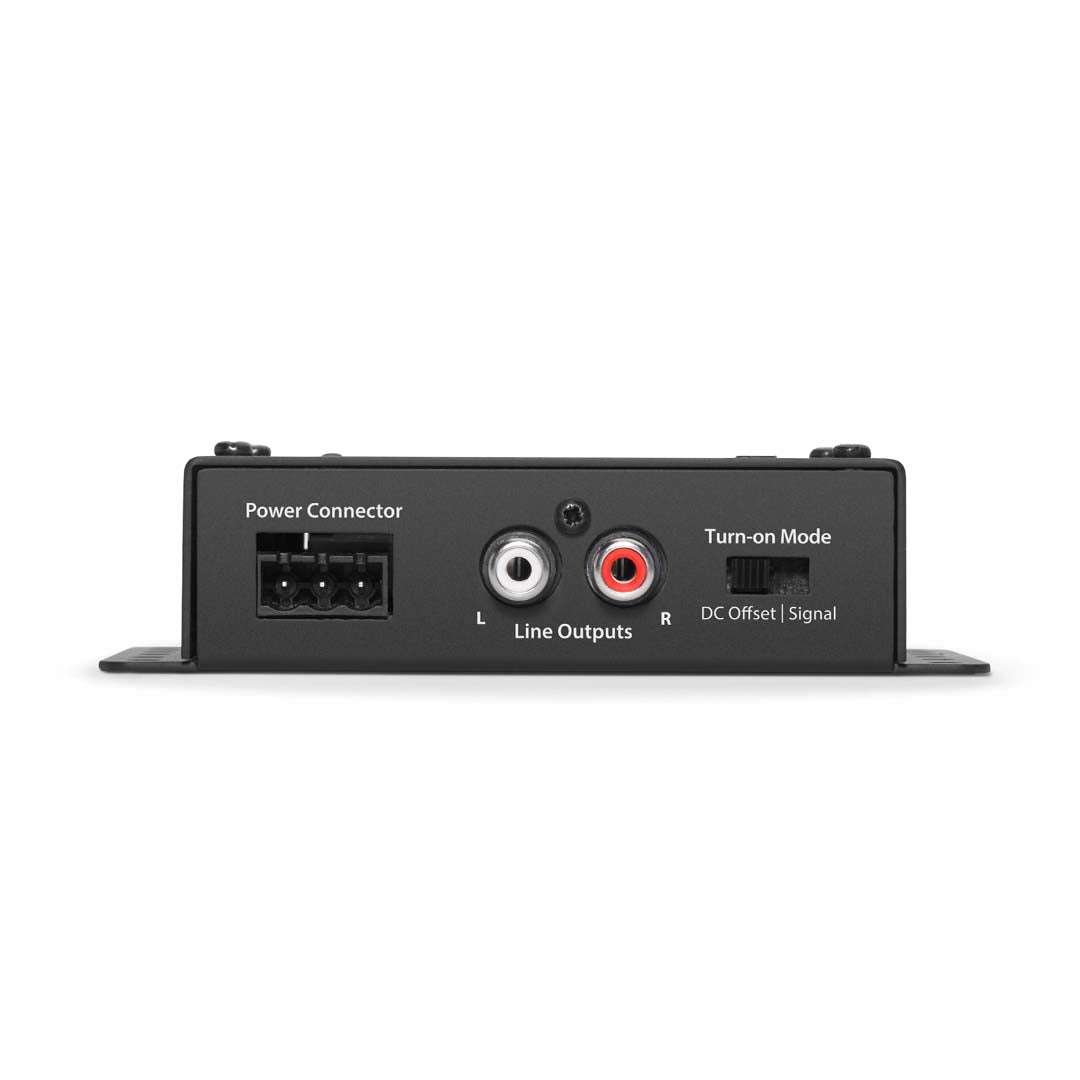

Ideal for full-range or low-frequency applications, the LoC-22 is equipped with a pair of analog RCA-type, line-level output jacks (up to 8V RMS) to feed audio signals to your aftermarket system. Analog outputs are compatible with most types of aftermarket signal processors or amplifiers. Setting output levels is super simple and easy, thanks to a specially calibrated, onboard clipping indicator that works with test tones or music. The LoC-22 offers two automatic turn-on methods (DC-Offset Sensing or Signal Sensing) and provides a positive 12V turn-on output to activate aftermarket amplifiers or other downstream electronics.
JL Audio’s Differential-Balanced Inputs are engineered to combat induced cable noise, which is a common problem in car and marine audio installations. This technology allows for the use of conventional RCA cables, while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.
