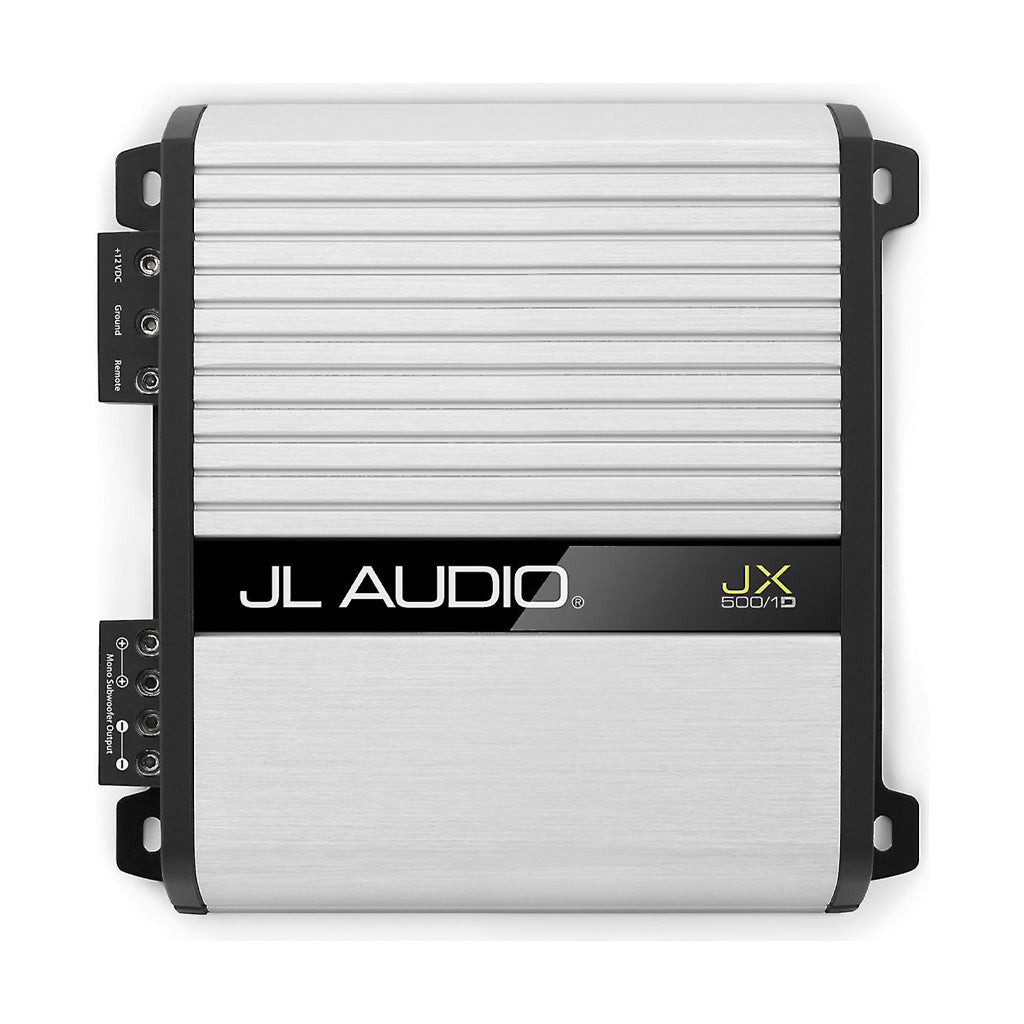

JL Audio JX500/1D, JX Series Class D Mono Amplifier, 500W

JL Audio
JL Audio JX500/1D, JX Series Class D Mono Amplifier, 500W
Sold Out
JL Audio

JL Audio JX500/1D, JX Series Class D Mono Amplifier, 500W

Discontinued Item

To add this product to your wish list you must Login or Register

Not Available for Shiping Outside the United States

Questions? We're here to help.

866-859-0896 ChatEmail Us

PROP 65 WARNING

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

General Features:

  • JL Audio JX Series Monoblock Class-D Subwoofer Amplifier¬†
  • RMS Power Rating (14.4V): ¬†
    • 4 ohms: 300 watts x 1¬†
    • 3 ohms: 400 watts x 1¬†
    • 2 ohms: 500 watts x 1 ¬†
  • RMS Power Rating (12.5V): ¬†
    • 4 ohms: 235 watts x 1¬†
    • 3 ohms: 300 watts x 1¬†
    • 2 ohms: 410 watts x 1 ¬†
  • Unregulated PWM switching type power supply¬†
  • LED power (green) and protect (red) indicators¬†
  • Soft start turn-on prevent clicking and popping when system turns on¬†
  • Speaker-level (high-level) inputs with included harness¬†
  • Preamp RCA outputs to daisy chain multiple amps¬†
  • 3-way protection circuitry (thermal, overload, and speaker short protection)¬†
  • Heavy duty aluminum alloy heatsink for effective heat dissipation¬†
  • Nickel-plated RCA level inputs¬†
  • Nickel-plated screw terminals¬†
  • Dual speaker terminals simplify the hookup of multiple speakers¬†
  • Remote bass level input (JL Audio RBC-1 sold separately)¬†
  • Input sensitivity: ¬†
    • Low level input: 200mV - 4V¬†
    • High level input: 2.0mV - 10.0V ¬†
  • Variable Bass Boost: 0 to +12 dB bass boost centered at 45 Hz¬†
  • Variable low-pass filter: 50 - 200 Hz, 12 dB/octave¬†
  • Frequency Response: 10 - 150 Hz 1 dB¬†
  • Total Harmonic Distortion (THD): 1%¬†
  • Signal to Noise Ratio: >62 dB¬†
  • Damping Factor @ 4 ohms: >1000 @ 4 ohms¬†
  • Fuse Rating: 50A x 1 inline (not supplied) ¬†
  • 4 gauge power and ground wiring is recommended for installation.¬†
  • Weight: 4.80 lb¬†
  • Dimensions: 7.68"W x 7.83"L x 2.09"H¬†
  • Authorized Internet Dealer¬†
  • 2 Year Manufacturer's Warranty¬†

Number of Channels

1

Class

D

Peak Power Rating (Watts)


RMS Power Rating (Watts x Channels) - 4 Ohms

300 x 1

RMS Power Rating (Watts x Channels) - 2 Ohms

500 x 1

RMS Power Rating (Watts x Channels) - 1.5 Ohm



N/A
RMS Power Rating - Bridged N/A
Minimum Impedance Unbridged (Ohms)

2

Minimum Impedance Bridged (Ohms)

N/A

THD at Rated RMS Power

1%

Bulit-in Crossover - Low Pass

Yes

Built-in Crossover - High Pass
N/A
High Pass Crossover Frequency (Hz)

N/A

Low Pass Crossover Frequency (Hz)
50-200hz
Signal-to-Noise Ratio

62dB

Bass Boost
0-12dB
Bass Remote Included

No

Fuse Rating 50A
CEA-2006 Compliant Yes
Maximum Power Wire Gauge Size 4 Gauge
Warranty 1 Year
