JL Audio C5-525x, C5 Series 5.25" Coaxial Speakers, 225W

JL Audio
JL Audio

JL Audio C5-525x, C5 Series 5.25" Coaxial Speakers, 225W

Price Match Guarantee
Price Match Guarantee
AVLeaderz Cares! We are dedicated to offering the best value to our customers, always. We will match the price, at the time of purchase, on a Price Match Guarantee product if you find the same item at a lower price at a qualifying online retailer or at a local retail competitor's store. Here's how:

  • If you find a qualifying lower price online, call 1-866-859-0896 and provide a customer service agent the web site with the lower price.
  • On qualifying products, AVLeaderz will verify the current price to complete the price match.
Exclusions may apply including, but not limited to, items sold by Marketplace vendors, competitors' service prices, special daily or hourly sales, and items for sale the Sunday before Thanksgiving Day through the Monday after Thanksgiving. More Details
$569.99

4 In stock

JL Audio

JL-C5-525x

699440991018

FREE SHIPPING & FREE RETURNS
-
+
Add to wishlist

To add this product to your wish list you must Login or Register

Not Available for Shiping Outside the United States

Questions? We're here to help.

866-859-0896 ChatEmail Us

PROP 65 WARNING

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

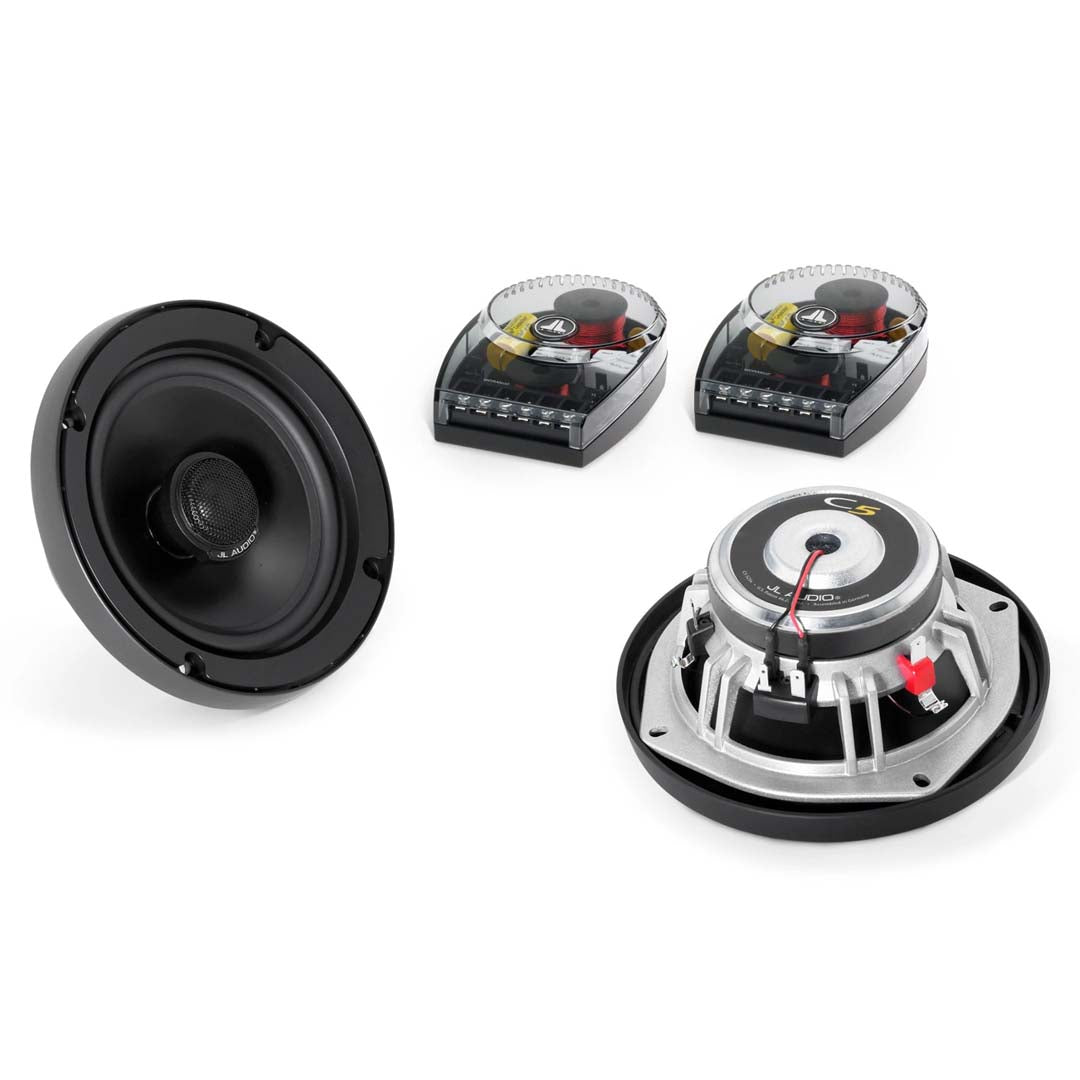

The smoothness and transparency of a high-end silk dome tweeter combines with top-flight woofer performance to create a coaxial loudspeaker system with exceptional refinement and dynamic capability.

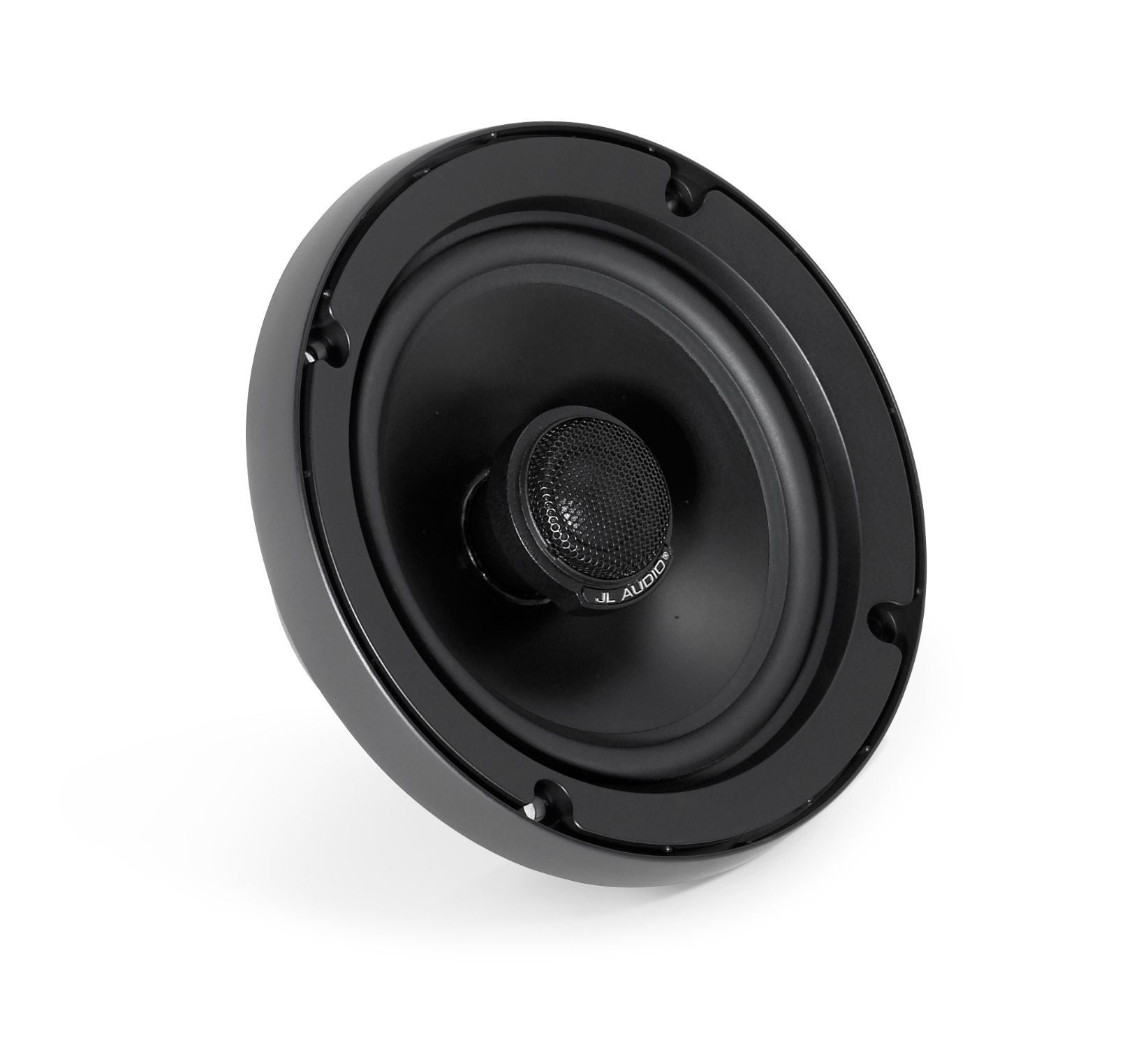

The C5-525x system features 5.25-inch (130 mm) woofers with die-cast alloy baskets and Kurt Müller cones and suspensions. The woofer benefits from JL Audio's vast woofer design experience and advanced modeling systems.

Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C5 tweeter minimizes tweeter protrusion, allowing C5 coaxials to easily fit behind most factory speaker grilles.

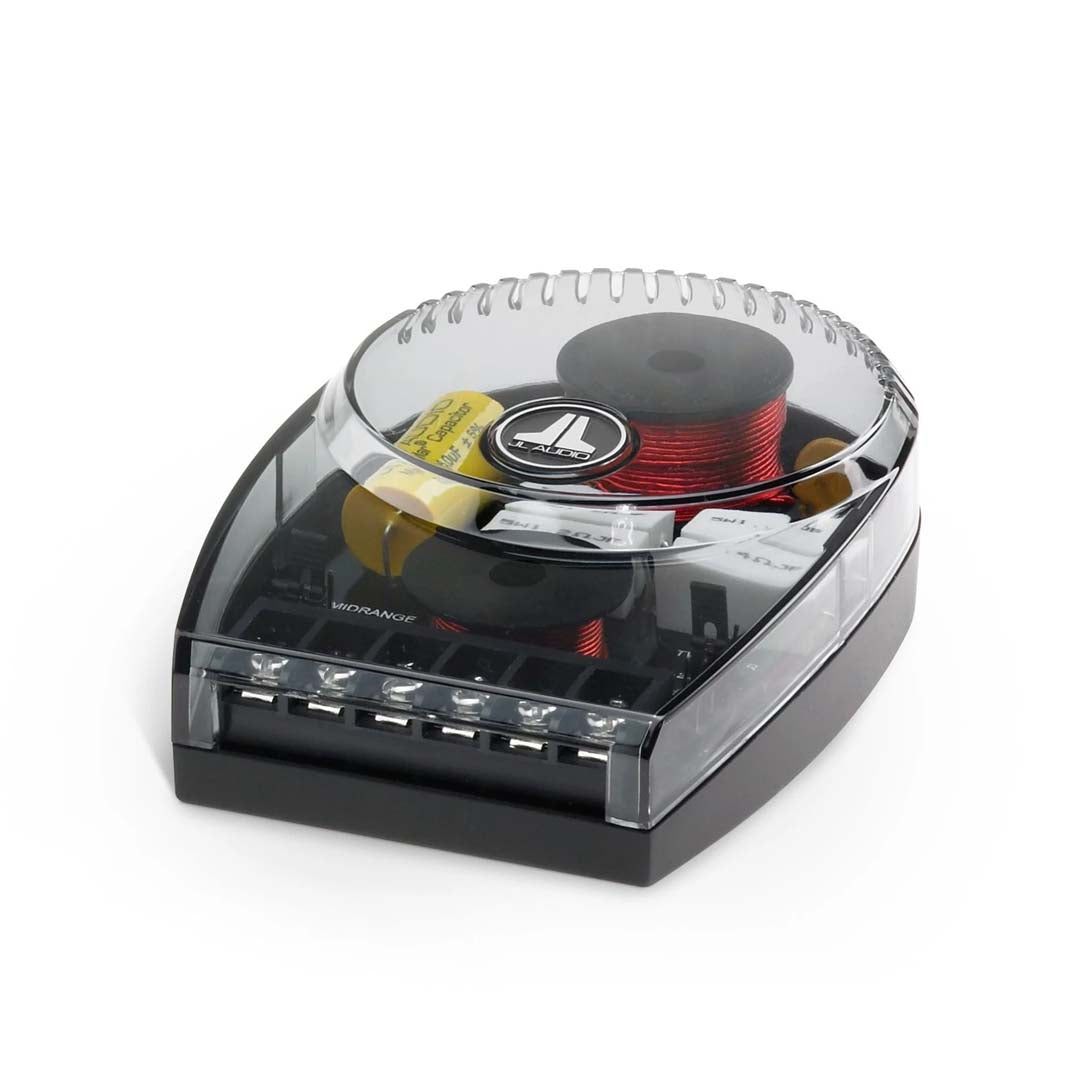

C5 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

Speaker grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Smooth and balanced

Made in Germany, Sold as a pair.

Dr. Kurt Muller & Co.

The best sound requires cones and suspensions made to the highest standards in the world.

Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902)

JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.

Dynamic Motor Analysis - DMA Optimized Motor

JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.

Silk Dome Tweeter

Light, fast moving silk dome material promotes high-frequency accuracy.

Speaker Size

 5.25"

Design

2-Way

Tweeter Design

3/4" Soft Dome

Impedance (Ohms)

4

Tweeter Composition

Silk
Woofer Composition

Mineral-filled Polypropylene

Woofer Surround

Butyl rubber

Sensitivity (dB)

88.5dB

Frequency Response (Hz)

53-25k Hz

RMS Power Rating (Watts)

75

Peak Power Rating (Watts)

225

Top-mount Depth (Inches)

2 7/16

Bottom-mount Depth (inches)


Cutout Diameter (inches)

4 1/2

Grilles Included

Yes

Warranty

1-Year
