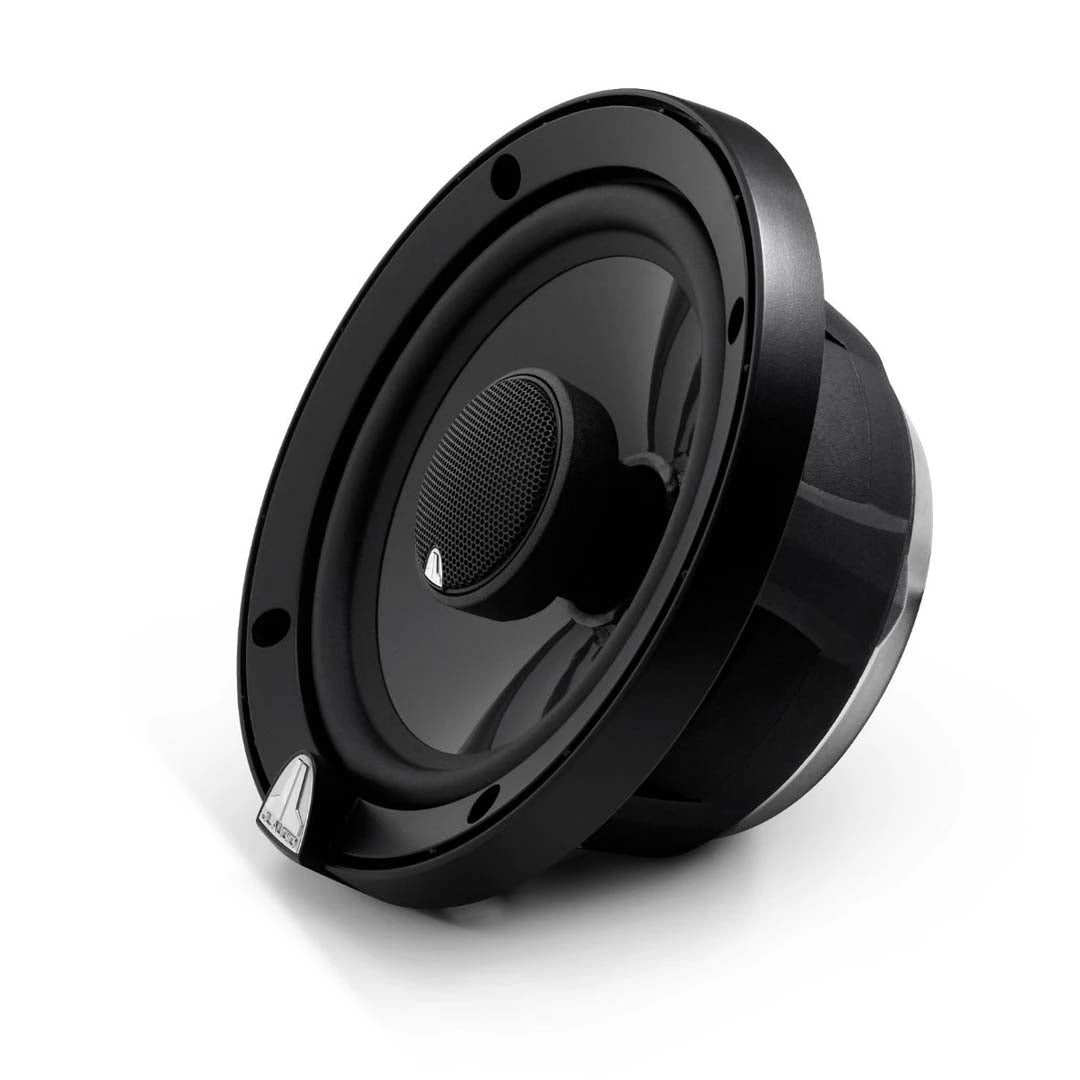

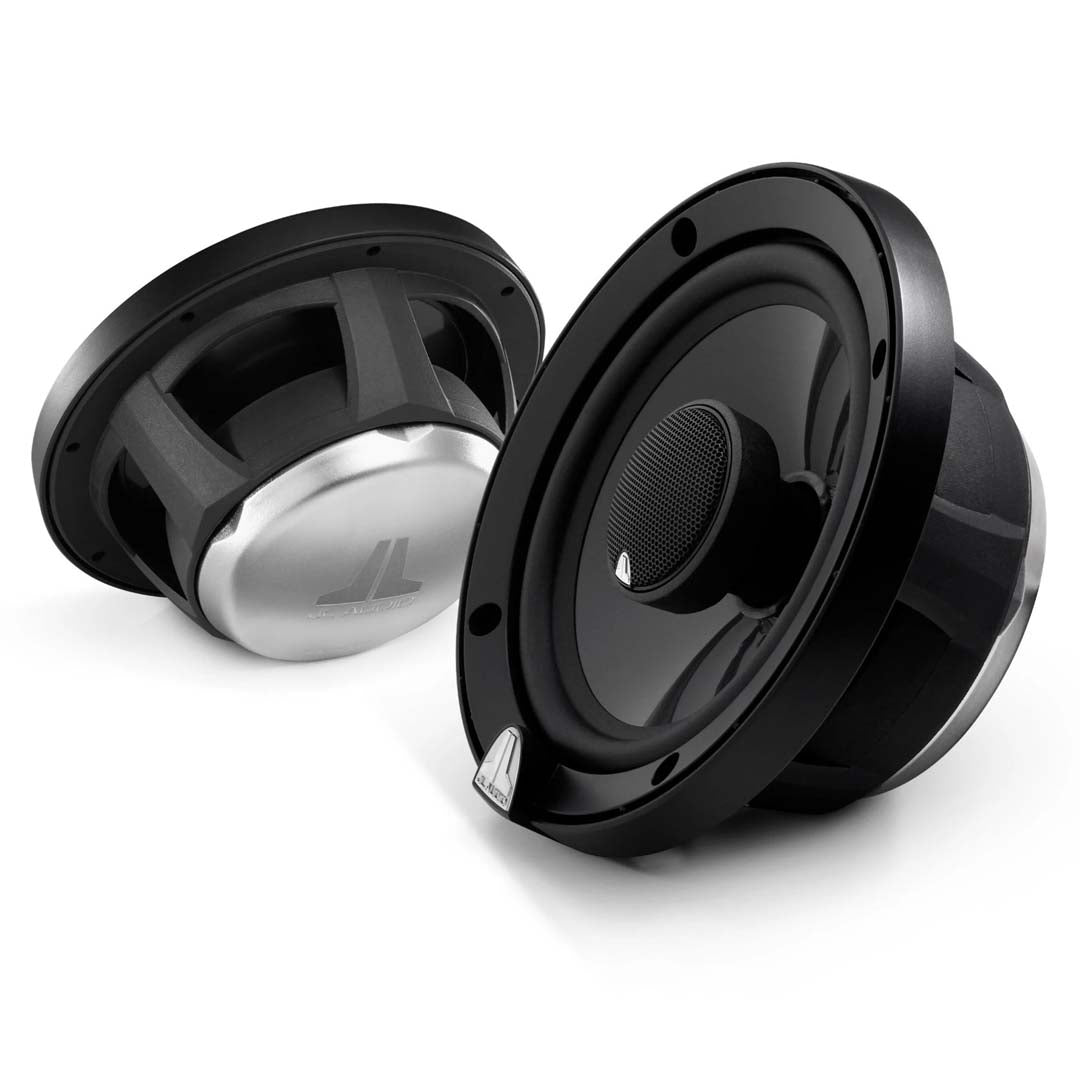

JL Audio C3-600, C3 Series 6" Convertible Component Speakers, 225W

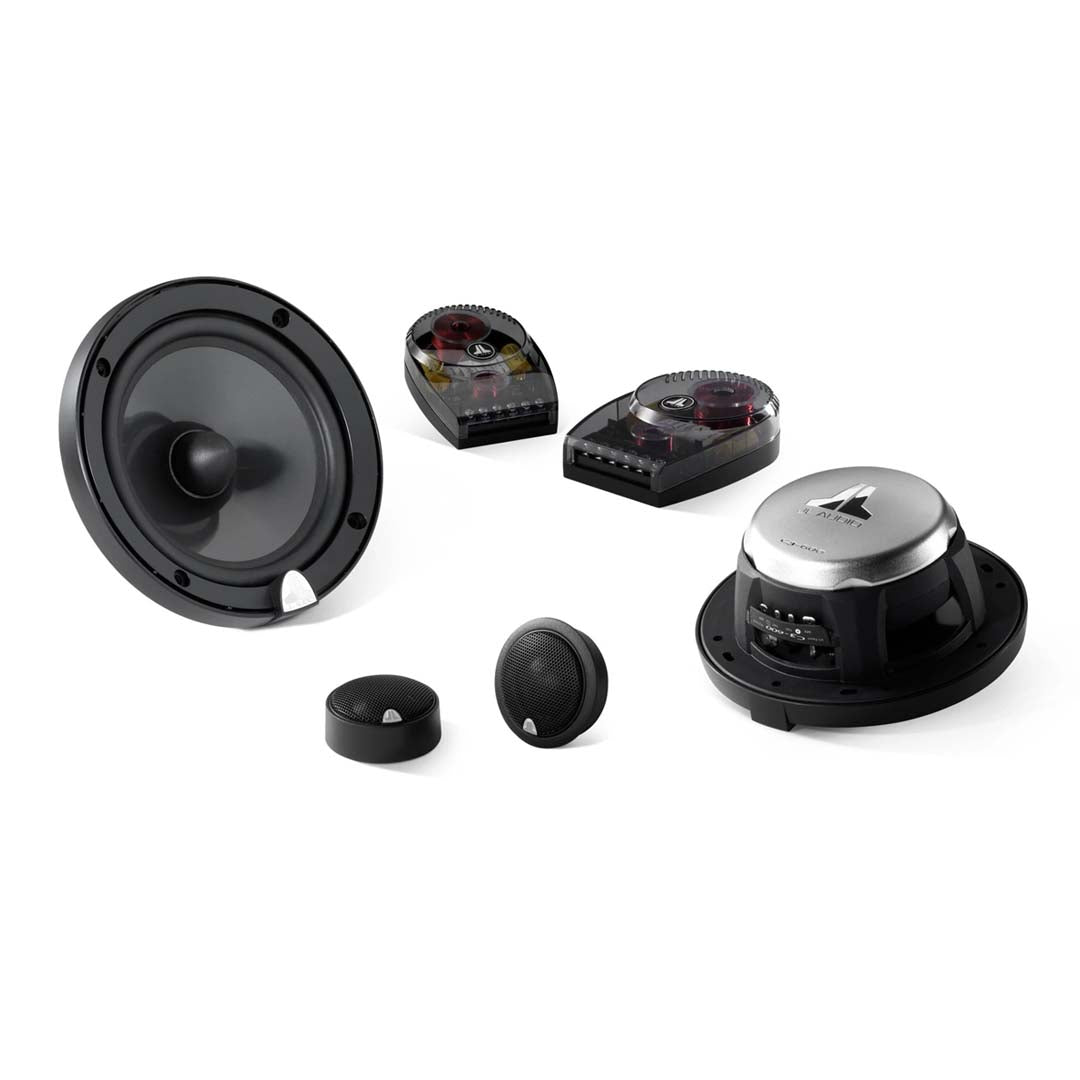

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
The new C3-600 expands the C3 lineup with a direct-fit product for many Japanese vehicles that will not accept a full-size 6.5-inch speaker.
The C3-600 system features 6-inch (150 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.
C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!
Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Powerful
Sold as a pair.
Convertible Drivers: Coaxial or Component
Sometimes a coaxial is the best solution... and sometimes you need to mount the tweeter separately. It's great to have complete flexibility.
Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902)
JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
Dynamic Motor Analysis - DMA Optimized Motor
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.
Silk Dome Tweeter
Light, fast moving silk dome material promotes high-frequency accuracy.
|
Speaker Size |
6" |
|
Design |
2-Way Convertible |
|
Tweeter Design |
1" Dome |
|
Impedance (Ohms) |
4 |
|
Tweeter Composition |
Silk |
| Woofer Composition |
Mica-filled Polypropylene |
| Woofer Surround |
Butyl Rubber |
| Sensitivity (dB) |
89.5dB |
| Frequency Response (Hz) |
50-25k Hz |
| RMS Power Rating (Watts) |
75 |
| Peak Power Rating (Watts) |
225 |
| Top-mount Depth (Inches) |
2 1/2 |
| Bottom-mount Depth (inches) |
|
| Cutout Diameter (inches) |
5 |
| Grilles Included |
Yes |
| Warranty |
1-Year |
|
Speaker Size |
6" |
|
Design |
2-Way Convertible |
|
Tweeter Design |
1" Dome |
|
Impedance (Ohms) |
4 |
|
Tweeter Composition |
Silk |
| Woofer Composition |
Mica-filled Polypropylene |
| Woofer Surround |
Butyl Rubber |
| Sensitivity (dB) |
89.5dB |
| Frequency Response (Hz) |
50-25k Hz |
| RMS Power Rating (Watts) |
75 |
| Peak Power Rating (Watts) |
225 |
| Top-mount Depth (Inches) |
2 1/2 |
| Bottom-mount Depth (inches) |
|
| Cutout Diameter (inches) |
5 |
| Grilles Included |
Yes |
| Warranty |
1-Year |
