JL Audio C3-525, C3 Series 5.25" Convertible Component Speakers, 225W

Name: JL Audio C3-525, C3 Series 5.25" Convertible Component Speakers, 225W
Brand: JL Audio
SKU: JL-C3-525
Price: 499.99 USD
Availability: InStock

JL Audio C3-525, C3 Series 5.25" Convertible Component Speakers, 225W

SKU: JL-C3-525

UPC: 699440990202

Available in stock

$499.99

$499.99 ~~$499.99~~

Shipping calculated at checkout.

60-Day Returns
Lifetime Tech Support
30-Day Price Match Guarantee

Overview

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

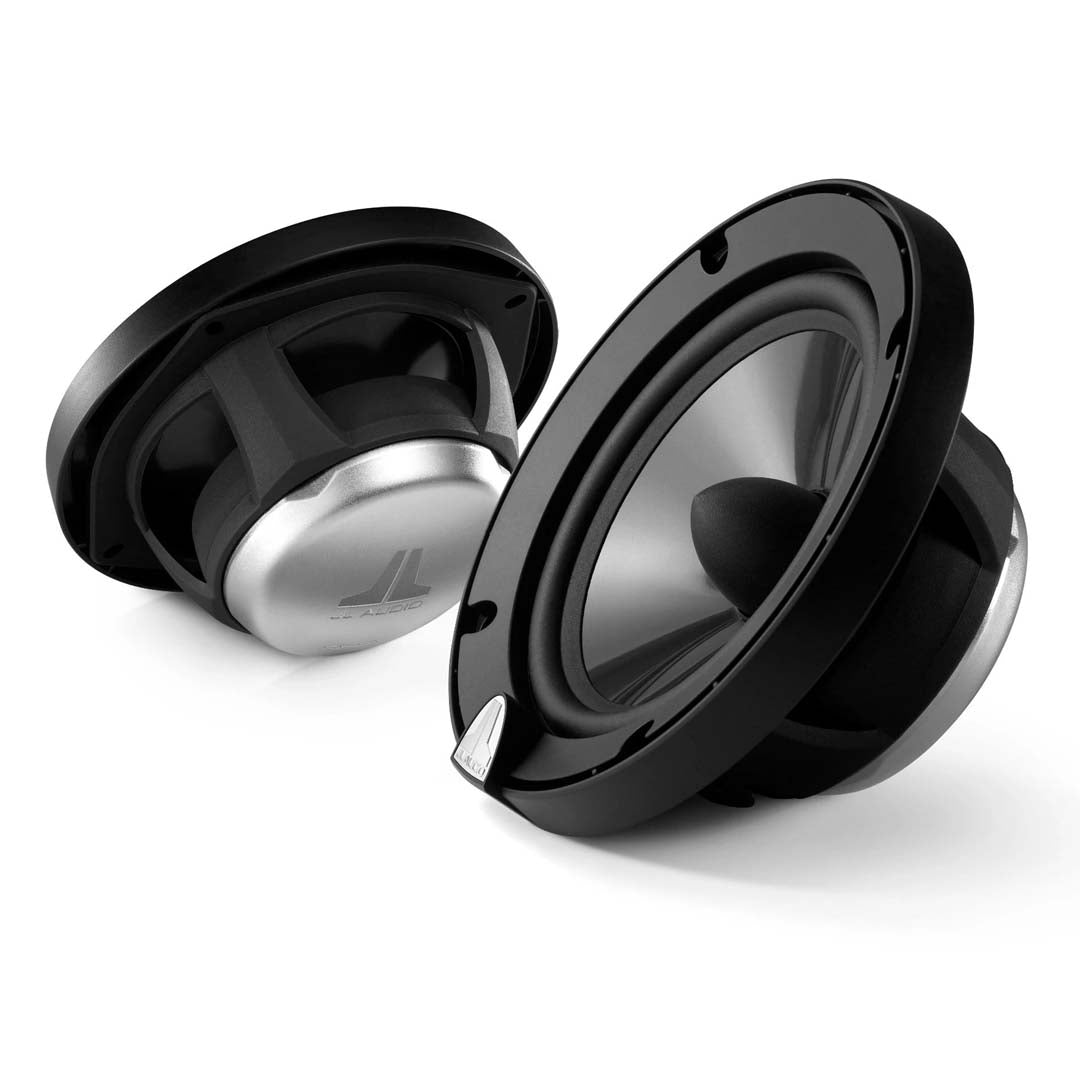

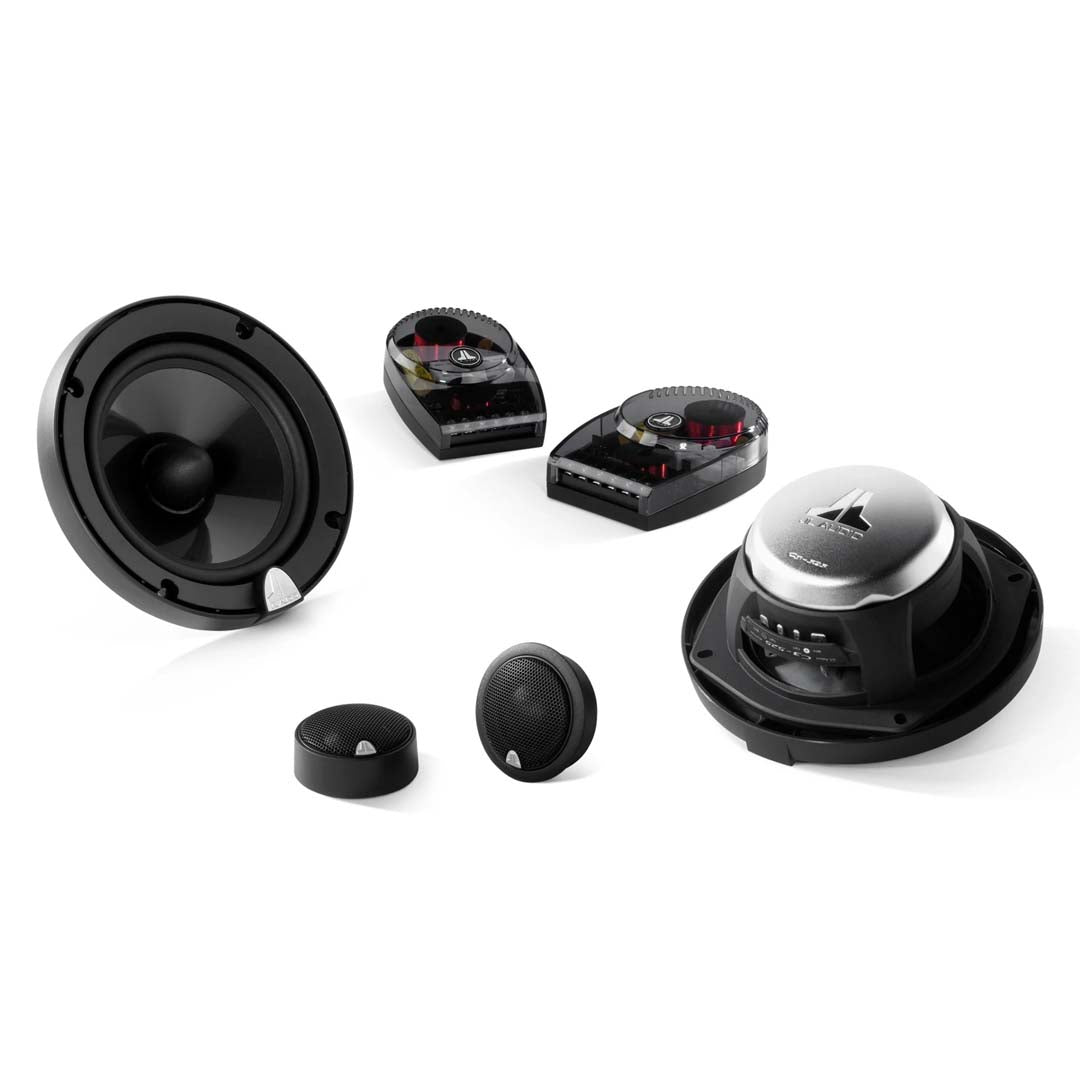

The C3-525 system features 5.25-inch (130 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Powerful

Sold as a pair.

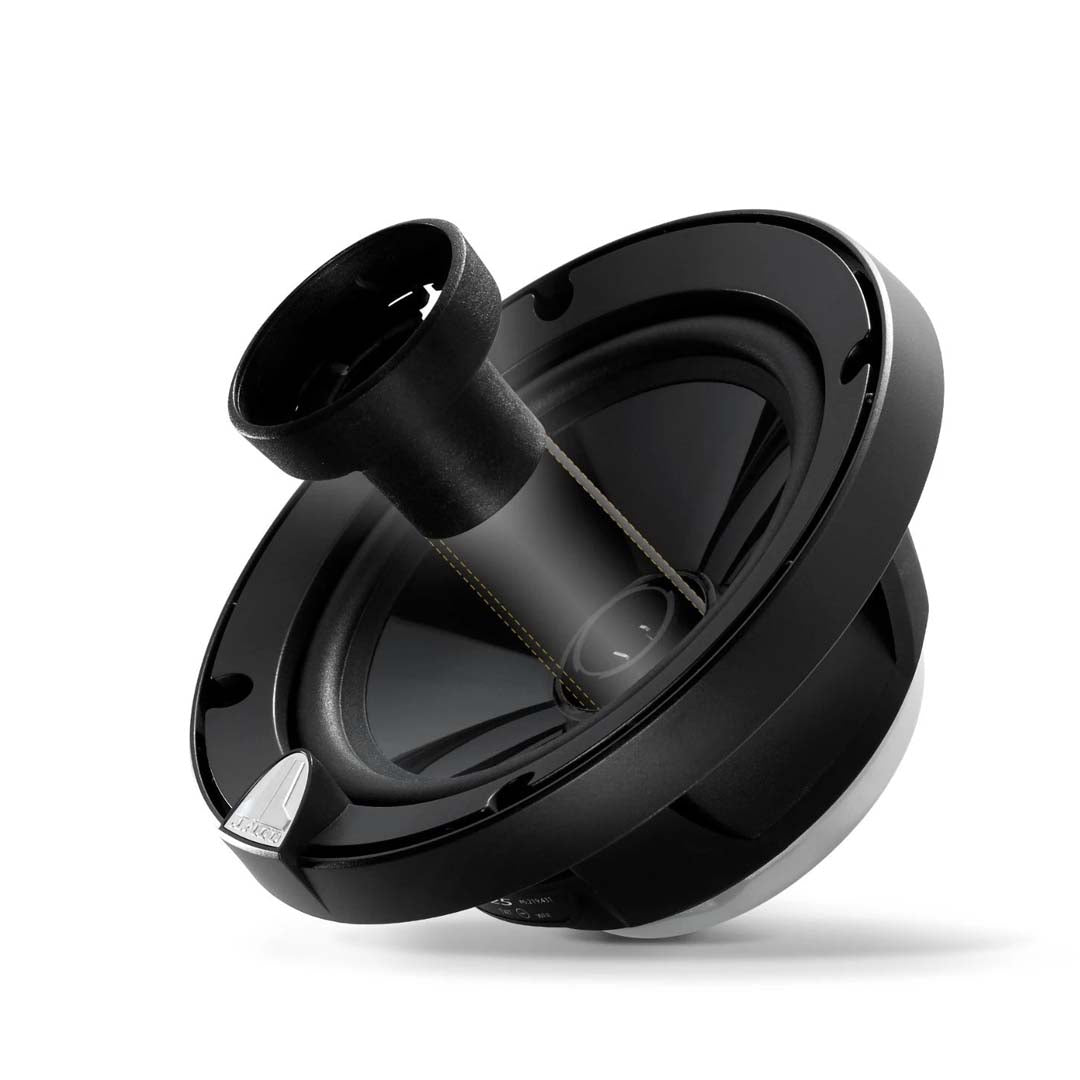

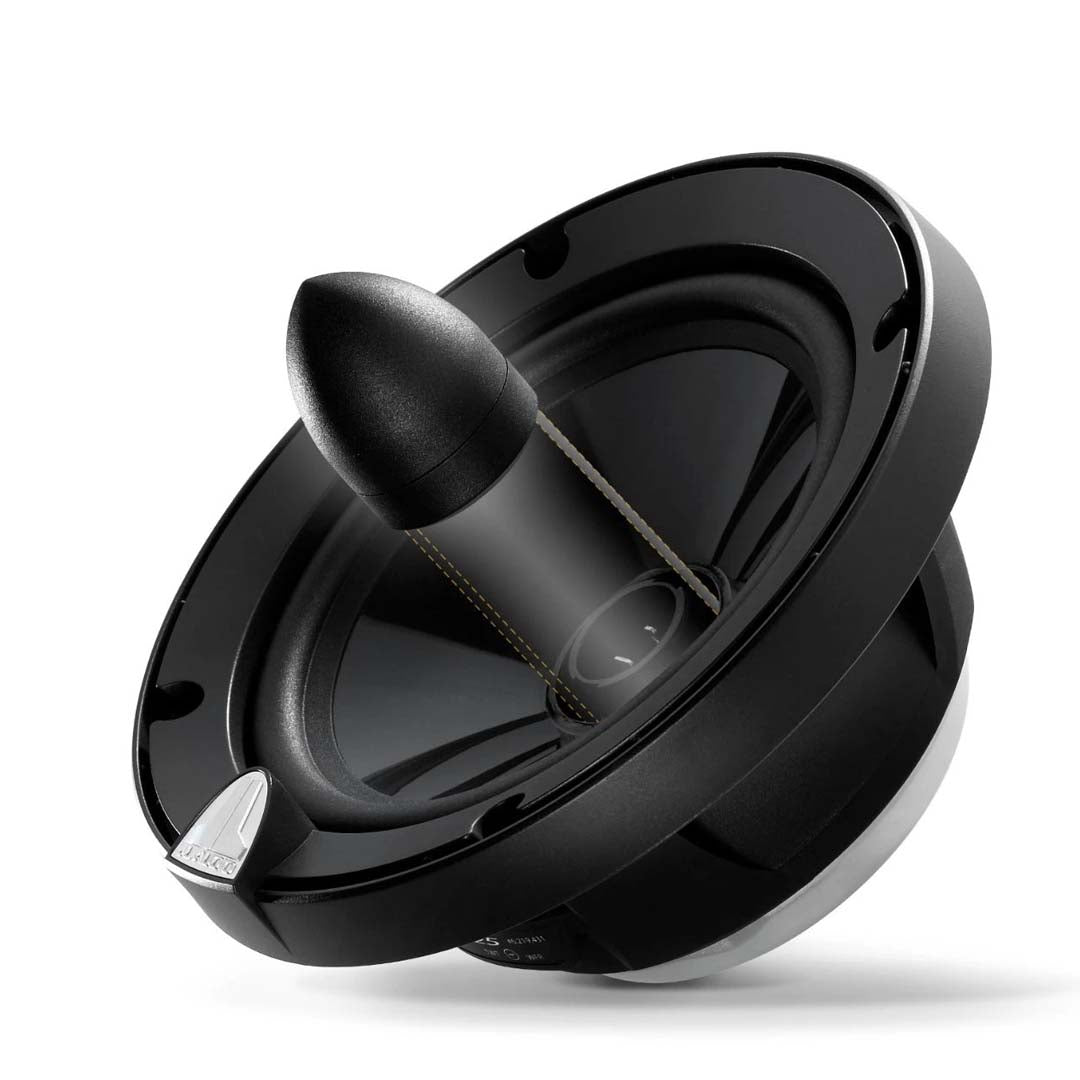

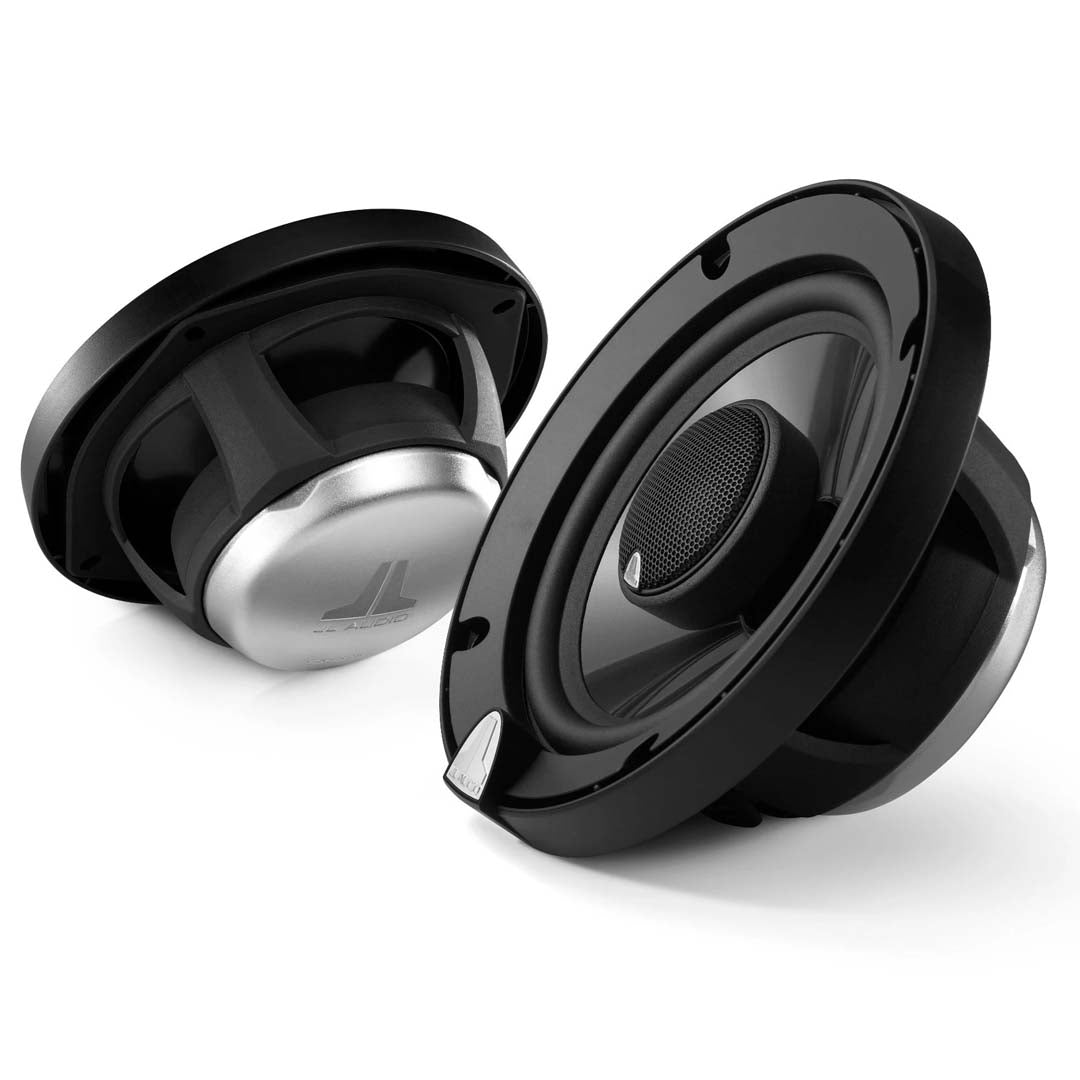

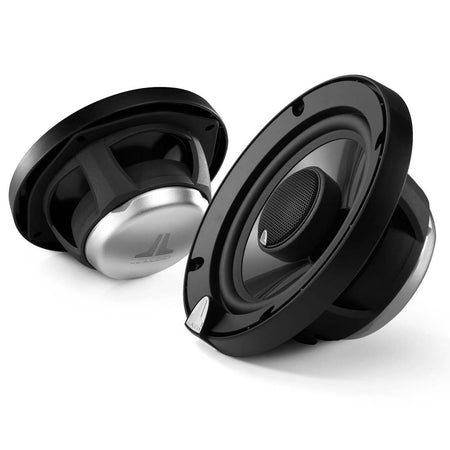

Convertible Drivers: Coaxial or Component

Sometimes a coaxial is the best solution... and sometimes you need to mount the tweeter separately. It's great to have complete flexibility.

Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902)

JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.

Dynamic Motor Analysis - DMA Optimized Motor

JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.

Silk Dome Tweeter

Light, fast moving silk dome material promotes high-frequency accuracy.

Features & Specifications

Speaker Size	5.25"
Design	2-Way Convertible
Tweeter Design	1" Dome
Impedance (Ohms)	4
Tweeter Composition	Silk
Woofer Composition	Mineral-filled Polypropylene
Woofer Surround	Rubber
RubberSensitivity (dB)	90dB
Frequency Response (Hz)	48-25k Hz
RMS Power Rating (Watts)	75
Peak Power Rating (Watts)	225
Top-mount Depth (Inches)	2 1/4
Bottom-mount Depth (inches)
Cutout Diameter (inches)	4 1/2
Grilles Included	Yes
Warranty	1-Year
