JL Audio 8W1v3-4, W1 Series 8" Single 4-Ohm Subwoofer, 150W

Model: JL-8W1v3-4
UPC: 699440920797

JL Audio 8W1v3-4, W1 Series 8" Single 4-Ohm Subwoofer, 150W

Price Match Guarantee
Price Match Guarantee
AVLeaderz Cares! We are dedicated to offering the best value to our customers, always. We will match the price, at the time of purchase, on a Price Match Guarantee product if you find the same item at a lower price at a qualifying online retailer or at a local retail competitor's store. Here's how:

  • If you find a qualifying lower price online, call 1-866-859-0896 and provide a customer service agent the web site with the lower price.
  • On qualifying products, AVLeaderz will verify the current price to complete the price match.
Exclusions may apply including, but not limited to, items sold by Marketplace vendors, competitors' service prices, special daily or hourly sales, and items for sale the Sunday before Thanksgiving Day through the Monday after Thanksgiving. More Details
$179.99
JL Audio

60-DAY FREE & EASY RETURNS
Your purchase is backed by our AVLeaderz advantage satisfaction guarantee. Get Free & Easy Returns for 60 days from the day you receive your order.
FREE SHIPPING & FREE RETURNS
-
+
Add to wishlist

To add this product to your wish list you must Login or Register

Not Available for Shiping Outside the United States

Questions? We're here to help.

866-859-0896 ChatEmail Us

PROP 65 WARNING

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

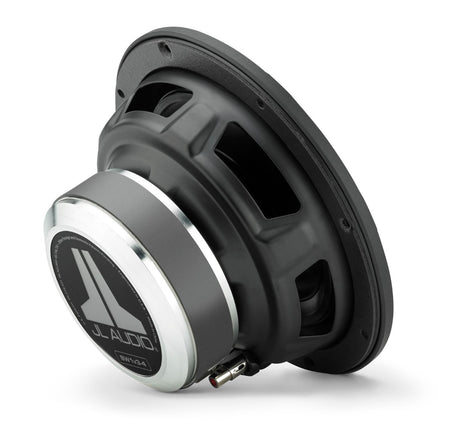

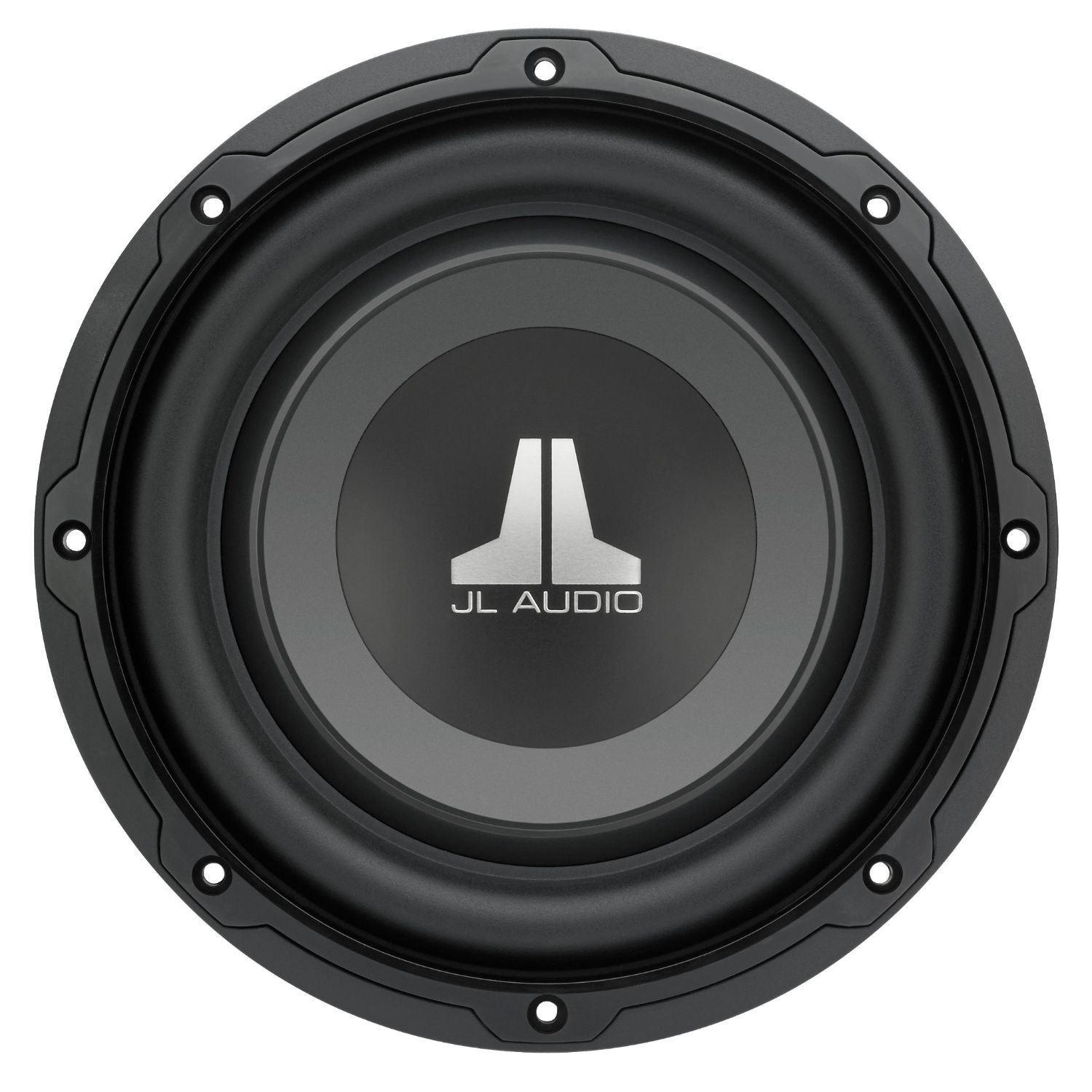

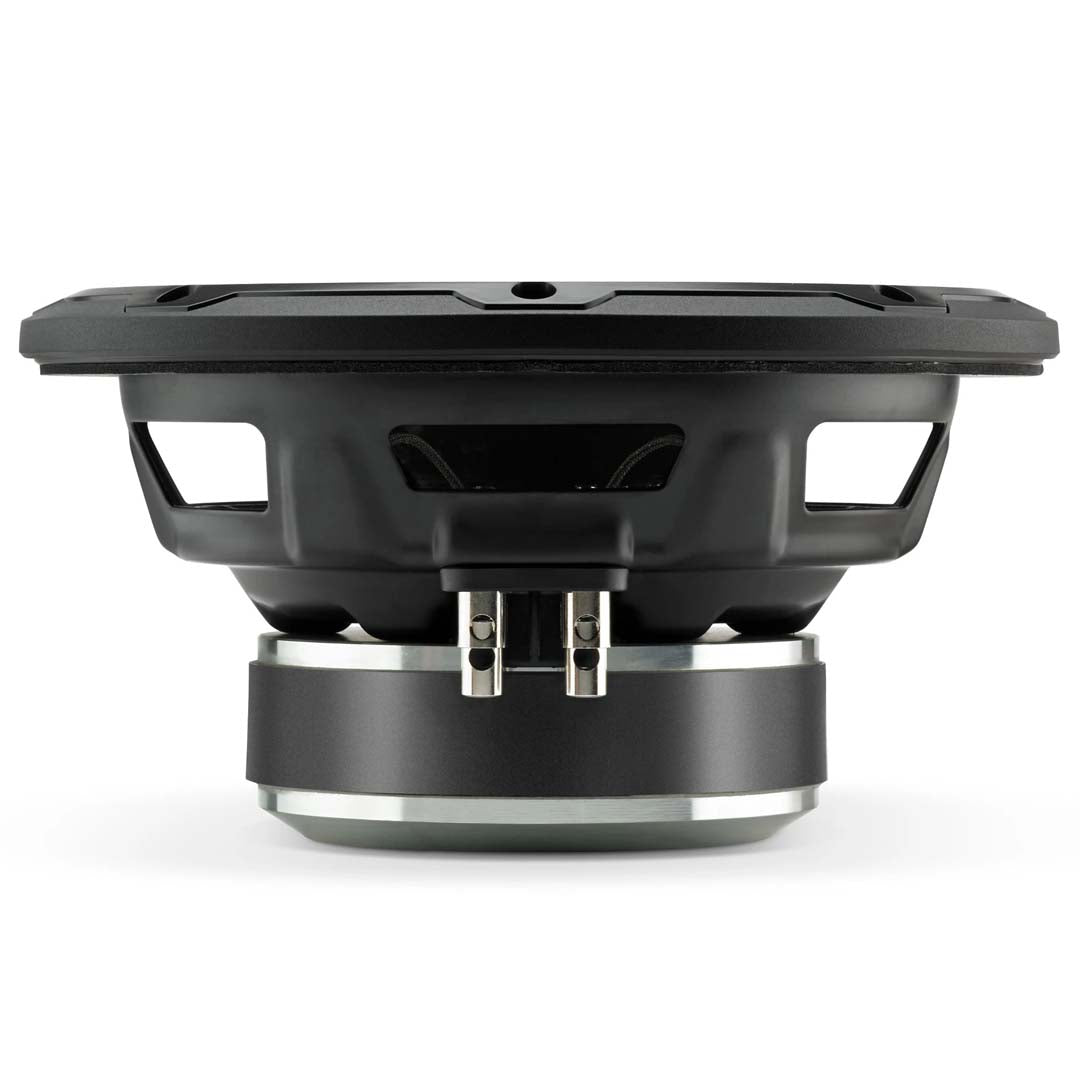

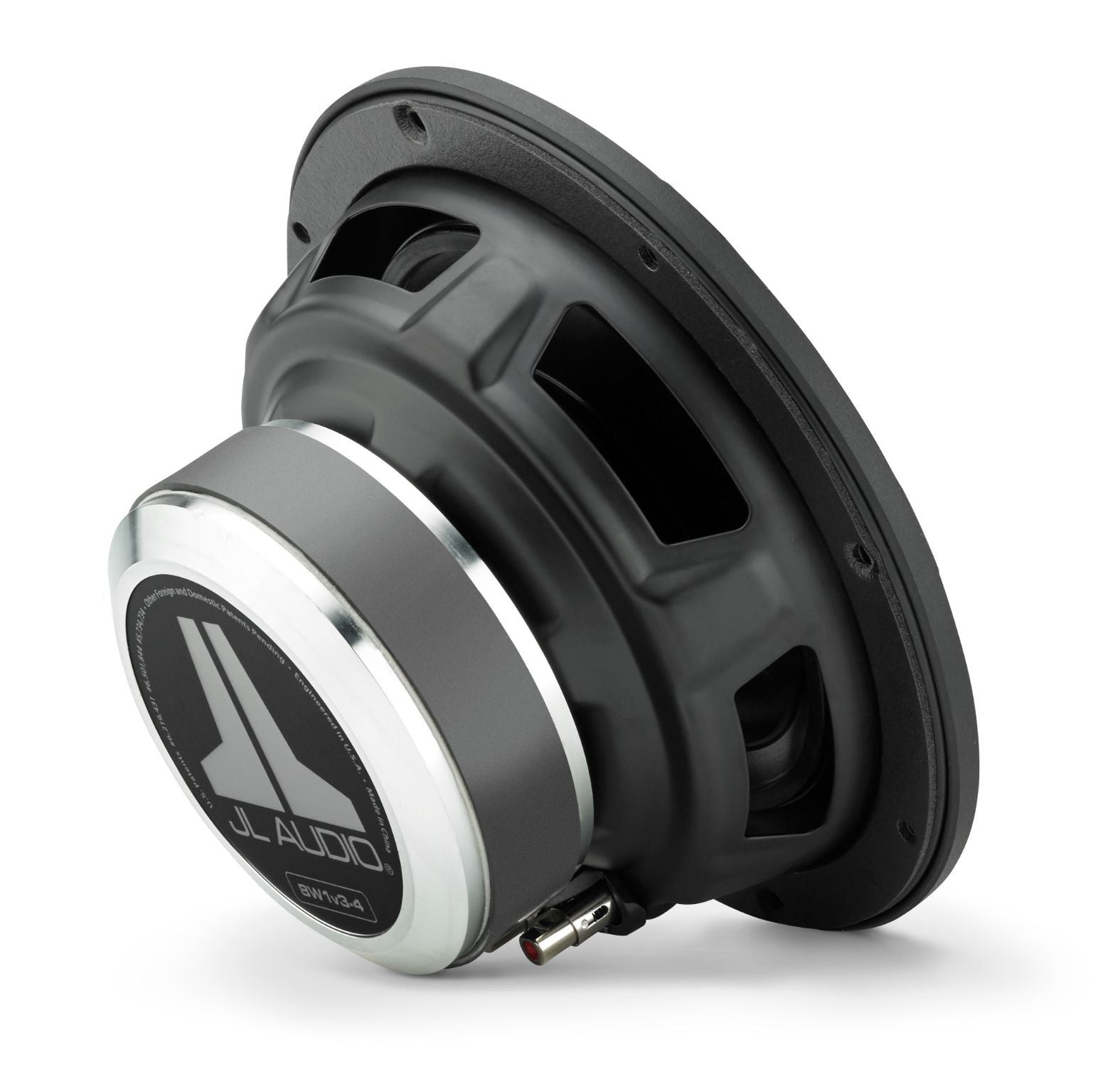

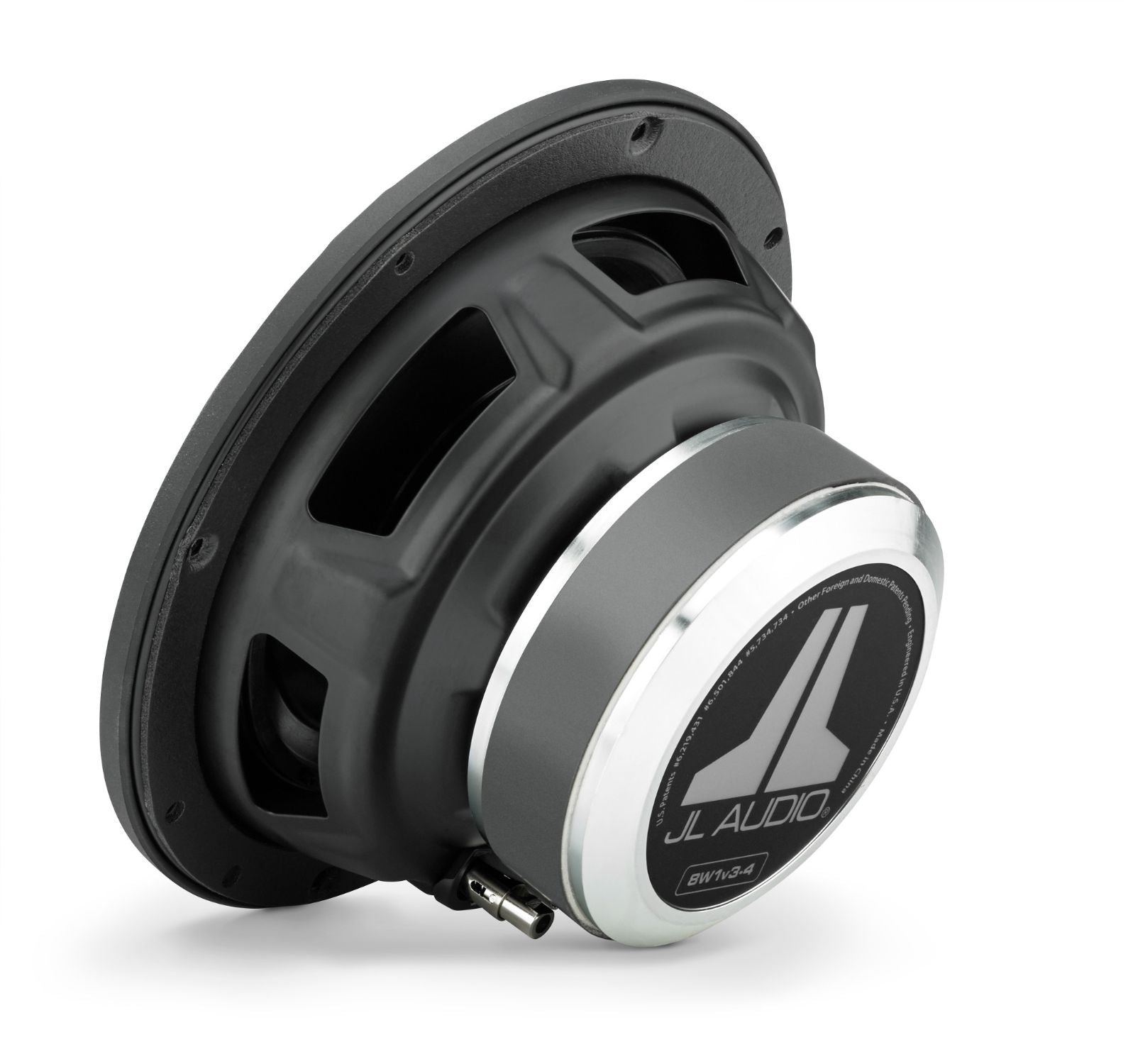

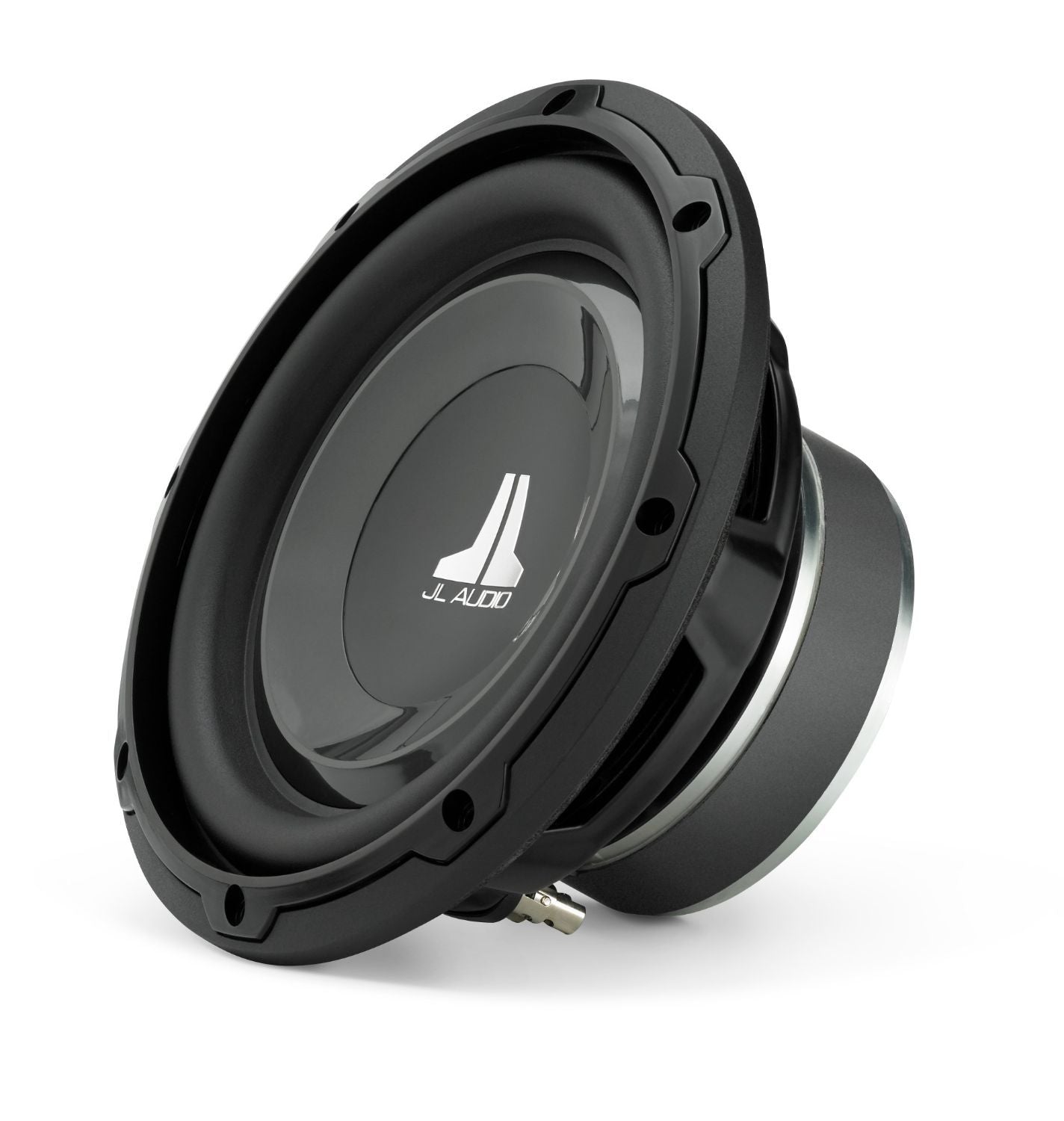

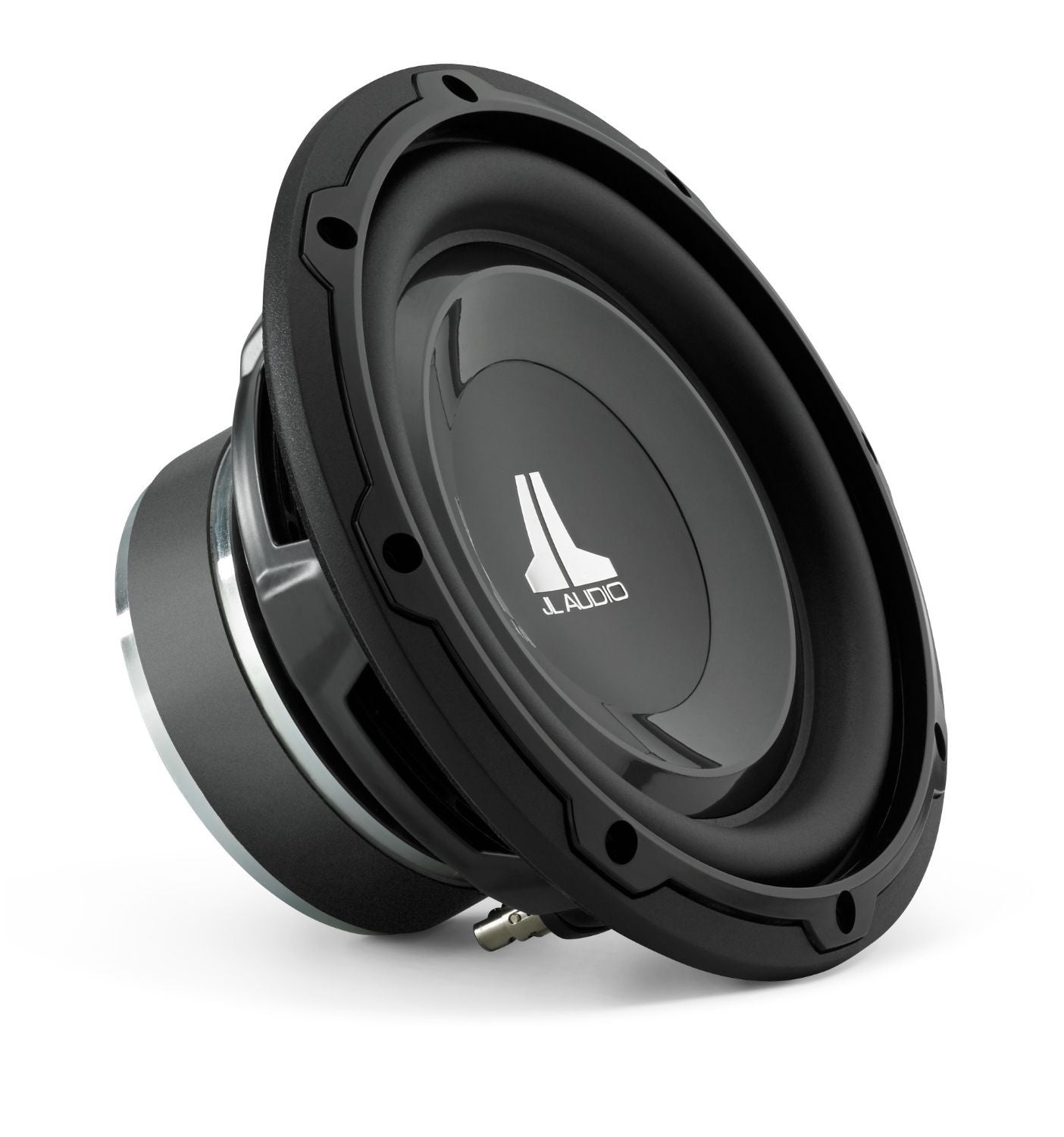

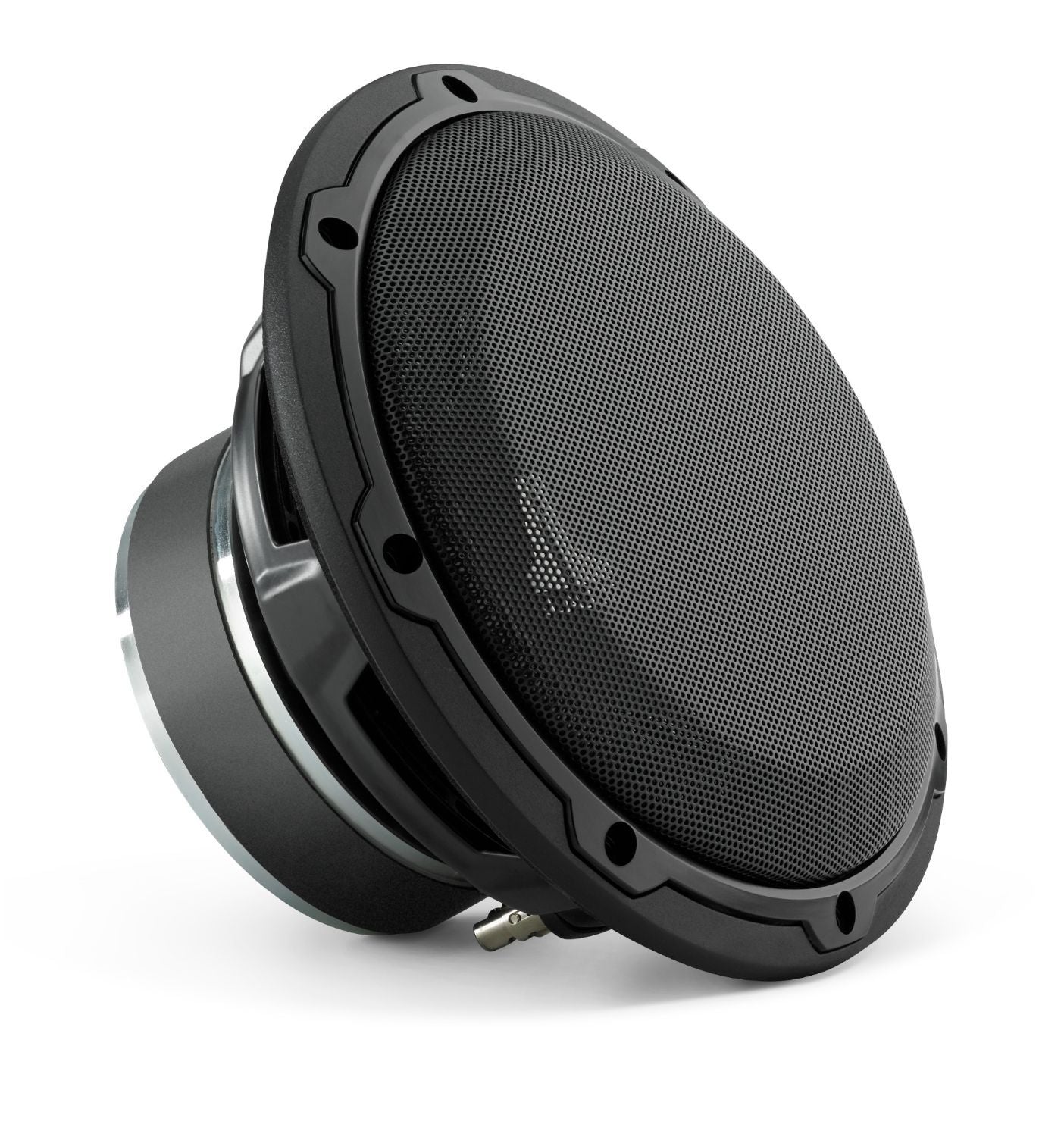

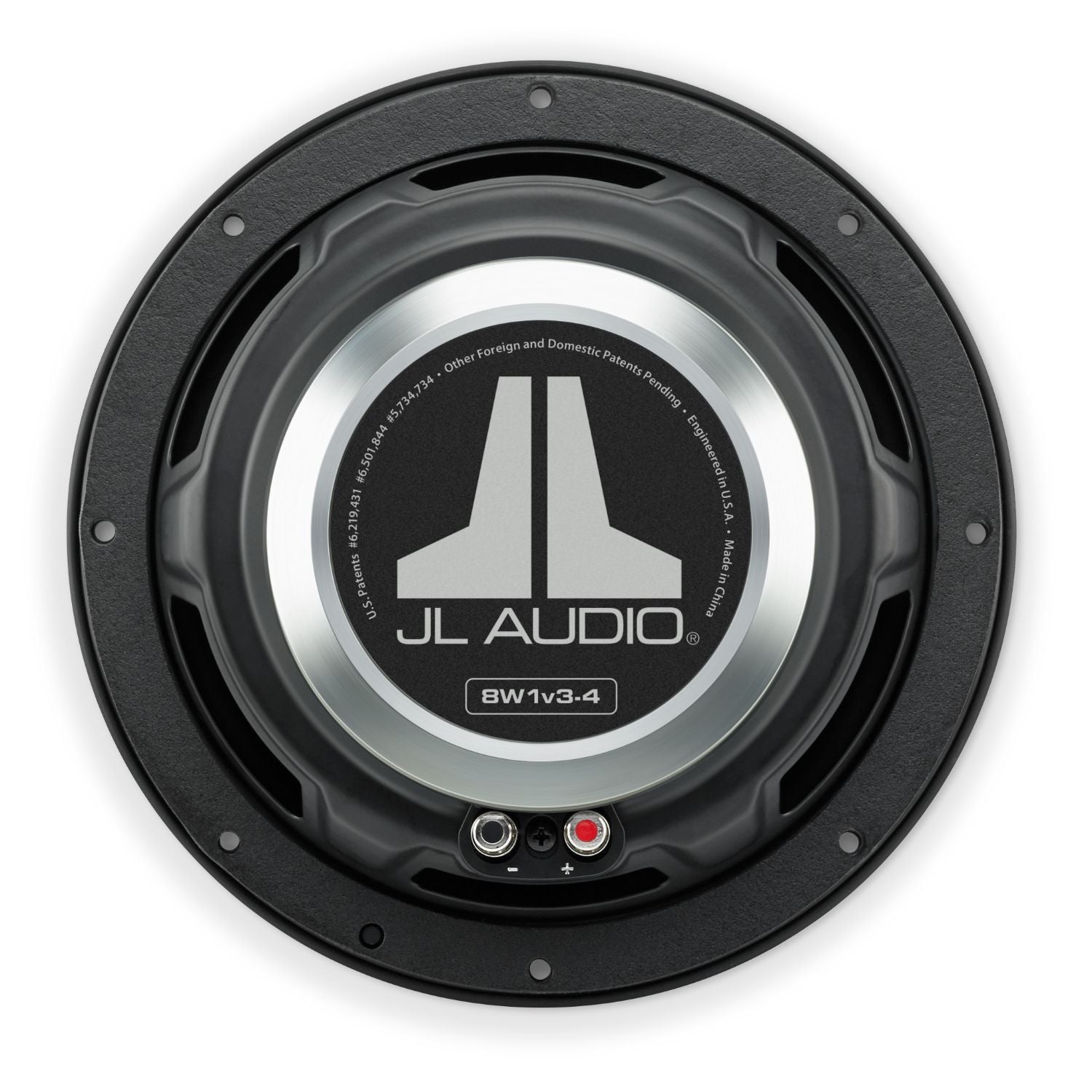

The 8W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (3.86 in. / 98 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 8-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
The 8W1v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a compact 0.350 cu. ft. (9.90 l) sealed enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

Dynamic Motor Analysis - DMA Optimized Motor

JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modelling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.

Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902)

JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.

Floating Cone Attach Method - FCAM™ (U.S. Patent #6,501,844)

This assembly technique, conceived by JL Audio, ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.

Vented Reinforcement Collar

JL Audio's Vented Reinforcement Collar (VRC®) improves the rigidity and stability of the cone/spider/voice coil junction and directs airflow over the voice coil windings for improved thermal performance.


Insert Molded Suspension / Coil / Terminal Sub-Assembly (U.S. Patent #7,379,558)

Spiders, voice coils, terminals and lead wires are preassembled, using a patented process, onto a composite carrier for improved precision and reliability.

Engineered Lead-Wire System (U.S. Patent #7,356,157)

Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.

Size

8-inch

Voice Coil

Single

Impedance

4 ohm

RMS Power Rating (Watts)

150

Peak Power Rating (Watts)

300
Cone Material

Mineral-filled poly

Surround Material

Rubber

Free Air

No

Sensitivity

84.8 dB at 1 Watt

Frequency Response

25-250hz

Top Mount Depth (Inches)

3 7/8

Bottom Mount Depth (Inches)


Cutout Diameter (Inches)

6 15/16

Vas (liters)

19.26

Fs (Hz)

35.4

Xmax (millimeters)

8

Warranty
1 Year
