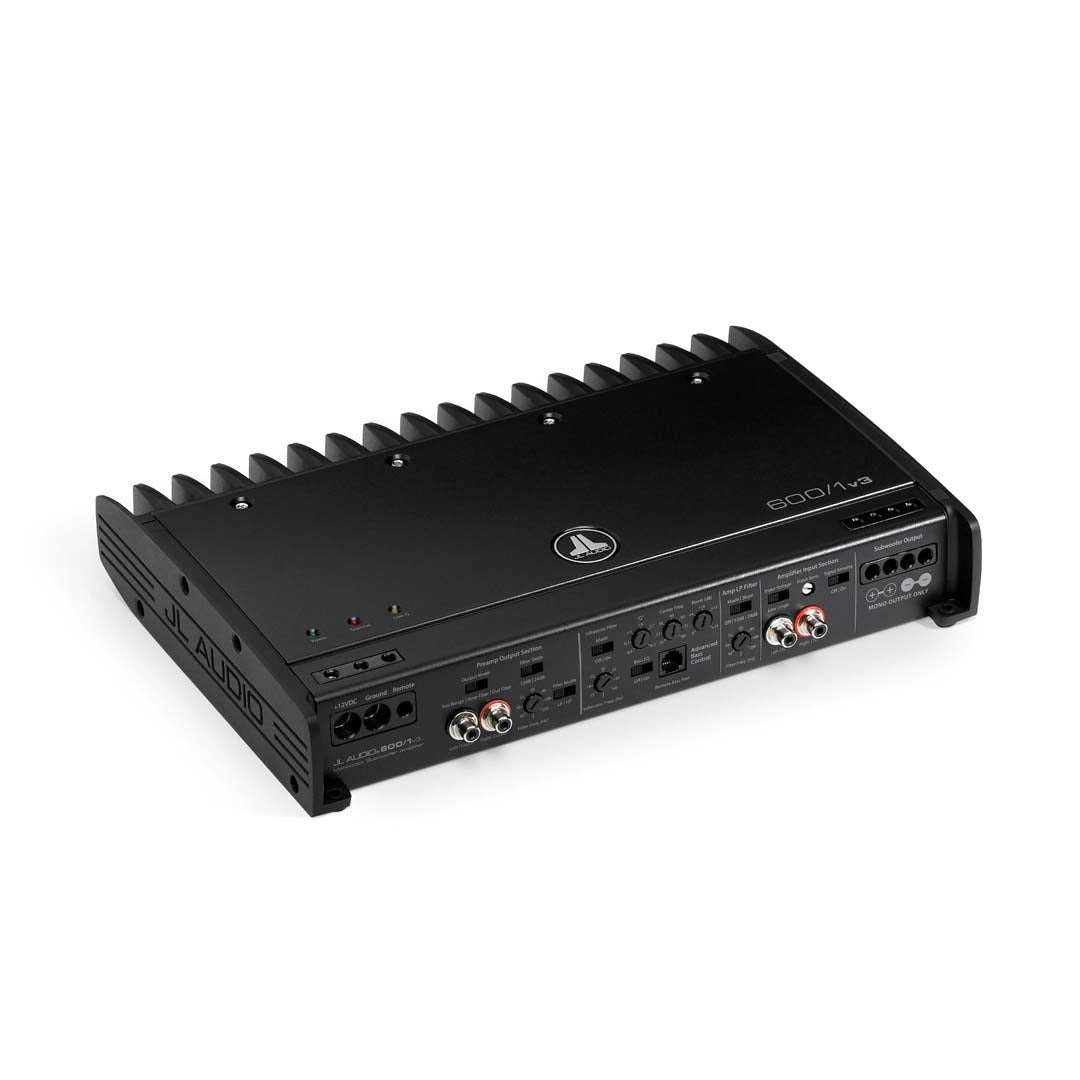

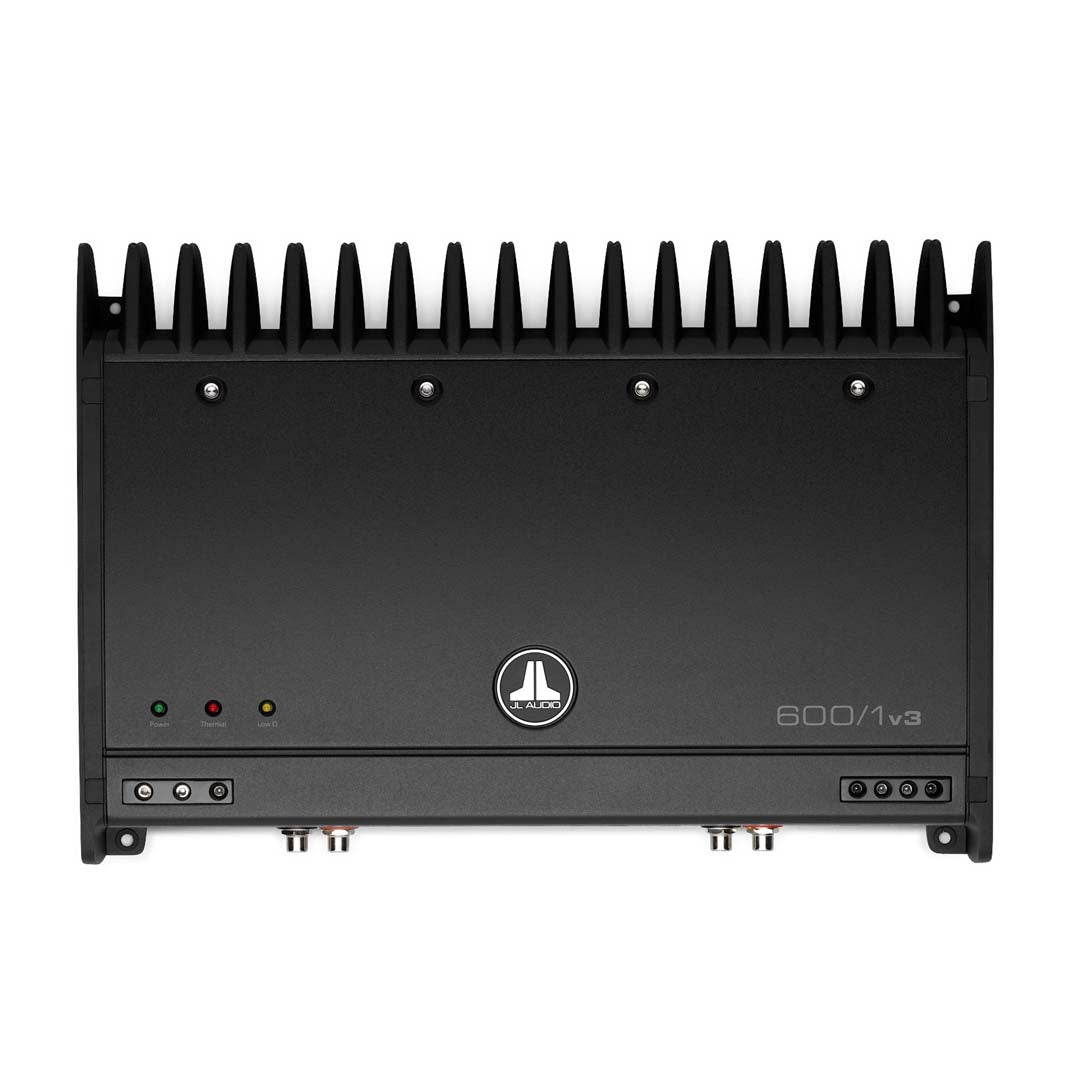

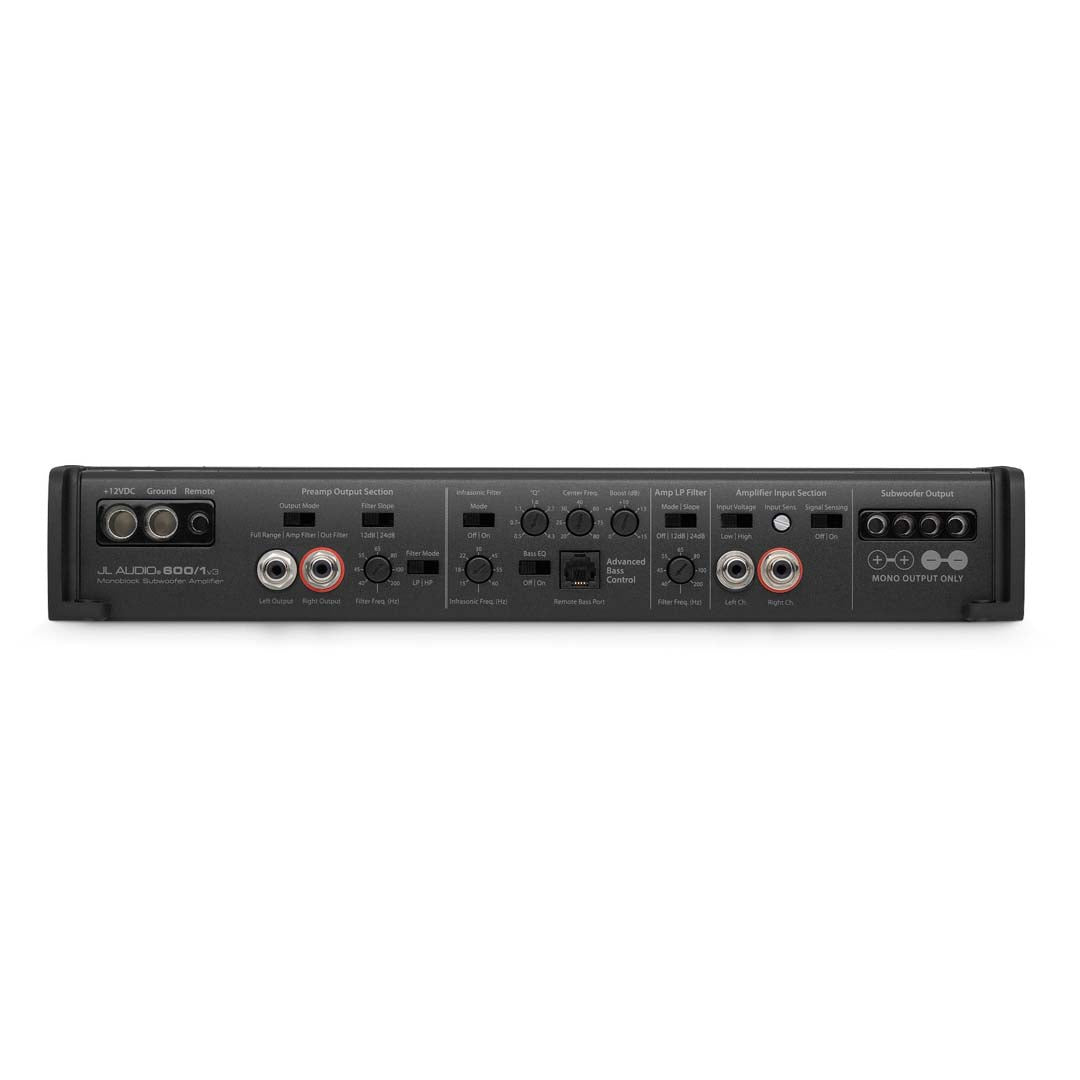

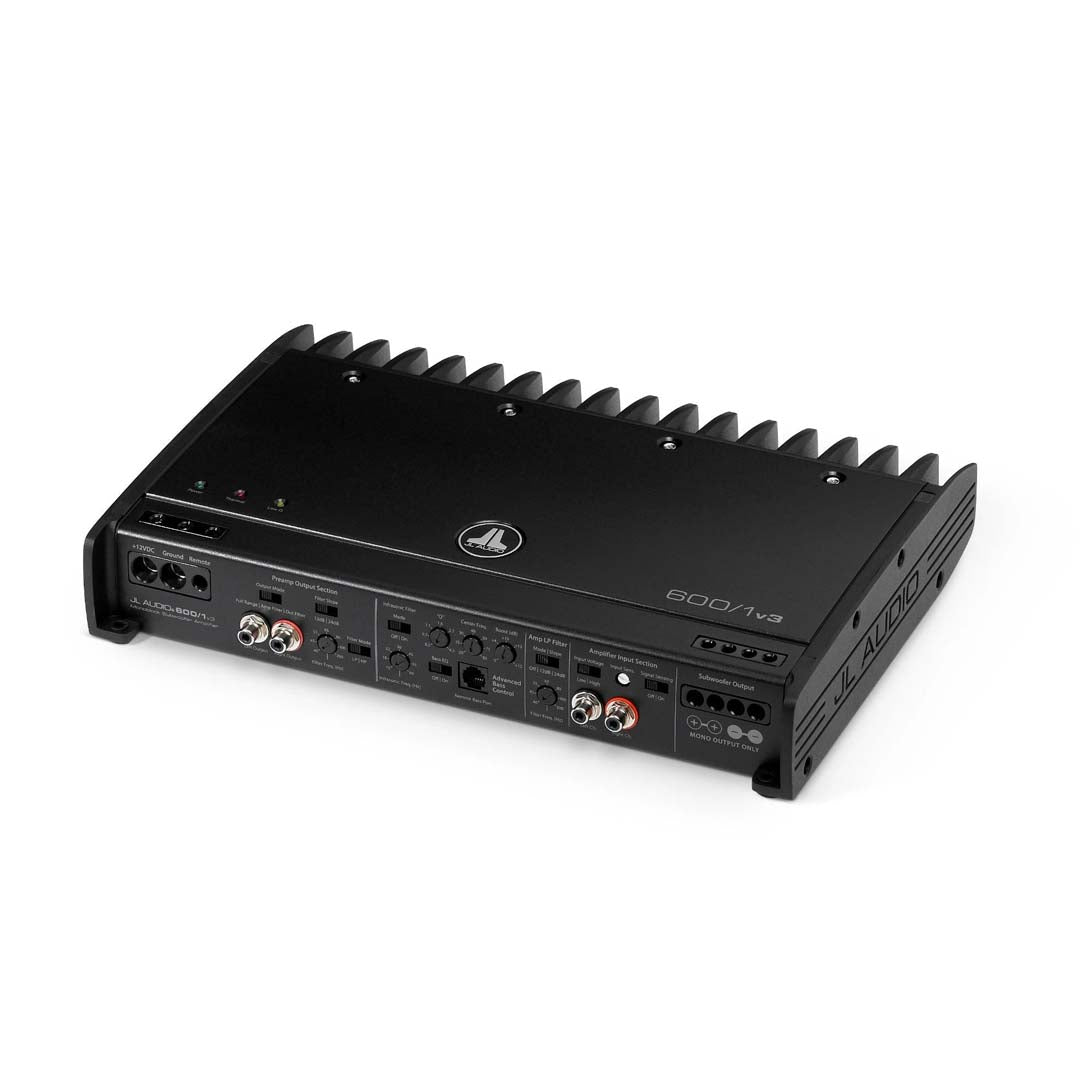

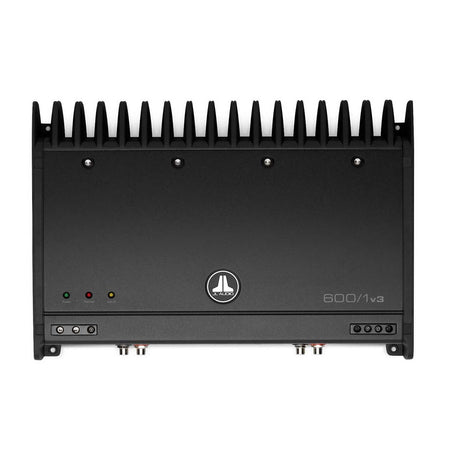

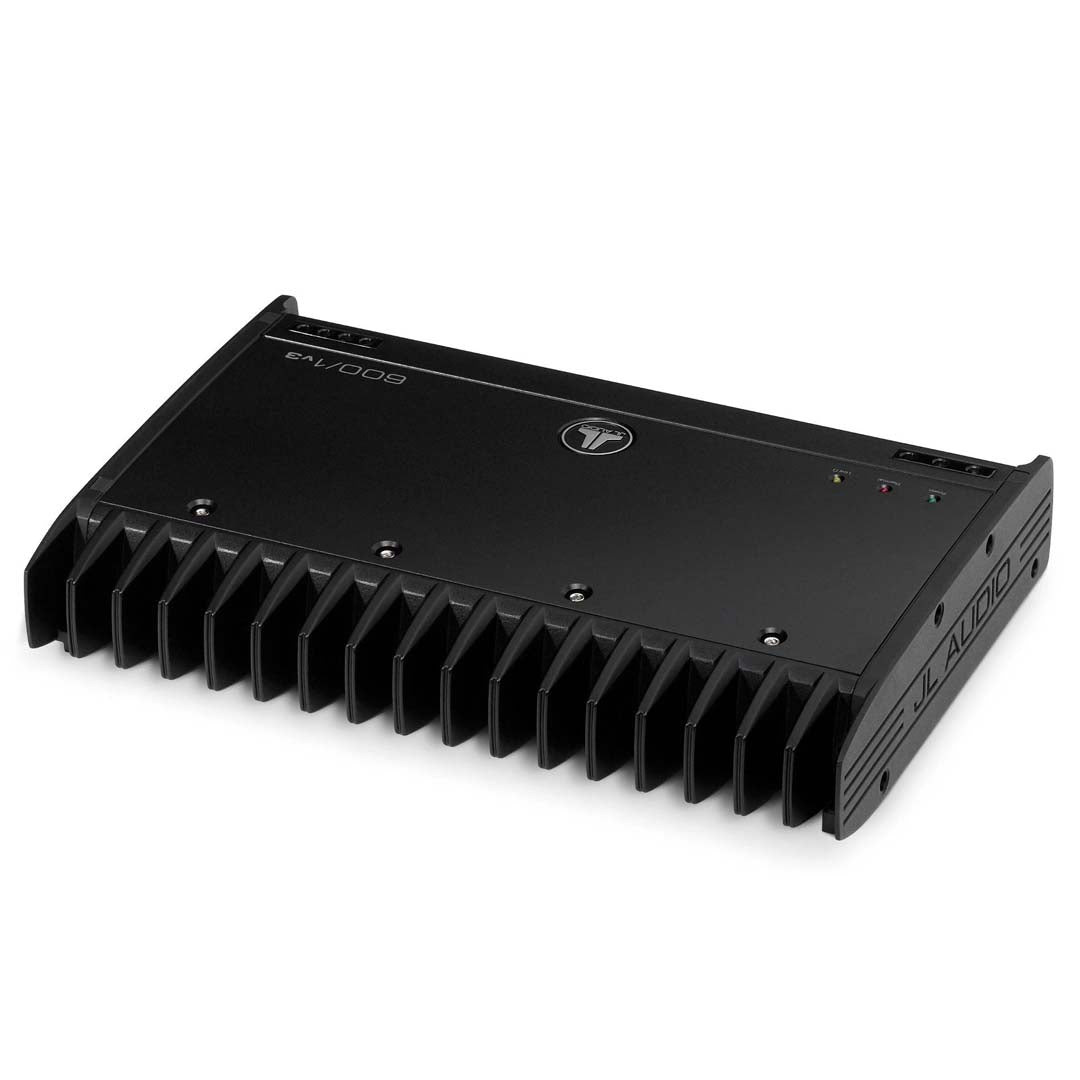

JL Audio 600/1v3, Slash Series Class-D Mono Amplifier, 600W
The best-selling amplifiers of all time are back in black!The 600/1v3 deploys efficient Class D technology with a patented control circuit and JL Audio's signature R.I.P.S. power supply design to ensure full power delivery (600 W) over a wide range of load impedances and vehicle voltages.
A very complete set of signal processing features, including a parametric bass EQ and fully variable infrasonic filter, round out the package.This amplifier features an all-black look that is pure, sexy evil, including the powder-coated cast alloy heat sink and end caps.
R.I.P.S. – Regulated, Intelligent Power Supply
The remarkable R.I.P.S. System ensures consistent power delivery over a wide range of battery voltages and load impedances.
Advanced Rollback Protection
JL Audio's exclusive Advanced Rollback Protection circuit monitors the amplifier's thermal condition and adjusts amplifier operation to eliminate annoying amplifier shut-down events.
Patented Class D Circuitry (U.S. Patent #6,441,685)
Our Patented Class D amplifier circuit delivers high efficiency without sacrificing fidelity.
RealSink™
Vertical, cast alloy fins effectively dissipate heat, without resorting to noisy fan-cooling.
Differential-Balanced Inputs
JL Audio’s Differential-Balanced Inputs are engineered to combat induced cable noise, which is a common problem in car and marine audio installations. This technology allows for the use of conventional RCA cables, while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.
|
Number of Channels |
1 |
Class |
D |
Peak Power Rating (Watts) |
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
600 x 1 |
RMS Power Rating (Watts x Channels) - 2 Ohms |
600 x 1 |
RMS Power Rating (Watts x Channels) - 1.5 Ohm | 600 x 1 |
RMS Power Rating - Bridged | N/A |
Minimum Impedance Unbridged (Ohms) |
1.5 |
Minimum Impedance Bridged (Ohms) |
N/A |
THD at Rated RMS Power |
0.03% |
Bulit-in Crossover - Low Pass |
Yes |
Built-in Crossover - High Pass |
N/A |
High Pass Crossover Frequency (Hz) |
N/A |
Low Pass Crossover Frequency (Hz) |
40-200hz |
Signal-to-Noise Ratio |
95dB |
Bass Boost |
0-15dB |
Bass Remote Included |
No |
Fuse Rating | 60A |
CEA-2006 Compliant | Yes |
Maximum Power Wire Gauge Size | 4 Gauge |
Warranty | 1 Year |
Number of Channels |
1 |
Class |
D |
Peak Power Rating (Watts) |
|
RMS Power Rating (Watts x Channels) - 4 Ohms |
600 x 1 |
RMS Power Rating (Watts x Channels) - 2 Ohms |
600 x 1 |
RMS Power Rating (Watts x Channels) - 1.5 Ohm | 600 x 1 |
RMS Power Rating - Bridged | N/A |
Minimum Impedance Unbridged (Ohms) |
1.5 |
Minimum Impedance Bridged (Ohms) |
N/A |
THD at Rated RMS Power |
0.03% |
Bulit-in Crossover - Low Pass |
Yes |
Built-in Crossover - High Pass |
N/A |
High Pass Crossover Frequency (Hz) |
N/A |
Low Pass Crossover Frequency (Hz) |
40-200hz |
Signal-to-Noise Ratio |
95dB |
Bass Boost |
0-15dB |
Bass Remote Included |
No |
Fuse Rating | 60A |
CEA-2006 Compliant | Yes |
Maximum Power Wire Gauge Size | 4 Gauge |
Warranty | 1 Year |
