JL Audio 13TW5v2-4, TW5 Series 13.5" 4-Ohm Subwoofer, 600W

Model: JL-13TW5v2-4
UPC: 699440921831

JL Audio 13TW5v2-4, TW5 Series 13.5" 4-Ohm Subwoofer, 600W

Price Match Guarantee
Price Match Guarantee
AVLeaderz Cares! We are dedicated to offering the best value to our customers, always. We will match the price, at the time of purchase, on a Price Match Guarantee product if you find the same item at a lower price at a qualifying online retailer or at a local retail competitor's store. Here's how:

  • If you find a qualifying lower price online, call 1-866-859-0896 and provide a customer service agent the web site with the lower price.
  • On qualifying products, AVLeaderz will verify the current price to complete the price match.
Exclusions may apply including, but not limited to, items sold by Marketplace vendors, competitors' service prices, special daily or hourly sales, and items for sale the Sunday before Thanksgiving Day through the Monday after Thanksgiving. More Details
$829.99
JL Audio

60-DAY FREE & EASY RETURNS
Your purchase is backed by our AVLeaderz advantage satisfaction guarantee. Get Free & Easy Returns for 60 days from the day you receive your order.
FREE SHIPPING & FREE RETURNS
-
+
Add to wishlist

To add this product to your wish list you must Login or Register

Not Available for Shiping Outside the United States

Questions? We're here to help.

866-859-0896 ChatEmail Us

PROP 65 WARNING

WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov

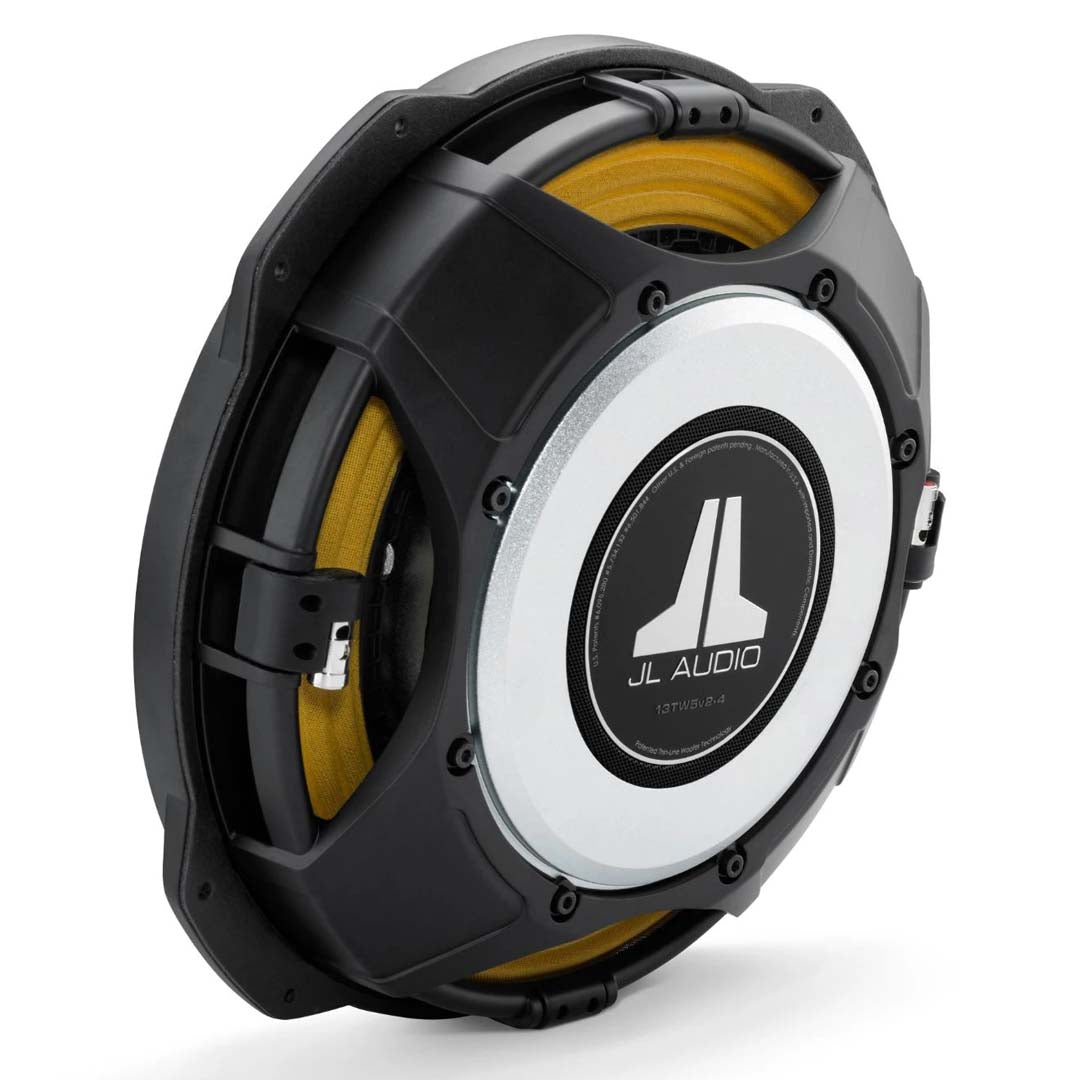

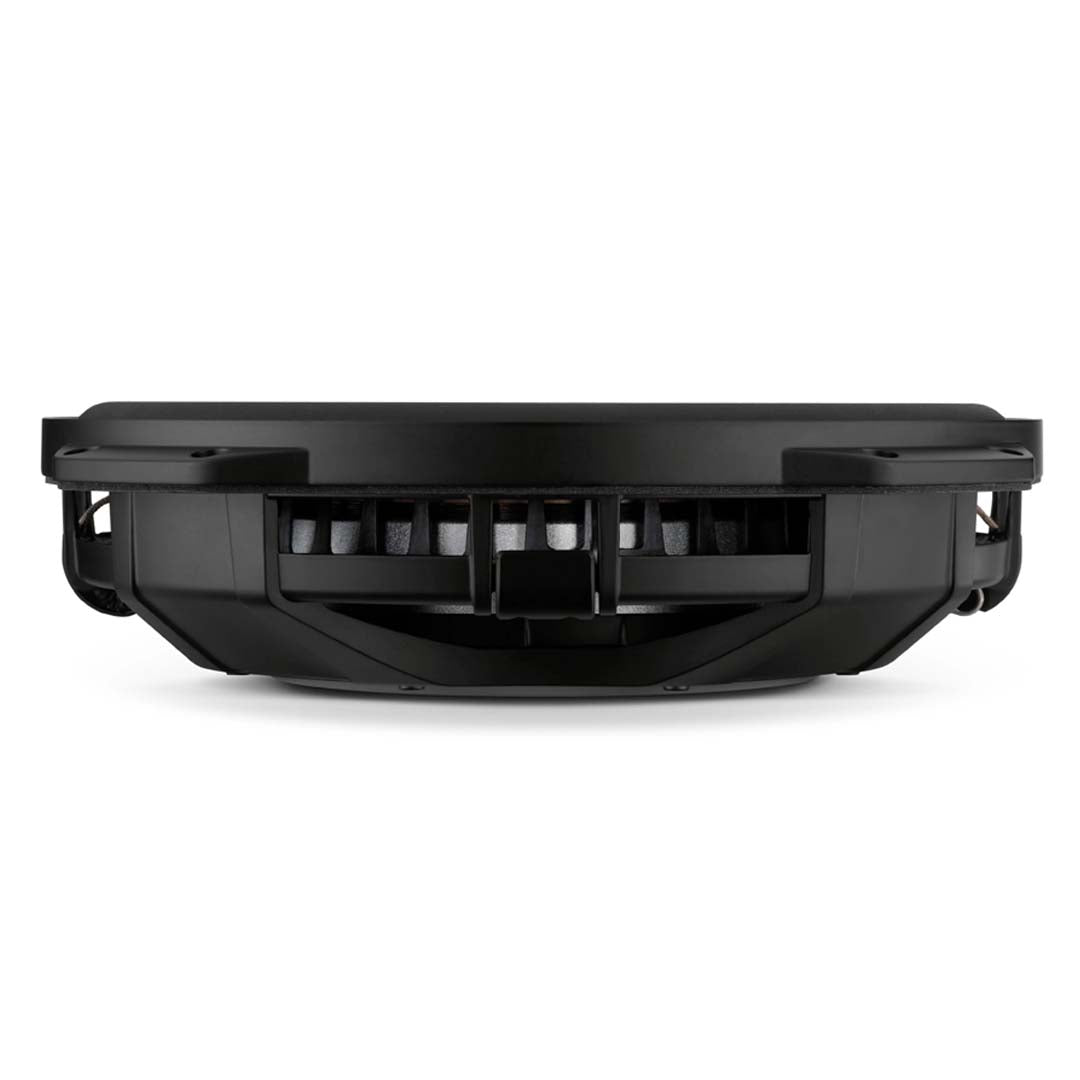

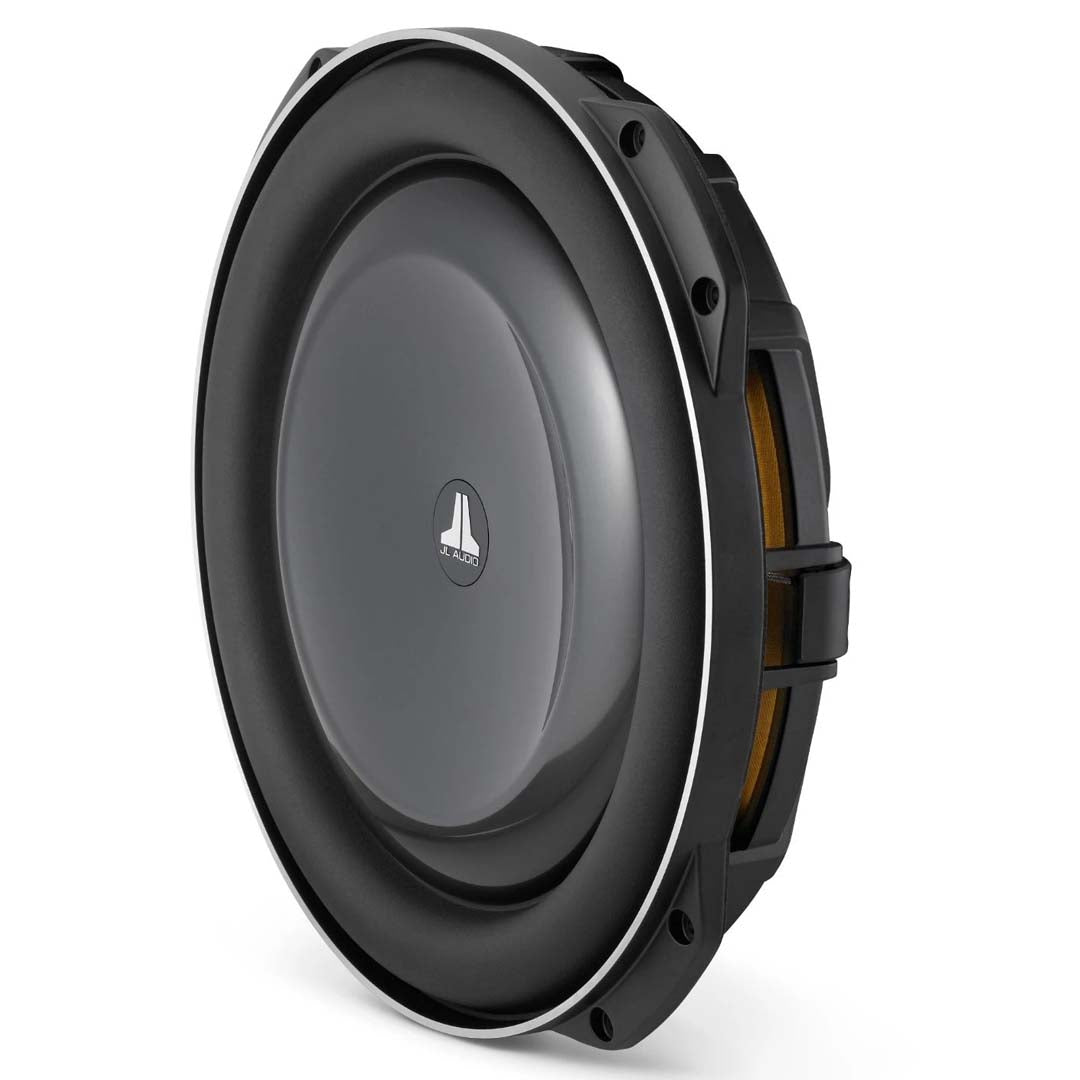

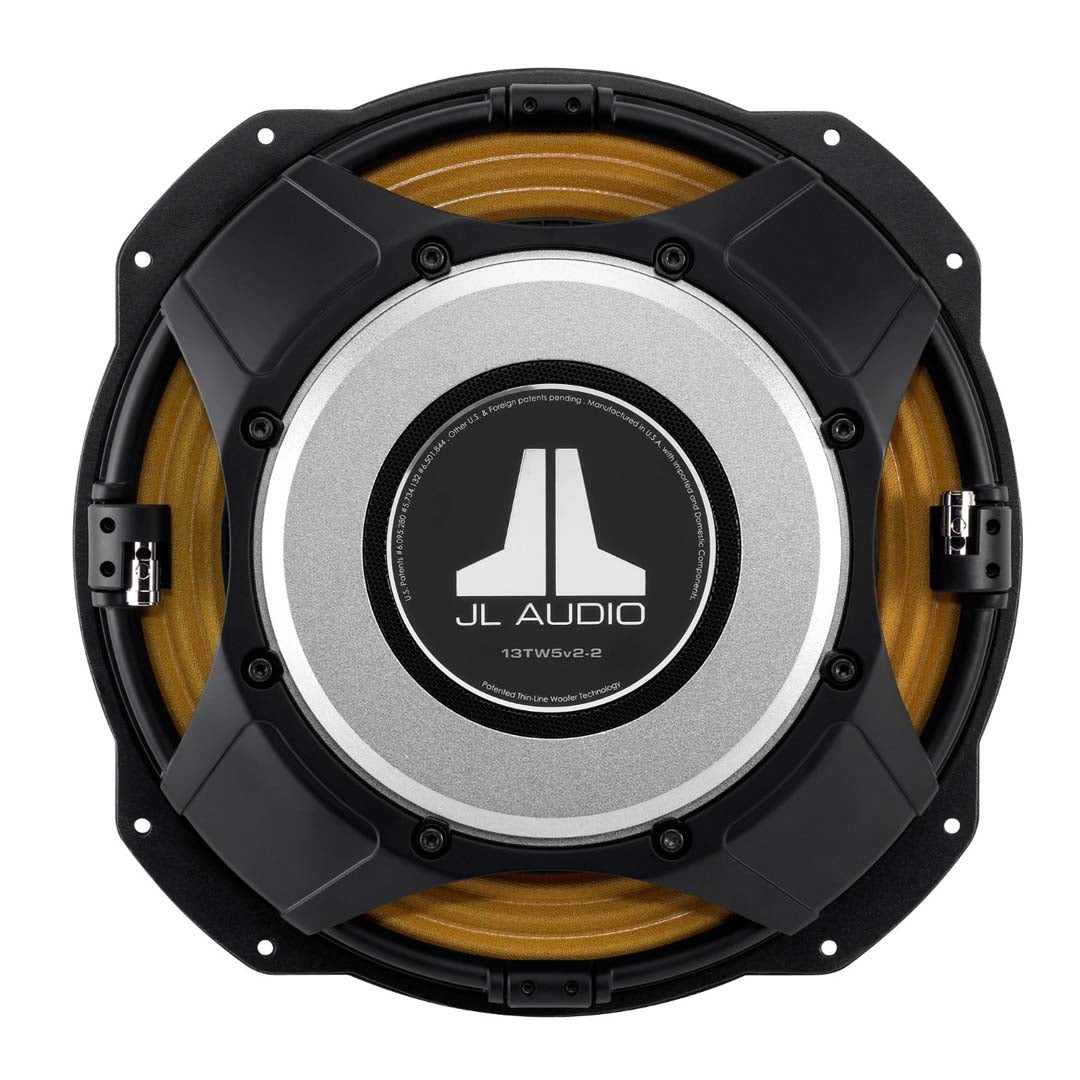

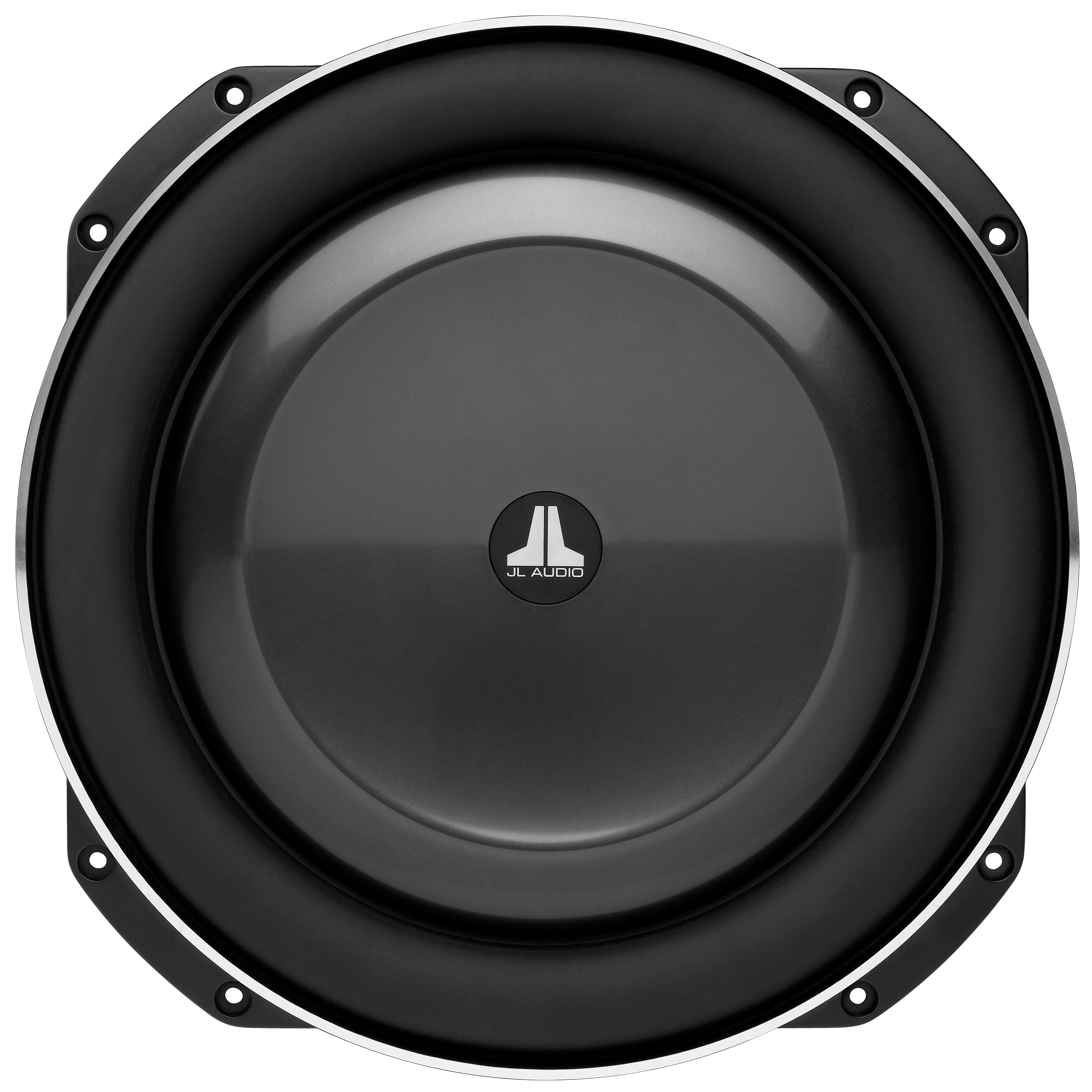

We couldn’t leave the ultimate thin woofer alone... we had to make it even better.Our patented thin-line woofer technology compresses the architecture of the 13TW5v2 using a “concentric tube” structure that supports the 7-inch diameter voice coil and the suspension attachments. This permits placement of the large motor structure much further forward in the speaker than with conventional designs, while allowing excellent linear excursion capability and mechanical stability.
To unleash even more performance from this technology, the v2 improves upon the original 13TW5 with 13% greater linear excursion capability. The cast alloy chassis has also been modified for greater strength and the redesigned motor now features an annular vent. The v2 is also available in single 2 ohm and single 4 ohm voice coil versions to fit a wide range of applications.
In keeping with its “tight-spaces” mission, the 13TW5v2 is optimized for enclosures that are far smaller than most 12-inch woofers require and only a bit larger than the air space needs of a typical, small-box 10-inch woofer. The mounting system is designed to fit in about the same footprint as a typical 12-inch woofer.
The 13TW5v2 is best used with amplifier power in the 250W - 600W range and is optimized to operate in a 0.80 cu. ft. (22.7 l) sealed enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

Dynamic Motor Analysis - DMA Optimized Motor

JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.

Tab-Ear Frame Design

This frame design feature facilitates mounting the Subwoofer in tight spaces.

Floating Cone Attach Method - FCAM™ (U.S. Patent #6,501,844)

This assembly technique, conceived by JL Audio, ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.

Concentric Tube Suspension

Our Concentric Tube Suspension™ technology delivers unprecedented excursion in a low-profile woofer.

Built in U.S.A. with Global Components

JL Audio's Miramar, Florida loudspeaker production facility is one of the most advanced in the world.

Size

13.5-inch

Voice Coil

Single

Impedance

2 ohms

RMS Power Rating (Watts)

600

Peak Power Rating (Watts)

1200
Cone Material

Mica-filled polypropylene

Surround Material

Santoprene

Free Air

No

Sensitivity

85.63 dB at 1 Watt

Frequency Response

20-200hz

Top Mount Depth (Inches)

2 5/8

Bottom Mount Depth (Inches)


Cutout Diameter (Inches)

12 7/16

Vas (liters)

60.31

Fs (Hz)

27.61

Xmax (millimeters)

11

Warranty
1 Year
